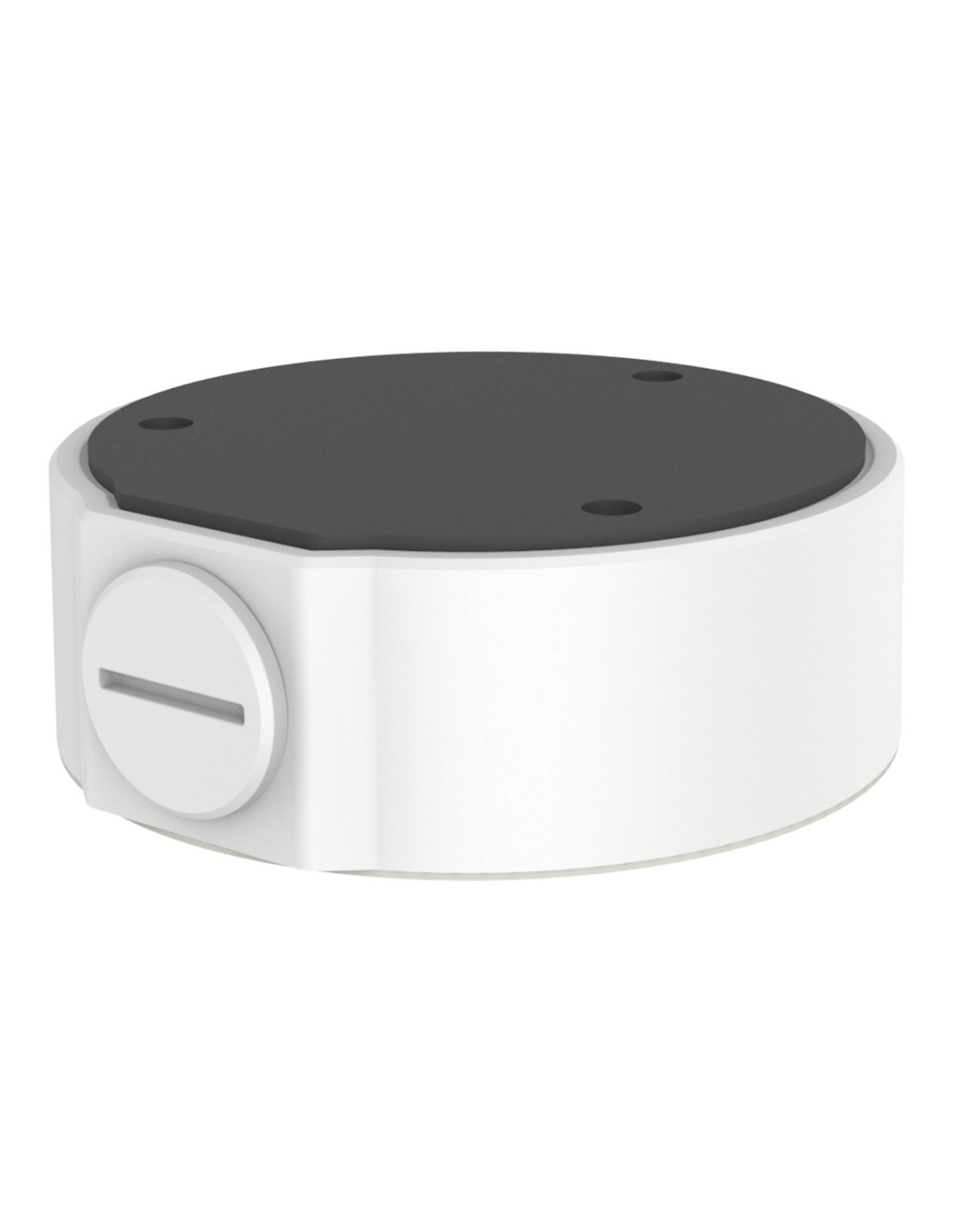

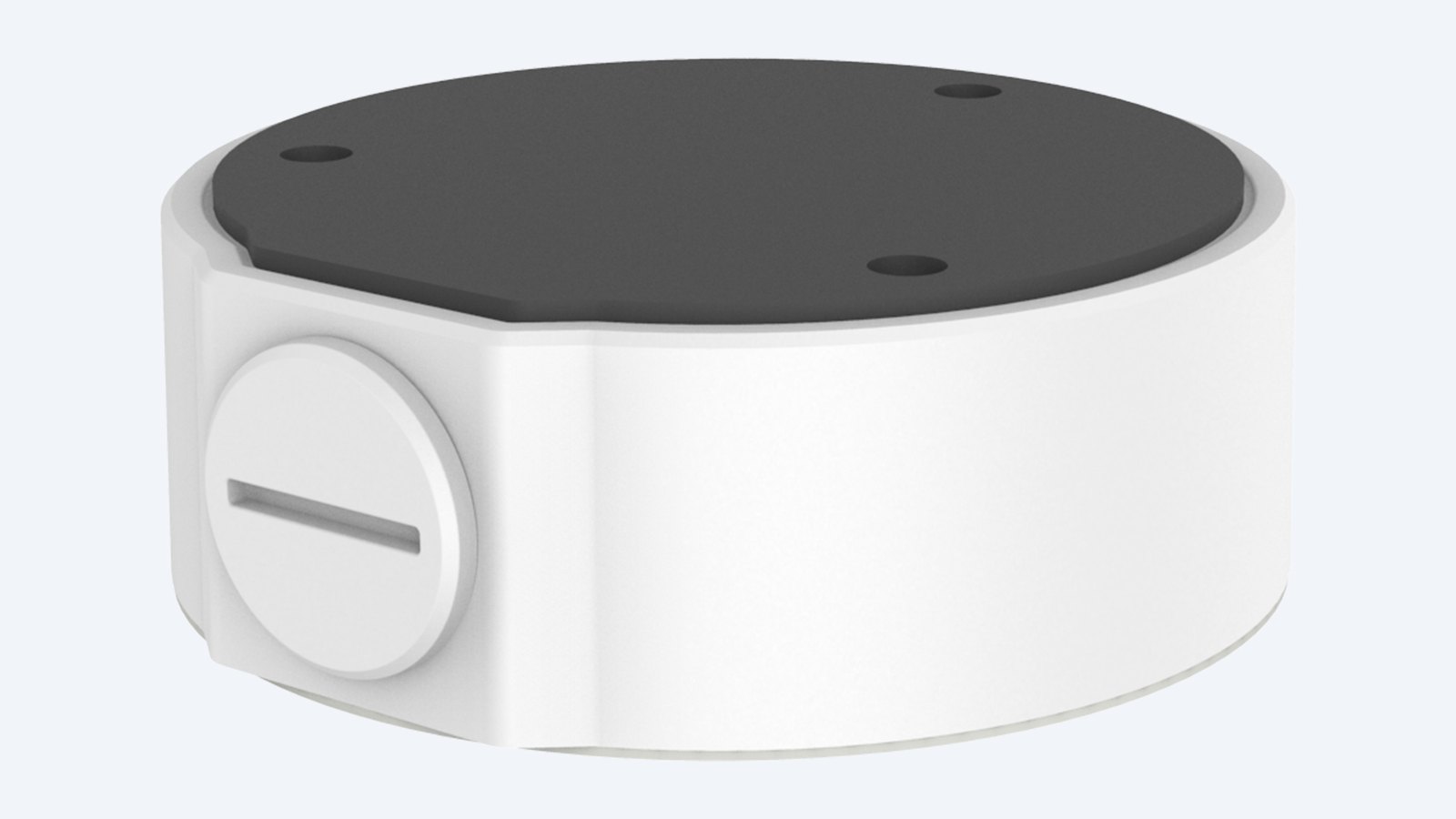

• TR-JB03-H-IN junction box

• A compatible turret (see the list below)
• Screws and plugs to suit your wall or ceiling
• A drill
• Outdoor sealant for the cable hole
• An NPT 3/4" cable gland or conduit fitting if you use the side entry

01

Mark and drill

Hold the box in place and mark the base holes. Drill a cable hole in the middle if the cable comes from the wall or ceiling.

02

Fix the box

Screw the box down. For surface cable, fit a gland or conduit to the side entry; otherwise leave the cap on.

03

Connect the camera

Plug in the camera’s cable tail and tuck the joint inside the box.

04

Fit and aim

Screw the camera’s base to the box, then aim the camera.

Camera

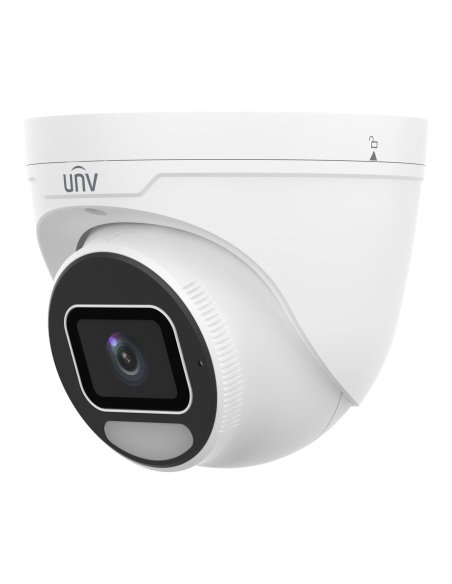

Uniview IPC3638SE Tri-Guard turret

8MP turret with warm light, siren and two-way talk.

Wall arm

TR-WM03-B-IN wall mount

Holds the same turrets out from a wall.

Pendant

TR-CM24-IN pendant

With this box, hangs the turret from an indoor ceiling.

Black

TR-JB03-H-IN-BK

The same box in black.

Brick and render walls

No large hole needed behind the camera.

Eaves and soffits

A tidy, solid base under eaves and verandas.

Surface conduit

Conduit straight into the side entry on finished walls.

Retrofits

Covers an old, oversized hole from a previous camera.

Which cameras does it fit?

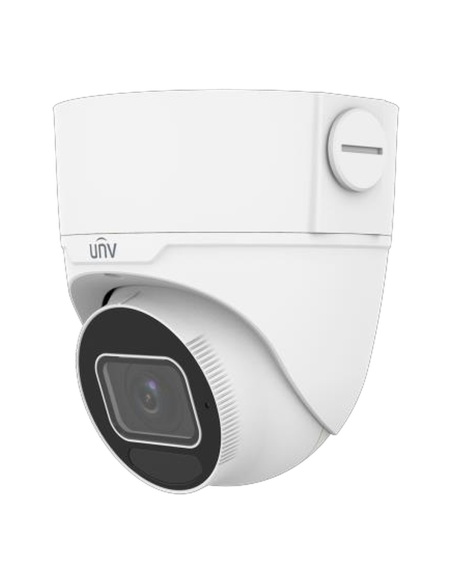

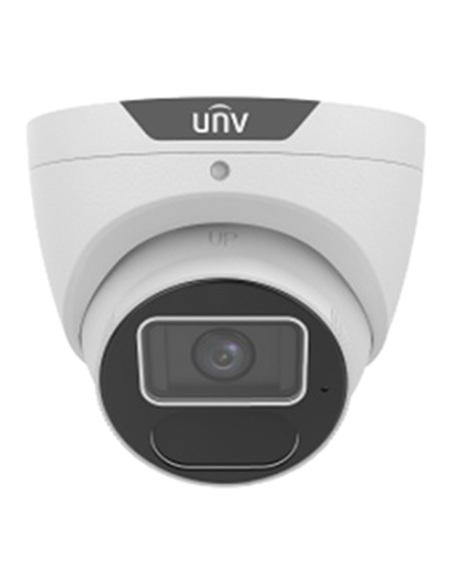

Uniview lists it for its IPC363X and IPC36XXS/E turret series. From our range: IPC3616SS, IPC3618SS, IPC3635SB, IPC3636LE, IPC3636SS, IPC3638SB, IPC3636SE, IPC3638SE, IPC3638SS and IPC815SB. Uniview’s accessory guide also lists it for the IPC814 and IPC815 fisheyes. For the Easy IPC36XXL turrets use the TR-JB03-I-IN.

Why use a junction box at all?

It gives the camera’s cable tail and RJ45 plug a covered space. Without it, the joint either hangs outside or needs a large hole behind the camera.

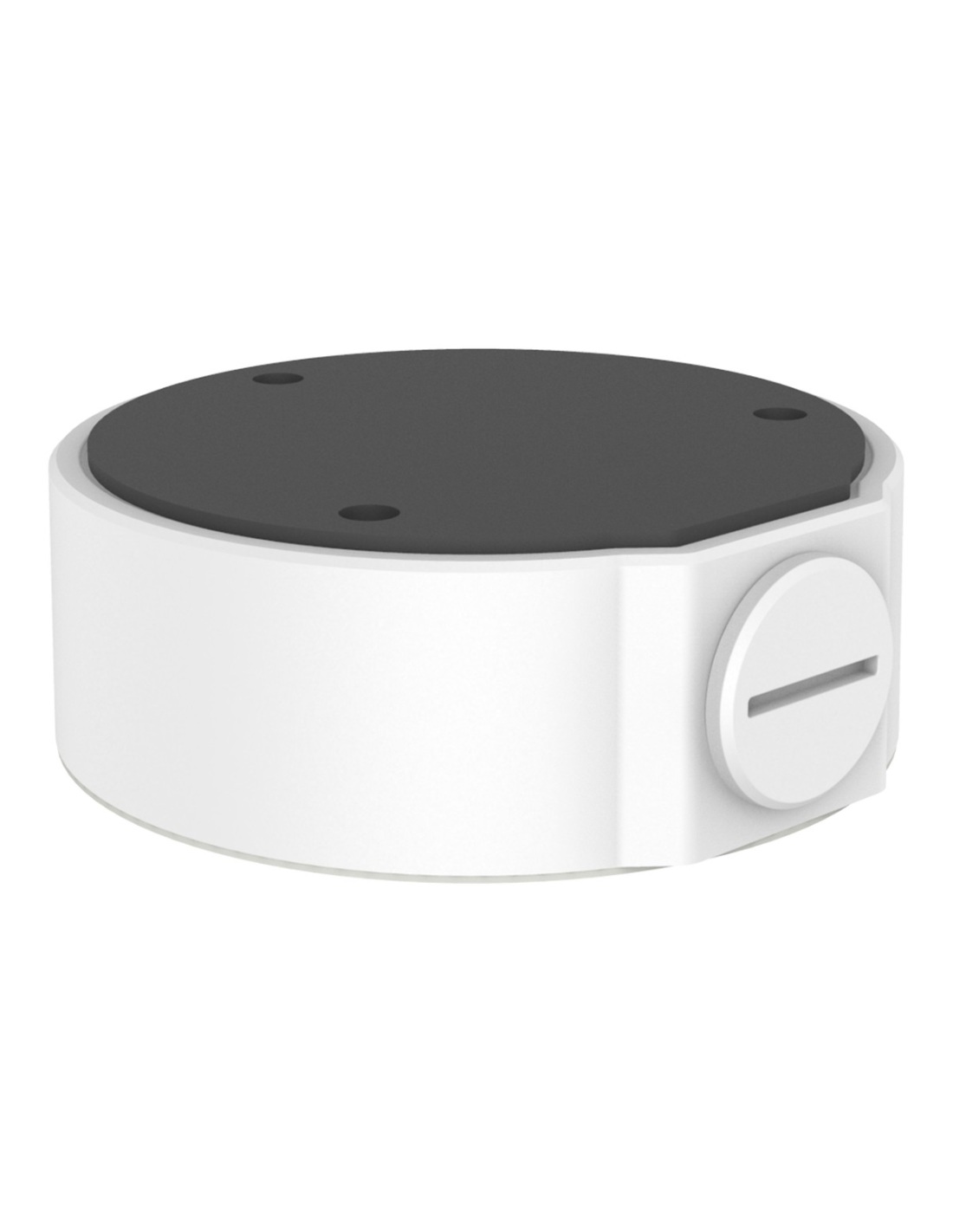

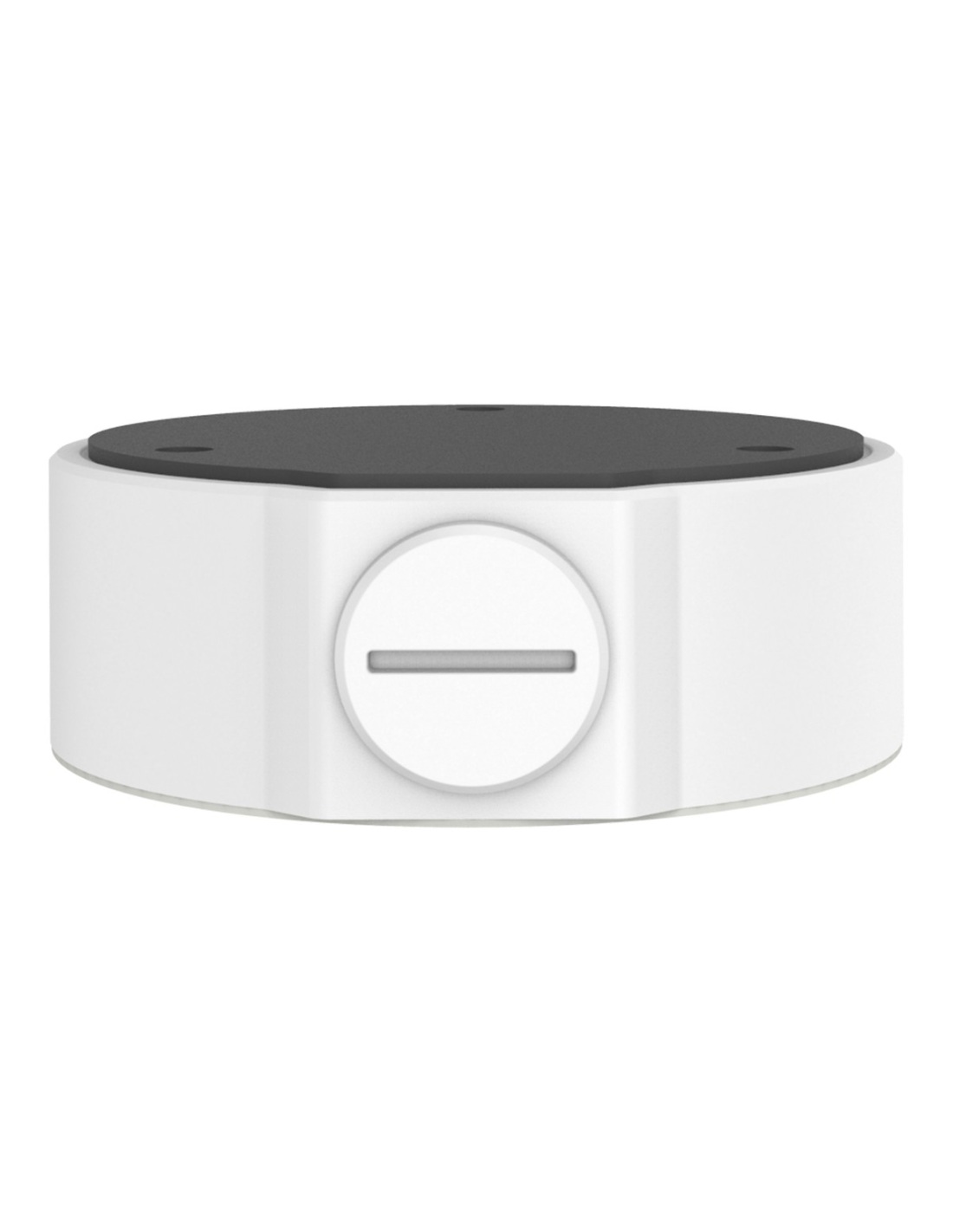

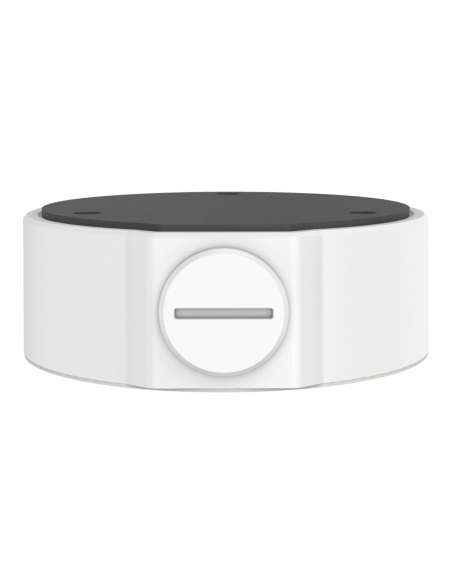

Can the cable come in from the side?

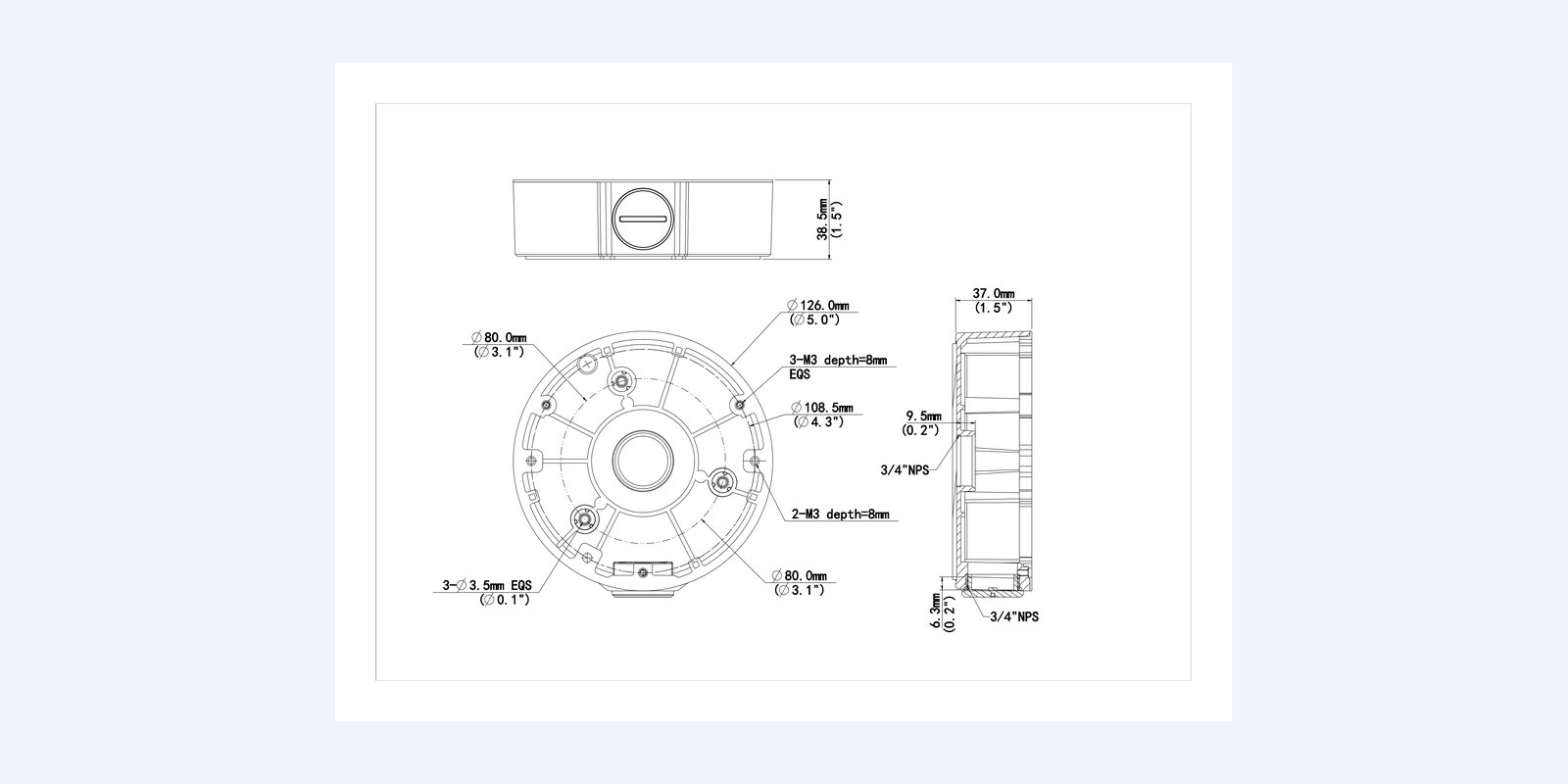

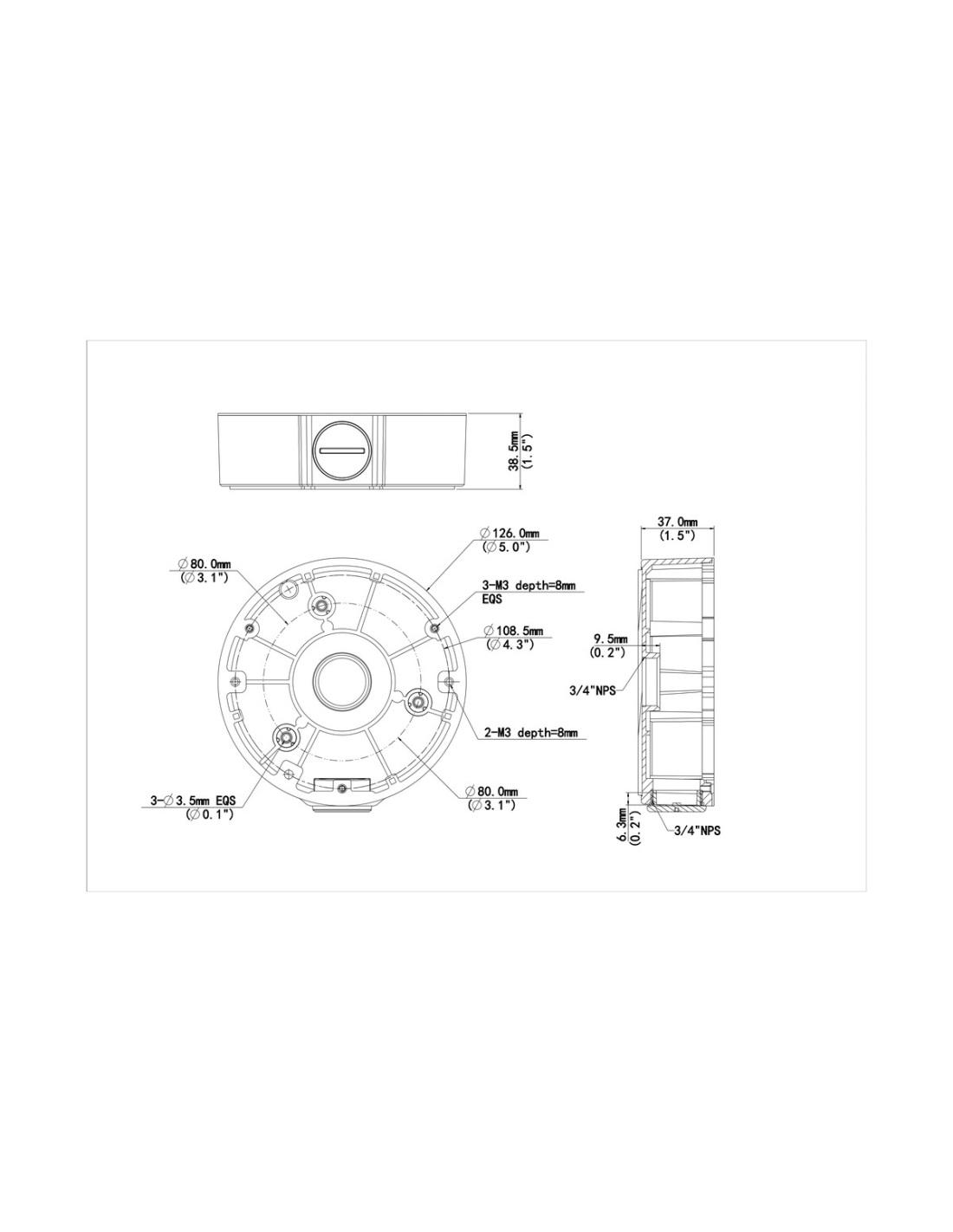

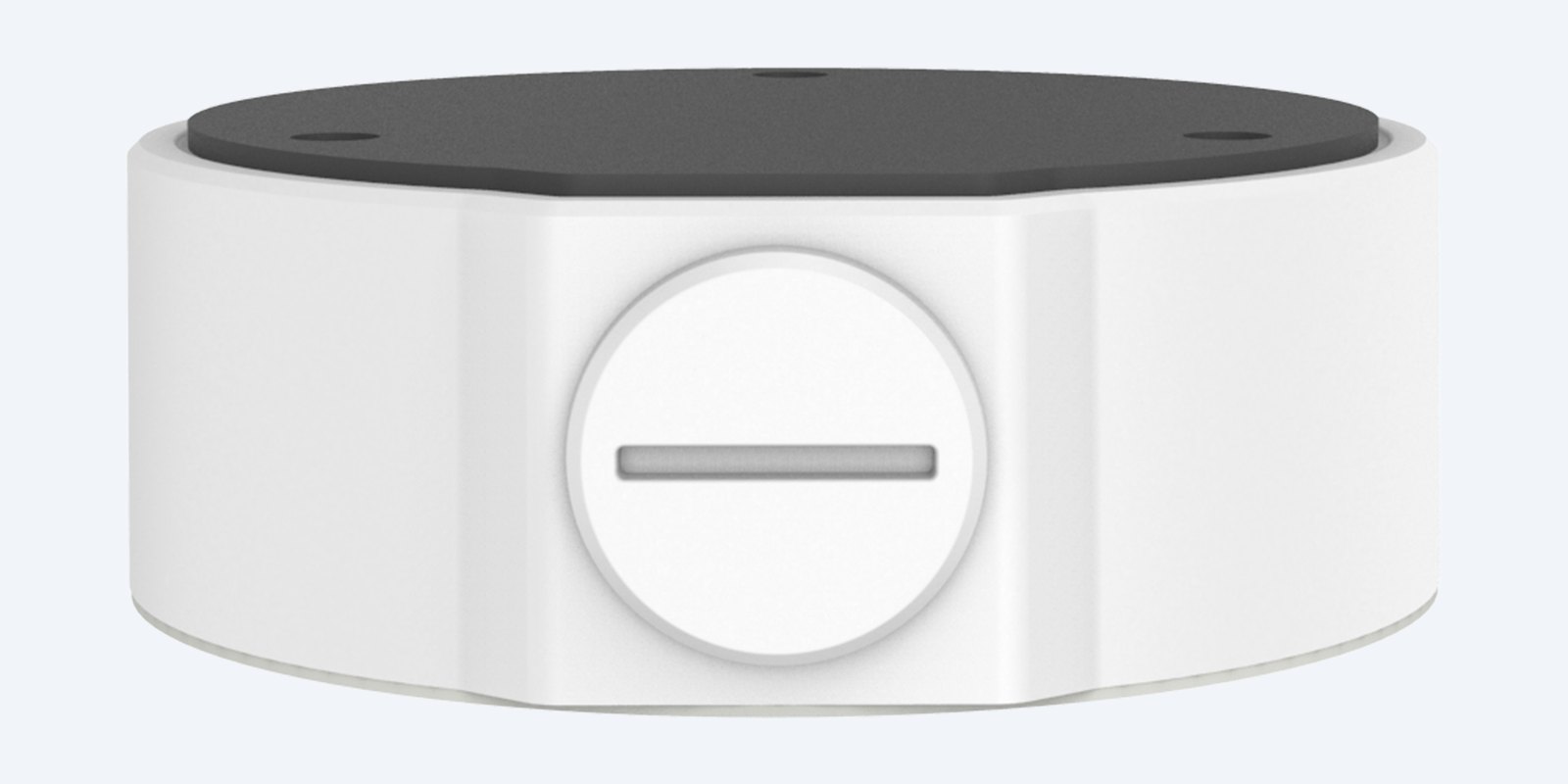

Yes. Uniview’s drawing shows a 3/4" NPS threaded entry on the side (closed with a screw cap) and another in the base. Uniview’s TR-A01-IN is an NPT 3/4" waterproof gland for it; for Australian 20 mm conduit use a matching thread adapter.

How big is it?

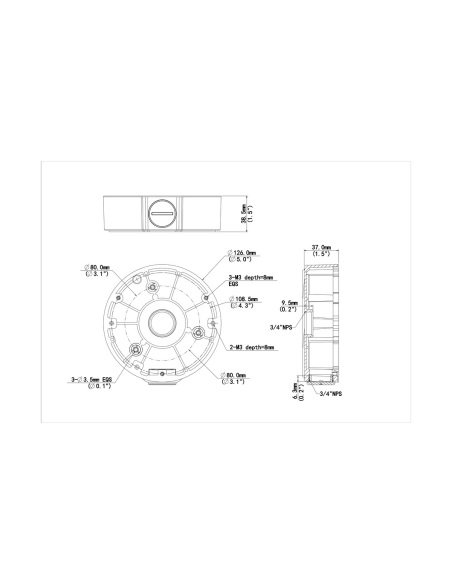

Ø126 mm across and 38.5 mm deep. It weighs 0.24 kg.

What screws do I need?

Screws and plugs to suit your surface: masonry plugs for brick, cavity anchors for plasterboard, or timber screws into eaves and battens. The base has three Ø3.5 mm holes on an 80 mm circle. Uniview does not list fixings in the box.

Can I use it outdoors?

Yes, the turrets it fits are IP67 outdoor cameras. Uniview does not publish an IP rating for the box itself, so seal the wall hole and fit a gland or the cap on the side entry.

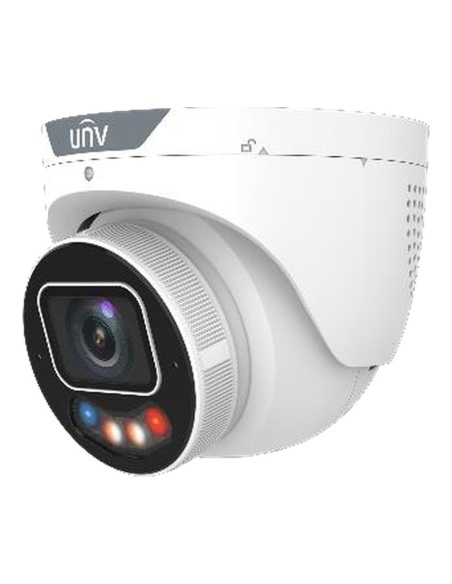

Does it fit the Tri-Guard turrets?

Yes. The IPC3636/3638 SE and SS Tri-Guard turrets are IPC363X models, and Uniview lists this box for that series.

Can I mount the turret out from a wall instead?

Yes. Use the TR-WM03-B-IN wall arm, or the TR-JB07/WM03-F-IN wall arm with a junction box built in.

What is it made of?

Aluminium alloy, 0.24 kg. It will not rust like steel and adds little load to the wall.

Is it white or black?

White. A black version (TR-JB03-H-IN-BK) is listed separately for black cameras.

Do I need a licensed installer?

Fixing the bracket is a normal handyman job. In Australia, fixed data cabling inside walls and ceilings must be run by a registered cabler; plugging a camera into an existing outlet does not need one.

What is the warranty?

Uniview 3-year manufacturer warranty, handled in Australia through InFront. Contact us first and we will organise any claim.
