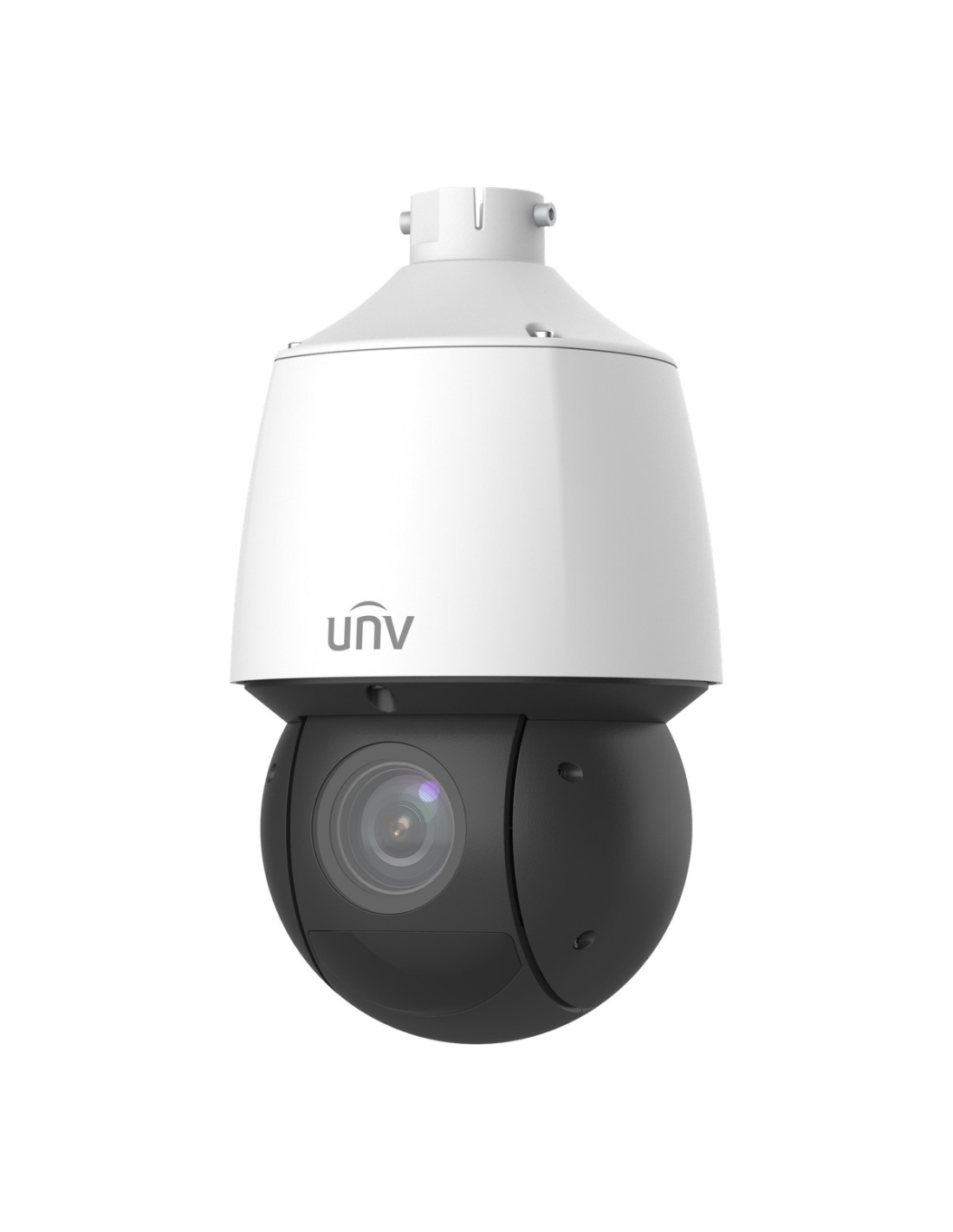

Uniview 4MP 25x PTZ Camera, 4.8-120mm, 100m Smart IR, Auto Tracking, IP67 IK10, PoE+ - IPC6424SR-X25-VF-B
IPC6424SR-X25-VF-B
In stock $ 795.00
inc-GST
or 4 interest-free payments of $198.75 with
A full-size 4MP PTZ with a 25× 4.8–120 mm zoom, 100 m Smart IR, auto tracking of people and vehicles, people counting and 1024 presets in an IP67, IK10 housing on one PoE+ cable.
- ✓4MP, 25× optical zoom
- ✓Identify to 247.5 m
- ✓100 m Smart IR
- ✓Tracks people and vehicles
- ✓IP67, IK10, 6 kV surge
- ✓PoE+ (802.3at), max 21 W
Uniview · 4MP · 25× PTZ
From the whole car park
to one number plate.
This is the Uniview IPC6424SR-X25-VF-B. A full-size 4MP PTZ with a 4.8–120 mm 25× lens and 100 m Smart IR. It tracks people, vehicles and bikes, and pans 360° endlessly at up to 200°/s.
In one sentence: the IPC6424SR-X25-VF-B is a 4MP (2688 × 1520) PTZ with a 4.8–120 mm F1.5–3.8 lens, 25× optical zoom, 100 m Smart IR, LightHunter, auto tracking, people counting, 1024 presets, IP67 and IK10, powered by PoE+ or 12 V DC.
Needs a bracket and a PoE+ port.
The camera is heavier than a fixed camera and draws up to 21 W, so plan the bracket and power first. Uniview lists the TR-WE45-IN and TR-WE45-A-IN wall mounts and TR-UC08-A-IN corner mount for it.
In the box
- IPC6424SR-X25-VF-B camera
- Waterproof cable parts
- Quick guide
You also need
- A PoE+ (802.3at) port, or a 12 V DC 3 A supply
- Cat6 cable to the camera
- A wall or corner bracket (TR-WE45-IN, TR-WE45-A-IN or TR-UC08-A-IN)
- A microSD card up to 512GB, to record on the camera
Long reach, day and night.
At 4.8 mm it sees 52.2° across; at 120 mm, 2.74°. Uniview rates it to identify a person at up to 247.5 m fully zoomed in. LightHunter keeps colour down to 0.003 lux, and Smart IR takes over to 100 m in the dark.

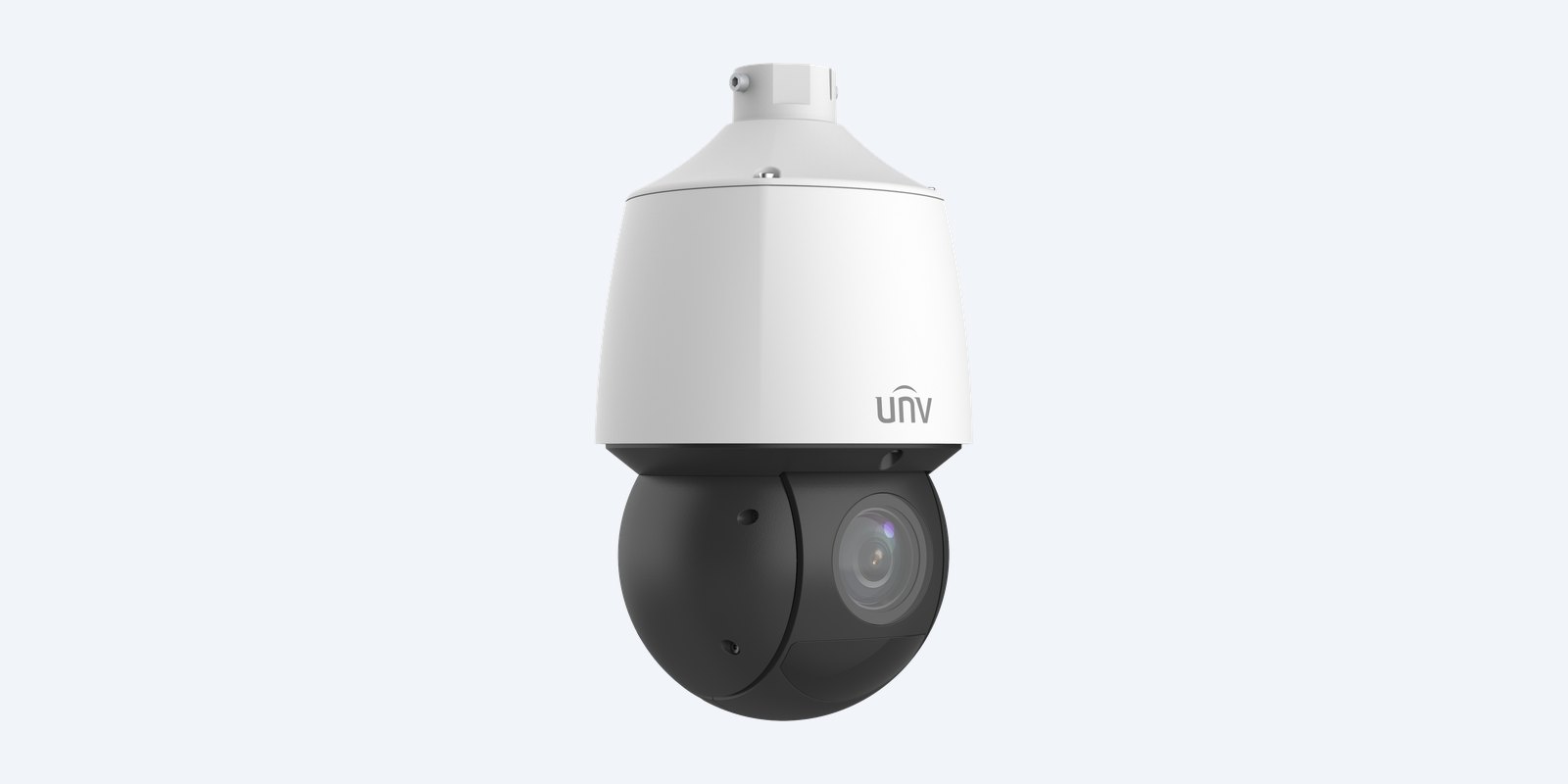

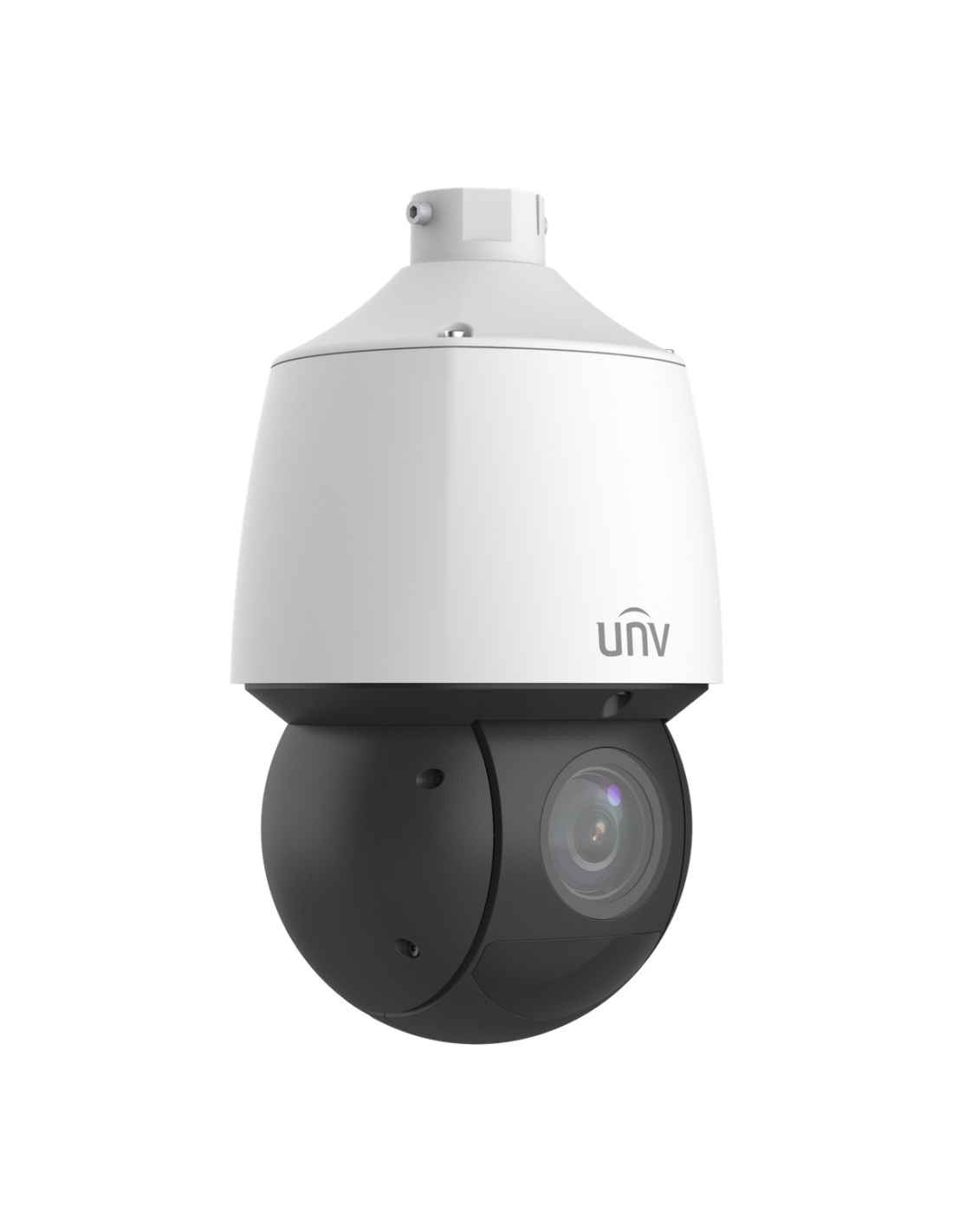

Design
A full-size PTZ dome.
IP67 and IK10 with 6 kV surge protection, working from −40 °C to 70 °C. Pan 360° endless, tilt −15° to 90°.

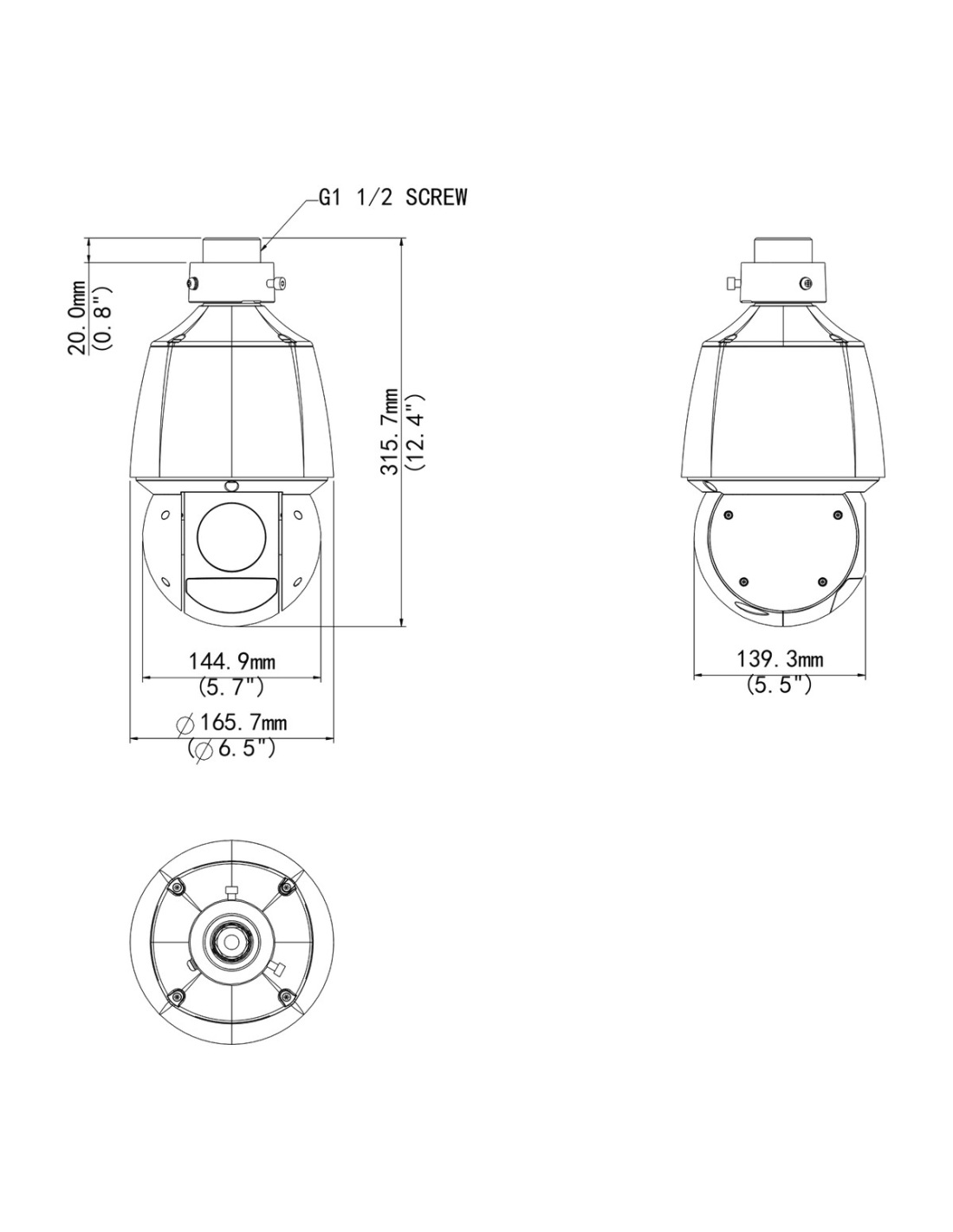

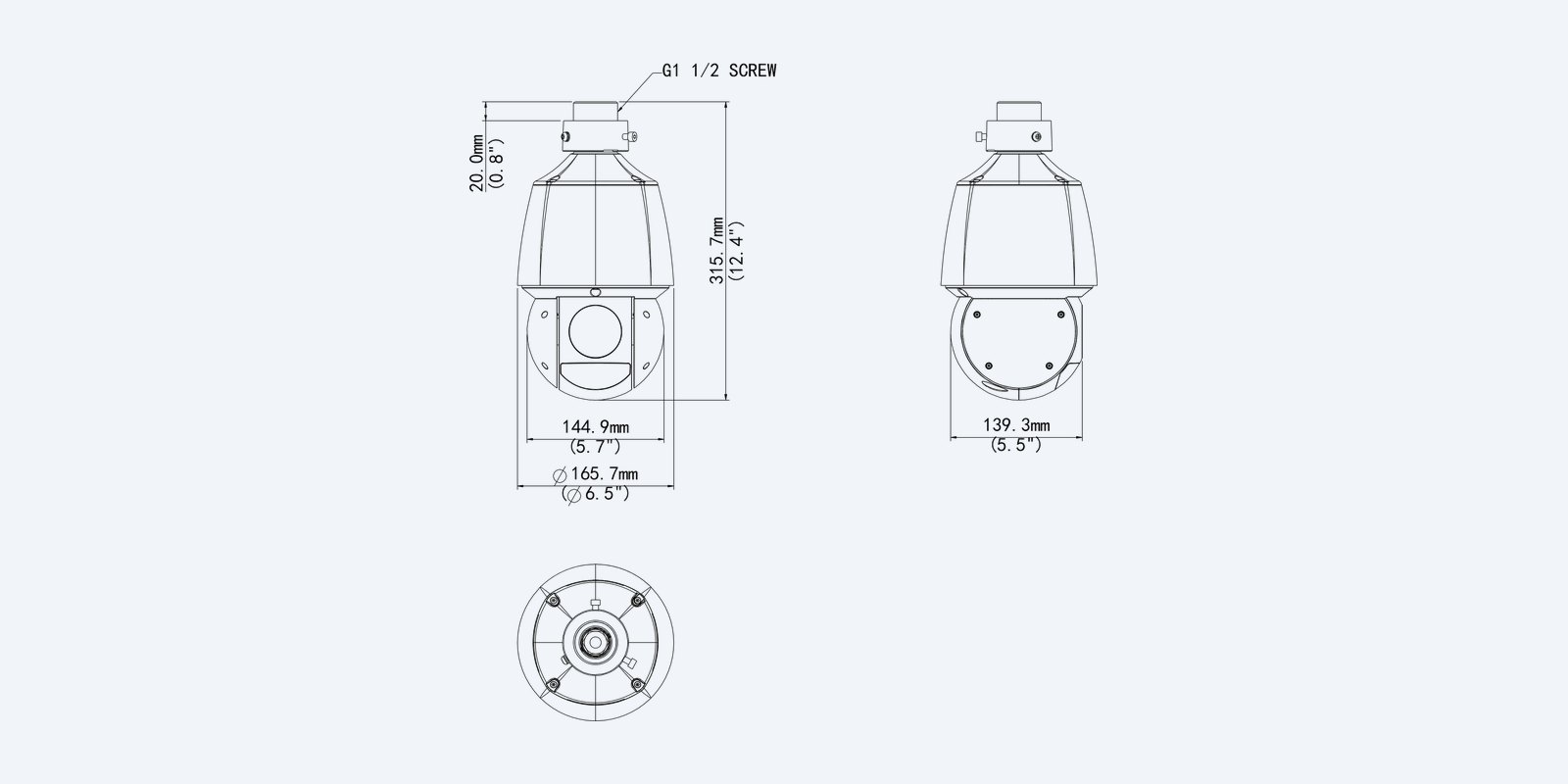

Dimensions
Ø162 × 293 mm, 3.05 kg.
Plan for a solid wall or corner bracket: Uniview lists the TR-WE45-IN, TR-WE45-A-IN and TR-UC08-A-IN for it.
How it goes in
From the box to patrolling.
01
Plan power and mount
Pick a high point with a clear view of the areas to patrol. Check you have a PoE+ (802.3at) port.
02
Fix the bracket
Mount the bracket on a solid wall, corner or pole, run the cable through it and hang the camera. Seal the cable joint with the supplied waterproof parts.
03
Power it up
Run Cat6 to a PoE+ port on the switch or NVR, and add it to the NVR or the EZView app.
04
Set presets and rules
Save presets, set up patrols, draw lines and zones, then turn on auto tracking.
At a glance
IPC6424SR-X25-VF-B
Show specs
Resolution
4MP (2688 × 1520)
Sensor
1/2.8" CMOS
Lens
4.8–120 mm, F1.5–3.8
Zoom
25× optical, 16× digital
View
52.2° to 2.74° across
Identify / recognise / detect
Identify at 11.9–247.5 m
Low light
0.003 lux colour, 0 lux with IR (LightHunter)
WDR
120 dB true WDR
Night vision
Smart IR up to 100 m
Frame rate
30 fps at 4MP
Compression
Ultra 265, H.265, H.264, MJPEG
Smart detection
Line crossing, intrusion, region entrance and exit; auto tracking of people, non-motor vehicles and vehicles; people counting; best snapshot
Audio
1 audio in, 1 out
Pan and tilt
Pan 360° endless at 0.1–200°/s; tilt −15° to 90° at 0.1–120°/s
Presets and patrols
1024 presets
Other connections
Alarm 2 in, 1 out; RS485
On-camera storage
microSD up to 512GB; ANR
ONVIF
Profile S, G, T, M
Network
1 × RJ45 10/100
Power
PoE+ (802.3at) or 12 V DC 3 A, max 21 W
Weather and impact
IP67, IK10, 6 kV surge
Operating
−40 °C to 70 °C
Size and weight
Ø162 × 293 mm, 3.05 kg
Pair it with
What goes with it
Recorder
Uniview PoE NVR
Uniview recorders add the camera over one Cat6 cable, bring in its smart events and keep weeks of footage on their hard drives.
Walls
TR-WE45-IN / TR-WE45-A-IN wall mount
Listed by Uniview for this camera.
Corners
TR-UC08-A-IN corner mount
Listed by Uniview for this camera, used with a wall mount on a building corner.
Cabling
Cat6 cable
Solid copper Cat6 for PoE runs up to 100 m from the switch or recorder.
Where it is used
Where it fits
Car parks
Zoom from the whole lot to one car.
Industrial estates
Track people and vehicles along the boundary.
Logistics yards
Gates, docks and trailers from one pole.
Councils and campuses
Long sight lines across open ground.
Uniview PTZ cameras side by side
| IPC6324LWH | IPC6434LR | IPC6424SR-B | IPC94144SFW | IPC6624SFW | IPC6828EL | |
|---|---|---|---|---|---|---|
| Resolution | 4MP | 4MP | 4MP | 4MP PTZ + 4MP fixed | 4MP, up to 60 fps | 8MP 4K |
| Optical zoom | 5× | 16× | 25× | 25× | 25× | 42× |
| Identify at full zoom | 20.9 m | 204.8 m | 247.5 m | 270 m | 240.8 m | 482.9 m |
| Night vision | 40 m warm light | 100 m IR | 100 m IR | 100 m IR, 30 m warm light | 250 m IR, 100 m warm light | 500 m laser IR |
| Auto tracking | People | People and vehicles | People and vehicles | From the fixed lens | Yes | Yes |
| Warning light and sound | Speaker | — | — | Light and speaker | Red and blue light, speaker | — |
| Power | PoE+ or 12 V, 25.4 W | PoE+ or 12 V, 23 W | PoE+ or 12 V, 21 W | PoE+ or 12 V, 24 W | PoE+ or 24 V, 21.7 W | Hi-PoE or 24 V, 67 W |
| Protection | IP66 | IP66, IK10 | IP67, IK10 | IP66 | IP67, IK10 | IP67 |
| Weight | 1.33 kg | 2.3 kg | 3.05 kg | 2.27 kg | 5.2 kg | 6.9 kg |
Model codes shortened. PoE+ is 802.3at; Hi-PoE is 802.3bt. All record to microSD up to 512GB and take 1024 presets. — means not fitted. Figures from the Uniview datasheets.
Common questions
What does auto tracking follow?
People, non-motor vehicles such as bikes, and vehicles. Once one is detected, the camera pans, tilts and zooms to keep it in the picture.
How far does it see at night?
Up to 100 m with Smart IR, which adjusts with the zoom so close targets are not washed out.
Does it have a microphone?
Not built in. It has one audio input and one output for an external mic and speaker.
Does it count people?
Yes, people counting is built in, along with best snapshot of detected targets.
How tough is it?
IP67 and IK10 with 6 kV surge protection, rated from −40 °C to 70 °C.
What is a preset and a patrol?
A preset is a saved position with its own pan, tilt and zoom, such as the gate, the loading dock or the car park entry. A patrol moves the camera through a list of presets on a timer, so one camera keeps watch over several spots.
Does it need a bracket?
Yes. A PTZ camera is heavier than a fixed camera and needs a solid wall, corner, ceiling or pole mount. The Uniview mounts listed for it are shown under What goes with it; call us if you are not sure which one suits the site.
Will it work with my recorder?
Uniview NVRs add it and give you pan, tilt and zoom control from the recorder. Other ONVIF (Profile S, G, T, M) recorders can add it too; smart events and PTZ control depend on that recorder.
Can I control it from my phone?
Yes. In the Uniview EZView app you can watch live, pan, tilt and zoom, jump to presets and play back recordings.
Can it record on its own?
Yes, to a microSD card of up to 512GB. With an NVR, ANR fills any gap from the card when a network drop-out ends.
How is it powered?
By PoE+ (IEEE 802.3at) over one Cat6 cable, or a 12 V DC 3 A supply. It draws up to 21 W, so a standard 802.3af PoE port is not enough.
What is the warranty?
Uniview 3-year manufacturer warranty, handled in Australia through InFront. Contact us first and we will organise any claim.
Supported by Infront Technologies.
Planning a site with panoramic, PTZ or plate cameras? Call 1300 736 970 or email [email protected] with a floor plan or photos and we will suggest the models, mounts and recorder.
Installation and safety
Power. Use a PoE+ (802.3at) port or a regulated 12 V DC 3 A supply. The alarm and RS485 connections are low voltage only.
Weather. IP67 and IK10 with 6 kV surge protection, rated from −40 °C to 70 °C.
Figures. From the Uniview IPC6424SR-X25-VF-B datasheet. Uniview 3-year manufacturer warranty, handled in Australia through InFront.
- Dimensions
- Ø162 × 293 mm
- Audio
- 1 audio in, 1 out
- Weight
- 3.05 kg
- Operating temperature
- −40 °C to 70 °C
- Power
- PoE+ (802.3at) or 12 V DC 3 A, max 21 W
- Colour
- White
- Video Compression
- Ultra 265, H.265, H.264, MJPEG
- Resolution
- 4MP (2688 × 1520)
- Brand
- Uniview
- Frame Rate
- 30 fps at 4MP
- Interoperability
- Profile S, G, T, M
- Image Sensor
- 1/2.8" CMOS
- Lens
- 4.8–120 mm, F1.5–3.8
- Minimum Illumination
- 0.003 lux colour, 0 lux with IR (LightHunter)
- Field of View
- 52.2° to 2.74° across
- Protection
- IP67, IK10, 6 kV surge
- WDR
- 120 dB true WDR
- Optical Zoom
- 25× optical, 16× digital
- Warranty
- 3 years
- Product Type
- PTZ IP Camera
- Onboard Storage
- microSD up to 512GB; ANR
- Model
- IPC6424SR-X25-VF-B
- Smart detection
- Line crossing, intrusion, region entrance and exit; auto tracking of people, non-motor vehicles and vehicles; people counting; best snapshot
- Night Vision
- Smart IR up to 100 m
- Pan / Tilt
- Pan 360° endless at 0.1–200°/s; tilt −15° to 90° at 0.1–120°/s
