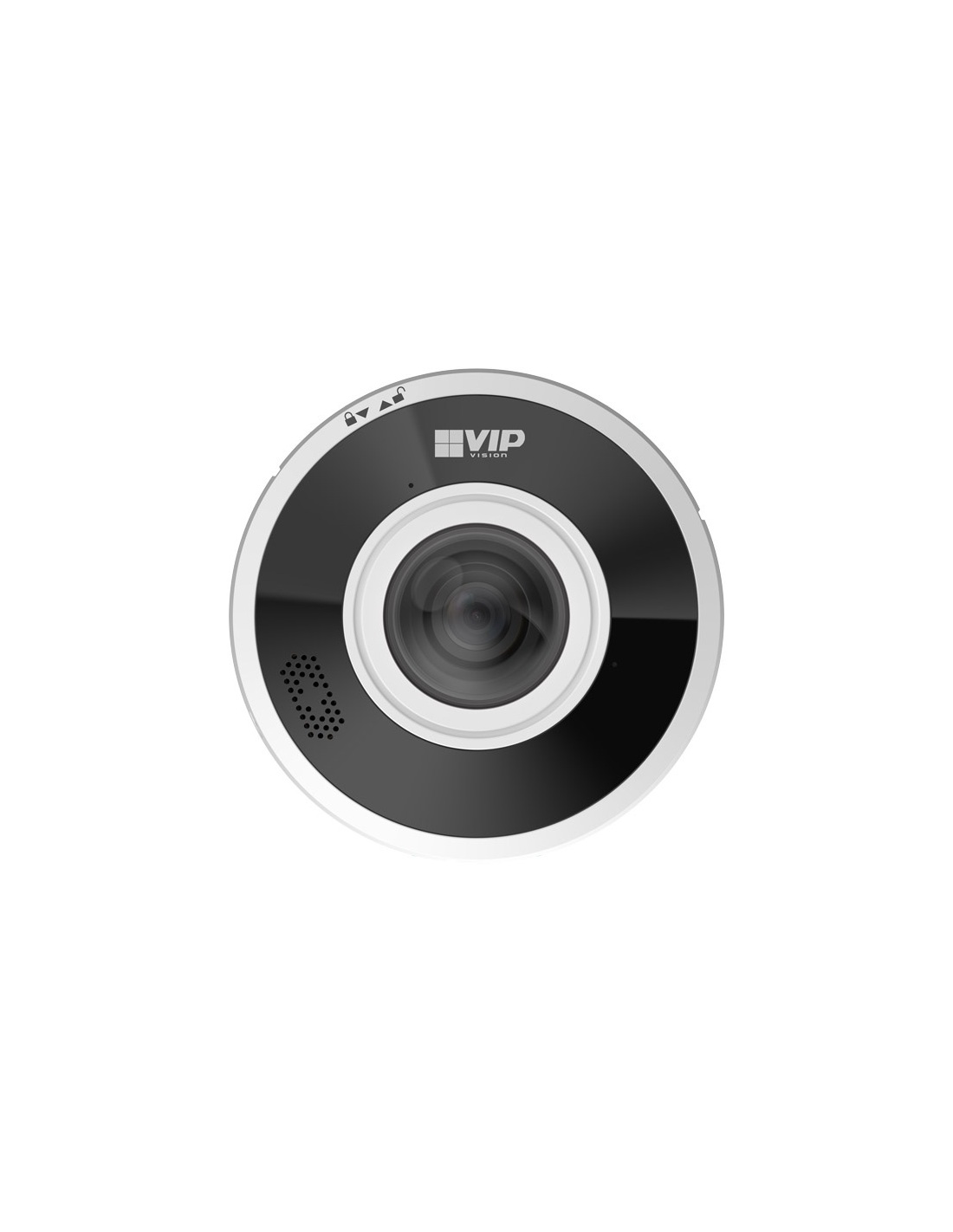

VIP Vision Specialist AI Series 6MP 360° Fisheye VSIPFE-6IR-I

VIP Vision Specialist AI Series 6MP 360° Fisheye Camera with People Counting - VSIPFE-6IR-I

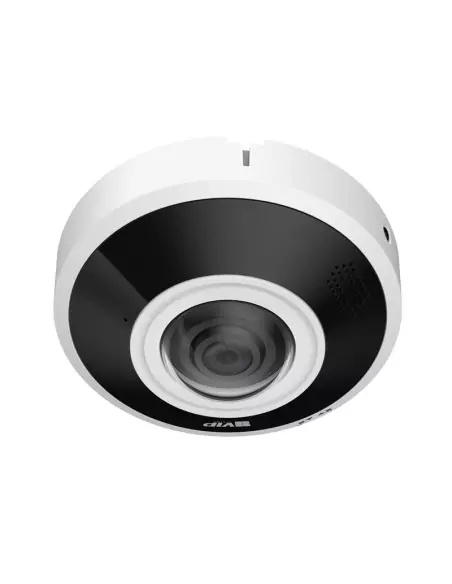

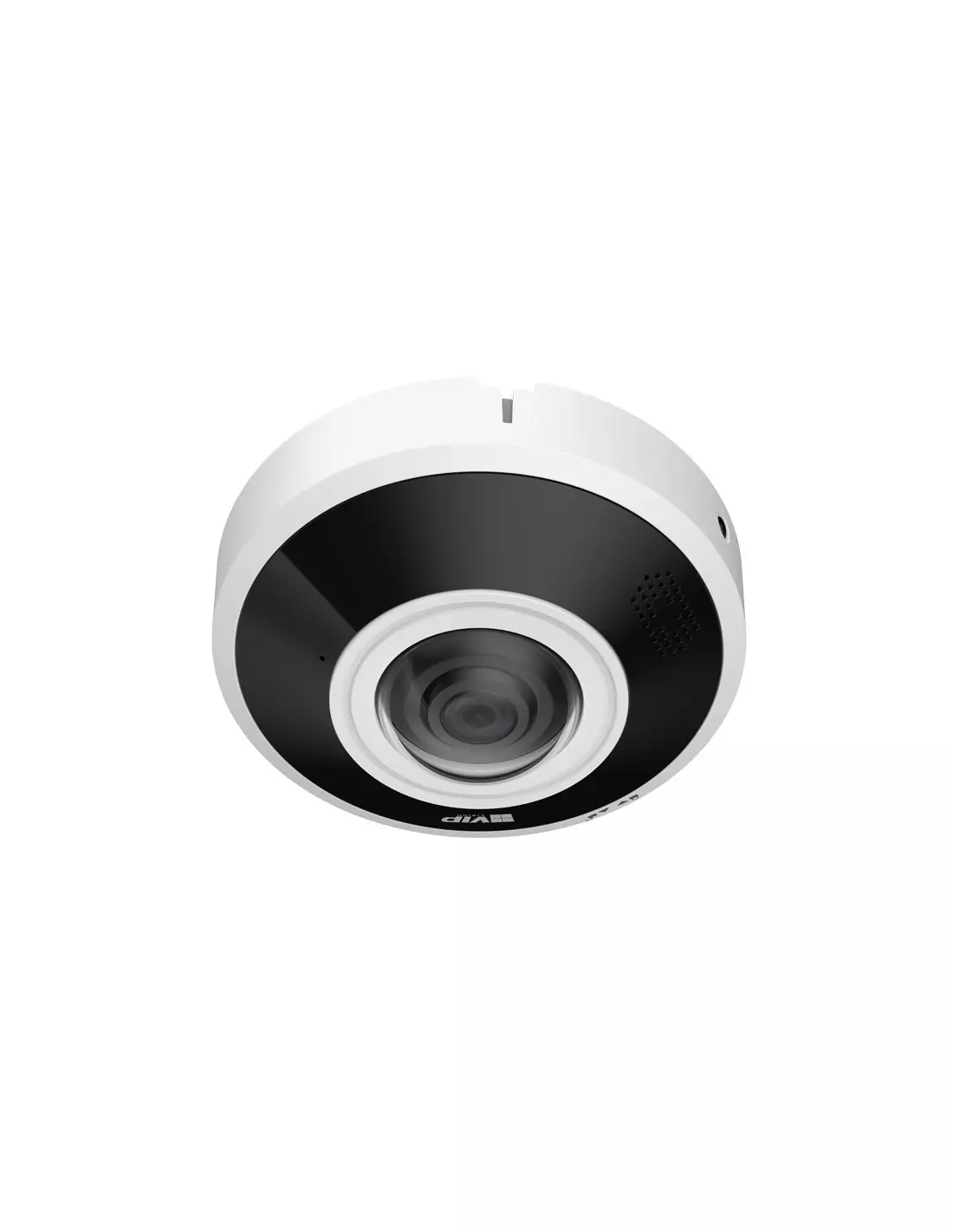

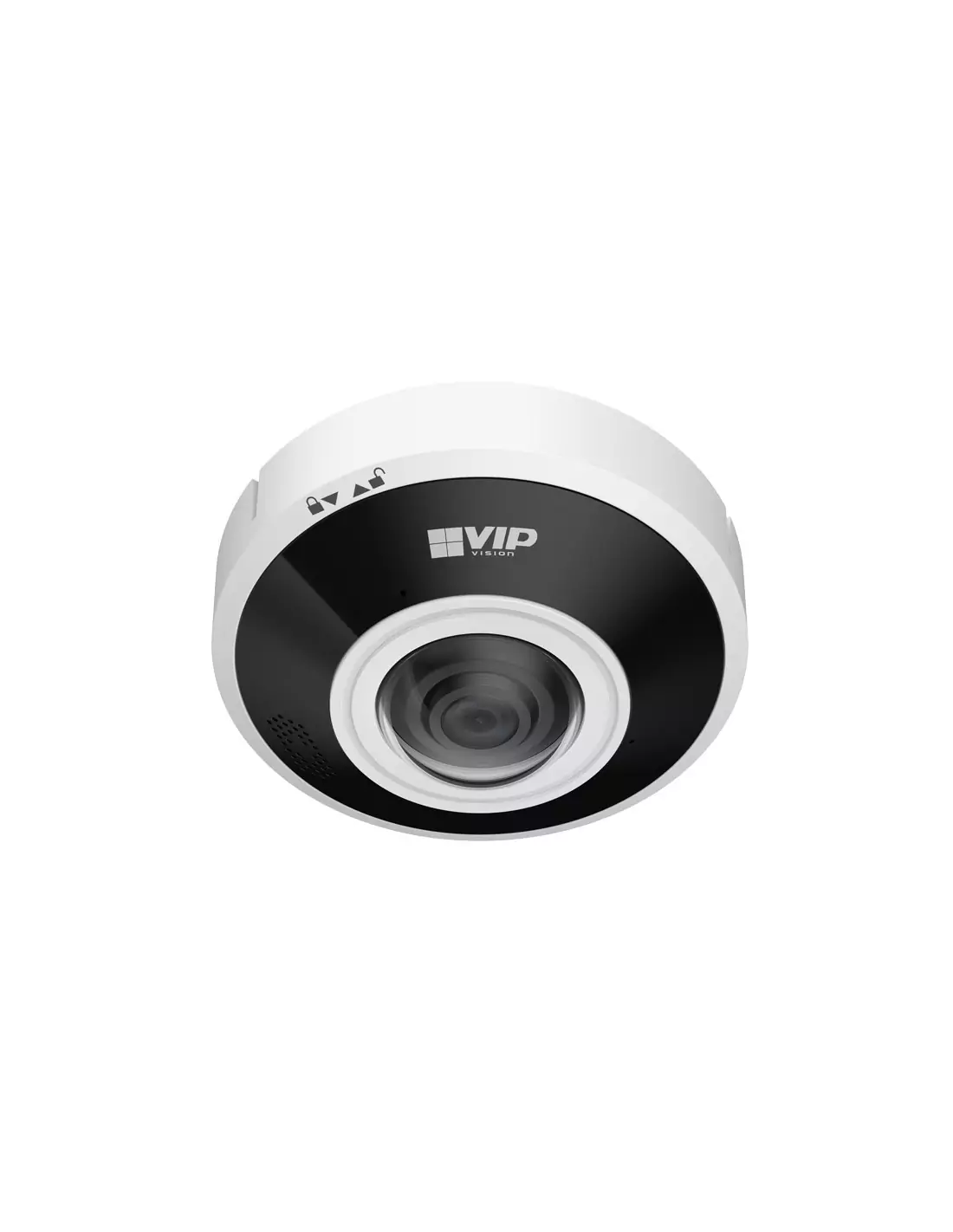

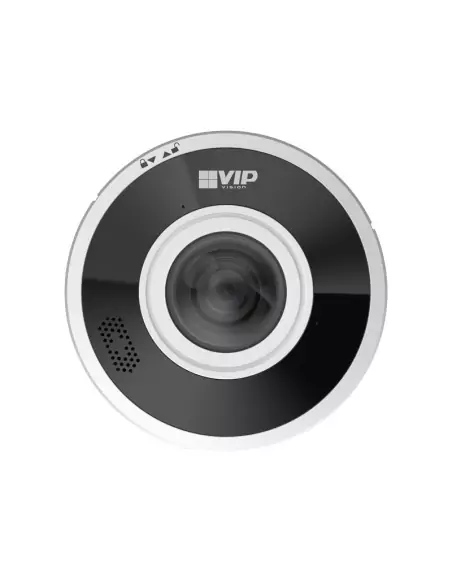

Name: VIP Vision Specialist AI Series 6MP 360° Fisheye Camera with People Counting - VSIPFE-6IR-I
Brand: VIP Vision
SKU: VSIPFE-6IR-I
Price: 574.64 AUD
Availability: InStock

Reference: VSIPFE-6IR-I

In Stock - Ready to Ship

$ 574.64

inc-GST

or 4 interest-free payments of $143.66 with

6.0MP (2560 x 2560) at up to 25fps
185° fisheye lens for full 360° coverage
AI people counting and heat map analytics
Multiple dewarp views: panoramic, virtual PTZ, 3 and 4 split
Built-in microphone and speaker

Description
Product Details

VIP Vision Specialist AI Series 6MP 360° Fisheye Camera with People Counting

4 Years Warranty!

VSIPFE-6IR-I

One camera, the whole room. This 6.0MP fisheye gives a full 360° view with a 185° lens, replacing several standard cameras in open spaces. Built-in AI people counting and heat mapping show how customers move through your site.

Features:

• 6.0MP (2560 x 2560) at up to 25fps

• 185° fisheye lens for full 360° coverage

• AI people counting and heat map analytics

• Multiple dewarp views: panoramic, virtual PTZ, 3 and 4 split

• Built-in microphone and speaker

• MicroSD recording up to 1TB, plus NAS/FTP

• IP67 weatherproof and IK10 vandal-resistant

• PoE (802.3af) or 12VDC power

Ideal for:

Retail stores, foyers, warehouses, offices and anywhere you want full-room coverage and visitor analytics.

Full specifications are listed in the Data Sheet tab. Need help choosing or planning an install? Our technical team at InFront Technologies is happy to help.

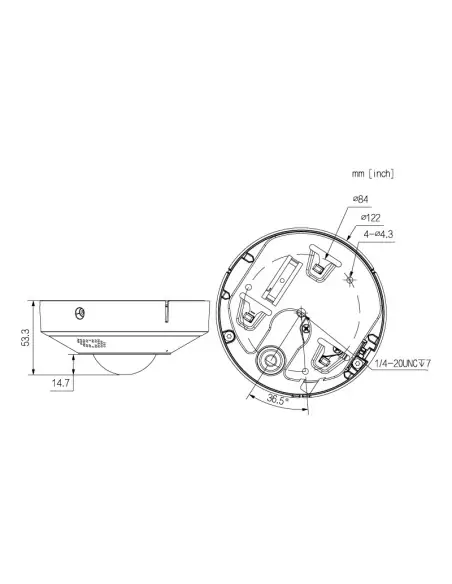

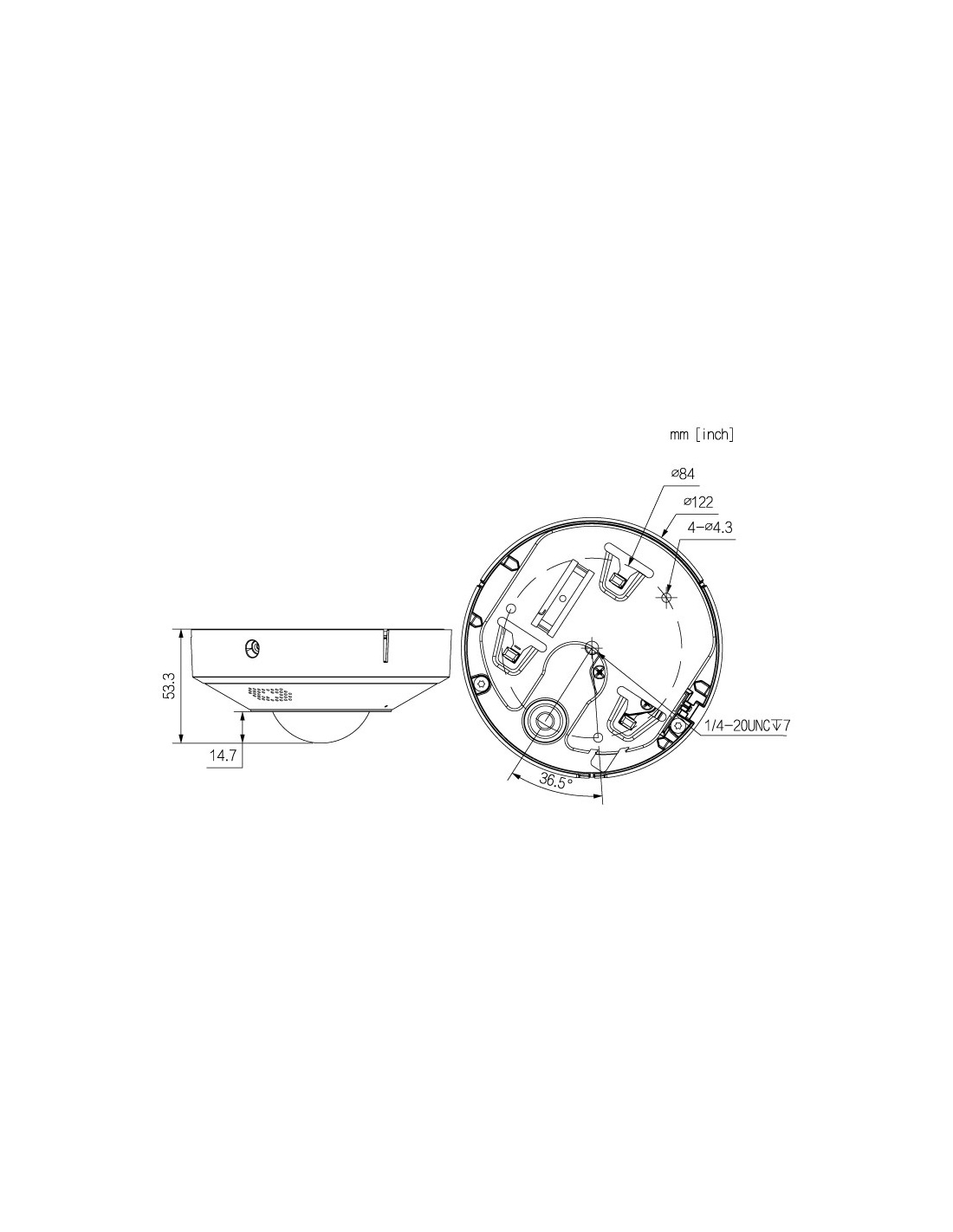

Dimensions: Ø122mm x 53.3mm
Ethernet: RJ-45 (100/1000 Base-T)
Housing: Metal + Plastic
Net Weight: 0.46kg
Operating Conditions: -10° ~ +60° C / Less than 95% RH
Power Supply: 12VDC / PoE (802.3af)
Ingress Protection: IP67
Vandal Resistance: IK10
Bit Rate: H.265: 3 ~ 16384Kbps / H.264: 3 ~ 16384Kbps
Frame Rate (Main): 6.0MP (1~25fps)
Frame Rate (Sub): 2.0MP (1 ~ 25fps)
Frame Rate (Third): 2.0MP (1 ~ 25fps)
Max. User Access: 20 Users
Power Consumption
Video Compression: H.265, H.264, H.264H, H.264B, AI H.265, AI H.264, MJPEG (Only supported by sub stream)
Resolution: 6.0MP (2560 x 2560) to UVGA (1600 x 1200)
Series: Specialist AI Series
Focus: Fixed / 0.3m Min. Focus
Interoperability: ONVIF (Profile S / Profile G / Profile T), CGI
Effective Pixels: 2560 (H) x 2560 (V)
Image Sensor: 1/2.5’’ 6.0MP Progressive Scan CMOS
RS485: 1 (baud rate range: 1200 bps–115200 bps)
Alarm Interface: 1 Channel Input (5mA 3VDC ~ 5VDC) / 1 Channel Output (300mA 12VDC)
Camera Type: Fisheye
Max. Resolution: 6.0 Megapixel
Field of View: Horizontal: 185°, Vertical: 185°
Lighting Compensation: BLC / HLC / True WDR (120dB)
Day/Night: Auto (ICR) / Color / B&W
Detect (25px/m): 33.6m
Gain Control: Auto / Manual
Identify (250px/m): 3.4m
Lens Type: Fixed
Noise Reduction: 3D DNR
Observe (63px/m): 13.4m
Recognise (125px/m): 6.7m
White Balance: Auto / Natural / Street Lamp / Outdoor / Manual / Regional Custom
Audio Interface: 1 Channel Input (RCA), 1 Built-in Mic / 1 Built-in Speaker / 1 Channel Output / Audio Compression: PCM, G.711A, G.711Mu, G726, AAC
Bit Rate Control: Constant bit rate (CBR) / Variable bit rate (VBR) / Adaptive bit rate (ABR)
Edge Storage: MicroSD Card (up to 1TB) / NAS / FTP / SFTP
ePoE: No
Infrared System: 3 x Infrared LED, 15m range, Auto/manual on/off control
Intelligent Functions: Tripwire, Intrusion, Motion Detection (4 zones), Region of Interest (4 zones), Privacy Masking (4 zones), Smart Infrared, Heat Map
Lens / Iris: 1.68mm F2.0 Fixed Circular Fisheye Lens
Min Illumination: 0.006 Lux/F2.0 (Color), 0.0006 Lux/F2.0 (B/W), 0 lux (illuminator on)
Pan/Tilt/Rotation: N/A
Protocol: IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; SNMP; P2P
RAM / ROM: 4TB / 1TB
S/N Ratio: >56dB
Smart Scene Adaptive (SSA): Yes
Streaming Method: Multicast
Video Interface: N/A
People Counting: Supports Area People Counting (No. of people, People quantity thresholds, 4 zones), Heat Mapping (No.of people and time spent)
Dewarping Modes: Original (no dewarp) / Panoramic / Virtual PTZ / Original + 3 split, + 4 split / Front-dewarp / Back-dewarp
