VIP Vision High Fidelity Surveillance Microphone VSAMICB

VIP Vision High Fidelity Surveillance Microphone (Aluminium) - VSAMICB

Name: VIP Vision High Fidelity Surveillance Microphone (Aluminium) - VSAMICB
Brand: VIP Vision
SKU: VSAMICB
Price: 258 AUD
Availability: InStock

Reference VSAMICB

In Stock - Ready to Ship

$ 258.00

inc-GST

80dB signal noise reduction
10 ~ 150m² effective range
Adjustable sensitivity
Dynamic range ~ 104dB

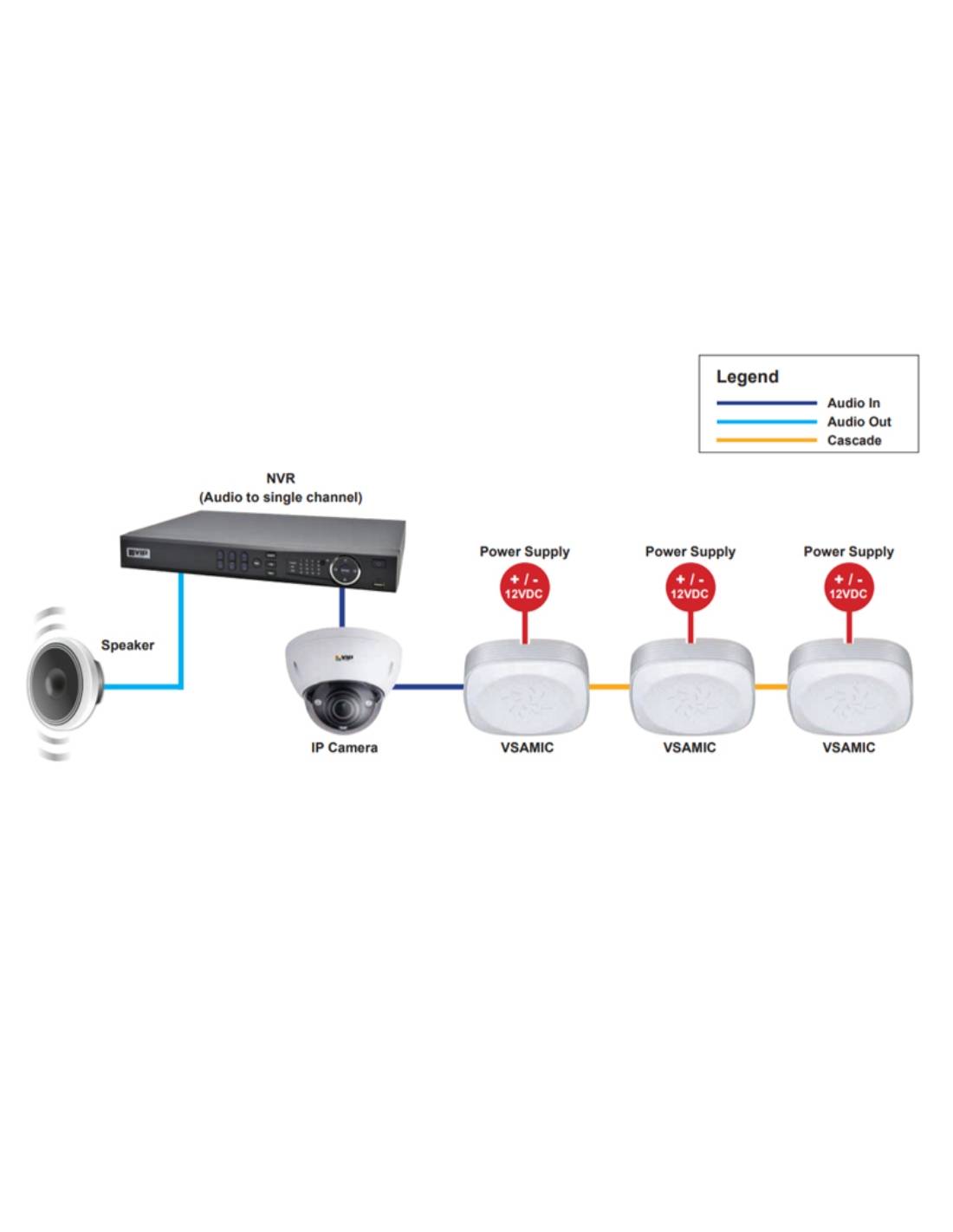

Cascading support
Stylish aluminium casing
Ideal for ceiling & wall mounting

Various Payment Types at Checkout.

All Payment Options are available at Checkout: Visa/MC/Amex, Zip, Afterpay, Paypal and Bank Dep

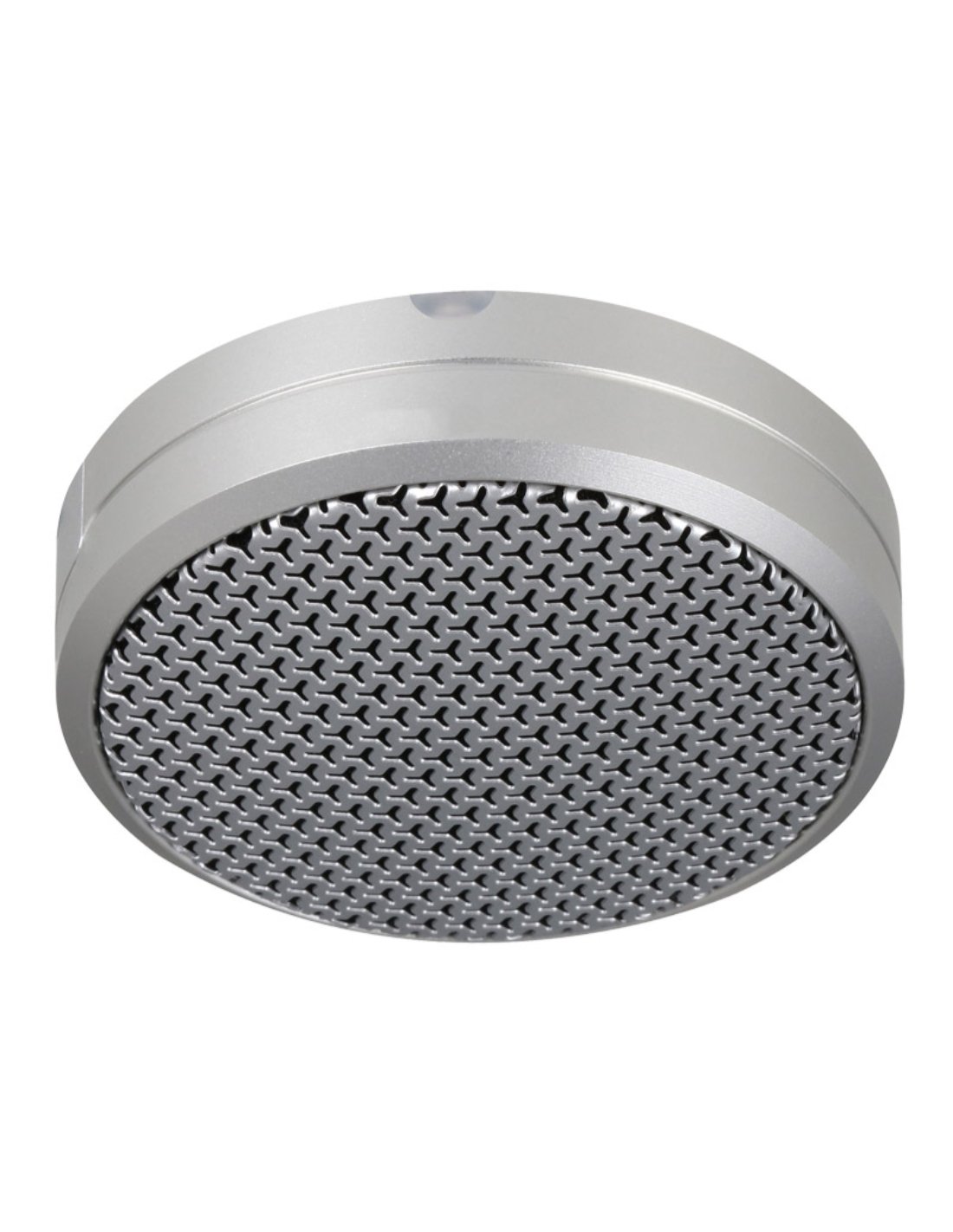

VSAMICB | High‑Fidelity Surveillance Microphone — Aluminium Housing

Add clear, low‑noise audio to CCTV with AGC, DNR, and adjustable sensitivity — indoor range 5–150 m².

The VSAMICB is a compact, pre‑amplified surveillance microphone that brings high‑quality audio to any CCTV system. Its electret condenser capsule, onboard auto gain control (AGC) and dynamic noise reduction (DNR) deliver intelligible voice capture while keeping background noise low. A rugged aluminium body and simple RCA + 12 V DC connections make installation fast.

Key Features & Benefits

High‑fidelity pickup — Electret condenser mic with pre‑amp for clear dialogue.
Low noise — DNR processing; up to 82 dB SNR (typ.).
Smart levels — Adjustable sensitivity and AGC handle quiet/ loud scenes.
Wide coverage — Effective indoors across 5–150 m².
Aluminium construction — Durable, discreet and lightweight.
Plug & play — RCA audio out to DVR/NVR/encoder; 12 V DC power.

Ideal Deployments

Retail counters, reception areas and interview rooms
POS registers and customer‑service points
Corridors, meeting rooms and access‑control points

Technical Details — At a Glance

Model: VSAMICB • Capsule: Electret condenser • Pattern: Omni‑directional
Operating area: 5 ~ 150 m² (indoor)
Sensitivity: −30 dB (typ.) • S/N ratio: up to 82 dB
Max SPL: 120 dB SPL @ 1 kHz (THD 1%) • Dynamic range: up to 106 dB
Output: 2.5 Vpp / −25 dB (RCA, unbalanced) • Impedance: 600 Ω
Bandwidth: 20 Hz ~ 20 kHz
Power: 12 V DC (9–18 V), ~50 mA
Operating temp: −25 °C ~ +70 °C
Construction: Aluminium • Dimensions: Ø70 × 21 mm • Weight: ~0.11 kg
I/O: 2 × RCA (audio out) + 1 × DC power jack
Compliance: CE / RCM

Legal note (AU): Audio recording laws vary by state and may require knowledge and consent. Check local legislation before enabling recording.

Design & Quote: Tell us your recorder model and cable runs. We’ll bundle VSAMICB with the right power, leads and connectors for a tidy install.

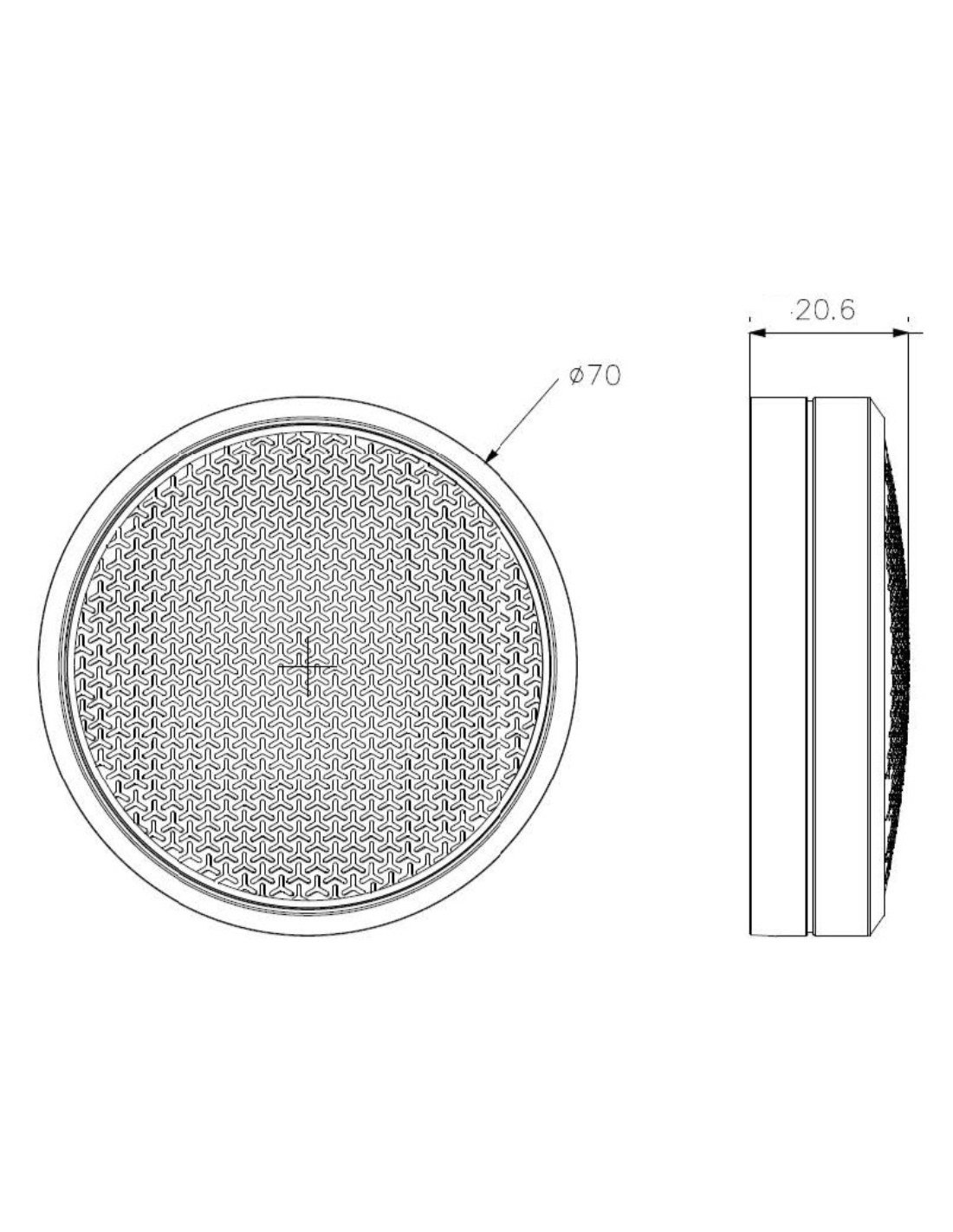

Dimensions: Φ70 x 21mm
Power Supply: 12VDC (9 ~ 18V)
Weight: 0.11kg
Material: Aluminium
Power Consumption: 50mA
Bandwidth Frequency: 20Hz ~ 20kHz
Direction: Omni-directional
Dynamic Range: 106dB (1KHz at Max dB SPL)
Interface Ports: 2 x RCA female ports, 1 x DC power port
Max. Sound Pressure: 120dB SPL (1KHz, THD 1%)
Microphone: Electret Condenser Microphone
Operation Area: 5 ~ 150m²
Operation Environment: -25°C~+70°C
Output Impedance: 600Ω (unbalanced)
Output Signal Amplitude: 2.5Vpp/-25dB
Sensitivity: -30dB
Signal-to-Noise Ratio: 82dB (1m 40dB sound source SPL) / 52dB (10m 45dB sound source SPL) / 1kHz at 1Pa
