    VIP Camera Adapter/Junction Box for Bullet & PTZ Cameras - VSBKTA143

    VSBKTA143
    In Stock - Ready to Ship
    $ 572.50
    inc-GST
    • Material: Aluminium
    • Load Bearing Capacity: 10.00kg (front) / 6.00kg (side) / 5.00kg (inside)

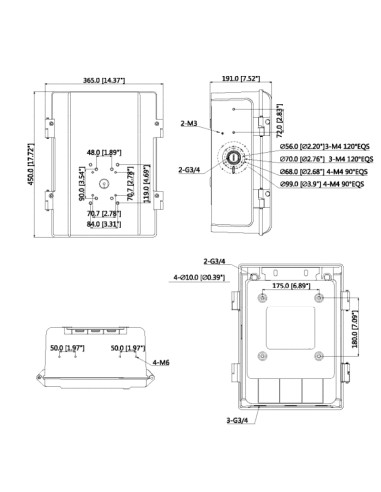

    • Pipe Thread: Refer diagram
    • Operating Conditions: -40° ~ 60°C / 90% RH (max)
    • Weather Resistance: IP66 rated
    • Dimensions: 450 x 365 x 191mm
    • Weight: 9.00kg

    Various Payment Types at Checkout.

    All Payment Options are available at Checkout: Visa/MC/Amex, Zip, Afterpay, Paypal and Bank Dep



    Adapter/Junction Box for Bullet & PTZ Cameras



    VSBKTA143

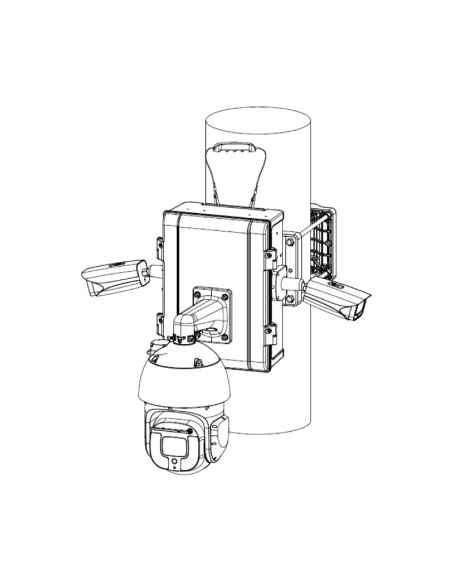

    Aluminium adapter/junction box used as a spacer or as a connector for corner & pole mounts. For PTZ surveillance and bullet cameras



    Product Details:

    Material: Aluminium

    Load Bearing Capacity: 10.00kg (front) / 6.00kg (side) / 5.00kg (inside)

    Pipe Thread: Refer diagram

    Operating Conditions: -40° ~ 60°C / 90% RH (max)

    Weather Resistance: IP66 rated

    Dimensions: 450 x 365 x 191mm

    Weight: 9.00kg



    Dimensions
    450 x 365 x 191mm
    Operating Conditions
    -40° ~ 60°C / 90% RH (max)
    Weight
    9.00kg
    Weather Resistance
    IP66 rated
    Materials
    Aluminium
    Bracket Type
    Junction Box
    Load Bearing Capacity
    10.00kg (front) / 6.00kg (side) / 5.00kg (inside)
    Pipe Thread
    Refer diagram
