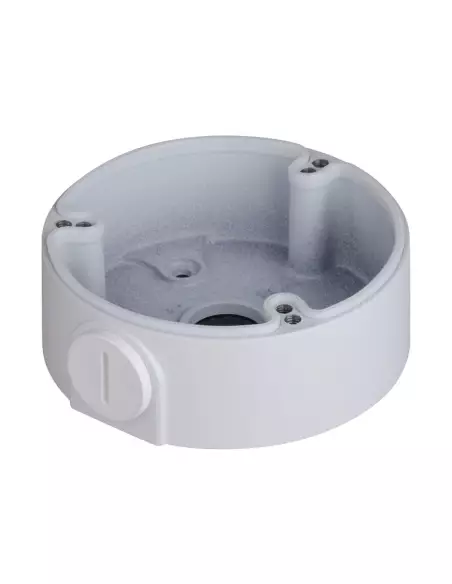

    VIP Vision VSBKTA135 round aluminium junction box
    VSBKTA135 inside, screw bosses and cable opening

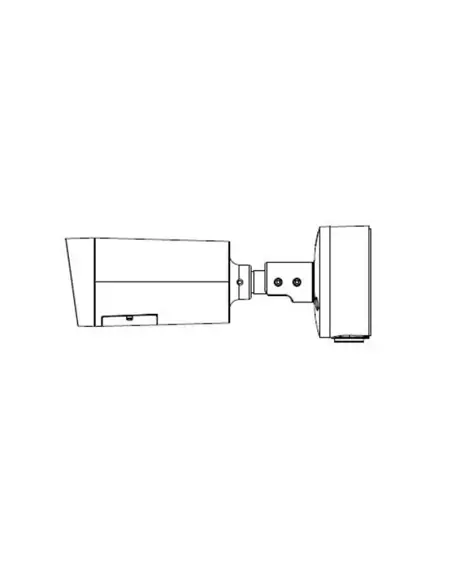

    VSBKTA135 with a VIP Vision bullet camera, VIP Vision drawing

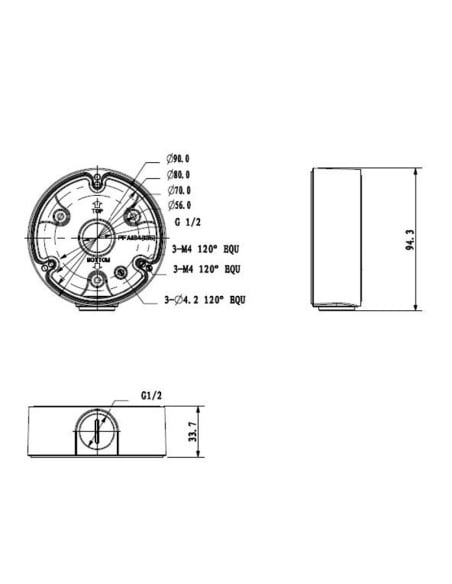

    VSBKTA135 dimension drawing, mm
    1 / 4

    Adapter / Junction Box for Surveillance Cameras - VSBKTA135

    SKU VSBKTA135 In Stock - Ready to Ship
    $11.12 inc GST

    VIP Vision VSBKTA135: a compact round aluminium junction box that hides the cable joins behind a VIP Vision bullet and lets it go on a corner or pole mount.

    • ✓Aluminium, Ø90 × 34 mm, 0.14 kg
    • ✓1.0 kg load rating, weather resistant
    • ✓G1/2 base and capped side entry
    • ✓Listed for VSIPP-4, 6 and 8BIRMG-I3 and VSIPP-4BIRW-I
    • ✓Pairs with VSBKTA151 corner and VSBKTA152E pole mounts
    • ✓2-year warranty



    Description

    VIP Vision VSBKTA135 white round aluminium junction box, angled view showing the screw bosses inside and the capped side entry
    VIP Vision · Camera mounting · Junction box

    A compact base for a bullet.
    Round, aluminium, 90 mm across.

    The VIP Vision VSBKTA135 is a small round aluminium junction box that sits between the wall and a bullet camera, hiding the cable joins. It also lets the camera go on a corner or pole mount.

    In one sentence: the VIP Vision VSBKTA135 is a white weather-resistant aluminium junction box, Ø90 × 34 mm and rated to 1 kg, with a G1/2 side entry, listed by VIP Vision for its BIRMG motorised bullets and the VSIPP-4BIRW-I.

    Junction box only. The camera and fixings are separate.

    This listing is one VSBKTA135 box. VIP Vision does not list screws, plugs or conduit fittings in the box, so plan on fixings to suit the surface, or ask us.

    In the box
    • VSBKTA135 junction box
    You also need
    • A compatible VIP Vision bullet camera (list below)
    • Screws and plugs to fix the box to the wall or mount
    • A G1/2 conduit fitting if the cable runs in conduit
    • VSBKTA151 corner mount or VSBKTA152E pole mount for corners and poles

    Small enough for the bullet's own base.

    Many bullet cameras have a round base and a short cable tail. The VSBKTA135 matches that base: it fixes to the wall, takes the cable in from behind or through its capped side entry, and gives the camera a flat face to screw onto, so the joins sit inside the box instead of in the wall cavity.

    Inside the VIP Vision VSBKTA135: three screw bosses, a centre hole and the base cable opening

    Inside

    Three screw bosses around the cable opening.

    VIP Vision's drawing shows two sets of three M4 holes and three 4.2 mm holes, each spaced at 120 degrees on circles from 56 to 80 mm, with a G1/2 opening in the base. Close-up from VIP Vision's product photo.

    VIP Vision VSBKTA135 capped side cable entry, close-up

    Side entry

    A capped side entry for surface cable.

    When the cable can't come through the wall behind the camera, it can come in along the wall through the G1/2 side entry. Keep the cap fitted when it isn't used. Close-up from VIP Vision's product photo.

    How it goes in

    From cable to mounted bullet.

    01

    Plan the cable entry

    Decide whether the cable comes from behind through the base or along the wall through the G1/2 side entry.

    02

    Fix the box

    Fix the box to the wall, or to a VSBKTA151 corner or VSBKTA152E pole mount, with screws that suit the surface.

    03

    Join the cable

    Bring the network cable into the box, connect the camera's cable tail, and tuck the joins and spare cable inside.

    04

    Mount the camera

    Screw the bullet's base onto the box with M4 screws, check the side cap is tight, and aim the camera.

    Pair it with

    What goes with it

    Camera

    A VIP Vision Pro AI bullet

    The VSIPP-4BIRMG-I3, VSIPP-6BIRMG-I3, VSIPP-8BIRMG-I3 motorised bullets or the VSIPP-4BIRW-I wide-angle bullet.

    Poles

    VSBKTA152E pole mount

    Dual clamp pole mount for poles 80 to 150 mm across, listed with this box in VIP Vision's 2025 guide.

    Corners

    VSBKTA151 corner mount

    VIP Vision's guide pairs this box with the VSBKTA151 for the BIRMG-I3 bullets on an outside corner.

    Bigger box

    VSBKTA130E junction box

    A larger IP66 round box, rated to 3 kg, listed for the same bullets.

    Where it is used

    Where a bullet junction box helps.

    Brick and block walls

    Where the cable can't be hidden in a wall cavity behind the camera.

    Building corners

    With the VSBKTA151 corner mount, a bullet watching two walls.

    Driveways and car parks

    With the VSBKTA152E on poles 80 to 150 mm across.

    Surface cable runs

    The side entry takes the cable in along the wall.

    Sheds and garages

    A tidy base on cladding or timber where joins would otherwise hang outside.

    Shopfronts

    A small, neat base under awnings and beside entries.

    VSBKTA135 or VSBKTA130E

    VSBKTA135 (this box)VSBKTA130E
    SizeØ90 × 34 mmØ124 × 41 mm
    Weight0.14 kg0.35 kg
    Load rating1.0 kg3.0 kg
    Weather ratingWeather resistant, no IP figureIP66
    Conduit threadG1/2 (drawing)G3/4
    Listed for (2025 guide)BIRMG-I3 bullets, VSIPP-4BIRW-IBIRMG-I3 bullets, VSIPP-4BIRW-I
    Warranty2 years4 years

    Figures from VIP Vision's VSBKTA135 datasheet and product information, VSBKTA130E product information and VIP Vision's 2025 Accessory Compatibility Guide.

    Common questions

    Which cameras fit the VSBKTA135?

    VIP Vision's 2025 guide lists the VSIPP-4BIRMG-I3, VSIPP-6BIRMG-I3, VSIPP-8BIRMG-I3 and VSIPP-4BIRW-I. Older guides and the datasheet add the BIRMG-I2 bullets and a few older models. For any other camera, ask us.

    What does a junction box do?

    It gives the camera's cable joins a space between the wall and the camera, and a flat base to screw the camera to.

    Is a camera included?

    No. This listing is the junction box only. The camera is sold separately.

    Are screws included?

    VIP Vision does not list fixings, so confirm with us or use screws and plugs that suit your surface.

    Is it weatherproof?

    VIP Vision lists it as weather resistant, without an IP figure, for −40 °C to 60 °C. For a fully exposed spot, the IP66 VSBKTA130E is the sealed alternative.

    How big is it?

    Ø90 mm across and 34 mm deep, and it weighs 0.14 kg.

    How much weight will it hold?

    1.0 kg, according to VIP Vision. Check your camera's weight on its datasheet.

    What thread are the cable entries?

    VIP Vision's drawing shows G1/2 entries. Its spec table prints the thread as M20 (G1 1/2"), so check the fitting with us before ordering conduit parts.

    Can I put it on a pole or corner?

    Yes. VIP Vision pairs it with the VSBKTA152E pole mount (80 to 150 mm poles) and the VSBKTA151 corner mount.

    What is the difference from the VSBKTA130E?

    The VSBKTA135 is smaller (Ø90 × 34 mm) and rated to 1 kg. The VSBKTA130E is Ø124 × 41 mm, IP66 and rated to 3 kg. VIP Vision lists both for the same bullets.

    Does it suit turret cameras?

    VIP Vision lists it for bullets. For its DIRG turrets it lists the VSBKTA139 junction box instead.

    What warranty does it have?

    2 years, according to VIP Vision, with warranty service through InFront Technologies.

    Supported by InFront Technologies.

    Not sure this box suits your camera? Call 1300 736 970 or email [email protected] with the camera model. The VIP Vision datasheet is on the Attachments tab.

    Installation and safety

    Mechanical part only. The VSBKTA135 houses cable joins and holds the camera. It carries no power or data of its own.

    Load. Rated for 1.0 kg. Check the camera weight on its own datasheet.

    Sealing. Keep the side cap fitted when the entry isn't used.

    Working at height. Use a stable ladder or platform and fixings rated for the surface.

    Cabling. Concealed data cabling to the camera is customer cabling under AS/CA S009 and needs an ACMA-registered cabler. A new power point needs a licensed electrician.

    Figures. From VIP Vision's VSBKTA135 datasheet and drawing, product information and the 2023 and 2025 Accessory Compatibility Guides.

    Dimensions
    Ø90 x 34mm
    Operating Conditions
    -40° ~ 60°C / 90% RH (max)
    Weight
    0.14kg
    Weather Resistance
    Yes
    Materials
    Aluminum
    Bracket Type
    Junction Box
    Load Bearing Capacity
    1.00kg
    Pipe Thread
    M20 (G1 1/2”)
