VIP Vision Professional AI Series 64CH NVR with 8 x HDD Bays - NVR64PRO-I4
NVR64PRO-I4
CALL stock OR Max avail. in cart
$ 1,895.00
inc-GST
or 4 interest-free payments of $473.75 with
VIP Vision NVR64PRO-I4 is the 2U, 64-channel Professional AI recorder. Eight drive bays, RAID, and no PoE.
- ✓64 IP channels, recording up to 32MP
- ✓448 Mbps, or 200 Mbps with AI on
- ✓8 SATA bays, up to 20TB each, plus eSATA
- ✓RAID 0/1/5/6/10
- ✓AcuPick and face detection on 4 channels of the NVR
- ✓2× Gigabit LAN. Cameras need their own PoE switch
VIP Vision · Professional AI · 64 channel
The 64-camera head end.
Eight bays. RAID. No PoE.

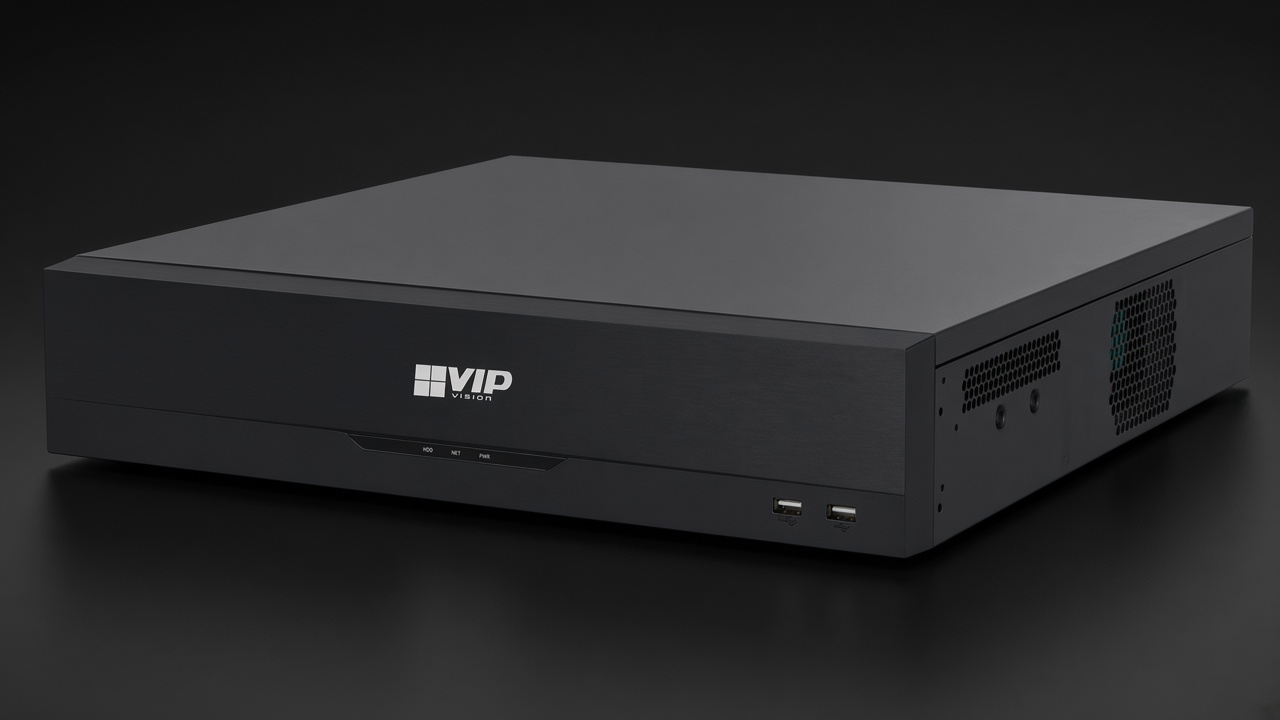

This is the NVR64PRO-I4. Two USB ports on the face, eight drive bays, 2U. This page is the 64-channel recorder, not the shorter 32-channel chassis.
In one sentence: the NVR64PRO-I4 is a VIP Vision 2U, 64-channel AI recorder with eight drive bays, RAID, and no built-in PoE.
Recorder only. Drives and camera power are separate.
Hard drives, cameras and a PoE switch are not in this box.
In the box
- NVR64PRO-I4 2U recorder
You also need
- Surveillance hard drives, up to eight, 20TB each
- A PoE switch for the cameras
- IP cameras and cabling
For a site that will not fit on 32 channels.
Eight bays instead of four, RAID 0/1/5/6/10, and a 2U chassis. The 32-channel non-PoE model is 1.5U, 440 × 415.6 × 76 mm, four bays, no RAID.
On this recorder: AcuPick on 4 channels, face detection on 4 channels (up to 12 images/s each), SMD Plus on 16 channels, video metadata on 4 channels. Face recognition is 4 channels when the NVR detects and recognises, or 24 channels when the camera detects and the NVR recognises.

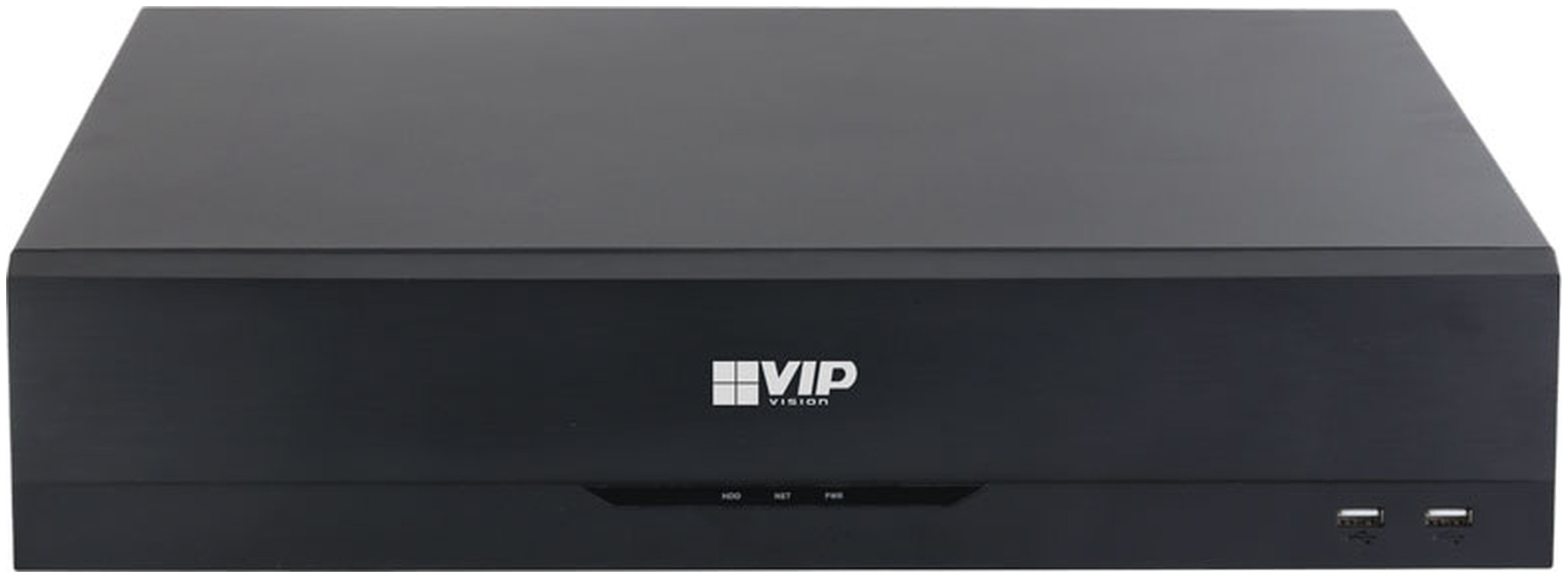

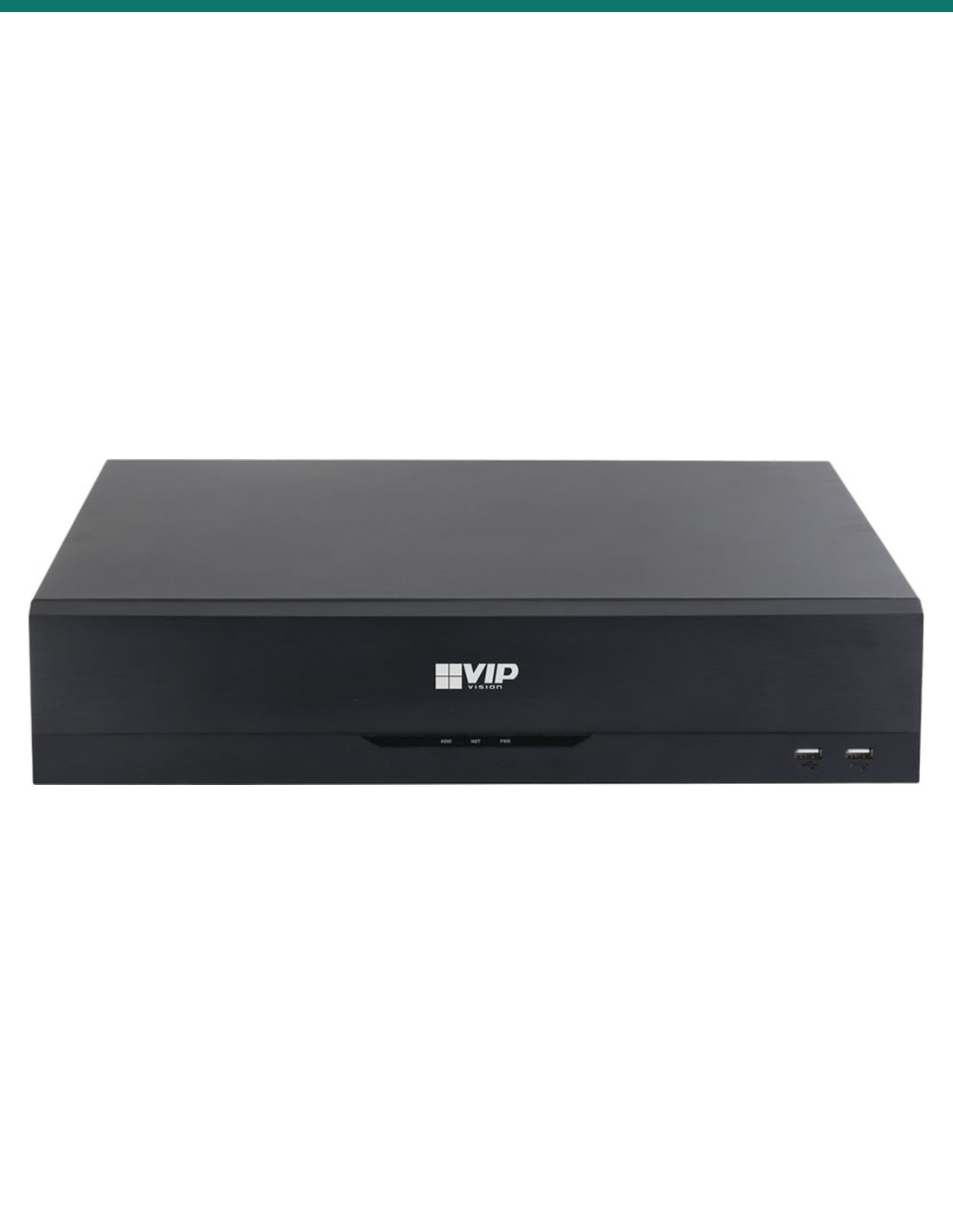

Front
HDD, NET and PWR on the fascia.
Two USB 2.0 ports on the right. Eight SATA bays behind the door, empty as shipped, up to 20TB each. Recording runs from 32MP down to QCIF.

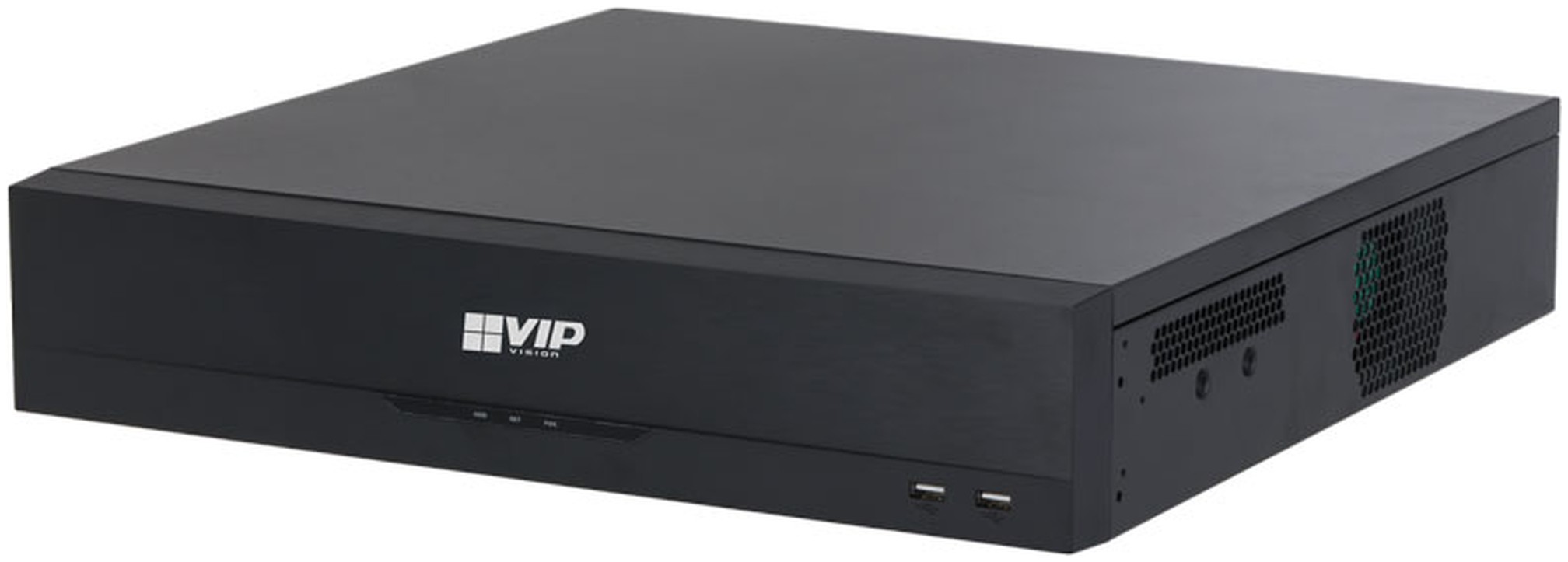

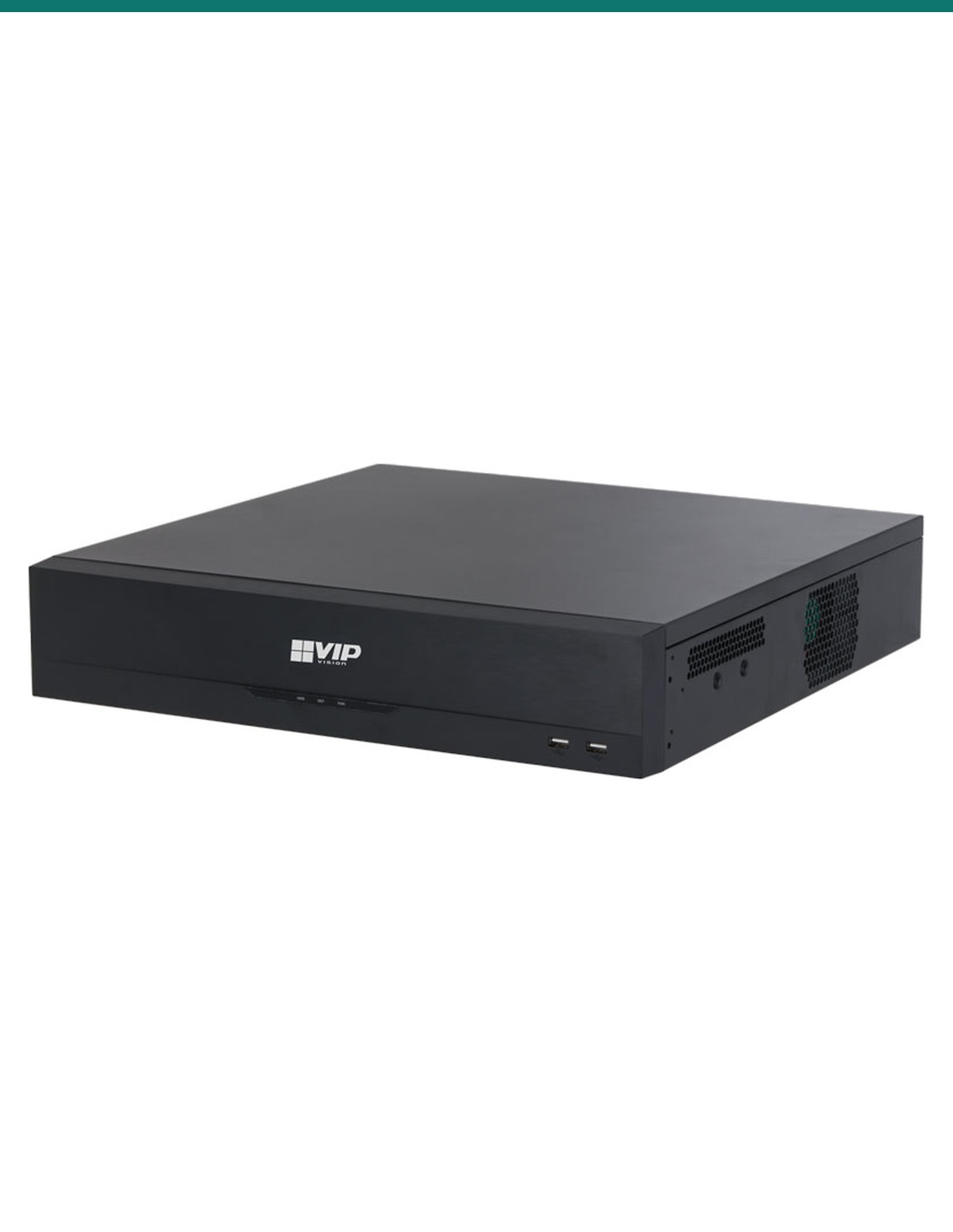

Chassis
2U, 458 mm deep.
440 mm wide, 94.9 mm high, 6.27 kg with no drives. Side ventilation is on the right. Measure the rack before you order — 458.4 mm is the chassis, not the carton.

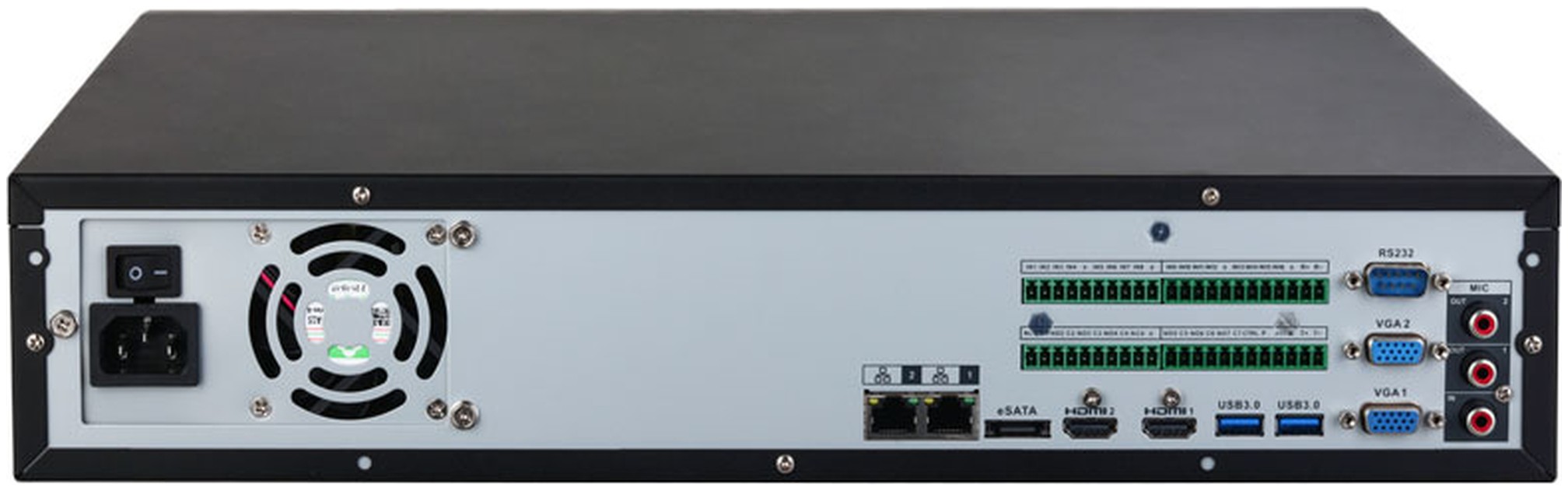

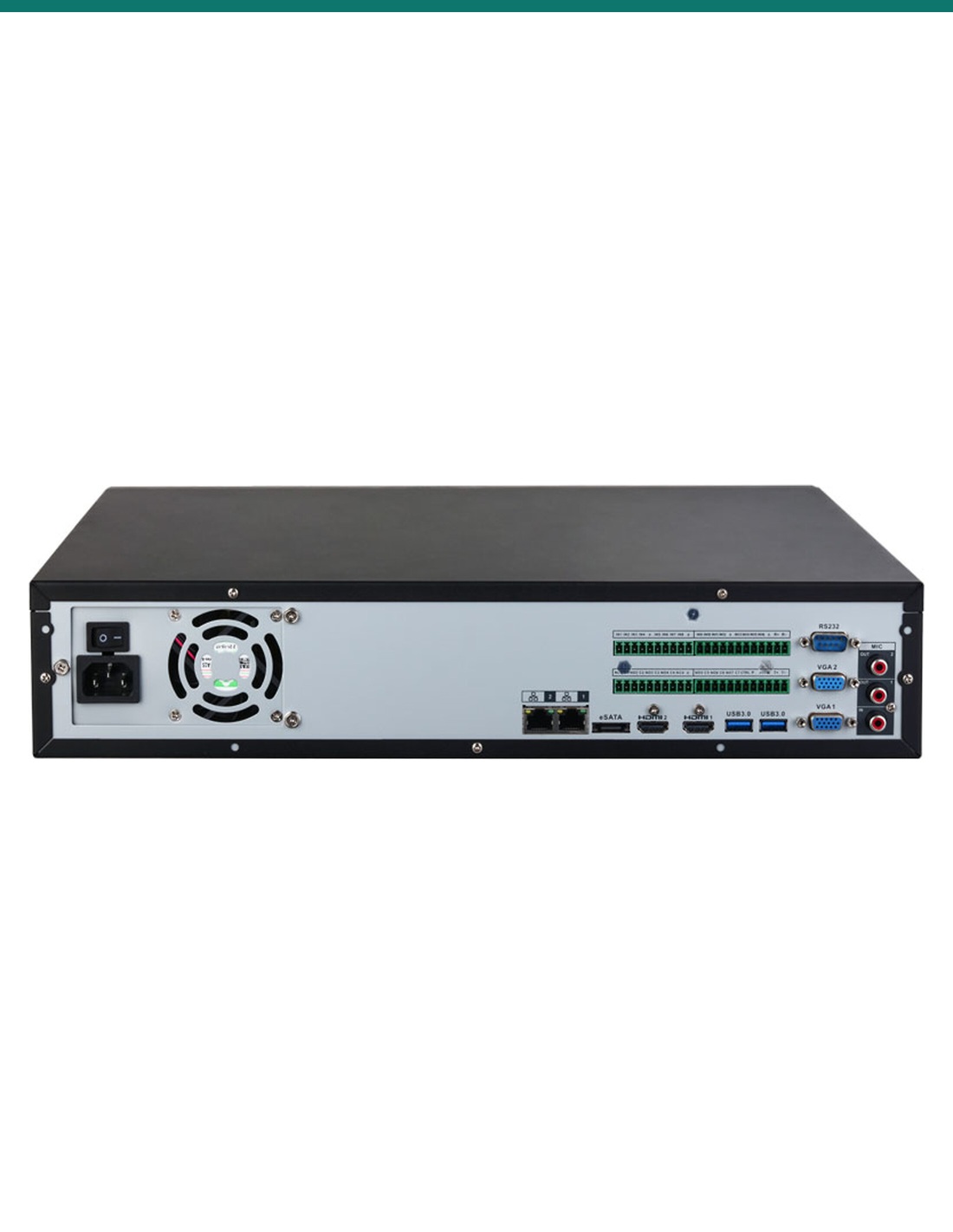

Rear
Two LAN ports. No PoE.
Two Gigabit sockets, eSATA, two HDMI, two USB 3.0, two VGA, one RCA audio in and two RCA outs, RS-232, RS-485 and RS-422. Alarm is 16 inputs and 8 outputs, one of them 12 V at 1 A. Mains is 100–240 VAC. Draw without drives is 13 W or less.
How it goes in
From the rack to the first camera.
01
Rack the 2U
458 mm deep. 100–240 VAC. One or both Gigabit ports to the switch.
02
Fit the drives
Up to eight SATA disks, 20TB each. RAID 0, 1, 5, 6 or 10. eSATA for one more.
03
Power the cameras elsewhere
A PoE switch, not this chassis. Stay inside 448 Mbps, or 200 Mbps with AI on.
04
Turn on the search you will use
AcuPick and face detection are 4 channels on the NVR. SMD Plus is 16.
At a glance
NVR64PRO-I4
Show specs
Model
NVR64PRO-I4
Channels
64 IP
PoE
None. Cameras need their own switch
Recording
32MP down to QCIF
Compression
Smart H.265+ / H.265 / Smart H.264+ / H.264 / MJPEG
Audio
1 RCA input, 2 RCA outputs
Bandwidth, AI off
448 Mbps
Bandwidth, AI on
200 Mbps
Decode, AI off
10 ch @ 8MP/30, 20 ch @ 4MP/30, 40 ch @ 1080p/30
Decode, AI on
8 ch @ 8MP/30, 16 ch @ 4MP/30, 32 ch @ 1080p/30
Playback
Up to 16 channels
Live view
Main screen up to 64-way, second screen up to 16-way
AcuPick on the NVR
4 channels
Face detection on the NVR
4 channels, up to 12 face images/s per channel
Face recognition on the NVR
4 channels if the NVR detects and recognises; 24 channels if the camera detects and the NVR recognises. Up to 24 images/s
Face library
20 databases, 30,000 images, 3.75 GB
SMD Plus on the NVR
16 channels
Video metadata on the NVR
4 channels
Drives
8× SATA, up to 20TB each, plus eSATA
RAID
0 / 1 / 5 / 6 / 10
Network
2× Gigabit, no PoE
Display
2× HDMI, 2× VGA
USB
2 front USB 2.0, 2 rear USB 3.0
Serial
RS-232, RS-485, RS-422
Alarm
16 in / 8 out, including one 12 V 1 A output
Power
100–240 VAC, 50/60 Hz, ≤13 W without drives
Chassis
440 × 458.4 × 94.9 mm, 2U, 6.27 kg without drives
Environment
−10 °C to +55 °C, 10–93% RH, non-condensing
Warranty
4 years

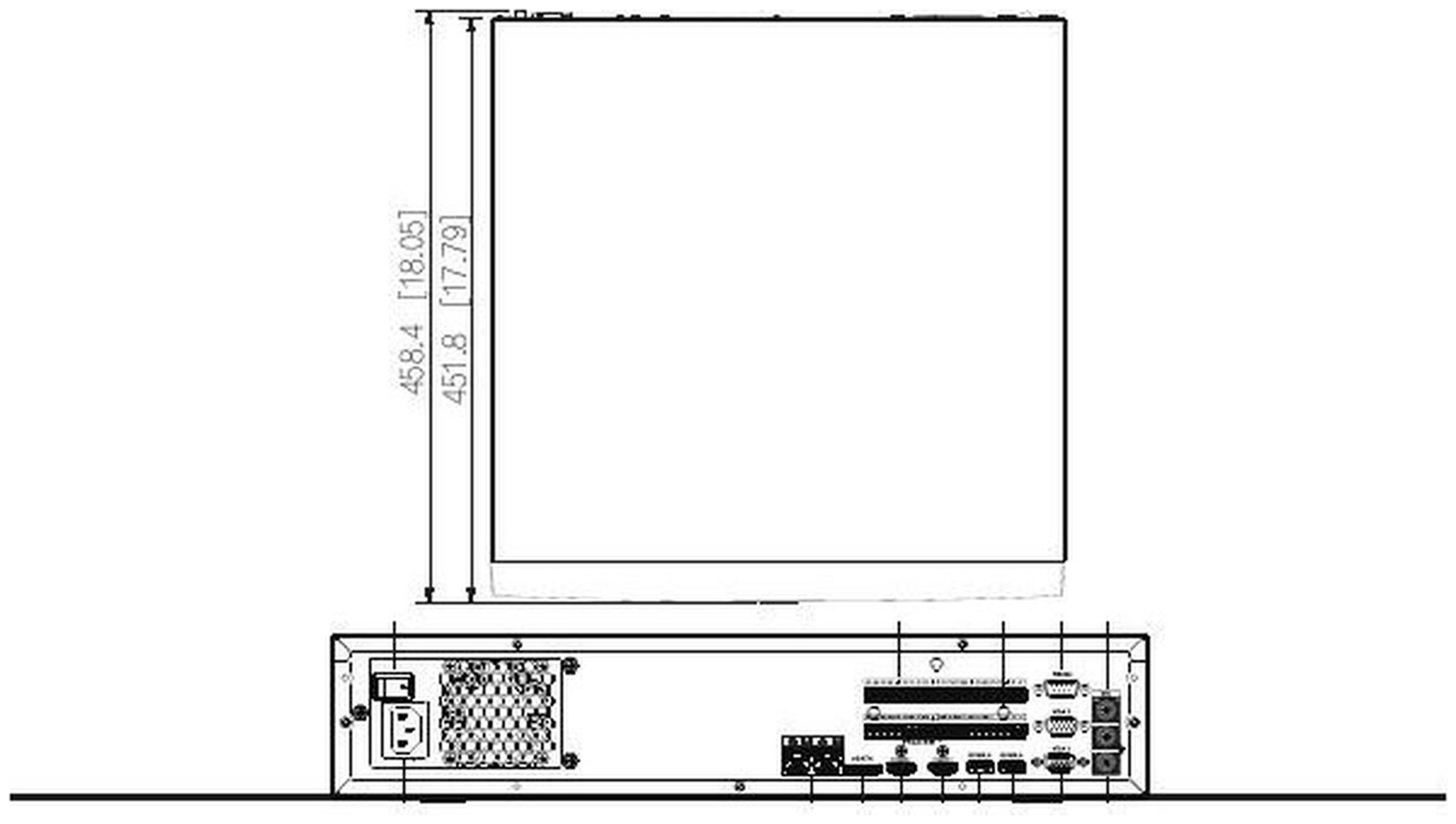

64-channel drawing. 440 × 458.4 × 94.9 mm, 2U, 6.27 kg without drives.
Pair it with
What this recorder does not include
Storage
Surveillance hard drives
Up to eight, 20TB each. Bays ship empty.
Power
A PoE switch
No PoE on this chassis. Size the switch for the cameras.
Cameras
Professional AI cameras
Camera analytics, including ANPR, run on every channel.
Screen
HDMI or VGA
Two of each. Main live view up to 64. Playback up to 16.
Where it is used
Sites that need 64 channels.
Retail and shopping centres
One head end for a floor or a centre that has outgrown 32 channels.
Warehouses and logistics
Eight bays and RAID for sites that keep a lot of footage.
Multi-site businesses
64 IP channels when a 32-channel recorder is no longer enough.
Car parks and perimeters
SMD Plus on 16 channels for people and vehicles. ANPR stays on the cameras.
Schools and campuses
Two Gigabit ports into the network. Cameras are powered from a PoE switch, not this chassis.
Apartments and strata
Common-area recording in a 2U chassis, 440 mm wide and 458.4 mm deep.
How the NVR64PRO-I4 compares
| NVR64PRO-I4 | 32-channel non-PoE | |
|---|---|---|
| Channels | 64 IP | 32 IP |
| Bays | 8, RAID 0/1/5/6/10 | 4, no RAID |
| Chassis | 2U, 440 × 458.4 × 94.9 mm | 1.5U, 440 × 415.6 × 76 mm |
| PoE | None | None |
A PoE recorder powers the cameras from the chassis. This one does not. Figures are the 64-channel and 32-channel columns of the same non-PoE datasheet.
Common questions
Does this NVR power the cameras?
No. Two Gigabit LAN ports, no PoE. The cameras need a separate PoE switch.
Are the hard drives included?
No. Eight empty SATA bays, up to 20TB each, plus eSATA on the rear.
What changes when AI is switched on?
Bandwidth drops from 448 Mbps to 200 Mbps. Decode drops from 10 channels at 8MP to 8, and from 40 channels at 1080p to 32.
How many channels of face search run on the recorder?
Face detection on the NVR is 4 channels, up to 12 images/s per channel. Face recognition is 4 channels when the NVR does both jobs, or 24 channels when the camera detects the face and the NVR only recognises it.
Does this model include RAID?
Yes. RAID 0, 1, 5, 6 and 10. The 32-channel non-PoE model has four bays and no RAID.
What size is the chassis?
440 × 458.4 × 94.9 mm, 2U, 6.27 kg without drives. The 32-channel non-PoE chassis is 1.5U and 415.6 mm deep.
How many screens can I connect?
Two HDMI and two VGA. Live view is up to 64-way on the main screen and 16-way on the second. Playback is up to 16 channels.
What USB and alarm connections are on it?
Two USB 2.0 on the front and two USB 3.0 on the rear. Alarm is 16 inputs and 8 outputs, including one 12 V 1 A output. Serial ports are RS-232, RS-485 and RS-422.
Where does ANPR run?
On the cameras. Camera analytics, including ANPR, run on every channel. On the recorder, AcuPick and video metadata are 4 channels, and SMD Plus is 16.
What is the warranty in Australia?
4 years, supported by Infront Technologies. The datasheet is on the Attachments tab.
Who can install the camera cabling?
Concealed cabling between the cameras and the PoE switch is customer cabling under AS/CA S009 and needs an ACMA-registered cabler. Plugging this recorder into an existing outlet is normal use.
Who sells the NVR64PRO-I4 in Australia?
Infront Technologies stocks it, sells it, and supports the warranty in Australia.
Supported by Infront Technologies.
Datasheet attached. Trade pricing is on the account.
Installation and safety
Mains recorder. 100–240 VAC into an existing outlet is normal use. A new circuit or any switchboard work needs a licensed electrician.
Camera cabling. Concealed cabling between the cameras and the PoE switch is customer cabling under AS/CA S009 and needs an ACMA-registered cabler. This recorder does not supply PoE.
Figures. Taken from the 64-channel column of the VIP Vision Professional AI non-PoE datasheet, September 2026. The 32-channel column is a different chassis.
- Dimensions
- 440.0 × 458.4 × 94.9
- Power Supply
- 100–240VAC, 50/60Hz
- Audio
- 1 channel input (RCA), 2 channel output (RCA)
- Operating Environment
- –10°C to +55°C; 10%–93% RH, non-condensing
- Weight
- 6.27kg
- Display Split
- Main: 1/4/8/9/16/25/36/64; Sub: 1/4/8/9/16
- Network Functions
- HTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP; Alarm Server; P2P; Auto Registration; IP Search; iSCSI
- Power Consumption
- ?13W without HDD
- Rackmount Units
- 2U
- Rackmountable
- Yes
- Video Input
- 64 channels
- Interoperability
- ONVIF 25.06 (Profile T; Profile S; Profile G; Profile M); CGI; SDK. Supports Panasonic, Sony, Axis, Arecont, Pelco, Canon, Hanwha.
- PoE
- No
- Recording Resolution
- Configurable from 32MP to QCIF
- Alarm Actions
- Record; snapshot; local alarm output; IPC external alarm output; audio; buzzer; log; preset; email
- Alarm Interface
- 16 channels input, 8 channels output
- Alarm Types
- General: Motion, external & network; Anomaly: Disk, network, video & audio; Intelligent: AI analytics
- ANPR (By Camera)
- All channels, 8 targets/s
- ANPR Functions
- License plate comparison; up to 20,000 plate numbers; blocklist and allowlist
- App Integration
- iOS / Android
- Backup Method
- USB Device / Network
- Decoding Capacity (AI Disabled)
- 10CH@8MP/30fps, 20CH@4MP/30fps, 40CH@1080P/30fps
- Decoding Capacity (AI Enabled)
- 8CH@8MP/30fps, 16CH@4MP/30fps, 32CH@1080P/30fps
- Display Mode
- HDMI1 + VGA1 simultaneous output; HDMI2 + VGA2 simultaneous output
- Display Output
- 2 × HDMI (up to 7680 × 4320), 2 × VGA (up to 1920 × 1080)
- Face Detection (By Camera)
- All channels, 32 targets/s
- Face Detection (By NVR)
- 4 channels, up to 12 face images/s per channel
- Face Detection Functions
- Gender; age group; glasses; expressions; face mask; beard
- Face Recognition (By Camera)
- All channels, 32 targets/s
- Face Recognition (By NVR)
- 24 channels (Face Detection by camera, Face Recognition by NVR): 24 images/s; 4 channels (Face Detection & Recognition by NVR): 24 images/s
- Face Recognition Capacity
- Up to 20 face databases / 30,000 images / 3.75GB total
- HDD
- 8 × SATA bays, up to 20TB per bay; RAID 0/1/5/6/10
- HDD Capacity
- 8
- Human/Vehicle Detection (By Camera)
- All channels, 64 targets/s
- Human/Vehicle Detection (By NVR)
- 16 channels
- Human/Vehicle Detection Functions
- AI Tripwire & Intrusion (IVS), AI Motion Detection (SMD Plus)
- Network Bandwidth (AI Disabled)
- 448Mbps (incoming/recording/outgoing)
- Network Bandwidth (AI Enabled)
- 200Mbps (incoming/recording/outgoing)
- Network Input
- 2 × 10/100/1000Mbps Ethernet
- NVR Operated AI
- AcuPick; Face Detection; Face Recognition; Video Metadata; Perimeter Protection; SMD Plus
- Playback Channels
- Up to 16 channels
- Playback Modes
- General Recording, Motion Detection, Intelligent Events, Alarm Triggers, POS
- Processor & Operation
- Industrial-grade processor, Embedded Linux OS, Web Interface / Local GUI
- Supported Camera AI
- AcuPick; Face Detection & Recognition; Video Metadata; Perimeter Protection; SMD; Stereo Analysis; Crowd Distribution; People Counting; ANPR; Vehicle Density; Heat Map; PPE Detection; Smart Object Detection; Smart Sound Detection
- USB & Other Inputs
- 1 × Front USB 2.0, 2 × Rear USB 3.0; 1 × RS-485; 1 × RS-232; 1 × eSATA
- Video & Audio Compression
- Video: Smart H.265+ / H.265 / Smart H.264+ / H.264 / MJPEG, Audio: G.711a / G.711u / PCM / G726
- Video Metadata (By Camera)
- All channels, 16 targets/s
- Video Metadata (By NVR)
- 4 channels, 22-attribute extraction
- Video Metadata Functions
- People: clothing colour/type, hat, bag, age, gender, umbrella; Vehicles: plate, plate colour, body colour, model, logo; Non-motor vehicles: model, colour, persons, helmet
