In Stock - Ready to Ship
Watchguard Compact Series DVRs

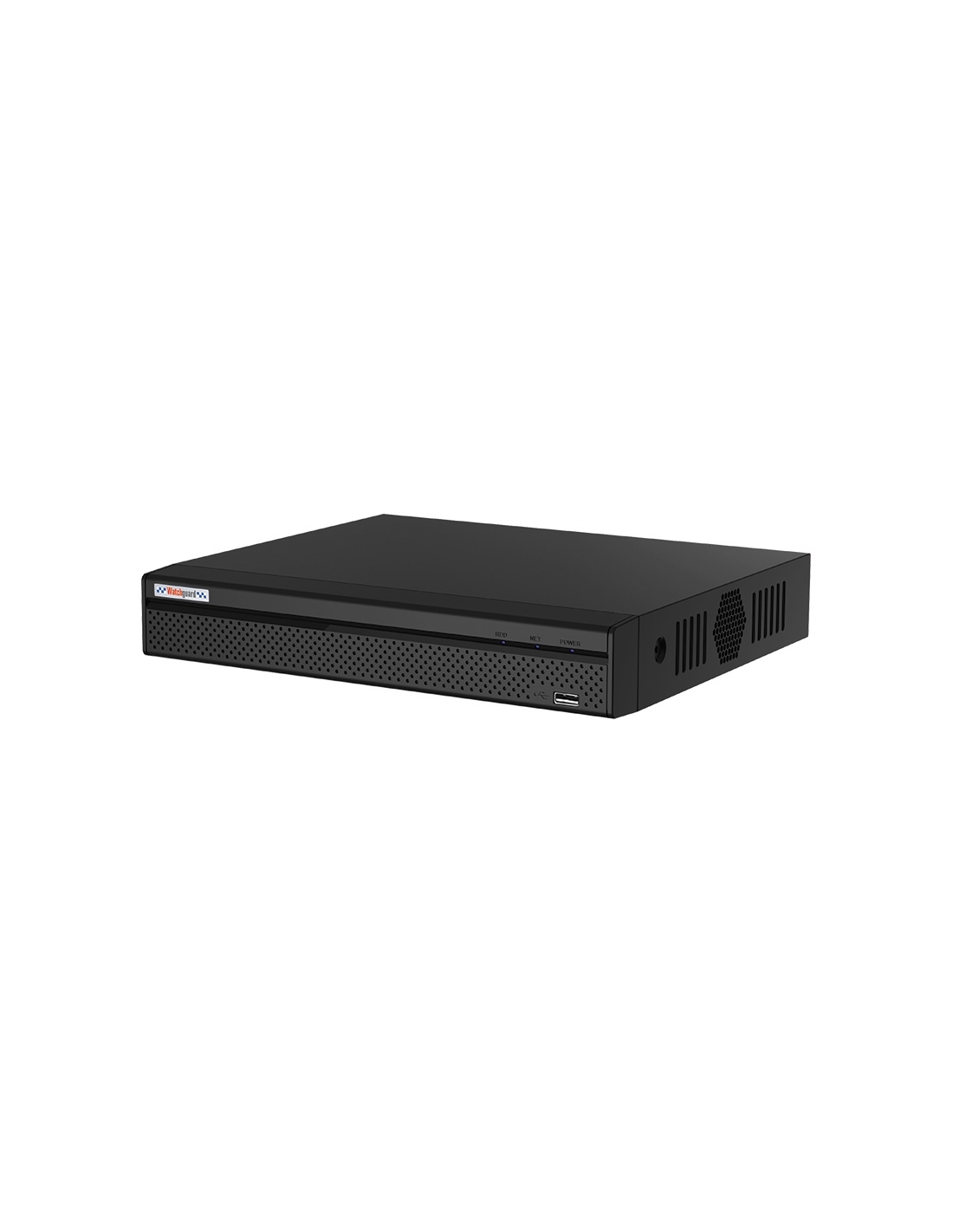

Watchguard CVR16COM3 Compact Series 16 Channel 8.0MP HDCVI Digital Video Recorder
CVR16COM3
In Stock - Ready to Ship
$ 590.60
inc-GST
- 10Records 16 channels up to Ultra HD/8.0MP (3840 x 2160) at 7fps
- H.265 encoding for efficient storage & streaming
- Support for HDCVI, HDTVI, AHD, Analogue and IP video inputs
- Up to 700m video transmission distance over coaxial cable
- 1 x SATA ports up to 10TB, max. 10TB HDD capacity
- Configure iOS/Android remote view in seconds via QR code
- HDMI (up to 4K, 3840 x 2160) & VGA simultaneous video output
- Backup via external USB device or local network
- Quiet smart fan auto adjusts with CPU temperature
Securview CVR16COM3 Professional Series 8 Channel 8.0MP HDCVI Digital Video Recorder
CVR16COM3
4 YEARS WARRANTY!
Experience 4K / Ultra HD broadcast quality surveillance over coaxial cabling. The CVR16COM offers the first Ultra HD recording solution over coax as well as compatibility for analogue and IP inputs (up to 8.0MP).
Product Features:
• Record UHD/4K/8.0MP (3840 x 2160) at 15fps / 4.0MP at 25fps (HDCVI) and 960H at 25fps (analogue)
• Add additional IP channels up to 8.0MP resolution
• 1 x SATA port for up to 10TB total HDD capacity
• Configure remote view in seconds via QR code
• 1 x HDMI (up to UHD/4K) inputs & VGA video output
• Backup via external USB device or local network
• Remote view for iOS, Android & Windows Phone
Specifications:
| General | |
| Main Processor | Embedded Processor |
| Operating System | Embedded Linux OS |
| Video Input | 16 channel BNC |
| Camera Configurations | Coaxial: 16 channels up to 8.0MP/15fps (HDCVI), 960H/25fps (analogue) / Network: Add 4 channels up to 8.0MP, Max 48Mbps Incoming Bandwidth |
| Audio In/Out | 1 channel input /1 channel output, RCA |
| Two-way Talk | Reuse channel 1 audio input/output |
| Internal HDD | 2 SATA port, up to 20TB total |
| USB Interface | 2 ports: 1x USB2.0, 1x USB3.0 |
| Auxiliary Inputs | 1 x RS485 port (for PTZ) |
| Power Supply | 12VDC/5A |
| Power Consumption | <15W (without HDD) |
| Operating Environment | -10 ~55°C / 10~90%RH / 86~106kpa |
| Dimensions | 375mm x 285mm x 55mm (1U) |
| Weight | 2.35kg (without HDD) |
| Display | |
| Video Output | 1 HDMI / 1 VGA |
| Display Resolution | 3840 x 2160, 1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768 |
| Display Split | 1 / 4 / 8 / 9 / 16 |
| OSD | Camera title, time, video loss, camera lock, MD & recording |
| Recording | |
| Maximum Resolution | 8.0MP (3840 x 2160) |
| Frame Rate (Main) | 8.0MP (1~15fps) / 4.0MP and lower (1~25fps) |
| Frame Rate (Sub) | D1 (1~25fps) |
| Frame Rate (Third) | |
| Video Compression | H.264+ / H.264 |
| Bit Rate | 1 ~ 12288Kbps per channel |
| Record Modes | Manual / Schedule (Regular, Continuous), Motion Detection, Alarm, Stop |
| Record Interval | 1~120 min (default: 60 min) / Pre: 1~30s / Post: 10~300s |
| Features | |
| Alarm Input / Output | N/A |
| Trigger Events | Recording; PTZ; tour; alarm; push video notification; email notification; FTP upload; snapshot; internal buzzer; and screen tip overlay |
| Video Detection | MD zones: 396 (22 x 18) / Video loss / Camera blank |
| Playback Sync | 1 / 4 / 9 |
| Search Modes | Time/Date; Alarm, Motion detection; Exact search (to the second) |
| Intelligent Functions | Face Detection |
| Backup Modes | USB Device / Internal SATA burner / Network |
| Network | |
| Ethernet | 1x RJ-45 port (1000M) |
| Network Functions | HTTP, IPv4/IPv6, TCP/IP, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, SNMP, P2P |
| Max. User Access | 128 users |
| Remote View | iOS (iPhone, iPad); Android devices, Windows Phone |
| Warranty (Years) | 4 |
-1.jpg)
-2.jpg)
- Dimensions
- 325mm x 257mm x 55mm (1U)
- Ethernet
- 1x RJ-45 port (1000MB)
- Main Processor
- Embedded Processor
- Power Supply
- 12VDC / 3A
- Operating Environment
- -10°C ~ 55°C / 10% ~ 90% RH
- Weight
- 1.5kg (without HDD)
- AI Functions
- Face Recognition / Perimeter Protection / Smart Motion Detection (SMD+)
- AI Search (Face Recognition)
- Up to 8 target face images at the same time
- AI Search (Perimeter Protection)
- Search by target classification (Human, Vehicle)
- AI Search (SMD+)
- Search by target classification (Human, Vehicle)
- Alarm Input / Output
- 16 channel input / 3 relay output
- Audio In/Out
- 16 input / 1 output (RCA)
- Auxiliary Inputs
- 1 x RS485 port
- Backup Modes
- USB Device / Network
- Bit Rate
- 32Kbps ~ 6144Kbps Per Channel
- Coax Input Support
- 16 channels up to 8.0MP/7fps (HDCVI), 960H/25fps (analogue)
- Database Application
- Each database can be applied to video channels independently
- Database Management
- Up to 10 face databases with 20,000 face images in total. Name, gender, birthday, nationality, address, ID information can be added to each face picture.
- Display Resolution
- HDMI: 3840 x 2160 to 1280 x 720 ; VGA: 1920 x 1080 to 1280 x 720
- Display Split
- 1/4/8/9/16 (36 with IP extension mode enabled)
- Frame Rate (Main)
- 8.0MP (1~7fps), 6.0MP (1fps~10fps), 4.0MP (1~15fps), 1080p and lower (1~25fps)
- Frame Rate (Sub)
- 960H (1 ~15fps)
- Frame Rate (Third)
- N/A
- Internal HDD
- 1 x SATA port, up to 16TB, max. 16TB HDD capacity
- IP Input Max. Bandwidth
- 128Mbps
- IP Input Max. Resolution
- 8.0MP
- IP Input Support
- 16 channels
- Max. User Access
- 128 users
- Maximum Resolution
- Configurable from 8.0MP (3840 x 2160) to CIF (352 x 288)
- Network Functions
- HTTP, HTTPS, TCP/IP, IPv4, RTSP, UDP, SMTP, NTP, DHCP, DNS, DDNS, P2P
- Object Classification (Perimeter Protection)
- Human / vehicle secondary recognition for tripwire and intrusion
- Operating System
- Embedded Linux
- OSD
- Camera title, Time, Video loss, Camera lock, Motion detection, Recording
- Performance (Face Recognition)
- Max. 12 pictures per second, 2 channel video stream only supports analog cameras (Performance varies depending on camera and resolution)
- Performance (Perimeter Protection)
- 2 channels, 10 IVS rules for each channel (advanced) ; 8 channels, 10 IVS for each channel (general)
- Performance (SMD+)
- 16 channels
- Playback Sync
- 1/4/9/16
- Power Consumption
- Rackmount Units
- N/A
- Rackmountable
- No
- Record Interval
- 1 ~ 60 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec
- Record Modes
- Manual / Schedule (Regular, Continuous), Motion Detection, Video Loss, Alarm, Stop
- Remote View
- iOS (iPhone, iPad); Android devices
- Search Modes
- Time /Date, Alarm, Motion detection and Exact search (to the second), smart search
- Stranger Mode
- Detect strangers face (not in database)
- Supported Video Inputs
- HDCVI / HDTVI / AHD / Analogue / IP
- Trigger Events
- Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips
- Trigger Events (Face Recognition)
- Recording, PTZ, tour, alarm, push video notification, email notification, FTP upload, snapshot, internal buzzer, screen tip overlay, and voice prompt
- Two-way Talk
- Reuse channel 1 audio input/output
- USB Interface
- 2 x USB ports (1 x USB 2.0 , 1 x USB 3.0)
- Video Compression
- AI Coding / H.265+ / H.265 / H.264+ / H.264
- Video Detection
- Motion Detection, MD Zones: 396 (22 × 18), Video Loss, Tampering and Diagnosis
- Video Input
- 16 channel BNC
- Video Output
- 1 HDMI / 1 VGA
