Akuvox A095S Light Grey Lockable Metal Box for A095S Access Controllers — AK-A095S-BOX

SKU AK-A095S-BOX CALL stock OR Max avail. in cart
$205.00 inc GST

Akuvox A095S metal box houses the A095S access controller on the wall behind a lockable hinged door. The controller clips onto the rail inside, and the box comes with a wall-mounting template plus the three screws and anchors that hold it to the wall.

  • ✓Lockable metal enclosure for the Akuvox A095S controller
  • ✓Rail inside for the controller, hinged door with key lock
  • ✓Wall-mounting template, 3 × ST4×20 screws and 3 anchors included
  • ✓Light grey finish with the Akuvox logo on the door


Akuvox · A095S · Metal box

Lock the controller away.
A metal home for the A095S.

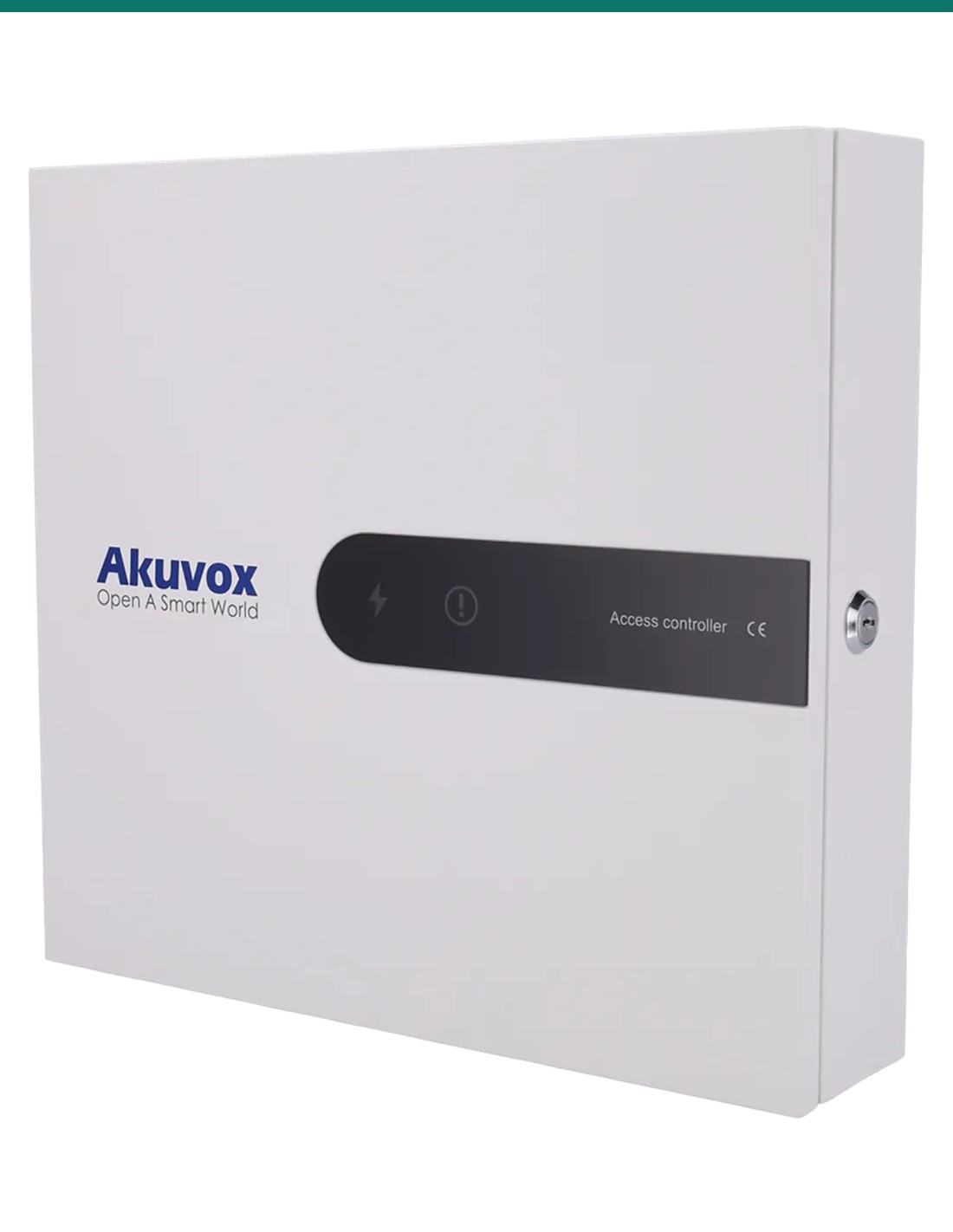

The AK-A095S-BOX is the Akuvox metal enclosure for the A095S access controller. It fixes to the wall with three screws, the controller sits on the rail inside, and a keyed door closes over the wiring.

Enclosure only.

You get the metal box, its wall-mounting template and fixings. The A095S controller, readers, locks and power supply are separate items.

In the box
  • Metal box
  • Wall-mounting template
  • 3 × ST4×20 crosshead screws
  • 3 × plastic wall anchors
What you also need (sold separately)
  • Akuvox A095S access controller
  • A solid wall surface
  • Electric drill with a 6 mm bit

Wiring out of reach.

Door controllers carry the lock, reader and exit-button wiring for every door. Behind a locked metal door, those terminals are out of reach of anyone without the key.

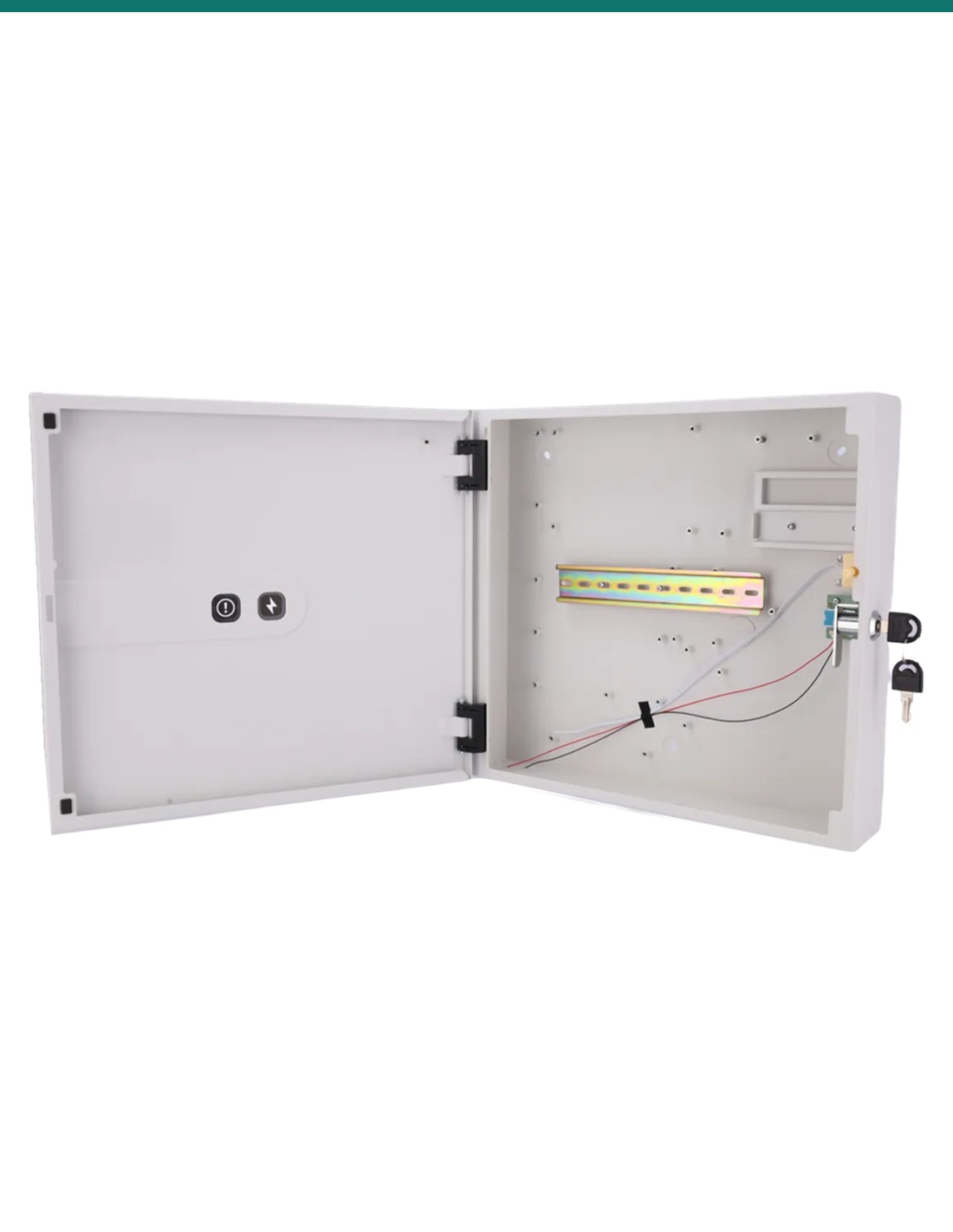

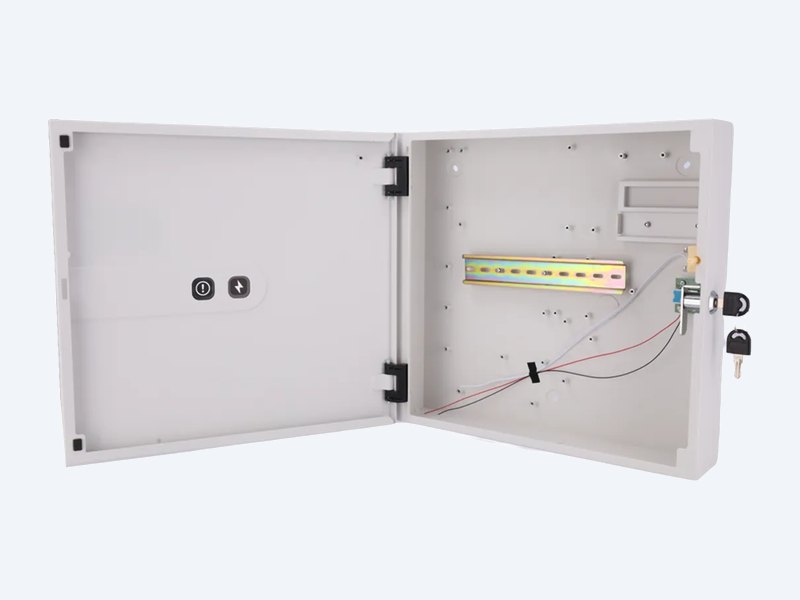

Akuvox A095S metal box open, showing the rail and key lock

Inside

Rail-mounted controller.

The A095S mounts on the rail inside the box, with room around it for the door, reader and lock wiring.

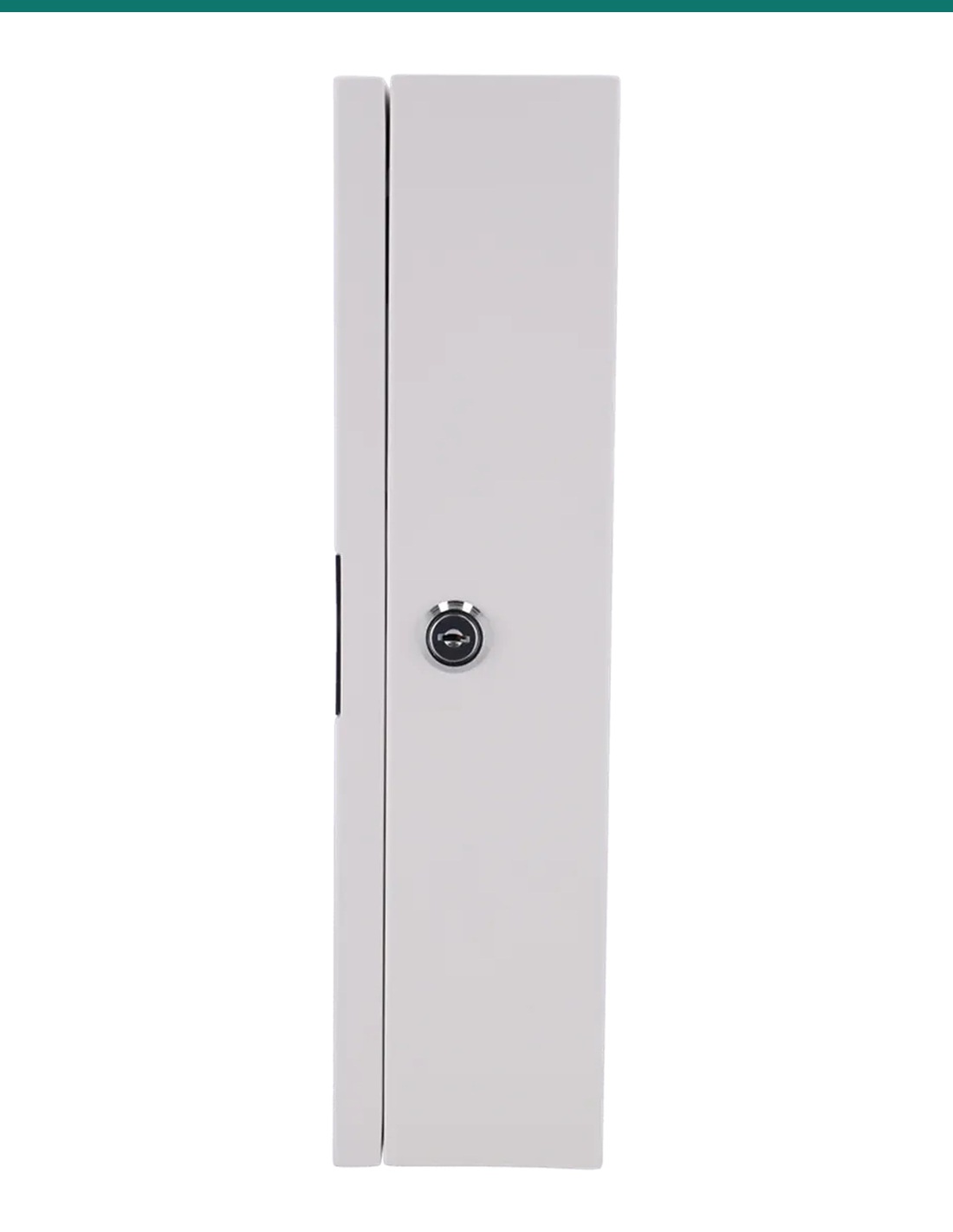

The hinged door closes over everything and locks with a key on the side of the box.

Fixing

Three screws to the wall.

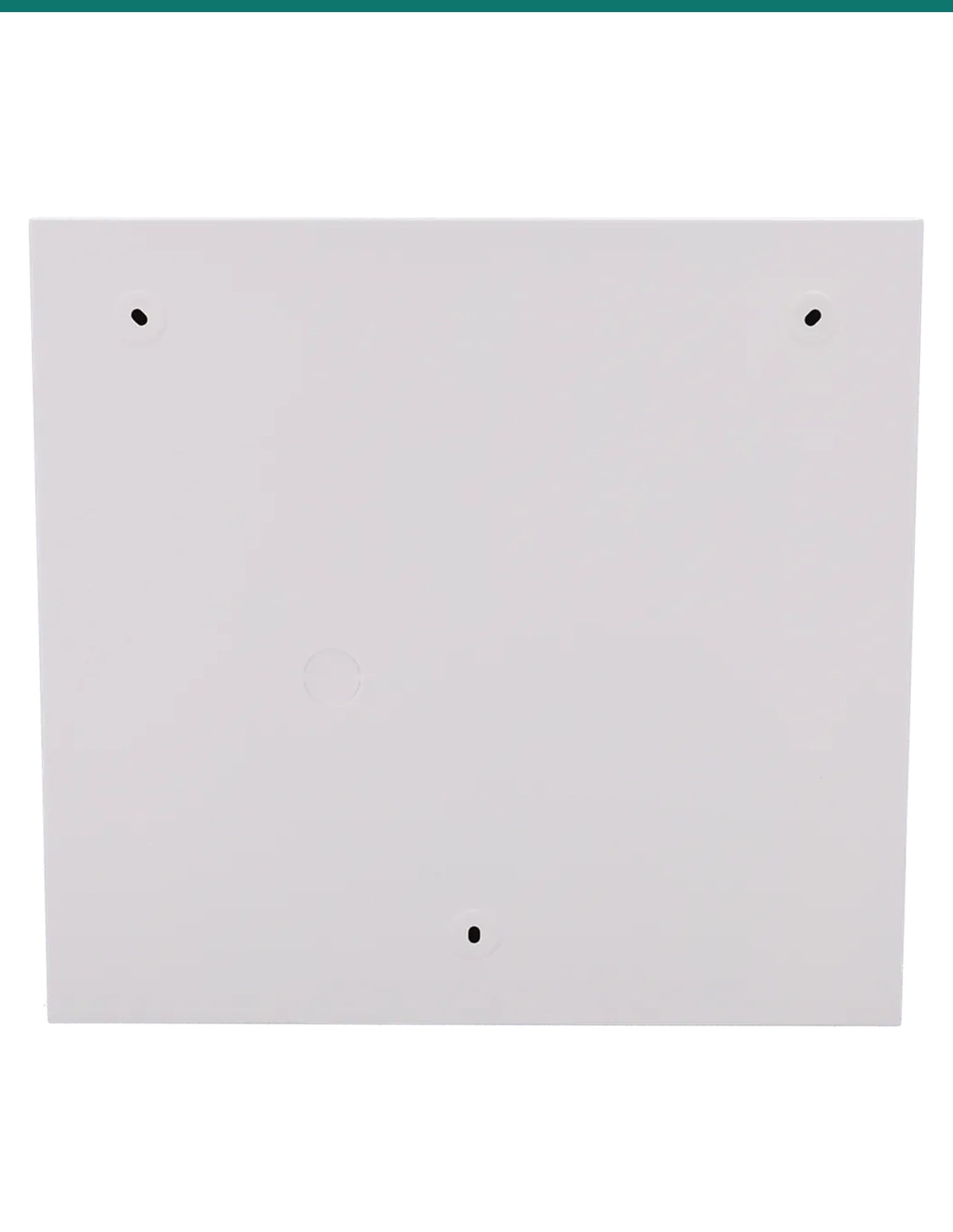

The back of the box has three fixing points that match the supplied wall-mounting template.

Drill 6 mm holes 25 mm deep, fit the anchors flush with the wall and screw the box on with the three ST4×20 screws.

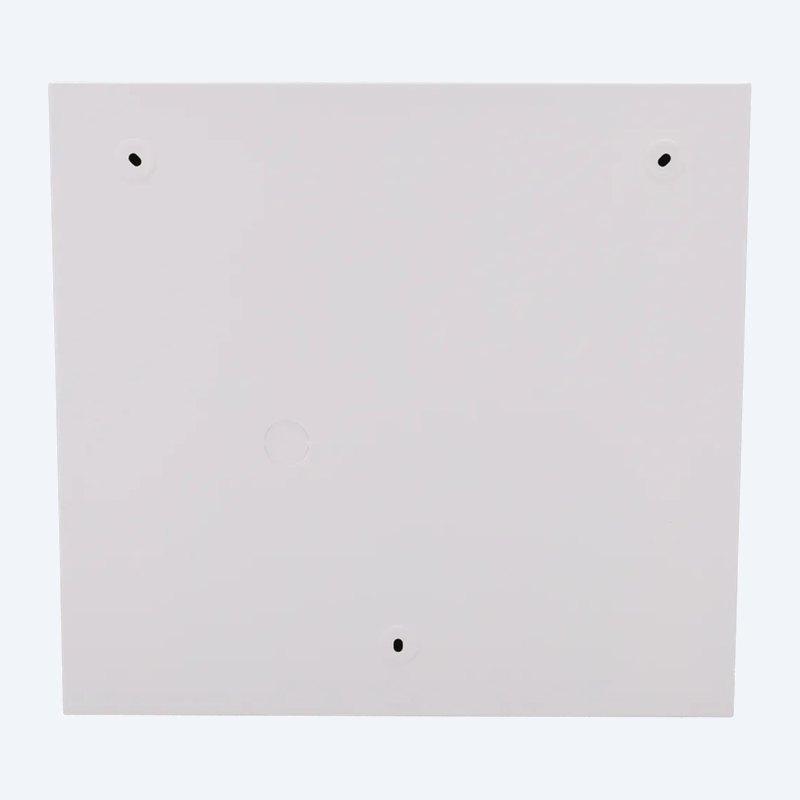

Back of the Akuvox A095S metal box

How it works

Up on the wall in three steps.

01

Mark and drill

Stick the template on the wall and drill the marked holes 6 mm wide and 25 mm deep.

02

Fix the box

Push in the three plastic wall anchors so they don't stand proud, then screw the box on with three ST4×20 screws, firm and flush against the wall.

03

Fit and lock

Mount the A095S on the rail inside, wire it up, check it works, then lock the outer cover.

Pair it with

Goes with the A095S controller

Controller

Akuvox A095S

The 4-door, 8-reader IP access controller this box is made to hold.

Readers

Akuvox A01S, A02S, A03S and A08S

Readers that can be wired back to the A095S at each door.

Downloads

Datasheets and guides

Compliance certificates and technical documents are available on request for tenders and installers — send an enquiry.

Answers

Common questions

Which controller does it fit?

The Akuvox A095S access controller, which mounts on the rail inside the box.

Does it lock?

Yes. The outer cover is a hinged door with a key lock on the side of the box.

How is it fixed to the wall?

Stick the supplied template on the wall, drill three holes 6 mm wide and 25 mm deep, insert the plastic wall anchors and screw the box on with the three ST4×20 screws.

What is in the box?

The metal box, a wall-mounting template, three ST4×20 crosshead screws and three plastic wall anchors.

Is the controller included?

No. The A095S controller is a separate item.

What colour is it?

Light grey, with the Akuvox logo on the door.

The tidy way to mount an A095S.

Put the controller in its own lockable box rather than loose in a ceiling space or comms cupboard, with the wiring for every door in one place.

Material
Metal
Colour
Light grey
Brand
Akuvox
Product Type
Controller enclosure
Model
A095S metal box
Includes
Metal box, wall-mounting template, 3 ST4×20 screws, 3 wall anchors
Compatible with
Akuvox A095S access controller
Lock
Key lock on the hinged door
