Akuvox MD06 adds 6 backlit call buttons with name tags to an Akuvox R20K or R20B door phone, so visitors press a name instead of dialling a number. Aluminium front, IP65, flush-mounted, and modules can be combined for larger buildings.

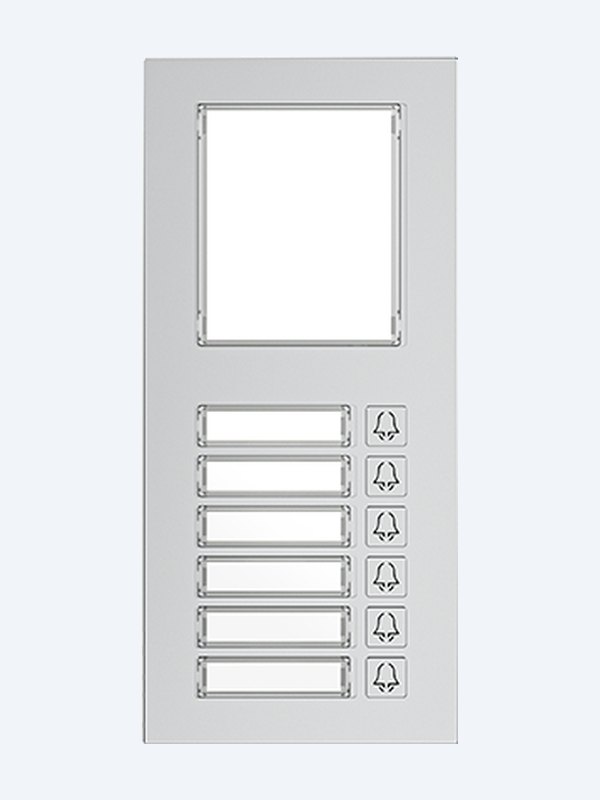

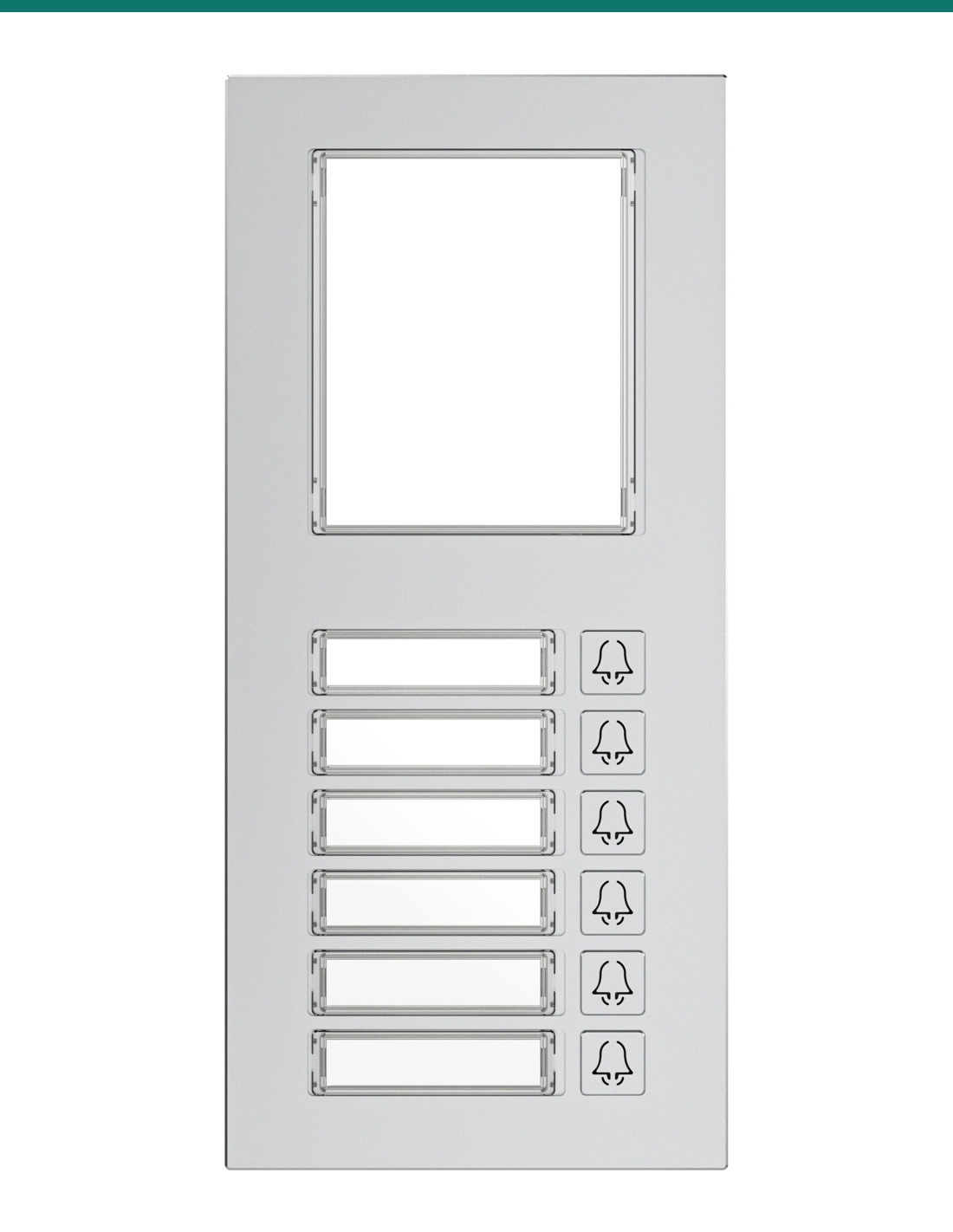

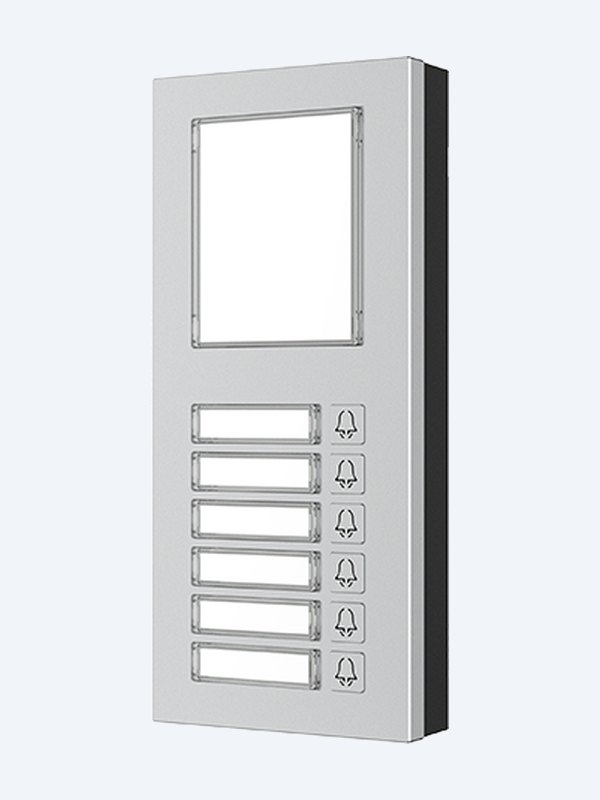

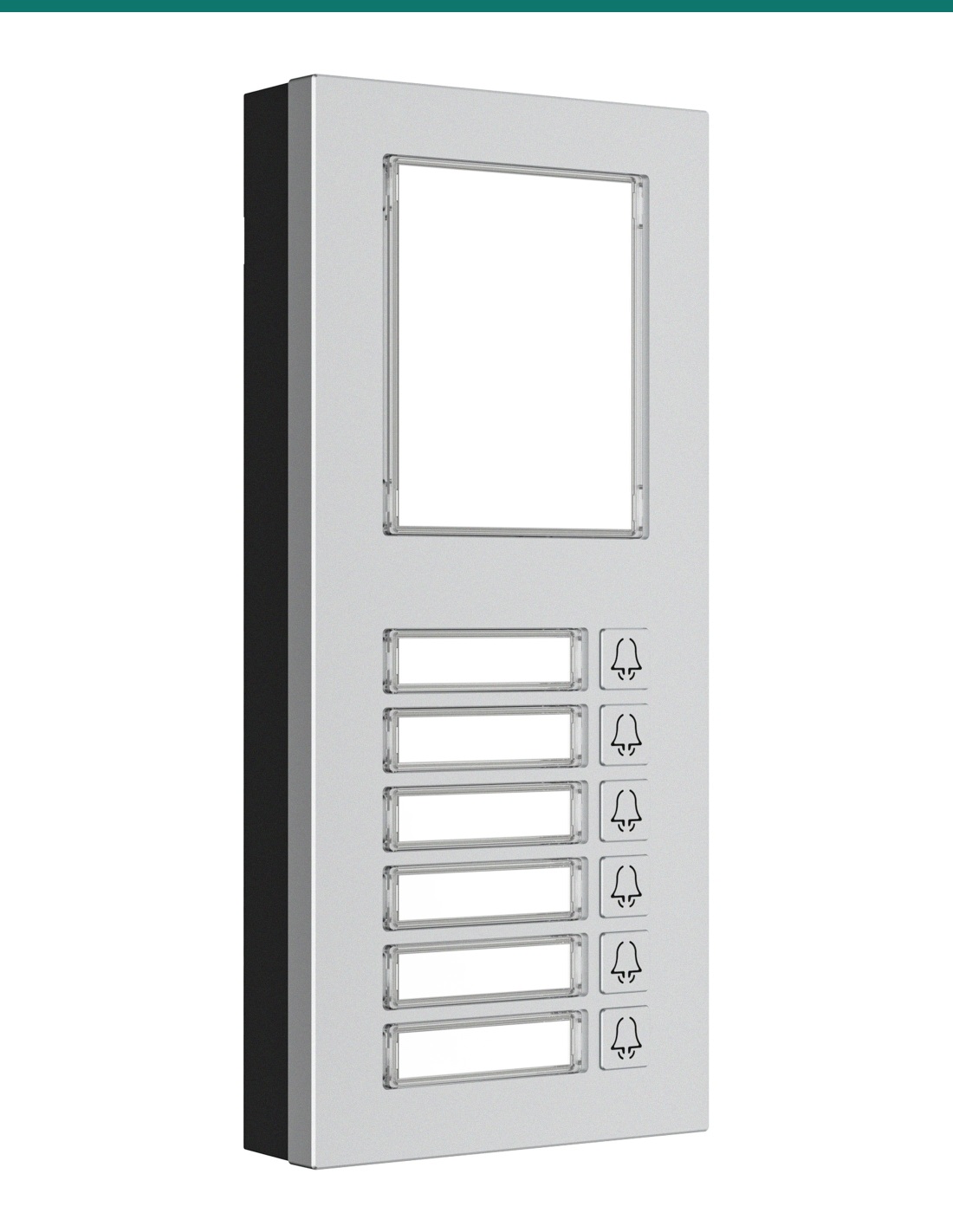

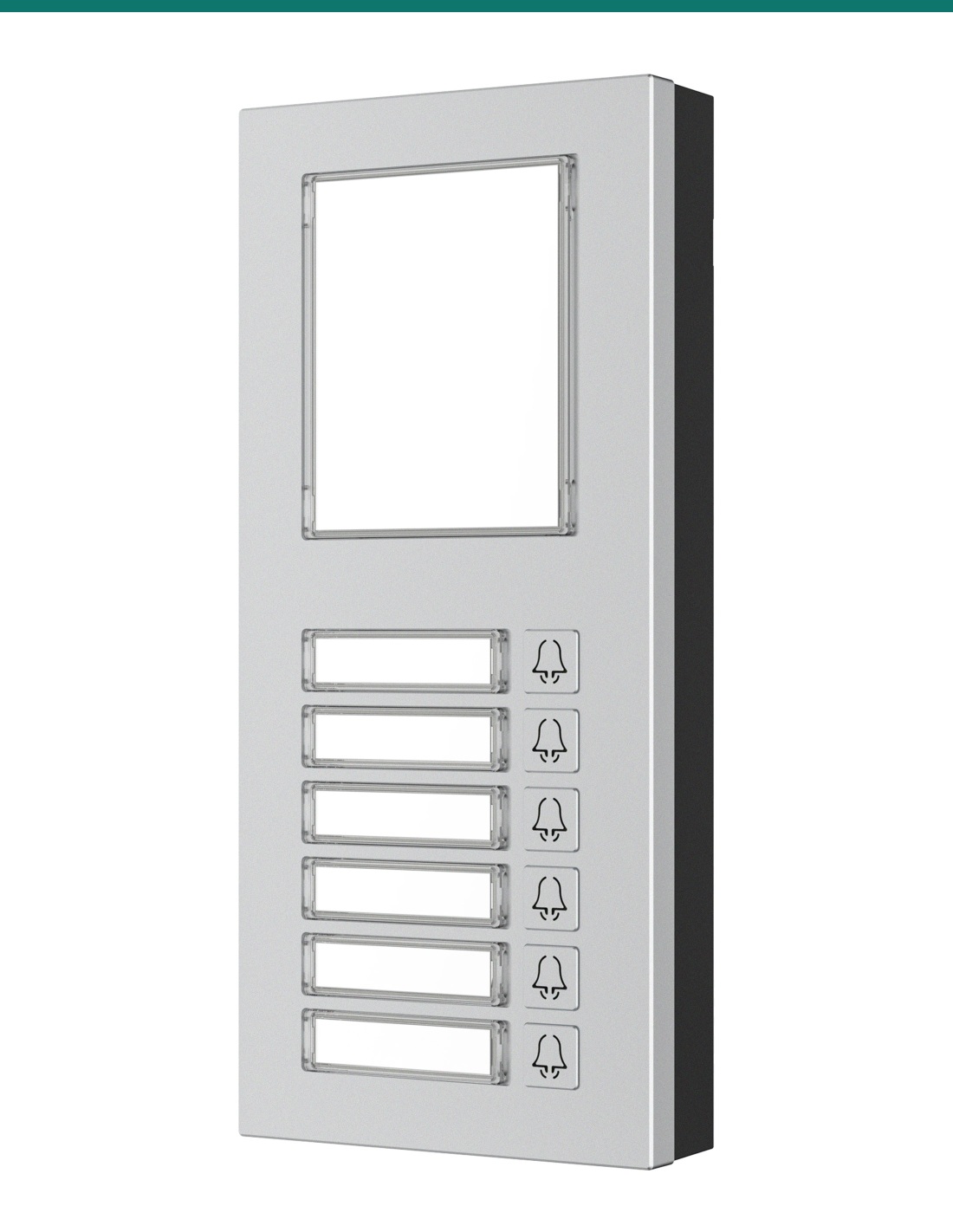

The AK-MD06 is Akuvox’s MD06 nametag module. It sits beside an R20K or R20B door phone in the same 85 mm-wide format and gives each tenant, department or office a labelled, backlit call button.
This SKU is the expansion module only.
You receive the MD06 module with name pads, cable seals, RJ45 cable and coupler and fixings. The R20K or R20B door phone, multi-unit in-wall box and 12 V DC power supply are sold separately.
Visitors find the name, press once and the door phone calls the right flat, office or department — ideal for small apartment blocks, medical suites and shared offices.
Buttons
Each of the 6 mechanical buttons has its own name tag and backlight, so names stay readable after dark. A press speed-dials the number set in the door phone.
The aluminium alloy front is IP65 and rated −30 °C to +60 °C — the same outdoor standard as the R20 door phones it extends.
Expand
The module has two RS485 ports, and Akuvox designs MD06 and MD12 to be combined for larger buildings.

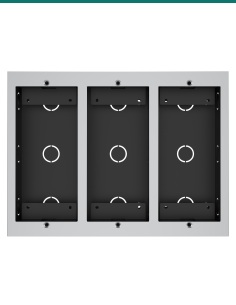

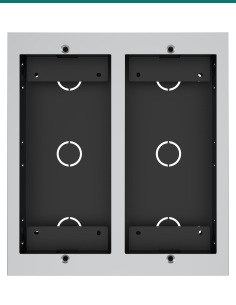

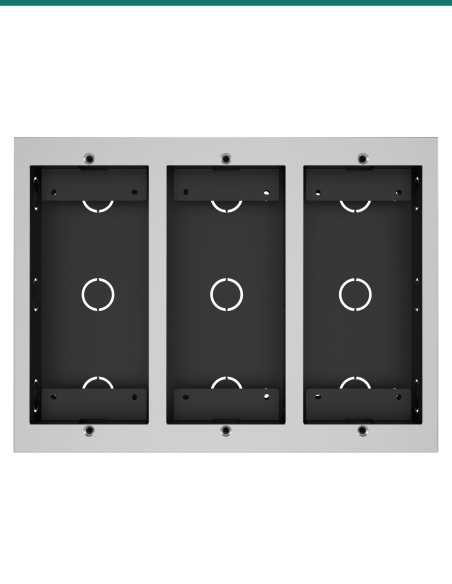

185 × 85 × 24 mm, the same footprint as the R20K and R20B. Flush-mount the door phone and modules side by side in a two- or three-module in-wall box.
At a glance
Show all specifications
Pair it with
Door phone

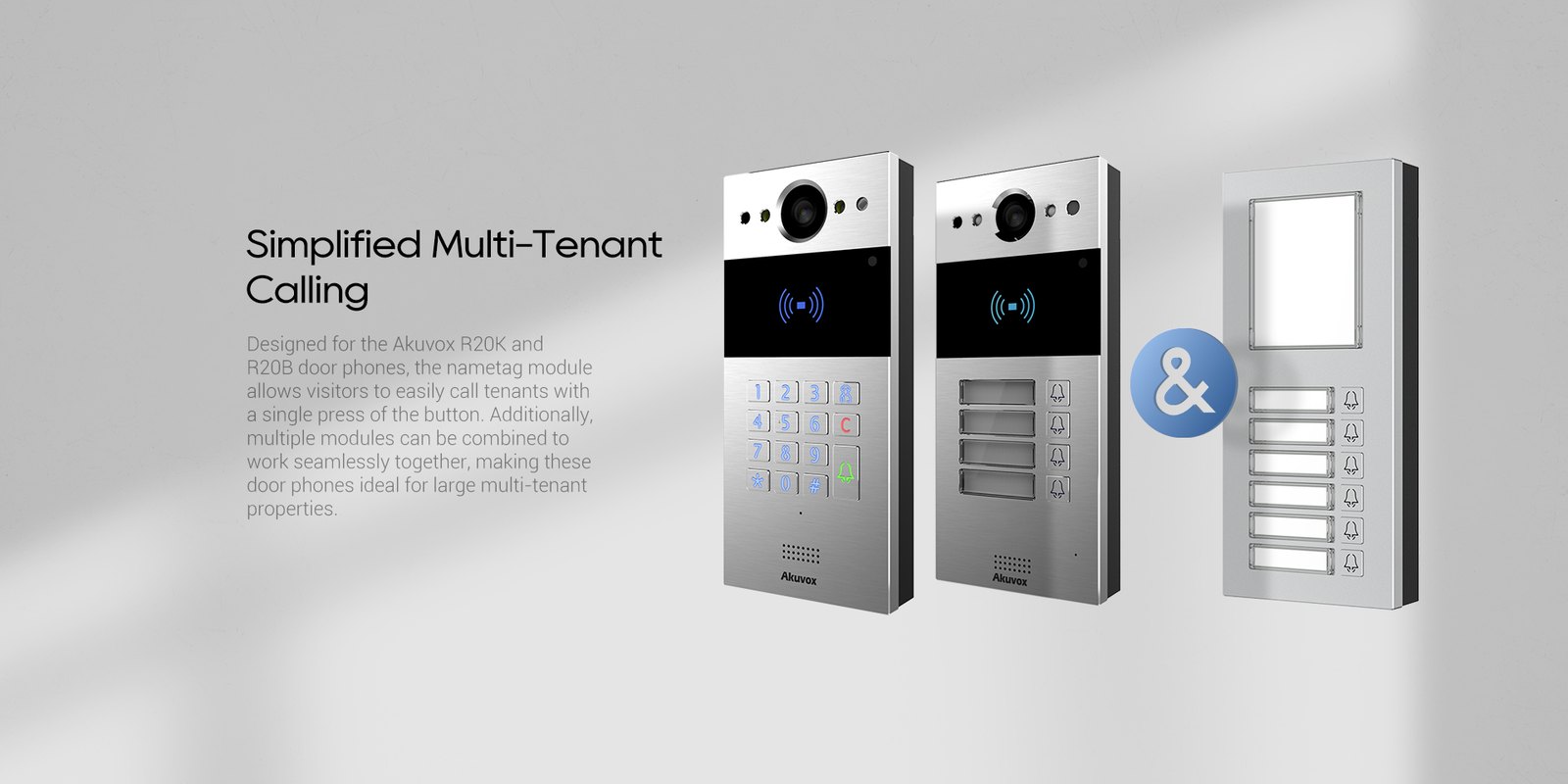

The MD06 extends these door phones with labelled call buttons.
Flush
Mounts the door phone and modules side by side in one recess.
More names
Combine with MD12 to reach the button count you need.
Downloads
Compliance certificates and technical documents are available on request for tenders and installers — send an enquiry.
Answers
Akuvox R20K and R20B. It is not designed for the E-series or other door phones.
Yes. MD06 and MD12 are designed to be combined, so they can be added together for larger buildings.

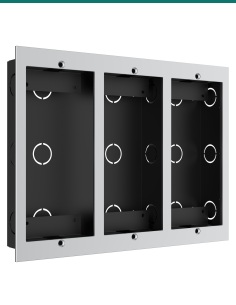

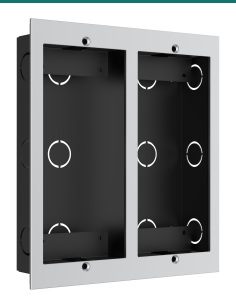

Flush-mounted, normally in a two- or three-unit in-wall box alongside the door phone. The boxes are sold separately.
12 V DC at 600 mA. It also has a 12 V DC output rated up to 500 mA.
The MD06 module, 20 name pads, small and medium rubber cable plugs, a sealing pressing plate, an RJ45 cable and coupler, a pry bar, a rope, four wall-mounting screws and two diodes.
Akuvox’s placement drawing puts the door phone camera centre 1500 mm above the ground, with the bottom of the flush box about 1315 mm up.

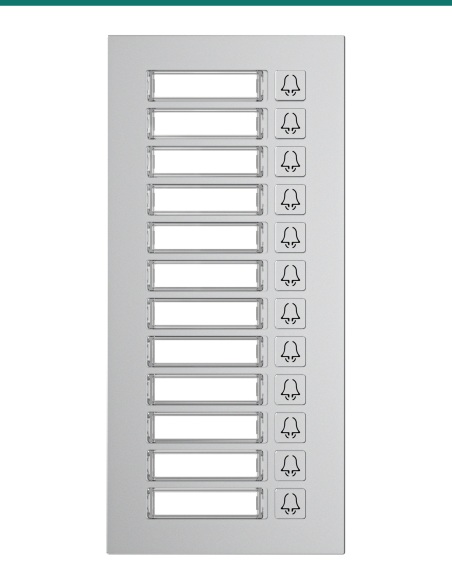

Same size, finish and interfaces. MD06 has six name buttons, MD12 has twelve.
Choose MD06 for up to six names per module, or MD12 when you need twelve.
Low-voltage product (SELV). Power from a 12 V DC supply (600 mA); the 12 V DC output can supply up to 500 mA. Treat as SELV low-voltage equipment.
When a licensed tradesperson is required. Concealed data and intercom cabling is customer cabling under AS/CA S009 and must be installed by an ACMA-registered cabler. Electric locks, maglocks and lock power supplies may require a licensed electrician or security installer.
