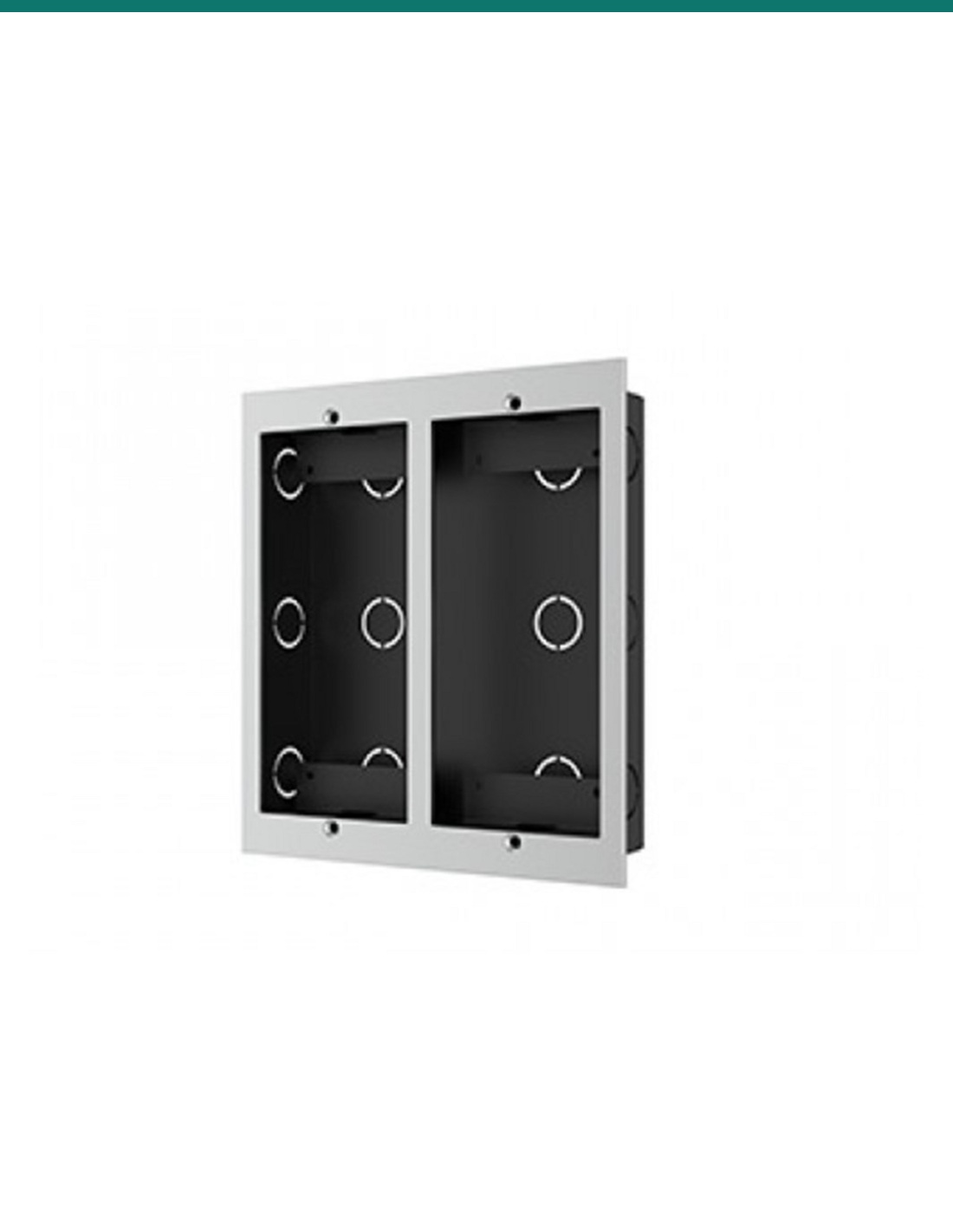

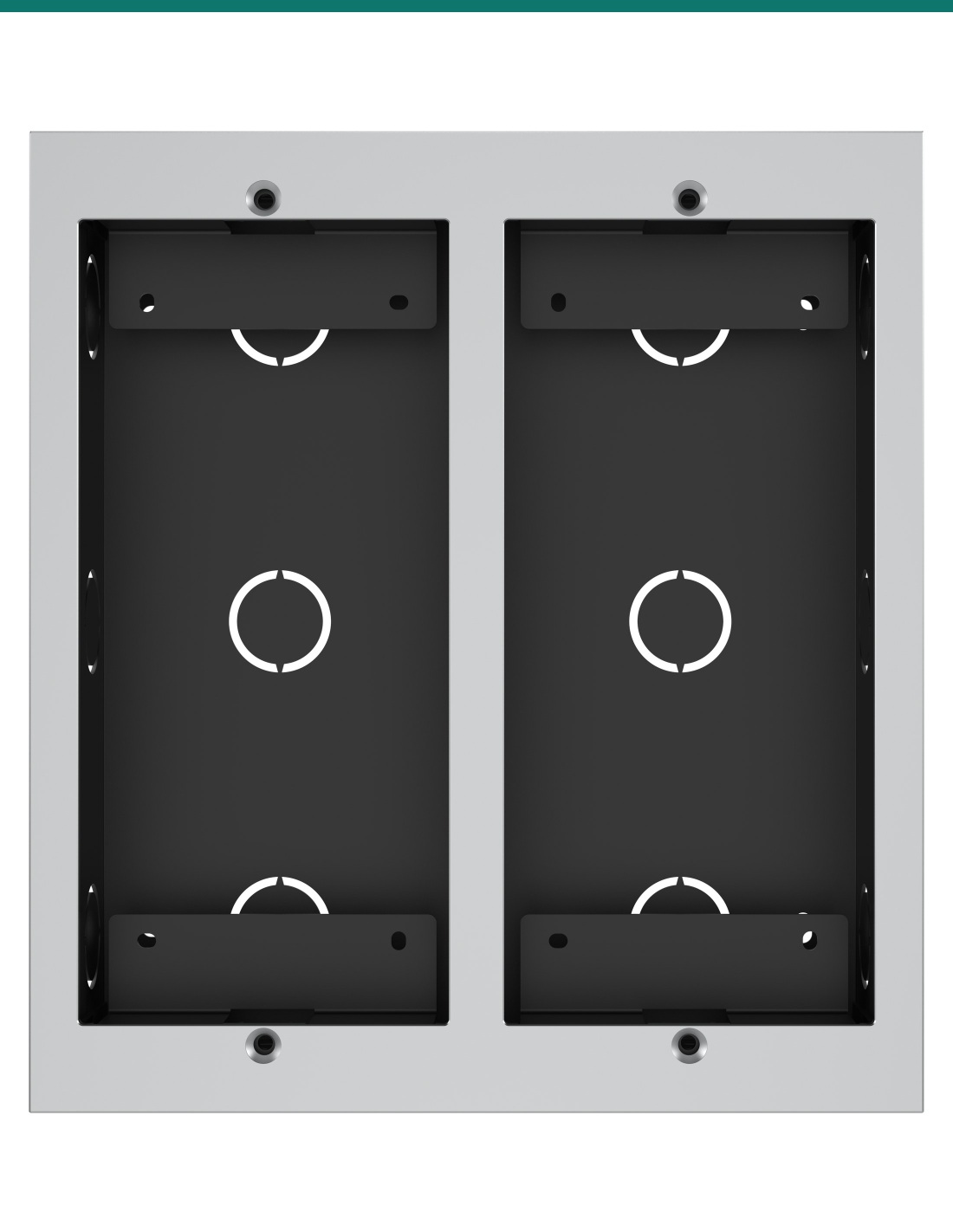

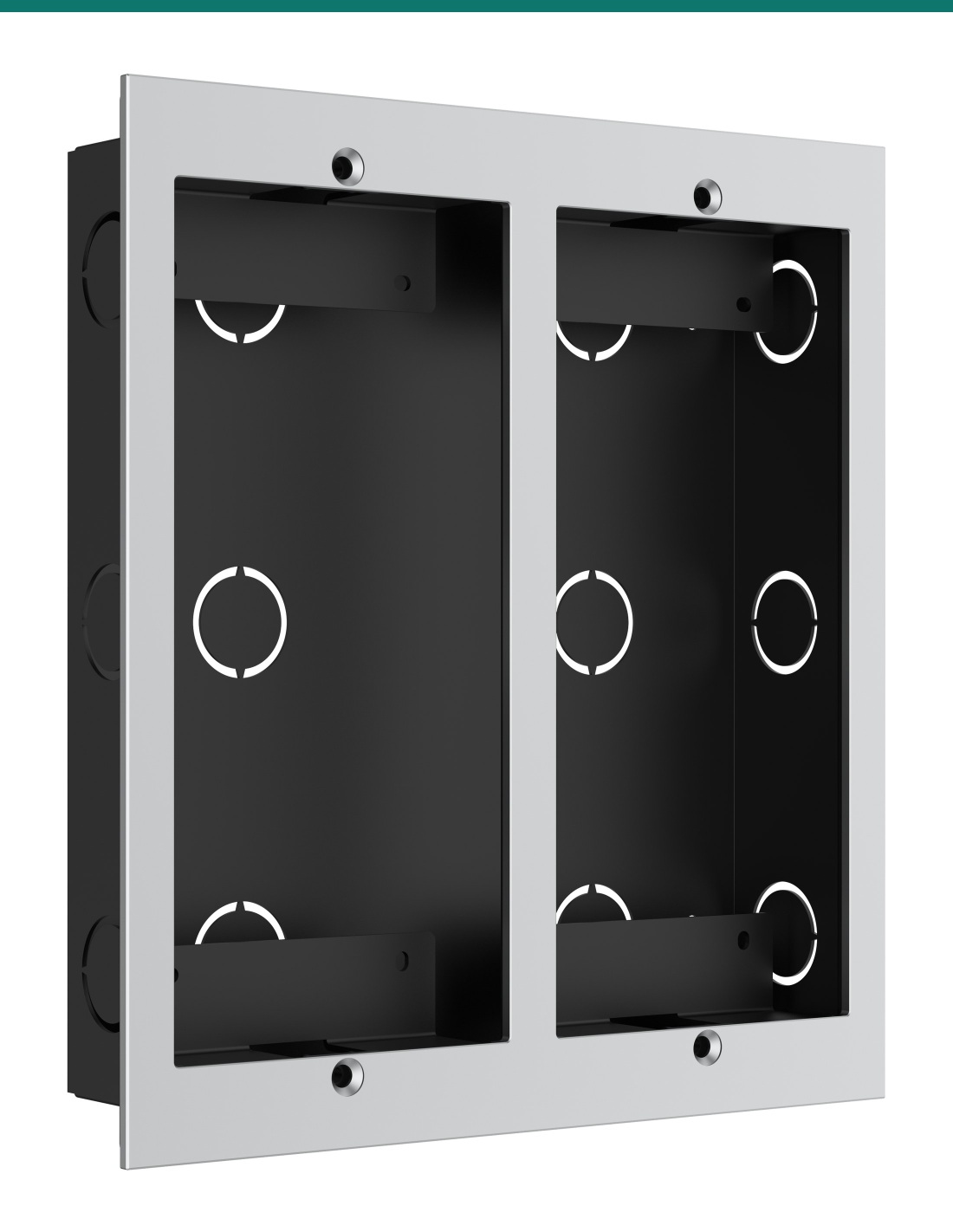

Akuvox two-unit in-wall box — front

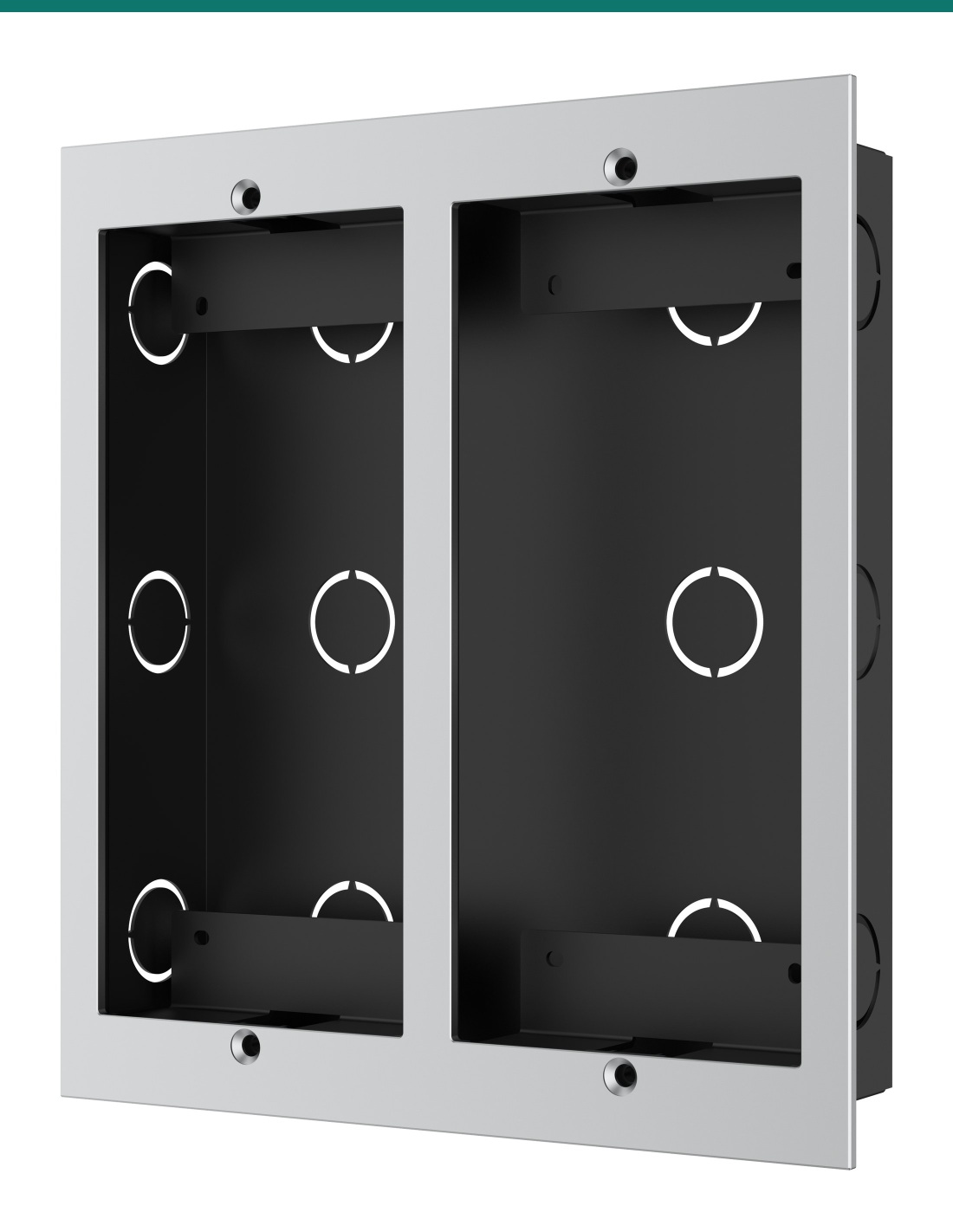

Akuvox two-unit in-wall box — left three-quarter view
Akuvox two-unit in-wall box — right three-quarter view

Akuvox Two-Unit In-Wall Box for R20K / R20B with MD06 / MD12 Modules — AK-MD2M-INWALLK

AK-MD2M-INWALLK
In Stock - Ready to Ship
$ 94.50
inc-GST

or 4 interest-free payments of $23.62 with

Akuvox AK-MD2M-INWALLK flush-mounts an R20K or R20B door phone and one MD06 or MD12 module side by side in one recess. It comes with the in-wall box, the bracket that joins the units into a single panel, wall fixings and the Torx screws that lock the panel to the box.

  • ✓Two-unit flush box: door phone + 1 module
  • ✓For Akuvox R20K / R20B door phones with MD06 or MD12 nametag modules
  • ✓Wall cut-out 209 × 188 × 40 mm (H × W × D)
  • ✓Box, bracket, wall anchors, ST4×20 screws, M4×15 Torx screws, M3 screws and Torx wrench

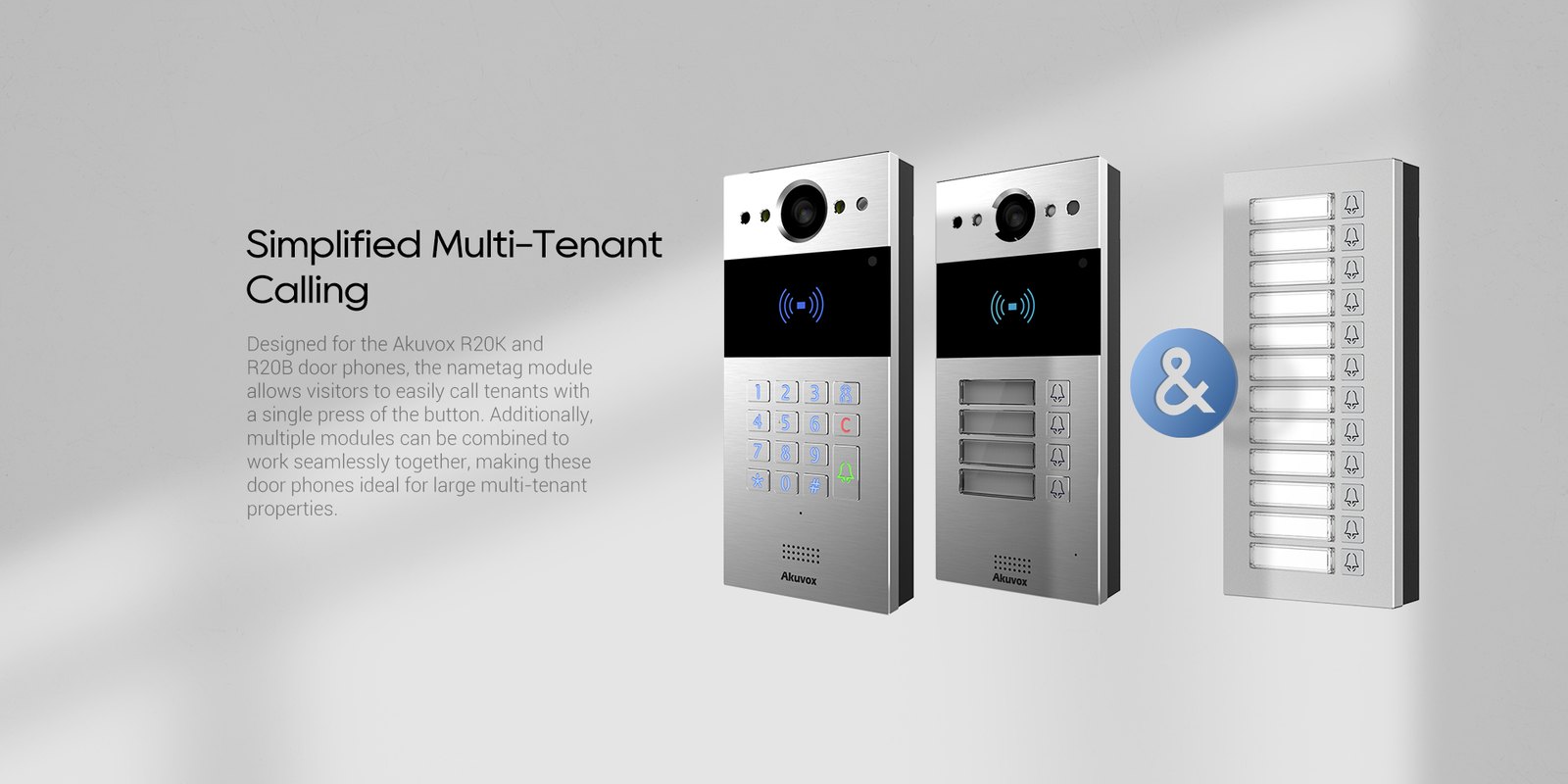

Akuvox R20K and R20B door phones with an MD nametag module
Akuvox · R20 + MD · Two-Unit in-wall box

One panel, two units.
Flush-mounted side by side.

The AK-MD2M-INWALLK is Akuvox’s dual-unit flush-mounting box for the R20 system. It joins an R20K or R20B door phone and one MD06 or MD12 module into one neat entry panel set into the wall.

This SKU is the in-wall box and fixings.

You receive the box, bracket and fixings listed below. The door phone and nametag modules are sold separately.

In the box
  • Flush-mounting box × 1
  • Flush-mounting bracket × 1
  • Plastic wall anchors × 4
  • ST4×20 crosshead screws × 4
  • M4×15 Torx screws × 4
  • M3×5.3 mounting screws × 8
  • Ropes × 2
  • Torx wrench × 1
What you also need (sold separately)
  • Akuvox R20K or R20B door phone
  • MD06 or MD12 nametag module
  • PoE 802.3af switch for the door phone and 12 V DC supply for the modules
  • Lock hardware and lock power supply

A single entry panel for the building.

Door phone and name buttons sit together in one flush panel, so visitors see the camera, the keypad or buttons, and every tenant’s name in one place.

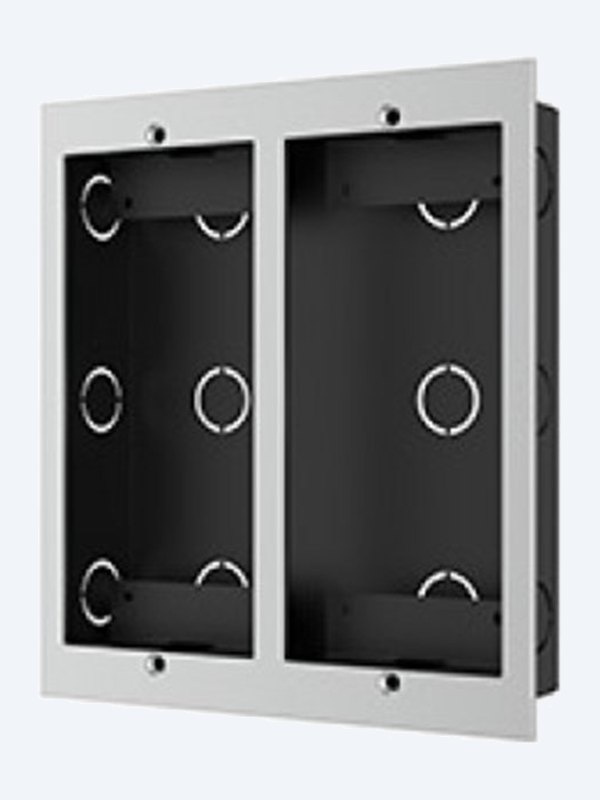

Akuvox two-unit in-wall box for R20K / R20B and MD modules

In the kit

Box, bracket and fixings.

The flush box goes into the wall. The bracket holds the door phone and module together as one panel, and the panel fixes to the box with Torx screws.

Two ropes hold the panel while you wire it, and a Torx wrench is included.

Fit

Made for the R20 system.

The R20K and R20B door phones and the MD06 and MD12 modules share one 185 × 85 mm format, so any combination fits the box.

Wall opening: 209 × 188 × 40 mm (H × W × D).

Pair it with

Builds a flush multi-tenant entry panel

Door phone

Akuvox R20K / R20B

Keypad or button SIP video door phones in the R20 format.

6 names

Akuvox MD06

Six backlit name buttons per module.

12 names

Akuvox MD12

Twelve backlit name buttons per module.

Downloads

Datasheets and guides

Compliance certificates and technical documents are available on request for tenders and installers — send an enquiry.

Answers

Common questions

What does it hold?

An R20K or R20B door phone and one MD06 or MD12 module, side by side in one flush panel.

How big a hole do I need?

209 × 188 × 40 mm (height × width × depth).

Can I fit two modules?

No — the two-unit box takes the door phone and one module, either an MD06 or an MD12. For two modules use the three-unit box.

What is in the box?

Flush-mounting box × 1, flush-mounting bracket × 1, plastic wall anchors × 4, ST4×20 crosshead screws × 4, M4×15 Torx screws × 4, M3×5.3 mounting screws × 8, ropes × 2, Torx wrench × 1.

How high should it be mounted?

Akuvox’s placement drawing puts the door phone camera centre 1500 mm above the ground, with the bottom of the flush box about 1315 mm up.

Are the door phone and modules included?

No. This SKU is the box, front frame and fixings only.

Flush multi-tenant panels.

Choose the two-unit box for a door phone plus one module; for a door phone with two modules, see the three-unit box.

Installation & safety notice

Fitting. Cut a 209 × 188 × 40 mm (H × W × D) hole, fix the box with the ST4×20 screws and anchors so it sits 0–3 mm below the wall surface and no more than 2° out of level, or, for a simpler install with lower vandal resistance, bed it in cement or adhesive. Join the door phone and modules on the bracket with the M3 screws, wire them, then fix the panel to the box with the M4×15 Torx screws.

Colour
Silver frame
Capacity
Door phone + 1 module
Brand
Akuvox
Mounting
In-wall / flush
Warranty
Australian warranty
Product Type
In-wall (flush) multi-unit mounting box
Model
Two-module in-wall box
Compatible with
Akuvox R20K, R20B, MD06 and MD12
Wall Cut-out
209 × 188 × 40 mm (H × W × D)
Box Size
186 × 206.6 × 39 mm (W × H × D)
Front Frame
206.1 × 226.1 mm (W × H), 25.2 mm deep
