Akuvox S535 Black On-Wall Mounting Box for Surface Mounting — AK-S535ONWALLK
$57.30
inc GST
Akuvox AK-S535ONWALLK is the standard on-wall box for the S535 5″ facial recognition door phone. The S535 ships without a box: this slim black plate screws to the wall, the S535 hangs on its two hooks and is locked in with a Torx screw. For an S535 with a fingerprint, induction loop or LTE module, use the module version of the box.
- ✓Surface-mounts the Akuvox S535 (210 × 100 × 27 mm) with no module fitted
- ✓Black box, 209.5 × 99.5 × 15 mm (H × W × D)
- ✓4 × ST4×20 screws and anchors, plus 2 × M4×30 for an existing wall box
- ✓Fitting a module? Choose AK-S535ONWALLKEX (259.2 mm tall) instead
Akuvox · S535 · On-wall mounting box
Surface-mount the S535.
Standard box, no module.
The AK-S535ONWALLK is Akuvox’s standard wall-mounting box for the S535. It is sized to the 210 mm-tall S535 on its own; an S535 with an expansion module underneath needs the longer module box.
This SKU is the standard on-wall box.
You receive the box and fixings below, as listed under wall-mounting accessories in the Akuvox S535 quick guide. The S535 is sold separately.
In the box
- Wall-mounting box × 1
- Plastic wall anchors × 4
- ST4×20 crosshead screws × 4
- M4×30 crosshead screws × 2
What you also need (sold separately)
- Akuvox S535 door phone
- PoE 802.3at switch or 12 V DC 3 A supply
Fifteen millimetres off the wall.
The box is a 15 mm-deep plate, so a surface-mounted S535 stays slim. Cables come through the centre opening from behind.
In the box
A slim plate with two hooks.

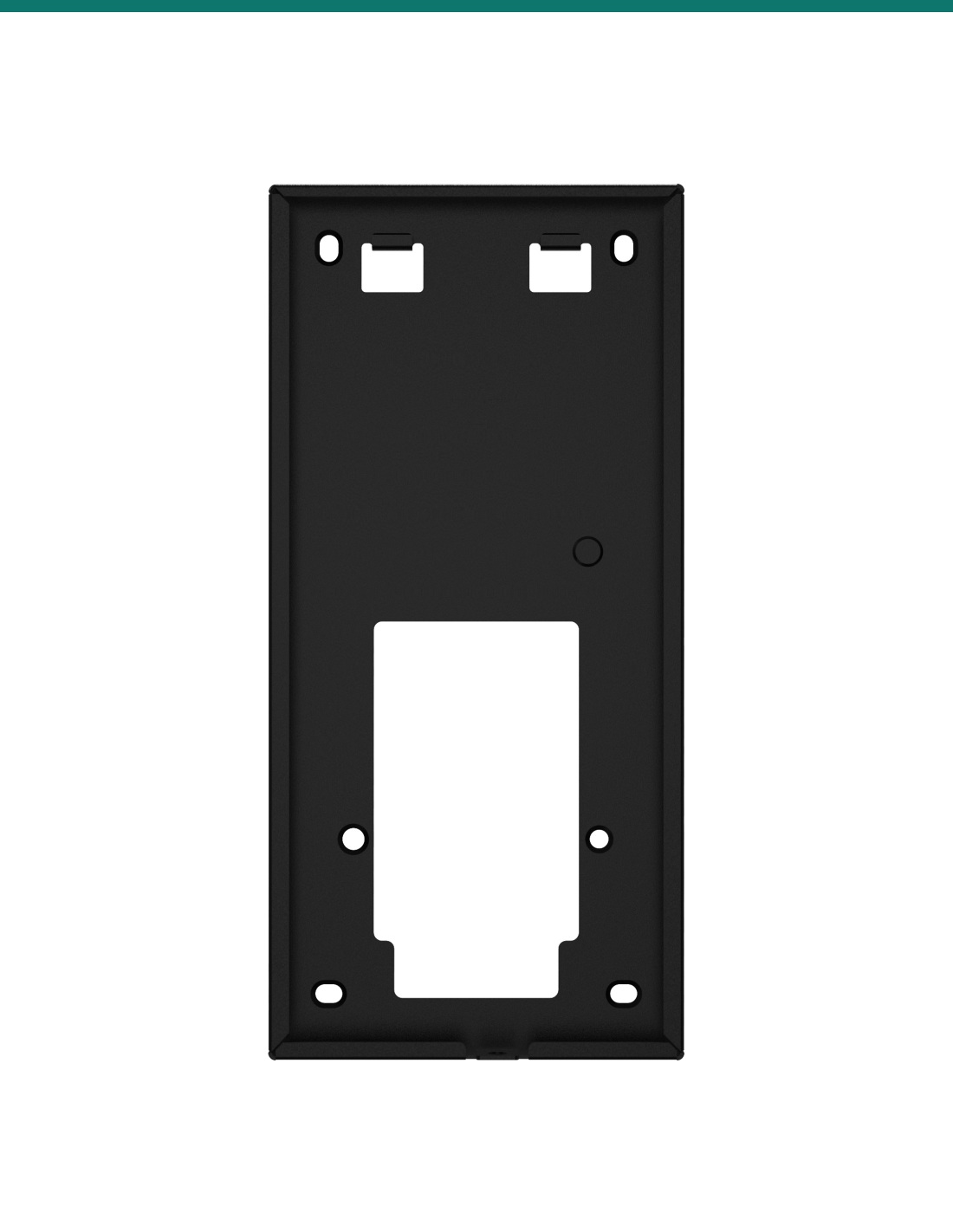

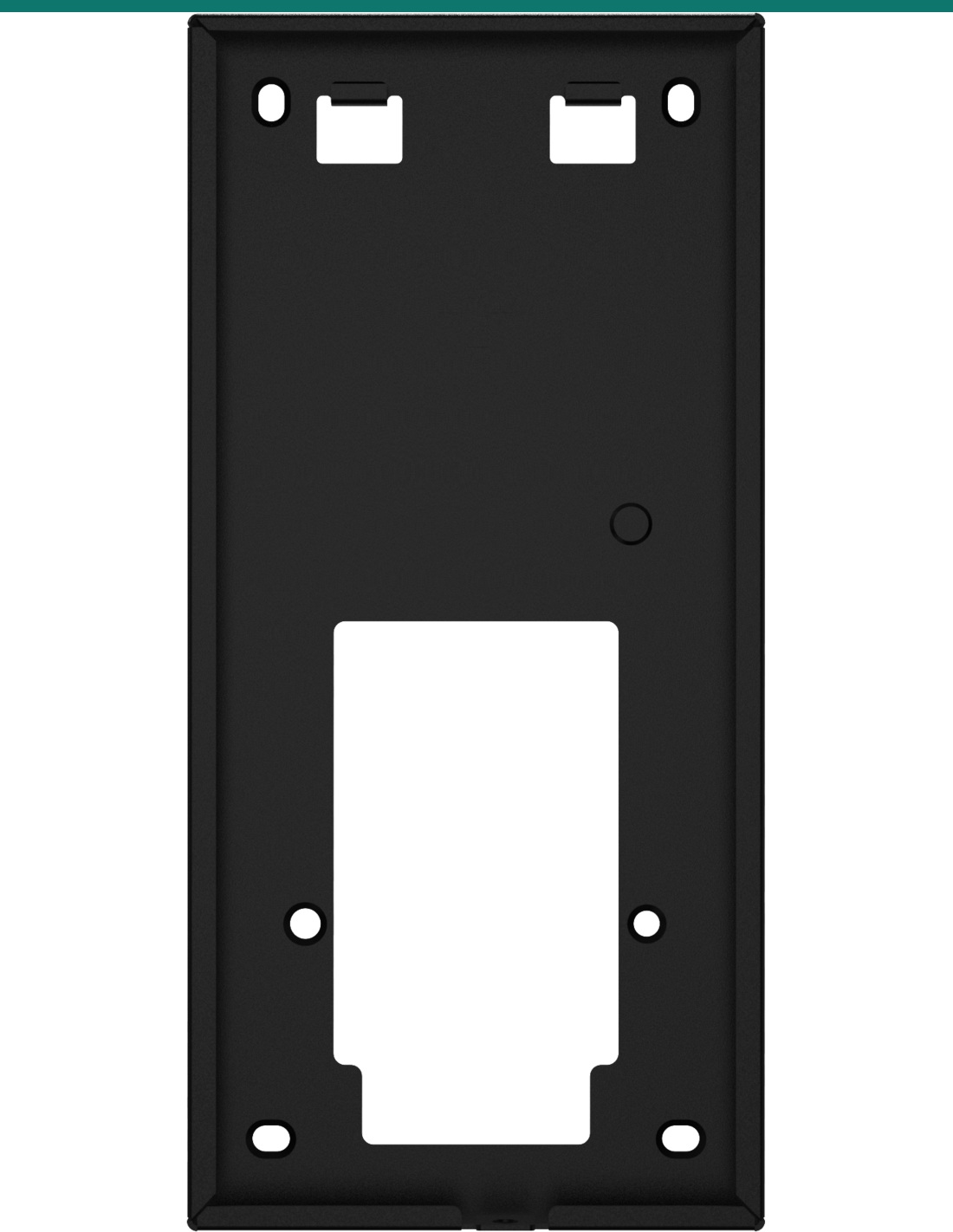

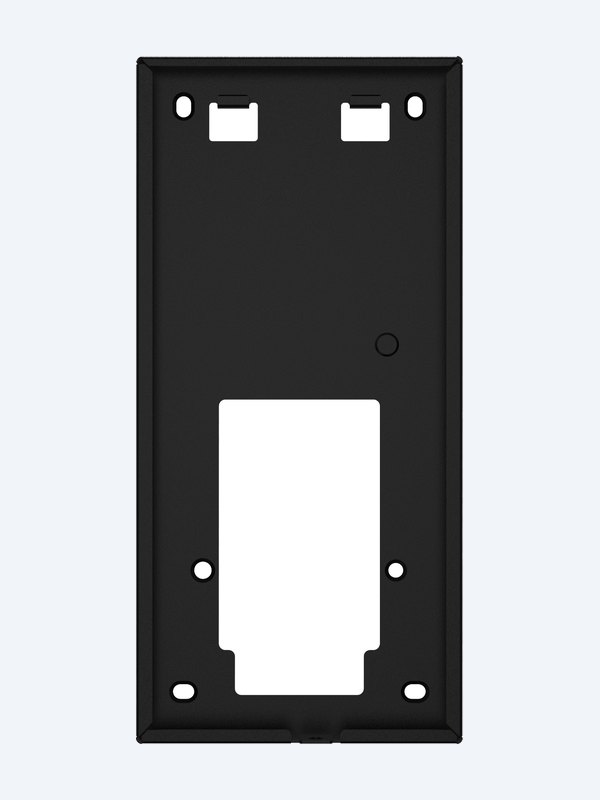

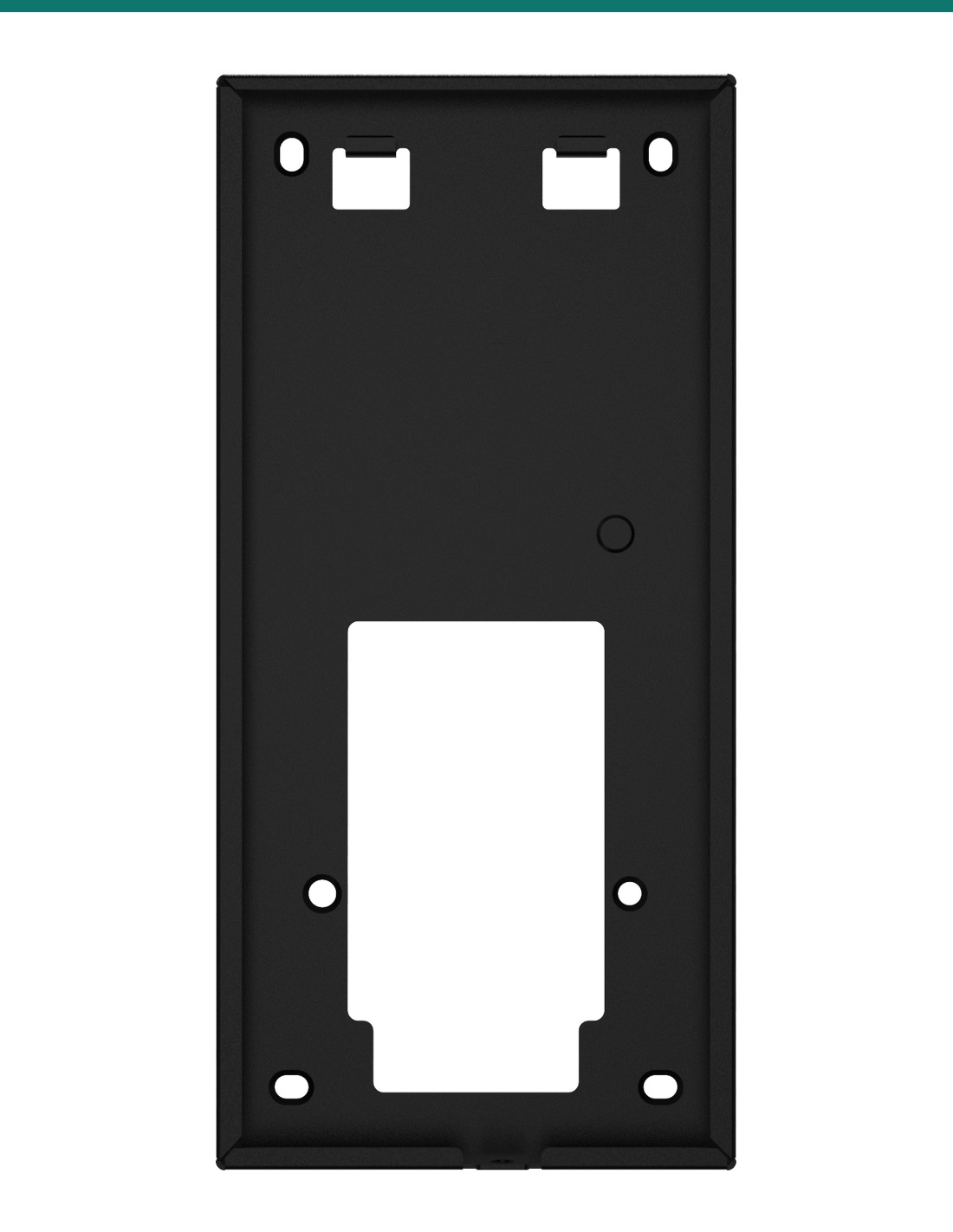

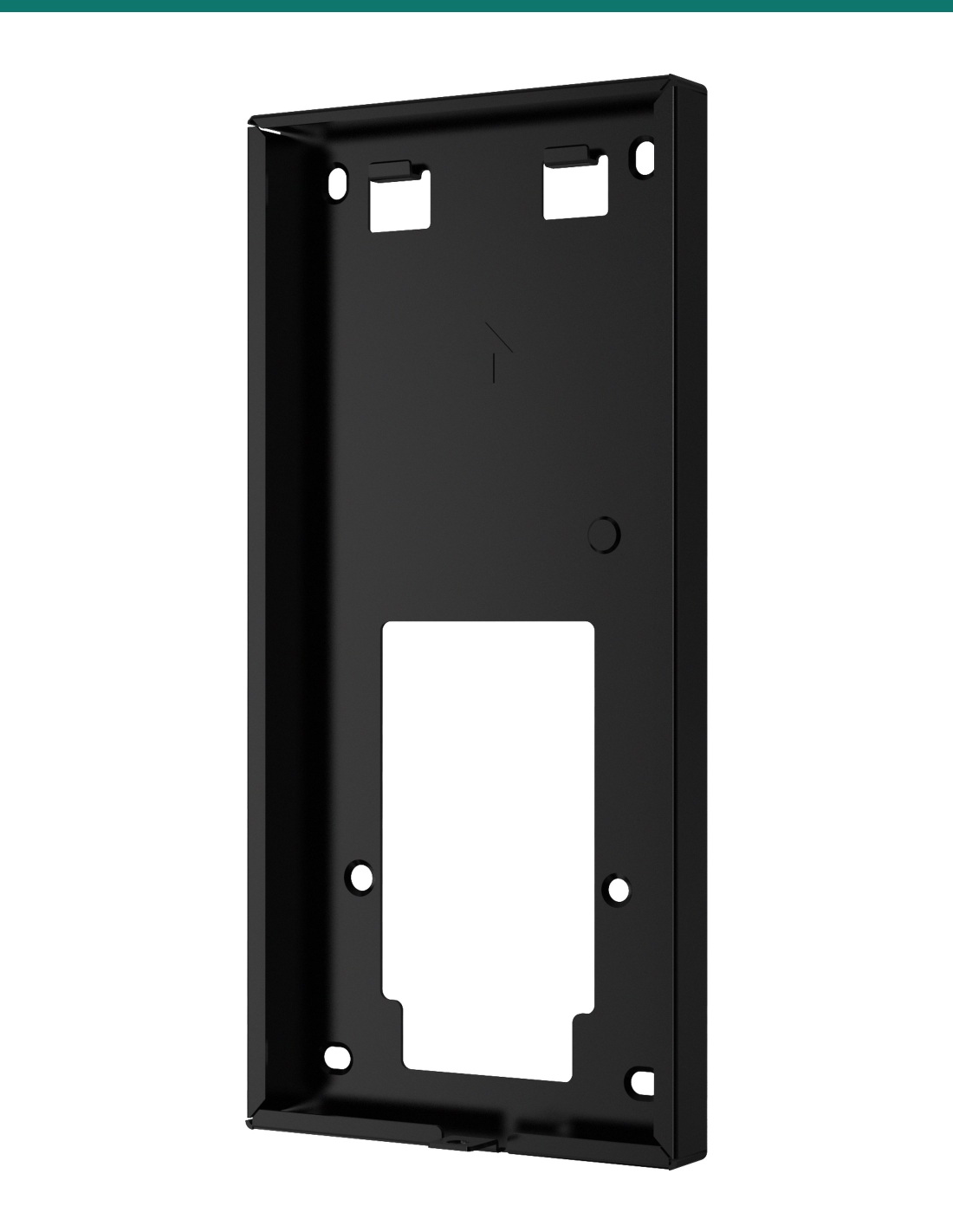

Black metal plate with two square hooks at the top and a cable opening in the middle. The S535 hooks on, swings flat and is secured at the bottom with the Torx screw supplied with it.
Four ST4×20 screws with anchors, and two M4×30 screws for fixing over an existing wall box, are included.
Standard vs module
For the S535 on its own.
This box is 209.5 mm tall for the 210 × 100 mm S535. With a module fitted underneath, the station is 260 mm tall and needs the 259.2 mm module box (AK-S535ONWALLKEX).
Both boxes are 99.5 mm wide and 15 mm deep; only the length and the position of the bottom fixing point differ.
At a glance
Key specs — AK-S535ONWALLK
Show all specifications
- Type
- On-wall (surface) mounting box, standard
- Compatible with
- Akuvox S535 without module
- Box size
- 209.5 × 99.5 × 15 mm (H × W × D)
- Contents
- Wall box, 4 × ST4×20 + anchors, 2 × M4×30
- Drilling
- 4 × 6 mm holes, 25 mm deep
- Colour
- Black
- Module version
- AK-S535ONWALLKEX, 259.2 mm tall
- Warranty
- Australian warranty
- Brand
- Akuvox
- Reference
- AK-S535ONWALLK
Dimensions
- Wall box (H × W × D)
- 209.5 × 99.5 × 15 mm
- Fixing holes
- Bottom pair 72 mm apart, centre pair 60 mm apart
- S535 (H × W × D)
- 210 × 100 × 27 mm
- Placement
- Camera centre 1,500 mm above ground; panel bottom 1,307.8 mm
Kit and fitting
- Compatible with
- Akuvox S535 without a module
- Wall box
- 1, black, two square hooks and a centre cable opening
- Wall screws
- 4 × ST4×20 crosshead with 4 plastic wall anchors
- Existing wall box
- 2 × M4×30 crosshead screws for an 86-type or EU box
- Drilling
- 6 mm drill, 25 mm deep
- Orientation
- Arrow on the box points up
Pair it with
Fits the Akuvox S535
Door phone

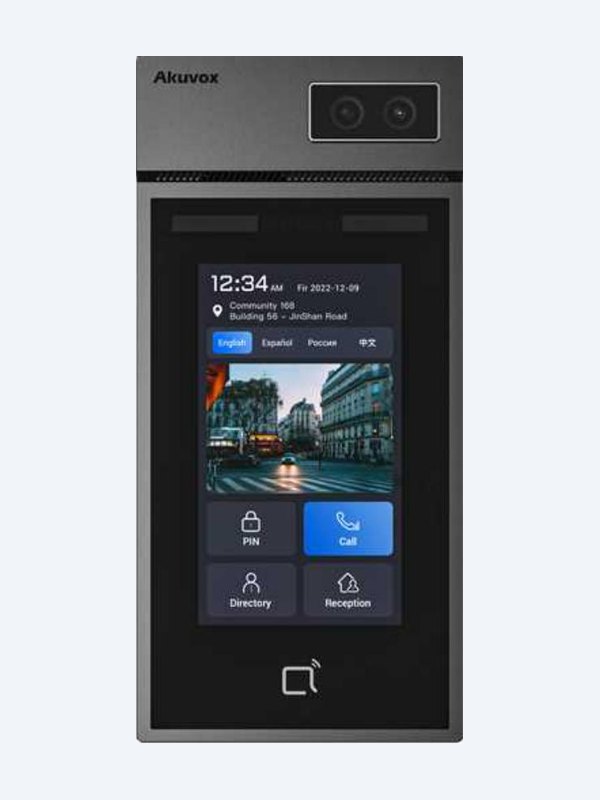

Akuvox S535
5″ facial recognition SIP door phone with card, PIN, QR and app entry.
Flush
S535 in-wall box
Flush box and bracket for a recessed S535 without a module.
Watch
See it in action
Downloads
Datasheets and guides
PDFS535 quick guideOfficial Akuvox S535 quick guide (PDF) · 1.4 MBPDFS535 Dimension DrawingsAkuvox S535 station, box, bracket and rain cover drawings in mm, V1.1 (November 2025) · 2 MB
Compliance certificates and technical documents are available on request for tenders and installers — send an enquiry.
Answers
Common questions
Does the S535 come with a mounting box?
No. Every S535 needs an on-wall or in-wall box, sold separately.
I am fitting a fingerprint, loop or LTE module. Is this the right box?
No. With a module the S535 is 260 mm tall; use the on-wall box for S535 with modules (AK-S535ONWALLKEX), which is 259.2 mm long.
Can I mount it over an existing wall box?
Yes. Akuvox supplies two M4×30 screws for an 86-type or EU-standard embedded box; the other two ST4×20 screws go into the wall.
How far does it stand off the wall?
The box is 15 mm deep, and the S535 itself is 27 mm deep.
How high should it go?
Akuvox’s placement drawing puts the camera centre 1,500 mm above the ground, with the bottom of the panel about 1,308 mm up.
Is the door phone included?
No. This SKU is the mounting box only.
Standard or module box — pick before you drill.
Choose this box for an S535 on its own. If a fingerprint, induction loop or LTE module will be fitted now or later, order the module version so the station and module mount as one.
Installation & safety notice
Fitting. Hold the box against the wall with the arrow up, mark and drill four 6 mm holes 25 mm deep, and fix it with the ST4×20 screws and anchors. Over an existing 86-type or EU wall box, use two ST4×20 into the wall and the two M4×30 into the box — see the Akuvox S535 quick guide.
- Colour
- Black
- Brand
- Akuvox
- Size
- 209.5 × 99.5 × 15 mm (H × W × D)
- Warranty
- Australian warranty
- Product Type
- On-wall (surface) mounting box
- Model
- S535 on-wall mounting box
- Compatible with
- Akuvox S535 without expansion module
- Contents
- Wall box, 4 × ST4×20 screws, 4 × anchors, 2 × M4×30 screws
- Drilling
- 4 × 6 mm holes, 25 mm deep
- Placement
- Camera centre 1,500 mm above ground
