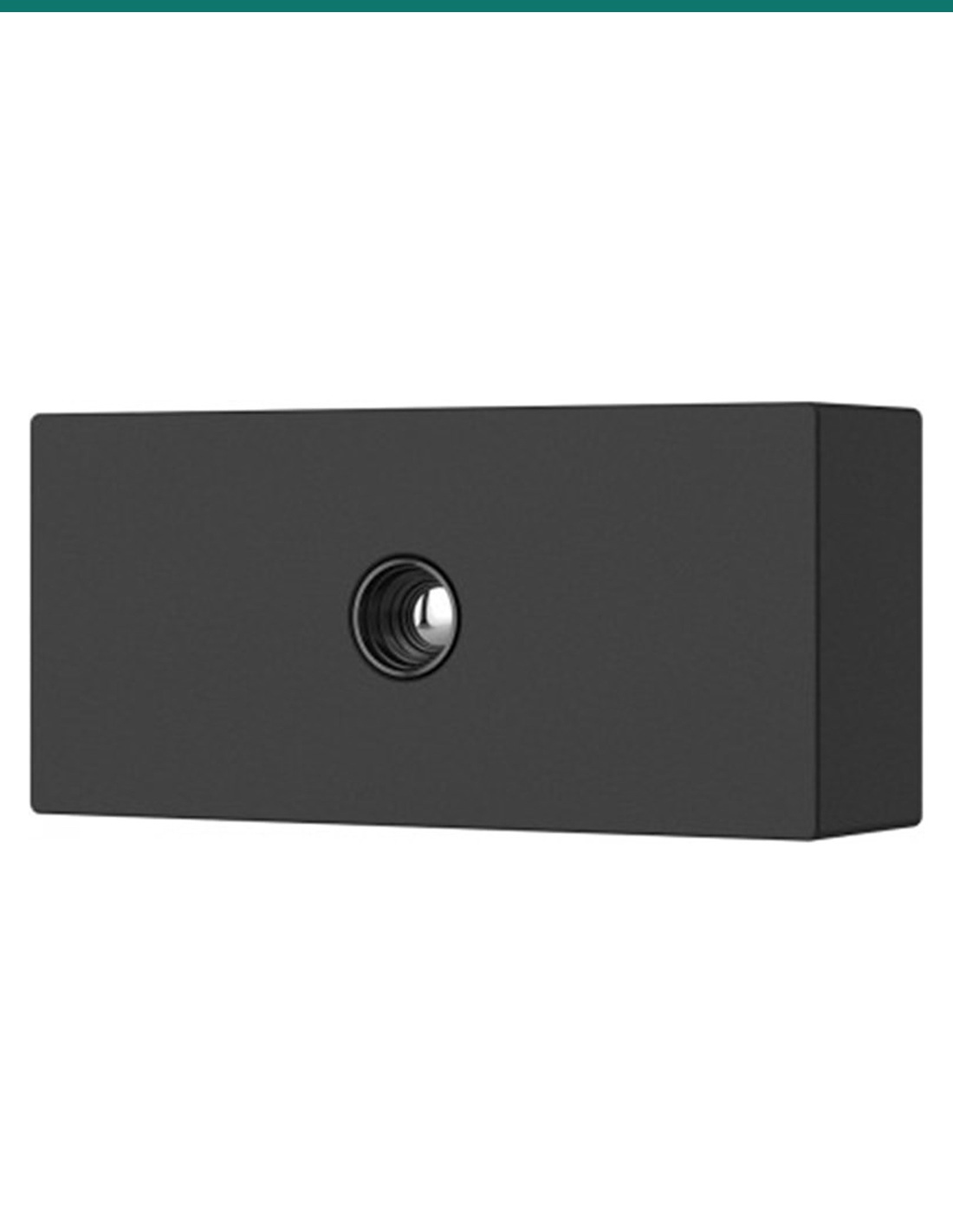

Akuvox MD02 forehead temperature module — front

Akuvox MD02 forehead temperature detector module

Akuvox MD02 Forehead Temperature Detector Module for E16C and E18C — AK-MD02

Name: Akuvox MD02 Forehead Temperature Detector Module for E16C and E18C — AK-MD02
Brand: Akuvox
SKU: AK-MD02
Price: 420.5 AUD
Availability: InStock

Reference: AK-MD02

In Stock - Ready to Ship

$ 420.50

inc-GST

or 4 interest-free payments of $105.12 with

Akuvox MD02 is the digital forehead temperature detector for the E16C and E18C face recognition door phones. It fits under the door phone and checks forehead temperature at 0.3 to 1 m as people are recognised. Stocked in Australia by Infront Technologies.

✓Contactless forehead measurement at 0.3 m to 1 m
✓Range 34 °C to 45 °C, 0.1 °C resolution, ±0.3 °C deviation
✓For Akuvox E16C and E18C door phones
✓Fixes to the door phone’s rear cover and wires to its main board

Akuvox · MD02 · Forehead temperature module

Temperature screening at the door.
For E16C and E18C.

The AK-MD02 is Akuvox’s MD02 forehead temperature detector. Fitted to an E16C or E18C, it measures each person’s forehead temperature without contact as they stand at the door phone.

Measure as people arrive.

Turn on Forehead mode, set a normal-temperature threshold, and the door phone checks temperature alongside face recognition at the entry.

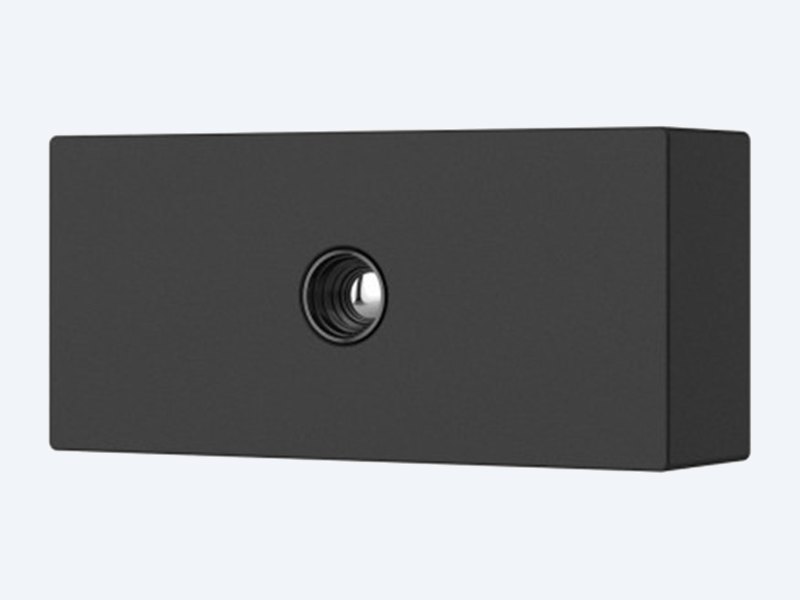

Akuvox MD02 forehead temperature detector

Measure

Forehead temperature at 0.3–1 m.

The MD02 measures forehead temperature without contact from 0.3 m to 1 m, over a 34 °C to 45 °C range, with 0.1 °C resolution and ±0.3 °C deviation.

On the door phone, choose Forehead mode under Access Control › Body Temperature and set the normal-temperature threshold.

Fit

Made for E16C and E18C.

MD02 is listed on both the E16C and E18C datasheets as the forehead temperature option. It fixes to the door phone’s rear or wiring cover and connects to the main board.

On the E16C, use the wall bracket for a device with a temperature detector — both brackets come with the door phone.

At a glance

Key specs — AK-MD02

Brand: Akuvox
Reference: AK-MD02
Type: Digital forehead temperature detector
Compatible with: Akuvox E16C and E18C
Measuring distance: 0.3 m to 1 m
Measuring range: 34 °C to 45 °C
Resolution: 0.1 °C
Deviation: ±0.3 °C
Power and data: From the door phone main board
Warranty: Australian warranty via Infront Technologies

Pair it with

Fits these door phones

5″

Akuvox E16C

Slim facial recognition door phone with 5″ touchscreen.

7″

Akuvox E18C

Facial recognition door phone with 7″ touchscreen and two relays.

Answers

Common questions

Which door phones does it fit?

Akuvox E16C and E18C. The datasheets list MD02 as their forehead temperature option.

Does it need its own power supply?

No. It connects to the door phone’s main board.

How accurate is it?

0.1 °C resolution with ±0.3 °C deviation over 34 °C to 45 °C, at 0.3 m to 1 m.

Is the door phone included?

No. MD02 is the module only; the E16C or E18C is sold separately.

Add screening to your E16C or E18C, local stock.

Order MD02 with an E16C or E18C from Infront Technologies for Australian stock and setup advice.

Installation & safety notice

Fitting. MD02 is powered and connected through the door phone. It is screwed to the door phone’s rear cover with the supplied M3 screws and its lead plugs into the main board before the phone is hung on its bracket — see the E16 / E18 quick guide.

Accuracy: 0.1 °C resolution, ±0.3 °C deviation
Colour: Black
Brand: Akuvox
Warranty: Australian Warranty via Infront Technologies
Product Type: Forehead temperature detector module
Model: MD02
Compatible with: Akuvox E16C and E18C
Measuring Distance: 0.3 m to 1 m
Measuring Range: 34 °C to 45 °C
