Akuvox X912 Black In-Wall Rain Cover for X912K and X912S Door Phones — AK-X912INWALLH

SKU AK-X912INWALLH In Stock - Ready to Ship
$57.30 inc GST

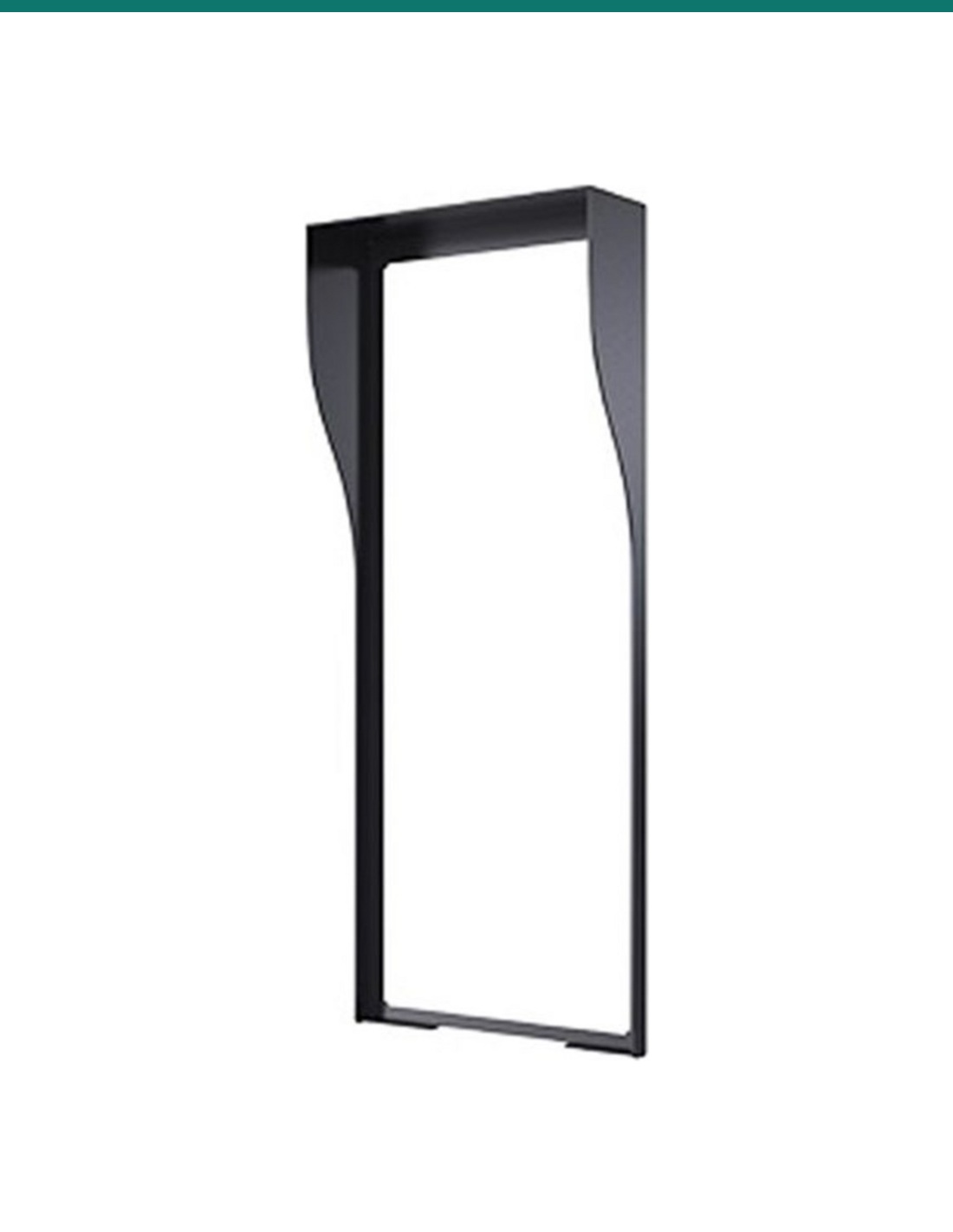

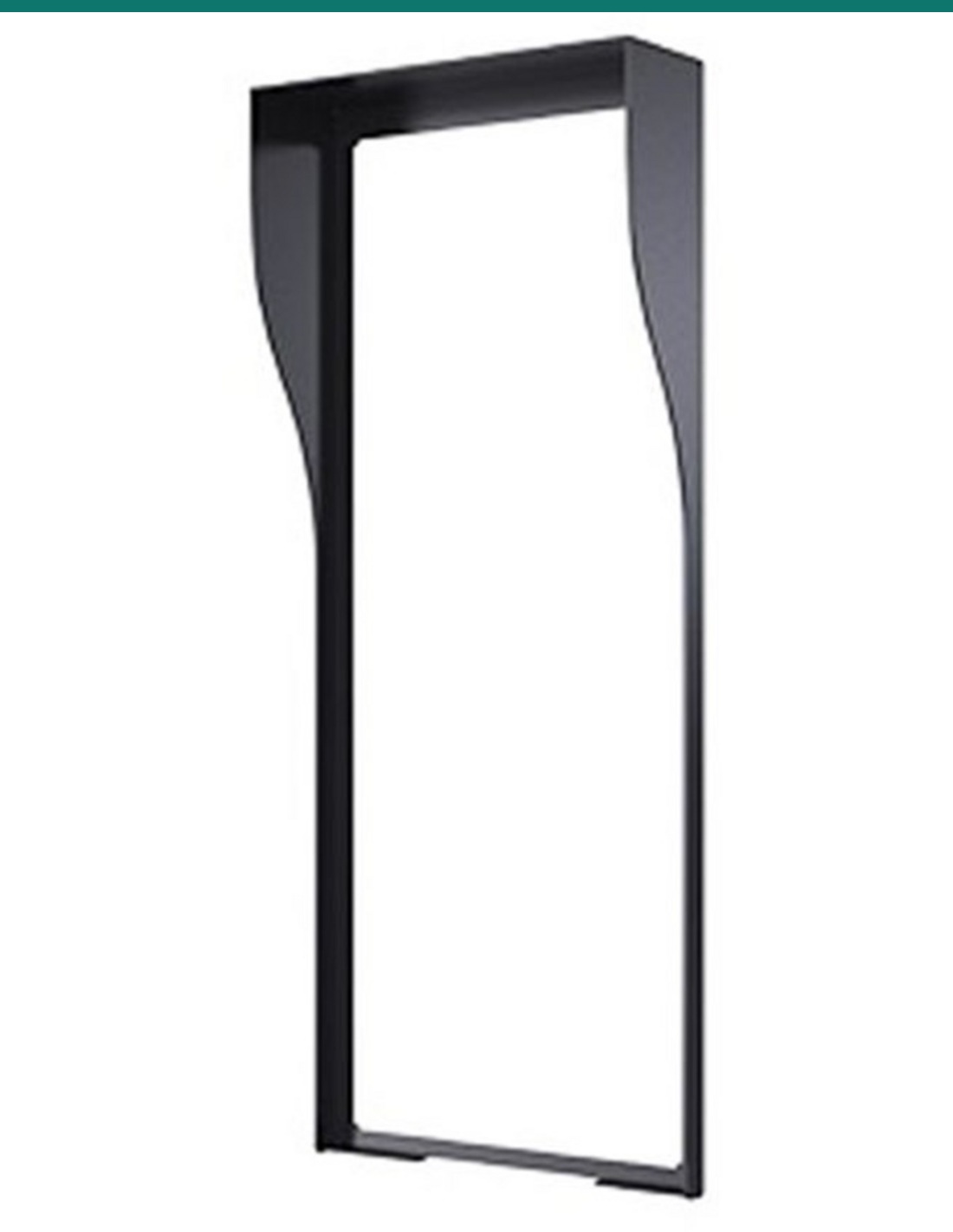

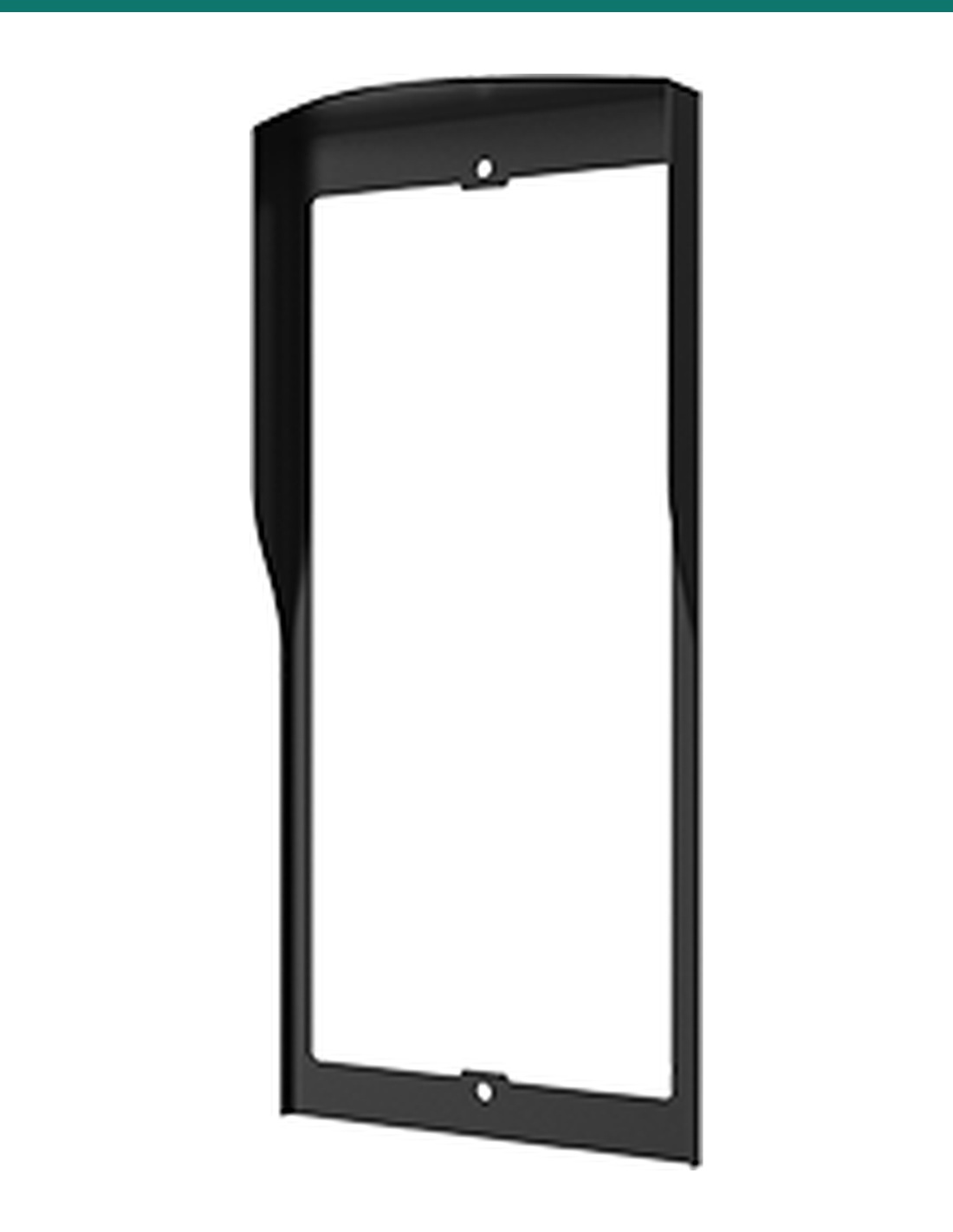

Akuvox AK-X912INWALLH is the black rain cover for a flush-mounted X912 door phone. It fits between the flush-mounting bracket and the box of the X912 in-wall installation kit, framing the X912K or X912S with a hood across the top that keeps rain off the screen and camera.

  • ✓Black hood frame for flush-mounted Akuvox X912K and X912S door phones
  • ✓274.3 × 129 mm, hood projects 46.5 mm at the top
  • ✓Fits between the X912 flush-mounting bracket and the in-wall box
  • ✓Needs the X912 in-wall installation kit (sold separately)


Akuvox · X912 · In-wall rain cover

A flush X912 that sheds the rain.
Black in-wall rain cover.

The AK-X912INWALLH is Akuvox’s in-wall rain cover for the X912 series. It frames a recessed X912K or X912S and adds a hood over the top of the station on exposed entries.

This SKU is the rain cover only.

You receive the black X912 in-wall rain cover. The X912 door phone and the X912 in-wall installation kit (box, bracket, plate and Torx screws) are sold separately.

In the box
  • Akuvox X912 in-wall rain cover (black)
What you also need (sold separately)
  • Akuvox X912K or X912S door phone
  • X912 in-wall installation kit

Flush finish, sheltered screen.

The X912 is IP65 rated; the cover adds a physical hood so rain drips clear of the touch screen and camera where the entry has no awning.

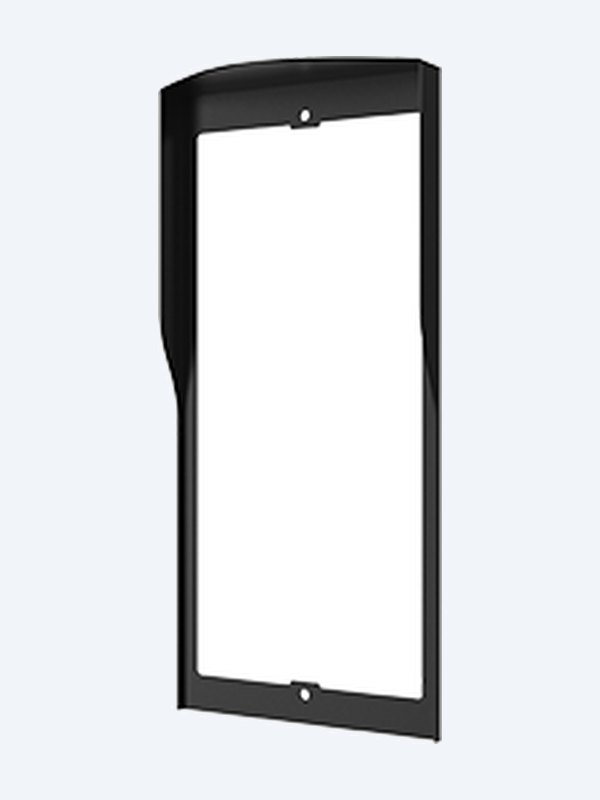

Akuvox X912 black in-wall rain cover

Fit

Frames the recessed X912.

Fit the X912 into the flush-mounting bracket and fix the plate as usual, then place the rain cover over the bracket with the hood at the top.

Line up the fixing holes with the in-wall box and tighten the two M4 × 16 Torx screws from the in-wall kit.

Which cover

In-wall or on-wall?

This cover is for X912s recessed with the X912 in-wall installation kit.

For a surface-mounted X912 on its standard wall bracket, choose the X912 on-wall rain cover instead.

Pair it with

Completes a flush X912 installation

Required

X912 in-wall installation kit

Box, bracket and plate that the cover fits between.

Door phone

Akuvox X912K / X912S

Face-recognition SIP door phones with keypad; the cover fits both.

Watch

See it in action

Akuvox X912 door phone overview

Downloads

Datasheets and guides

Compliance certificates and technical documents are available on request for tenders and installers — send an enquiry.

Answers

Common questions

Which door phones does it fit?

The Akuvox X912 series — X912K and X912S, flush-mounted with the X912 in-wall installation kit.

Do I need the in-wall kit?

Yes. The cover fits between the kit’s flush-mounting bracket and box and uses its two M4 × 16 Torx screws.

How big is it?

274.3 mm high and 129 mm wide, with a hood that projects 46.5 mm at the top.

Will it fit a surface-mounted X912?

No — use the X912 on-wall rain cover with the standard wall bracket.

Is the X912 weatherproof without it?

The X912 is IP65 rated. The cover adds a physical hood so driving rain runs clear of the screen and camera on entries without an awning.

Weatherproof a flush X912.

Order the in-wall rain cover with the X912 in-wall kit for exposed entries.

Colour
Black
Brand
Akuvox
Mounting
In-wall / flush
Size
274.3 × 129 × 46.5 mm (H × W × D)
Warranty
Australian warranty
Product Type
Rain cover
Model
X912 in-wall rain cover
Use With
X912 in-wall installation kit
Compatible with
Akuvox X912K and X912S (flush-mounted)
Fixing
2 × M4 × 16 Torx screws from the in-wall kit
