Akuvox R20 Series Silver On-Wall Cover Plate for R20A, R20K and R20B — AK-R20INWALLP

SKU AK-R20INWALLP CALL stock OR Max avail. in cart
$66.40 inc GST

Akuvox R20 series on-wall cover plate is a silver 310 × 225 mm plate that goes on the wall behind an R20A, R20K or R20B door phone. The plate screws to the wall, the door phone's own bracket screws onto the plate, and cables come through the 105 × 51 mm opening in the centre.

  • ✓Silver plate, 310 × 225 × 1.0 mm
  • ✓Fits Akuvox R20A, R20K and R20B door phones
  • ✓105 × 51 mm cable opening in the centre
  • ✓4 × ST4×20 screws, 4 anchors and 4 × M3×4 screws included


Akuvox · R20 series · On-wall cover plate

A clean silver backing.
For R20A, R20K and R20B door phones.

The AK-R20INWALLP is the Akuvox on-wall cover plate for the R20 series. The 310 × 225 mm silver plate screws to the wall first, then the wall-mounting bracket from the door phone's box fixes onto it, so the station sits on a large silver backing.

Cover plate and fixings.

You get the cover plate with screws for the wall and for the bracket. The door phone and its wall-mounting bracket are separate; the bracket comes with the R20A, R20K or R20B.

In the box
  • Cover back plate (silver)
  • 4 × ST4×20 crosshead screws
  • 4 × plastic wall anchors
  • 4 × M3×4 crosshead screws
What you also need (sold separately)
  • Akuvox R20A, R20K or R20B door phone, with its wall-mounting bracket
  • Electric drill with a 6 mm bit

More wall covered than the door phone alone.

At 310 × 225 mm, the plate covers far more of the wall than the door phone itself, which helps where old fixing holes or a larger opening need to be hidden behind the new station.

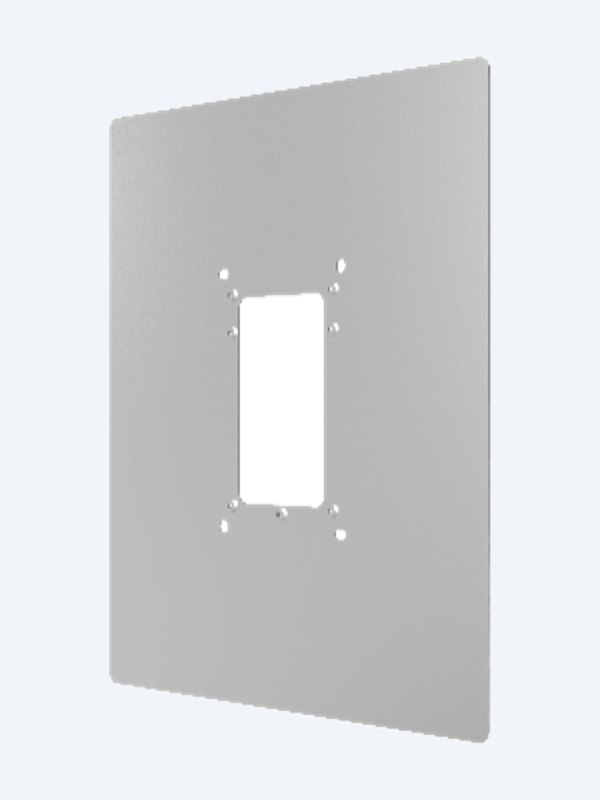

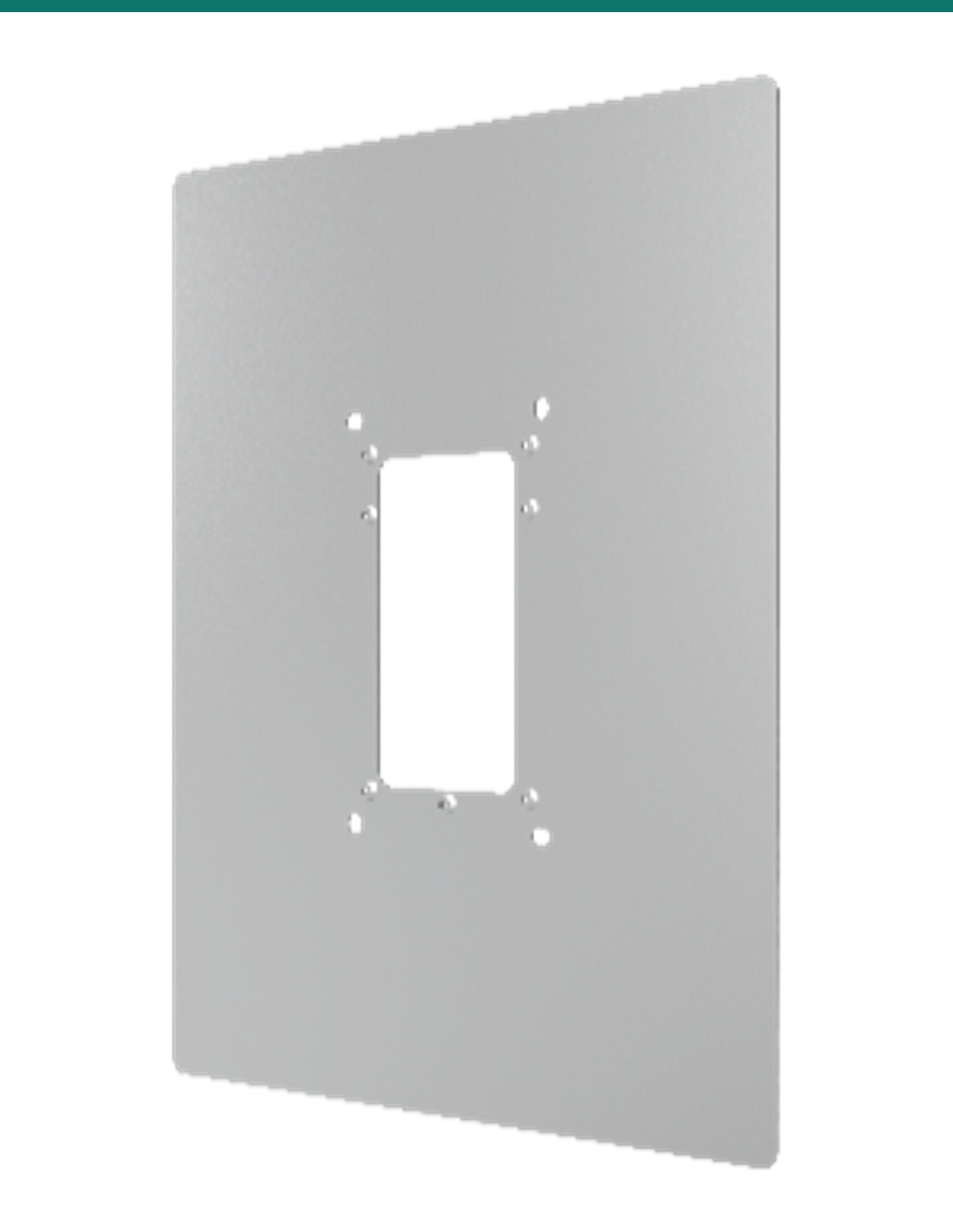

Akuvox R20 series silver on-wall cover plate

The plate

Silver, 1 mm thick.

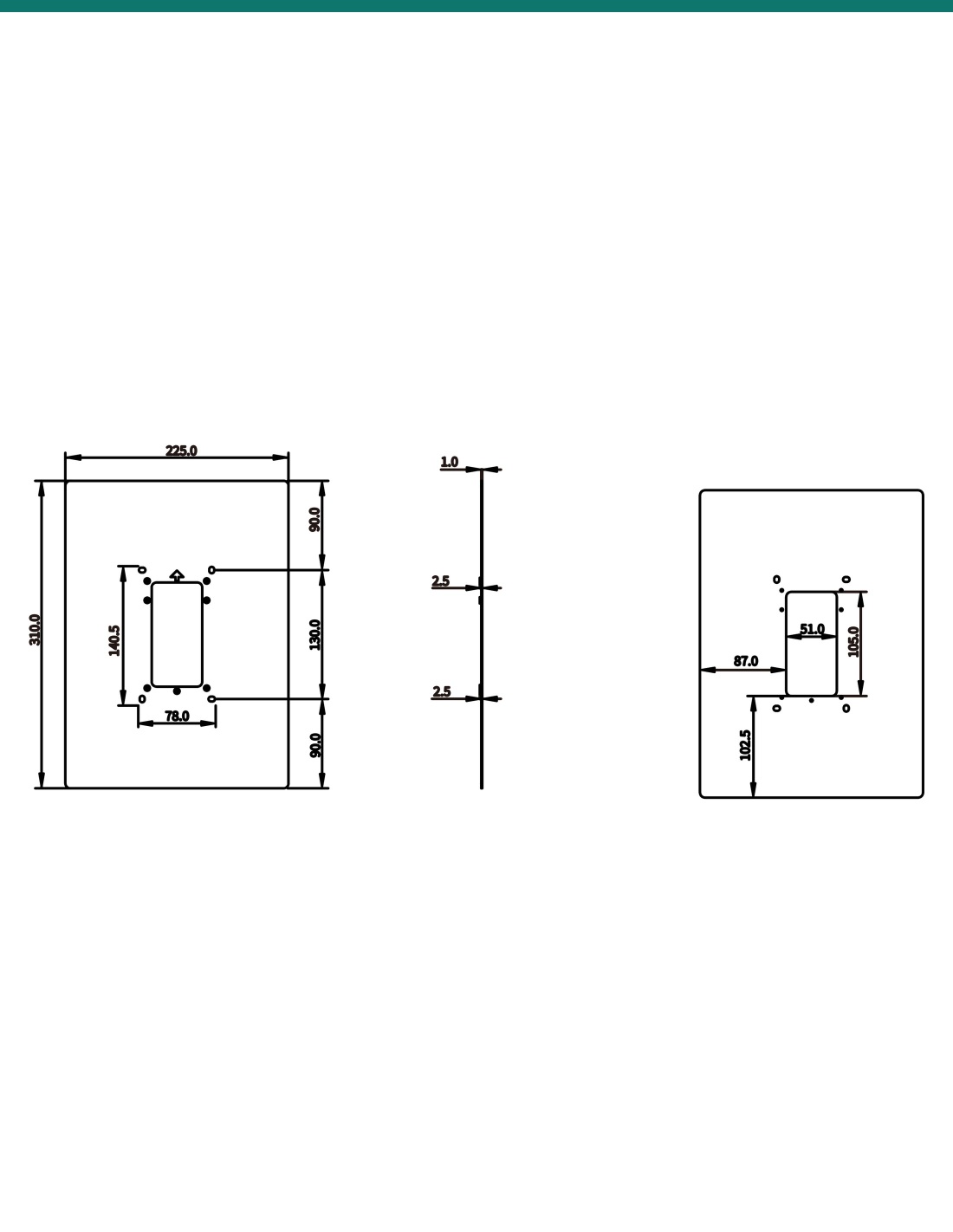

The plate is 310 mm tall and 225 mm wide, with a 105 × 51 mm opening in the centre for the cables.

Around the opening are the screw positions for the R20A bracket and for the R20K / R20B bracket, plus four outer holes for fixing the plate to the wall.

How it works

Plate first, then the bracket.

01

Mark and drill

Hold the plate in position, mark the centres of the four outermost holes, then drill them 6 mm wide and 25 mm deep and insert the wall anchors.

02

Fix the plate

Screw the cover plate to the wall with the four ST4×20 screws.

03

Fit the bracket

Screw the door phone's wall-mounting bracket onto the plate with the M3×4 screws: four for the R20K or R20B, three for the R20A. Finish with the door phone's on-wall guide.

Pair it with

Goes with the R20 series

Door phone

Akuvox R20A

Single-button SIP video door phone; its bracket fixes to the plate with three M3×4 screws.

Door phone

Akuvox R20K or R20B

Keypad and multi-button door phones; their bracket fixes to the plate with four M3×4 screws.

Downloads

Datasheets and guides

Compliance certificates and technical documents are available on request for tenders and installers — send an enquiry.

Answers

Common questions

Which door phones does it fit?

The Akuvox R20A, R20K and R20B. The plate has screw positions for both the R20A bracket and the R20K / R20B bracket.

How big is it?

310 × 225 mm and 1.0 mm thick, with a 105 × 51 mm cable opening in the centre.

Is the door phone bracket included?

No. Use the wall-mounting bracket that comes in the door phone's accessory kit; it screws onto the plate with the M3×4 screws supplied here.

How is the plate fixed to the wall?

Through its four outermost holes: drill 6 mm holes 25 mm deep, insert the plastic wall anchors and fix the plate with the four ST4×20 screws.

What is in the box?

The cover plate, four ST4×20 crosshead screws, four plastic wall anchors and four M3×4 crosshead screws.

What colour is it?

Silver.

One plate for the R20 range.

The same plate takes the brackets of the R20A, R20K and R20B, with screw positions for each marked out on the plate.

Colour
Silver
Brand
Akuvox
Product Type
On-wall cover plate
Model
R20 series on-wall cover plate
Plate Size
310 × 225 × 1.0 mm (H × W × D)
Includes
Cover plate, 4 ST4×20 screws, 4 M3×4 screws, 4 wall anchors
Compatible with
Akuvox R20A, R20K and R20B
Cable Opening
105 × 51 mm
Akuvox R20A silver door phone — right three-quarter view Akuvox R20A silver door phone — right three-quarter view 2
  • New
CompareComparing Quick view
In Stock - Ready to Ship
Akuvox Compact Villa Door Phones

Akuvox R20A Silver Single-Button SIP Video Door Phone with Card Reader — AK-R20A-ONWALL

Akuvox
AK-R20A-ONWALL
$ 371.50
Akuvox R20A in silver is a palm-size, single-button SIP video door phone — about the size of a smartphone — for houses, townhouses and single-tenant offices. 2 MP camera, card and NFC entry, two lock relays and IP65 aluminium. Surface-mount model, PoE powered.✓One call button with blue backlight✓2 MP camera, 110° (H) / 58° (V), 1080p at 30...
Akuvox R20A black single-button SIP video door phone — front
  • New
CompareComparing Quick view
In Stock - Ready to Ship
Akuvox Compact Villa Door Phones

Akuvox R20A Black Single-Button SIP Video Door Phone with Card Reader — AK-R20ABLK-ONWALL

Akuvox
AK-R20ABLK-ONWALL
$ 393.50
Akuvox R20A in black is a palm-size, single-button SIP video door phone — about the size of a smartphone — for houses, townhouses and single-tenant offices. 2 MP camera, card and NFC entry, two lock relays and IP65 aluminium. Surface-mount model, PoE powered.✓One call button with blue backlight✓2 MP camera, 110° (H) / 58° (V), 1080p at 30...
Akuvox R20K silver door phone — front Akuvox R20K silver door phone — front 2
  • New
CompareComparing Quick view
In Stock - Ready to Ship
Akuvox Compact Villa Door Phones

Akuvox R20K Silver SIP Video Door Phone with Keypad and Card Reader — AK-R20K-SILVER

Akuvox
AK-R20K-SILVER
$ 498.00
Akuvox R20K in silver is a compact keypad SIP video door phone for apartment and office entries. A 2 MP wide-angle camera, PIN, card and NFC entry, two lock relays and an IP65 aluminium front in a plate just 85 mm wide. PoE powered.✓2 MP camera, 110° (H) / 58° (V), 1080p at 30 fps, IR night lighting✓Numeric keypad plus 13.56 MHz / 125 kHz...
Akuvox R20K black SIP video door phone with keypad — front
  • New
CompareComparing Quick view
In Stock - Ready to Ship
Akuvox Compact Villa Door Phones

Akuvox R20K Black SIP Video Door Phone with Keypad and Card Reader — AK-R20K-BLACK

Akuvox
AK-R20K-BLACK
$ 498.50
Akuvox R20K in black is a compact keypad SIP video door phone for apartment and office entries. A 2 MP wide-angle camera, PIN, card and NFC entry, two lock relays and an IP65 aluminium front in a dark finish that disappears into modern façades. PoE powered.✓2 MP camera, 110° (H) / 58° (V), 1080p at 30 fps, IR night lighting✓Numeric keypad...
Akuvox R20B 3-button door phone — front Akuvox R20B 3-button door phone — front 2
  • New
CompareComparing Quick view
In Stock - Ready to Ship
Akuvox Modular Door Phones

Akuvox R20B 3-Button Silver SIP Video Door Phone with Card Reader — AK-R20B3BONWALL

Akuvox
AK-R20B3BONWALL
$ 396.50
Akuvox R20B with three call buttons is a compact SIP video door phone for small blocks, triplexes and shared offices — one labelled button per tenant, no keypad to learn. 2 MP camera, card and NFC entry, two lock relays and an IP65 aluminium front. Surface-mount model, PoE powered.✓3 call buttons, each with a name plate✓2 MP camera, 110° (H)...
Akuvox R20B 5-button door phone — front Akuvox R20B 5-button door phone — front 2
  • New
CompareComparing Quick view
In Stock - Ready to Ship
Akuvox Modular Door Phones

Akuvox R20B 5-Button Silver SIP Video Door Phone with Card Reader — AK-R20B5BONWALL

Akuvox
AK-R20B5BONWALL
$ 417.00
Akuvox R20B with five call buttons is a compact SIP video door phone for small apartment blocks and multi-tenant offices — one labelled button per tenant, no keypad to learn. 2 MP camera, card and NFC entry, two lock relays and an IP65 aluminium front. Surface-mount model, PoE powered.✓5 call buttons, each with a name plate✓2 MP camera, 110°...

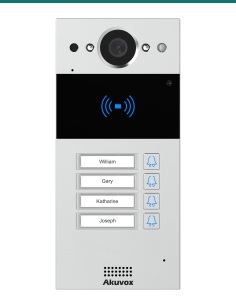

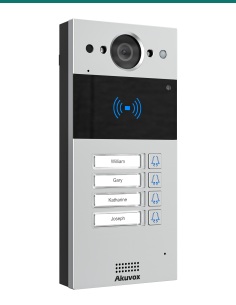

Akuvox R20B 4-button door phone — front Akuvox R20B 4-button door phone — front 2
