Akuvox R29 Black In-Wall Rain Hood — AK-R29INWALLH

SKU AK-R29INWALLH In Stock - Ready to Ship
$60.40 inc GST

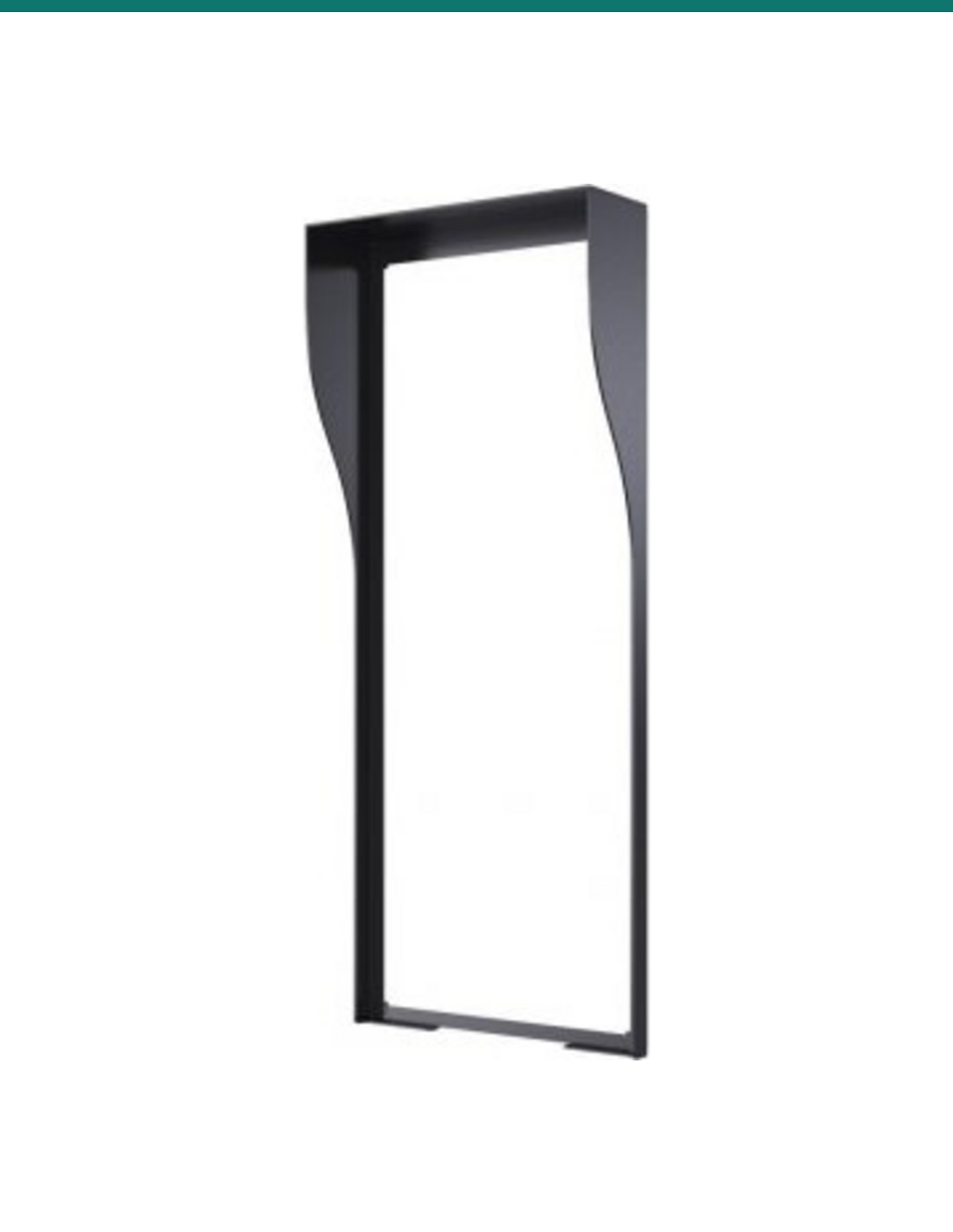

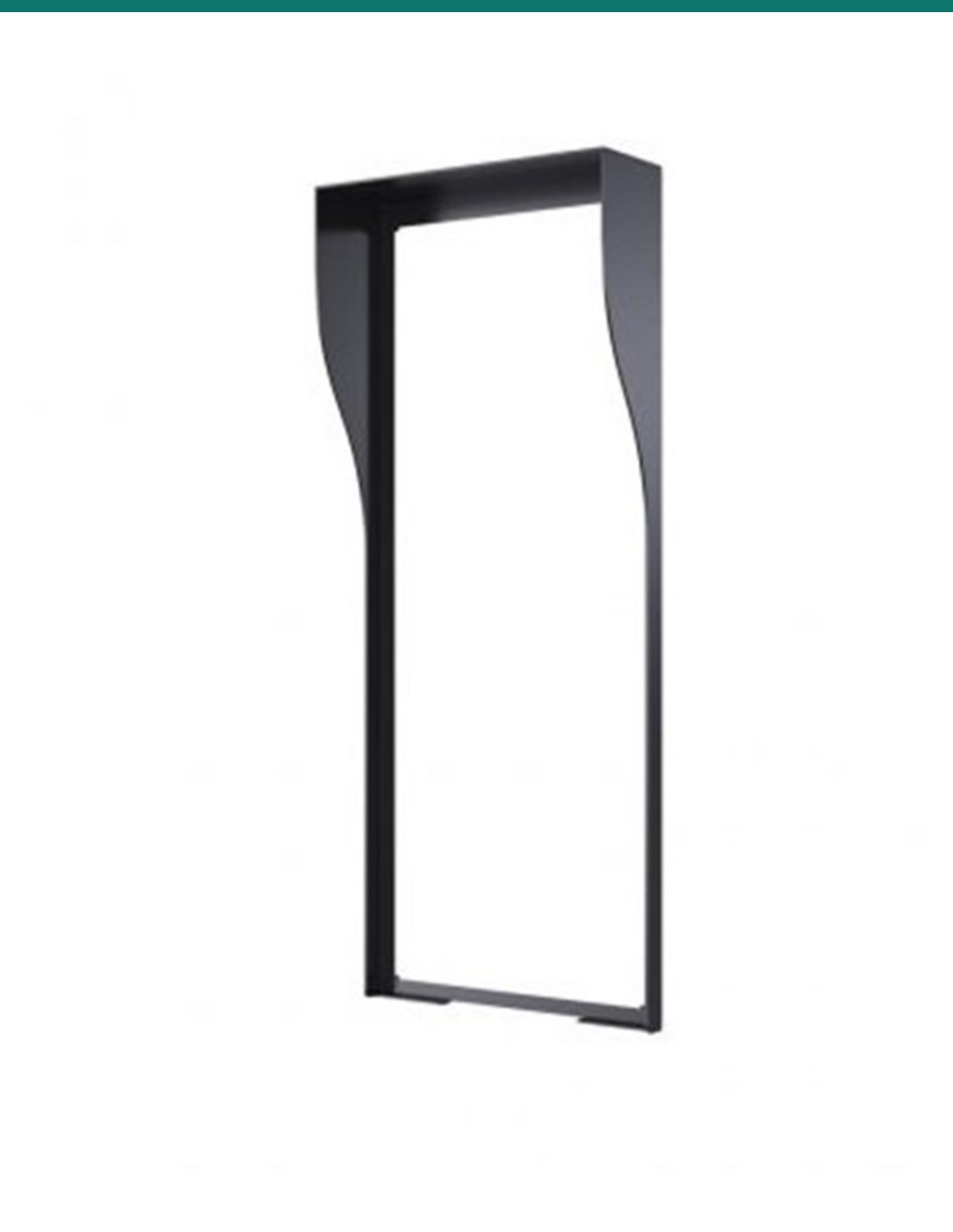

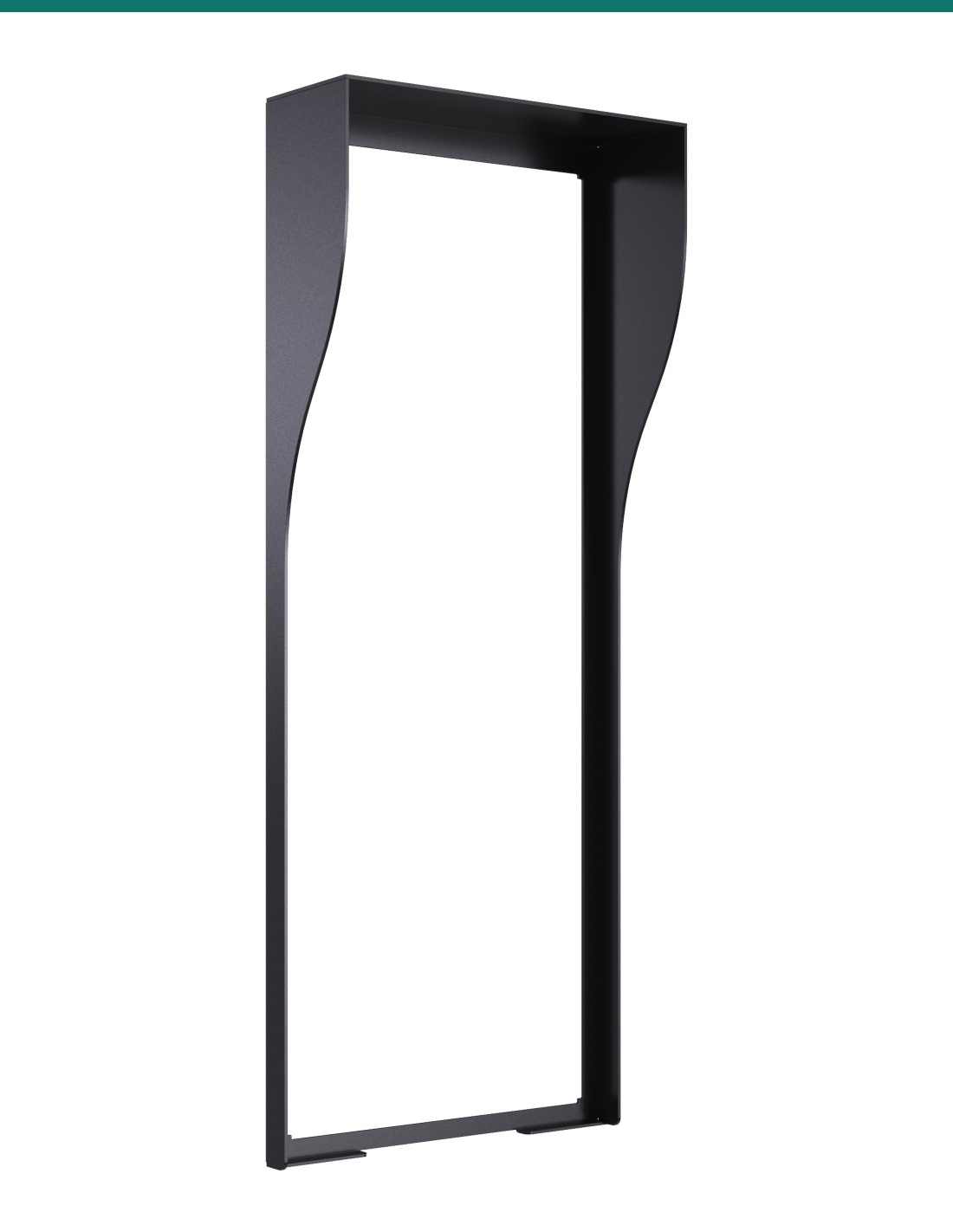

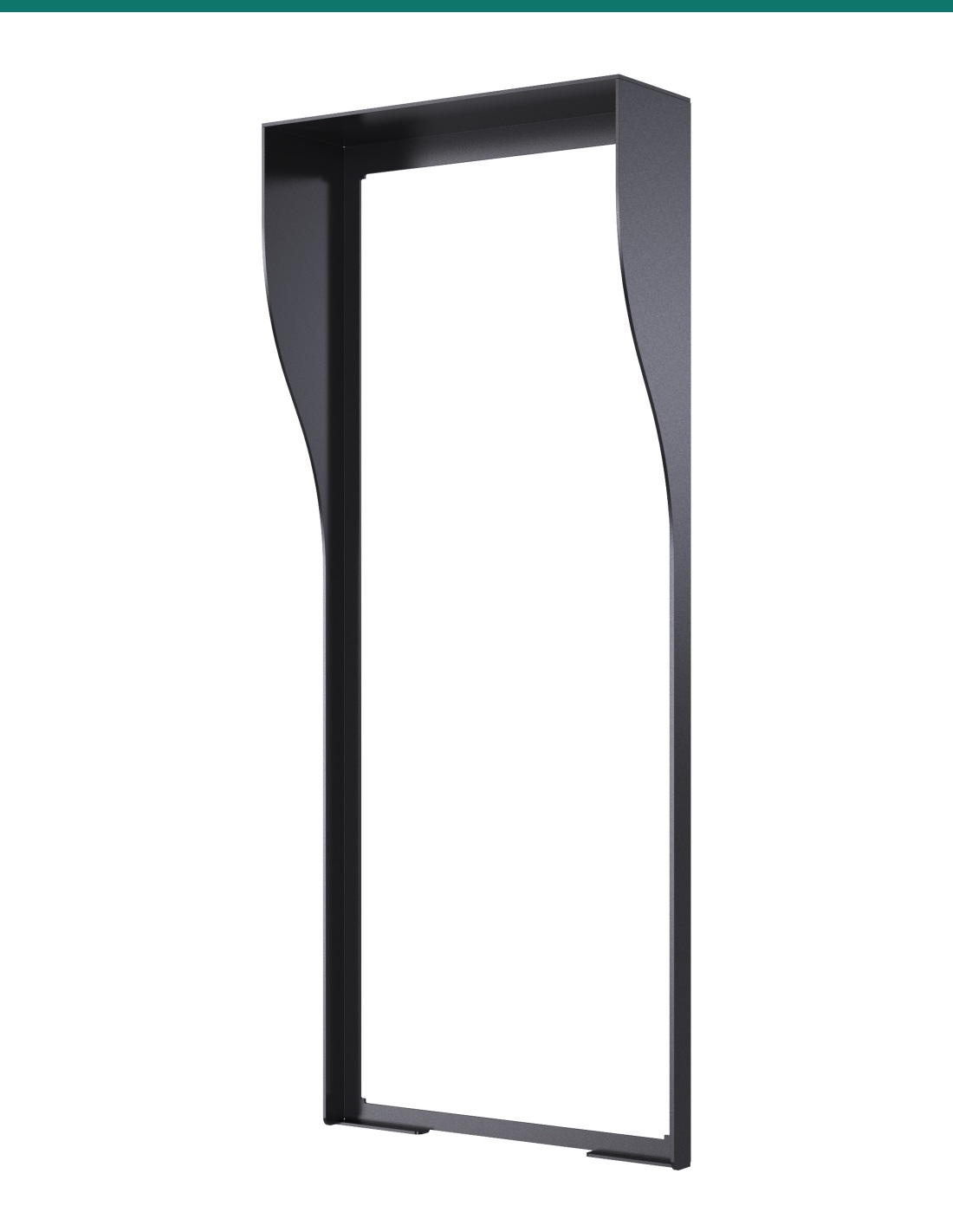

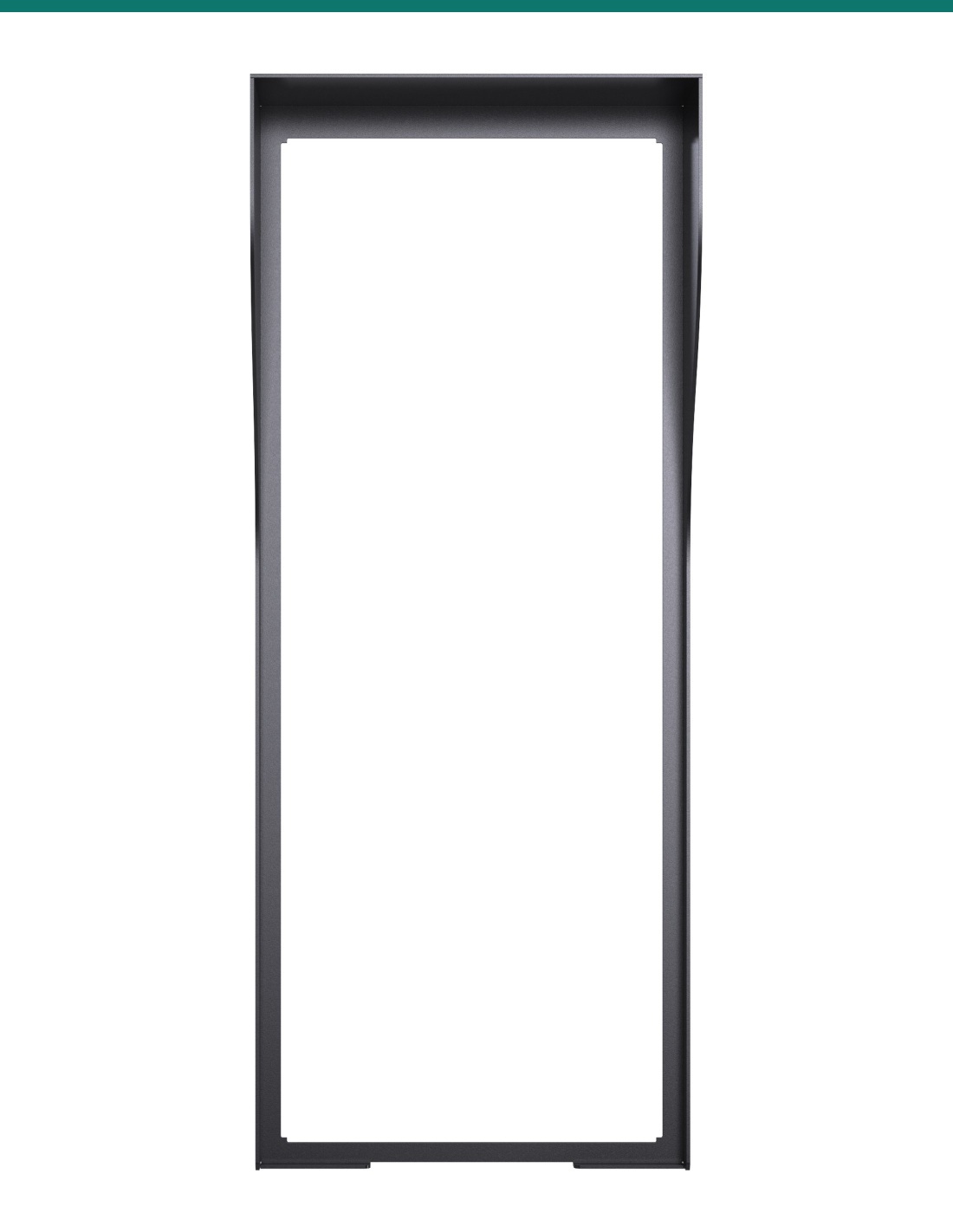

Akuvox R29 in-wall rain hood in black wraps the top and sides of an R29 series door phone, keeping rain and overhead sun off the 7″ touch screen, cameras and card reader. It fixes together with the R29 in-wall installation kit, so the station hangs and locks exactly as normal.

  • ✓Black in-wall rain hood for the Akuvox R29 series
  • ✓330.2 mm tall frame projecting 45.2 mm at the top
  • ✓Fixed together with the R29 in-wall installation kit (AK-R29INWALLK)
  • ✓On-wall installs use AK-R29ONWALLH


Akuvox · R29 · Black in-wall rain hood

Shelter the 7″ door station.
Black, in-wall.

The AK-R29INWALLH is the Akuvox R29 in-wall rain cover in black. Akuvox designs it to fix together with the R29 flush-mounting bracket, so it adds weather protection without changing how the station hangs.

Rain hood only.

You receive the black in-wall rain hood. The door phone and the R29 in-wall installation kit are sold separately.

In the box
  • Akuvox R29 in-wall rain hood (black)
What you also need (sold separately)
  • Akuvox R29 series door phone
  • R29 in-wall installation kit

A touch screen that stays usable.

Rain on a 7″ touch screen makes it hard to read and use, and water on the camera window spoils face recognition. The hood keeps the front of the station sheltered.

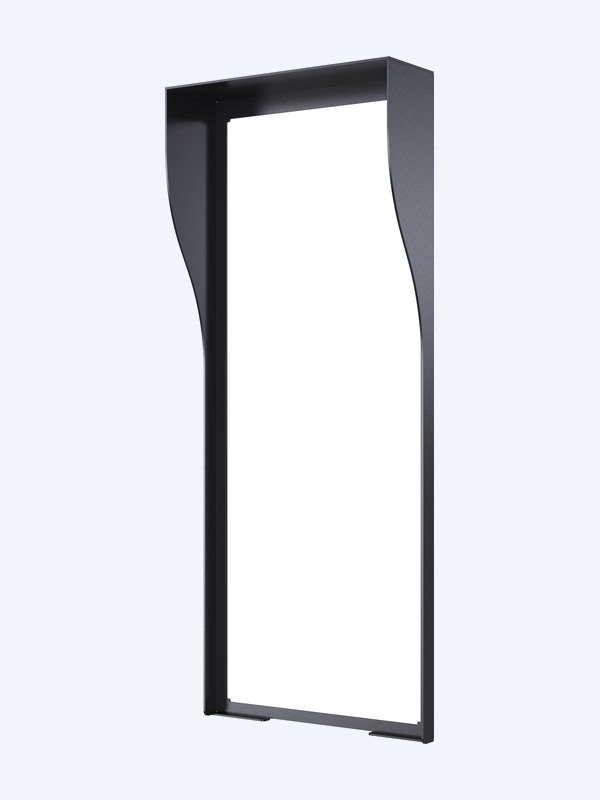

Akuvox R29 black in-wall rain hood

Protection

Rain and sun off the screen.

The canopy covers the top and both sides of the station, so rain sheds clear of the touch screen and camera window.

Shading the screen from overhead sun also makes it easier for visitors to read.

How it works

Fitting the hood.

01

Combine

Combine the rain cover with the flush-mounting bracket and fix them to the flush box together with six M4×10 screws.

02

Hang the station

Hook the R29 onto the two square hooks at the top of the box, press down and tighten the two M3×6 countersunk screws underneath with the Allen wrench.

03

If it is tight

Loosen the six screws slightly, move the hood up a little for clearance at the top, then retighten.

Pair it with

Pairs with

Door phone

Akuvox R29C

7″ Android facial recognition door phone.

Mounting

R29 in-wall installation kit

The flush box and bracket this hood fixes to.

Watch

See it in action

Akuvox R29C touchless door entry intercom overview

Downloads

Datasheets and guides

Compliance certificates and technical documents are available on request for tenders and installers — send an enquiry.

Answers

Common questions

Which door phones does it fit?

The Akuvox R29 series, including the R29C and R29S.

Do I need the R29 in-wall installation kit?

Yes. The hood is fixed together with the flush-mounting bracket from that kit.

What colour is it?

Black. Akuvox also makes the R29 covers in silver; this SKU is the black version.

How far does it stick out?

45.2 mm at the top, tapering to 11.7 mm at the bottom.

Does it cover the screen?

No. It is an open frame — the 7″ screen, cameras and card reader stay fully visible.

Is the door phone or in-wall kit included?

No. This SKU is the rain hood only.

Match the hood to the install.

For a surface-mounted R29 use the on-wall hood (AK-R29ONWALLH).

Colour
Black
Brand
Akuvox
Mounting
In-Wall (flush) installs
Warranty
Australian warranty
Product Type
Rain hood
Model
R29 in-wall rain hood
Compatible with
Akuvox R29 series
Fixing
6 × M4×10 screws, together with the flush-mounting bracket
Used With
R29 in-wall installation kit
Projection
45.2 mm at the top, 11.7 mm at the bottom
Height
330.2 mm
