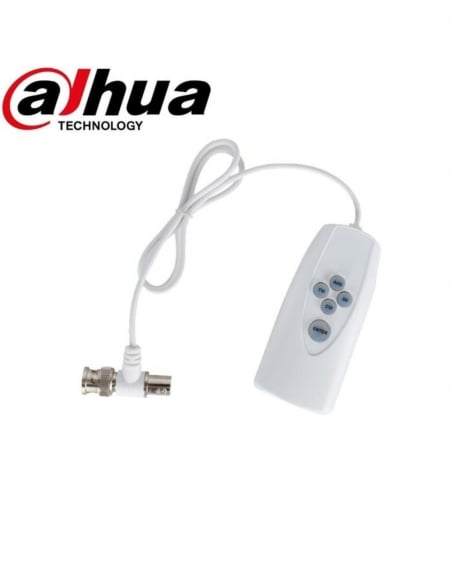

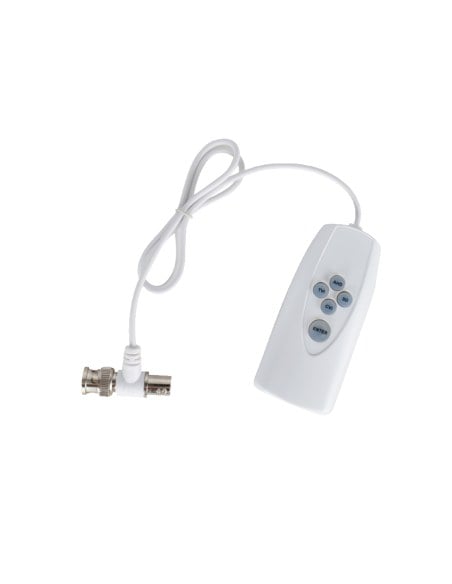

Dahua UTC Controller - DH-AC-PFM820DH-AC-PFM820

Dahua UTC Controller - DH-AC-PFM820

Name: Dahua UTC Controller - DH-AC-PFM820
Brand: Dahua Australia
SKU: DH-AC-PFM820
Price: 19 AUD
Availability: InStock

Reference DH-AC-PFM820

In Stock - Ready to Ship

$ 19.00

inc-GST

Dahua UTC Controller for switching different formats (HDCVI/AHD/HDTVI/CVBS) of video signal
Support different formats(HDCVI/AHD/HDTVI/CVBS) switch, which is to satisfy the requirements of different storage deviceenvironments for clients.
Various format indicator lights, which makes it convenient forusers to check the current format status and prompt if theformat switch is successful.
Support OSD control and the electric zoom function control in CVBS mode.

Dahua UTC Controller - DH-AC-PFM820

DH-AC-PFM820

Formats: HDCVI/AHD/HDTVI/CVBS

Power Consumption: 0.3W

Power Supply: AAA battery*2

Indicator Lights: Prompt current format

Applicable Pixel: 2MP and below

Physical Properties

Dimension(LxWxH): Body: 90mmx41mmx21mm (3.54”x1.61”x0.83”),Length: 560mm(22.05”)

Outer Shell: PC&ABS

Color: White

N.W.: 48g(0.11lb)

Operating Temperature: 0℃~+40℃(+32℉~+104℉)

Humidity: 0~95% (non-condensing)

Certification: CE

Model	PFM820
Features
Formats	HDCVI/AHD/HDTVI/CVBS
Power Consumption	0.3W
Power Supply	AAA battery*2
Indicator Lights	prompt current format
Applicable Pixel	2MP and below
Physical Properties
Dimension(LWH)	Body: 90mmx41mmx21mm(3.54”x1.61”x0.83”) Length: 560mm(22.05”)
Outer Shell	PC&ABS
Color	White
N.W.	48g(0.11lb)
Environmental
Working Temperature	0℃~40℃(32℉~104℉)
Relative Humidity	0~95%

PFM820 Datasheet

Dahua UTC Controller PFM820 Datasheet (PDF)

Download (462.19KB)

UTC Controller User's Manual

UTC Controller User's Manual (PDF)

Download (205.49KB)
