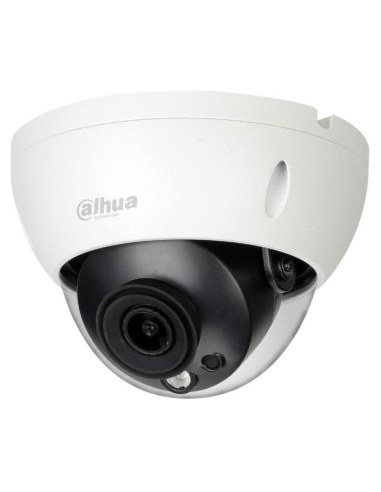

Dahua HD 5MP IP WDR IR Dome WizMind Network Dome DH-IPC-HDBW5541RP-ASE-0280B

Dahua HD 5MP IP WDR IR Dome WizMind Network Dome Camera - DH-IPC-HDBW5541RP-ASE-0280B

Name: Dahua HD 5MP IP WDR IR Dome WizMind Network Dome Camera - DH-IPC-HDBW5541RP-ASE-0280B
Brand: Dahua Australia
SKU: DH-IPC-HDBW5541RP-ASE-0280B
Price: 264 AUD
Availability: InStock

Reference: DH-IPC-HDBW5541RP-ASE-0280B

In Stock - Ready to Ship

$ 264.00

inc-GST

1/2.7” 5Megapixel progressive scan CMOS
H.265&H.264 triple-stream encoding
20fps@2592×1944
WDR(120dB), Day/Night(ICR), 3D DNR, AWB, AGC, BLC
Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
2.8mm fixed lens (3.6mm/6mm optional)
Max. IR LEDs Length 40m
Micro SD memory, IP67, IK10

Description
Attachments

Dahua HD 5MP IP WDR IR Dome WizMind Network Dome Camera

DH-IPC-HDBW5541RP-ASE-0280B

Dahua AI series products adopt the most advanced AI technologies, including deep learning algorithms that primarily target people and vehicles, which provides higher flexibility and accuracy for end-users. This enables the Dahua AI series to offer various advanced applications such as Face Recognition, ANPR, Metadata, People Counting, traffic data statistics, etc. The complete lineup of Dahua AI includes network (PTZ) cameras, network video recorders, servers, and platform management products. Beyond seeing the world, the power of AI allows devices to perceive the environment and understand the world in a better way.

Features:

Records up to 5 Megapixel resolution.

Equipped with a 2.8mm Fixed lens.

Supports up to 2592 × 1944 pixels resolution.

Supports AI Perimeter Protection allowing differentiation and recognition of vehicles and humans when using tripwire and intrusion detection, loitering detection, people gathering and parking detection.

Supports AI People Counting useful for business analytics. Count the number of people in an area, queue management and alarm linkage.

Supports AI Face Detection that supports detecting, tracking, capturing and selecting the best face image, and then outputs face snapshot.

Features up to H.265+ high-efficiency video encoding and Triple-Streaming.

Starlight technology generates clear colour images in near-complete darkness.

120 dB Wide Dynamic Range (WDR). 3D Digital Noise Reduction (3D DNR). Day/Night Infrared Cut Removal (ICR). Auto White Balance (AWB). Automatic Gain Control (AGC). Backlight Compensation (BLC). Highlight Compensation (HLC). Region of Interest (ROI).

Built-in Infrared LED, with a maximum range of 50 meters.

Supports Power-Over-Ethernet (PoE) installations.

Supports MicroSD Card Storage up to 256 Gigabytes.

Resilient "Weather-Proof" Ingress Protection Rating (IP67).

Durable "Vandal-Proof" Impact Protection Rating (IK10).

3 Years Back-to-Base Manufacturer Warranty!

System Overview

Pro AI-series contains Face Capture, Perimeter Protection and People Counting functions. Powered by deep-learning Artificial Intelligence algorithms, significantly improved accuracy. Meanwhile, the series features starlight and smart IR technology. This series is fully protected from dust and water, certified to IP67 and vandal resistant to IK10 standard.

Perimeter Protection

Dahua’s Perimeter Protection functions significantly improved accuracy. Perimeter Protection reduces false alarms and decreases pixel count requirements for object detection. Perimeter Protection features custom tripwires based on object type for automation in limited access areas such as pedestrian or vehicle-only zones. This combination of advanced AI analytics and real-time alerts to a desktop or to a mobile client reduces system requirements and resources resulting in greater surveillance system efficiency.

People Counting

People Counting function uses advanced image processing technology to capture depth information from within images. The camera pairs this information with deep learning algorithms to analyze and detect human bodies and track target objects in real-time. The camera provides statistics for separate individuals’ entrance and exit with up to 95% counting accuracy.

Metadata

Metadata is feature attribute information extracted from a target object which can be used for data retrieval. Dahua face detection camera can extract six facial attributes and output the metadata for analysis.

Protection(IP67, IK10, wide voltage)

The camera allows for ±30% input voltage tolerance, suitable for the most unstable conditions for outdoor applications. Its 6KV lightning rating provides effective protection for both the camera and its structure against lightning. Subjected and certified to rigorous dust and immersion tests (IP67) and impact tests (IK10), the camera is the choice for installation in even the most unforgiving environments.

Tech Specs:

Camera

Image Sensor

1/2.7” 5Megapixel progressive scan CMOS

Max. Resolution

2592 (H) × 1944 (V)

RAM/ROM

512 MB/128 MB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual, 1/3 s–1/100000 s

S/N Ratio

> 56 dB

Minimum Illumination

0.005 Lux@F1.6

Illumination Distance

Distance up to 50 m

Illuminator On/Off Control

Auto/Manual

Illuminator Number

1(IR LED)

Lens

Lens Type

Fixed-focal

Mount Type

Board-in

Focal Length

2.8 mm, 3.6 mm, 6.0 mm

Max. Aperture

F1.6

Angle of View

H: 102°, V: 71°/H: 84°, V: 58°/H: 51°, V: 37°

Aperture Type

Fixed

Close Focus Distance

0.9 m /1.6 m /3.1 m

DORI Distance

Lens

Detect

Observe

Recognize

Identify

2.8mm

56m

22m

11m

3.6mm

80m

32m

16m

6.0mm

120m

48m

24m

12m

Pan/Tilt/Rotation

Pan/Tilt/Rotation Range

Pan: 0˚–355˚; Tilt: 0˚–75˚; Rotation: 0˚–355˚

Artificial Intelligence

Face Detection

Face detection; track; optimization; snapshot; face enhancement; face exposure; face matting setting: face, single inch photo; three snapshot methods: real-time snapshot, optimization snapshot, quality priority; face angle filter; optimization time setting

Perimeter Protection

Tripwire; intrusion; fast-moving (the three functions

support the classification and accurate detection

of vehicle and human); loitering detection; people

gathering; parking detection

People Counting

Support the counting of entering numbers, leave

number, and pass number, and displaying and

outputting yearly/monthly/daily reports.

Support the counting of numbers in area and 4 rules

configuration. Count the number of people or stay time

and link alarm.

Support queue management, and 4 rules

configuration. Count the number of people or stay time

and link alarm

General Intelligence

Event Trigger

Motion detection, Video tampering, Scene changing, Network disconnection, IP address conflict, Illegal Access, Storage anomaly

General Intelligence

Object Abandoned/Missing

Heat Map

Yes

Video

Compression

H.265,H.264,H.264B,H.264H,

MJPEG (only supported by sub stream)

Smart Codec

Smart H.265+/ Smart H.264+

Streaming Capability

3 Streams

Resolution

2592 × 1944/2688 × 1520/2560 × 1440/2304 × 1296/1080P (1920 × 1080)/1.3M (1280 × 960)/720P (1280 × 720)/D1 (704 × 576/704 × 480)/VGA (640 × 480)/CIF (352 × 288/352 × 240)

Frame Rate

Main Stream: 2592 × 1944 (1 fps–20 fps)

2560 × 1440 (1 fps–25/30 fps)

1920 × 1080 (1 fps–50/60 fps)

Sub Stream: D1 (1 fps–20/30 fps)

D1 (1 fps–50 fps)

Third Stream: 1080P (1 fps–17 fps)

Bit Rate Control

CBR/VBR

Bit Rate

H.264: 32 Kbps–8192 Kbps

H.265: 19 Kbps–8192Kbps

Day/Night

Auto (ICR)/Color/B/W

BLC Mode

BLC/HLC/WDR (120 dB)

White Balance

Auto/Natural/Street Lamp/Outdoor/Manual

Gain Control

Auto/Manual

Noise Reduction

3D DNR

Motion Detection

Off/On (4 Zone, Rectangle)

Region of Interest

Off/On (4 Zone)

Smart Illumination

Yes

Defog

Yes

Flip

0°/90°/180°/270°

Mirror

Off/On

Privacy Masking

Off/On (4 Area, Rectangle)

Alarm

Alarm Event

No SD card;SD card full;SD card error;network disconnection;IP conflict;illegal access;motion detection;video tampering;Defocus Detection;scene changing;intrusion;tripwire;abandoned object;missing object;fast moving;parking detection;loitering detection;people gathering;audio detection;people counting;face detection;People counting in area;Stay alarm;People No. exception detection;Queue Management

Network

RJ-45 (10/100 Base-T)

SDK and API

Yes

Protocol

IPv4;IPv6;HTTP;HTTPS;TCP;UDP;ARP;RTP;RTSP;RTCP;RTMP;SMTP;FTP;SFTP;DHCP;DNS;DDNS;QoS;UPnP;NTP;Multicast;ICMP;IGMP;NFS;PPPoE;802.1x;SNMP

Interoperability

ONVIF (Profile S/Profile G/Profile T), CGI, Milestone, Genetec, P2P

User/Host

20 Users

Storage

NAS;FTP;SFTP;Dahua Cloud
