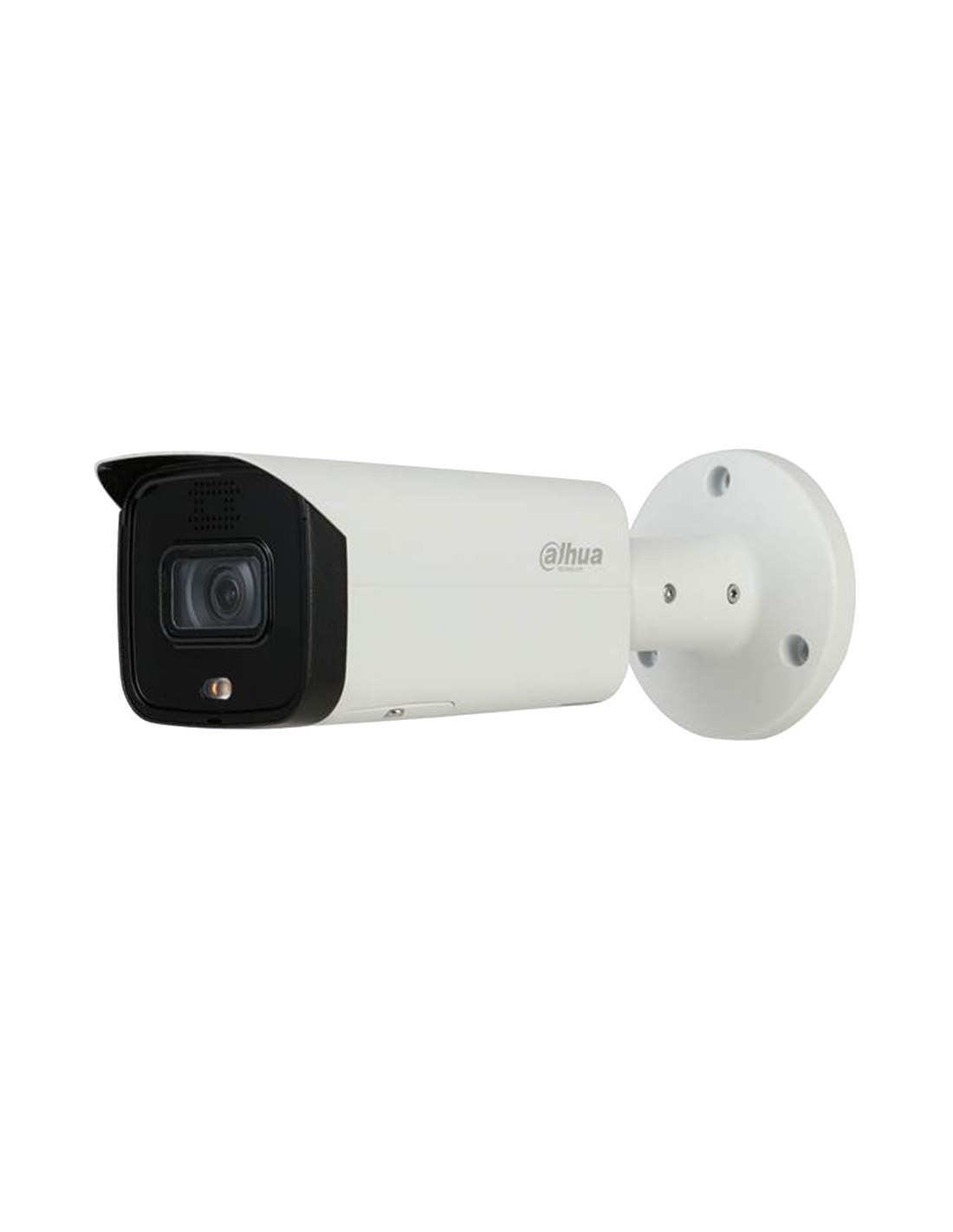

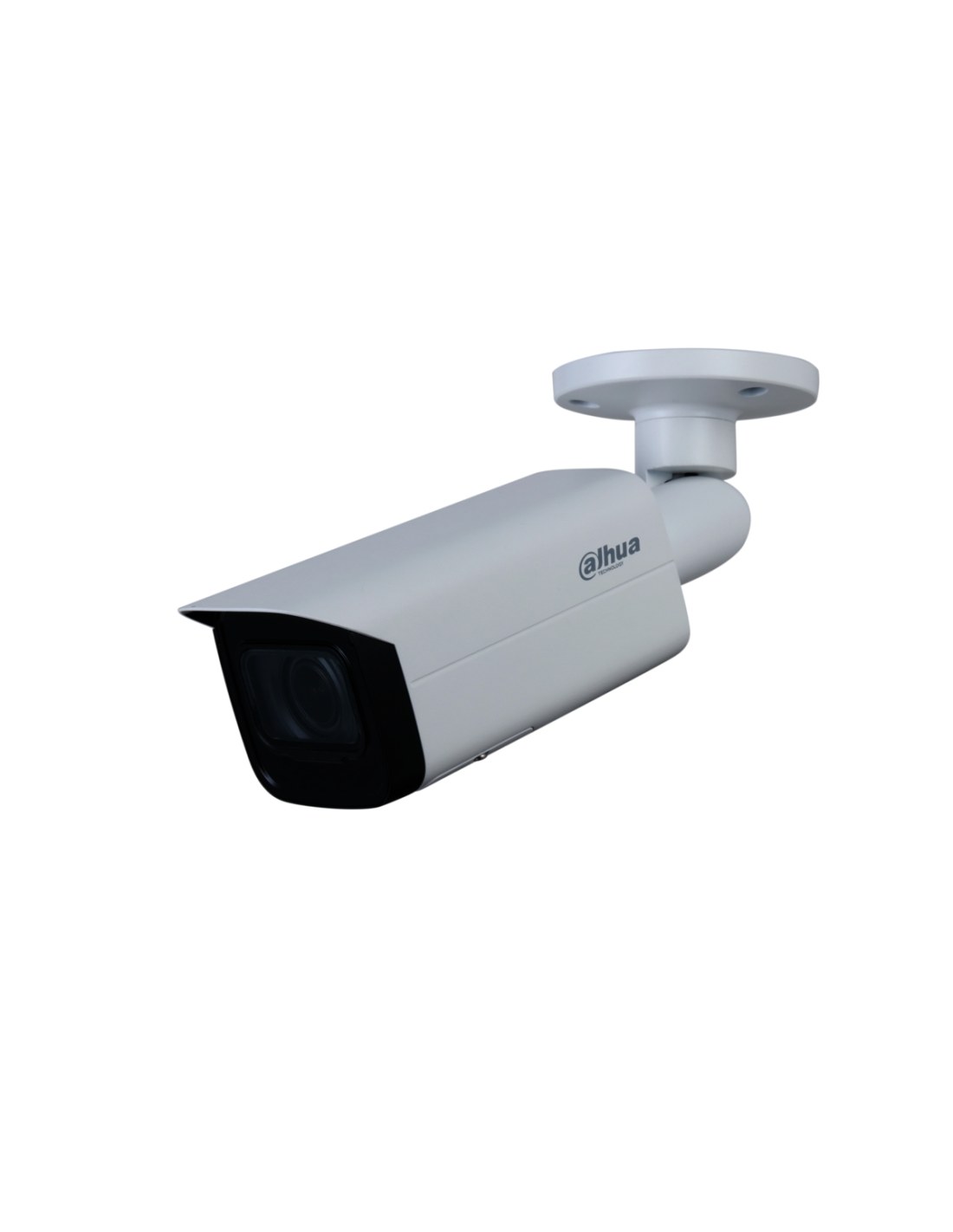

Dahua HD IP 5MP 2.8mm WDR IR PoE Fixed Bullet Camera

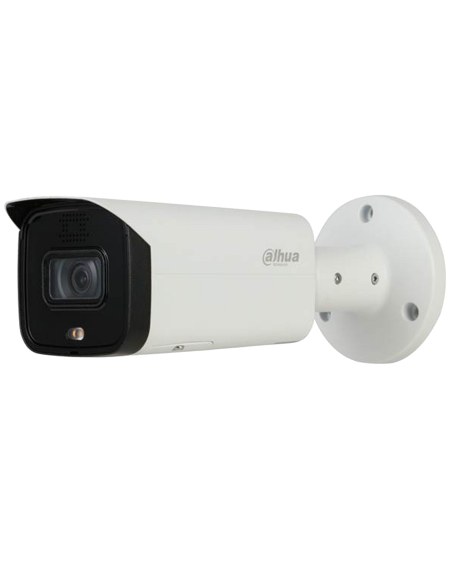

DH-IPC-HFW5541TP-AS-PV-0280B
Dahua AI series products adopt the most advanced AI technologies, including deep learning algorithms that primarily target people and vehicles, which provides higher flexibility and accuracy for end-users. This enables the Dahua AI series to offer various advanced applications such as Face Recognition, ANPR, Metadata, People Counting, traffic data statistics, etc. The complete lineup of Dahua AI includes network (PTZ) cameras, network video recorders, servers, and platform management products. Beyond seeing the world, the power of AI allows devices to perceive the environment and understand the world in a better way.
Features:
Records up to 5 Megapixel (Full HD) resolution.
Equipped with a 2.8mm Fixed lens.
Supports up to 2592 × 1944 pixels Full High Definition resolution.
Features up to H.265+ high-efficiency video encoding and Triple-Streaming.
With suitable devices, WizMind Technology, utilize features like Face Recognition, Number-Plate Recognition, Human and Vehicle Metadata, People Counting, Heat Map, Stereo Analysis, Smart Tracking, Temperature Monitoring, and more!
Capture clear and crisp images under low-light conditions with Dahua's Starlight Technology.
Supports PoE "Power-Over-Ethernet" installations.
120 dB Wide Dynamic Range WDR. 3D Digital Noise Reduction 3D DNR.
Day/Night Infrared Cut Removal ICR. Auto White Balance AWB. Automatic Gain Control AGC. Backlight Compensation BLC. Highlight Compensation HLC. Region of Interest ROI.
Supports MicroSD Card Storage up to 256 Gigabytes.
Resilient "Weather-Proof" Ingress Protection Rating (IP67).
3 Years Back-to-Base Manufacturer Warranty!
System Overview
Pro AI-series contains Face Capture, Perimeter Protection and People Counting functions. Powered by deep-learning Artificial Intelligence algorithms, significantly improved accuracy. Meanwhile, the series features starlight and smart IR technology. This series is fully protected from dust and water, certified to IP67 standards.
Perimeter Protection
Dahua’s Perimeter Protection functions significantly improved accuracy. Perimeter Protection reduces false alarms and decreases pixel count requirements for object detection. Perimeter Protection features custom tripwires based on object type for automation in limited access areas such as pedestrian or vehicle-only zones. This combination of advanced AI analytics and real-time alerts to a desktop or to a mobile client reduces system requirements and resources resulting in greater surveillance system efficiency
People Counting
People Counting function uses advanced image processing technology to capture depth information from within images. The camera pairs this information with deep learning algorithms to analyze and detect human bodies and track target objects in real-time. The camera provides statistics for separate individuals’ entrance and exit with up to 95% counting accuracy.

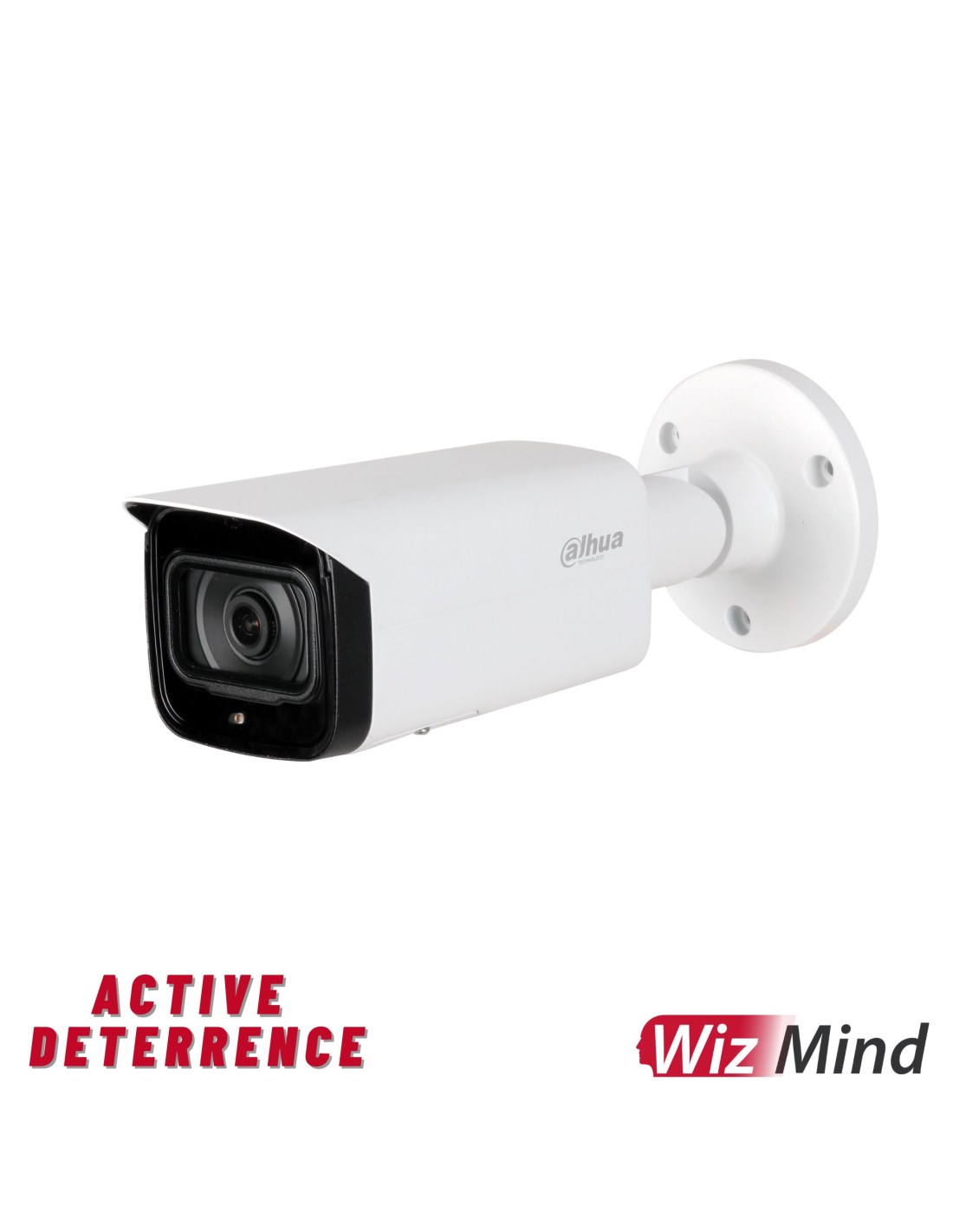

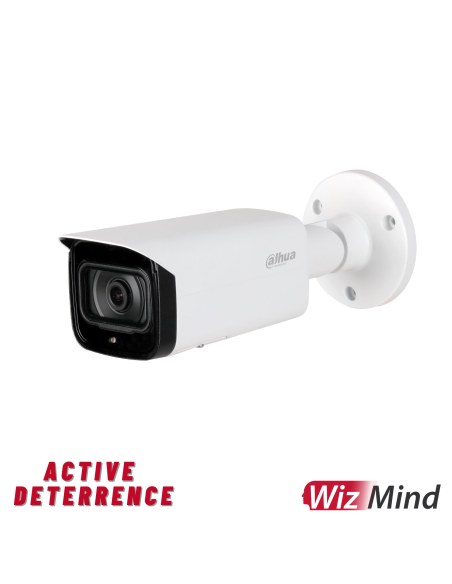

Active Deterrence
Active deterrence is to warn off intruders actively with white light and siren even before users are aware of the incidence. Once an intrusion is detected, the white light will turn on and the siren will buzzer to alert the intruder. The white light can be set to Normally on or Flash, the content of the siren is configurable.
Protection(IP67, wide voltage)
The camera allows for ±30% input voltage tolerance, suitable for the most unstable conditions for outdoor applications. Its 6KV lightning rating provides effective protection for both the camera and its structure against lightning. Subjected and certified to rigorous dust and immersion tests (IP67), the camera is the choice for installation in even the most unforgiving environments.
Tech Specs:
|
Camera
|
|
Image Sensor
|
1/2.7” 5Megapixel progressive scan CMOS
|
|
Max. Resolution
|
2592 (H) × 1944 (V)
|
|
RAM/ROM
|
512 MB/128 MB
|
|
Scanning System
|
Progressive
|
|
Electronic Shutter Speed
|
Auto/Manual, 1/3 s–1/100000 s
|
|
S/N Ratio
|
> 56 dB
|
|
Minimum Illumination
|
0.005 [email protected]
|
|
Illumination Distance
|
Distance up to 60 m (197 ft)
|
|
Illuminator On/Off Control
|
Auto/Manual
|
|
Illuminator Number
|
2 IRs, 1 LED
|
|
Lens
|
|
Lens Type
|
Fixed-focal
|
|
Mount Type
|
Board-in
|
|
Focal Length
|
2.8 mm, 3.6 mm, 6.0 mm, 8.0 mm
|
|
Max. Aperture
|
F1.6
|
|
Angle of View
|
H: 102°, V: 71°/H: 84°, V: 58°/H: 51°, V: 37°/H: 38°, V: 28°
|
|
Aperture Type
|
Fixed
|
|
Close Focus Distance
|
0.9 m /1.6 m /3.1 m /4.5 m
|
|
DORI Distance
|
Lens
|
Detect
|
Observe
|
Recognize
|
Identify
|
|
2.8mm
|
56m
|
22m
|
11m
|
6m
|
|
3.6mm
|
80m
|
32m
|
16m
|
8m
|
|
6mm
|
120m
|
48m
|
24m
|
12m
|
|
8mm
|
160m
|
64m
|
32m
|
16m
|
|
Pan/Tilt/Rotation
|
|
Pan/Tilt/Rotation Range
|
Pan: 0˚–360˚; Tilt: 0˚–90˚; Rotation: 0˚–360˚
|
|
Artificial Intelligence
|
|
Perimeter Protection
|
Tripwire; intrusion; fast-moving (the three functions
support the classification and accurate detection
of vehicle and human); loitering detection; people
gathering; parking detection
|
|
People Counting
|
Support the counting of entering numbers, leave
number, and pass number, and displaying and
outputting yearly/monthly/daily reports.
Support the counting of numbers in the area and 4 rules
configuration. Count the number of people or stay time
and link the alarm.
Support queue management, and 4 rules
configuration. Count the number of people or stay time
and link alarm
|
|
General Intelligence
|
|
Event Trigger
|
Motion detection, Video tampering, Scene changing, Network disconnection, IP address conflict, Illegal Access,Storage anomaly
|
|
General Intelligence
|
Object Abandoned/Missing
|
|
Heat Map
|
Yes
|
|
Video
|
|
Compression
|
H.265,H.264,H.264B,H.264H,
MJPEG (only supported by sub stream)
|
|
Smart Codec
|
Smart H.265+/ Smart H.264+
|
|
Streaming Capability
|
3 Streams
|
|
Resolution
|
2592 × 1944/2688 × 1520/2560 × 1440/2304 × 1296/1080P (1920 × 1080)/1.3M (1280 × 960)/720P (1280 × 720)/D1 (704 × 576/704 × 480)/VGA (640 × 480)/CIF (352 × 288/352 × 240)
|
|
Frame Rate
|
Main Stream: 2592 × 1944 (1 fps–20 fps)
2560 × 1440 (1 fps–25/30 fps)
1920 × 1080 (1 fps–50/60 fps)
|
|
Sub Stream: D1 (1 fps–20/30 fps)
D1 (1 fps–50 fps)
|
|
Third Stream: 1080P (1 fps–17 fps)
|
|
Bit Rate Control
|
CBR/VBR
|
|
Bit Rate
|
H.264: 32 Kbps–8192 Kbps
H.265: 19 Kbps–8192 Kbps
|
|
Day/Night
|
Auto(ICR)/Color/B/W
|
|
BLC Mode
|
BLC/HLC/WDR (120 dB)
|
|
White Balance
|
Auto/Natural/Street Lamp/Outdoor/Manual
|
|
Gain Control
|
Auto/Manual
|
|
Noise Reduction
|
3D DNR
|
|
Motion Detection
|
Off/On (4 Zone, Rectangle)
|
|
Region of Interest
|
Off/On (4 Zone)
|
|
Smart Illumination
|
Yes
|
|
Defog
|
Yes
|
|
Flip
|
0°/90°/180°/270°
|
|
Mirror
|
Off/On
|
|
Privacy Masking
|
Off/On (4 Area, Rectangle)
|
|
Audio
|
|
Audio Compression
|
G.711a, G.711Mu, G.726, AAC, G.723
|
|
Alarm
|
|
Alarm Event
|
RJ-45 (10/100 Base-T)
|
|
Network
|
|
Network
|
RJ-45 (10/100 Base-T)
|
|
SDK and API
|
Yes
|
|
Protocol
|
IPv4;IPv6;HTTP;HTTPS;TCP;UDP;ARP;RTP;RTSP;RTCP;RTMP;SMTP;FTP;SFTP;DHCP;DNS;DDNS;QoS;UPnP;NTP;Multicast;ICMP;IGMP;NFS;PPPoE;802.1x;SNMP
|
|
Interoperability
|
ONVIF (Profile S/Profile G/Profile T), CGI, Milestone, Genetec, P2P
|
|
User/Host
|
20 Users
|
|
Storage
|
NAS;FTP;SFTP;Dahua Cloud
Micro SD card 256 GB
|
|
Browser
|
IE (versions newer than IE8), Chrome,
Firefox, Safari (versions newer than Safari 12)
|
|
Management Software
|
Smart PSS, DSS, DMSS
|
|
Mobile Phone
|
iOS, Android
|
|
Certifications
|
|
Certifications
|
CE-LVD: EN62368-1
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
FCC: 47 CFR FCC Part 15, Subpart B
UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07
|
|
Interface
|
|
Audio Interface
|
1/1 channel In/Out, Built-in Speaker
|
|
Alarm
|
1 channel In 5mA 5V DC
1 channel Out 300mA 12V DC
|
|
Electrical
|
|
Power Supply
|
DC 12V (±30%), PoE (802.3af)
|
|
Power Consumption
|
<8.5W
|
|
Environmental
|
|
Operating Conditions
|
-40°C to +60°C (-40°F to +140°F)/Less than 95% RH
|
|
Storage Conditions
|
-40°C to +60°C (-40°F to +140°F)
|
|
Protection Grade
|
IP67
|
|
Construction
|
|
Casing
|
Metal
|
|
Dimensions
|
244.1 mm × 79.0 mm × 75.9 mm (9.61” × 3.11” × 2.99”)
|
|
Net Weight
|
0.815 kg (1.80 lb)
|
|
Gross Weight
|
1.08 kg (2.38 lb)
|
