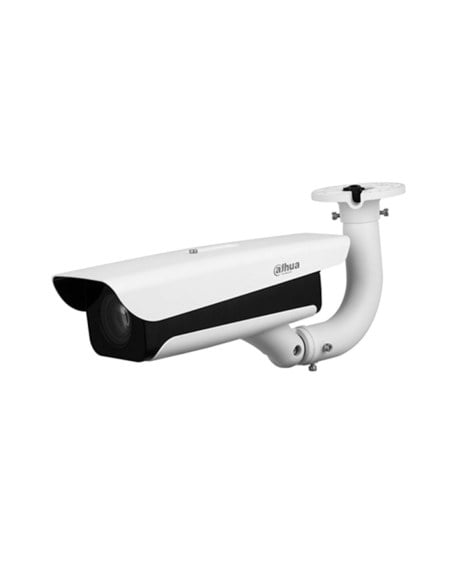

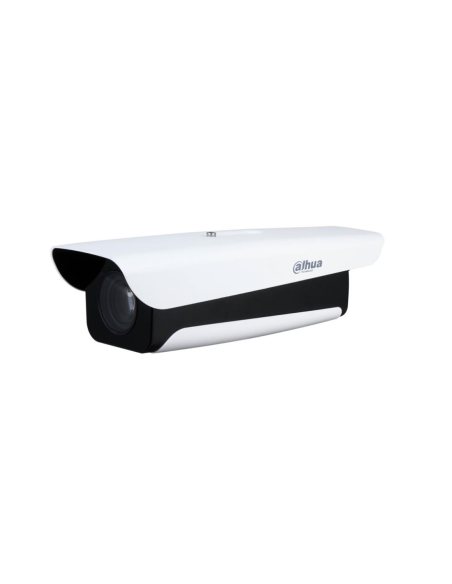

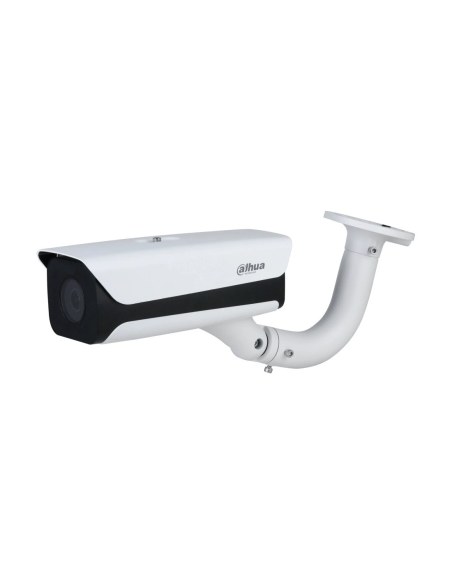

Dahua 2MP IR License Plate Recognition Camera - DHI-ITC237-PW6M-IRLZF1050-B-C2
- CMOS image sensor
- Video compression standards: H.265/H.264M/H.264H/H.264B/MJPEG
- Integrated design, and IP67,IK10 protection grade
- 3 Years Back-to-Base Manufacturer Warranty!
Dahua 2MP IR License Plate Recognition Long Range Access ANPR Camera
DHI-ITC237-PW6M-IRLZF1050-B-C2
Dahua ITC237-PW6M-(IR)LZF1050-B is a license plate recognition camera with a recording resolution of 1920 x 1080 (1080p) at 30 frames per second with a 1/1.8-inch. Sony GS-CMOS sensor. The camera includes a 10 mm to 50 mm motorized varifocal lens that lets the installer adjust the zoom angle of the picture, providing long-range video. The camera recognizes the license plates of vehicles traveling up to 80 kph (49 mph). The camera can be mounted between 8 m and 30 m from where the vehicles will be traveling and captures and recognize plates from a single lane. The ITC237-PW6M-IRLZF1050-B coupled with a Dahua NVR or DSS Video Management System offers complete traffic management and parking solution.
Dahuas's Automatic Number-Plate Recognition cameras are designed to be installed on vehicle entrances. These devices come embedded with License Plate Recognition Algorithm to improve the detection and recognition of each vehicle.
Product Features:
Records up to 2 Megapixel resolution.
Equipped with a 10~50 mm Motorized lens.
Supports up to 1920 × 1080 resolution.
Features up to H.265 high-efficiency video encoding and Dual-Streaming.
Embedded with License Plate Recognition Algorithm to improve detection and recognition of each vehicle.
Capture and Recognize License Plates from Vehicles Traveling up to 80 kph (49 mph) Range: 30 meters (98.43 ft)
Supports Signal, Data, and Communication Interfaces and Connection to External Devices
140 dB Wide Dynamic Range (WDR). 3D Noise Reduction (3D NR). Day/Night Infrared Cut Removal (ICR). Auto White Balance (AWB). Automatic Gain Control (AGC). Backlight Compensation (BLC). Highlight Compensation (HLC).
Maximum IR LED Distance 25 m (82 ft)
Supports Power-Over-Ethernet (PoE) installations.
Resilient "Weather-Proof" Ingress Protection Rating (IP67).
3 Years Back-to-Base Manufacturer Warranty!
Functions:
High-quality image
Industry-specific GS-CMOS image sensor with high sensitivity, high SNR and excellent WDR provides lifelike images in all weather.
Complete Intelligence
High-performance CPU processor helps extract and analyze information about motor and non-motor vehicles in real-time, providing vehicle feature details for business decision-making.
High-level protection
Integrated design with low power consumption, built-in lightning protection module, and IP67 protection grade, suitable for various harsh environments.
Multiple ports
Various signal, data, and communication ports are capable of connecting to external devices such as barriers.
Easy installation
Built-in LED illuminator and motorized varifocal lens, providing ease of installation and commissioning.
Specifications:
Image Processing |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Illuminator |
6 IR illuminators (brightness adjustable) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Image Sensor |
1/1.8'' CMOS |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Image Resolution |
1920 × 1080 (OSD black strip excluded) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video Resolution |
Main stream: 1080P (1920 × 1080) / 720P (1280 × 720) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video Frame Rate |
PAL: Main stream (1920 × 1080@25fps, 1280 × 720@25fps), sub-stream: (1280 × 720@25fps, 704 × 576@25fps, 352 × 288@25fps) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Bit Rate |
H.264B: 32Kbps–32768Kbps |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video Encoding |
H.264B/H.264M/H.264H/H.265/MJPEG |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Image Encoding |
JPEG |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Noise Reduction |
3DNR |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
White Balance |
Full auto; auto color temperature range; customized color temperature |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Electronic Shutter |
1/50–1/10000, auto or manual |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Wide Dynamic Range |
96db |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Edge Enhancement |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Exposure Mode |
Full auto; customized auto; customized |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Iris |
Auto iris (W:1.3–T:2.3) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Function |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Trigger Mode |
Video detection; I/O coil; video detection and I/O coil |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Shutter |
Single shutter |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Storage |
1 built-in TF card port. Kingston 16G, 32G and 64G; Dahua 16G, 32G and 64G; SanDisk 16G, 32G and 64G |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Image Tampering Prevention |
Yes. Video/picture can be checked through watermark and verification |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Max Illumination Distance |
30 m |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Capture Range |
8 m–30 m |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Detected Lane Width |
6 m –7 m |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Min Ambient Illuminance |
0.002 Lux. The illuminator is designed with a camera for illumination |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Max Speed that the Camera Detects |
60 km/h |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Alarm Event |
Alarm in the case of no storage card, not enough storage space, storage card error, network disconnection, IP conflict, and illegal access |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Security Mode |
Authorized username and password, MAC address binding, HTTPS encryption, IEEE 802.1x, and network access control |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
OSD Overlay |
Supports overlay of time, address (position of a channel), lane (number/direction), plate (number and color), vehicle (speed, color, type) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
ANR (Automatic Network Replenishment) |
Yes. Platform/FTP |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Auto Register |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Intelligence |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Vehicle Detection |
Vehicle capture rate ≥99% |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Vehicle Recognition |
Supports recognizing vehicle type, vehicle logo, vehicle color, license plate, and vehicle without a plate. Vehicle recognition rate ≥95% |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video Metadata |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Intelligent Track Frame |
Intelligent frame display. Supports displaying vehicle plate and vehicle path |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Ports |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Lens |
The lens in the camera module |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Analog Output |
1 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Ethernet Port |
1 100/1000M Ethernet port (RJ45) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
RS-485 Port |
2 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
RS-232 port |
1 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Alarm Input |
3, optocoupler input (switch quantity) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Alarm Output |
3 ports. 2-channel optocoupler output, 1-channel relay output, which can connect to devices such as barriers |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio Input |
1-channel RCA port |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio Output |
1-channel RCA port |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
General |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Supply |
12V DC, 24V AC, PoE+ |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Consumption |
< 20W |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Working Temperature |
−30°C to +65°C (−22°F to +149 °F) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Working Humidity |
10%–90% (no condensation) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Housing |
Metal and plastic |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Protection Grade |
IP67 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Dimensions (L×W×H) |
515.2mm×124.7mm×183.2mm (20.28''×4.91''×7.21'') |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Net Weight |
1.9kg (4.19lb) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Gross Weight |
3.3kg (7.28lb) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Installation |
Universal joint installation |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Lens |
10mm–50mm (0.39''–1.97'') |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Certification |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
CE, FCC |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
RoHS |
Yes |
