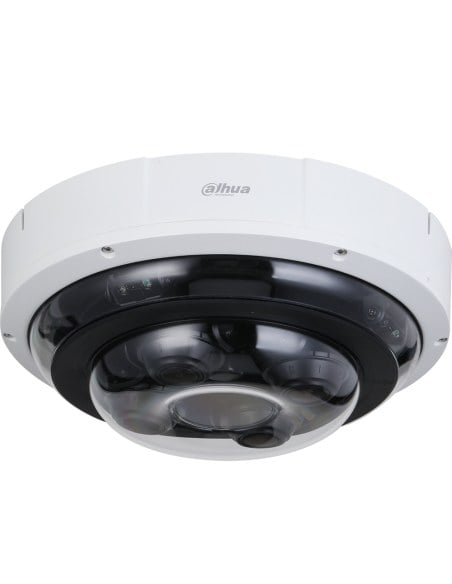

Dahua 5 Megapixel Panoramic Dome Network Camera - DH-IPC-PDBW82041-B360-S2
Dahua 5 Megapixel Panoramic Dome Network Camera - DH-IPC-PDBW82041-B360-S2

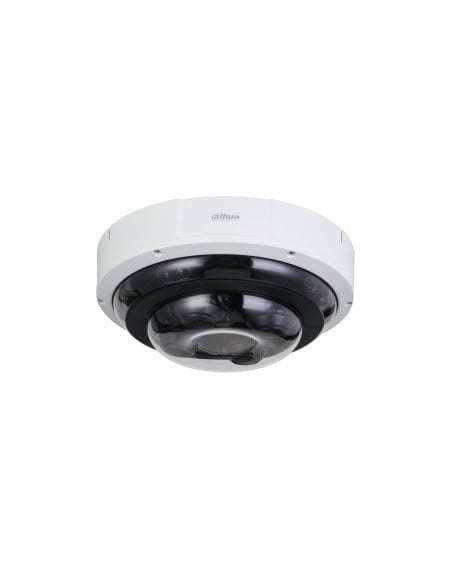

Dahua 4x2MP IP Dome Camera
Dahua 5 Megapixel Panoramic Dome Network Camera - DH-IPC-PDBW82041-B360-S2
Dahua 5 Megapixel Panoramic Dome Network Camera - DH-IPC-PDBW82041-B360-S2
Dahua 4x2MP IP Dome Camera

Dahua 5 Megapixel Panoramic Dome Network Camera - DH-IPC-PDBW82041-B360-S2

DH-IPC-PDBW82041-B360-S2
In Stock - Ready to Ship
$ 2,162.90
inc-GST
  • 4 x 5MP 1/2.7'' CMOS image sensor, low illuminance, high image definition.
  • 4 channel stream output, and each channel can output max. 5 MP (2592 x 1944) @25/30 fps.
  • ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments.
  • The intelligent functions of 4 channels can be enabled at the same time, including face detection, IVS, and people counting
  • Intelligent detection: Tripwire, intrusion, fast moving
  • Web 5.0 interface design
  • Built-in IR LED illuminator, and the max. illumination distance is 30 m.
  • Alarm: 3 in, 2 out; audio: 1 in, 1 out; RS-485; supports max. 256 G Micro SD card.
  • 12 VDC/PoE power supply; 12 VDC power output, and max. current 165mA; easy for installation.
  • IP67 and IK10 protection.



Dahua 5 Megapixel Panoramic Dome Network Camera



DH-IPC-PDBW82041-B360-S2



The multi-sensor camera provides added flexibility for capturing wide area video surveillance. With four 5MP adjustable lenses that can provide a flexible choice of angle, the camera can replace multiple single-sensor cameras providing a higher return on investment. The multi-sensor camera features contrast, backlight compensation, white balance, and resolution control to create a crystal-clear image even in the most challenging lighting conditions.

Features:

  • 4 x 5MP 1/2.7'' CMOS image sensor, low illuminance, high image definition.
  • 4 channel stream output, and each channel can output max. 5 MP (2592 x 1944) @25/30 fps.
  • ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments.
  • The intelligent functions of 4 channels can be enabled at the same time, including face detection, IVS, and people counting.
  • Intelligent detection: Tripwire, intrusion, fast moving (the three functions support the classification and accurate detection of vehicle and human), abandoned object, missing object, loitering detection, people gathering, and parking detection.
  • FlexStream: The 4 channels of images can be viewed in a defined channel with 1 channel stream. That is the multiple images can be displayed in 1 channel.
  • Web 5.0 interface design, which is friendly to users, and easy for operation.
  • Built-in IR LED illuminator, and the max. illumination distance is 30 m.
  • Alarm: 3 in, 2 out; audio: 1 in, 1 out; RS-485; supports max. 256 G Micro SD card.
  • 12 VDC/PoE power supply; 12 VDC power output, and max. current 165mA; easy for installation.

Starlight Technology

Featuring Dahua’s Starlight Technology, this camera is ideal for applications with challenging lighting conditions. Its low-light performance delivers usable video with minimal ambient light. Even in extreme low-light conditions, Starlight Technology is capable of delivering color images in near complete darkness (less than 0.01 lux).



Wide Dynamic Range

Embedded with industry-leading wide dynamic range (WDR) technology, vivid pictures are achieved even in the most intense contrast lighting conditions. For applications with both bright and low lighting conditions that change quickly, True WDR (120dB) optimizes both the bright and dark areas of a scene at the same time to provide usable video.



Intelligent Video System (IVS)

With built-in intelligent video analytics, the camera has the ability to detect and analyze moving objects for improved video surveillance. The camera provides optional standard intelligence at the edge allowing detection of multiple object behaviors such as abandoned or missing objects. IVS also supports Tripwire analytics, allowing the camera to detect when a pre-determined line has been crossed, ideal for business intelligence, and Facial Detection, for searching or identification of individuals.



Environmental

With a temperature range of -30 °C to +60 °C (-22 °F to +140 °F), the camera is designed for extreme temperature environments. The camera complies with an IK10 impact rating making it capable of withstanding the equivalent of 55 kg (120 lbs) of force. Subjected and certified to rigorous dust and water immersion tests, the IP67 rating makes it suitable for demanding outdoor applications. For environments with rain, sleet, snow and fog, an integrated wiper provides users with clear visibility at all times.



Protection:

Supporting ±30% input voltage tolerance, this camera suits even the most unstable conditions for outdoor applications. Its 4KV lightning rating provides protection against the camera and its structure from the effects of lightning.



HEVC (H.265)

H.265 ITU-T VCEG is a new video coding standard. H.265 Following standards developed around the existing video coding standard H.264, some retain the original technology, while some of the relevant technology to improve the new technology uses advanced technology to improve the relationship between the code stream, encoding quality, and the delay between algorithm complexity, optimize settings specific contents include: Improve compression efficiency, improve the robustness and error recovery capabilities, real-time to reduce the delay, reduce channel acquisition time and a random access delay, reduce complexity, etc
