Hikvision DS-2CD2387G3P-LIS2UY/SL (Black) — front view

Hikvision DS-2CD2387G3P-LIS2UY/SL (Black) — alternate angle

Hikvision DS-2CD2387G3P-LIS2UY/SL (Black) — side view

Hikvision DS-2CD2387G3P-LIS2UY/SL (Black) — DS-2CD2387G3P-LIS2UY/SL (Black)

Name: Hikvision DS-2CD2387G3P-LIS2UY/SL (Black) — DS-2CD2387G3P-LIS2UY/SL (Black)
Brand: HIKVision Australia
SKU: DS-2CD2387G3P-LIS2UY/SL(BLACK)
Price: 600 AUD
Availability: InStock

Reference: DS-2CD2387G3P-LIS2UY/SL(BLACK)

In Stock - Ready to Ship

$ 600.00

inc-GST

8MP 4K ColorVu. Strobe, two-way audio. Black.

8 MP fixed turret with 130 dB true WDR, 30 m white-light range, IP67, PoE.

✓8MP 4K, 1/2.5" Progressive Scan CMOS, 2.8 mm, F1.0
✓ColorVu imaging, strobe + built-in mic + speaker
✓IP67 housing, PoE powered, microSD slot, up to 512 GB
✓Colour down to 0.0005 Lux

Hikvision

8MP 4K ColorVu at night.
Strobe deterrent, two-way audio, IP67.

The Hikvision DS-2CD2387G3P-LIS2UY/SL is a 8MP 4K fixed turret with ColorVu, built-in strobe and two-way audio. 130 dB true WDR, IP67 housing and single-cable PoE for professional CCTV installs.

Product shot may differ from the actual product.

This is a STANDALONE IP CAMERA — pair with a PoE NVR or PoE switch for recording.

The DS-2CD2387G3P-LIS2UY/SL operates on the LAN over a single Ethernet run. It does not include an NVR, hard drive or cloud subscription. Most professional installs record to a Hikvision PoE NVR or a third-party ONVIF-compatible VMS.

In the box

Hikvision DS-2CD2387G3P-LIS2UY/SL camera
Mounting template and hardware pack
Waterproof RJ45 cable gland
Security Torx key and quick start guide

You’ll also need (sold separately)

802.3af/at PoE NVR or switch port
Cat 5e or Cat 6 cable to the mount point
Optional surveillance microSD (microSD slot, up to 512 GB)

8MP 4K ColorVu fixed turret.

Built for Australian residential and commercial CCTV where installers need full-colour night detail without switching to monochrome IR. The DS-2CD2387G3P-LIS2UY/SL datasheet is the specification authority for this SKU.

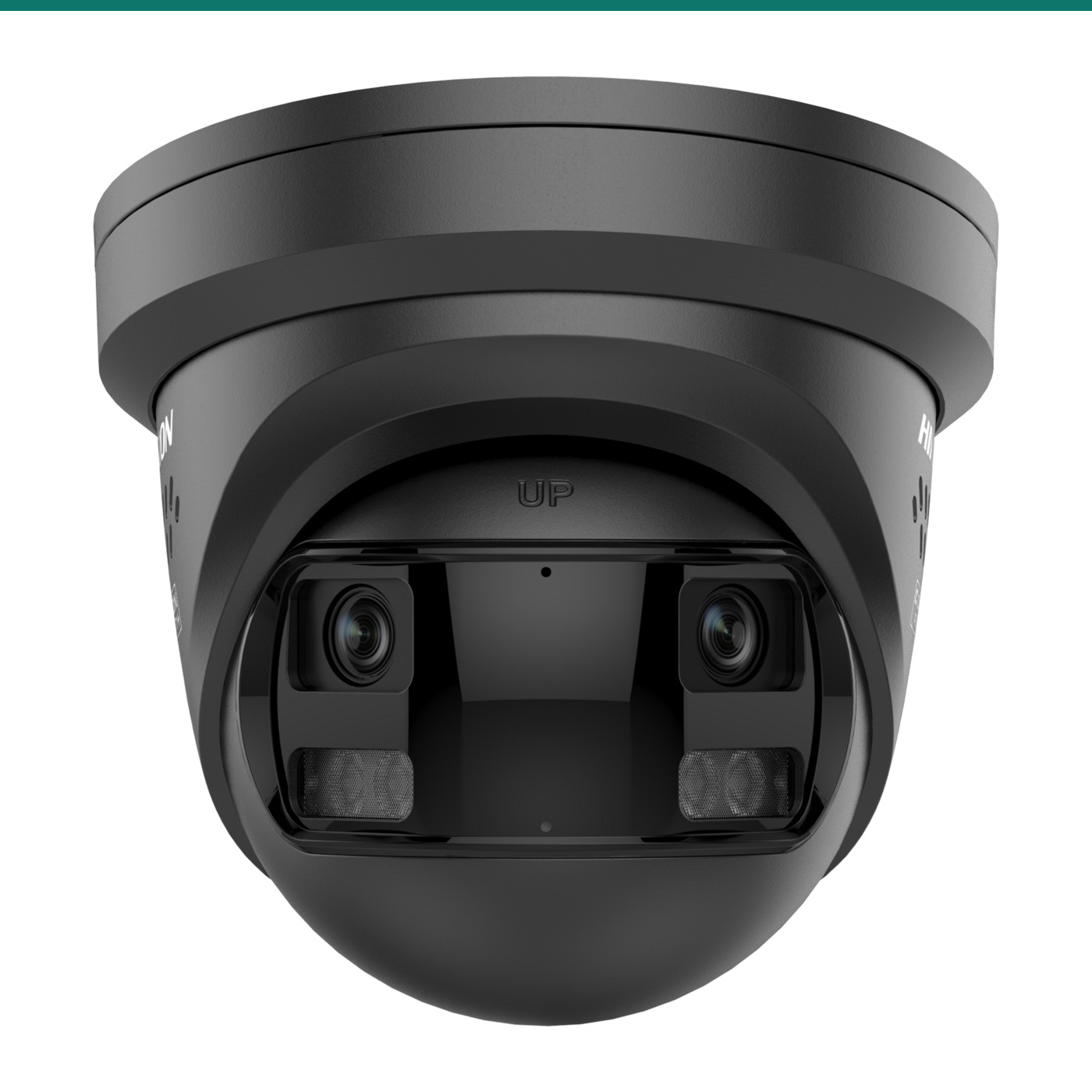

Hikvision DS-2CD2387G3P-LIS2UY/SL front view

8MP 4K imaging with full-colour night performance

8 MP130 dB true WDRF1.0Fixed 2.8 mm

The 1/2.5" Progressive Scan CMOS sensor, 4256 × 1888 output, H.265+ / H.264 compression. ColorVu keeps colour detail down to 0.0005 Lux at F1.0, so operators can identify clothing and vehicle colour after dark.

130 dB true WDR. 3D DNR, BLC and HLC for mixed lighting. Fixed focal lens, 2.8 mm field of view.

Perimeter alarms, strobe deterrent and two-way audio

Line crossingRegion intrusionStrobe + speaker30 m white-light range

Supports Line crossing, intrusion, region entrance, region exiting, Support alarm triggering by specified target types (human an…. Events trigger recording, email, alarm outputs and mobile notifications through Hik-Connect or your VMS.

Built-in speaker for audible warnings, 30 m white-light range. Configure alarm actions in iVMS-4200, the web interface or Hik-Connect.

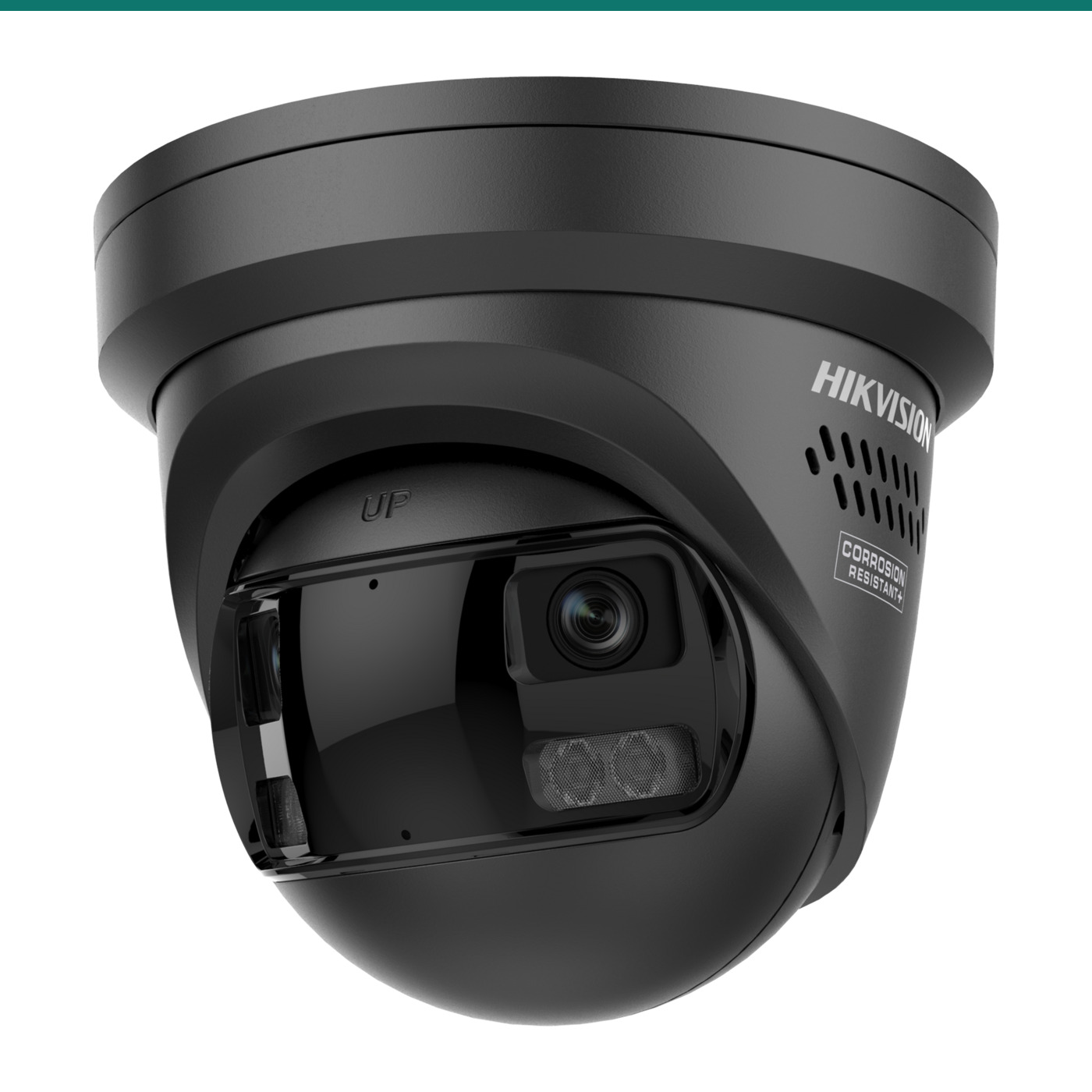

Hikvision DS-2CD2387G3P-LIS2UY/SL side view

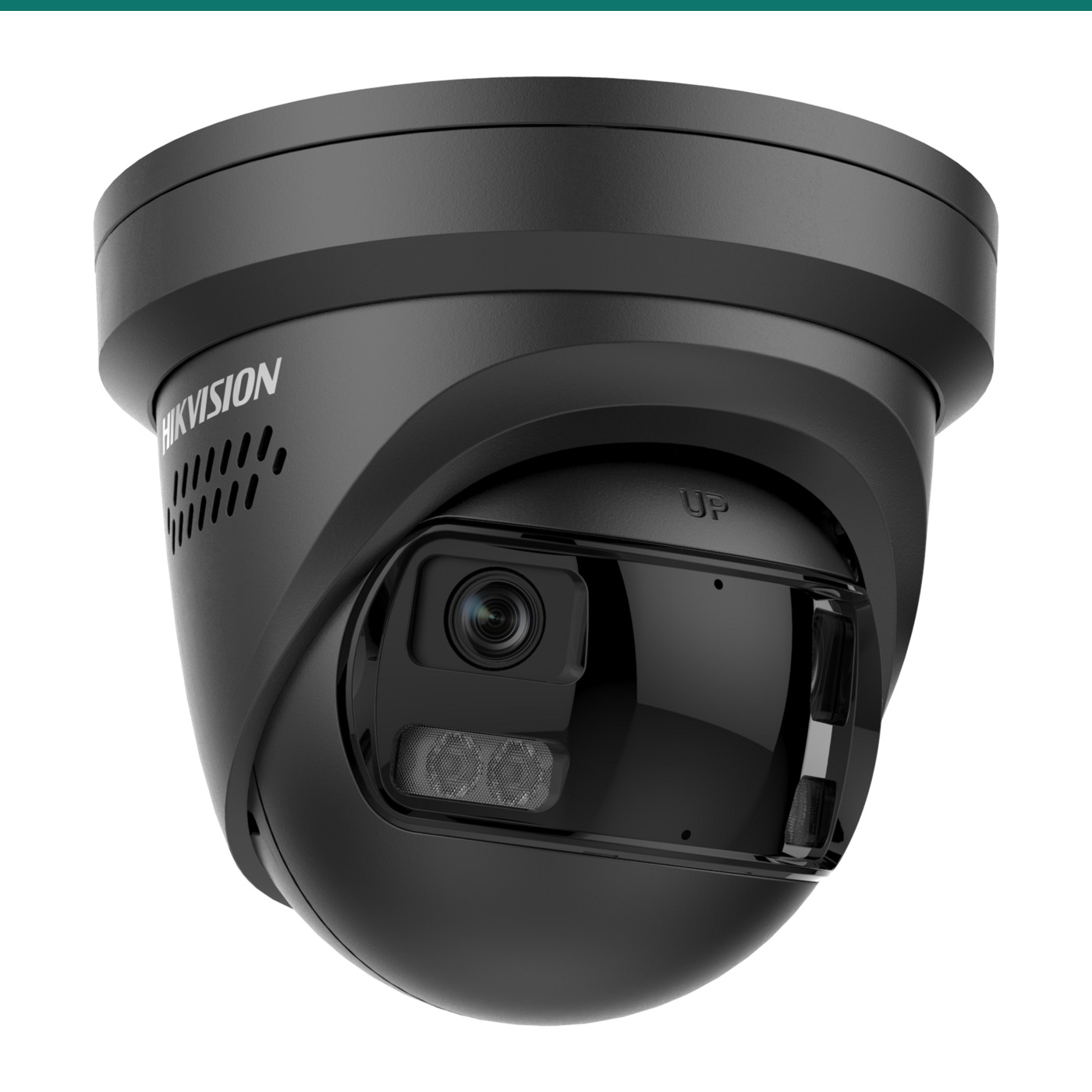

Hikvision DS-2CD2387G3P-LIS2UY/SL angle view

IP67 housing with PoE and edge storage

IP67microSD slot, up to 512 GBPoEONVIF

Cover: metal, main body: metal construction, IP67 ingress protection, rated -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95%…, Ø138.6 mm × 125 mm (Ø5.46" × 4.92") footprint. Suitable for eaves, soffits and external walls in residential and commercial sites.

IEEE 802.3 PoE on a single Cat 5e or Cat 6 run. microSD slot, up to 512 GB for edge recording and ANR.

From PoE to recording in four steps.

Power over Ethernet

Run a single Cat 5e or Cat 6 cable from the camera to any 802.3af/at PoE switch or NVR port.

Discover and activate

iVMS-4200, SADP or the NVR auto-discovers the camera; set the admin password and assign an IP.

Tune smart events

Draw line-crossing, intrusion or region rules, enable target filters and event linkages.

Record and view

Record to NVR, NAS or microSD with ANR; view live via Hik-Connect or any ONVIF client.

Key specs — DS-2CD2387G3P-LIS2UY/SL

Power: 12 VDC ± 25%, 1.67 A, max. 20 W,Ø5.5 mm coaxial power plug,reverse polarity protection, PoE: IEEE 802.3at, Class 4, max. 24 W
Material: Cover: metal, main body: metal
Dimension: Ø138.6 mm × 125 mm (Ø5.46" × 4.92")
Package Dimension: 170 mm × 170 mm × 160 mm (6.69" × 6.69" × 6.30")
Weight: Approx. 840 g (1.85 lb.)
With Package Weight: Approx. 1070 g (2.35 lb.)
Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
General Function: Heartbeat,flash log,password reset via email,pixel counter,anti-banding
Language: 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
Flashing Light: /SRB model: Red and Blue Light /SL model: White Light
Image Sensor: 1/2.5" Progressive Scan CMOS
Max. Resolution: 4256 × 1888
Min. Illumination: Color: 0.0005 Lux @ (F1.0, AGC ON),0 Lux with light
Shutter Time: 1 s to 1/100,000 s
Day & Night: IR cut filter

Full specifications are in the attached datasheet. Hikvision may revise specifications without notice.

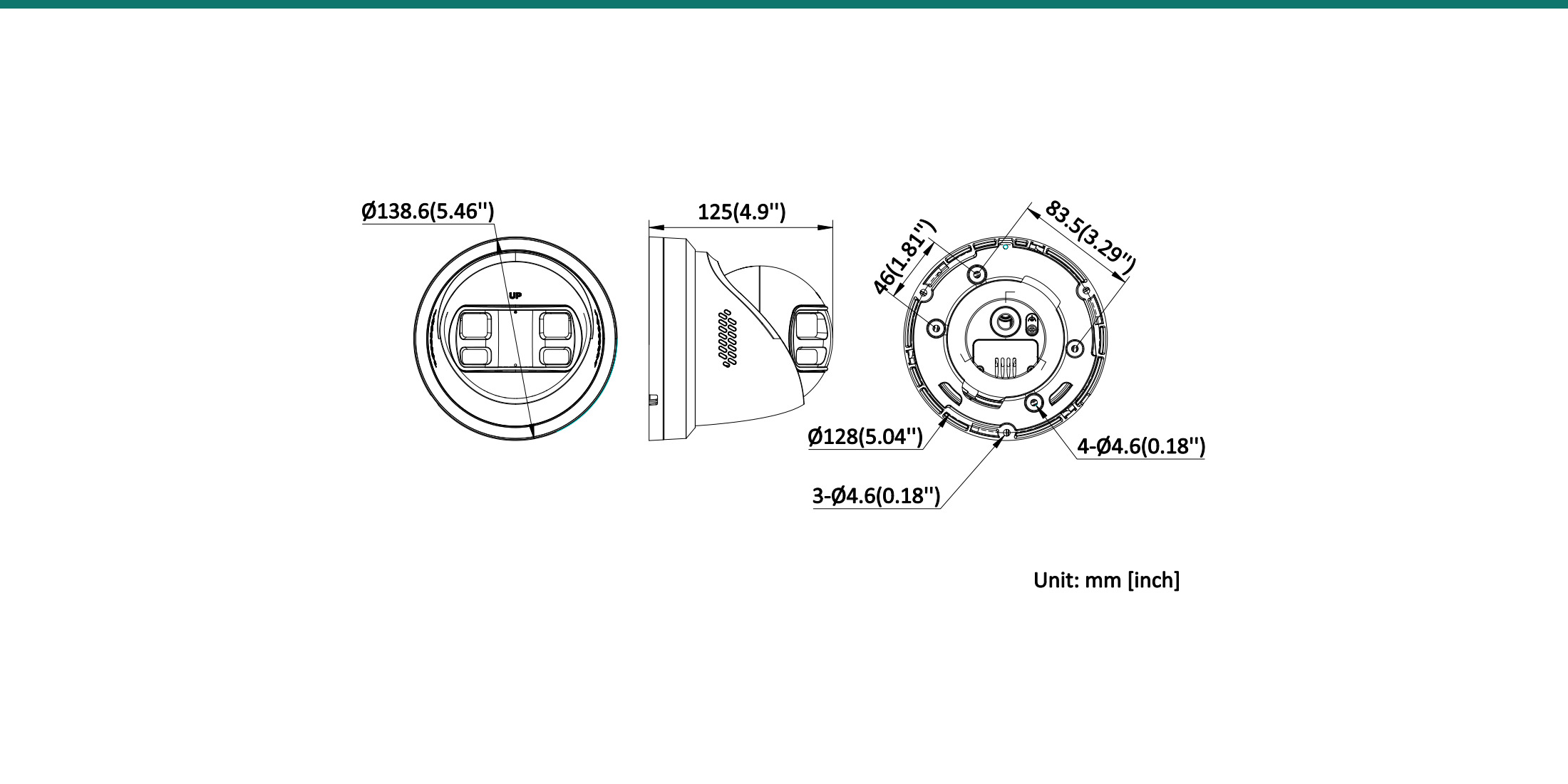

Dimensions & mounting

Hikvision DS-2CD2387G3P-LIS2UY/SL dimensions

Compatible hardware & services

Hikvision PoE NVR

M-Series or Pro-series PoE NVR with integrated switch ports — the simplest supported recorder path.

Cat 5e or Cat 6 run

Standard Cat 5e or Cat 6 between the camera and PoE switch or NVR — suitable for PoE CCTV runs up to 100 m.

Surveillance microSD

Endurance-graded card up to 512 GB for edge recording and ANR if the network drops.

Hik-Connect mobile app

Free Hikvision app for live view, event push, two-way audio and remote playback.

Installation & safety notice

Low-voltage product (SELV). The DS-2CD2387G3P-LIS2UY/SL is powered from 12 VDC or IEEE 802.3af/at PoE. Concealed structured cabling must be performed by an ACMA-registered cabler.

Specifications in good faith. Verify the current datasheet for your firmware revision before ordering. Product appearance may differ from marketing images.

Audio: Built-in microphone: Arrayed dual-microphone,1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium,
1 output (line out), two-core terminal block, max. output amplitude: 3.3 ...
Power: 12 VDC ± 25%, 1.67 A, max. 20 W,Ø5.5 mm coaxial power plug,reverse polarity protection,
PoE: IEEE 802.3at, Class 4, max. 24 W
Colour: Black
Video Compression: Main stream: H.265/H.264/H.264+/H.265+,
Sub-stream: H.265/H.264/MJPEG
Form Factor: Fixed Turret
Brand: Hikvision
IP Rating: IP67
Image Sensor: 1/2.5" Progressive Scan CMOS
Dimension: Ø138.6 mm × 125 mm (Ø5.46" × 4.92")
Protocols: SNMP,SSL/TLS,IPv6,IGMP,DNS,SFTP,WebSockets,QoS,DDNS,SMTP,PPPoE,DHCP,WebSocket,FTP,NTP,HTTP,RTSP,IPv4,HTTPS,UPnP,RTP,TCP/IP,ICMP,802.1X,RTCP,UDP
Min. Illumination: Color: 0.0005 Lux @ (F1.0, AGC ON),0 Lux with light
Lens Type: Fixed 2.8 mm
Perimeter Protection: Line crossing, intrusion, region entrance, region exiting
Support alarm triggering by specified target types (human and vehicle)
Face Capture: No
Aperture: F1.0
Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/48 kHz
Audio Bit Rate: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
Built-in Speaker: Max. power consumption: 2 W, max. sound pressure level: 10 cm: 110 dB.
Warranty: 3 Years Australian Warranty
Megapixels: 8 MP
Model: DS-2CD2387G3P-LIS2UY/SL (Black)
Manufacturer Part Number: DS-2CD2387G3P-LIS2UY/SL(BLACK)
Package Dimension: 170 mm × 170 mm × 160 mm (6.69" × 6.69" × 6.30")
Focal Length & FOV: 2.8 mm, horizontal FOV 182.6°, vertical FOV 74.6°
Supplement Light Type: White Light,IR
Supplement Light Range: Up to 30 m
Wide Dynamic Range (WDR): 130 dB
Audio Type: Mono sound
Main Stream: 50Hz：
20fps(4256 × 1888, 4096 × 1856)
60Hz：
20fps(4256 × 1888, 4096 × 1856)
Anti-Corrosion Protection: NEMA 4X (NEMA 250-2018)
Flashing Light: /SRB model: Red and Blue Light
/SL model: White Light
