IVSEC IP Surveillance Kit
5MP Advanced Deterrent Kit
4× NC110ADX Cameras + 8CH 4TB PoE NVR

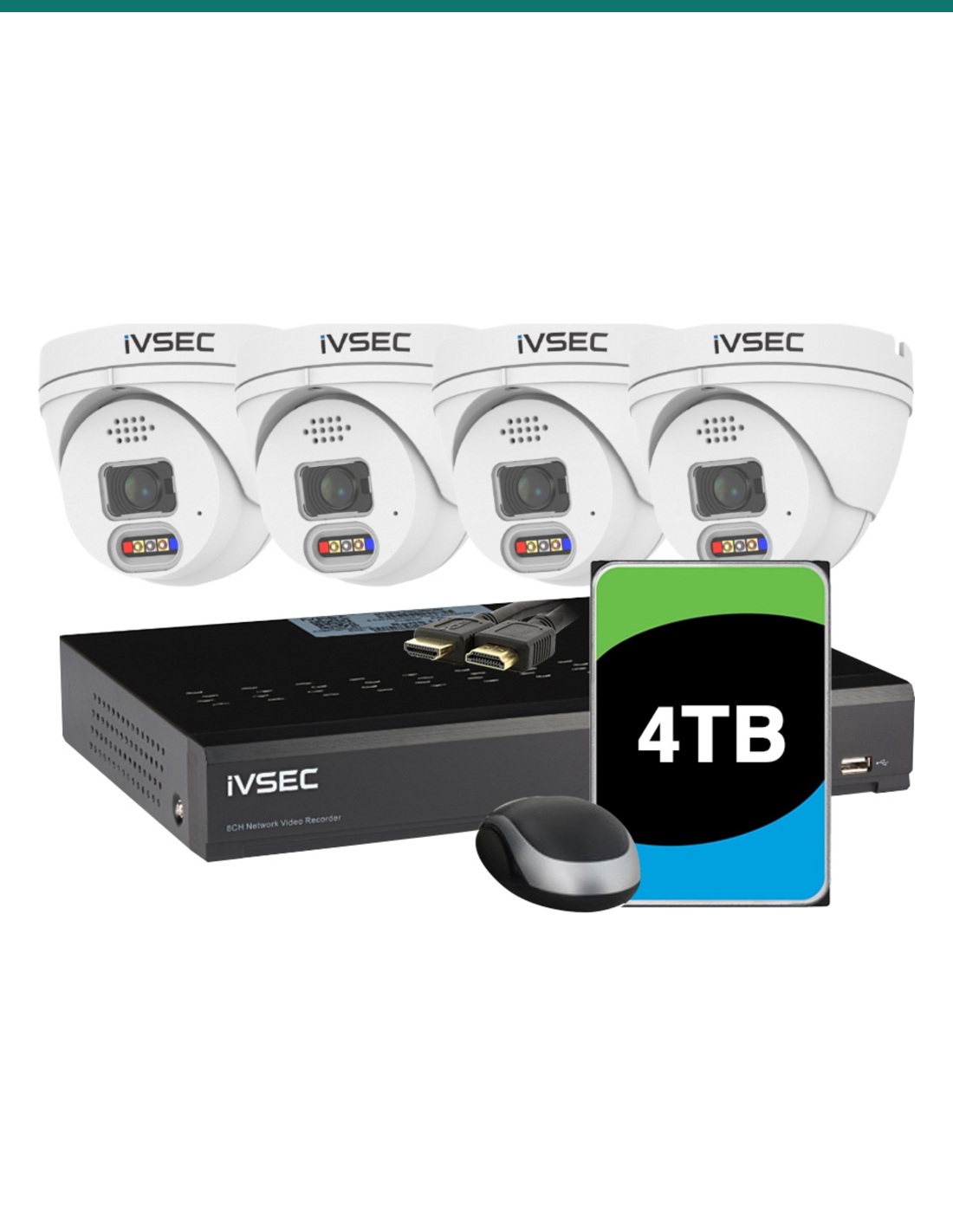

The IVSEC IVK-29B packages a practical IP CCTV platform for residential, retail and light commercial installs, pairing four 5MP NC110ADX advanced deterrent cameras with an 8-channel NR308XD network video recorder. The result is a straightforward PoE system with 4K display output, integrated 4TB storage and expansion headroom for up to eight IP channels.
Product shot may differ from supplied accessories or exact camera housing revision.
A deterrent-focused IP kit for clean 4-camera deployments
For jobs where you need more than passive recording, this kit combines 5MP image detail with advanced deterrent camera hardware and an 8-channel PoE NVR that leaves spare inputs for future additions. It suits front-of-house entries, driveways, small office perimeters, workshops, consulting rooms and compact retail sites where installers want a neat single-vendor solution without stepping into a larger recorder class on day one.
Infront Technologies Australia supports trade and project supply with security hardware matched to practical deployment requirements, helping integrators specify surveillance systems that are easier to install, hand over and expand.
Clarity · 01
5MP capture where a basic entry kit is not enough
Each included NC110ADX camera is specified at 5MP, giving the installer a clear step up over older 2MP and 4MP baseline systems for doorway coverage, driveway observations, internal corridors and perimeter approaches. That additional pixel count is particularly useful when a single camera has to cover a wider area while still preserving usable detail for event review.
Because the recorder is supplied as an 8-channel model while the kit includes four cameras, the deployment can start as a focused 4-camera system and still retain four spare channels for staged expansion. That matters on Australian retrofit jobs where conduit paths, tenant changes or later perimeter additions are expected after initial handover.
Control · 02
Advanced deterrent coverage with single-cable PoE delivery
The key differentiator in this package is the advanced deterrent camera class. Rather than functioning solely as passive capture points, these cameras are positioned for installations where visible prevention is part of the brief. For front entries, exposed side paths, car parking edges and after-hours access routes, deterrent-capable hardware supports stronger incident interruption than a standard fixed camera alone.
PoE integration simplifies the field side of the install by carrying power and data over one Ethernet run per camera back to the NR308XD. For trade teams this reduces PSU clutter, shortens commissioning time and keeps maintenance cleaner in cabinets or risers. On small-to-medium jobs, an integrated PoE recorder also removes the need to separately size and mount a dedicated switch for the initial four-camera rollout.
PoE
single-run camera connection
4TB
recording drive included
Retention · 03
NR308XD
8-channel network video recorder
4TB HDD
included for immediate recording
4K Out
high-resolution local display support
Retention · 03
Recorder capacity sized for present use and future add-ons
The supplied NR308XD gives the kit its operational backbone: eight IP channels, integrated PoE switching and a 4TB hard drive already fitted. That means the system is ready for recording as soon as cameras are terminated and commissioned, rather than requiring a separate storage upgrade before practical handover. For many sites, 4TB is an effective starting point for continuous or event-based recording across four active streams.
The 4K output specification is relevant in control-room, reception or office environments where local review is done on modern UHD monitors or televisions. Higher output resolution improves multi-camera split-view usability and on-site playback visibility, particularly when operators need to inspect vehicle movement, entry sequences or staff access events without immediately exporting footage to another workstation.
How it works on site
This kit is designed around a straightforward PoE topology that keeps installation time and fault tracing manageable.
01
Mount the cameras
Position the four NC110ADX units to cover entrances, driveway approaches, cashier zones, side access or internal circulation points.
02
Run Ethernet back to the NVR
Each camera connects over a single network cable to the recorder's PoE ports, carrying both power and data from the one endpoint.
03
Commission recording and output
The NR308XD records to the included 4TB drive and presents live or playback video through its 4K local display output for setup and review.
04
Expand when the site grows
With eight recorder channels available and four initially used, additional compatible IP cameras can be added later without replacing the recorder.
At a glance
Verified core specifications from the supplied product context and model composition.
Product codeIVK-29B
BrandIVSEC
System typeIP CCTV surveillance kit
Camera quantity4 cameras
Camera modelNC110ADX
Camera resolution5MP
Camera classAdvanced deterrent IP cameras
NVR modelNR308XD
NVR channels8-channel
PoEIntegrated PoE recorder
Included storage4TB hard drive
Video output4K output
Initial active channels4 of 8 used
Expansion headroomUp to 4 additional IP cameras
Typical applicationResidential, retail, office, light commercial
Jargon, decoded
Useful surveillance terms installers and end users commonly encounter around IP camera kits.
PoE
Power over Ethernet. Sends DC power and network data over the same Ethernet cable to the camera.
NVR
Network Video Recorder. Records streams from IP cameras and manages live view, playback and storage.
5MP
Five-megapixel imaging. Higher pixel density than 2MP Full HD systems, improving scene detail.
4K Output
A local display resolution capability on the recorder, useful for sharper split-screen viewing on UHD monitors.
Channel
One camera input licence or slot on the recorder. An 8-channel NVR can support up to eight cameras.
Deterrent Camera
A camera designed not only to observe but also to discourage unwanted behaviour through active warning features.
HDD
Hard disk drive installed in the recorder for local video storage retention.
IP Camera
A network-addressable camera that sends digital video over Ethernet rather than coaxial cabling.
Recording Retention
The amount of time footage is stored before being overwritten, influenced by resolution, bitrate, frame rate and schedule.
Uplink
The network path from the recorder to the wider LAN or internet for remote access and management where configured.
Dimensions
Exact enclosure and carton dimensions were not verified in the provided source context. For cabinet planning, allow separately for the recorder chassis, cable bend radius, patch leads, power entry and ventilation clearance, and confirm final camera housing dimensions before façade drilling or soffit cut sheets are issued.
Recorder placement
Mount in a ventilated, serviceable location with allowance for HDMI lead, LAN patching and drive service access.
Camera spacing
Check junction box compatibility, wall stand-off and sun/rain exposure before final fix-off.
Cable pathway
Plan CAT cable routes to preserve bend radius and maintain compliant segregation from mains where required.
Pairings
Typical add-ons and adjacent hardware commonly considered alongside this kit.
Record
Surveillance-grade HDD upgrades
Where retention targets exceed the included 4TB capacity, larger surveillance drives may be specified subject to NVR compatibility.
Network
Router or managed LAN connection
For remote viewing, notifications and IT integration, link the recorder into the site network with suitable addressing and access controls.
Mount
Junction boxes and weather-sealed terminations
Useful for neat external camera mounting, protection of RJ45 terminations and easier maintenance access.
Expand
Additional compatible IP cameras
The 8-channel recorder leaves room to add up to four more cameras as the site perimeter or internal coverage grows.
Frequently asked questions
Does this kit include everything needed to start recording?
It includes the four cameras, the 8-channel PoE NVR and a 4TB hard drive. Field cabling, display, network connection, mounting hardware variations and installation labour should be planned separately as required by site conditions.
Can I add more cameras later?
Yes. The recorder is an 8-channel model and the kit starts with four supplied cameras, leaving four spare channels for compatible additions.
Why choose an 8-channel NVR for a 4-camera kit?
It avoids early recorder replacement when the customer later wants coverage on a side gate, stock room, garage, rear lane or additional office entry. Expansion capacity is already built in.
What does advanced deterrent mean in practice?
It refers to a camera category intended to do more than silently record. These models are specified for installations where active warning and visible deterrence are part of the security strategy.
Is the recorder output really important?
Yes for local viewing. A 4K-capable recorder output can make live multi-view screens and playback review easier to inspect on modern high-resolution displays.
How long will 4TB record for?
Retention depends on camera bitrate, codec efficiency, frame rate, recording schedule, event activity and whether additional cameras are added later. Final retention should be estimated during system design using the target recording profile.
Ensure installation, cable routing, network configuration and any mains-connected equipment integration are carried out by suitably qualified personnel and in accordance with applicable Australian standards, site safety requirements and manufacturer instructions.
