• 6 × IVSEC NC110ADX 5MP turret cameras

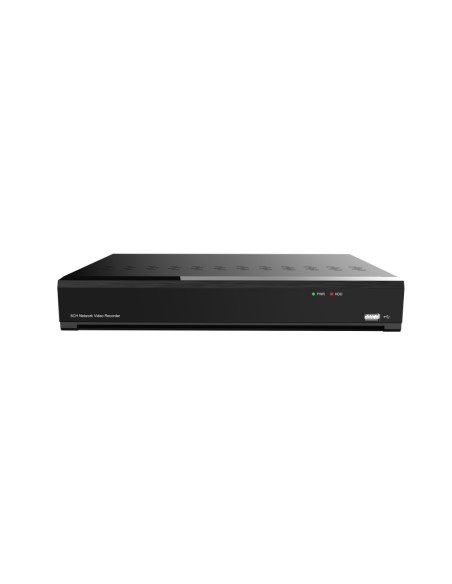

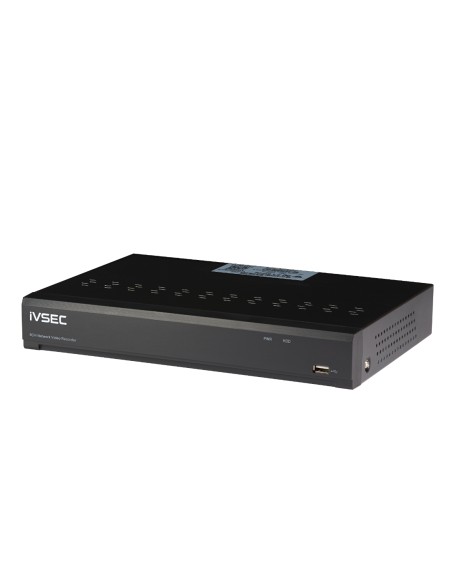

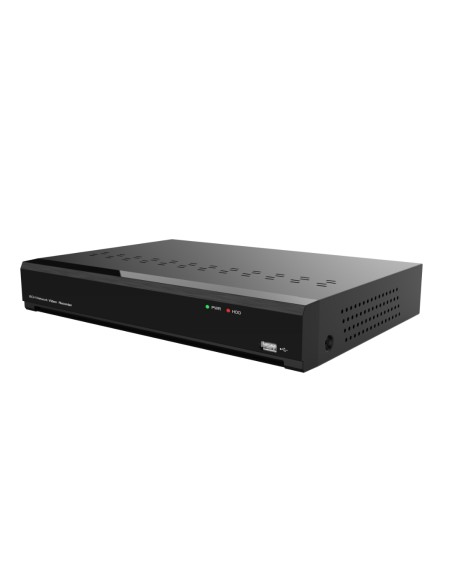

• IVSEC NR308XC 8-channel PoE recorder
• 2TB Seagate SkyHawk surveillance hard drive for the recorder
• Recorder power supply, USB mouse and HDD screws
• Camera installation templates, mounting screws and plugs
• Printed quick guides

• One Cat5e or Cat6 cable per camera, up to 100 m each
• A TV or monitor with HDMI or VGA, and an HDMI or VGA cable
• A network cable from the recorder to your router, for the phone app

01

Set up the recorder

Fit the 2TB drive in the bay with the supplied screws if it isn't already installed, then connect a TV, your router and the power supply.

02

Run one cable per camera

Cat5e or Cat6 from each camera back to a PoE port on the recorder, up to 100 m per run. The recorder powers the cameras.

03

Mount and aim the cameras

Mark the holes with the installation template, fix each turret with the supplied screws and plugs, then angle the ball to frame the view.

04

Finish in the wizard and app

Set the password in the startup wizard, scan the recorder's QR code with the IVSEC app, then set AI detection and the deterrent schedule.

More cameras

Extra IVSEC cameras

Two PoE ports are free. Add more IVSEC cameras, such as another NC110ADX, and they show on the recorder when plugged in.

Security

A lockable cabinet

Keep the recorder out of reach so a thief can't take the footage with it. Ask us about the 24SECCAB security cabinet.

Power

A UPS

Keeps the recorder and cameras running through short power cuts and protects the drive from sudden shutdowns.

Storage

A bigger drive

The bay takes a drive up to 16TB if you want longer recording than the 2TB drive gives. Ask us for a surveillance drive.

Homes

Front door, driveway, side gate and back yard, with a strobe and siren for anyone who shouldn't be there.

Rental and holiday homes

Check the place from the app between visits, with alerts only for people and cars.

Shops

Counter, door and stockroom, with heat map and queue length to see how people move.

Workshops and sheds

Roller doors and yards, with colour night vision so you see the vehicle as well as the person.

Small offices

Entry, reception and car park, viewed from a PC or the phone app.

Farms and acreage

House, sheds and gates within cable reach of the recorder, up to 100 m per run.

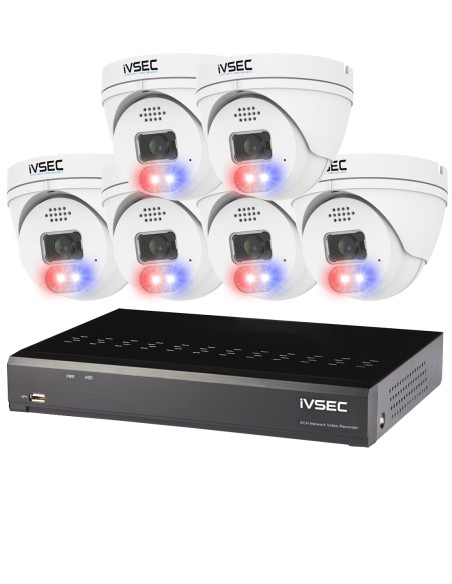

What is in the IVK-2986 kit?

Six IVSEC NC110ADX 5MP turret cameras, an IVSEC NR308XC 8-channel PoE recorder, a 2TB Seagate SkyHawk surveillance drive, the recorder power supply, a USB mouse, HDD screws, and mounting screws, plugs and templates for the cameras.

Are network cables included?

No. You need one Cat5e or Cat6 cable from each camera to the recorder, up to 100 m per run. We can supply cable in the lengths you need.

Can I add more cameras later?

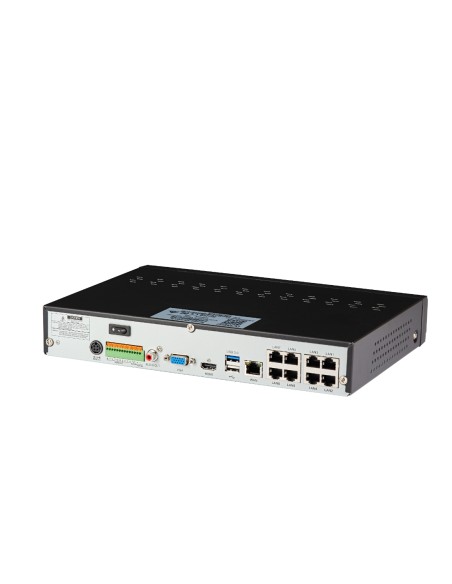

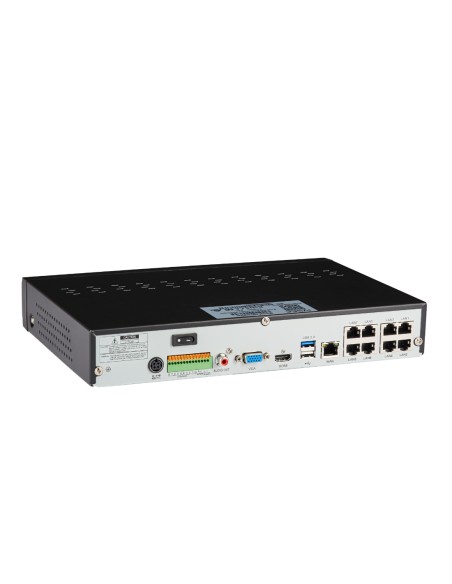

Yes. The recorder has eight PoE ports and this kit uses 6, so 2 more IVSEC cameras can be added. ONVIF cameras from other brands also connect, though some features may not work on every model.

How long will the 2TB drive record?

It depends on the number of cameras, the bit rate and whether you record all the time or only on events. When the drive is full the oldest footage is overwritten. The bay takes a drive up to 16TB for longer recording.

Do the cameras need a power point each?

No. The recorder powers each camera through its network cable (PoE). Each camera can also run from a 12 V DC supply if needed.

Can I see colour at night?

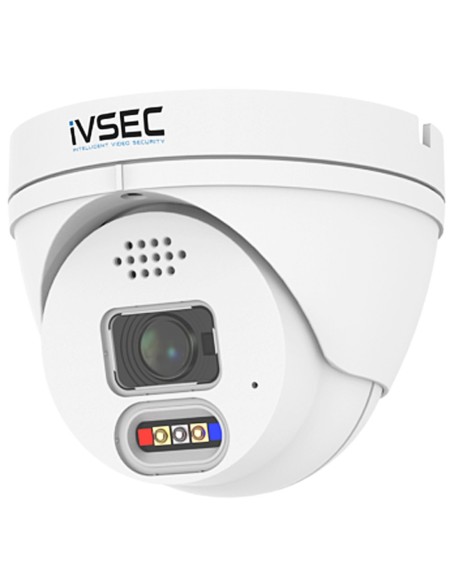

Yes. With the white LEDs on, the NC110ADX records in full colour at night. You can schedule infrared instead, which records in black and white up to 25 m without a visible light.

What does the deterrence do?

When the camera detects a person or vehicle it can flash its red and blue lights and sound a siren, and you can speak through the camera from the app to warn someone off.

Can I talk through the cameras?

Yes. Each NC110ADX has a built-in microphone and speaker for two-way audio from the IVSEC app. Check your state's surveillance laws before recording sound.

Which AI detections does it have?

Human and vehicle detection, face recognition, perimeter intrusion, line crossing, stationary object, crossing counting, heat map, crowd density, queue length, licence plate detection and rare sound detection, set per camera.

Are the cameras weatherproof?

Yes. The NC110ADX has a metal housing rated IP67 for weather and IK10 for impact, and works from −35 °C to 60 °C. The recorder is for indoor use.

Can the cameras record without the recorder?

Yes. Each camera has a microSD card slot, so it can keep its own copy of footage. The card is not included.

What warranty does the kit have?

IVSEC gives the cameras a 3-year warranty and the recorder 2 years on parts. InFront Technologies handles warranty and support in Australia on 1300 736 970.
