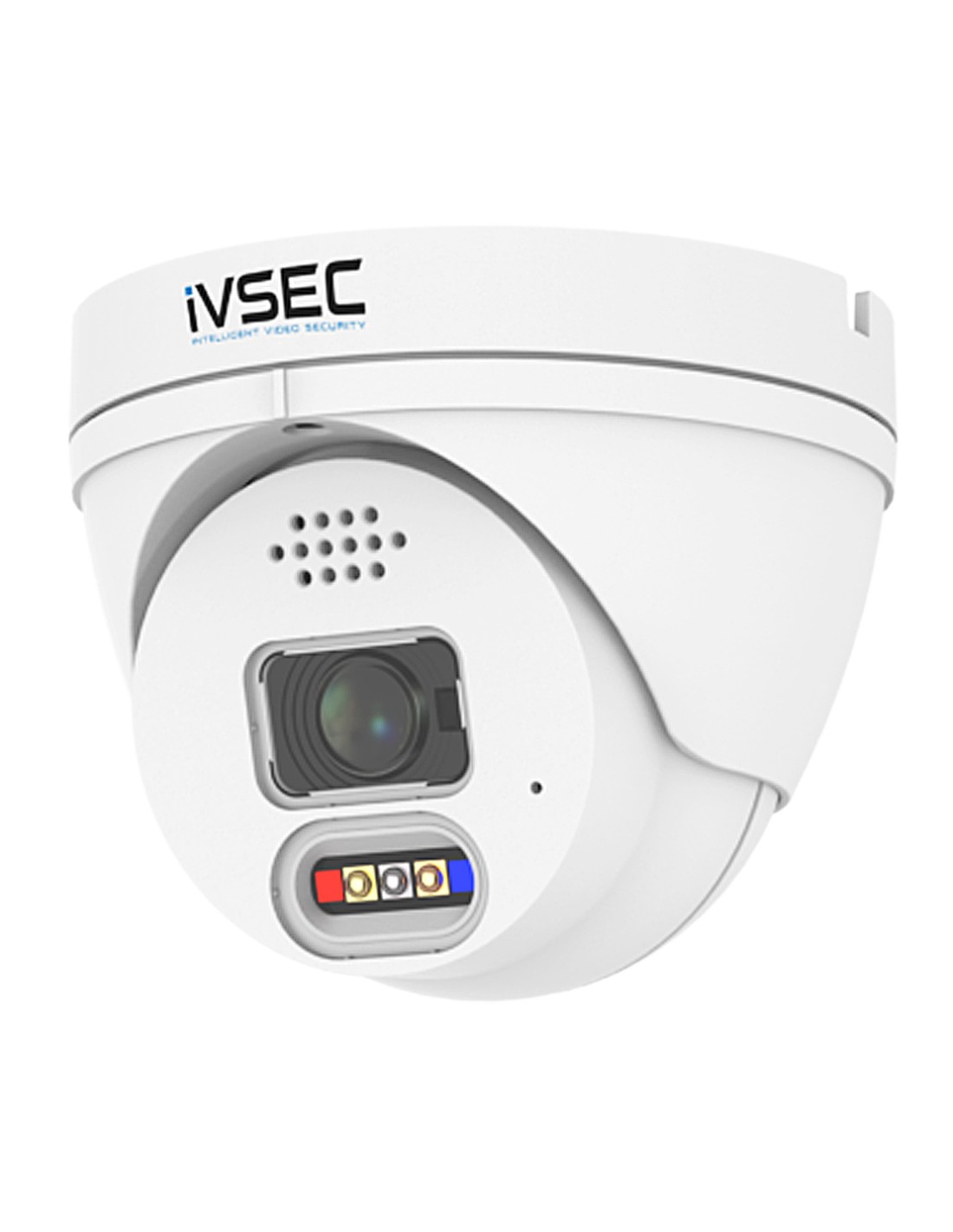

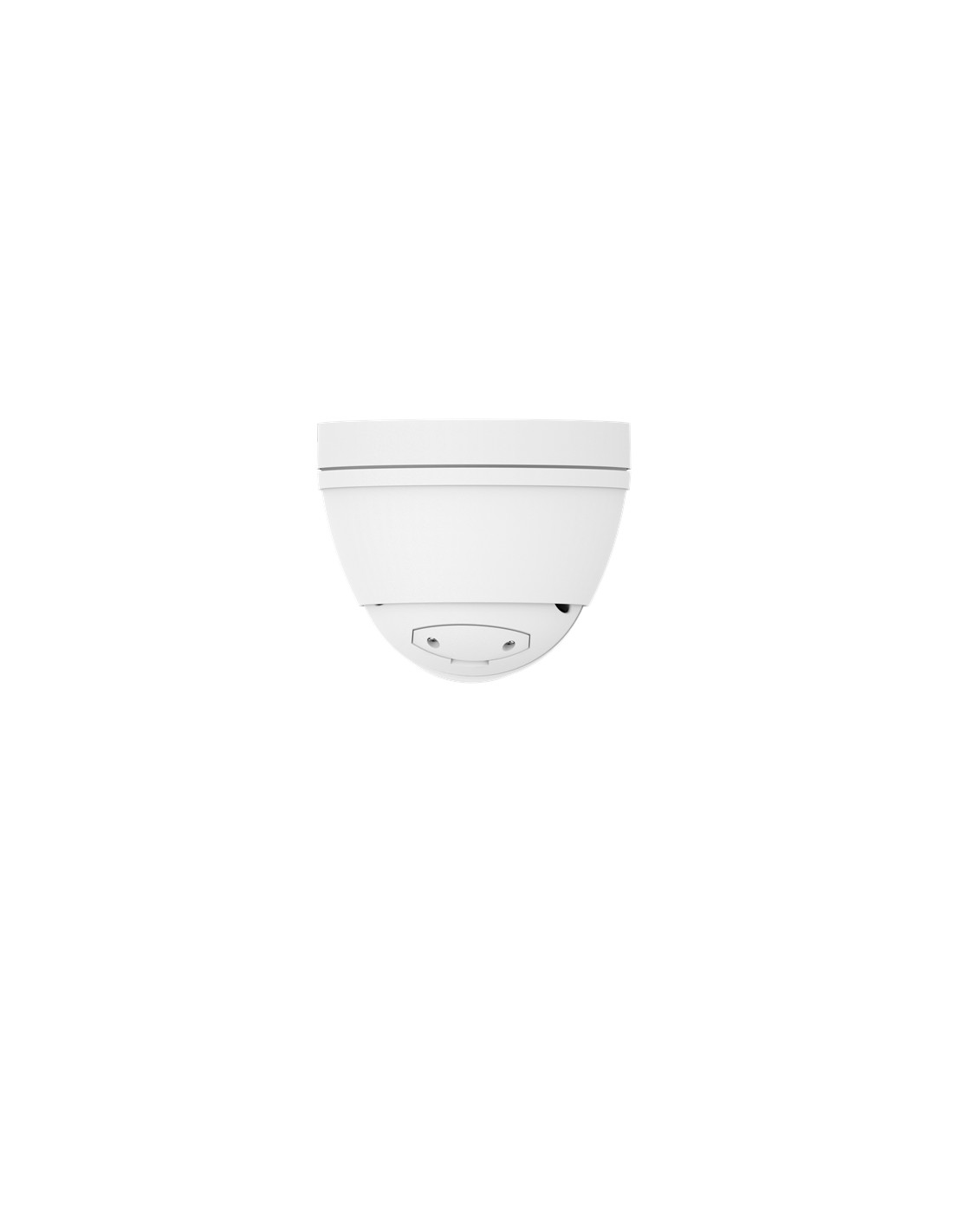

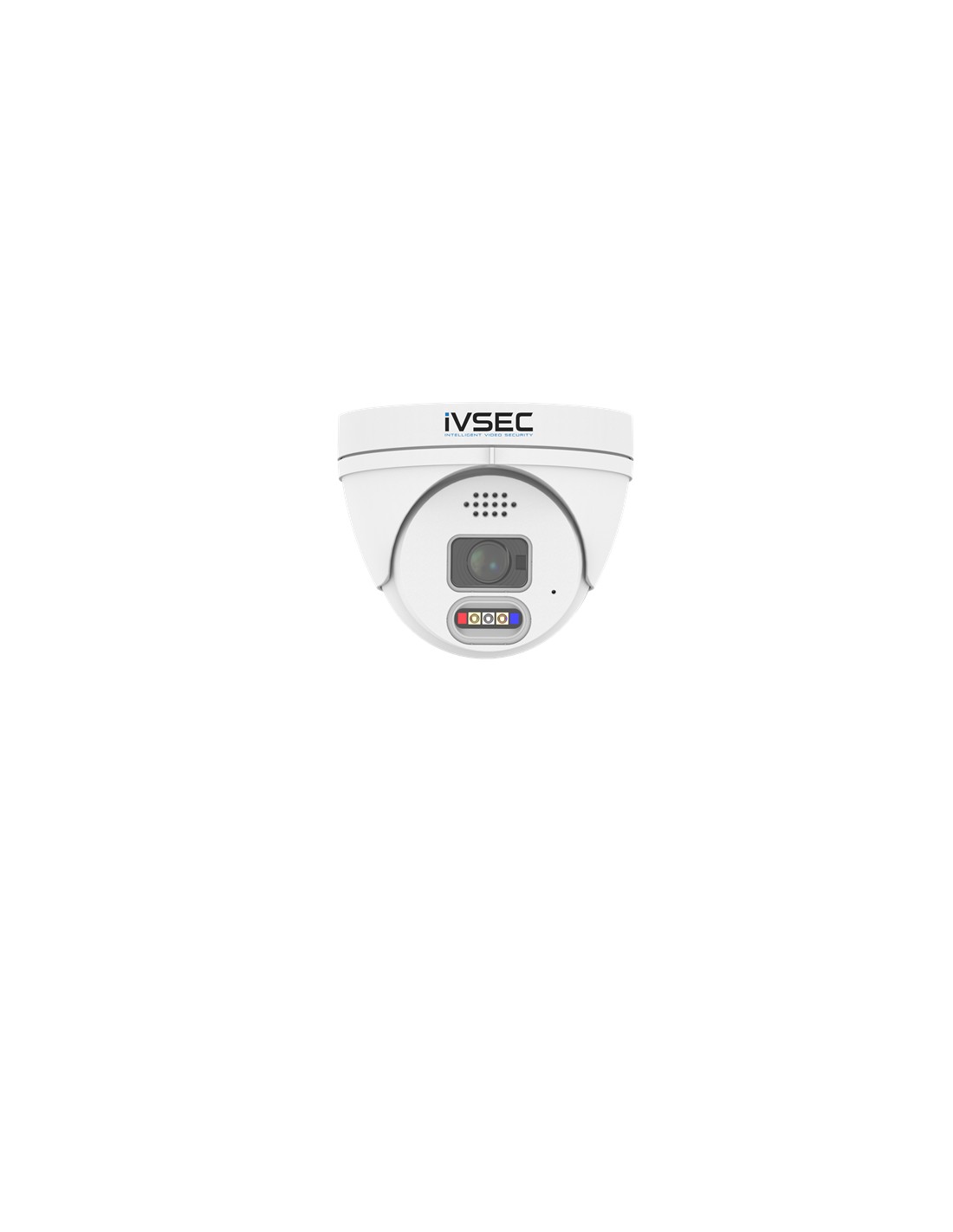

• 2 × IVSEC NC119XA 4MP turret dome cameras
• IVSEC NR004XB 4-channel PoE recorder
• 2TB Seagate SkyHawk surveillance hard drive for the recorder
• Recorder power supply, USB mouse, drive screws and quick guide
• Camera mounting screws, plugs and drilling templates

• Cat5e or Cat6 network cable for each camera, cut to your runs (not included)
• An HDMI or VGA cable and a TV or monitor, for setup at the recorder
• A network cable from the recorder to your router, for the phone app

01

Set up the recorder

Fit the 2TB drive in the recorder's bay with the supplied screws if it is not already installed, then connect a TV over HDMI or VGA and your router with a network cable, and power it up.

02

Run one cable per camera

Run Cat5e or Cat6 from each camera position back to a PoE port on the recorder. The cable powers the camera and carries its video; cables are not included, so buy them to length.

03

Mount and aim the cameras

Use the drilling template, screws and plugs that come with each camera, then aim it. IVSEC cameras are picked up by the recorder when they are plugged in.

04

Finish in the wizard and app

Set the password in the startup wizard, scan the recorder's QR code with the free IVSEC X app, then set up smart motion detection and the strobe, siren and white light.

Cabling

Cat5e or Cat6 cable

One run per camera back to the recorder. Outdoor-rated cable for exposed runs; ask us for lengths and connectors.

More cameras

Two spare PoE ports

Add more IVSEC cameras such as the NC119XA and they appear on the recorder when plugged in. ONVIF cameras from other brands connect too, though some features may not work on every model.

Storage

A bigger drive

The recorder bay takes a drive up to 16TB for longer recording before the oldest footage is overwritten. Ask us about swapping or upgrading the drive.

Security

A lockable cabinet

Keep the recorder out of reach so a thief can't take the footage with it. Ask us about the 24SECCAB security cabinet.

Homes

Front door, driveway, side gate and back yard, with alerts for people and cars on your phone.

Shops

Counter, entry, stockroom and rear lane, viewed on a PC or the phone app.

Workshops and sheds

Roller doors and yards, with strobes and a siren to warn off anyone who shouldn't be there.

Small offices

Entry, reception and car park on one recorder.

Rental and holiday properties

Check the place from the app between visits.

Farms and rural blocks

Sheds, gates and machinery near the house, cabled back to one recorder.

What is in the LVK-11942 kit?

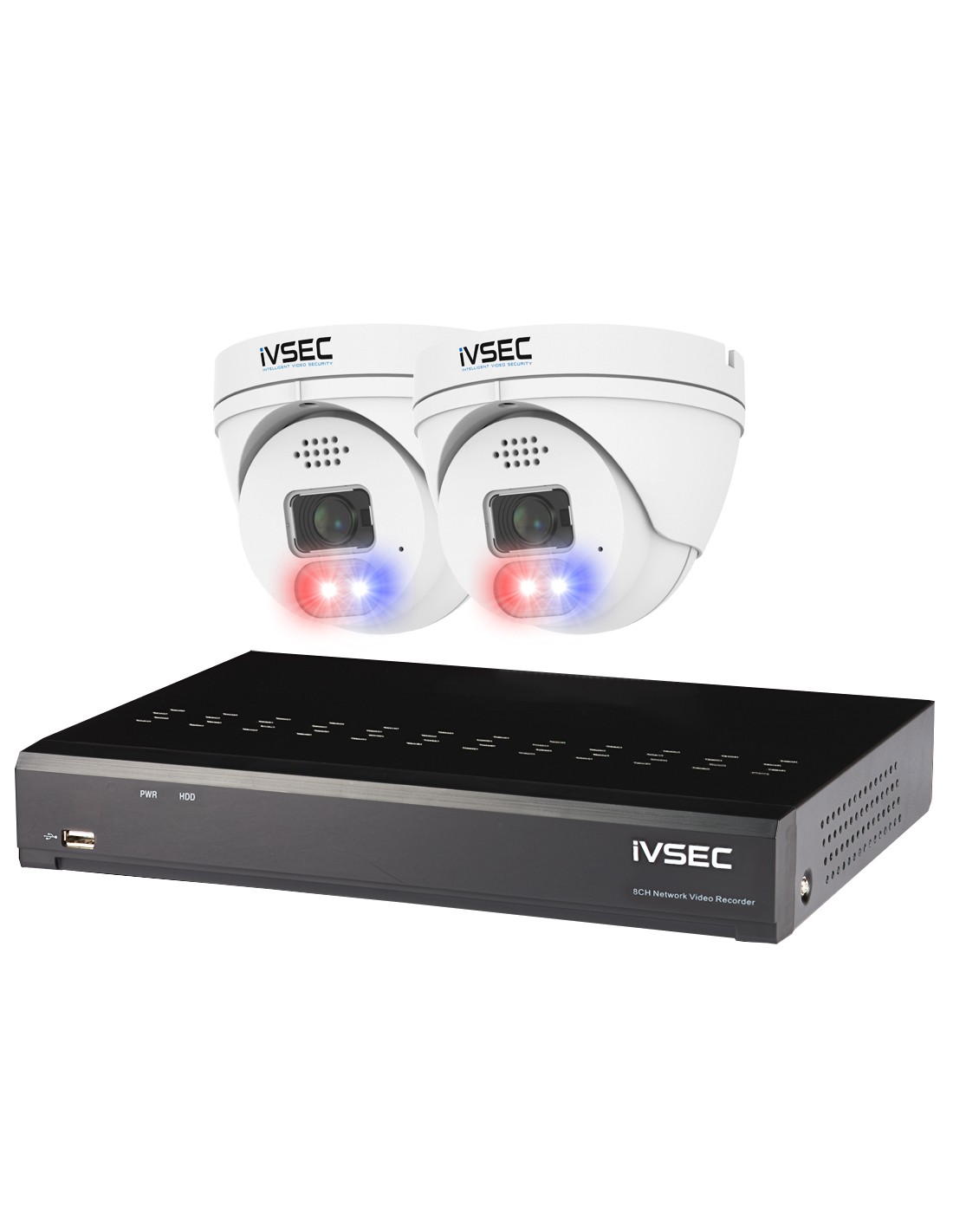

In the box: 2 × IVSEC NC119XA 4MP turret dome cameras; IVSEC NR004XB 4-channel PoE recorder; 2TB Seagate SkyHawk surveillance hard drive for the recorder; recorder power supply, USB mouse, drive screws and quick guide; camera mounting screws, plugs and drilling templates.

Are network cables included?

No. Each camera needs one Cat5e or Cat6 cable back to the recorder, so buy cable to suit your runs. We can help work out lengths.

Can I add more cameras later?

Yes. The NR004XB has 4 PoE ports and this kit uses 2, so two more IVSEC cameras can plug straight in. ONVIF cameras from other brands also connect, though some features may not work on every model.

How long will the 2TB drive record?

It depends on how many cameras record, the bit rate and whether you record all the time or only on events. When the drive is full the oldest footage is overwritten. The bay takes a drive up to 16TB for longer recording.

Do the cameras need a power point each?

No. The recorder powers each camera through its network cable (PoE), so one cable per camera is all it needs. They can also run from a 12 V DC supply if needed.

Can I see colour at night?

Yes. The white light lets the cameras record in full colour at night, or you can use infrared, which reaches up to 25 m in black and white.

Do the cameras have a siren and strobe lights?

Yes. Each camera has red and blue strobe lights and a speaker for the siren, and you can speak through it from the IVSEC X app.

Do the cameras record sound?

Yes. Each camera has a microphone and a speaker, so it records audio and supports two-way talk through the app.

What smart detection does it have?

Smart motion detection that picks out people and vehicles, to cut false alarms from leaves and shadows, plus perimeter intrusion and line crossing.

Are the cameras weatherproof?

Yes. The cameras are IP67 weatherproof and IK08 vandal rated, for walls and eaves outdoors. The recorder is for indoor use, between 5 and 40 °C.

Can I watch it on my phone?

Yes. Scan the recorder's QR code with the free IVSEC X app to watch live and play back from anywhere. There is also a PC client. The recorder must stay connected to your router.

What warranty does the kit have?

IVSEC rates the NC119XA cameras at 3 years and the NR004XB recorder at 2 years (parts). InFront Technologies handles warranty and support in Australia on 1300 736 970.
