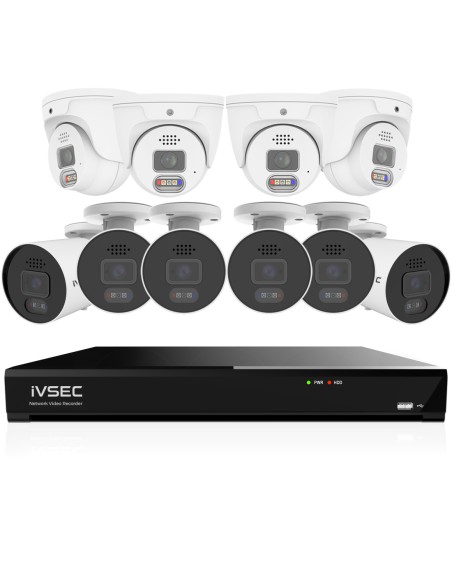

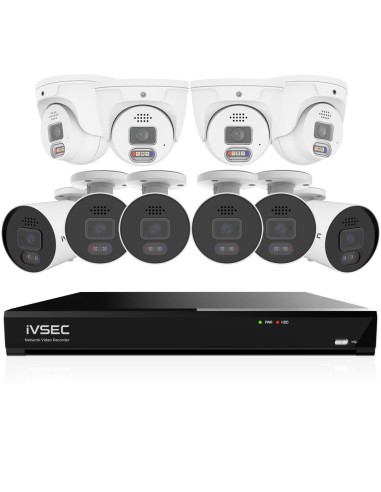

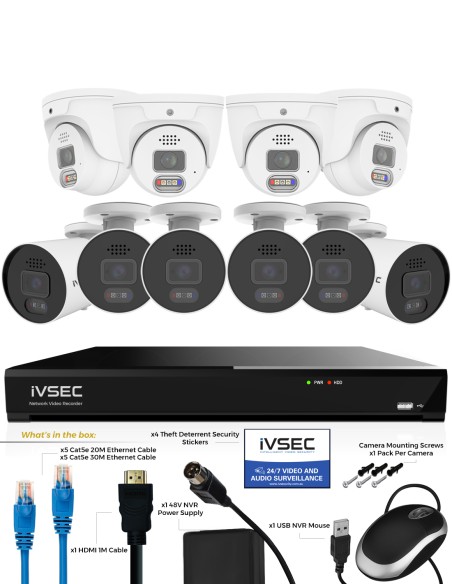

    IVSEC IVK16P-8806B4D 8MP kit: six 880B bullets and four 880D turret domes, strobes lit, with the NVR 9000 recorder

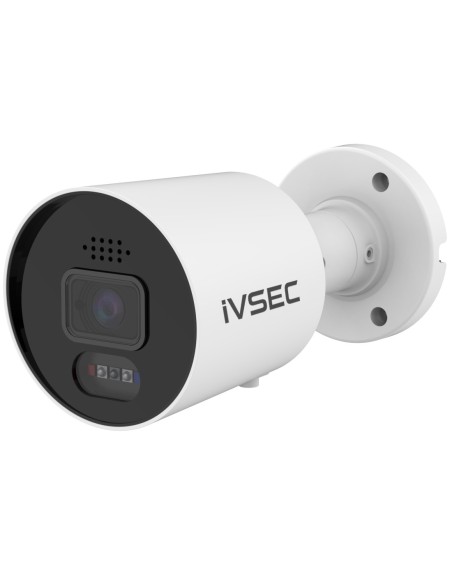

    IVSEC 880B 8MP bullet camera, front angle

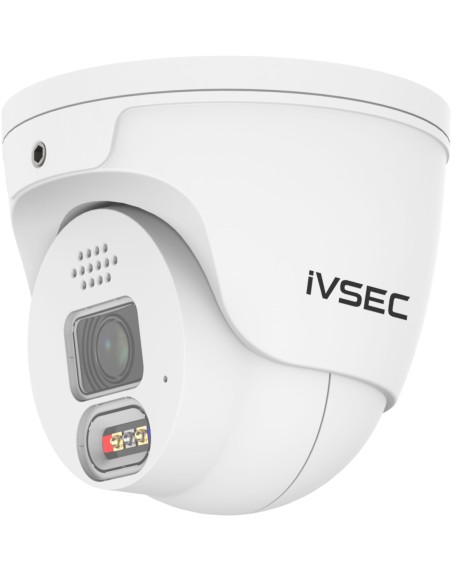

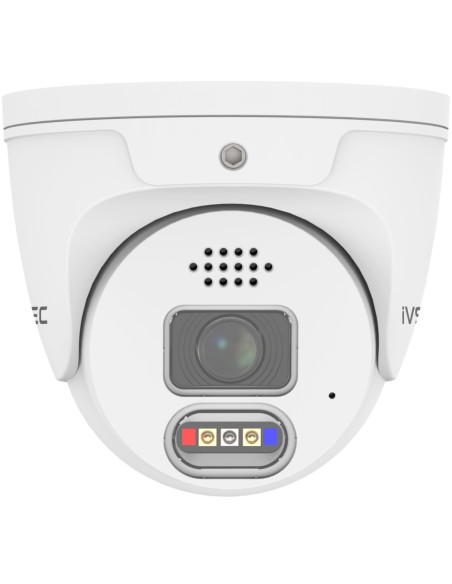

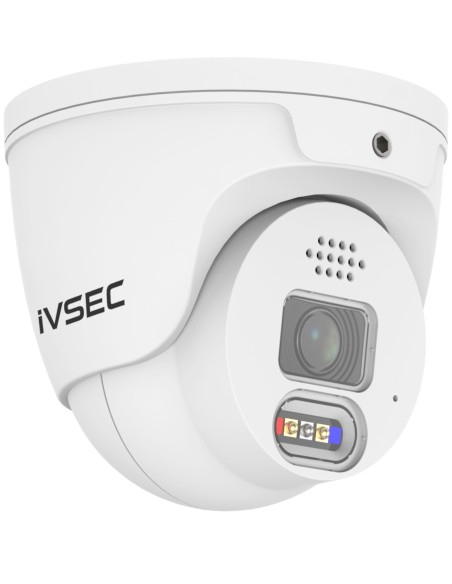

    IVSEC 880D 8MP turret dome camera, front

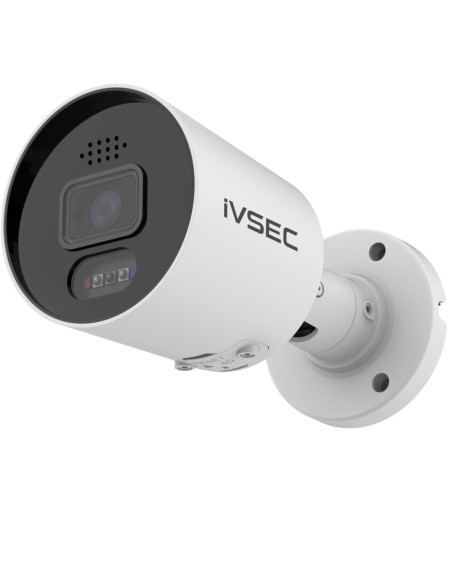

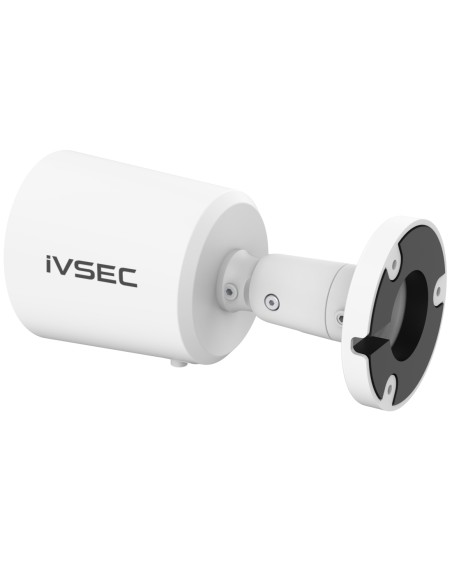

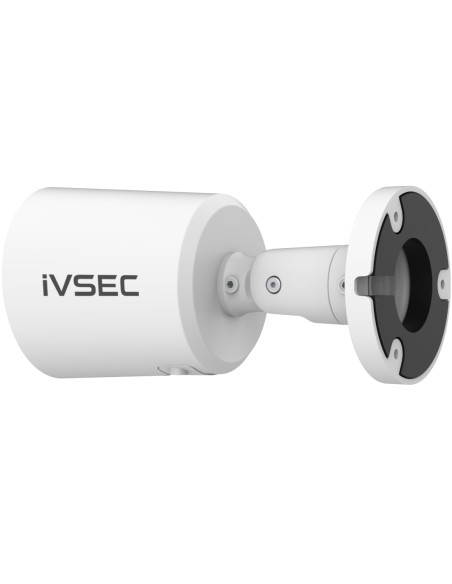

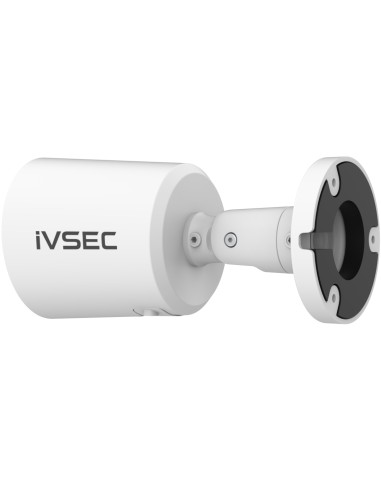

    IVSEC 880B bullet camera, angle from the left

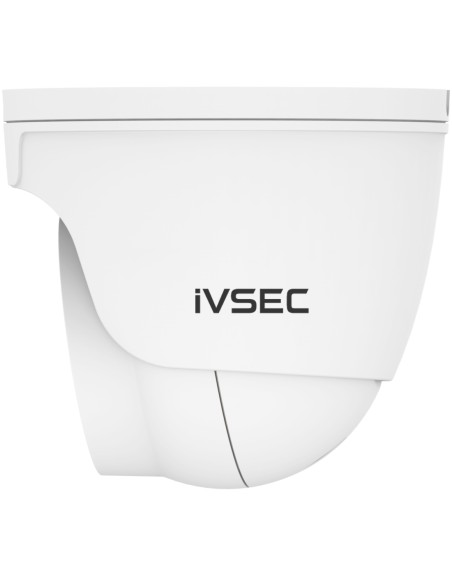

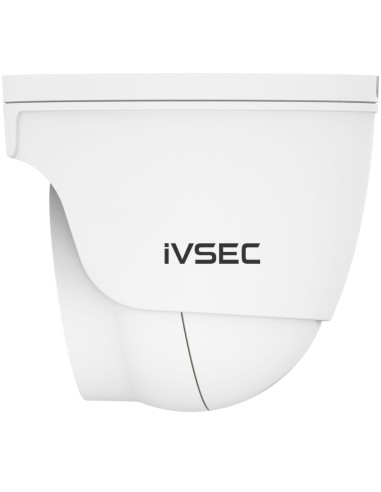

    IVSEC 880D turret dome camera, side view

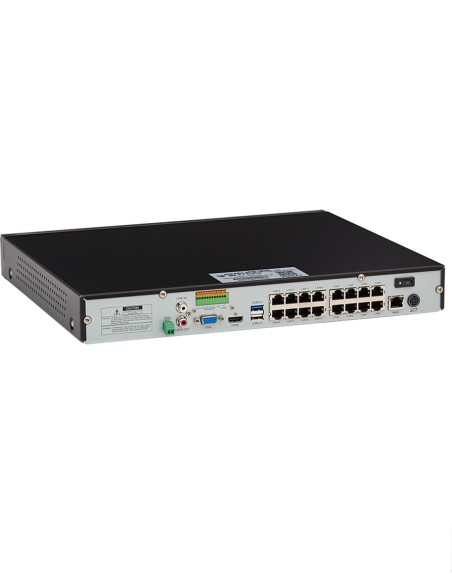

    IVSEC NVR 9000 recorder, rear with sixteen PoE+ ports

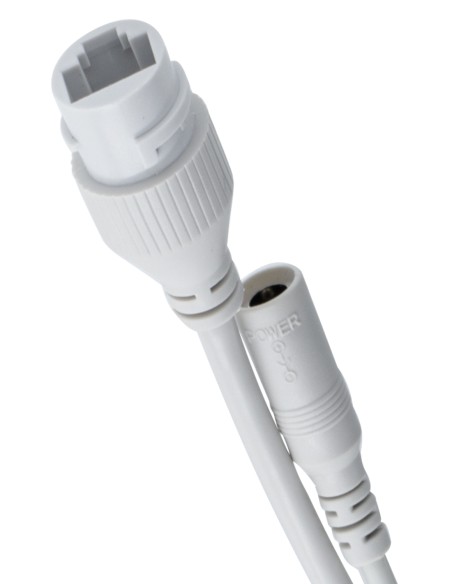

    Wired PoE camera: cable tail with network connector and 12 V DC socket
    1 / 7

    IVSEC PRO 16CH 8MP 4K AI 4TB 6x880B + 4x880D Cam 25fps Sony Starvis NVR CCTV Security Kit (16x10)

    SKU IVK16P-8806B4D-4T In Stock - Ready to Ship
    $3,298.00 inc GST

    IVSEC IVK16P-8806B4D next-gen PRO AI system: four 880D turret domes and six 880B bullets with 8MP Sony Starvis sensors, AI on every camera, colour night vision, strobe, siren and two-way audio, plus a 16-channel high-speed 160 Mbps NVR 9000 (IVNR16-9000) with 4TB fitted. 3-year warranty on the cameras.

    • ✓4 × 880D turret dome + 6 × 880B bullet: 8MP Sony Starvis at 25 fps real time, variable bit rate to 16 Mbps
    • ✓2.8 mm lens, 106° view, excellent low light: colour at night or IR to 35 m, IP67
    • ✓AI face capture with a face database (Allow, Block and custom lists), number-plate search
    • ✓Red and blue strobe, white light and siren; two-way audio and mic; microSD to 256 GB
    • ✓Supplied: NVR 9000 160 Mbps with 4TB, 10 cameras, 5 × 20 m + 5 × 30 m cables
    • ✓Free app, no registration; NDAA approved, firmware and app on Australian servers; Australian support
    Hard Disk Options

    One drive is supplied. Choosing another size replaces the 4TB drive.



    Description

    IVSEC IVK16P-8806B4D kit: four 880D turret domes and six 880B bullets with red and blue lights on, above the IVSEC NVR 9000 recorder
    IVSEC · 880 Series · PRO AI

    Ten 8MP cameras that see, warn and record.
    One 16-channel recorder, 4TB fitted.

    A complete 4K (8MP) wired CCTV kit: four 880D turret domes and six 880B bullets with AI on the camera, colour night vision, red and blue lights, a siren and two-way talk, plus an IVSEC NVR 9000 recorder with a 4TB drive already installed.

    In one sentence: the IVSEC IVK16P-8806B4D is a wired 8MP (4K) CCTV kit with four 880D turret domes and six 880B bullets, AI detection run on each camera, strobe and siren deterrence, and a 16-channel PoE+ NVR 9000 recorder with 4TB fitted.

    Everything for ten cameras is in the box.

    The cameras run on one network cable each, back to the recorder, which powers them. Six of the sixteen PoE+ ports are left free for more cameras later.

    In the box
    • 4 × IVSEC 880D 8MP turret dome cameras (IVNC-880D-AI)
    • 6 × IVSEC 880B 8MP bullet cameras (IVNC-880B-AI)

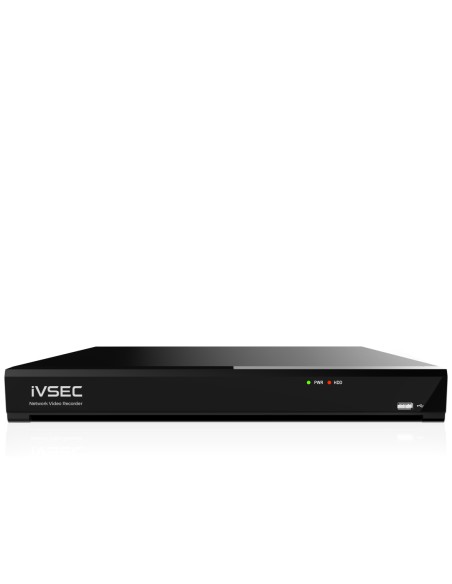

    • IVSEC NVR 9000 16-channel PoE+ recorder
    • 4TB surveillance drive, installed in the recorder
    • 5 × 20 m and 5 × 30 m Cat5e cables
    • Network cable, recorder to your router
    • 48 V recorder power supply, 1 m HDMI cable and USB mouse
    • Mounting screws, plugs and an installation template for each camera
    • 4 × IVSEC security stickers
    You also need
    • A TV or monitor with HDMI or VGA, for setup at the recorder
    • Your router within reach of the recorder, for the phone app
    • Longer or extra cable if a camera is more than 30 m away

    Alerts worth answering.

    Each 880 camera has its own AI chipset, so it picks out people and vehicles and leaves, rain and shadows don't fill your phone with alerts. Give each camera a job: face recognition at the door, line crossing at the gate, heat map over the shop floor. When someone walks in after hours, the camera can switch on its white light, flash red and blue, sound the siren and let you talk to them, all on a schedule you set.

    IVSEC 880D 8MP turret dome camera flashing its red and blue lights, then switching on its white light

    The 880D turret domes

    8MP 4K turret domes, rated IP67.

    Each 880D records 3840 × 2160 at 25 fps through a 2.8 mm lens with a 106° horizontal view. A separate AI chipset in the camera does the detection, and the vandal-resistant turret (100 × 100 × 100 mm) is rated IP67, so it sits low under eaves and ceilings indoors or out.

    IVSEC 880B 8MP bullet camera on its wall bracket with the red and blue lights on

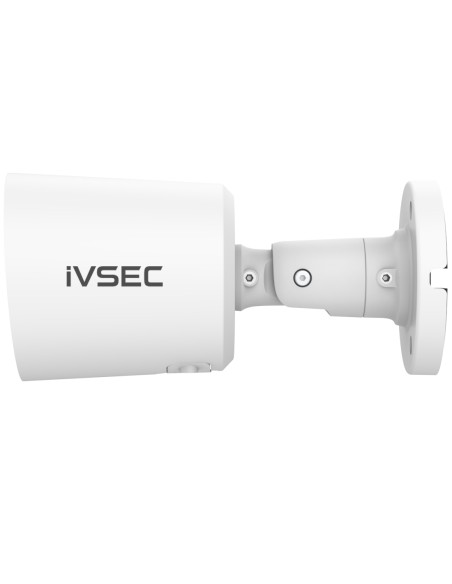

    The 880B bullets

    8MP 4K bullets, rated IP67.

    Each 880B records 3840 × 2160 at 25 fps through a 2.8 mm lens with a 106° horizontal view. A separate AI chipset in the camera does the detection. The bullet housing (70 × 70 × 155 mm) is vandal resistant and rated IP67, and it is easy to see on a wall, which helps deter.

    Close-up of the IVSEC 880D light window: red and blue LEDs either side of the white and infrared LEDs under the lens

    Deterrence

    Light, strobe, siren, talk.

    Under the lens sit the infrared, white, red and blue LEDs. At night choose full colour with the white light, or black and white infrared up to 35 m. The siren, the flashing red and blue and the white light run on a schedule you set, and a built-in microphone and speaker give two-way audio through the app.

    Close-up of the IVSEC NVR 9000 rear panel: sixteen PoE+ camera ports, the WAN network port and the 48 V power socket

    The recorder

    Sixteen PoE+ ports, two drive bays.

    The NVR 9000 powers and records up to sixteen cameras at up to 12MP, with 160 Mbps of incoming bandwidth, and each PoE+ port supplies up to 30 W. It shows on a TV over HDMI or VGA up to 4K, and its two SATA bays take up to 16TB each.

    How it goes in

    From box to phone alerts.

    01

    Set up the recorder

    Plug the NVR 9000 into a TV with the HDMI cable and into your router with the network cable supplied, then power it up. The 4TB drive is already fitted.

    02

    Run one cable per camera

    Cat5e from each camera back to a PoE+ port on the recorder. The kit includes five 20 m and five 30 m cables; runs can go up to 100 m.

    03

    Mount and aim the cameras

    Fix each camera with the supplied screws and plugs, using the installation template, then aim it. The cameras are found automatically when they are plugged in.

    04

    Finish in the wizard and app

    Set the password in the startup wizard, scan the recorder's QR code with the free IVSEC X app, then give each camera its AI task and set the deterrent schedule.

    Pair it with

    Good to add

    Storage

    Bigger or second drive

    The 4TB drive sits in the first bay. In the options above choose a 6TB to 14TB first drive, add a 4TB to 14TB second drive for the empty bay, or both, for longer recording.

    More cameras

    IVSEC 880D or 880B

    Six PoE+ ports are free. Add more 880D turret domes or 880B bullets and they appear on the recorder when plugged in.

    Mounting

    IVSEC brackets

    IVSEC lists the IV2422X junction box, and the IV2433X adaptor box with the IV2444X pendant or IV2455X wall mount, as accessories for the 880 cameras. Ask us which suits your wall or ceiling.

    Security

    A lockable cabinet

    Keep the recorder out of reach so a thief can't take the footage with it. Ask us about the 24SECCAB security cabinet.

    Where it is used

    Where a ten-camera 8MP kit fits.

    Retail stores

    Doors, aisles and counters, with heat map, crossing count and queue length run on the cameras themselves.

    Clubs, pubs and hotels

    Face capture at the entry against Allow and Block lists or your own custom lists, and colour night vision in the car park.

    Warehouses and factories

    Loading docks, yards, roller doors and the perimeter fence on one recorder.

    Offices and medical centres

    Entries, reception, corridors and the car park, viewed from a PC, a Mac or the phone app.

    Strata and apartment blocks

    Car parks, lifts, bin rooms and mailboxes, with alerts only for people after hours.

    Large homes and acreage

    Every side of the house, sheds and gates, within 100 m of cable from the recorder.

    IVK16P-8806B4D or IVK16P-8806D4B

    IVK16P-8806B4D (this kit)IVK16P-8806D4B
    Cameras4 × 880D turret dome + 6 × 880B bullet6 × 880D turret dome + 4 × 880B bullet
    Camera size880D 100 × 100 × 100 mm; 880B 70 × 70 × 155 mm880D 100 × 100 × 100 mm; 880B 70 × 70 × 155 mm
    Resolution and view8MP 4K at 25 fps, 106°8MP 4K at 25 fps, 106°
    Night vision and deterrenceColour or IR to 35 m, strobe, sirenColour or IR to 35 m, strobe, siren
    Recorder and driveNVR 9000, 4TB fittedNVR 9000, 4TB fitted

    The same two 880 cameras, in the opposite mix: IVK16P-8806D4B has more turret domes, which sit low under eaves and ceilings; IVK16P-8806B4D has more bullets, which stand out on walls and suit long views.

    Common questions

    What is in the IVK16P-8806B4D kit?

    In the box: 4 × IVSEC 880D 8MP turret dome cameras (IVNC-880D-AI); 6 × IVSEC 880B 8MP bullet cameras (IVNC-880B-AI); IVSEC NVR 9000 16-channel PoE+ recorder; 4TB surveillance drive, installed in the recorder; 5 × 20 m and 5 × 30 m Cat5e cables; network cable, recorder to your router; 48 V recorder power supply, 1 m HDMI cable and USB mouse; mounting screws, plugs and an installation template for each camera; 4 × IVSEC security stickers.

    Can I add more cameras later?

    Yes. The recorder has sixteen PoE+ ports and this kit uses ten, so you can add six more IVSEC cameras such as the 880D or 880B. ONVIF cameras from other brands also connect, though some features may not work on every model.

    How much recording space does it have?

    A 4TB drive is fitted in the first of two bays, and each bay takes up to 16TB (32TB in total). Choose a bigger first drive or add a second drive in the options above. How long it records depends on the cameras, bit rate and recording mode; the oldest footage is overwritten when the drives are full.

    Do the cameras need a power point each?

    No. Each camera is powered by the recorder through its network cable (PoE), so one Cat5e run per camera is all it needs.

    Can I see colour at night?

    Yes. With the white light on, the 880 cameras record in full colour at night. You can instead use infrared, which records in black and white up to 35 m without a visible light.

    What does the deterrence do?

    When a camera detects a person or vehicle it can switch on the white light, flash red and blue, sound the siren, or any mix of these, on a schedule you choose, for example only between 9 pm and 5 am.

    Can I talk through the cameras?

    Yes. Each camera has a built-in microphone and speaker for two-way audio from the IVSEC X app, so you can warn someone off or speak to a delivery driver.

    Do I have to register an account to use the app?

    No. The free IVSEC X app connects by scanning the recorder's QR code and does not need you to register an email address, and you can add as many users as you need. The 880 Series is NDAA approved, and its firmware and app are hosted on Australian servers.

    Which AI detections do the cameras have?

    Face recognition, human and vehicle detection, perimeter intrusion, line crossing, stationary object, crossing count, heat map, crowd density and queue length. The 880 runs its AI on a separate chipset in the camera, so it works on every channel, with one AI function per camera at a time.

    Are the cameras weatherproof?

    Yes. The 880 cameras are rated IP67 and vandal resistant, for use indoors or outdoors from -20 °C to +60 °C. The recorder is for indoor use.

    Can it recognise faces and search number plates?

    Yes. The cameras capture faces into a face database, and you can sort people into Allow and Block lists or your own custom lists, which suits clubs, hotels and retail. Recorded footage can also be searched by face or by number plate, so you find the moment without scrolling through hours of video.

    What warranty does the kit have?

    IVSEC's datasheet gives the 880 cameras a 3-year warranty. For the recorder's term, please confirm with us. InFront Technologies handles warranty and technical support in Australia on 1300 736 970.

    Supported by InFront Technologies.

    Australian-based support. Help choosing a drive size, more cameras, brackets or cable lengths: call 1300 736 970 or email [email protected].

    Installation and safety

    Power. The recorder runs from its 48 V plug-in supply and powers the cameras over PoE. There is no mains wiring in the kit. A new power point needs a licensed electrician.

    Cabling. Cable run inside walls or ceilings is customer cabling under AS/CA S009 and needs an ACMA-registered cabler.

    Privacy and audio. Recording people and conversations is covered by state and territory surveillance laws, and face recognition collects personal information. Point cameras at your own property, put up signage, and check the rules before you switch on audio or face recognition.

    What it does not do. These are wired cameras: no Wi-Fi in the cameras, no battery and no 4G. The recorder must stay connected to your router for the app to work away from home.

    Figures. From IVSEC's 880D and 880B camera datasheets (updated October 2026) and IVSEC's specification table for the NVR 9000. IVSEC does not publish a separate NVR 9000 datasheet PDF; the IVSEC NVR user manual is attached with the camera datasheet.

    Mobile App
    IVSEC X (iOS & Android), no registration needed
    Housing
    Metal alloy (cameras)
    Audio
    Two-way audio (built-in mic and speaker)
    Operating temperature
    Cameras -20 to +60 °C, up to 95% RH
    Power
    Cameras powered by the NVR over PoE (one cable each)
    Colour
    White cameras
    Power Consumption
    Under 14 W per camera
    Video Compression
    H.265+, H.265, H.264+, H.264, MJPEG
    Resolution
    8MP 4K (3840 × 2160)
    Vandal Resistant
    Yes
    Series
    PRO 880 Series
    Brand
    IVSEC
    IP Rating
    IP67
    Frame Rate
    25 fps at 8MP
    Incoming Bandwidth
    160 Mbps
    Interoperability
    ONVIF Profile S, G, T
    Image Sensor
    1/2.8" Sony Starvis CMOS (IMX415)
    Lens
    2.8 mm fixed
    Minimum Illumination
    0.007 lux colour, 0 lux with IR
    Display Output
    HDMI and VGA, up to 4K
    Field of View
    106° horizontal
    Face Recognition
    Face recognition and plate search in the camera, on every channel
    WDR
    Digital WDR
    Connectivity
    Ethernet IP Cabling Cat5e/Cat6
    Cables Included
    5 × 20 m and 5 × 30 m Cat5e
    Number of Channels
    16 channels
    Location
    Cameras indoor or outdoor, NVR indoor
    Active Deterrence
    Red & blue strobe, white light and siren
    Camera Resolution
    8MP 4K
    NVR Camera Channels
    16Ch Recorder
    Warranty
    3 years
    Product Type
    IP CCTV kit
    Megapixels
    8 MP
    Onboard Storage
    microSD up to 256 GB
    Model
    IVK16P-8806B4D
    Smart detection
    Human & vehicle, face recognition, number plate search, perimeter intrusion, line crossing, stationary object, crossing count, heat map, crowd density, queue length
    HDD Bays
    2
    Night Vision
    Up to 35 m IR (black & white) or 30 m warm light (colour)
    Night Vision Type
    Colour (warm light) or infrared
    PoE Ports
    16 (built into the NVR)
    Hard Drive
    4TB fitted (2 bays, up to 32TB)
    Number of Cameras
    10 (6 × 880B bullet and 4 × 880D turret dome)
    Recorder
    IVSEC 9000 Series 16-channel PoE NVR, records up to 12MP
    0796548382523
    IVK16P-8806B4D
