Uniview Tri-Guard 4K Black Kit — 4× IPC3638SS-BK Black Tri-Guard + 8CH NVR501-08B-P8-IQ
UV-K804-TGB-0T
In stock $ 1,639.00
inc-GST
or 4 interest-free payments of $409.75 with
Four black Uniview Tri-Guard IPC3638SS 8MP turrets with red and blue warning lights, siren and two-way talk, plus the 8-channel NVR501-08B-P8-IQ.
- ✓4 cameras: 4× IPC3638SS-BK
- ✓8-channel NVR with 8 PoE ports (75 W)
- ✓8MP 4K cameras, smart IR up to 30 m
- ✓Tri-Guard warning light, sound and two-way talk
- ✓No HDD or 2–8TB drive fitted
- ✓Free EZView app, 3-year warranty
Uniview kit · 4 cameras · 8 channels
Black Tri-Guard, 4K and loud.
Deterrence that blends into dark trims.
Uniview Tri-Guard 4K Black Kit. Four black Uniview Tri-Guard IPC3638SS 8MP turrets on the 8-channel NVR501-08B-P8-IQ. Red and blue warning lights, a siren and two-way talk, with four ports spare for more cameras.
In one sentence: the UV-K804-TGB is four 8MP 4K Tri-Guard turrets, black with the Uniview NVR501-08B-P8-IQ 8-channel PoE NVR, with the hard drive as an option.
Order it without a drive, or with a 2, 4, 6 or 8TB drive fitted.
Everything in the kit is matched: every camera plugs into the recorder’s PoE ports and appears automatically. Add the Cat6 cable and a screen and you are recording.
In the box
- 1 × Uniview NVR501-08B-P8-IQ 8-channel PoE NVR with power supply
- 4 × Uniview IPC3638SS-ADF28KMC-I1-BK 8MP 4K Tri-Guard turret, black
- Mounting screws and plugs for each camera
- Quick guides
- Hard drive fitted if you choose a 2, 4, 6 or 8TB option
You also need
- A hard drive, if you choose the No HDD option
- Cat6 cable from the recorder to each camera (up to 100 m per run)
- A monitor or TV with HDMI or VGA
- Your router and internet connection, for the phone app
- Optional junction boxes for a neat, weatherproof cable entry
Low profile until it needs to be loud.
A black camera disappears against dark eaves, which suits people who want deterrence without a row of white cameras. When someone crosses a line, it lights up red and blue and speaks.
The recorder

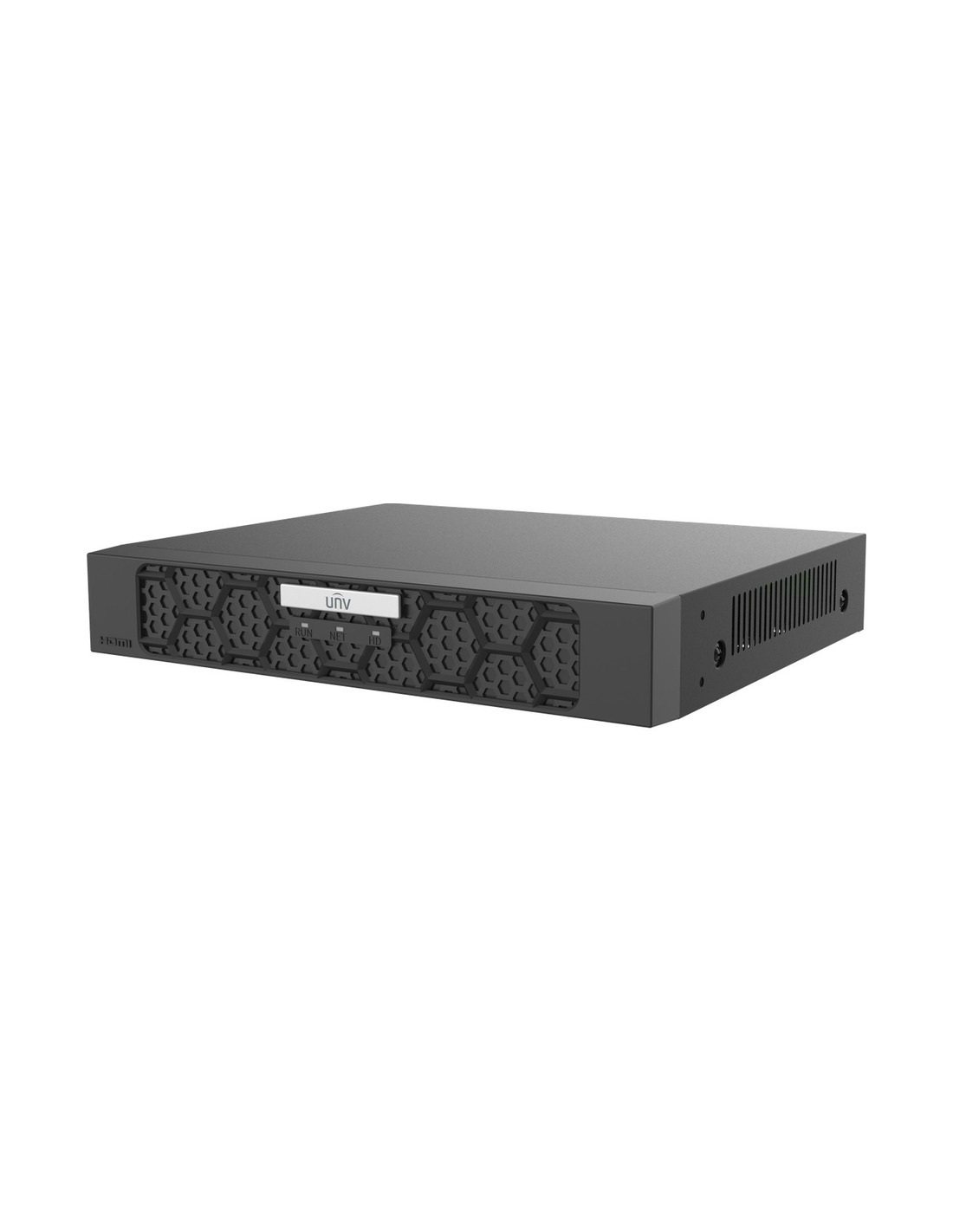

The NVR501-08B-P8-IQ: 8 PoE ports, 75 W.
Every camera in the kit plugs into its own PoE port, which carries power and video on one Cat6 cable. The kit draws at most about 40 W of the 75 W budget, and 4 channels are left for more cameras. It records up to 16MP, outputs 4K on HDMI and takes one drive of up to 24TB.
Four in the kit
Uniview IPC3638SS-ADF28KMC-I1-BK, 8MP 4K Tri-Guard turret, black.
An eyeball turret that is easy to aim, with no dome cover to catch infrared glare. 8MP 4K with 30 m Smart IR and IP67 weather rating. When it detects a person or vehicle it flashes red and blue warning lights and plays a warning sound, and the built-in speaker and mic give two-way talk from the app.
Active deterrence
Light and sound before anything happens.
Draw a line or zone in the app. When a person or vehicle crosses it, the Tri-Guard flashes its warning light and plays a warning sound, on a schedule you choose.
On your phone
Every camera in the free EZView app.
Scan the recorder’s QR code with the EZView app on iPhone or Android for live view, playback and alerts. No subscription and no monthly fee.
How it goes in
From the box to recording.
01
Plan the positions
Mount cameras about 2.4–3 m high, under eaves where possible, aimed at doors, gates and paths rather than open sky.
02
Run the Cat6
One cable from each camera back to the recorder, up to 100 m. Fit a junction box behind each camera for a neat, sealed join.
03
Connect the recorder
Plug the cameras into the PoE ports, the screen into HDMI and the network port into your router, then power on and follow the wizard.
04
Add the app and zones
Scan the QR code in the EZView app, then draw detection lines and zones so alerts and warnings only fire for people and vehicles.
At a glance
UV-K804-TGB
Show specs
Kit code
UV-K804-TGB
Recorder
Uniview NVR501-08B-P8-IQ, 8 channels, 8 PoE ports (75 W)
Cameras
4 × Uniview IPC3638SS-ADF28KMC-I1-BK 8MP 4K Tri-Guard turret, black
Spare channels
4 for more cameras
Camera resolution
8MP 4K
Night vision
Smart IR up to 30 m
Deterrence
Warning light, warning sound and two-way talk on the Tri-Guard cameras
PoE power used
About 40 W of 75 W at most
Storage
No HDD standard; 2, 4, 6 or 8TB option. 1 bay, up to 24TB each
Compression
Ultra 265, H.265, H.264
Display
HDMI up to 4K, VGA up to 1080p
Network
10/100
Phone app
EZView app, iOS and Android, no fees
Warranty
3 years
Pair it with
What goes with it
Cabling
Cat6 305 m box
Solid-copper Cat6 for PoE runs of up to 100 m to each camera.
Mounting
Junction boxes
TR-JB03-H-IN-BK for the Black Tri-Guard: hides the cable join and seals it from the weather.
Viewing
22" CCTV monitor
A Full HD screen with HDMI and speakers, rated for 24/7 viewing.
Where it is used
Where this kit fits
Modern homes
Dark cladding, black frames and Monument trims.
Hospitality
Rear doors and car parks of cafes and bars.
Offices
After-hours entries and bike storage.
Compared with similar kits
| Tri-Guard 4K Black | Tri-Guard Home 4K | Essentials 4K Black | |
|---|---|---|---|
| Cameras | 4 × 8MP 4K Tri-Guard turret, black | 4 × 8MP 4K Tri-Guard turret | 4 × 8MP 4K Easy turret, black |
| Recorder | NVR501-08B-P8-IQ | NVR501-04B-P4-IQ | NVR501-04B-P4-IQ |
| Spare channels | 4 | 0 | 0 |
| Light and sound deterrence | Yes | Yes | No |
| Night vision range | 30 m | 30 m | 30 m |
Every Uniview kit records Ultra 265, works with the EZView app and carries a 3-year warranty. Camera figures from the Uniview datasheets.
Common questions
Can I add white cameras to this kit later?
Yes. The four spare PoE ports take any Uniview camera, white or black, and about 35 W of the 75 W PoE budget is still free.
Is a hard drive included?
Choose it in the options: No HDD, or a 2, 4, 6 or 8TB surveillance drive fitted and formatted. The standard option is No HDD, for people who already have a drive.
How many days will it record?
As a rough guide, each 4K camera recording around the clock with Ultra 265 uses about 25–40GB a day, so 4 cameras keep roughly 25–40 days on 4TB. Recording on motion, or at a lower bitrate on quiet cameras, stretches that a long way.
Is the cable included?
No, because every site needs a different length. Each camera needs its own Cat6 run of up to 100 m back to the recorder; a 305 m Cat6 box covers most homes.
Do the cameras need power points?
No. The recorder powers every camera through the Cat6 cable (PoE), so the only power point needed is at the recorder.
Can I add more cameras later?
Yes. There are 4 spare channels on the NVR501-08B-P8-IQ, and any Uniview camera plugs straight in.
Can I watch it on my phone?
Yes. Connect the recorder to your router and scan its QR code in the free EZView app for live view, playback and alerts on iPhone and Android. There are no monthly fees.
Can I install it myself?
Many customers do: each camera needs one cable and the recorder finds the cameras automatically. In Australia, Cat6 run inside walls and ceilings should be installed by a registered cabler.
Will it work with cameras I already own?
Usually. ONVIF (Profile S, G or T) and RTSP cameras record on the NVR501-08B-P8-IQ, with basic motion events; smart events come from Uniview cameras.
What is the warranty?
Uniview 3-year manufacturer warranty, handled in Australia through us. Contact us first and we will organise any claim.
Supported by Infront Technologies.
Want to change a camera or add more? Call 1300 736 970 or email [email protected] with your layout and we will put together the right mix.
Installation and safety
Power. Use only the power supply supplied with the recorder. Power off before fitting or removing a hard drive.
Placement. Keep the recorder indoors between −10 °C and 55 °C with space around its vents, somewhere secure so a thief cannot take the footage with it. Cameras are rated IP67 for outdoor use.
Privacy. Aim cameras at your own property. Recording audio and filming neighbours or public areas are covered by state surveillance laws.
Figures. From the Uniview datasheets for each component. Uniview 3-year manufacturer warranty, handled in Australia through us.
- Mobile App
- EZView (iOS, Android)
- Video Compression
- Ultra 265, H.265, H.264
- Video Input
- 8 channels
- Brand
- Uniview
- Interoperability
- ONVIF Profile S, G, T
- Display Output
- HDMI up to 4K, VGA up to 1080p
- Active Deterrence
- Yes — warning light and sound
- Camera Resolution
- 8MP 4K
- Warranty
- 3 years
- Product Type
- IP CCTV Kit
- Two-Way Audio
- Yes (Tri-Guard cameras)
- Model
- UV-K804-TGB
- HDD Bays
- 1
- Night Vision
- Smart IR up to 30 m
- PoE Ports
- 8 (75 W total)
- Hard Drive
- Optional 2, 4, 6 or 8TB fitted (standard: no drive)
- Number of Cameras
- 4
- Recorder
- Uniview NVR501-08B-P8-IQ
