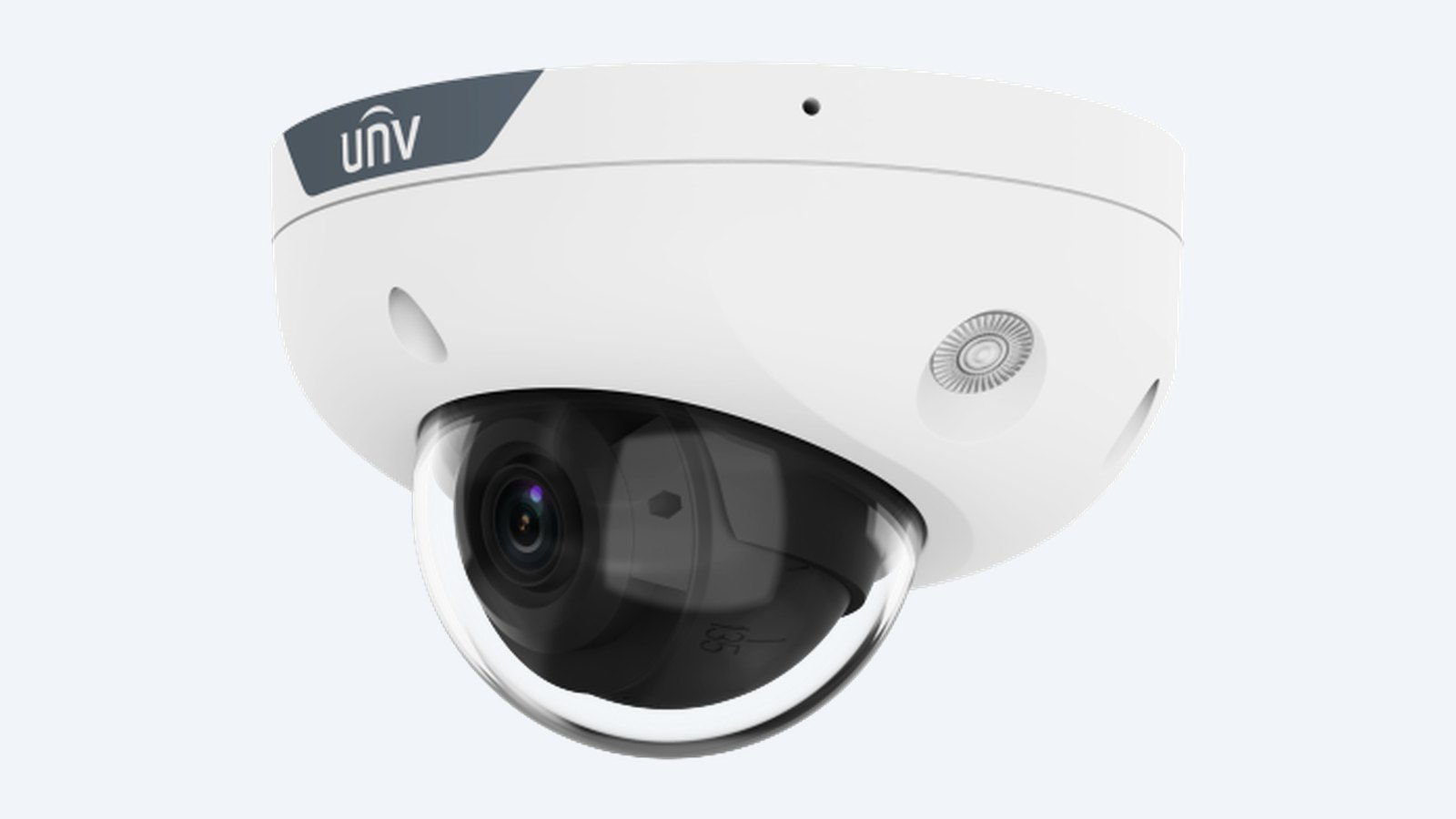

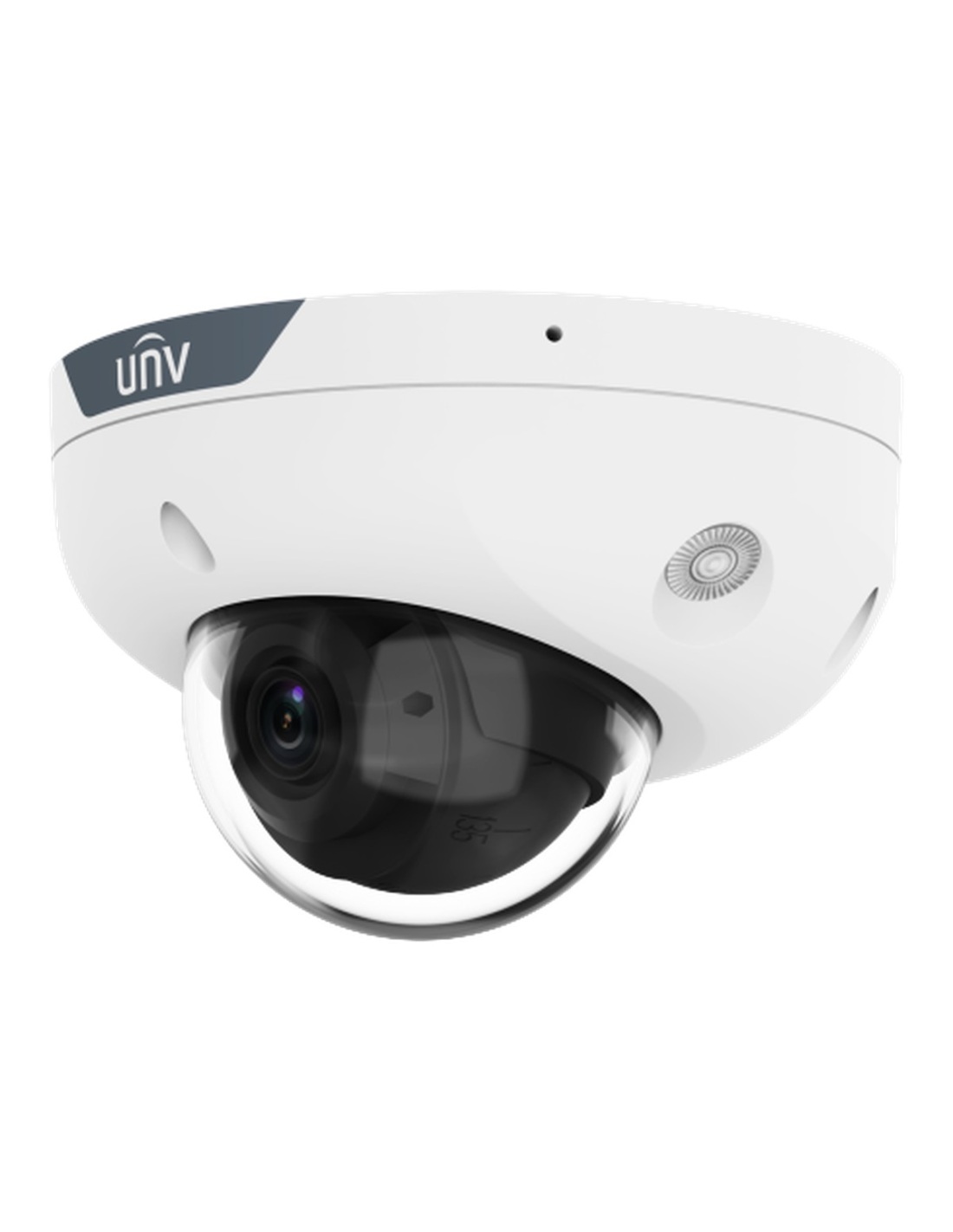

• IPC318SB-ADF28KMC-DL-I1 camera
• Fixing screws and drill template
• Quick guide

• A PoE NVR or switch (802.3af), or a 12 V DC supply
• Cat6 cable to the camera
• A microSD card up to 512GB, to record on the camera
• TR-JB03-G-IN junction box or TR-WM03-D-IN wall mount, if needed

01

Pick the spot

High enough to be out of easy reach, close enough to see faces, with a route for one Cat6 cable. Under an eave keeps sun and rain off the lens.

02

Fix the dome

Screw it to the ceiling, onto a TR-JB03-G-IN junction box, or to a wall with the TR-WM03-D-IN mount.

03

Plug it in

Run Cat6 to a PoE port on the NVR or a PoE switch. The camera powers up from the cable.

04

Aim and add

Open the cover, aim the lens on its three-axis gimbal and refit the cover, then add it to the NVR or the Uniview EZView app.

Recorder

Uniview PoE NVR

Recorders that power the camera over one Cat6 cable and add it automatically.

Mounting

TR-JB03-G-IN junction box

Encloses the cable joint behind the dome on brick, render or a soffit with no cavity.

Walls

TR-WM03-D-IN wall mount

Holds the dome out from the wall so it can look along the building.

Cabling

Cat6 cable

Solid copper Cat6 for PoE runs of up to 100 m from the recorder or switch.

Front doors

Colour faces at night and a voice to greet visitors.

Carports

The colour of a car, even after dark.

Shopfronts

Talk to someone loitering after hours.

Side gates

Warm light to 30 m along the path.

What is ColorHunter?

Uniview’s name for its full-colour low-light cameras. With Wise ISP image processing and the built-in warm light, this model records in colour around the clock instead of switching to black and white at night.

What resolution and frame rate does it record?

8MP (3840 × 2160) at up to 30 fps, with 5MP, 4MP and 1080p also at 30 fps. Corridor mode turns the picture to 9:16 for halls and walkways.

How far does it see at night?

Up to 30 m. It has both infrared and warm white light: infrared gives a discreet black-and-white picture, while the warm light lets it record in full colour at night, also out to 30 m.

Does it tell people from other movement?

Yes. Smart intrusion prevention covers line crossing, intrusion and entering or leaving an area, and sorts what it sees into people, vehicles and bikes. That filters out most false alarms from leaves, birds and changing light. It can also count people and watch crowd density.

Does it record sound?

Yes. It has a built-in dual microphone and a speaker, with two-way audio, so you can listen in and talk to whoever is at the camera from the app or the NVR.

Can I mount it on a wall?

Yes. It mounts on a ceiling, or on a wall with the TR-WM03-D-IN wall mount. Add the TR-JB03-G-IN junction box where there is no cavity behind to hide the cable joint. Indoors it can hang from the ceiling on the TR-CM24-IN pendant mount, with the TR-SE24-A-IN 500 mm pole for high ceilings.

Will it work with my recorder?

Uniview NVRs find it on their PoE ports and add it automatically. Other recorders that support ONVIF Profile S, G, T, M can add it too, although the smart events may only come through on a Uniview recorder.

Can I watch it on my phone?

Yes. Watch it through your Uniview NVR in the Uniview EZView app, or add the camera to the app on its own. The camera also has its own web page for live view and settings.

Can it record without an NVR?

Yes. Fit a microSD card of up to 512GB and it records on the camera itself. With a Uniview NVR, the card also covers network drop-outs: ANR sends the missed footage to the recorder when the link returns.

How is it powered?

By PoE (IEEE 802.3af) over the same Cat6 cable as the video, from a PoE NVR or switch. Without PoE, it runs on a 12 V DC supply. It draws 8.5 W at most.

What is Ultra 265?

Uniview’s own video compression. It keeps the same picture as H.265 in less space, so the recorder holds more days of footage. H.265, H.264 and MJPEG are there too.

What is the warranty?

Uniview 3-year manufacturer warranty, handled in Australia through InFront. Contact us first and we will organise any claim.
