• 1 × VIP Vision Professional AI NVR8PRO-I 8-channel PoE recorder with 2TB surveillance drive fitted
• 2 × VIP Vision VSIPP-8DG-ID4 8MP 4K deterrence turret
• 2 × VIP Vision VSIPP-8DD-ID3 8MP 180° dual-lens turret
• 1 × VIP Vision VSIPPTZ-4P8X 8MP + 4MP dual-lens PTZ
• 2 × 20 m and 3 × 30 m Cat5e network cables
• Recorder power cable, HDMI cable, 1 m network cable and USB mouse
• Screws, plugs and a mounting template for each camera
• Quick start guides

• A monitor or TV with HDMI or VGA
• Your router and internet connection, for the phone app
• Longer Cat5e or Cat6 runs if a camera is more than 30 m away (up to 100 m)
• Optional junction boxes for a neat, sealed cable entry

01

Plan the positions

Mount the cameras about 2.4–3 m high, under eaves where you can. Put the 180° cameras on a corner or the middle of a long wall, and aim the others at doors, gates and paths.

02

Run the cables

Run one network cable from each camera back to the recorder. The kit includes 2 × 20 m and 3 × 30 m Cat5e network cables; PoE works on runs up to 100 m.

03

Connect the recorder

Plug the cameras into the PoE ports, the screen into HDMI or VGA and the network port into your router, then power on and follow the startup wizard.

04

Set the app and zones

Scan the recorder’s QR code with the DMSS app, then draw tripwire lines or zones so alerts, lights and sirens only fire for people and vehicles.

More cameras

VSIPP-8DG-ID4 deterrence turret

Another deterrence turret for a second door, gate or driveway. Three channels are free.

Mounting

Junction boxes

A matching VIP Vision junction box hides and seals the cable join behind each camera. Ask us for the right one for each model.

Cabling

Cat6 cable box

Solid-copper Cat6 for longer runs of up to 100 m to each camera.

Larger homes

Every side of the house, plus the driveway and gate.

Shops

Counter, entry, stockroom and rear door.

Offices

Reception, car park and side entries, with deterrence after hours.

Workshops

Roller doors, yard and the tool store.

Farms and acreage

Sheds, gates and the house, with zoom for the long driveway.

Medical and childcare

Entries and car park, with clear faces at the door.

What is the difference between the cameras?

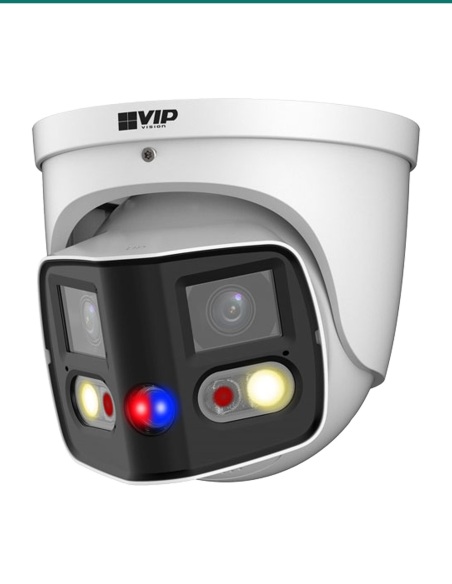

The VSIPP-8DG-ID4 is a single-lens 8MP turret with a 106° view, a spotlight, a red and blue strobe and a siren, best for detail at a door, gate or driveway. The VSIPP-8DD-ID3 uses two lenses to cover 180° in one picture, with lights, strobe and siren, best for a whole yard or driveway from one spot. The VSIPPTZ-4P8X pairs an 8MP 180° panoramic lens with a 4MP 25× zoom PTZ that tracks people and vehicles across a large area.

Is the hard drive included?

Yes. A 2TB surveillance drive is fitted in the recorder. There is a second bay, and each bay takes a drive of up to 16TB. Bigger drives are in the options.

How many days will it record?

As a rough guide, about 8 to 12 days with all 5 cameras recording around the clock on H.265 on the 2TB drive. Recording on events, or adding a bigger drive, stretches that a long way.

Are the cables included?

Yes: 2 × 20 m and 3 × 30 m Cat5e network cables, plus a 1 m cable for your router. For a camera further away, use a longer Cat5e or Cat6 run of up to 100 m.

Do the cameras need power points?

No. The recorder powers the cameras through the network cable (PoE), so the only power point needed is at the recorder. Check with us on the PTZ’s cable run, as it draws more power than the fixed cameras.

What sets off the lights and siren?

A person or vehicle crossing a tripwire line or entering a zone you draw. You choose which cameras react and when, so it can stay quiet during the day.

Can I talk through the cameras?

Yes, on the VSIPP-8DG-ID4 and VSIPP-8DD-ID3: a built-in microphone and speaker let you listen and talk from the app. The other cameras record sound but have no speaker.

Can I add more cameras later?

Yes. Three channels are free on the NVR8PRO-I, with 3 PoE ports to match. VIP Vision Professional AI cameras plug straight in.

Can I watch it on my phone?

Yes. Connect the recorder to your router and scan its QR code in the free DMSS app for live view, playback and alerts on iPhone and Android.

How far do they see at night?

Infrared reaches 30 m on the VSIPP-8DG-ID4, 25 m on the VSIPP-8DD-ID3 and 50 m on the VSIPPTZ-4P8X in black and white, and the warm white lights give colour closer in.

Can I install it myself?

Many customers do, because each camera needs one cable and the recorder finds it automatically. In Australia, cable run inside walls and ceilings should be installed by a registered cabler.

What is the warranty?

4 years, supported in Australia by Infront Technologies. Contact us first and we will organise any claim.
