VIP Vision 800mm Ceiling Mount Dome Camera Bracket - VSBKTB2211C

VSBKTB2211C
In Stock - Ready to Ship
$ 27.95
inc-GST
  • Compatible with most small dome cameras (incl. VIP Vision & Securview)
  • Ceiling mount type, adjustable 475 mm to 800 mm length
  • Load capacity: 1.0 kg (suitable for light/medium dome cameras)
  • Aluminium / SECC steel construction
  • Operating range: –40 °C to 60 °C, up to 90% humidity
  • Base diameter: Ø 125.9 mm; adjustable length 475–800 mm
  • Weight: approx. 0.60 kg
  • Warranty: 4 years
  • Certifications: CE / RCM, RoHS compliant

Various Payment Types at Checkout.

All Payment Options are available at Checkout: Visa/MC/Amex, Zip, Afterpay, Paypal and Bank Dep



VIP Vision VSBKTB2211C | 800mm Ceiling Mount Dome Bracket • Adjustable 475–800mm • Aluminium Alloy

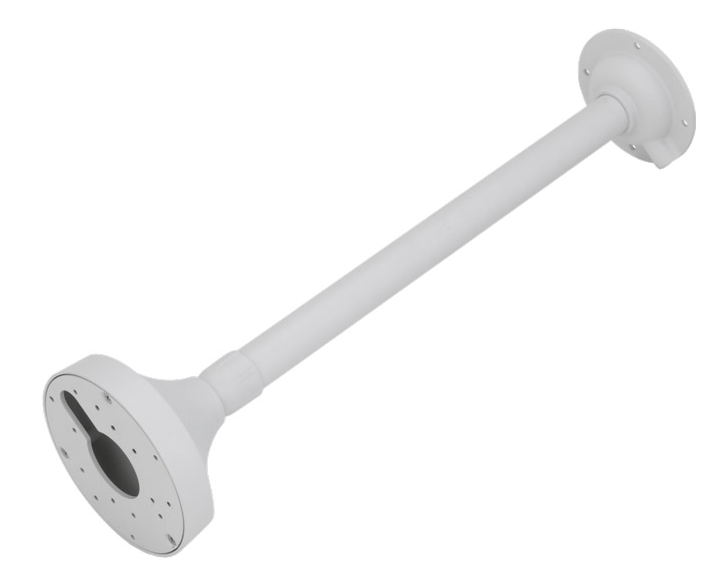

VIP Vision VSBKTB2211C 800mm Ceiling Mount Dome Bracket (White)

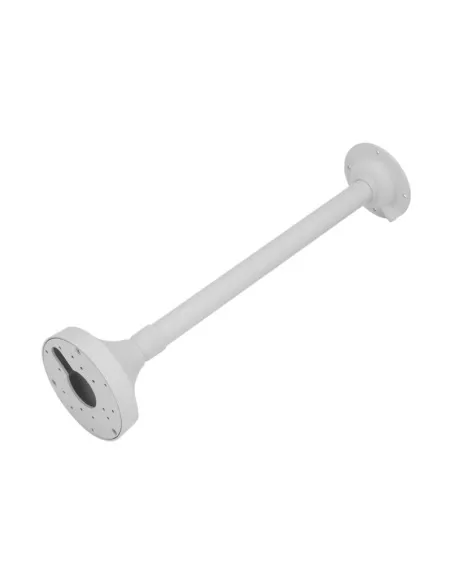

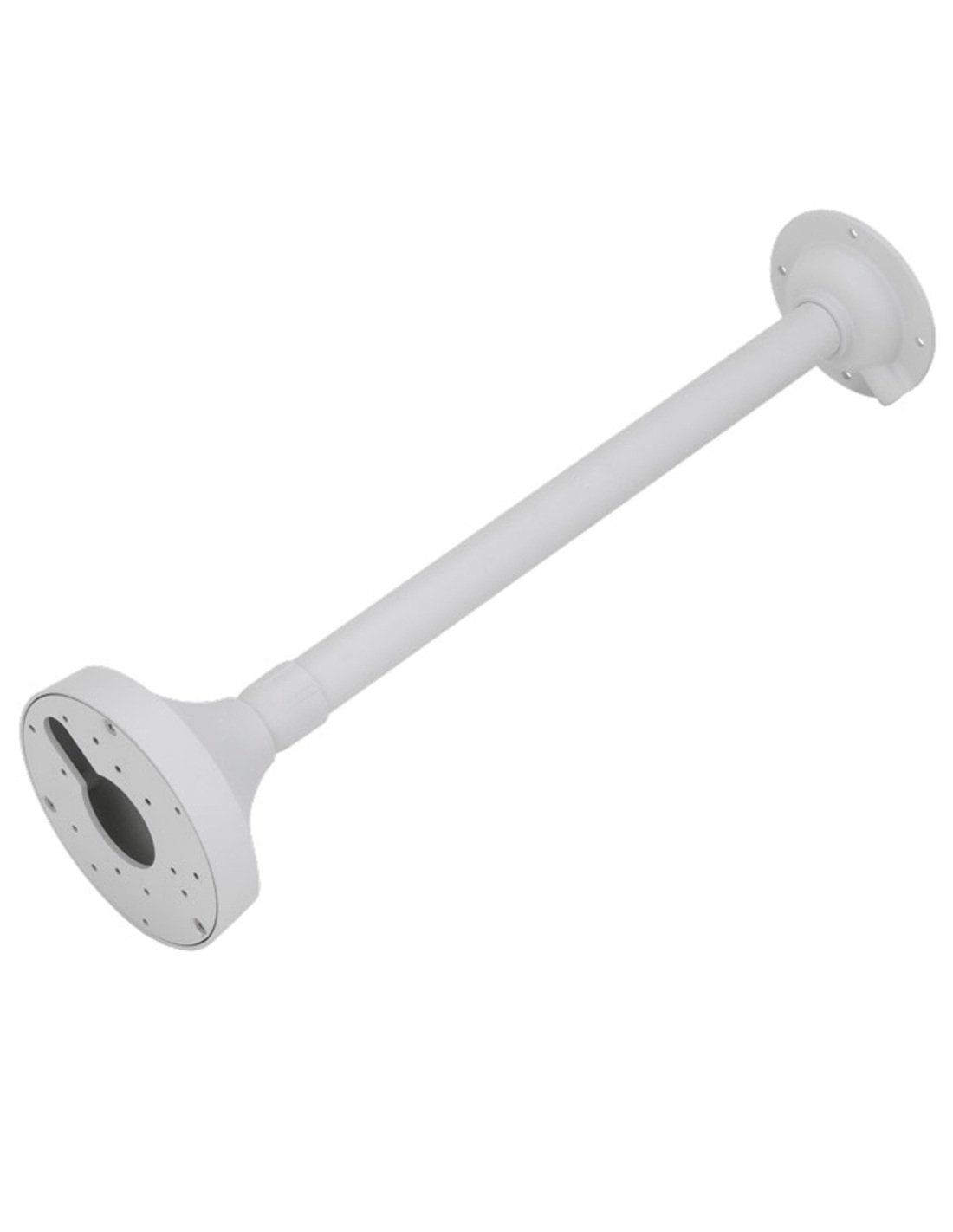

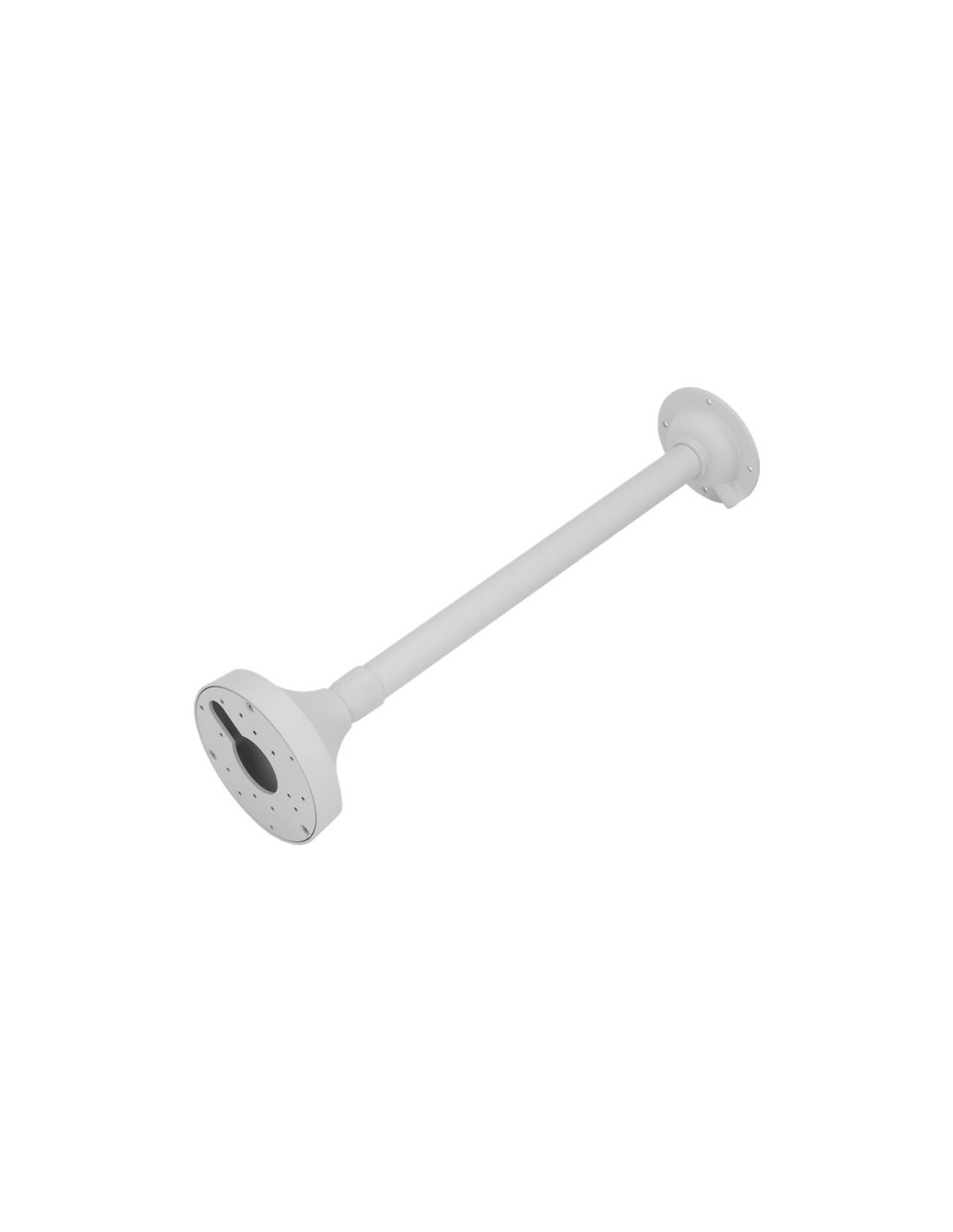

The VIP Vision VSBKTB2211C is a telescopic ceiling‑mount dome camera bracket for high ceilings and open spaces. It supports most small domes from VIP Vision & Securview and extends from 475 mm to 800 mm for optimal sightlines and clean cable routing.

Key Features & Benefits

  • Adjustable drop length — Telescopes from 475–800 mm to clear bulkheads & fittings
  • Compatible with small domes — Designed for VIP Vision & Securview compact domes
  • Aluminium alloy + SECC — Durable, lightweight construction with white finish
  • Internal cable management — Conceals wiring for tidy, professional installs
  • 1.0 kg load rating — Suits compact dome cameras and accessories

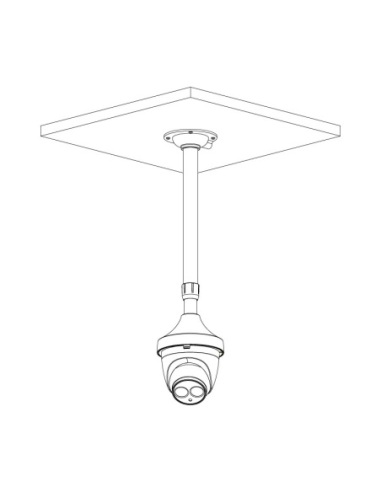

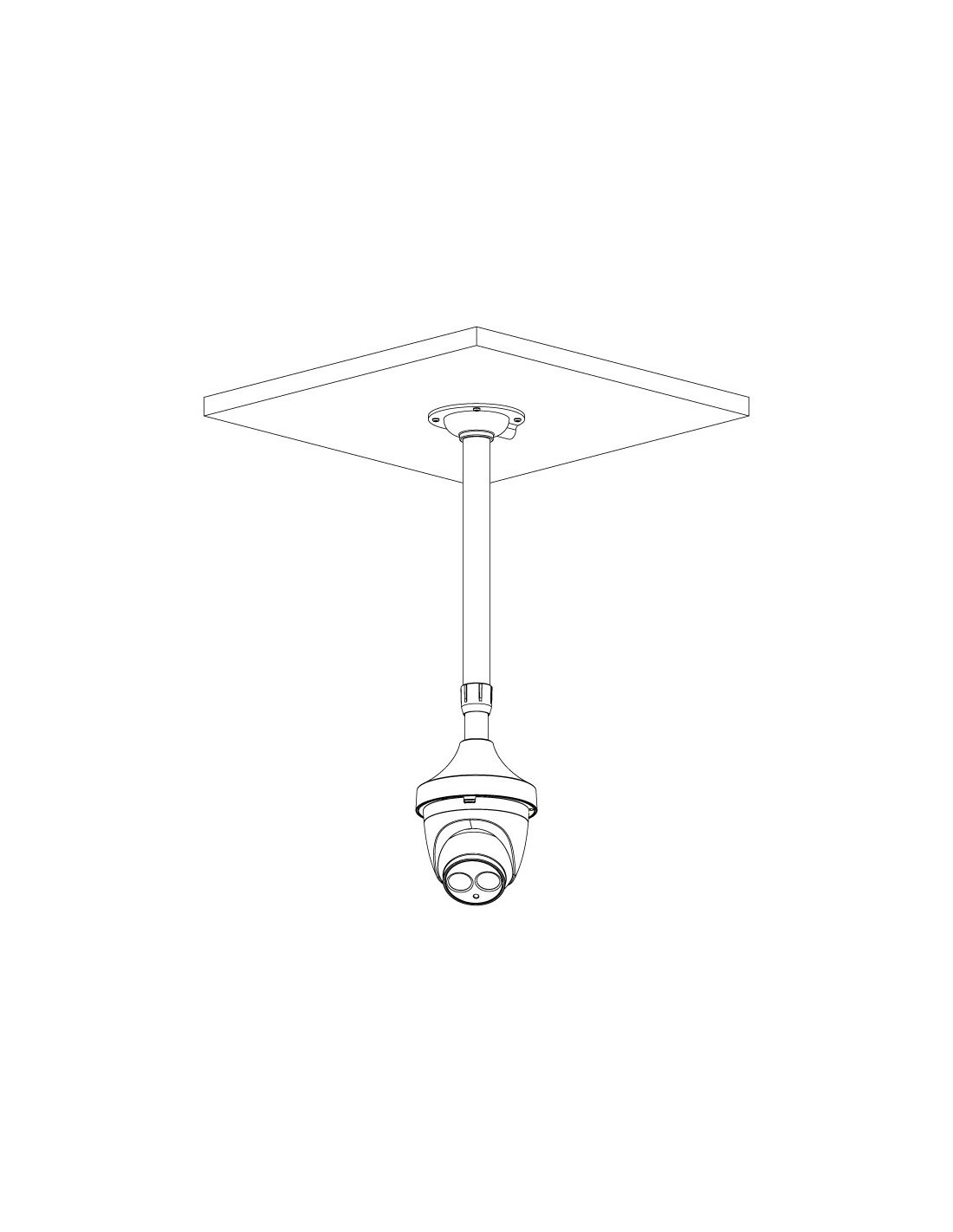

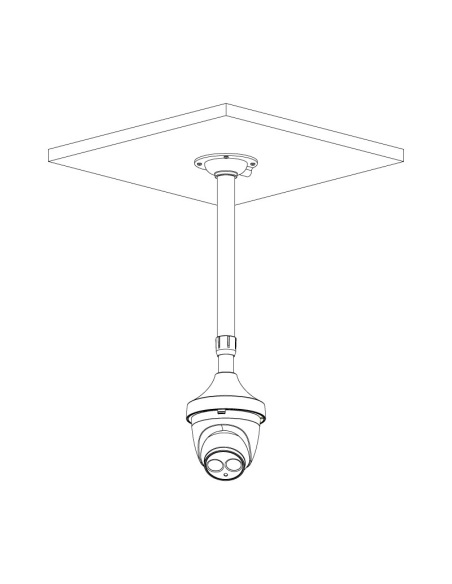

  • Installer‑friendly — Straight pendant design for fast, consistent mounting

Ideal Applications

  • Retail atriums, foyers & showrooms with high ceilings
  • Warehouses, gyms & factories needing lower dome placement
  • Schools, halls & community spaces with overhead obstructions
  • Any site requiring neat, extended pendant mounting

Specifications at a Glance

  • Model: VSBKTB2211C
  • Type: Ceiling‑mount dome bracket (telescopic pendant)
  • Length: 475–800 mm (adjustable)
  • Materials: Aluminium alloy & SECC
  • Finish: White
  • Load Capacity: 1.0 kg

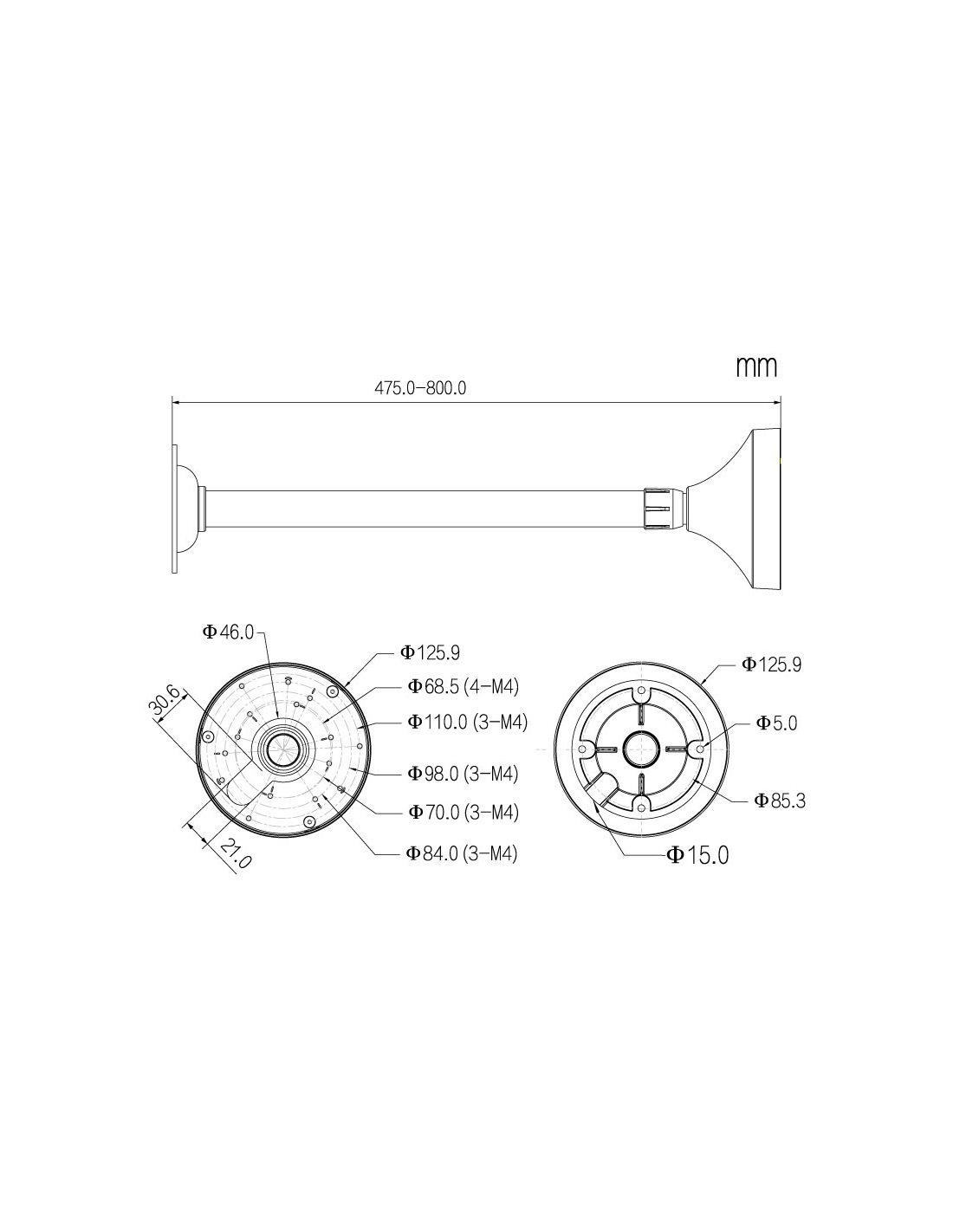

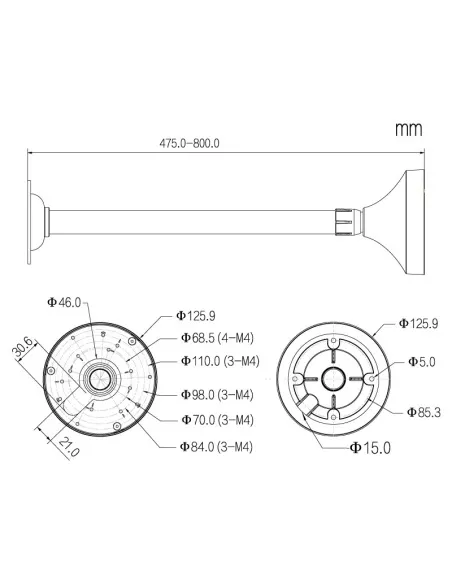

  • Dimensions: Ø125.9 mm base × 475–800 mm length
  • Weight: 0.60 kg
  • Cable Management: Internal, concealed wiring
  • Operating Conditions: −40 °C to +60 °C; ≤90% RH
  • Pipe Thread: N/A
  • Weather Resistance: N/A (indoor use recommended)
  • Compatibility: Most small domes from VIP Vision & Securview
  • Warranty:

Clean, adjustable pendant mounting. Achieve perfect angles and tidy cable runs with the VSBKTB2211C ceiling bracket.

Dimensions
22(W) x 41(D) x 27(H) mm
Operating Conditions
-30° ~ +60° C / Less than 95% RH
Weight
0.16kg
Weather Resistance
IP65 (silicone sealant required)
Materials
SPCC quality cold rolled steel, powder coated
Bracket Type
Connector
Load Bearing Capacity
N/A
Pipe Thread
1½” PF
