Akuvox S538 Black On-Wall Rain Cover for Surface-Mounted S538 — AK-S538ONWALLH

SKU AK-S538ONWALLH In Stock - Ready to Ship
$59.70 inc GST

Akuvox AK-S538ONWALLH is the black on-wall rain cover for the S538 8″ Android facial recognition door phone. Its back plate fits behind the S538 on-wall box, and the hood shelters the screen, cameras and card reader from rain and overhead sun.

  • ✓Rain cover for a surface-mounted Akuvox S538
  • ✓306.7 × 141.4 mm, projecting 51.4 mm at the top
  • ✓Back plate shares the fixing pattern of the S538 on-wall box
  • ✓Black finish


Akuvox · S538 · On-wall rain cover

Keep the S538 screen clear.
Hood for surface-mounted units.

The AK-S538ONWALLH is Akuvox’s rain cover for an S538 on the wall surface. The hood keeps water off the 8″ glass and shades the face-recognition cameras from overhead sun.

This SKU is the rain cover only.

You receive the black S538 on-wall rain cover. The S538 door phone and the S538 on-wall installation kit are sold separately.

In the box
  • Akuvox S538 on-wall rain cover (black)
What you also need (sold separately)
  • Akuvox S538 door phone
  • S538 on-wall installation kit

Faces recognised, rain or shine.

Water on the glass and harsh overhead light both make face recognition and video harder outdoors. The hood takes care of both on an exposed wall.

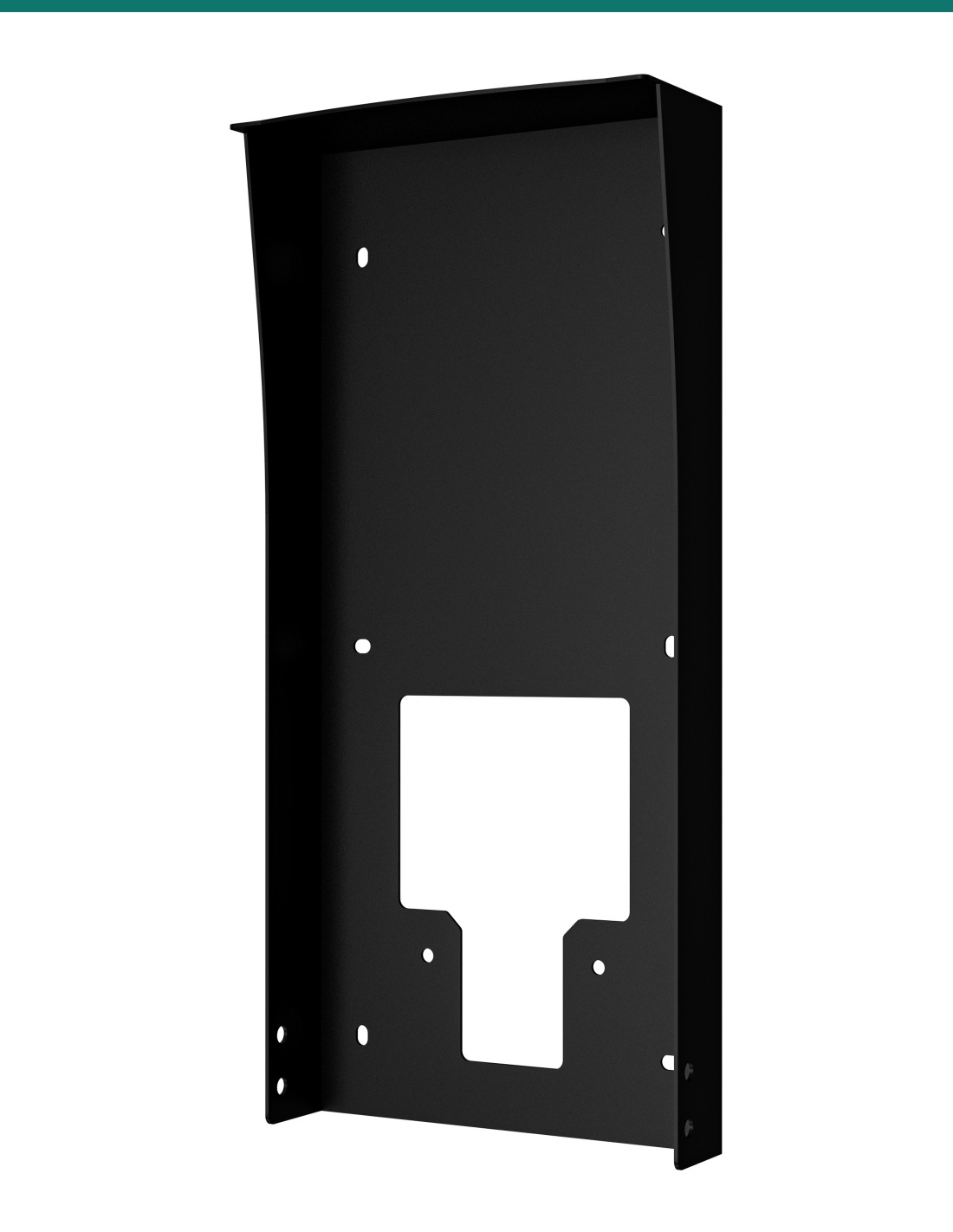

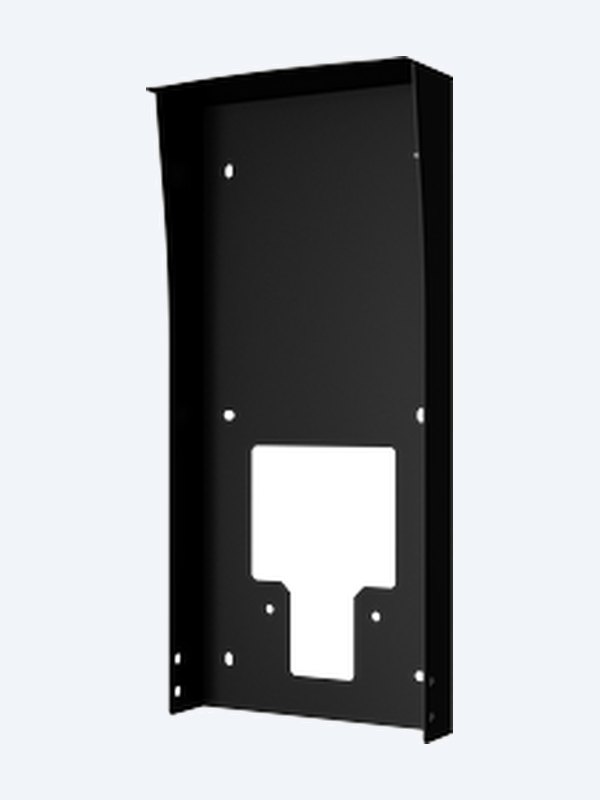

Akuvox S538 on-wall rain cover — three-quarter view

Design

Hood and back plate in one.

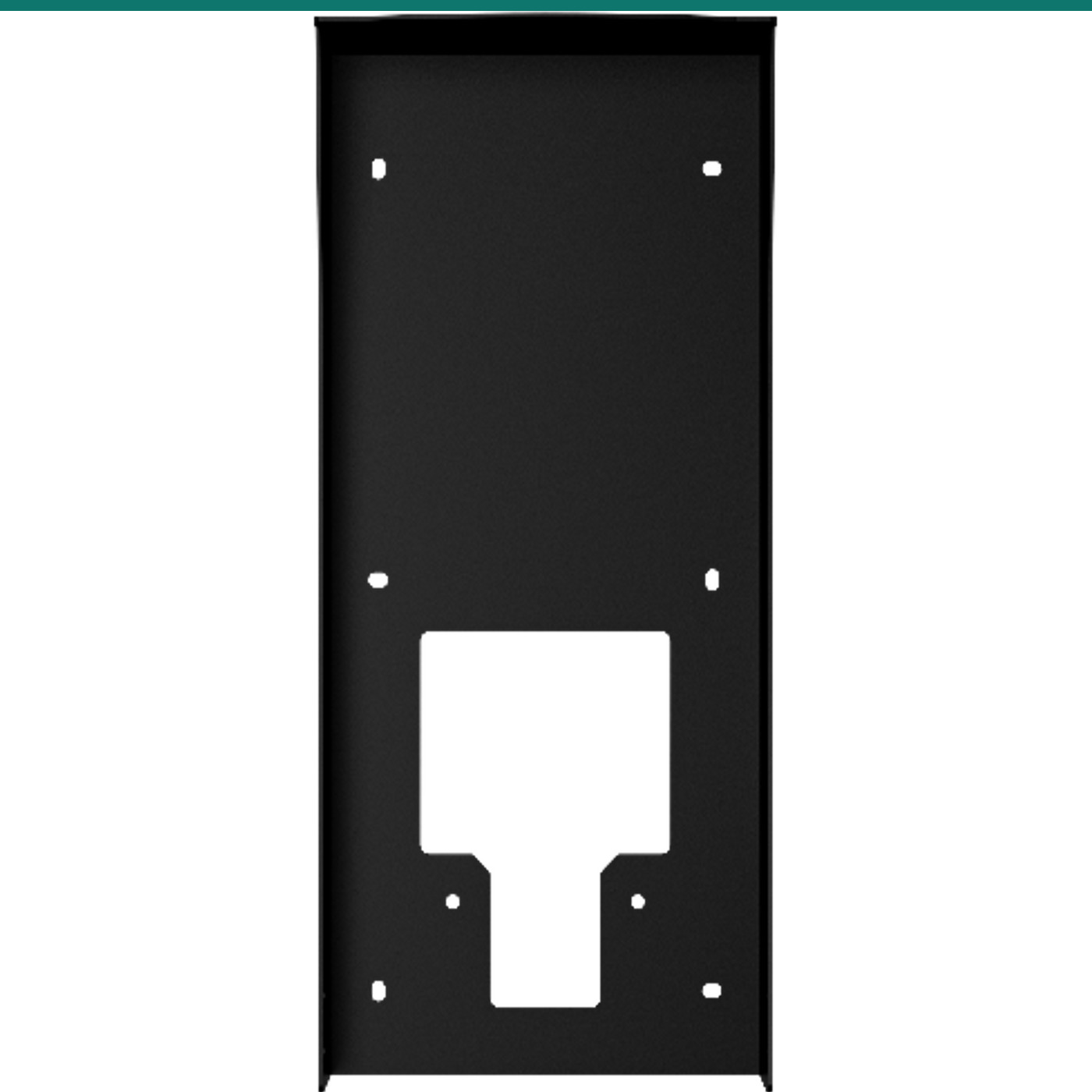

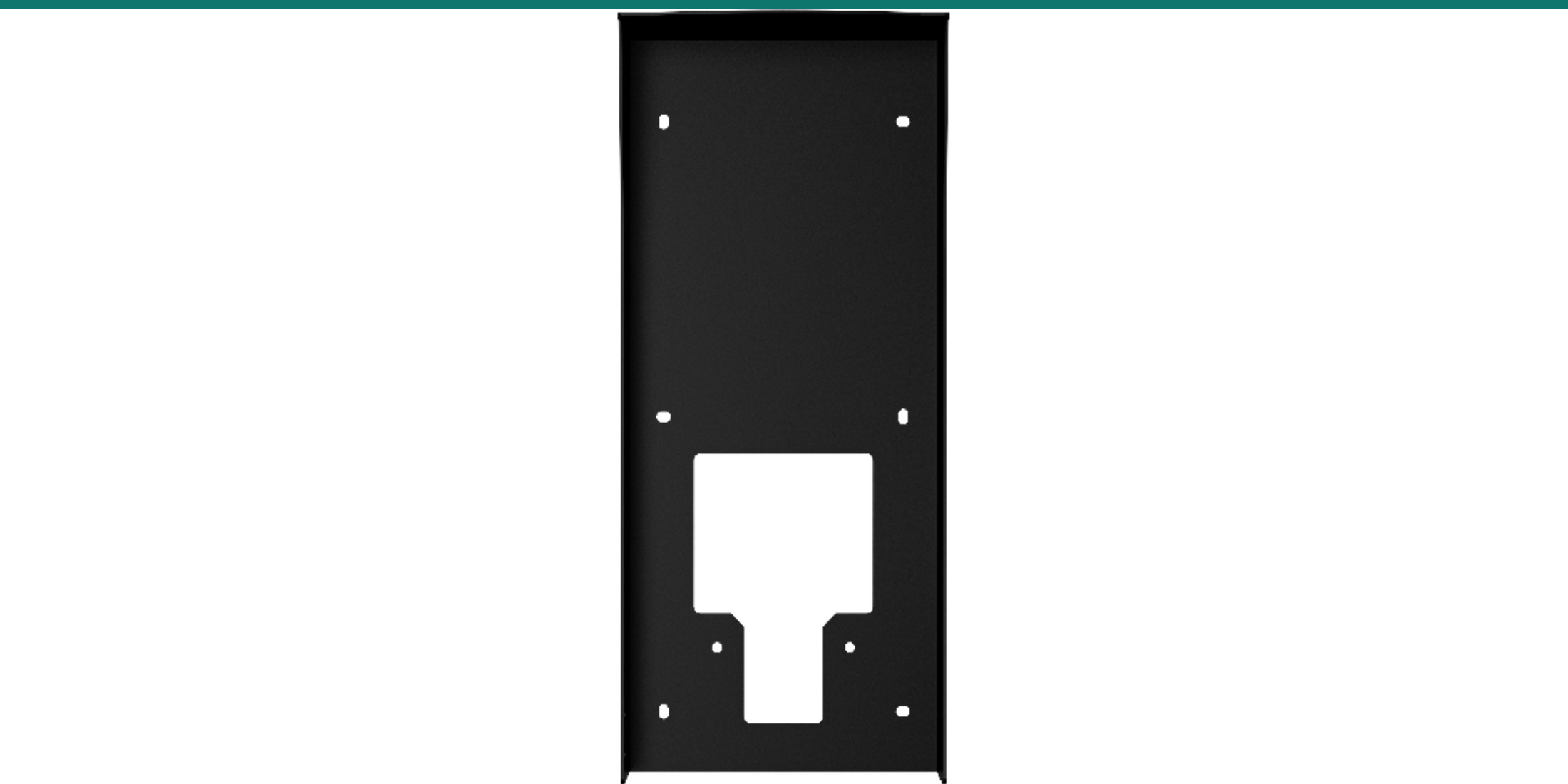

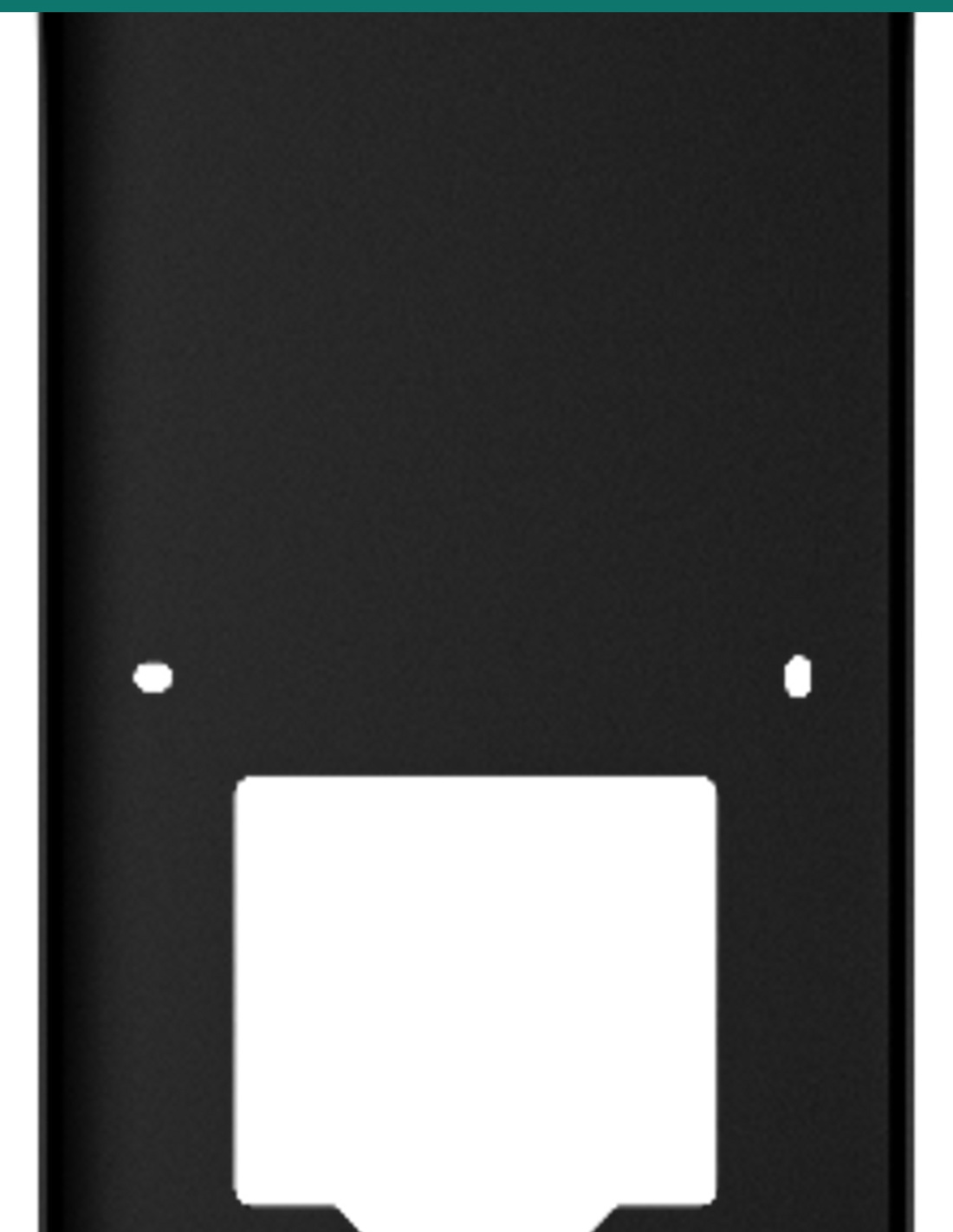

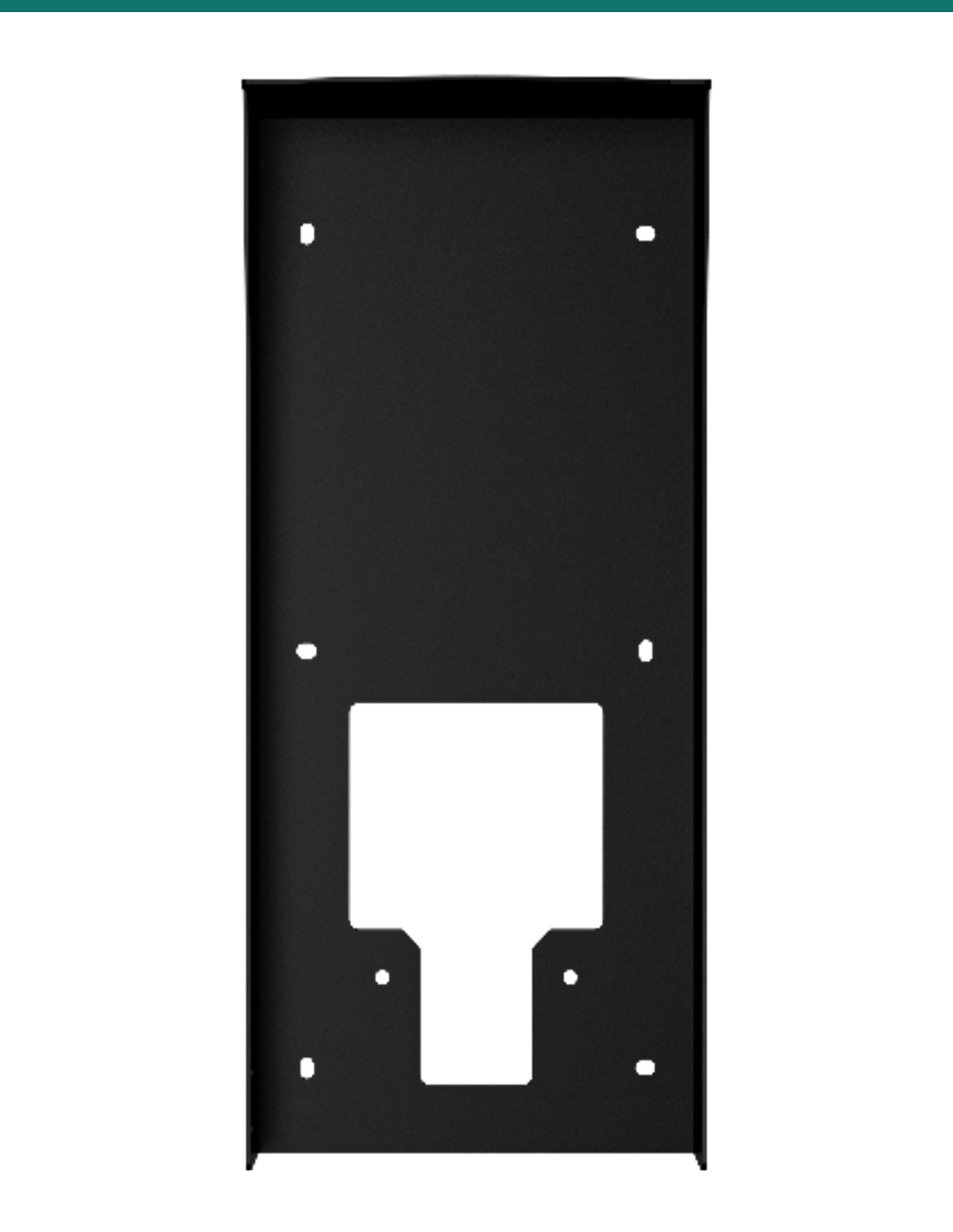

A single black piece: a back plate with a cable cut-out and fixing holes, and a hood that wraps the top and sides of the S538.

The plate’s fixing holes (108.3 mm apart, 123.3 mm spacing) match the S538 on-wall box, which mounts through it.

Fit

For the S538 on the wall.

It measures 306.7 × 141.4 mm and projects 51.4 mm at the top, tapering to 30.8 mm at the bottom — enough to shelter the 29 mm-deep S538 on its 16.3 mm plate.

It is not for flush installs — a recessed S538 uses the in-wall rain cover.

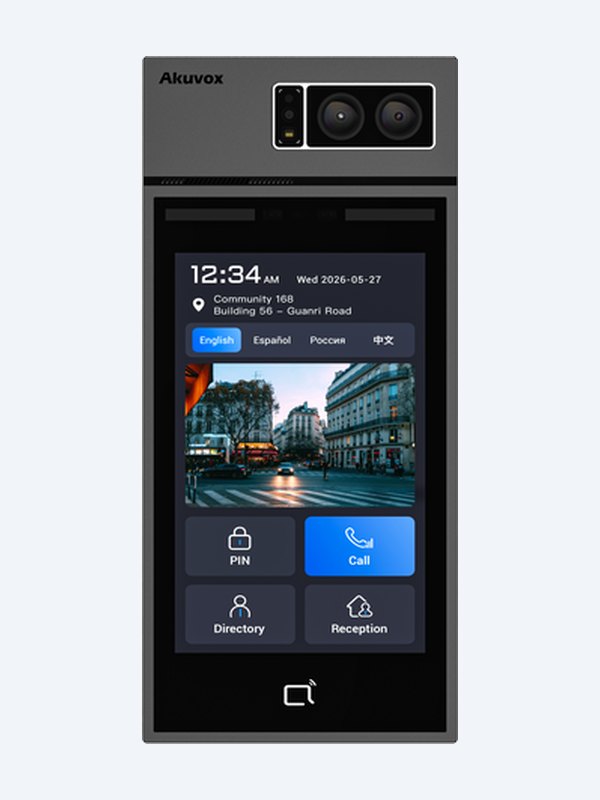

Akuvox S538 8-inch Android door phone

Pair it with

Fits the Akuvox S538

Door phone

Akuvox S538

8″ Android facial recognition door phone with 5 MP starlight camera.

Mounting

S538 on-wall installation kit

The surface plate the S538 hangs on; it mounts through the hood’s back plate.

Watch

See it in action

Installing the S538 door phone
Akuvox S538 tri-vision door phone overview

Downloads

Datasheets and guides

Compliance certificates and technical documents are available on request for tenders and installers — send an enquiry.

Answers

Common questions

Can I use it on a flush-mounted S538?

No. This is the on-wall cover. A recessed S538 uses the S538 in-wall rain cover.

Do I still need the on-wall kit?

Yes. The S538 hangs on the on-wall plate, which fixes to the wall through the hood’s back plate.

How far does it stick out?

51.4 mm at the top, tapering to 30.8 mm at the bottom.

Will it fit an S539 or S535?

No. It is sized to the S538 and its on-wall box. The S539 has its own on-wall rain hood.

Does it block the camera or screen?

No. The hood shelters the top and sides while the screen, cameras and card reader stay open at the front.

Is the door phone included?

No. This SKU is the rain cover only.

Protect exposed S538 installs.

Fit it wherever a surface-mounted S538 has no awning. Recessed S538 units use the S538 in-wall rain cover instead.

Construction
Back plate with hood over the top and sides
Colour
Black
Brand
Akuvox
Size
306.7 × 141.4 × 51.4 mm (H × W × D at the top)
Warranty
Australian warranty
Product Type
Rain cover (on-wall)
Model
S538 on-wall rain cover
Use With
S538 on-wall installation kit
Compatible with
Akuvox S538 door phone (surface-mounted)
Projection
51.4 mm at the top, 30.8 mm at the bottom
