Akuvox A15 Black In-Wall Installation Kit with Flush-Mounting Box — AK-A15INWALLK

SKU AK-A15INWALLK In Stock - Ready to Ship
$33.70 inc GST

Akuvox A15 in-wall installation kit recesses the A15 face-recognition terminal into the wall. You get the black flush-mounting box, two tabs that set it level with the wall surface, and the screws and anchors to fix it into a 166 × 48 × 40 mm cut-out.

  • ✓Black flush-mounting box, 164 × 46.5 × 38.4 mm
  • ✓Made for the Akuvox A15 access control terminal
  • ✓Wall cut-out 166 × 48 × 40 mm (H × W × D)
  • ✓Two mounting box tabs set the box flush with the wall


Akuvox · A15 · In-wall kit

Set the A15 into the wall.
Flush box, depth tabs and fixings.

The AK-A15INWALLK is the Akuvox flush-mounting kit for the A15. The box sits in a 166 × 48 × 40 mm recess and the A15 hooks onto it, so the terminal sits close to the wall instead of on the surface bracket that comes with it.

Mounting hardware only.

The kit holds everything to flush-mount one A15. The A15 terminal is a separate item; it comes with its own wall bracket, Torx screws and wrench.

In the box
  • Flush-mounting box (black)
  • 2 × mounting box tabs
  • 4 × M4×30 crosshead screws
  • 4 × ST4×20 crosshead screws
  • 4 × plastic wall anchors
What you also need (sold separately)
  • Akuvox A15 access control terminal
  • A 166 × 48 × 40 mm (H × W × D) wall recess with the cables inside
  • 6 mm drill, cement or filler for the gaps

Flush, tidy and harder to tamper with.

A recessed A15 keeps its cabling inside the wall, and the terminal is held to the box by Torx screws underneath.

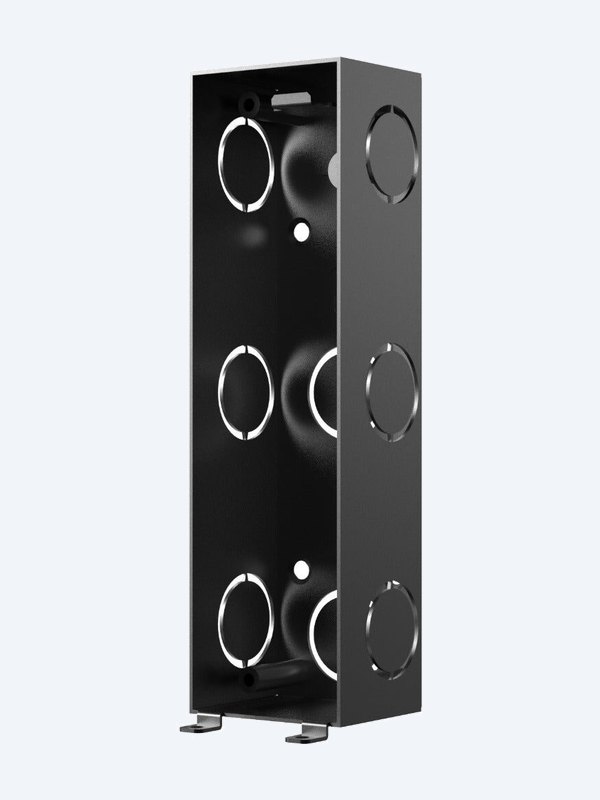

Akuvox A15 flush-mounting box

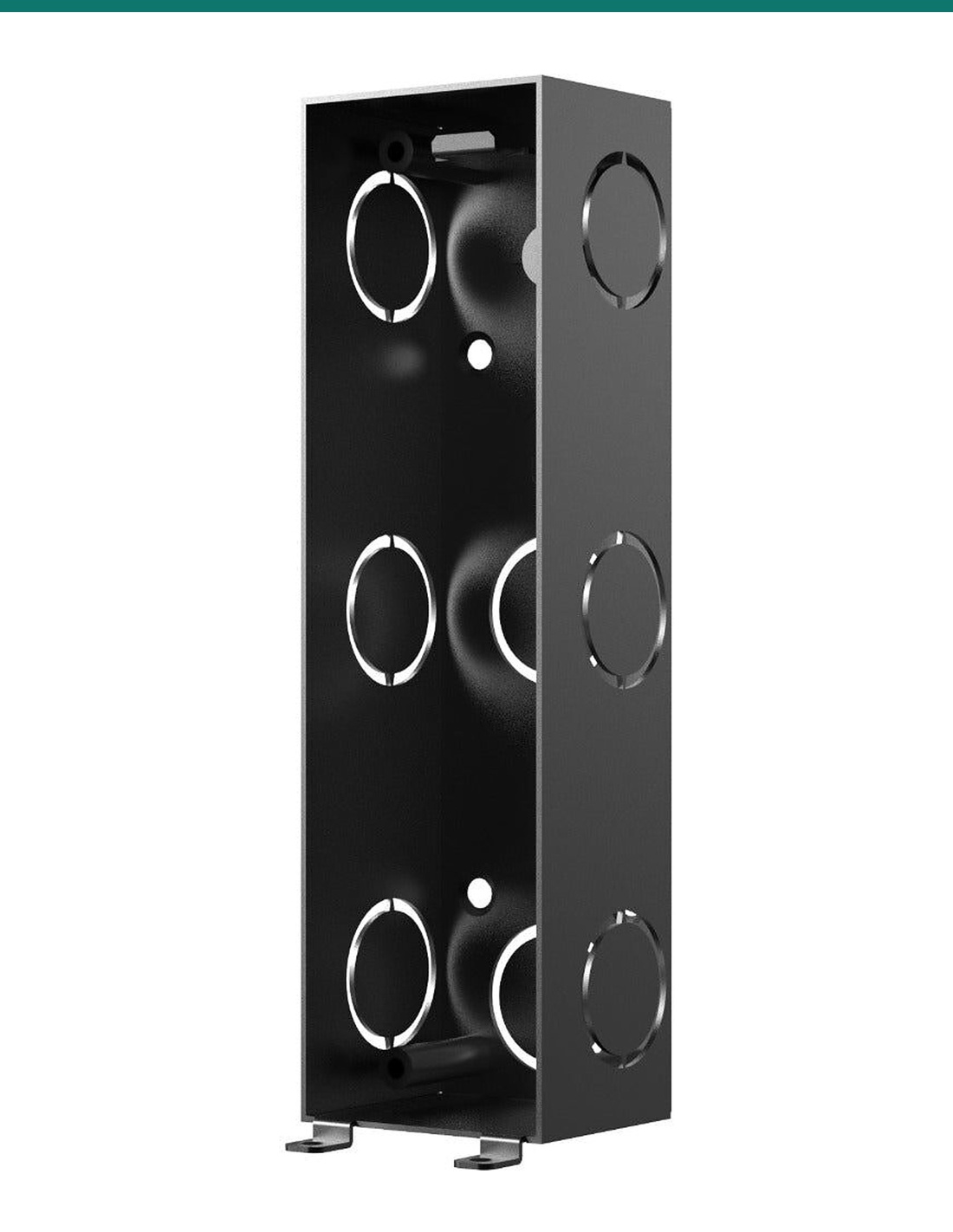

The box

Knockouts on every side.

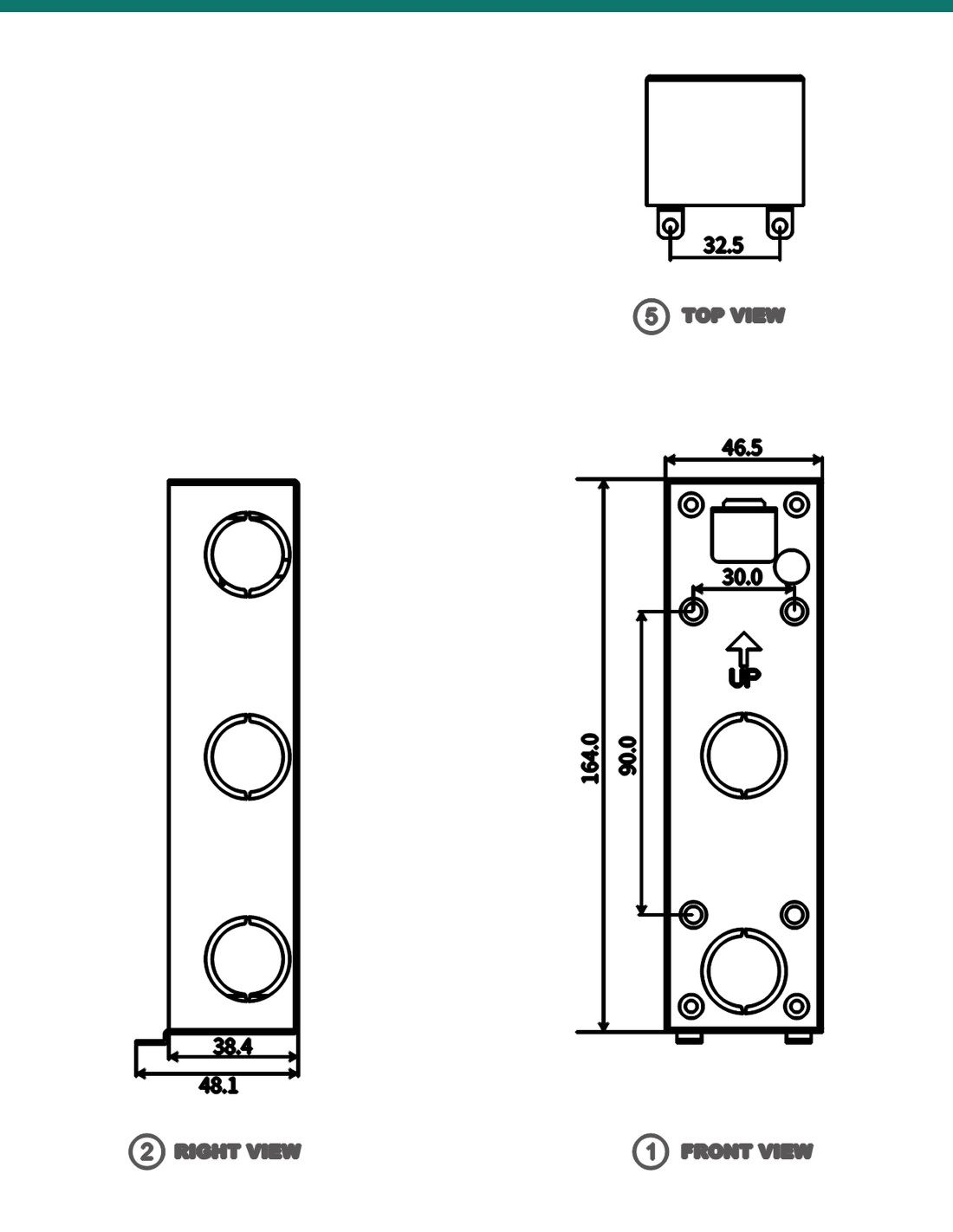

The box is 164 mm tall and 46.5 mm wide with 38.4 mm of depth, and has cable knockouts on both sides and the back.

The A15 hooks onto the hanger at the top of the box and its lower slots onto the hooks at the bottom, then two M3×6 Torx screws underneath hold it in.

How it works

From bare wall to flush terminal.

01

Cut and mark

Cut a 166 × 48 × 40 mm (H × W × D) recess where the cables come out, offer up the box and mark its four fixing holes. Drill them 6 mm wide and 20 mm deep and insert the anchors.

02

Set the depth

Screw the two mounting box tabs to the box with M4×30 screws, knock out the cable entries you need and press the box in until the tabs sit flat on the wall.

03

Fix and finish

Fix the box with four ST4×20 screws, fill the gaps with the wall material, then remove the tabs and check all four edges are flush before the A15 goes on.

Pair it with

Completes a flush A15 install

Terminal

Akuvox A15

The 4.59″ face-recognition mullion terminal this box is made for.

Downloads

Datasheets and guides

Compliance certificates and technical documents are available on request for tenders and installers — send an enquiry.

Answers

Common questions

Which terminal does it fit?

The Akuvox A15 face-recognition access control terminal.

What size hole do I need?

166 × 48 × 40 mm (H × W × D), with the cables already inside it. The box itself is 164 × 46.5 mm and 38.4 mm deep.

What are the mounting box tabs for?

They screw to the box with the M4×30 screws and rest on the wall face, so the box goes in at the right depth. Once the box is fixed and the gaps are filled, you unscrew them and check the box edges are flush with the wall.

How is the A15 held in the box?

The A15 hooks onto the box at the top and bottom, then two M3×6 Torx screws under the terminal lock it in. Those screws and the Torx wrench come with the A15.

What is in the box?

The flush-mounting box, two mounting box tabs, four M4×30 crosshead screws, four ST4×20 crosshead screws and four plastic wall anchors.

Do I need this kit to install an A15?

Only for a flush install. The A15 comes with a wall-mounting bracket for surface mounting.

The A15, set into the wall.

Use this kit when the A15 should sit recessed in the wall. For a surface install, the wall bracket that comes with the A15 is all you need.

Colour
Black
Brand
Akuvox
Product Type
Flush-mount installation kit
Model
A15 in-wall installation kit
Includes
Flush-mounting box, 2 mounting box tabs, screws, wall anchors
Compatible with
Akuvox A15
Wall Cut-out
166 × 48 × 40 mm (H × W × D)
Flush Box
164 × 46.5 × 38.4 mm (H × W × D)
