Dahua 4x2MP Panoramic IP Dome
Dahua Smart 4x2MP Panoramic IP PoE Dome Camera - DH-IPC-PDBW8802P-H-A180-E4-AC24V
Dahua Smart 4x2MP Panoramic IP PoE Dome Camera - DH-IPC-PDBW8802P-H-A180-E4-AC24V
Dahua 4x2MP Panoramic IP Dome
Dahua Smart 4x2MP Panoramic IP PoE Dome Camera - DH-IPC-PDBW8802P-H-A180-E4-AC24V
Dahua Smart 4x2MP Panoramic IP PoE Dome Camera - DH-IPC-PDBW8802P-H-A180-E4-AC24V

Dahua Smart 4x2MP Panoramic IP PoE Dome Camera - DH-IPC-PDBW8802P-H-A180-E4-AC24V

DH-IPC-PDBW8802P-H-A180-E4-AC24V
In Stock - Ready to Ship
$ 1,747.00
inc-GST
  • Four 1/1.8” 2Megapixel progressive scan CMOS
  • H.265/H.264 triple-stream encoding
  • Max 25fps@4096x1800
  • Support 180-degree panoramic view
  • Day/Night(ICR), 3DNR, AWB, AGC, BLC ,WDR
  • Smart detection
  • Intelligent Function
  • Max. IR LEDs length 30m
  • Micro SD memory, IP67, IK10,PoE+

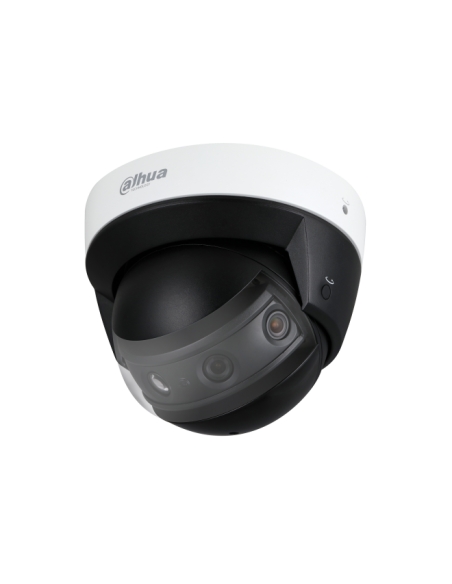

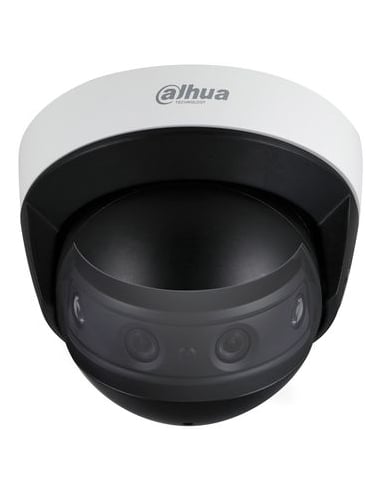

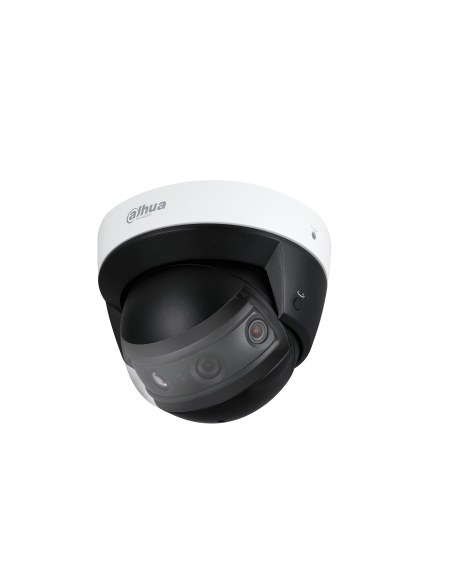

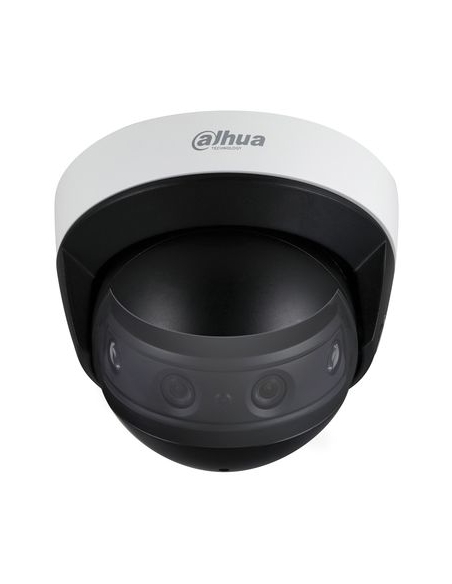

Dahua Smart 4x2MP Panoramic IP PoE Dome Camera



DH-IPC-PDBW8802P-H-A180-E4-AC24V



Panoramic Cameras provide coverage of a wide, horizontal area to detect the activity of people, and vehicles. Because of the wide-area coverage, a single panoramic IP camera can be an attractive alternative to purchasing and placing multiple cameras. This device is capable of a 180° panoramic view.





Features:

Records up to 2 Megapixel resolution.

Equipped with 4 x 5mm Fixed lens.

Supports up to 1920 × 1080 resolution.

Features up to H.265+ high-efficiency video encoding and Triple-Streaming.

Capable of up to 16x Digital Zoom.

120 dB Wide Dynamic Range (WDR). 3D Digital Noise Reduction (3D DNR). Day/Night Infrared Cut Removal (ICR). Auto White Balance (AWB). Automatic Gain Control (AGC). Backlight Compensation (BLC). Highlight Compensation (HLC). Region of Interest (ROI).

This device is capable of a 180° panoramic view.

Built-in Infrared LED, with a maximum range of 30 meters.

Supports Power-Over-Ethernet (PoE) installations.

Supports MicroSD Card Storage up to 128 Gigabytes.

Resilient "Weather-Proof" Ingress Protection Rating (IP67).

Durable "Vandal-Proof" Impact Protection Rating (IK10).

3 Years Back-to-Base Manufacturer Warranty!



True Day/Night

A day/night mechanical IR cut filter makes this camera ideal for applications with fluctuating lighting conditions, delivering color images during the day and automatically switching to monochrome as the scene darkens.



Starlight Technology

Featured with Dahua Starlight Technology, the camera is ideal for applications with challenging light conditions. Its low-light performance delivers usable video with minimal ambient light. Even in extremely low light conditions, Starlight Technology is capable of delivering colour images in nearly complete darkness.



Intelligent Video System (IVS)

Dahua camera is equipped with a built-in intelligent analytic algorithm based on the video, which can realize intelligent functions like Tripwire, Intrusion, Abandoned, Missing, and so on, to quickly and accurately respond to monitoring events in specific areas. It can enhance monitoring efficiency. In addition, the camera supports intelligent tamper detection, which is to generate warning messages via detecting dramatic scene change and to guarantee effective video surveillance.



Smart IR

With IR illumination, detailed images can be captured in low light or total darkness. The camera's Smart IR technology adjusts the intensity of the camera's infrared LEDs to compensate for the distance of an object. Smart IR technology prevents IR LEDs from whitening out images as they come closer to the camera. The camera's integrated infrared illumination provides high performance in extreme low-light environments up to 30m.



Smart Codec (H.265+ & H.264+)

Smart Codec is the optimized implementation of standard video compression (H.265 & H.264) that uses a scene-adaptive encoding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure and intelligent noise reduction to deliver high-quality video without straining the network. Smart Codec technology reduces bit rate and storage requirements by up to 70% when compared to standard video compression.



Protection (IP67, IK10, wide voltage)

Supporting ±25% input voltage tolerance, this camera suits even the most unstable conditions for outdoor applications. Its 6KV lightning rating provides effective protection for both the camera and its structure against lightning. Subjected and certified to rigorous dust and immersion tests (IP67) and impact tests (IK10), The camera complies with an IK10 impact rating making it capable of withstanding the equivalent of 5 kg (11.02 lbs) of force dropped from a height of 40 cm (15.75 in.)



Environmental

Standard Dahua camera can function from -30°C to +60°C(-22 °F to +140°F) with 95% humility, meanwhile, some models support a heater module optional which allows the camera to function from -40°Cto +60°C (-40 °F to +140 °F). With a temperature range of -40 °C to +60 °C, the camera is designed for extreme temperature environments.



Tech Specs:

Camera

Image Sensor

Four 1/1.8” 2Megapixel progressive scan CMOS

Effective Pixels

4096(H)x1800(V)

RAM/ROM

1024MB/128MB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual, 1/3~1/100000s

Minimum Illumination

0.005Lux/F2.2( Color,1/3s,30IRE)

0.03Lux/F2.2( Color,1/30s,30IRE)

0Lux/F2.2(IR on)

S/N Ratio

More than 50dB

IR Distance

Distance up to 30m(98ft)

IR On/Off Control

Auto/ Manual

IR LEDs

6

Lens

Lens Type

Fixed

Mount Type

Board-in

Focal Length

5.0mm

Max. Aperture

F2.2

Angle of View

H: 180˚, V:80˚

Optical Zoom

N/A

Focus Control

Fixed

Close Focus Distance

N/A

DORI Distance

Detect

Observe

Recognize

Identify

53m

21m

10m

5m

Pan/Tilt/Rotation

Pan/Tilt/Rotation Range

Pan:0˚~355˚; Tilt:0˚~75˚; Rotation:±20˚

Intelligence

Event Trigger

Motion detection, Video tampering, Scene changing, Network disconnection, IP address conflict, Illegal Access,Storage anomaly

IVS

Tripwire, Intrusion, Object Abandoned/Missing

Advanced Intelligent Functions

Heat Map, E-PTZ

Video

Compression

H.265/H.264/H.264B/H.264H/MJPEG(Sub Stream)

Smart Codec

Support H.265+/H.264+

Streaming Capability

3 Streams

Resolution

4096×1800/3840×1680/2880×1264/

/1920x832/1280x560/1024X452

Frame Rate

Main Stream: 4096x1800 (1~25fps)

Sub Stream: 1024X452 (1 ~ 25fps)

Third Stream: 1920x832 (1 ~ 25fps)

Bit Rate Control

CBR/VBR

Bit Rate

H.265: 9Kbps~ 9472Kbps

H.264: 24Kbps~ 15616Kbps

Day/Night

Auto(ICR) / Color / B/W

BLC Mode

BLC / HLC / WDR(120dB)

White Balance

Auto/Natural/Street Lamp/Outdoor/Manual

Gain Control

Auto/Manual

Noise Reduction

3D DNR

Motion Detection

Off / On (4 Zone, Rectangle)

Region of Interest

Off / On (4 Zone)

Electronic Image Stabilization(EIS)

N/A

Smart IR

Support

Defog

N/A

Digital Zoom

16x

Flip

N/A

Mirror

N/A

Privacy Masking

Off / On (4 Area, Rectangle)

Audio

Compression

G.711a/G.711Mu/AAC/ G.726

Network

Ethernet

RJ-45 (100/1000Base-T)

Protocol

HTTP; HTTPS; TCP;ARP; RTSP;RTP; UDP;RTCP; SMTP;

FTP;DHCP;DNS;DDNS;PPPOE;IPv4/v6;QoS;UPnP;

NTP; Bonjour; IEEE 802.1x; Multicast; ICMP; IGMP; SNMP; TLS

Interoperability

ONVIF Profile S&G, API

Streaming Method

Unicast / Multicast

Max. User Access

10 Users/20 Users

Edge Storage

NAS

Local PC for instant recording

Micro SD card 128GB

Web Viewer

IE, Chrome, Firefox, Safari

Management Software

Smart PSS, DSS, DMSS

Smart Phone

IOS, Android

Certifications

Certifications

CE (EN 60950:2000)

UL: UL60950-1

FCC: FCC Part 15 Subpart B

Interface

Video Interface

1 Port(For adjustment only)

Audio Interface

1/1 channel In/Out

RS485

N/A

Alarm

2 channel In 5mA 5VDC

2 channel Out: 1A 30VDC / 0.5A 50VAC

Electrical

Power Supply

AC24V, PoE+(802.3at)(Class 4)

Power Consumption

<25.5W

Environmental

Operating Conditions

-40° C ~ +60° C (-40° F ~ +140° F) / Less than 95% RH

Storage Conditions

-40° C ~ +60° C (-40° F ~ +140° F) / Less than 95% RH

Ingress Protection

IP67

Vandal Resistance

IK10

Construction

Casing

Metal

Dimensions

Φ212mm×169.5mm(Φ8.35×6.67)

Net Weight

3.6kg(7.9lb)

Gross Weight

4.6kg(10.1lb)
