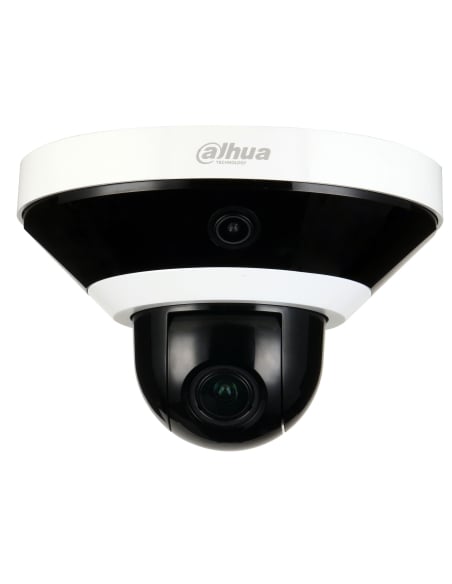

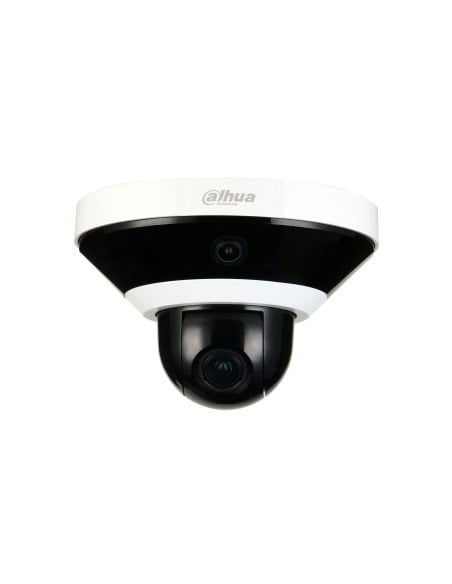

Dahua 3x2MP Multi-Sensor Network Camera+PTZ DH-IPC-PSDW5631S-B360

Dahua 3x2MP Multi-Sensor Network Camera+PTZ Camera Panoramic - DH-IPC-PSDW5631S-B360

Name: Dahua 3x2MP Multi-Sensor Network Camera+PTZ Camera Panoramic - DH-IPC-PSDW5631S-B360
Brand: Dahua Australia
SKU: DH-IPC-PSDW5631S-B360
Price: 589.9 AUD
Availability: InStock

Reference DH-IPC-PSDW5631S-B360

In Stock - Ready to Ship

$ 589.90

inc-GST

Dahua 3x2MP Multi-Sensor Network H.265 PTZ Camera
Panoramic: Three 1/2.7'' 2Megapixel progressive scan CMOS
PTZ: 1/2.7'' 2Megapixel progressive scan CMOS
H.265/H.264 dual-stream encoding
25fps@1920x1080
Support 360-degree no-splicing panoramic view
Day/Night (ICR), 3DNR, AWB, AGC, BLC
Max IR LEDs Length 15m
Micro SD card slot, up to 256GB
PoE+

Dahua 3x2MP Multi-Sensor Network Camera+PTZ Camera Panoramic

DH-IPC-PSDW5631S-B360

Panoramic Cameras provide coverage of a wide, horizontal area to detect the activity of people, and vehicles. Because of the wide-area coverage, a single panoramic IP camera can be an attractive alternative to purchasing and placing multiple cameras. This device is capable of a 360° panoramic view.

Dahua's Pan-Tilt-Zoom cameras are designed to allow better monitoring through remotely controlling the direction of the device. PTZ cameras are often equipped with powerful zoom capabilities to improve in-demand visual clarity for points or targets of interest. Through advanced video algorithms, Dahua's Intelligent Video Surveillance (IVS) technology supports smart functions such as Tripwire and Intrusion Detection.

Features:

Records up to 2 Megapixel resolution.

Equipped with a 3 x 2mm Fixed lens and a 2.7~13.5mm Motorized PTZ lens.

Supports up to 1920 × 1080 resolution.

Features up to H.265+ high-efficiency video encoding and Dual-Streaming.

Intelligent Video Surveillance (IVS) technology supports smart functions such as Tripwire and Intrusion Detection.

Pan-Tilt-Zoom allows remotely controlling the direction and the zoom to provide in-demand coverage towards points of interest.

Capable of up to 16x Digital Zoom and up to 5x Optical Zoom.

Digital Wide Dynamic Range (DWDR). 3D Digital Noise Reduction (3D DNR). Day/Night Infrared Cut Removal (ICR). Auto White Balance (AWB). Automatic Gain Control (AGC). Backlight Compensation (BLC). Highlight Compensation (HLC). Region of Interest (ROI).

This device is capable of a 360° panoramic view.

Built-in Infrared LED, with a maximum range of 15 meters.

Supports Power-Over-Ethernet (PoE) installations.

Supports MicroSD Card Storage up to 256 Gigabytes.

3 Years Back-to-Base Manufacturer Warranty!

Panoramic

Panoramic cameras provide 180 °, 360 ° full range of video scenes, bringing people a new sense of real live and interactive experience. Dahua provides two kinds of panoramic cameras, a single sensor fisheye camera and a multi-sensor camera, both of them can offer 180-degree & 360-degree panoramic images. Through working together with PTZ camera which offers whole scene and region details at the same time. It provided a new surveillance experience to end-user and improved the surveillance quality.

True Day/Night

A day/night mechanical IR cut filter makes this camera ideal for applications with fluctuating lighting conditions, delivering color images during the day and automatically switching to monochrome as the scene darkens.

HEVC (H.265)

H.265 ITU-T VCEG is a new video coding standard. H.265 Following standards developed around the existing video coding standard H.264, some retain the original technology, while some of the relevant technology to improve the new technology uses advanced technology to improve the relationship between the code stream, encoding quality, and the delay between algorithm complexity, optimize settings specific contents include: Improve compression efficiency, improving the robustness and error recovery capabilities, real-time to reduce the delay, reduce channel acquisition time and a random access delay, reduce complexity, etc

Smart H.265+

Deliver high-quality video without straining the network, Smart H.265+ is the optimized implementation of H.265. The Smart H.265+ encoding technology includes a scene adaptive encoding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure and intelligent noise reduction, providing saving of up to 70% of bandwidth and storage when compared with standard H.265.

Tech Specs:

Panoramic Camera

Image Sensor

Three 1/2.7” 2Megapixel CMOS

Effective Pixels

3x1920(H)x1080(V)

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual, 1/3~1/100000s

Minimum Illumination

0.03Lux/F2.2( Color,1/3s,30IRE)

0.2Lux/F2.2( Color,1/30s,30IRE)

0.03Lux/F2.2( B/W,1/3s,30IRE)

0.2Lux/F2.2( B/W,1/30s,30IRE)

IR Distance

Distance up to 15m

IR On/Off Control

Auto/ Manual

IR LEDs

Panoramic Lens

Lens Type

Fixed

Mount Type

Board-in

Focal Length

2mm

Aperture Type

Fixed

Max. Aperture

F2.2

Angle of View

H: 136˚, V:78˚

DORI Distance

Detect

Observe

Recognize

Identify

30m

12m

PTZ Camera

Image Sensor

1/2.7” 2Megapixel CMOS

Effective Pixels

1920(H)x1080(V)

RAM/ROM

1024MB/128MB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual, 1~1/30000s

Minimum Illumination

0.02Lux/F1.8 (Color,1/3s,30IRE)

0.1Lux/F1.8 (Color,1/30s,30IRE)

0.02Lux/F1.8 (B/W,1/3s,30IRE)

0.2Lux/F1.8 (B/W,1/30s,30IRE)

PTZ Lens

Lens Type

Motorized

Mount Type

Board-in

Focal Length

2.7mm~13.5mm

Aperture Type

Auto

Max. Aperture

F1.8

Angle of View

H: 105.9˚~33.3˚, V: 56˚~18.7˚

Optical Zoom

DORI Distance

Lens

Detect

Observe

Recognize

Identify

44m

18m

4.5m

133m

53m

26m

13m

PTZ

Pan/Tilt Range

Pan: 0° ~ 355° endless; Tilt: 0° ~ 80°

Manual Control Speed

Pan: 32° ~51° /s; Tilt: 22° ~40° /s

Presets Speed

Pan: 51° /s ; Tilt: 40° /s

Presets

Speed Setup

Human-oriented focal Length/ speed adaptation

Power up Action

Auto restore to previous PTZ and lens status after power failure

Protocol

DH-SD, Pelco-P/D (Auto-recognition)

Intelligence

IVS

Tripwire, Intrusion

Video

Compression

H.265/H.264/H.264B/H.264H/MJPEG(sub stream)

Smart Codec

Support H.265+/H.264+

Streaming Capability

2 Streams

Resolution

Panoramic Camera

1080P(1920x1080)/ 1.3M(1280x960)/ 720P(1280x720)/ D1(704×576/704x480)/ VGA(640×480)/CIF(352×288/352x240)

PTZ Camera

1080P(1920x1080)/ 1.3M(1280x960)/ 720P(1280x720)/ D1(704×576/704x480)/ VGA(640×480)/CIF(352×288/352x240)

Frame Rate

Panoramic Camera

Main Stream: 1080P(1~25fps)

Sub Stream: D1(1 ~ 25fps)

PTZ Camera

Main Stream: 1080P(1~25fps)

Sub Stream: D1(1~25fps)

Bit Rate Control

CBR/VBR

Bit Rate

Panoramic Camera

H.265: (16Kbps~ 6144Kbps)
H.264: (32Kbps~ 8192Kbps)

PTZ Camera

H.265: 4Kbps~ 8192Kbps
H.264: 8Kbps~ 7168Kbps

Day/Night

Auto(ICR) / Color / B/W

BLC Mode

BLC / HLC / DWDR

White Balance

Auto/Natural/Street Lamp/Outdoor/Manual

Gain Control

Auto/Manual

Noise Reduction

3D DNR

Motion Detection

Off / On (4 Zone, Rectangle)

Region of Interest

Off / On (4 Zone)

Electronic Image Stabilization(EIS)

N/A

Smart IR

N/A

Defog

N/A

Digital Zoom

16x

Flip

0°/90°/180°/270°

Mirror

Support

Privacy Masking

Panoramic Camera

Off / On (4 Area, Rectangle)

PTZ Camera

Off / On (24 Area, Rectangle)

Audio

Compression

G.711a/G.711Mu/AAC/ G.726

Network

Ethernet

RJ-45 (100/1000Base-T)

Protocol

HTTP;HTTPS;TCP;ARP;RTSP;RTP;UDP;SMTP;FTP;DHCP;DNS;DDNS;PPPOE;IPv4/v6;QoS;UPnP;NTP;

Bonjour;802.1x;Multicast;ICMP;IGMP;SNMP

Interoperability

ONVIF Profile T, CGI

Streaming Method

Unicast / Multicast

Max. User Access

10 Users/20 Users

Edge Storage

NAS

Local PC for instant recording

Micro SD card 256GB

Web Viewer

IE, Chrome, Firefox, Safari

Management Software

Smart PSS, DSS, DMSS

Smart Phone

IOS, Android

Certifications

CE: EN 60950-1

UL: UL60950-1

FCC: FCC Part 15 Subpart B

Interface

Video Interface

N/A

Audio Interface

1/1 channel In/Out

RS485

1 Port

Alarm

3 channel In 5mA 5VDC

2 channel Out 300mA 12V

Electrical

Power Supply

DC12V(±30%), PoE(802.3at)(Class 4)

Power Consumption

DC12V:7.2W 14.8W(IR+PTZ+Zoom)

PoE:7.4W 16.1W(IR+PTZ+Zoom)

Environmental

Operating Conditions

-10° C ~ +50° C (14° F ~ +122° F) / Less than 95% RH

Strorage Conditions

-10° C ~ +50° C (-14° F ~ +122° F) / Less than 95% RH

Ingress Protection

N/A

Vandal Resistance

N/A

Construction

Casing

Metal+Plastic

Dimensions

Φ172mm×123.4mm(Φ6.77”×4.86”)

Net Weight

0.78kg(1.72lb)

Gross Weight

1.13kg(2.5lb)

DH-PSDW5631S-B360 Datasheet

Dahua 3x2MP Multi-Sensor Network Camera+PTZ Camera Panoramic DH-PSDW5631S-B360 Datasheet (PDF)

Download (524.49KB)

Quick Start Guide

Dahua DH-IPC-PSDW5631S-B360 Quick Start Guide (PDF)

Download (1.53MB)

Operation Manual

Dahua DH-IPC-PSDW5631S-B360 Operation Manual (PDF)

Download (6.93MB)
