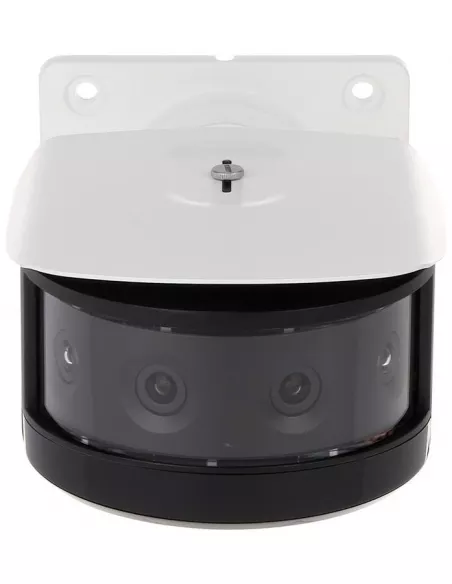

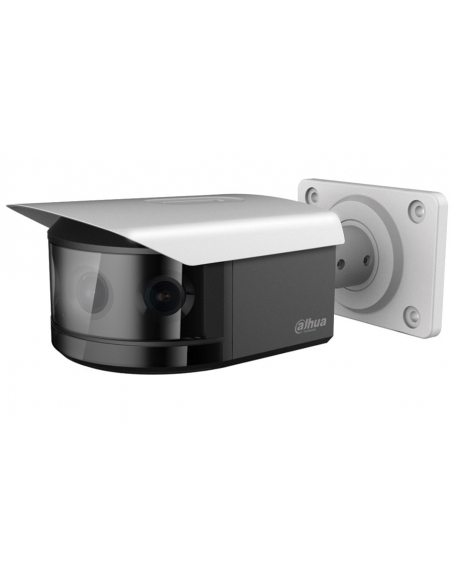

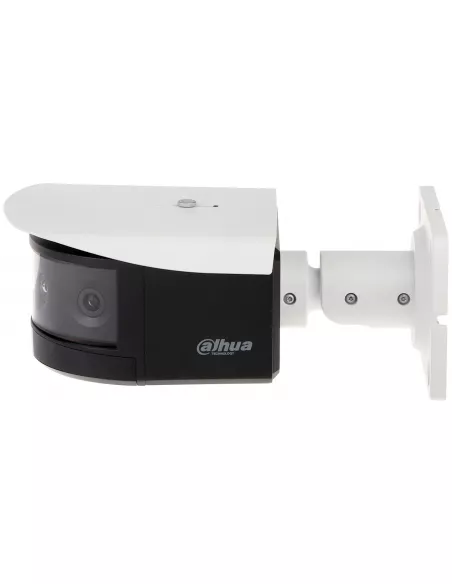

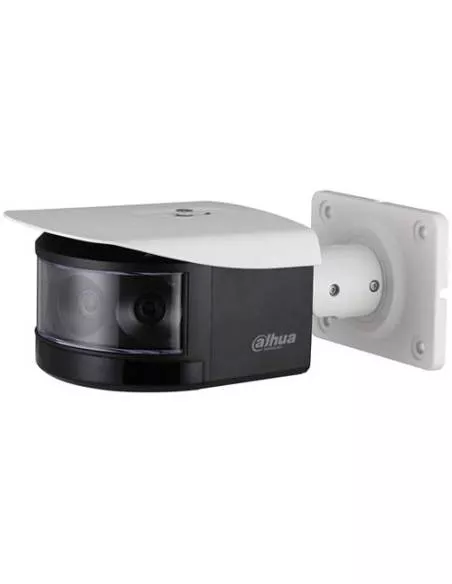

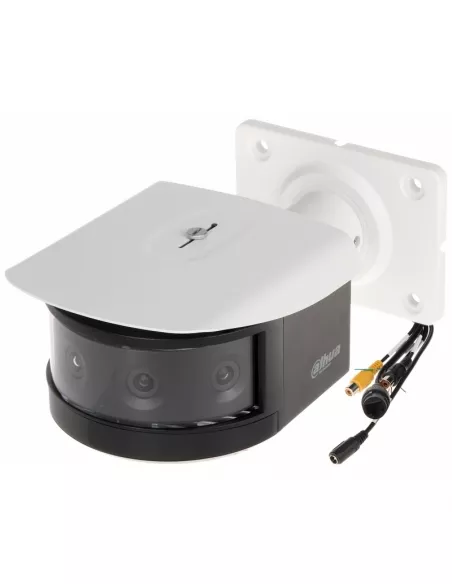

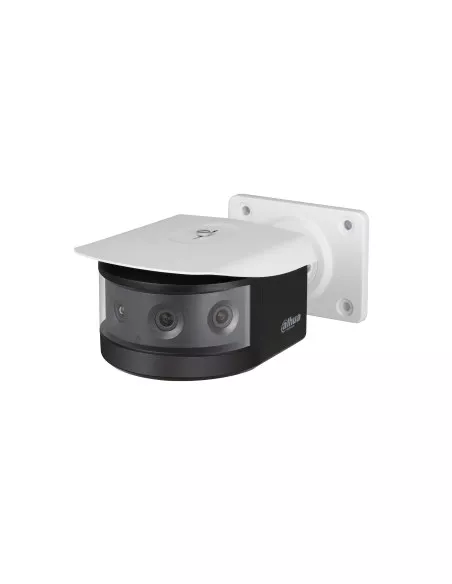

Dahua HD Multi-Sensor 4x2MP Panoramic Viewing IP PoE Bullet Camera - DH-IPC-PFW8802P-H-A180-E4-AC24V

Dahua HD Multi-Sensor 4x2MP Panoramic Viewing IP PoE Bullet Camera



DH-IPC-PFW8802P-H-A180-E4-AC24V



Panoramic Cameras provide coverage of a wide, horizontal area to detect the activity of people, and vehicles. Because of the wide-area coverage, a single panoramic IP camera can be an attractive alternative to purchasing and placing multiple cameras. This device is capable of a 180° panoramic view.

Through advanced video algorithms, Dahua's Intelligent Video Surveillance (IVS) technology supports smart functions such as Tripwire, Abandoned Object, Missing Object, Face Detection, and Intrusion Detection.



Features:

Records up to 2 Megapixel resolution.

Equipped with 4 x 5mm Fixed lens.

Supports up to 1920 × 1080 resolution.

Features up to H.265+ high-efficiency video encoding and Triple-Streaming.

Capable of up to 16x Digital Zoom.

This device is capable of a 180° panoramic view.

Intelligent Video Surveillance (IVS) technology supports smart functions such as Tripwire, Abandoned Object, Missing Object, Face Detection, and Intrusion Detection.

120 dB Wide Dynamic Range (WDR). 3D Digital Noise Reduction (3D DNR). Day/Night Infrared Cut Removal (ICR). Auto White Balance (AWB). Automatic Gain Control (AGC). Backlight Compensation (BLC). Highlight Compensation (HLC). Region of Interest (ROI).

Supports Heatmap, useful for business analytics to determine high-density foot traffic areas.

Built-in Infrared LED, with a maximum range of 30 meters.

Intelligent Event Triggers: Motion detection, Video Tampering, Scene

Changing, Network Disconnection, IP Address

Conflict, Illegal Access, Storage anomaly.

Supports Power-Over-Ethernet (PoE) installations.

Supports MicroSD Card Storage up to 128 Gigabytes.

Resilient "Weather-Proof" Ingress Protection Rating (IP67).

Durable "Vandal-Proof" Impact Protection Rating (IK10).

3 Years Back-to-Base Manufacturer Warranty!



True Day/Night

A day/night mechanical IR cut filter makes this camera ideal for applications with fluctuating lighting conditions, delivering color images during the day and automatically switching to monochrome as the scene darkens.



Starlight Technology

Featured with Dahua Starlight Technology, the camera is ideal for applications with challenging light conditions. Its low-light performance delivers usable video with minimal ambient light. Even in extremely low light conditions, Starlight Technology is capable of delivering colour images in nearly complete darkness.



Intelligent Video System (IVS)

Dahua camera is equipped with a built-in intelligent analytic algorithm based on the video, which can realize intelligent functions like Tripwire, Intrusion, Abandoned, Missing, and so on, to quickly and accurately respond to monitoring events in a specific area. It can enhance monitoring efficiency. In addition, the camera supports intelligent tamper detection, which is to generate warning messages via detecting dramatic scene change and to guarantee effective video surveillance.



Smart IR

With IR illumination, detailed images can be captured in low light or total darkness. The camera's Smart IR technology adjusts the intensity of the camera's infrared LEDs to compensate for the distance of an object. Smart IR technology prevents IR LEDs from whitening out images as they come closer to the camera. The camera's integrated infrared illumination provides high performance in extreme low-light environments up to 30m.



Smart Codec (H.265+ & H.264+)

Smart Codec is the optimized implementation of standard video compression (H.265 & H.264) that uses a scene-adaptive encoding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure and intelligent noise reduction to deliver high-quality video without straining the network. Smart Codec technology reduces bit rate and storage requirements by up to 70% when compared to standard video compression.



Protection (IP67, IK10, wide voltage)

Supporting ±25% input voltage tolerance, this camera suits even the most unstable conditions for outdoor applications. Its 6KV lightning rating provides effective protection for both the camera and its structure against lightning. Subjected and certified to rigorous dust and immersion tests (IP67) and impact tests (IK10), The camera complies with an IK10 impact rating making it capable of withstanding the equivalent of 5 kg (11.02 lbs) of force dropped from a height of 40 cm (15.75 in.)



Environmental

Standard Dahua camera can function from -30°C to +60°C(-22 °F to +140°F) with 95% humility, meanwhile, some models support a heater module optional which allows the camera to function from -40°Cto +60°C (-40 °F to +140 °F). With a temperature range of -40 °C to +60 °C, the camera is designed for extreme temperature environments.



Tech Specs:

Camera

Image Sensor

1/2.8”4 × 2Megapixel progressive CMOS

Max. Resolution

4096 (H) × 1800 (V)

ROM

4 GB

RAM

2 GB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100,000 s

Min. Illumination

0.002 [email protected] (Color, 30IRE) 0.0002 [email protected] (B/W, 30IRE) 0 Lux (Illuminator on)

S/N Ratio

>56 dB

Illumination Distance

30 m (IR LED)

Illuminator On/Off Control

Auto/Manual

Illuminator Number

8 (IR LED)

Pan/Tilt/Rotation Range

Pan: 0°–355° Tilt: 0°–90° Rotation:0°–360°

Lens

Lens Type

Fixed-focal

Mount Type

M12

Focal Length

2.8 mm

Max. Aperture

F1.6

Field of View

Horizontal: 180°; Vertical: 90°

Iris Type

Fixed

Close Focus Distance

0.6 m

DORI Distance

Detect

Observe

Recognize

Identify

38.6 m

15.4 m

7.7m

3.9 m

Professional, intelligent

Vehicle Density

Vehicle density; parking upper limit; vehicle congestion alarm

Crowd Distribution Map

Crowd map, global people counting; people counting in the area

General Intelligence

IVS

Tripwire; intrusion

Video

Video Compression

H.265; H.264; H.264H; H.264B; MJPEG (only supported by the substream)

Smart Codec

Smart H.265+/ Smart H.264+

Video Frame Rate

Mainstream: 4096 × 1800 (1–25/30 fps) Substream: 1024 × 452 (1–25/30 fps) Third stream: 1920 × 832 (1–25/30 fps)

Stream Capability

3 streams

Resolution

4096 × 1800; 3840 × 1680; 2880 × 1264; 1024 × 452; 1920 × 832; 1280 × 560

Bit Rate Control

CBR/VBR

Video Bit Rate

H.264: 9 kbps–17664 kbps H.265: 9 kbps–17664 kbps

Day/Night

Auto (ICR)/Color/B/W

BLC

Yes

HLC

Yes

WDR

DWDR

Scene Self-adaptation (SSA)

Yes

White Balance

Auto/natural/street lamp/outdoor/manual/regional custom

Gain Control

Auto/Manual

Noise Reduction

3D NR

Motion Detection

OFF/ON (4 areas, rectangular)

Region of Interest (RoI)

Yes (4 areas)

Smart Illumination

Yes

Defog

Yes

Privacy Masking

4 areas

Audio

Audio Compression

G.711A; G.711Mu; G.726; G.723

Alarm Event

Alarm Event

No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; scene changing; audio detection; intensity change; voltage detection; external alarm; safety exception; crowd distribution map; vehicle congestion; parking upper limit

Network

Network

RJ-45 (10/100/1000 Base-T)

SDK and API

Yes

Cyber Security

Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; Syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade

Protocol

IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; 802.1x; SNMP; Bonjour

Interoperability

ONVIF (Profile S/Profile G/Profile T); CGI; P2P; Milestone; Genetec

User/Host

20 (Total bandwidth: 80 M)

Storage

FTP; SFTP; Micro SD card (support max. 256 G); NAS

Browser

IE: IE9 and later Chrome: 50 and later Firefox: 48 and later

Management Software

Smart PSS; DSS; DMSS

Mobile Phone

IOS; Android

Certification

Certifications

CE-LVD: EN62368-1 CE-EMC: Electromagnetic Compatibility Directive FCC: 47 CFR FCC Part 15, Subpart B UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07

Port

RS-485

1 (baud rate range: 1200 bps–115200 bps)

Audio Input

1 channel (RCA port)

Audio Output

1 channel (RCA port)

Alarm Input

2 channels in: 5mA 3V–5V DC

Alarm Output

2 channels out: 1,000mA 30V DC/500mA 50V DC

Power

Power Supply

12V DC/24V AC/PoE+ (802.3at)

Power Consumption

Basic power consumption: 5W (12V DC); 6.3W(24V AC); 6.3W (PoE) Max. power consumption (ICR + IR LED): 13.7W (12V DC);16.2W(24V AC); 16.2W (PoE)

Environment

Operating Conditions

–40°C to +60°C/Less than 95% RH

Storage Temperature

–40°C to +60°C (–40°F to +140°F)

Protection Grade

IP67; IK10

Construction

Casing

Metal + plastic

Dimensions

298.3 mm × 172.5 mm × 120.5 mm (11.74" × 6.79"× 4.74") (L × W × H)

Net Weight

2.86 kg (6.31 lb)

Gross Weight

3.35 kg (7.39 lb)
