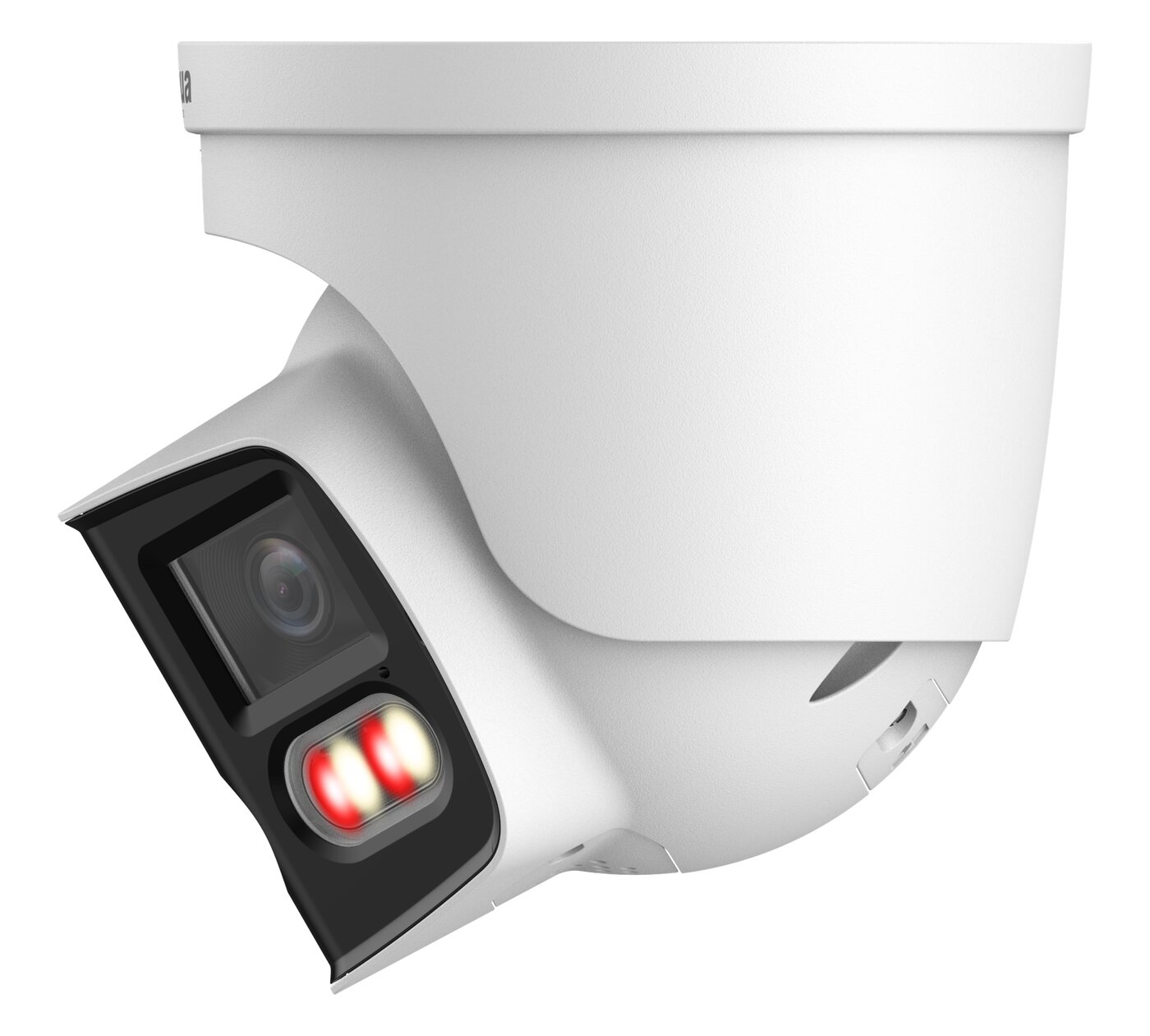

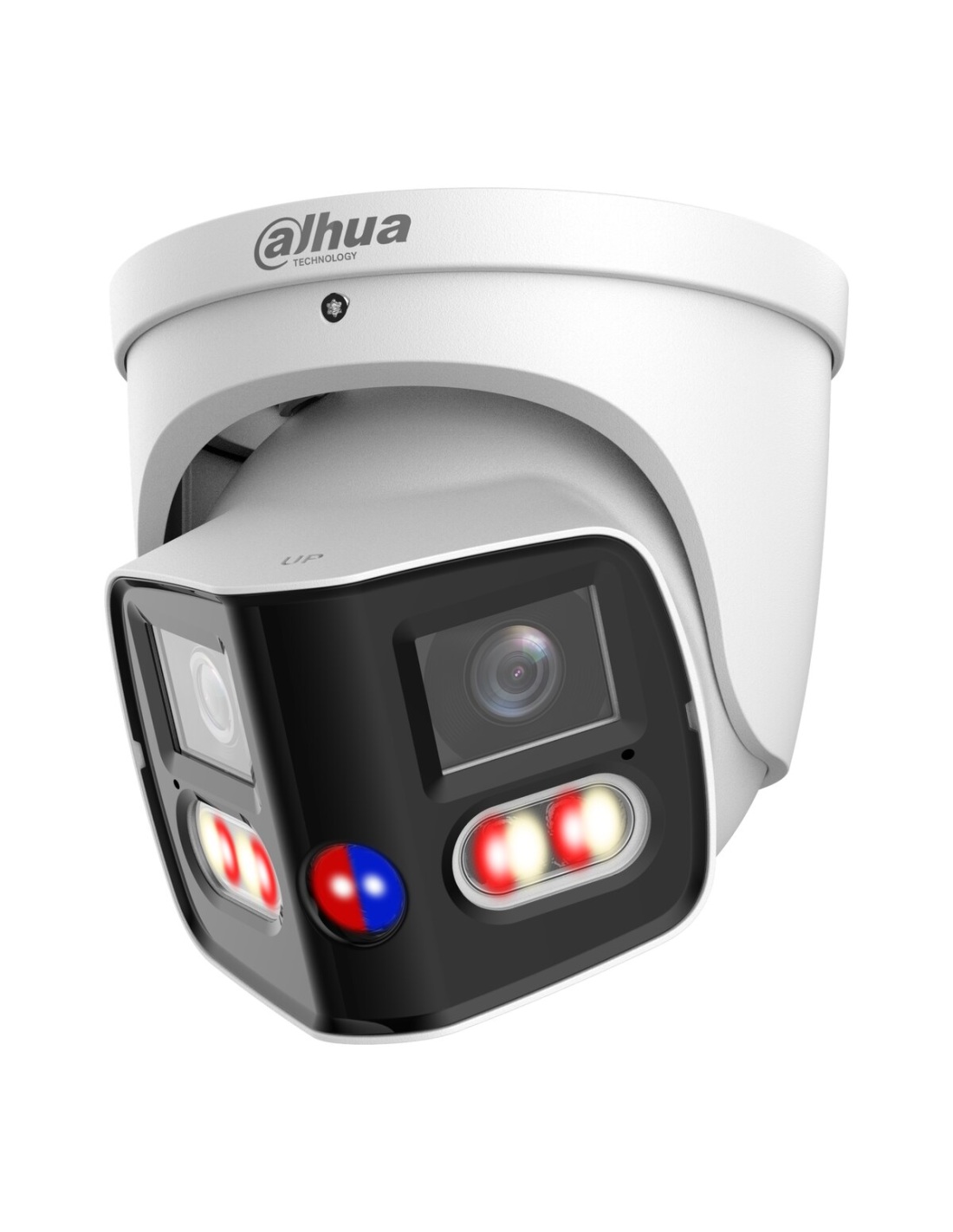

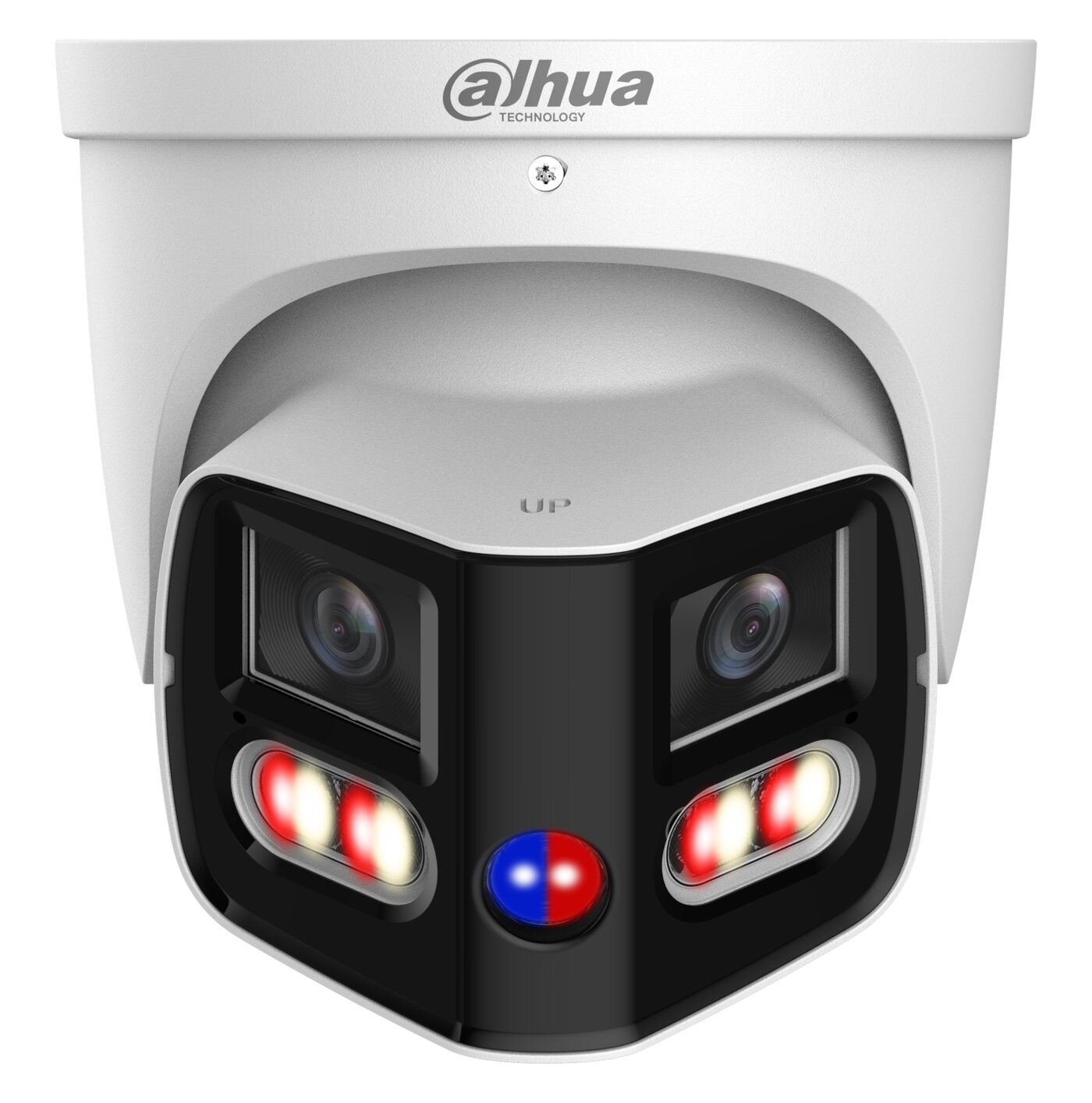

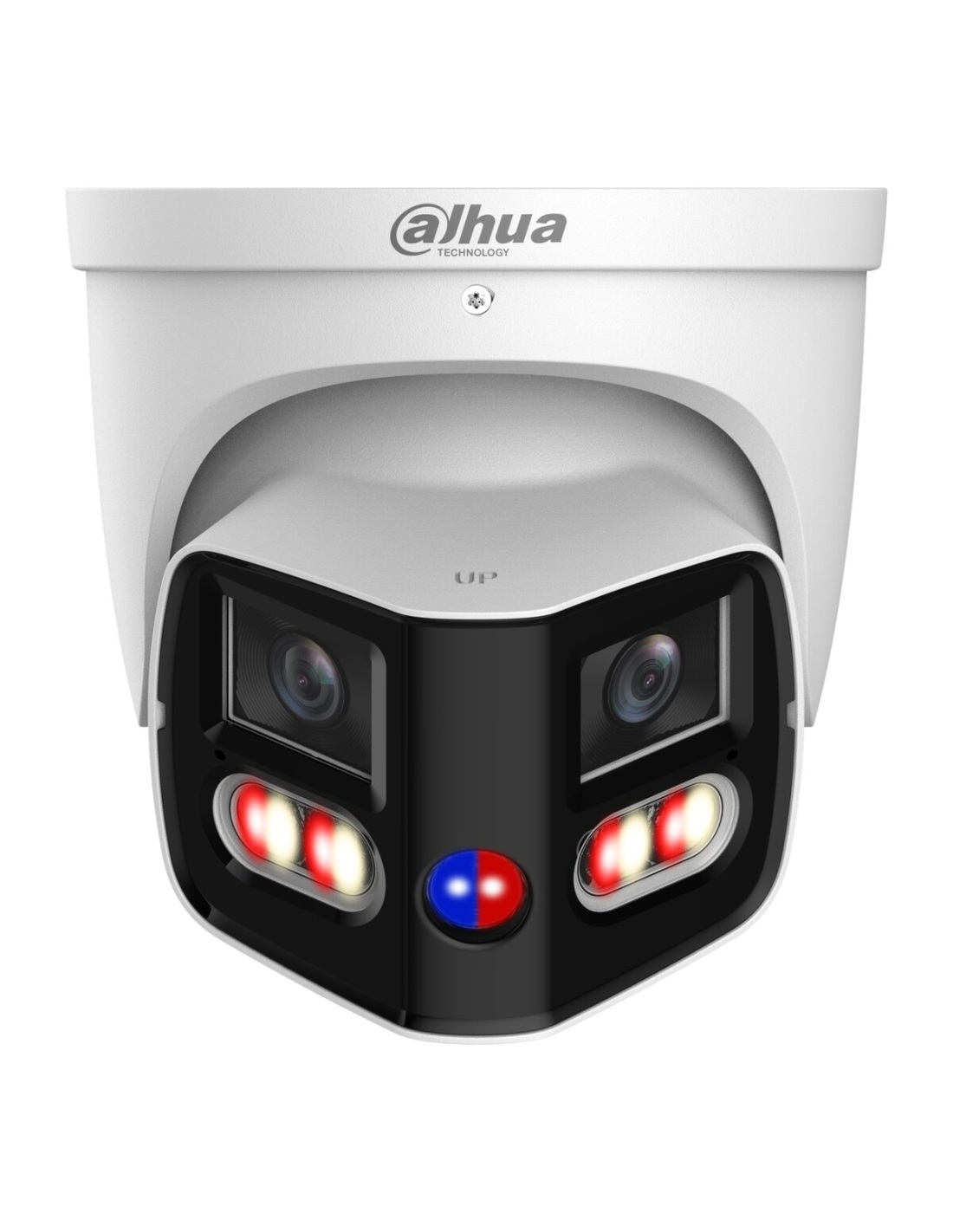

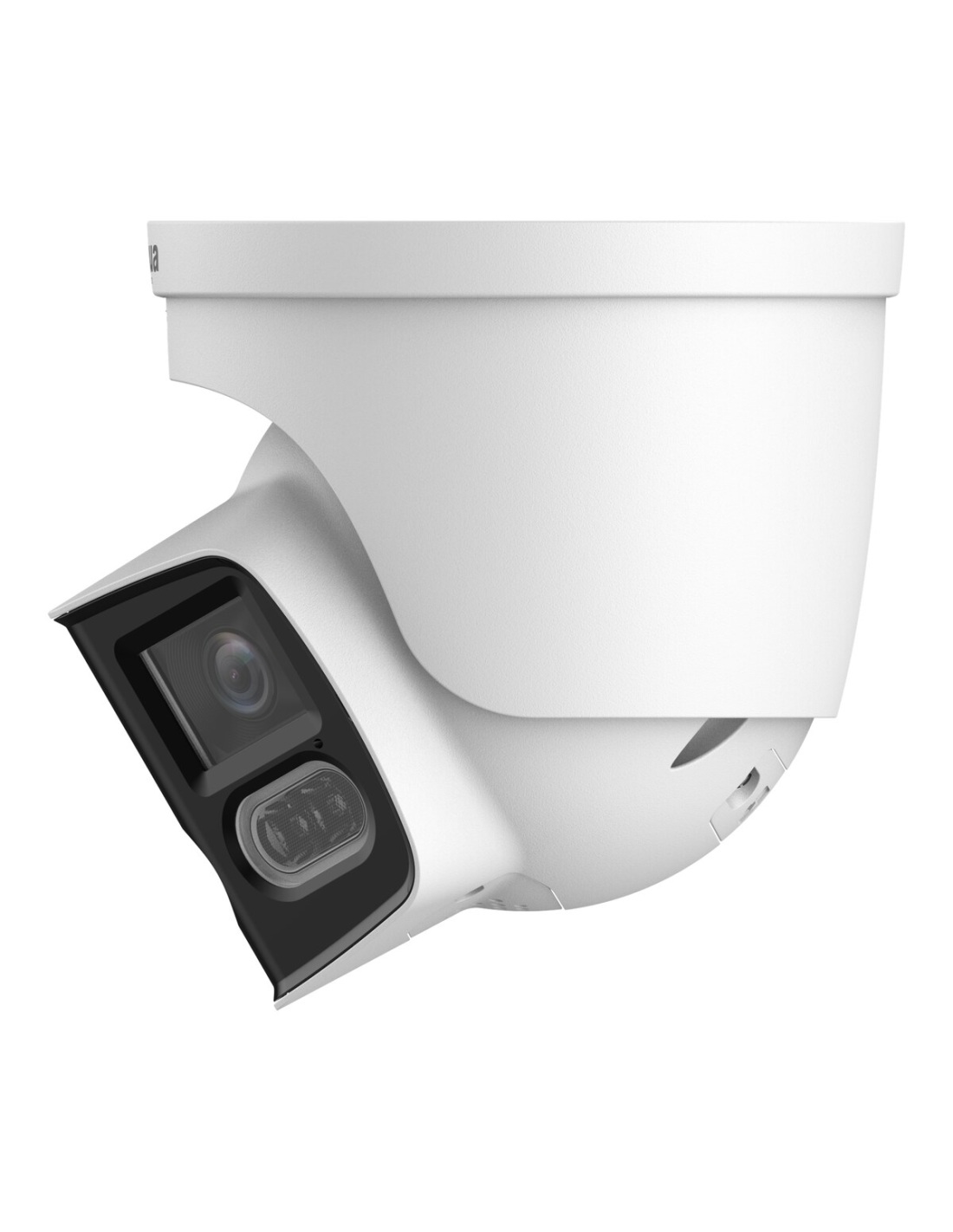

Dahua WizSense 3 TiOC eyeball that stitches two 4 MP lenses into one 4320 × 1944 panoramic stream with 180° coverage, Smart Dual Light to 30 m and built-in active deterrence.
The DH-IPC-PDW3859-A180-AS-PV-ANZ is a WizSense 3 TiOC dual-lens eyeball that pixel-splices two 4 MP channels into one 4320 × 1944 panoramic stream with a 180° horizontal field of view, Smart Dual Light to 30 m, SMD 4.0, AcuPick and red-and-blue active deterrence.
In one sentence: the DH-IPC-PDW3859-A180-AS-PV-ANZ is a Dahua WizSense 3 TiOC eyeball that stitches two 4 MP lenses into one 8 MP 180° panoramic camera with Smart Dual Light, SMD 4.0, AcuPick and active deterrence.
Network camera only — needs a recorder and PoE+ power.
This is the camera. It does not include an NVR, hard drive or PoE switch in the box.
Driveways, shopfronts and warehouse aisles often need two fixed cameras to kill blind spots. This eyeball stitches both channels into one 180° view so you mount once, cable once and review one panoramic stream.
Front

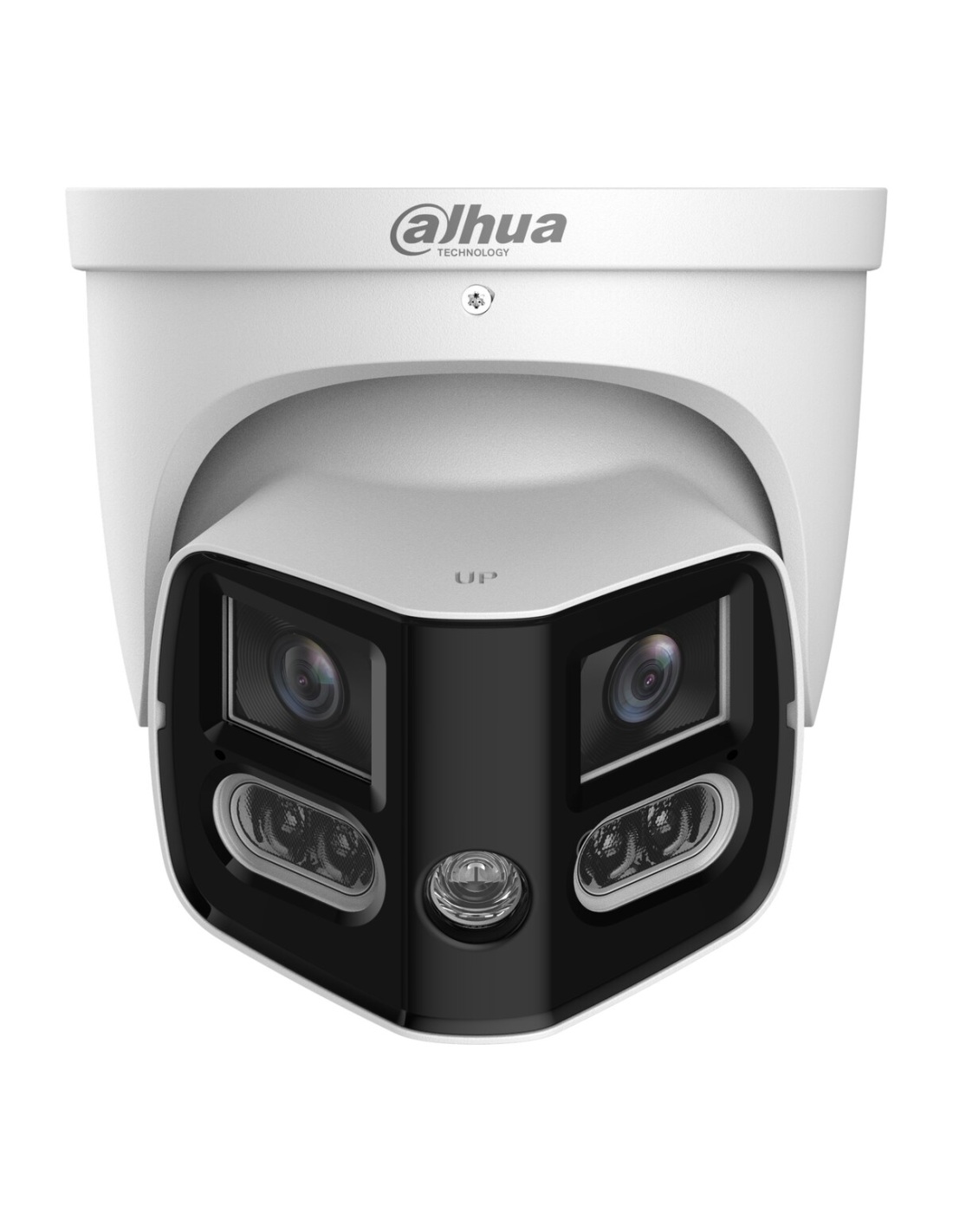

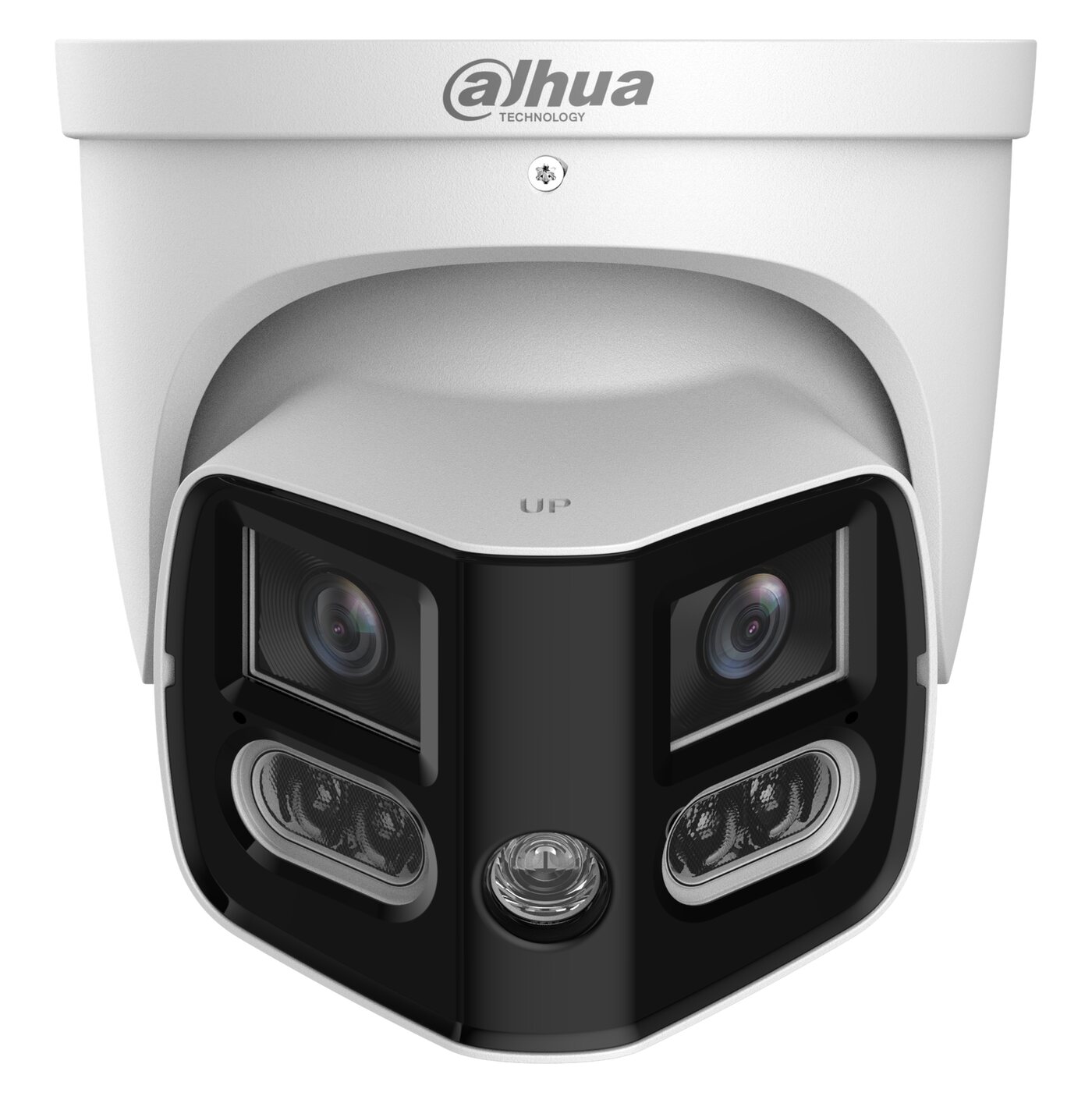

Two 1/2.7" CMOS sensors behind fixed 2.8 mm F1.4 lenses output up to 4320 × 1944 at 20 fps on the main stream, with 180° horizontal and 72° vertical coverage. H.265, Smart H.265+, AI H.264/H.265 and 120 dB WDR keep detail usable in backlit doorways.
TiOC deterrence

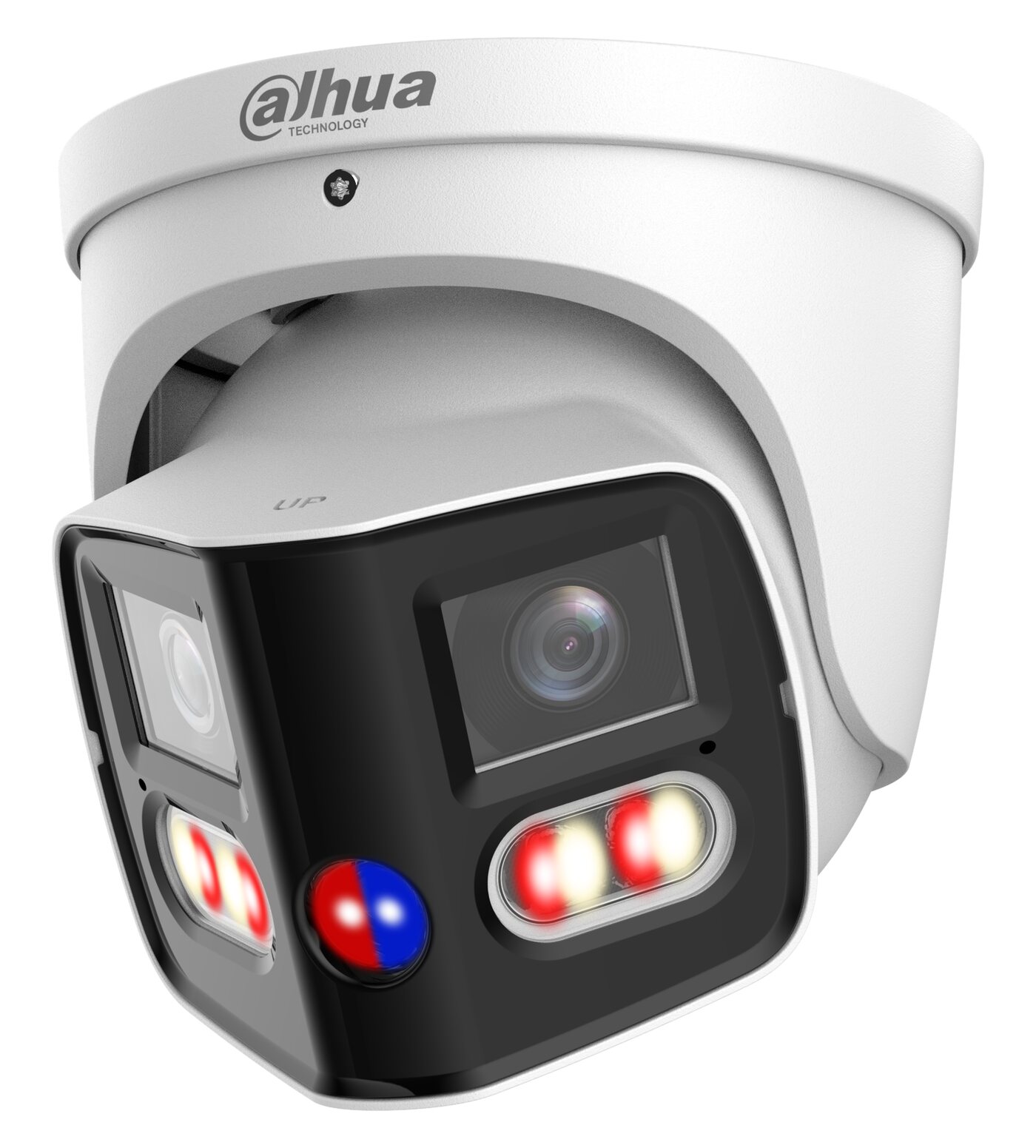

Four multi-core illuminators deliver up to 30 m IR and 30 m warm light. When perimeter rules trip, red-and-blue warning lights and one of 11 built-in sound alarms (or imported custom audio) can fire from the camera itself — no separate siren required.
Intelligence
On-board WizSense AI runs intrusion, tripwire, stay and loitering rules with human/vehicle classification, plus AcuPick search with a compatible NVR. Built-in dual microphones and a dual speaker support two-way talk; alarm and audio I/O are on the rear.
Install in four steps
1
Mount. Fix the eyeball to ceiling or wall. Use an optional junction box (DH-PFA137) or bracket from the datasheet if the cable entry needs protection.
2
Cable and power. Run Cat 6 to a PoE+ (802.3at) switch or NVR port, or feed 12 VDC. One cable carries video, audio and power when using PoE+.
3
Aim and focus the panorama. Pan, tilt and rotate the housing (0°–355° pan, 0°–77° tilt) until both lenses cover the zone. Confirm the stitched 180° view in DMSS or Smart PSS Lite.
4
Enable AI and recording. Turn on SMD 4.0 rules, TiOC deterrence and AcuPick on a compatible NVR. Record to the NVR, NAS, FTP or a microSD card up to 512 GB.
At a glance
Show specs
Model
DH-IPC-PDW3859-A180-AS-PV-ANZ
Max resolution
4320 × 1944 (8 MP stitched) @ 20 fps
Sensor / lens
1/2.7" CMOS · dual 2.8 mm F1.4 fixed
Field of view
180° H · 72° V (stitched)
Illumination
30 m IR + 30 m warm light (4 multi-core LEDs)
AI
SMD 4.0 · AcuPick · perimeter IVS · face detection (full image)
Audio / alarm
Dual mic · dual speaker · 1 alarm in · 1 alarm out · RCA audio in/out
Storage
microSD to 512 GB · FTP/SFTP/NAS
Network
RJ-45 Gigabit · ONVIF S/G/T/M
Power
12 VDC ±30% or PoE+ (802.3at) · basic 5.6 W PoE
Protection
IP67 metal housing · −40 °C to +60 °C
Dimensions / weight
135.2 × Ø122 mm · 0.99 kg net
Pair it with
Record
A WizSense NVR with PoE+ ports records the main stream and unlocks AcuPick search.
Power
802.3at is required when deterrence and warm light run together. Size ports for peak draw.
Edge backup
Up to 512 GB on-board storage if the network drops.
Mount
Optional DH-PFA137, DH-PFB305W or ceiling bracket from the datasheet accessories list.
Where it is used
Cover the footpath, door and counter line from one soffit without stacking two turrets.
End-of-aisle mounts watch fork-traffic and racking faces across a 180° arc.
TiOC deterrence and warm-light colour at night on wide residential or small commercial frontages.
One camera watches reception, entry doors and waiting areas without blind corners.
IP67 metal housing and −40 °C rating suit exposed temp fences and site sheds.
AcuPick and SMD 4.0 cut review time when staff need to find a person or vehicle quickly.
Same series
| PDW3859 eyeball | PFW3859S turret | |
|---|---|---|
| Resolution | 4320 × 1944 @ 20 fps | 4320 × 1944 @ 20 fps |
| Field of view | 180° H · 72° V | 180° H · 72° V |
| Illumination | 30 m IR + 30 m warm light | 30 m IR + 30 m warm light |
| Housing | Eyeball · 135.2 × Ø122 mm | Turret · 183.1 × 99 × 78 mm |
| Net weight | 0.99 kg | 0.695 kg |
| Best mount | Ceiling/soffit eyeball | Wall or parapet turret |
Same 2×4 MP TiOC core; choose eyeball or turret for the mount point. Figures are from each model’s Dahua datasheet column.
No. It is a network camera only. Record to a compatible PoE+ NVR, NAS, FTP target or a microSD card up to 512 GB.
PoE+ (IEEE 802.3at) is listed on the datasheet. Basic draw is 5.6 W on PoE; max with warm light, WDR, deterrence and AI on is 14.8 W. A 12 VDC ±30% supply is also supported.
Up to 4320 × 1944 (8 MP) at 20 fps on the main stream. Sub and third streams are also available per the datasheet.
180° horizontal and 72° vertical from the dual 2.8 mm lenses after pixel-level splicing.
Up to 30 m (98.43 ft) for both IR and warm light with the four multi-core illuminators.
SMD 4.0, perimeter IVS (intrusion, tripwire, stay, loitering), full-image face detection, AcuPick with a compatible back-end, EPTZ on alarm targets and AI SSA scene adaptation.
No. Red-and-blue warning lights and up to 11 selectable sound alarms (plus custom imported audio) are built in, along with dual speakers rated to 110 dB at 10 cm in lab testing.
Yes. Insert a microSD card up to 512 GB for edge recording, or send video to FTP, SFTP or NAS targets listed on the datasheet.
Yes. IP67 metal housing, operating temperature −40 °C to +60 °C and up to 95% RH non-condensing.
ONVIF Profiles S, G, T and M are supported, plus CGI. Full TiOC and AcuPick features are best on Dahua NVRs and DMSS.
The camera, mounting hardware per Dahua packing and quick-start documentation. Brackets and junction boxes are optional accessories listed on the datasheet.
Infront Technologies supplies, supports and warrantees genuine Dahua in Australia. The stamped datasheet is on the Attachments tab.
Genuine Dahua WizSense 3 TiOC, stocked and supported Australia-wide by Infront Technologies. Call 1300 736 970 or email [email protected] for NVR sizing, PoE+ budgets or mount selection.
Low-voltage camera. Power is 12 VDC or PoE+ from a compliant switch or injector. No mains wiring is inside the camera body.
Cabling. Concealed structured cabling between the camera and the switch or NVR is customer cabling under AS/CA S009 and must be installed by an ACMA-registered cabler. This camera does not replace licensed electrical work where it is required.
What this camera does not do. It is not a standalone recorder, does not include storage media, and does not provide PoE to other devices. Surveillance signage and privacy obligations remain the site operator’s responsibility.
