Watchguard Indoor Hardwired Reed Switch (Brown) - RSW-P1B
    Watchguard Indoor Hardwired Reed Switch (Brown) - RSW-P1B
    Watchguard Indoor Hardwired Reed Switch (Brown) - RSW-P1B
    Watchguard Indoor Hardwired Reed Switch (Brown) - RSW-P1B

    Watchguard Indoor Hardwired Reed Switch (Brown) - RSW-P1B

    RSW-P1B
    In Stock - Ready to Ship
    $ 15.00
    inc-GST
    • Brown indoor magnetic contact switch
    • Magnet sensor gap, up to 19mm
    • Normally closed (NC) reed switch output
    • 3W maximum contact rating (up to 30V, 0.2A)
    • Wide range 20~AWG, Ø0.81~0.51mm
    • Surface Mounted, plastic construction
    • Dimensions 65.5 x 13.6 x 11.1mm

    Various Payment Types at Checkout.

    All Payment Options are available at Checkout: Visa/MC/Amex, Zip, Afterpay, Paypal and Bank Dep



    Watchguard Indoor Hardwired Reed Switch (Brown)



    RSW-P1B



    The RSW-P1B is an indoor hard wired reed switch, designed for window and door applications.





    Product Features:



    • Brown indoor magnetic contact switch

    • Magnet sensor gap, up to 19mm

    • Normally closed (NC) reed switch output

    • 3W maximum contact rating (up to 30V, 0.2A)

    • Wide range 20~AWG, Ø0.81~0.51mm

    • Surface Mounted, plastic construction

    • Dimensions 65.5 x 13.6 x 11.1mm

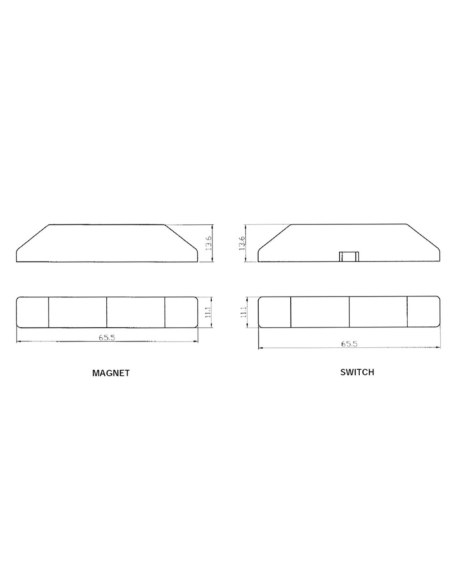

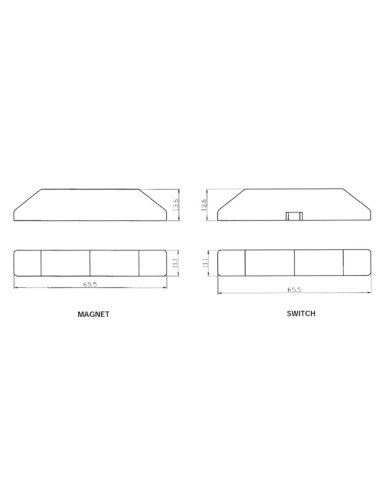

    Dimensions
    65.5mm x 13.6mm x 11.1mm
    Type
    Reed Switch
    Material
    Plastic
    Mount
    Surface
    Contact Rating - Maximum
    3W 30VDC 0.2A
    Magnet Away
    Closed Circuit
    Magnet Near
    Open Circuit
    Magnet-Sensor Gap - Maximum
    19mm
    Switch Type
    Normally Closed (N.C)
