Aluminium reflector for the Rapid LED R3118 ORBIT hi bay. Narrows the beam and cuts side glare for high racking and tall ceilings.

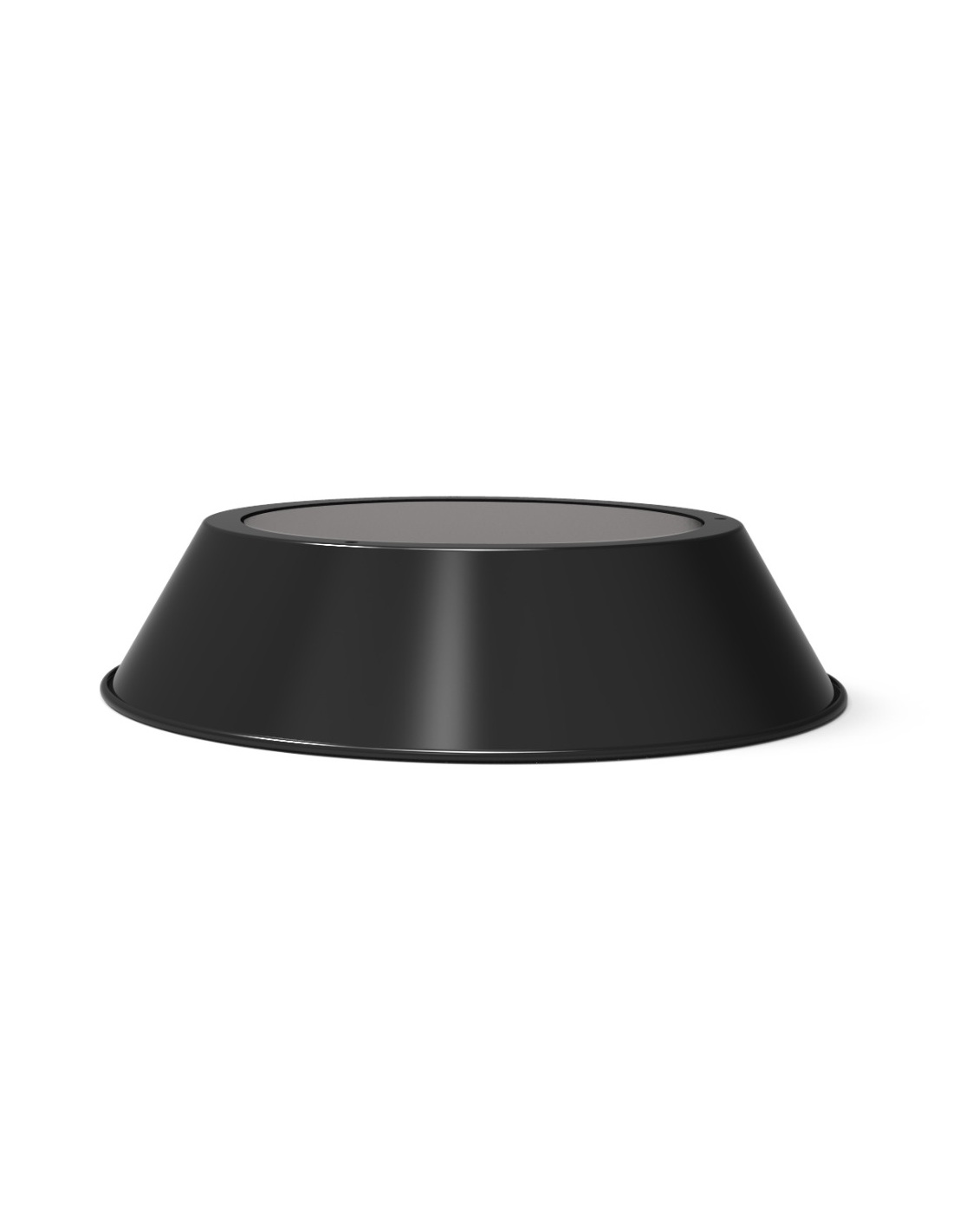

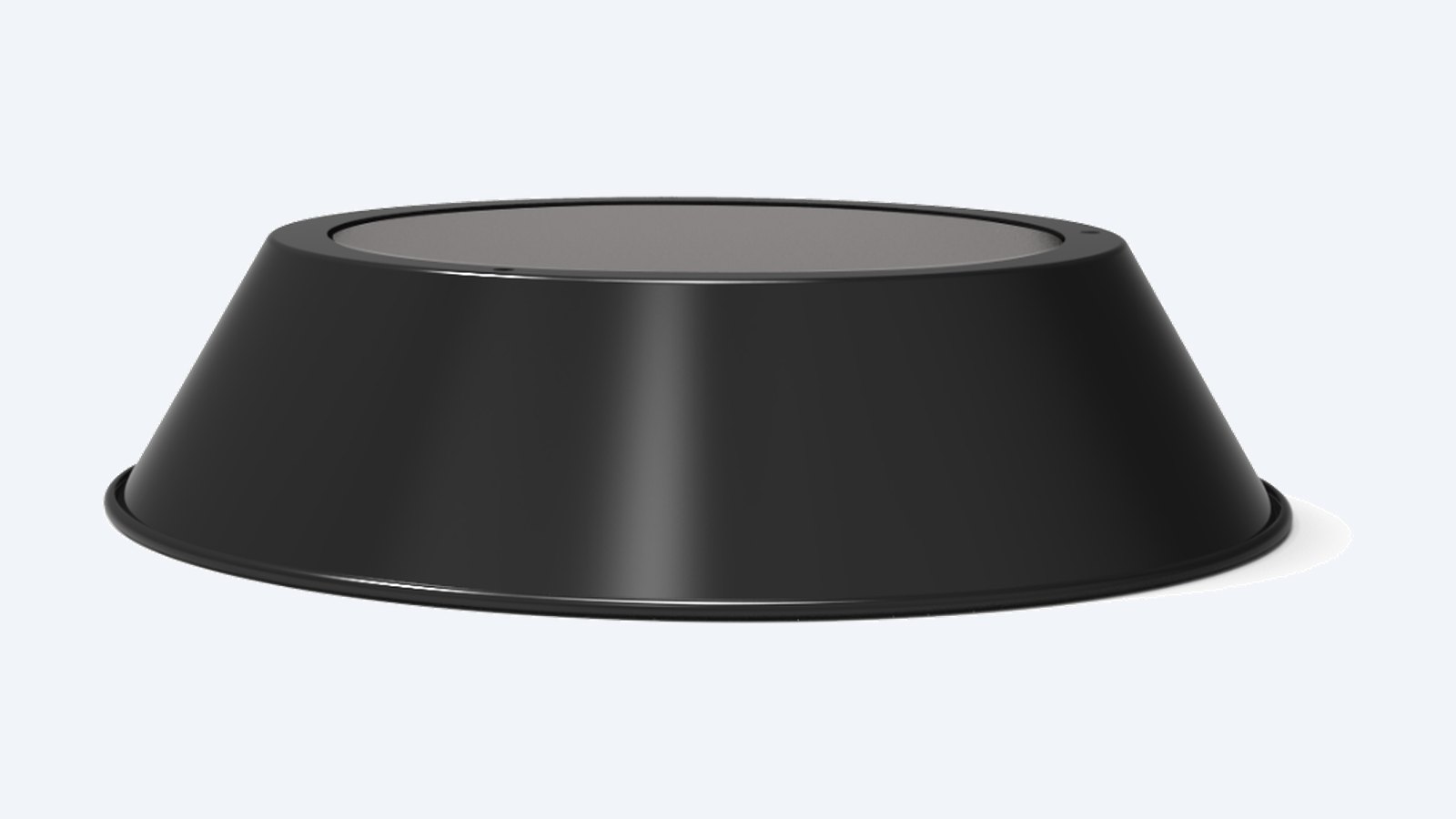

This is the R3118-REFLECTOR-AL. An aluminium reflector that screws onto the R3118 hi bay to pull the light down into a tighter pool for high racking and tall ceilings.
In one sentence: the R3118-REFLECTOR-AL is a Rapid LED aluminium reflector, Ø393 × 81 mm, that fixes to the R3118 (200 / 160 / 120W) ORBIT hi bay with four M4 screws.
Reflector only. The hi bay is separate.
It fits the R3118 ORBIT hi bay only. Use the R3117-REFLECTOR-AL for the R3117.
A bare ORBIT hi bay spreads its light wide. The reflector cuts glare to the side and pushes more of it down the aisle, which suits high racking and tall ceilings.

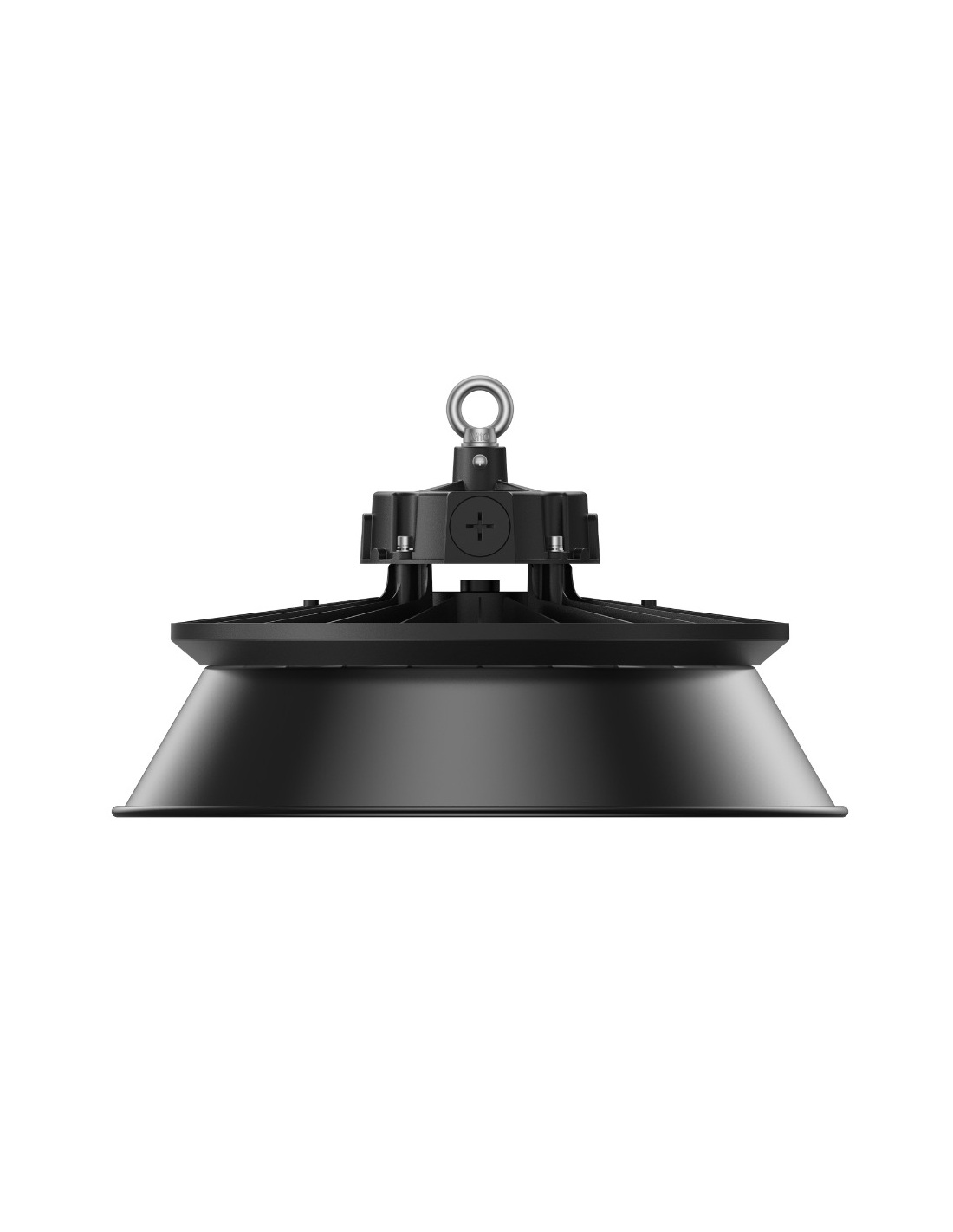

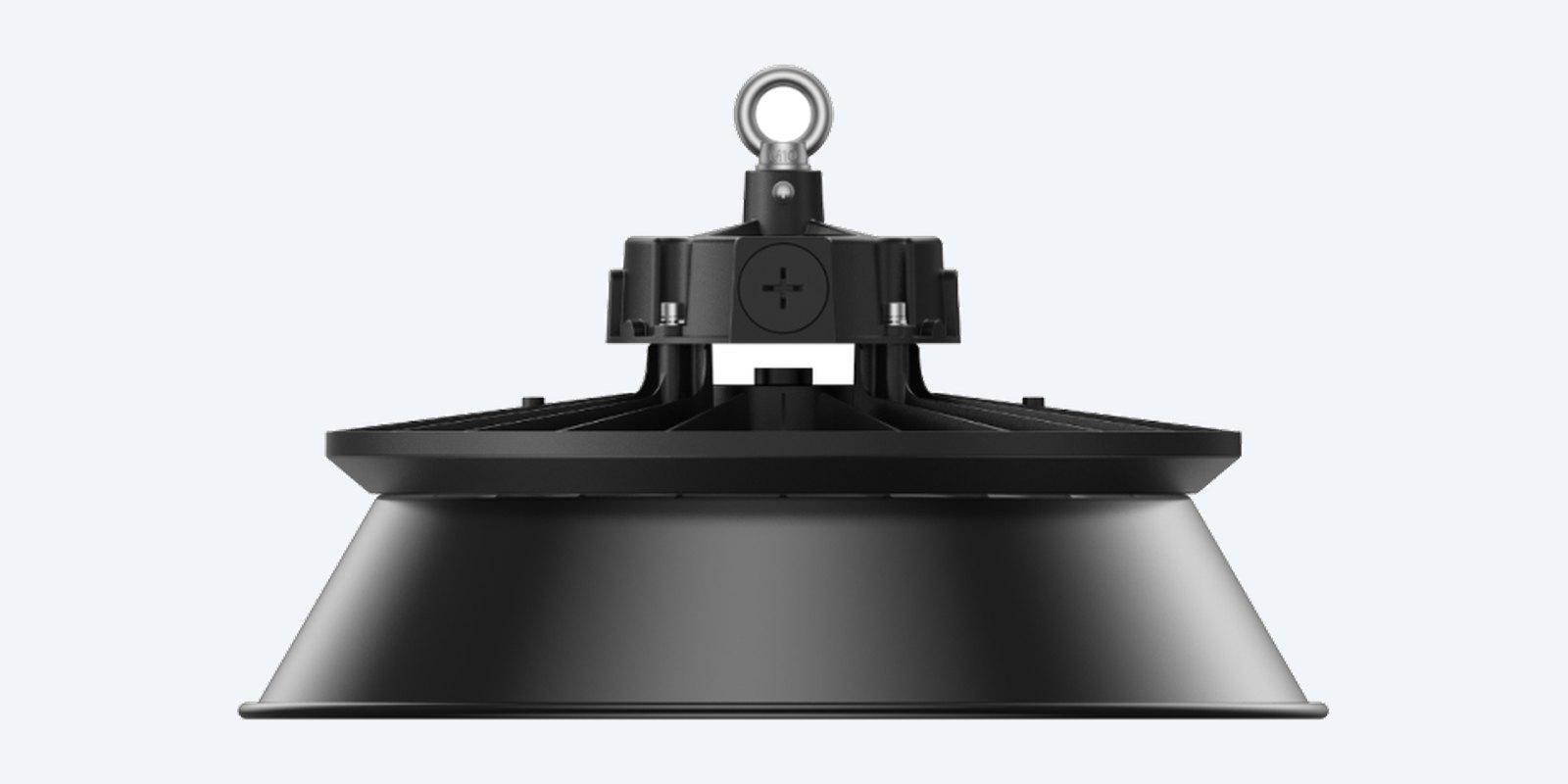

Fitted
Powder-coated aluminium, black outside and matt silver inside, sized to the R3118 body. Ø393 × 81 mm.
How it goes in
01
Isolate the hi bay, or fit the reflector on the bench before it goes up.
02
Line the reflector up with the fixing points on the hi bay.
03
Four M4 screws, tightened to 2 N·m.
04
Hang the hi bay and check the light falls where it is needed.
At a glance
Show specs
Model
R3118-REFLECTOR-AL
Suits
Rapid LED R3118 ORBIT hi bay
Material
Powder-coated aluminium
Finish
Black outside, matt silver inside
Dimensions
Ø393 × 81 mm
Fixing
4 × M4 screws, 2 N·m
Warranty
5 years (2 years replacement and labour, 3 years replacement only)
Pair it with
Hi bay
The light this reflector is made for.
Lens
Polycarbonate reflector with a clip-on lens, for dusty or food areas.
Hanging
1 m or 2 m wire kit, 40 kg safe working load.
Control
Plug-in microwave sensor for aisle and warehouse dimming.
Where it is used
More light down the aisle, less on the top shelves.
Keeps the light on the floor when the hi bay hangs high.
The shade hides the LEDs from side-on views.
| R3118-REFLECTOR-AL | R3118-REFLECTOR-PC | |
|---|---|---|
| Material | Aluminium, powder coated | Polycarbonate with clip-on lens |
| Size | Ø393 × 81 mm | Ø421 × 165 mm |
| Front | Open | Closed by a lens |
| Fixing | 4 × M4 screws | 3 × M4 screws, lens clips on with 1 × M3 |
Both fit the R3118 ORBIT hi bay. Figures from the Rapid LED installation guides.
It narrows the hi bay’s spread, sending more light straight down and cutting glare to the sides.
Four M4 screws, tightened to 2 N·m.
Ø393 × 81 mm.
No. Use the R3117-REFLECTOR-AL for the R3117 hi bay.
Yes. The sensor plugs into the centre of the hi bay, inside the reflector.
Rapid LED R3118 ORBIT hi bay. Rapid lists it for these ORBIT hi bays only.
5 years (2 years replacement and labour, 3 years replacement only), with proof of purchase.
Infront Technologies sells it Australia-wide and handles the warranty. The Rapid installation guide is on the Attachments tab.
Installation guide attached. Fitting out a whole warehouse? Call 1300 736 970 for a project price on hi bays and accessories.
Power off. Isolate the hi bay before fitting. Work at height with suitable access equipment.
Figures. From the Rapid LED R3118-REFLECTOR-AL installation guide and the rapidled.com.au specification.
