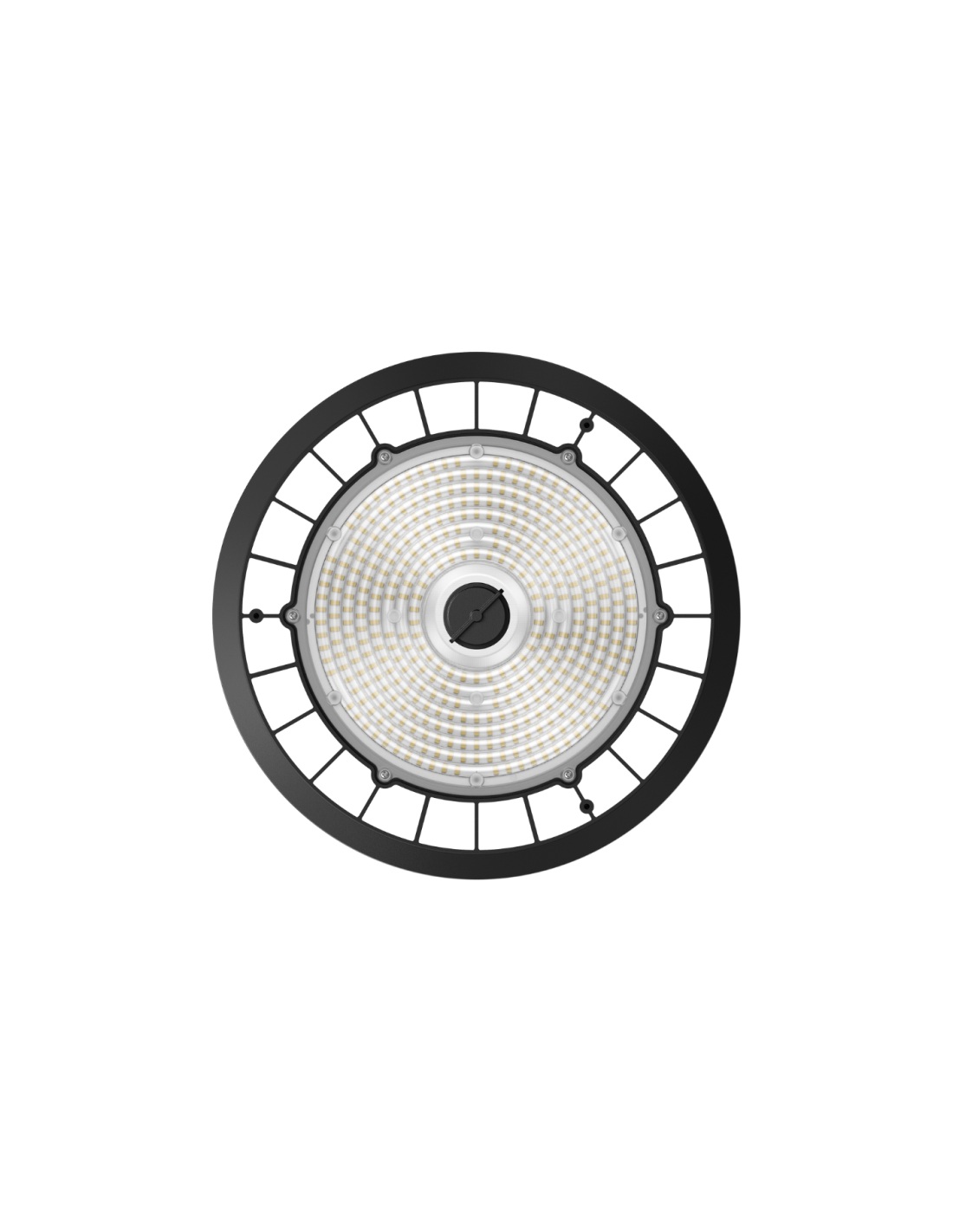

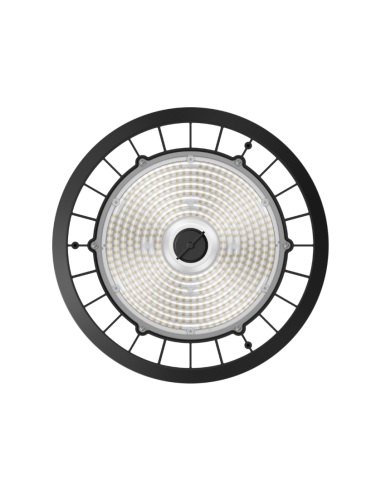

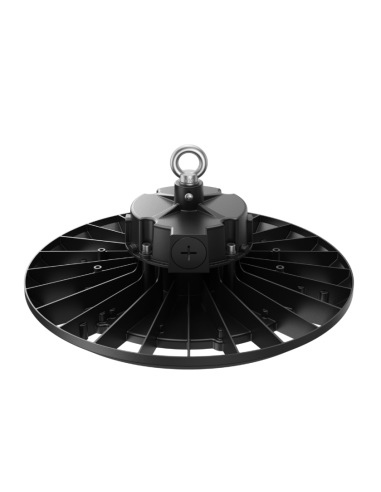

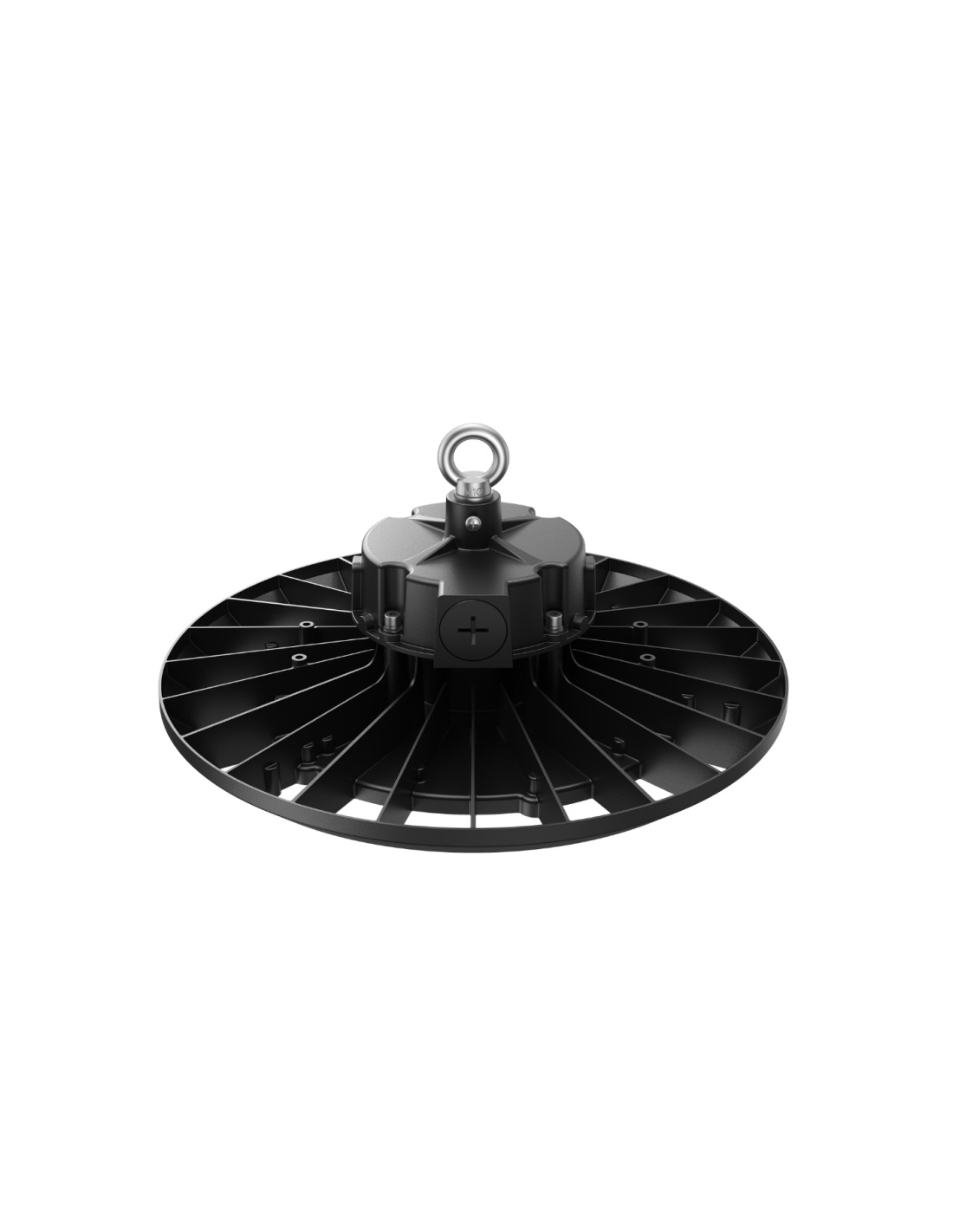

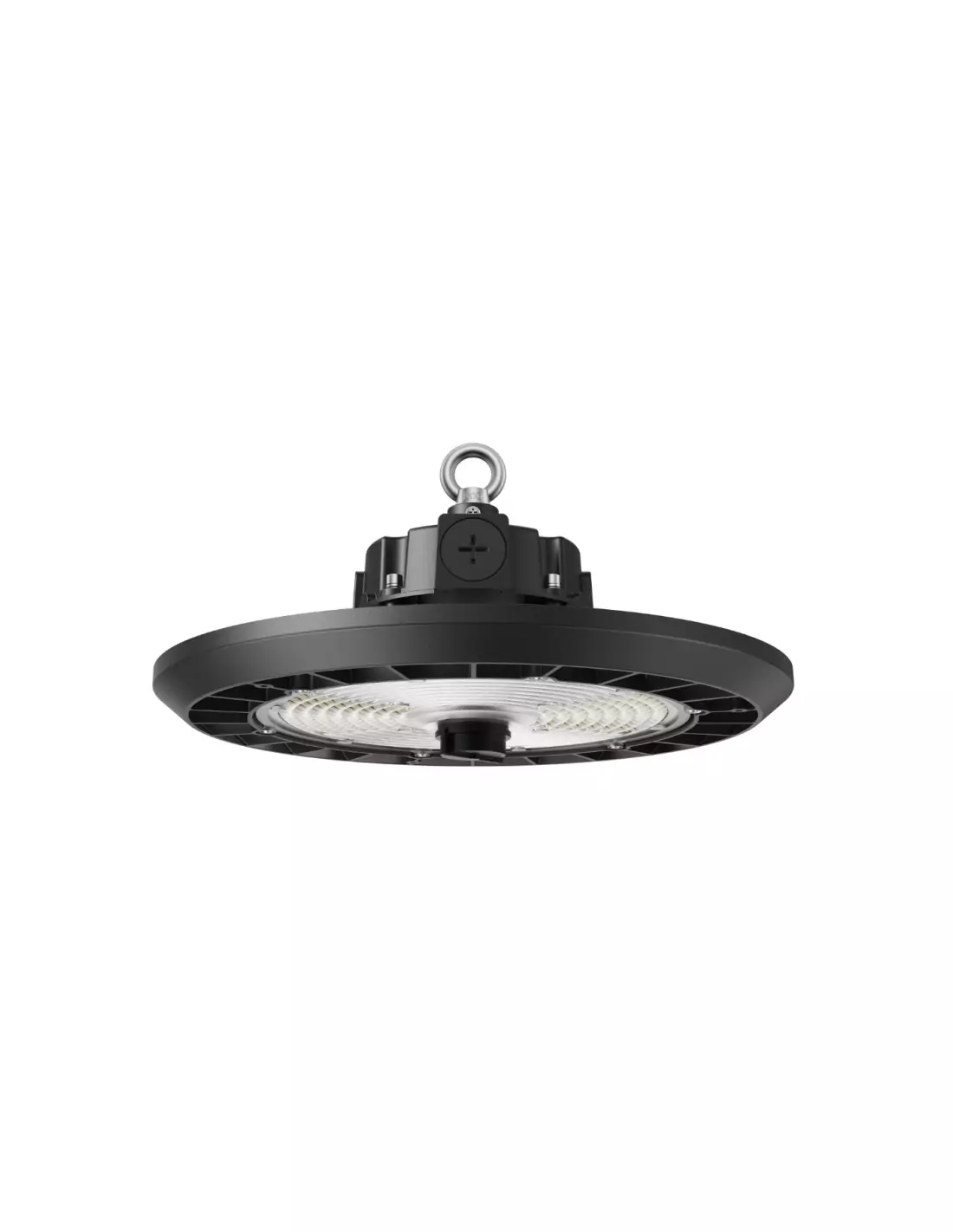

RapidLed 200w, 160w & 120w Selectable Hi Bay IP65 Dual CCT 4K & 5K
R3118
In stock
$ 298.00
inc-GST
The RapidLed 200w, 160w & 120w Selectable Hi Bay IP65 Dual CCT 4K & 5K, SKU: R3118, is a high-powered, versatile lighting solution with adjustable colour temperature suited for warehouses, gyms, and factories.
- High Power: Switchable between 200w, 160w, and 120w output for customizable illumination intensity.
- Dual CCT: Ability to alternate between cooler 5000K and warmer 4000K colour temperature for variable ambience.
- IP65 Rated: Water and dust resistance assure functionality in harsh environments.
- Efficient Performance: High output efficiency combined with energy saving, offering significant reduction in energy costs.
- Wide Application: Perfect for industrial settings like warehouses, factories, and athletic facilities.
Upgrade your lighting environment with RapidLed Hi Bay, your solution to a brighter, more efficient space.
Various Payment Types at Checkout.
All Payment Options are available at Checkout: Visa/MC/Amex, Zip, Afterpay, Paypal and Bank Dep
RapidLed 200w, 160w & 120w Selectable Hi Bay IP65 Dual CCT 4K & 5K
Model: R3118 — RapidLed 200w, 160w & 120w Selectable Hi Bay IP65 Dual CCT 4K & 5K
Supplied by RapidLED and available from Infront Tech — Australian distributor for trade and retail. The RapidLed 200w, 160w & 120w Selectable Hi Bay IP65 Dual CCT 4K & 5K is designed for commercial and industrial lighting where reliability, efficiency, and correct colour temperature matter.
Use this listing to confirm the model reference and high-level fit for your project. For project quantities, compatibility with existing controls, and lead times, contact our team with your reference R3118 and installation details.
Key Features & Benefits
- Selectable wattage options where applicable — choose the right output for ceiling height and lux targets.
- High bay performance suited to warehouses, factories, workshops, and large open areas.
- IP65 protection for demanding environments (subject to correct installation and gasket integrity).
- Dual / selectable CCT where specified on the product title — tune white balance to your space.
- LED efficiency — lower energy use and reduced maintenance versus traditional HID fittings.
- RapidLED range — quality LED lighting sourced for the Australian market via Infront Tech.
Installation & Planning
- Plan mounting height and spacing to achieve uniform illuminance for your task or safety requirements.
- Confirm supply voltage, circuit protection, and any dimming or control gear requirements before installation.
- Engage a licensed electrician for all mains wiring and compliance with local wiring rules.
- Retain product labels and documentation for warranty and future maintenance.
Ideal For
- Warehouses, logistics hubs, and high-bay storage facilities.
- Manufacturing floors, assembly areas, and maintenance bays.
- Retail back-of-house, showrooms with high ceilings, and commercial workshops.
- Any site standardising on RapidLED high-bay / industrial LED via Infront Tech.
Before you order:
- Verify wattage, voltage, CCT, and IP rating match your specification and ceiling height.
- Confirm dimming or smart control compatibility if you are retrofitting to existing systems.
- Check physical dimensions and weight against your mounting structure and access equipment.
- For large projects, request a bill of materials and delivery schedule from Infront Tech.
Need help with design & compatibility? Tell us about your ceiling height, desired lux levels, and any existing lighting or controls. We’ll confirm suitability for the RapidLed 200w, 160w & 120w Selectable Hi Bay IP65 Dual CCT 4K & 5K (ref. R3118) and can advise on quantities and accessories.
Specifications and features may vary by batch and regional SKU. Always confirm technical data with your specifier or installer before purchase. RapidLED via Infront Tech — trade & retail welcome.
- Voltage
- 220 - 240V AC
- Net Weight
- 2.30.3kg
- Power Supply
- Sosen Class I Constant Current Driver
- Frequency
- 50 - 60Hz
- Beam Angle
- 115
- Colour Temperature
- DUAL (4000K / 5000K)
- Dimmable
- Yes - 0-10v Dimmable
- Working Temperature
- -30C ~+ 50C
- Power Factor
- ＞0.95
- IP Rating
- IP65
- Mounting Options
- Suspension Mount - Loop Hanging

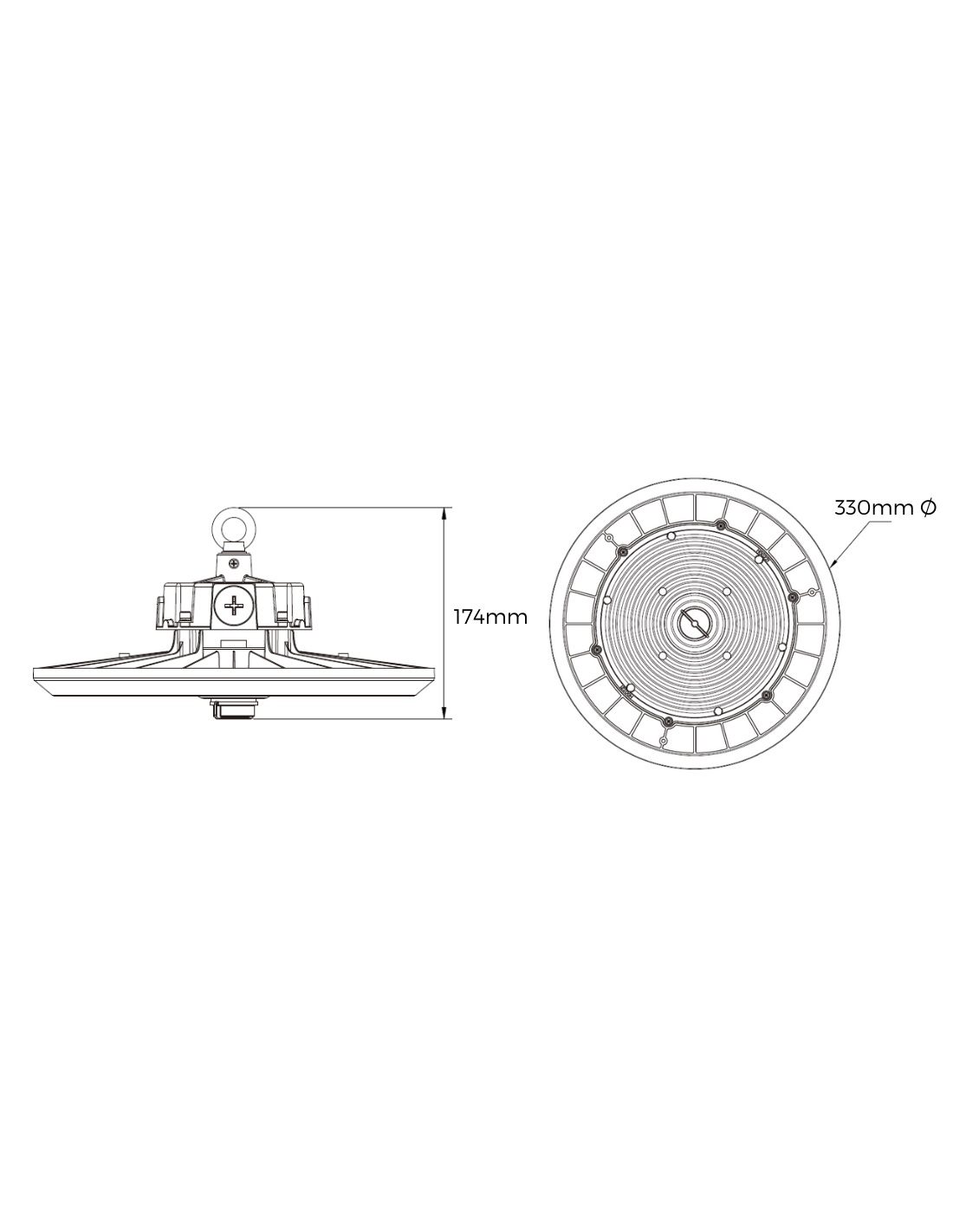

- Product Dimensions
- 174mm (H) x 330mm
- LED Type
- SMD 2835
- Standards
- AS/NZS 60598.1, AS/NZS 60598.2.1, AS/NZS 61347.1, AS/NZS 61347.2.13, AS CISPR 15
- Warranty
- 5 Years ( 2 Years Replacement & Labour / 3 Years Replacement Only )
- Lumen Output
- 120W - 60% : 18,500Lm - 19,200Lm, 160W - 80% : 24,500 - 25,600Lm, 200W - 100% : 30,700Lm - 32,000Lm
- Lumen Output / W
- 160Lm / W
- CRI
- ＞80
- Wattage Selectable
- 200W / 160W / 120W
- Fixture Colour
- Black
- IK Rating
- IK08
- SDCM
- ＜5
- Lifetime Expectancy
- L80/B10 ＞60,000Hrs
- PstLM
- ＜＝ 1.0
- SVM
- ＜＝ 0.4
- Product Materials
- Housing - Powder Coated Aluminium Alloy, Optics - Polycarbonate Cover
- Fitting Protection Classification
- Class I
- Intelligent Control
- Zhaga Microwave Sensor, Casambi Module, Indent Only - PIR Sensor / DALI
- Additional Product Options

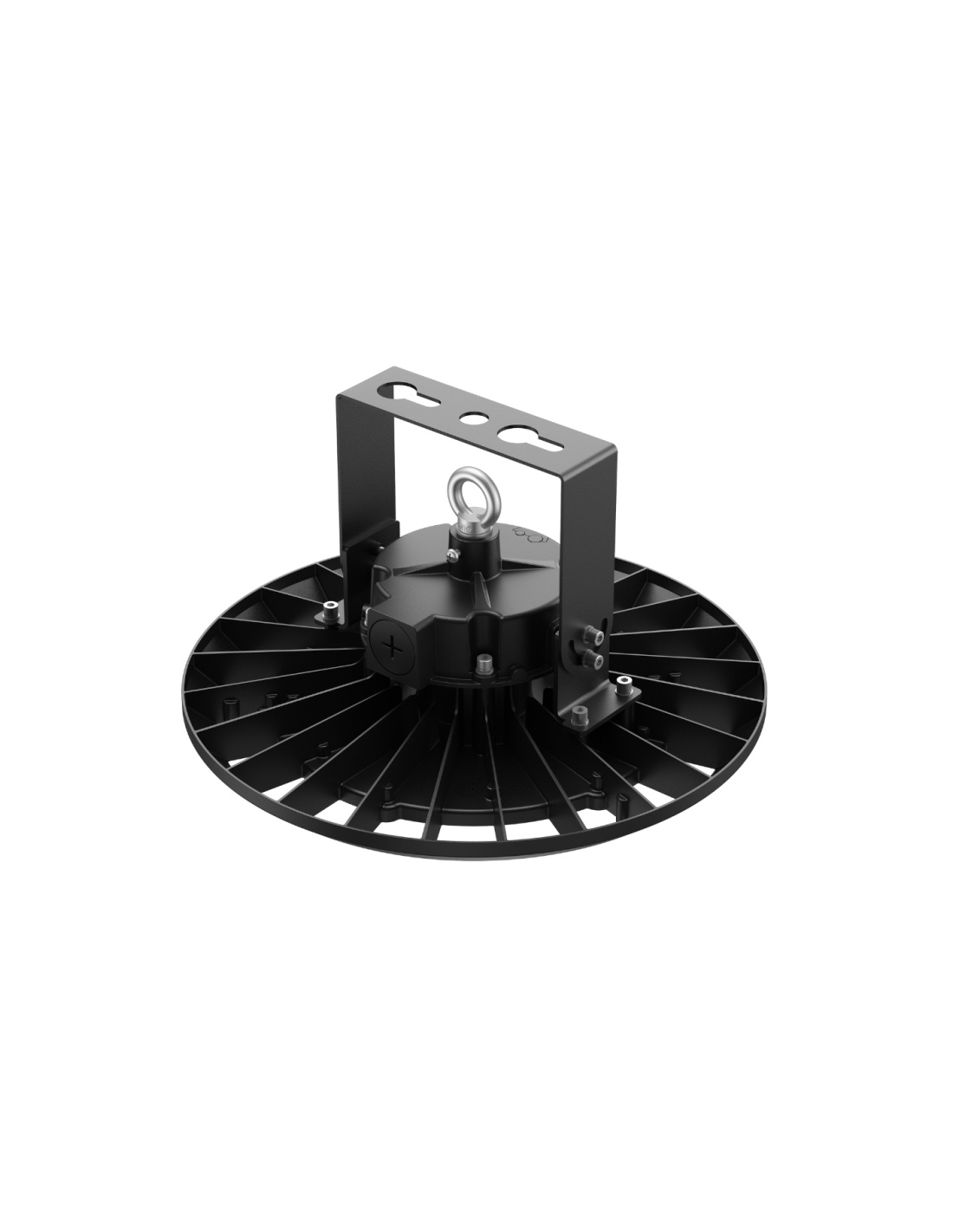

- R3148-MS : Microwave Sensor, R3148-CAS : Casambi Module, R3148-REMOTE : Remote to suit Sensor, R3118-REFLECTOR-AL : Aluminium Reflector, R3118-REFLECTOR-PC : PC Reflector with Lid, R3145 : 30 Adjustable Mounting Bracket
- Included
- 1500mm Flex & Plug
