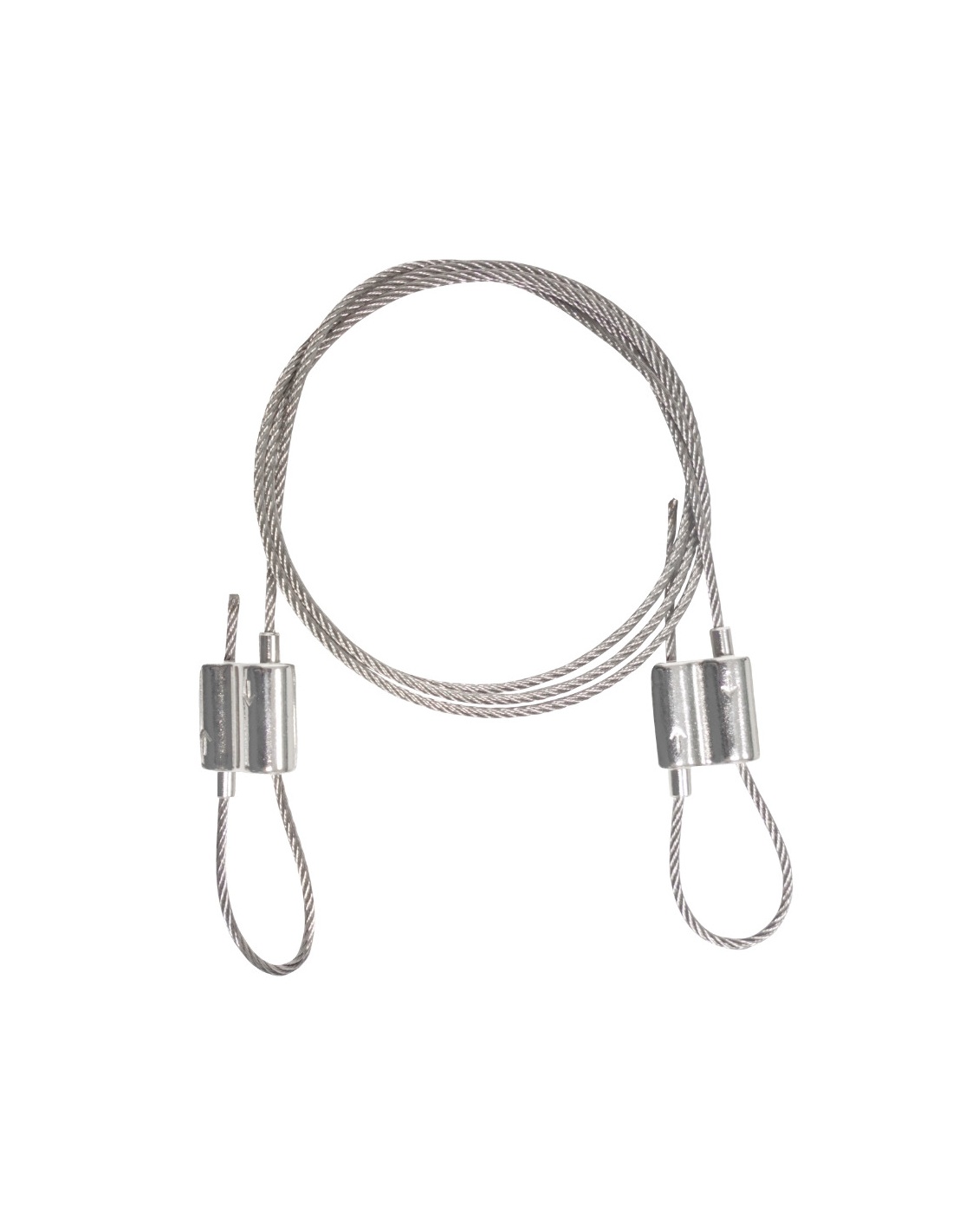

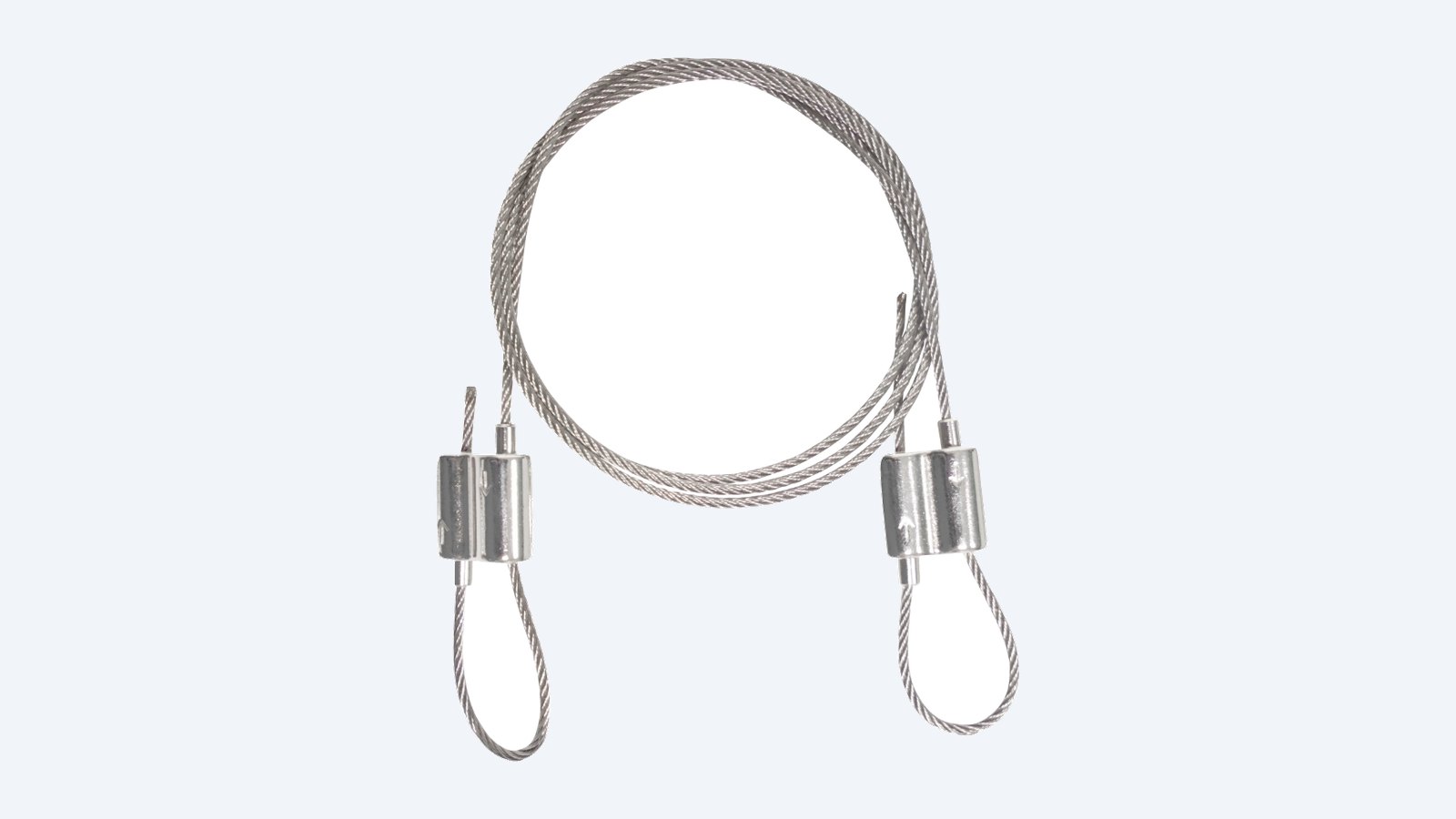

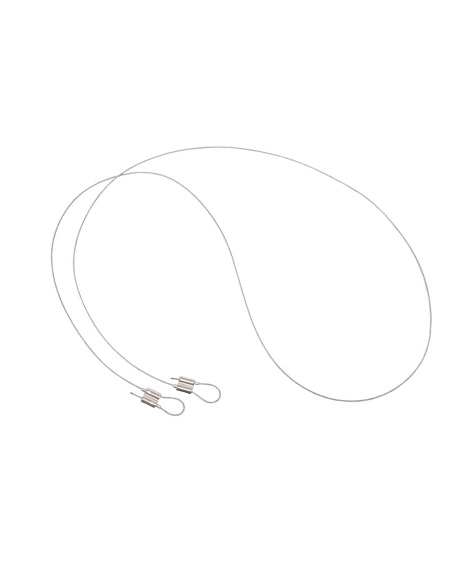

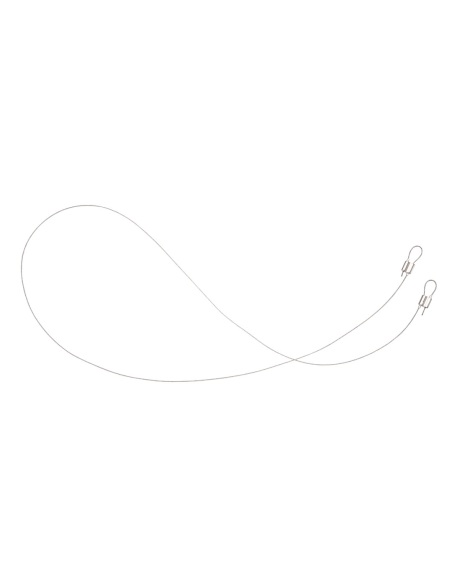

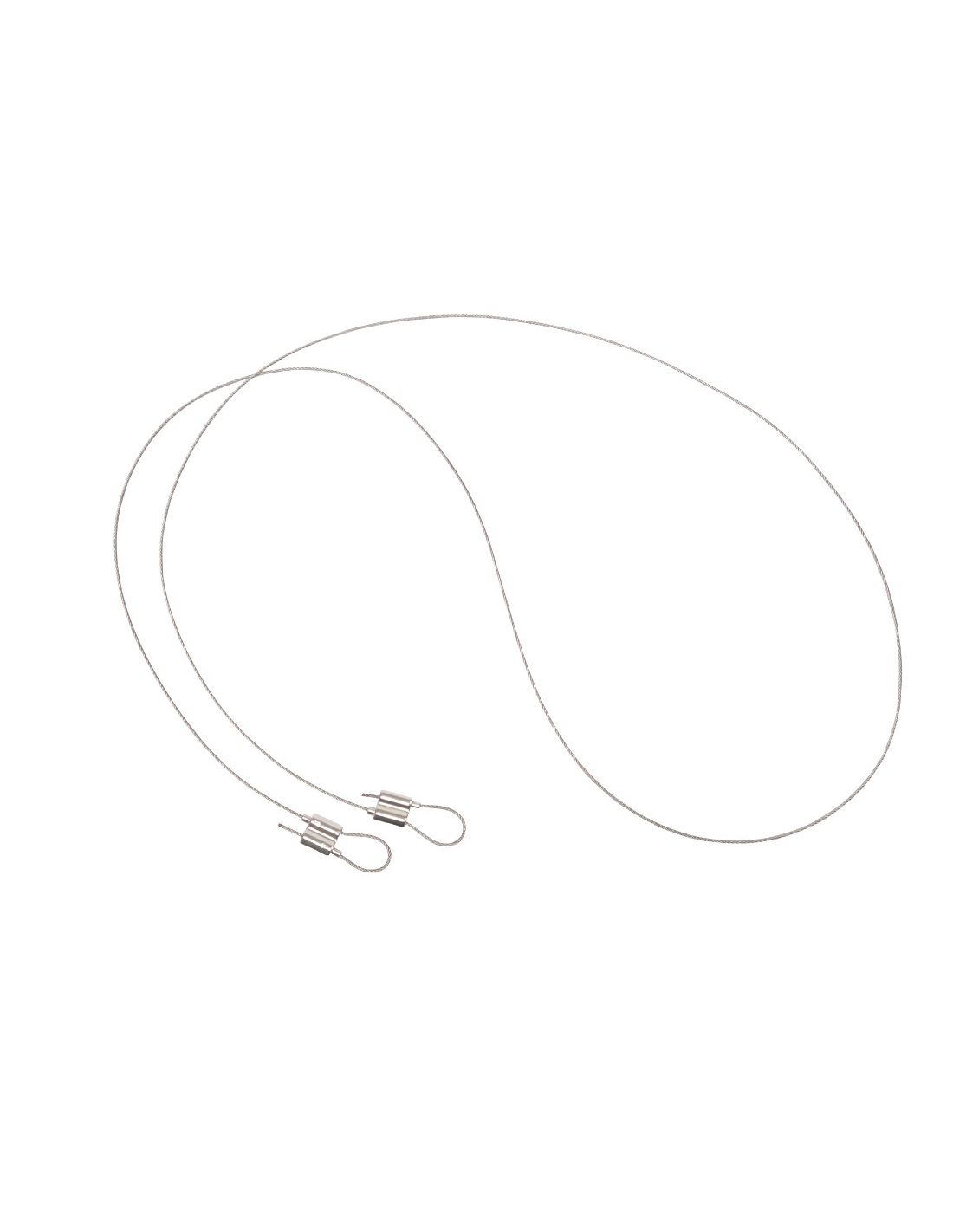

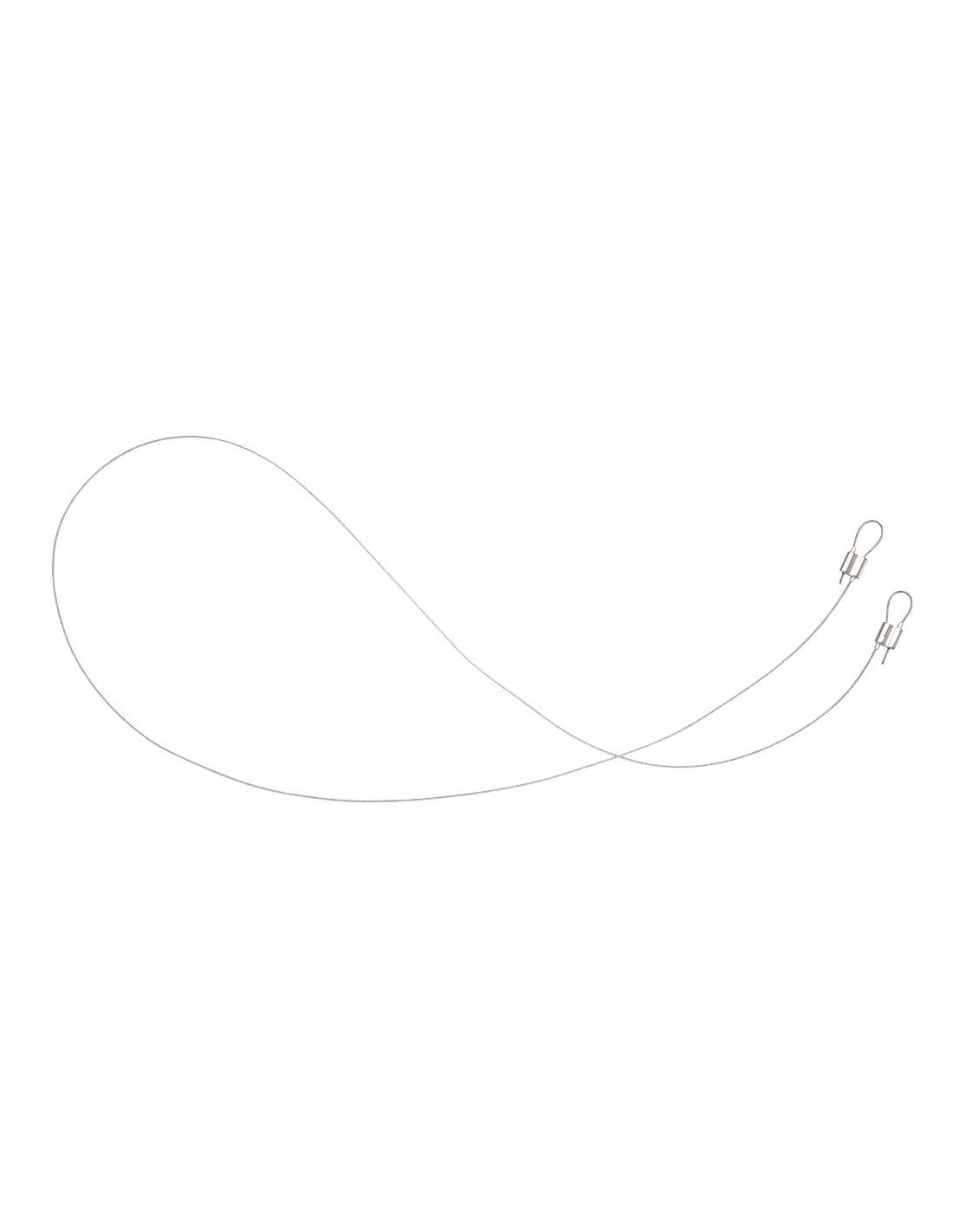

1 m wire suspension kit for the Rapid LED R3117 and R3118 ORBIT hi bays, rated to 40 kg at a 5:1 safety factor.
This is the R3144-1M. A 1 m wire kit for hanging an ORBIT hi bay below the roof, closer to the floor and the racking.
In one sentence: the R3144-1M is a Rapid LED 1 m wire suspension kit for the R3117 and R3118 ORBIT hi bays, rated to a 40 kg safe working load at a 5:1 safety factor.
Wire kit only. The roof anchor is separate.
Fix the top of the wire to a structure rated for the hi bay. Choose the anchor to suit your roof.
In tall sheds, dropping the hi bay toward the floor puts more light where people work. The gripper lets you set the drop and level the light.
The kit

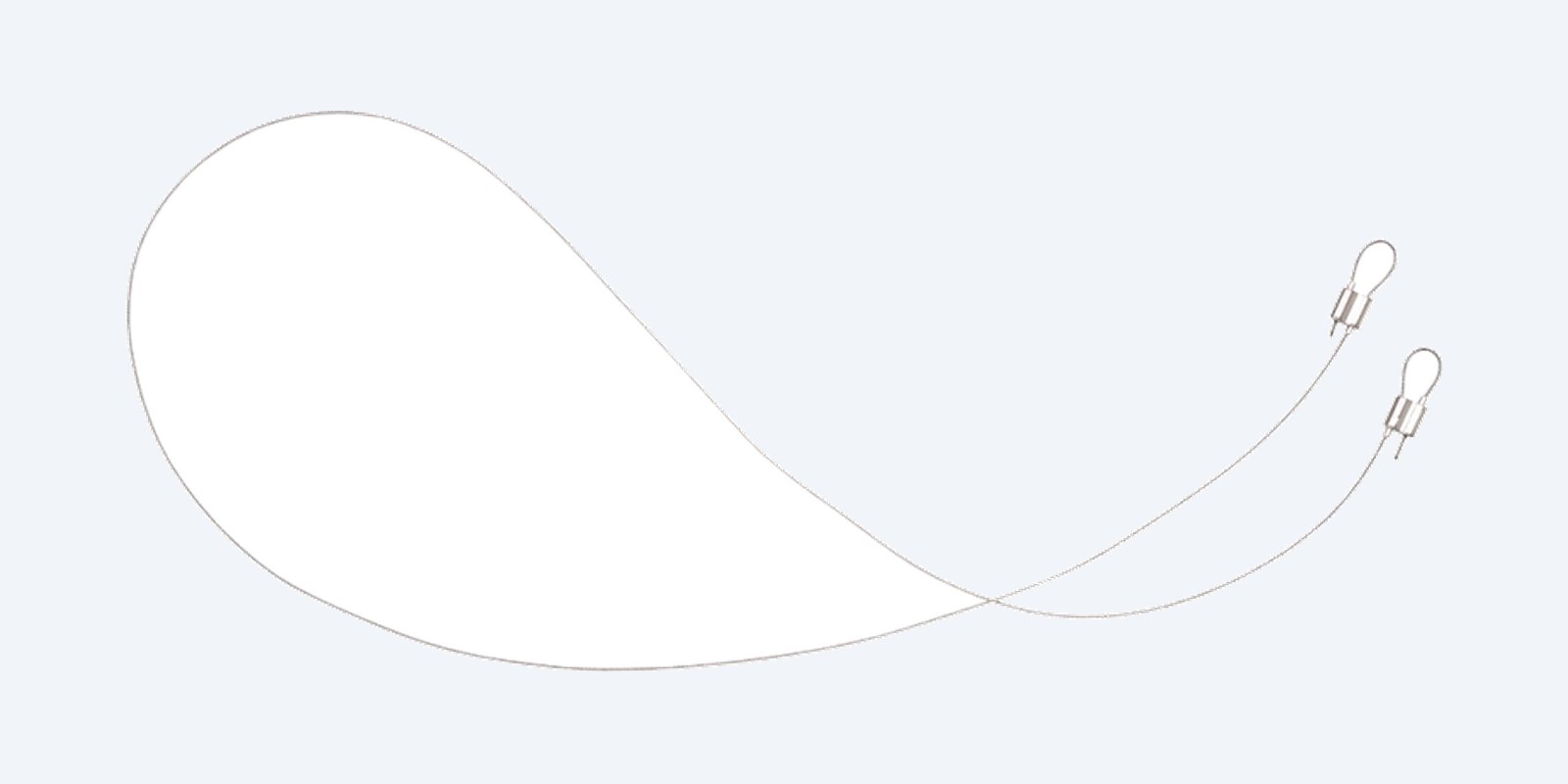

Steel wire with adjustable grippers, so you can set the drop and level the light. Rated to 40 kg at a 5:1 safety factor.
Fits

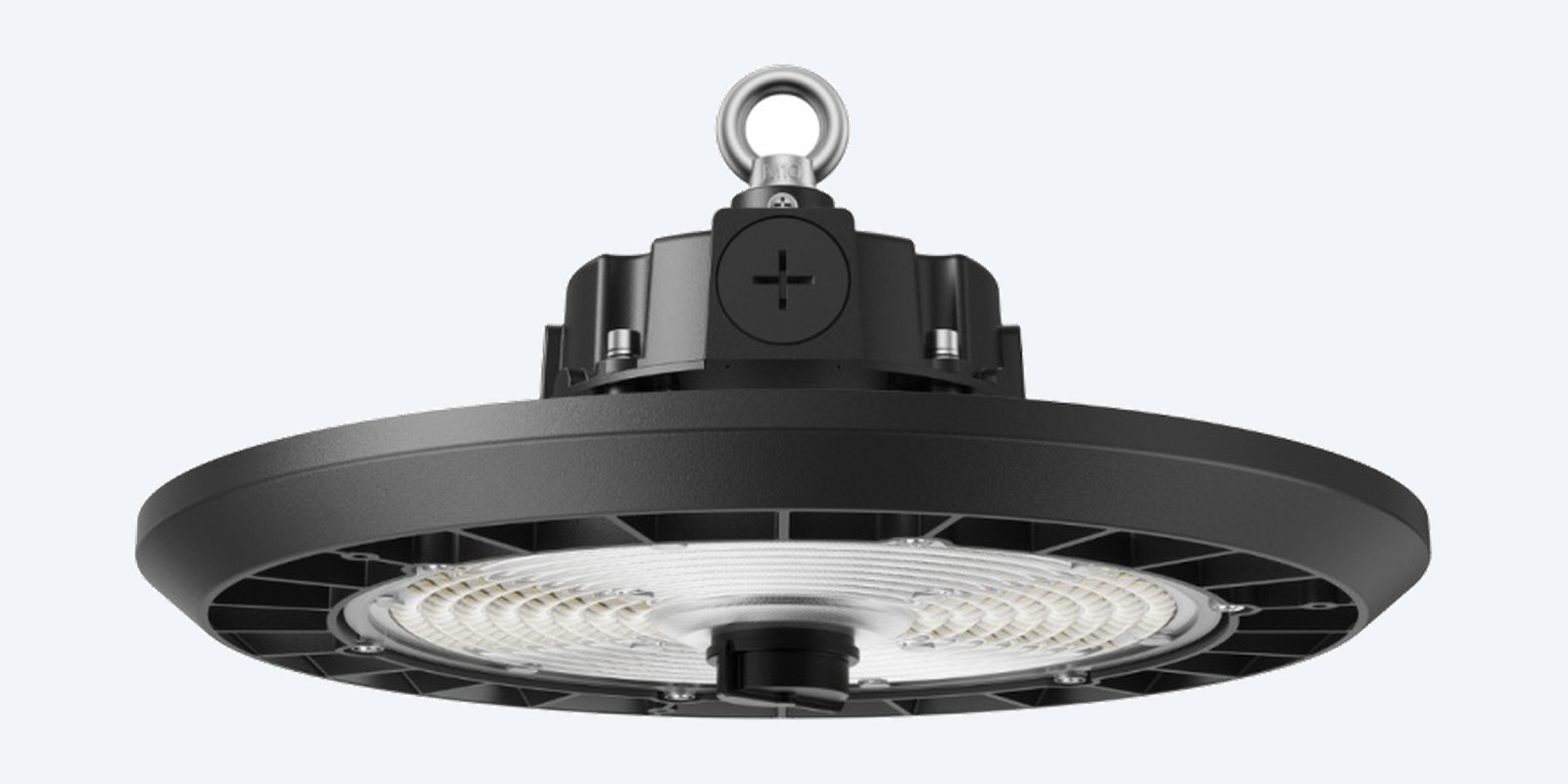

The wire hangs the hi bay from its top lifting eye. Use the R3144-2M for a longer drop.
How it goes in
01
Anchor the top of the wire to a beam or roof structure rated for the hi bay.
02
Loop the wire through the hi bay’s lifting eye.
03
Adjust the gripper to the drop you need and check it is level.
At a glance
Show specs
Model
R3144-1M
Suits
Rapid LED R3117 and R3118 ORBIT hi bays
Length
1 m
Safe working load
40 kg at a 5:1 safety factor
Warranty
5 years
Pair it with
Hi bay
The lights this kit fits.
Length
The 2 m version of this kit.
Fixing
Fix the light tight to the ceiling instead.
Shade
Aluminium or polycarbonate reflectors to suit each hi bay.
Where it is used
Bring the light down from a high roof.
Hang between racks at a set height.
Drop the light closer to the bench.
| R3144-1M | R3144-2M | |
|---|---|---|
| Wire length | 1 m | 2 m |
| Safe working load | 40 kg at 5:1 | 40 kg at 5:1 |
| Suits | R3117 / R3118 | R3117 / R3118 |
Same kit, two lengths. Pick the length that gets the light to the height you need.
40 kg safe working load at a 5:1 safety factor, well above the weight of an ORBIT hi bay.
1 m. The R3144-2M is the 2 m version.
Yes. The gripper lets you set the drop and level the light.
No. Choose an anchor or beam clamp to suit your structure.
Rapid LED R3117 and R3118 ORBIT hi bays. Rapid lists it for these ORBIT hi bays only.
5 years, with proof of purchase.
Infront Technologies sells it Australia-wide and handles the warranty.
Fitting out a whole warehouse? Call 1300 736 970 for a project price on hi bays and accessories.
Load. Fix the top of the wire to a structure rated for the load. Work at height with suitable access equipment.
Figures. From the rapidled.com.au specification for the R3144 suspension kit.
