Plug-in microwave motion and daylight sensor for the Rapid LED R3117 and R3118 ORBIT hi bays. Dims the light when the area is empty.

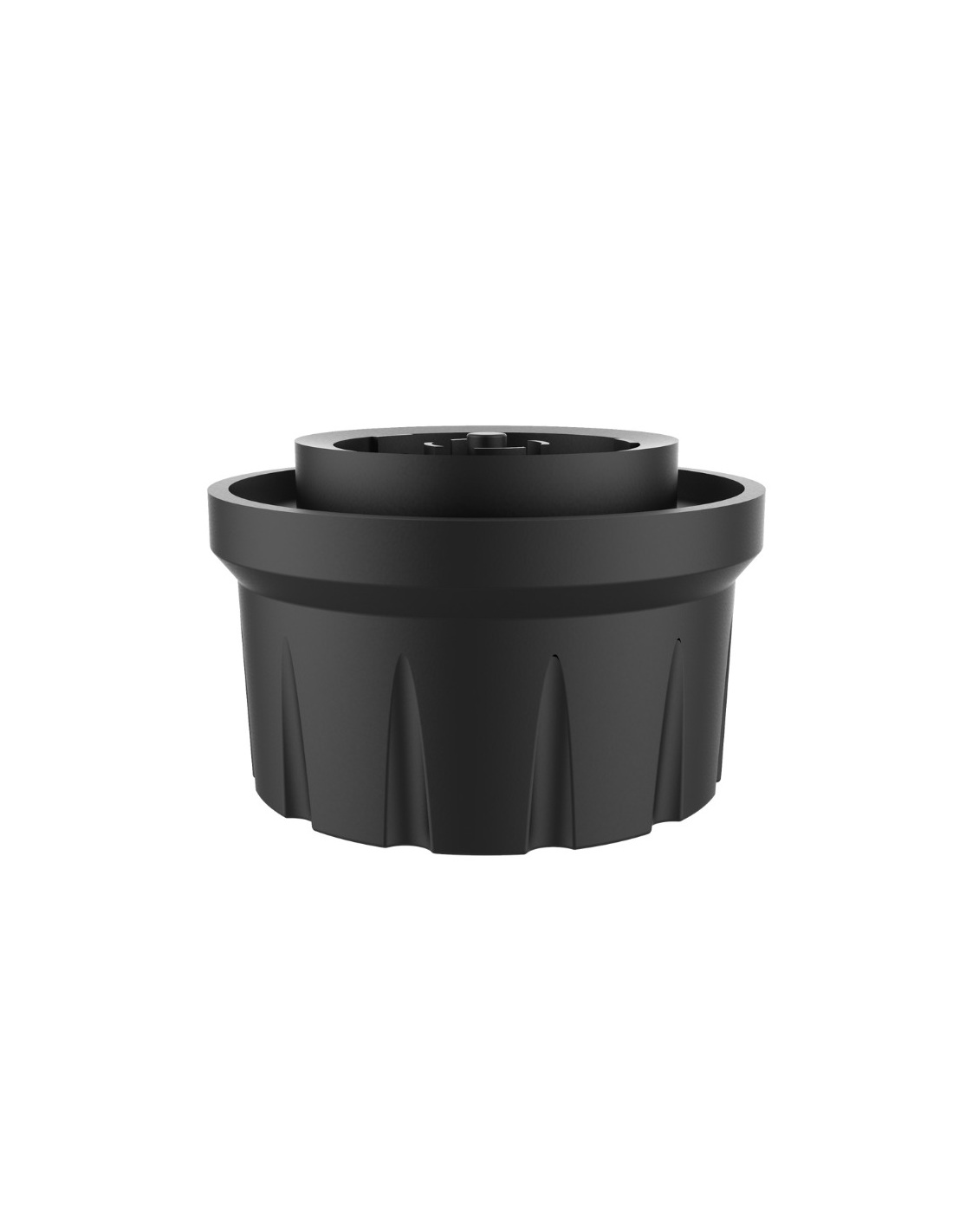

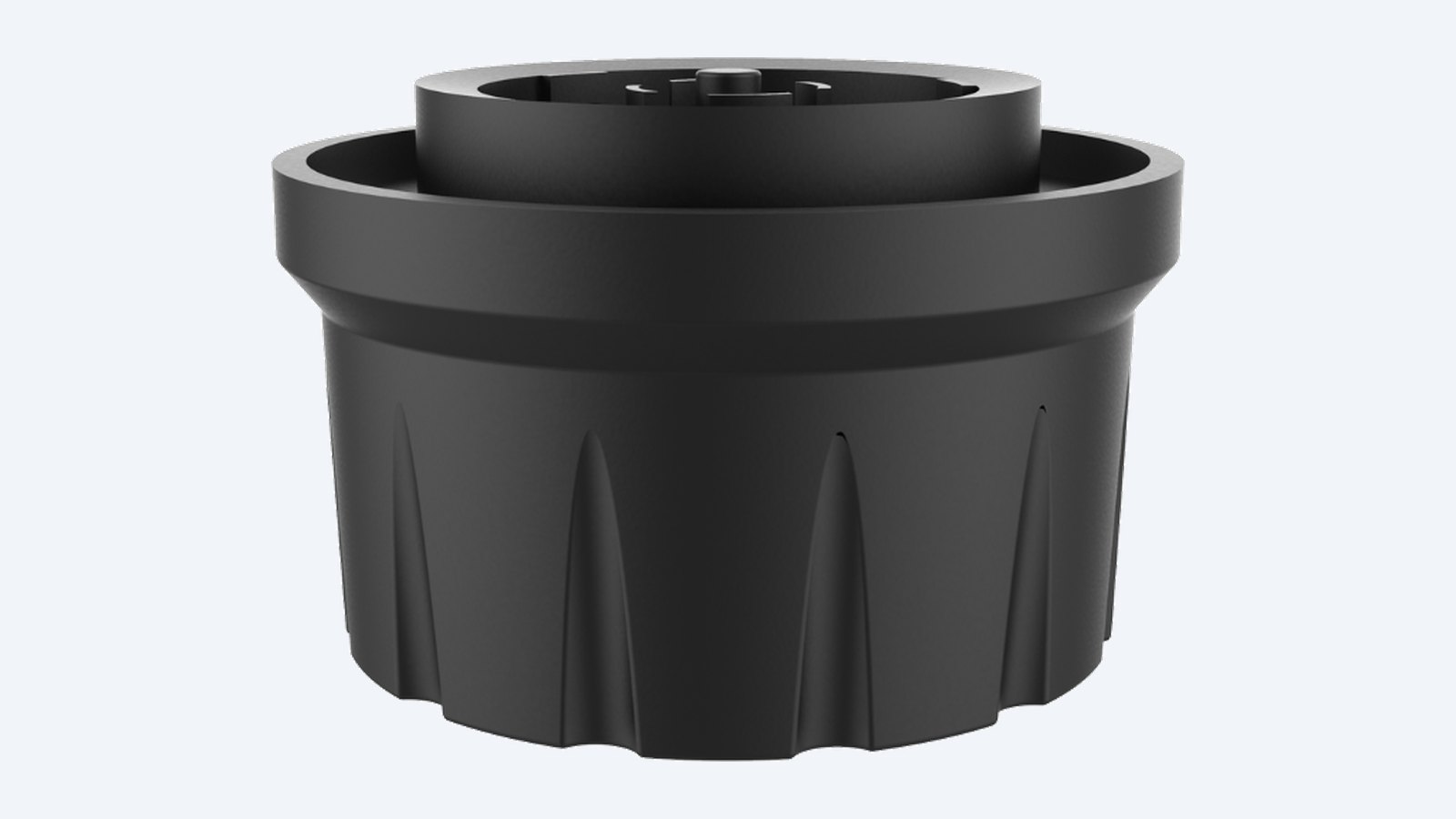

This is the R3148-MS. A 5.8 GHz microwave sensor that plugs into the centre of the hi bay. It turns the light up when it sees movement and dims it back when the area is empty.
In one sentence: the R3148-MS is a Rapid LED plug-in microwave motion and daylight sensor for the R3117 and R3118 ORBIT hi bays, for mounting heights up to 15 m.
Sensor only. The programming remote is sold separately.
It works out of the box on its default settings. To change them you need the R3148-REMOTE.
The sensor plugs into the socket under the hi bay. Out of the box it detects across 100% of its range, holds the light on for 3 minutes, and ignores daylight. The remote changes all of that.
Fits

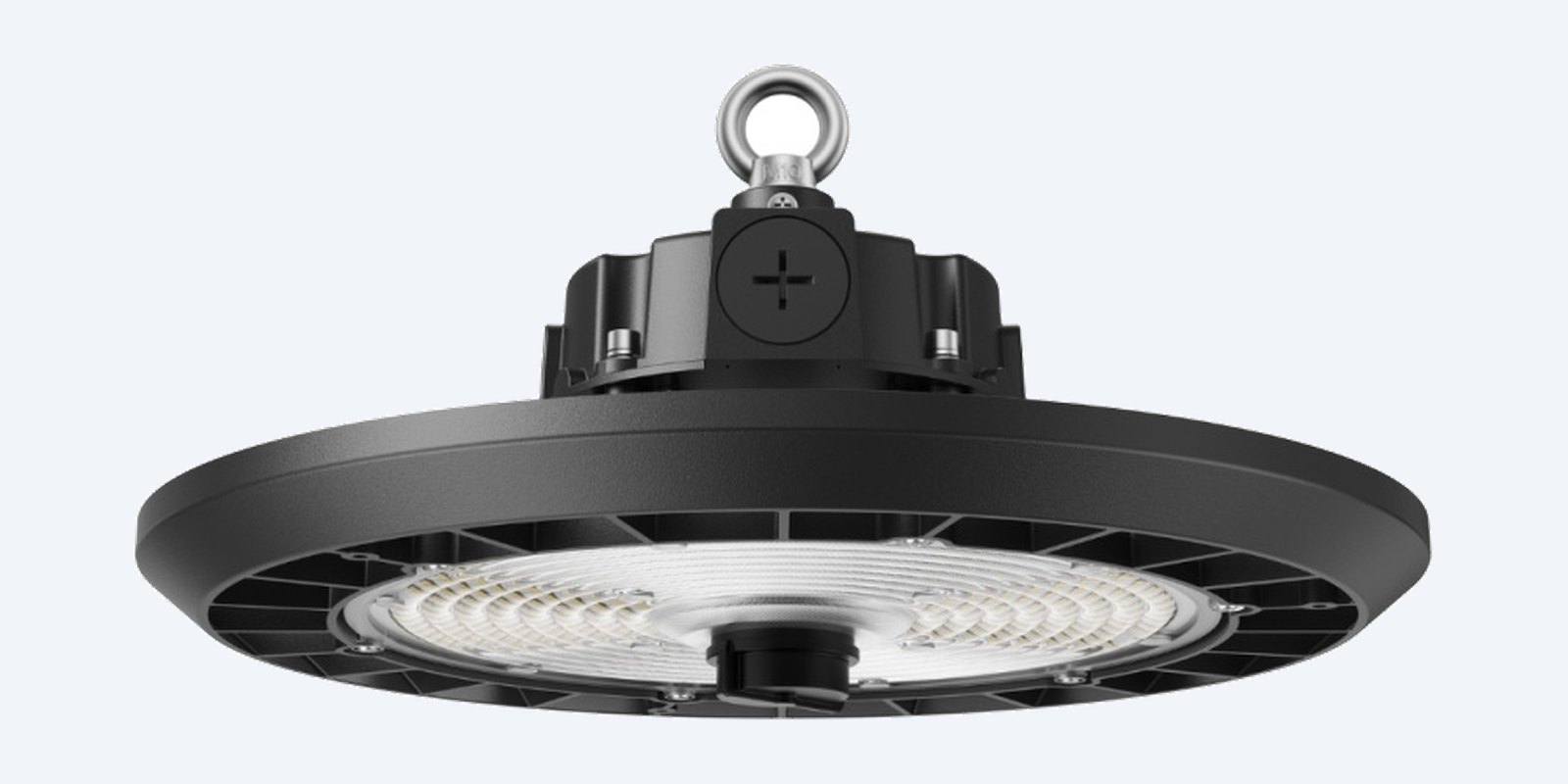

The R3117 and R3118 have a sensor socket in the centre of the LED board. The R3148-MS plugs in and dims the hi bay on its 0–10 V control line.
How it goes in
01
Isolate the hi bay before fitting the sensor.
02
Push the sensor into the socket in the centre of the hi bay and turn it to lock.
03
It runs on its defaults: 100% detection area, 3-minute hold, daylight sensor off.
04
Use the R3148-REMOTE to set detection area, hold time, daylight level and standby dimming.
At a glance
Show specs
Model
R3148-MS
Suits
Rapid LED R3117 and R3118 ORBIT hi bays
Detection
5.8 GHz microwave
Mounting height
Up to 15 m
Detection range
Ø16 m
Detection area
25 / 50 / 75 / 100%
Hold time
5 s to 30 min
Daylight threshold
2–400 lux, or disabled
Standby dim level
10 / 20 / 30 / 50%
Standby period
0 s to always on
Daylight harvesting
Yes
Control output
0–10 V dimming
Supply
10.5–15 V DC from the hi bay
IP rating
IP65
Dimensions
20 mm high × Ø52 mm
Defaults
100% area, 3 min hold, daylight disabled
Warranty
5 years (2 years replacement and labour, 3 years replacement only)
Pair it with
Remote
Needed to change the sensor’s settings. One remote does a whole site.
Hi bay
The lights this sensor plugs into.
Smart control
Casambi Bluetooth module for app control instead.
Shade
The sensor sits inside the reflector.
Where it is used
Full light when a forklift comes down the aisle, dimmed otherwise.
Daylight harvesting holds the light back when the sun is in.
Dim standby keeps some light on for safety.
| R3148-MS sensor | R3148-CAS Casambi | |
|---|---|---|
| Control | Motion and daylight, automatic | Bluetooth app, scenes and schedules |
| Set up with | R3148-REMOTE | Casambi app on a phone |
| Network | Each light works alone | Up to 250 lights in one network |
Both plug into the same socket on the R3117 and R3118 ORBIT hi bays. One light takes one module.
No. The R3148-REMOTE is sold separately. The sensor works on its defaults without it.
100% detection area, 3-minute hold time and daylight sensor disabled.
Up to 15 m, with a detection range of about Ø16 m.
Both are possible. After the hold time it drops to a standby level of 10, 20, 30 or 50%, and the standby period can be set from 0 seconds to always on.
Yes. It has daylight harvesting and a daylight threshold from 2 to 400 lux, or the daylight sensor can be disabled.
No rewiring is needed. The sensor plugs into the socket on the hi bay. Isolate the light before fitting it.
Rapid LED R3117 and R3118 ORBIT hi bays. Rapid lists it for these ORBIT hi bays only.
5 years (2 years replacement and labour, 3 years replacement only), with proof of purchase.
Infront Technologies sells it Australia-wide and handles the warranty. The Rapid installation guide is on the Attachments tab.
Installation guide attached. Fitting out a whole warehouse? Call 1300 736 970 for a project price on hi bays and accessories.
Power off. Isolate the hi bay before fitting or removing the sensor. Work at height with suitable access equipment.
Figures. From the Rapid LED R3148-MS installation guide and the rapidled.com.au specification.
