Casambi Ready Bluetooth module for the Rapid LED R3117 and R3118 ORBIT hi bays. App dimming, scenes and schedules, no gateway needed.

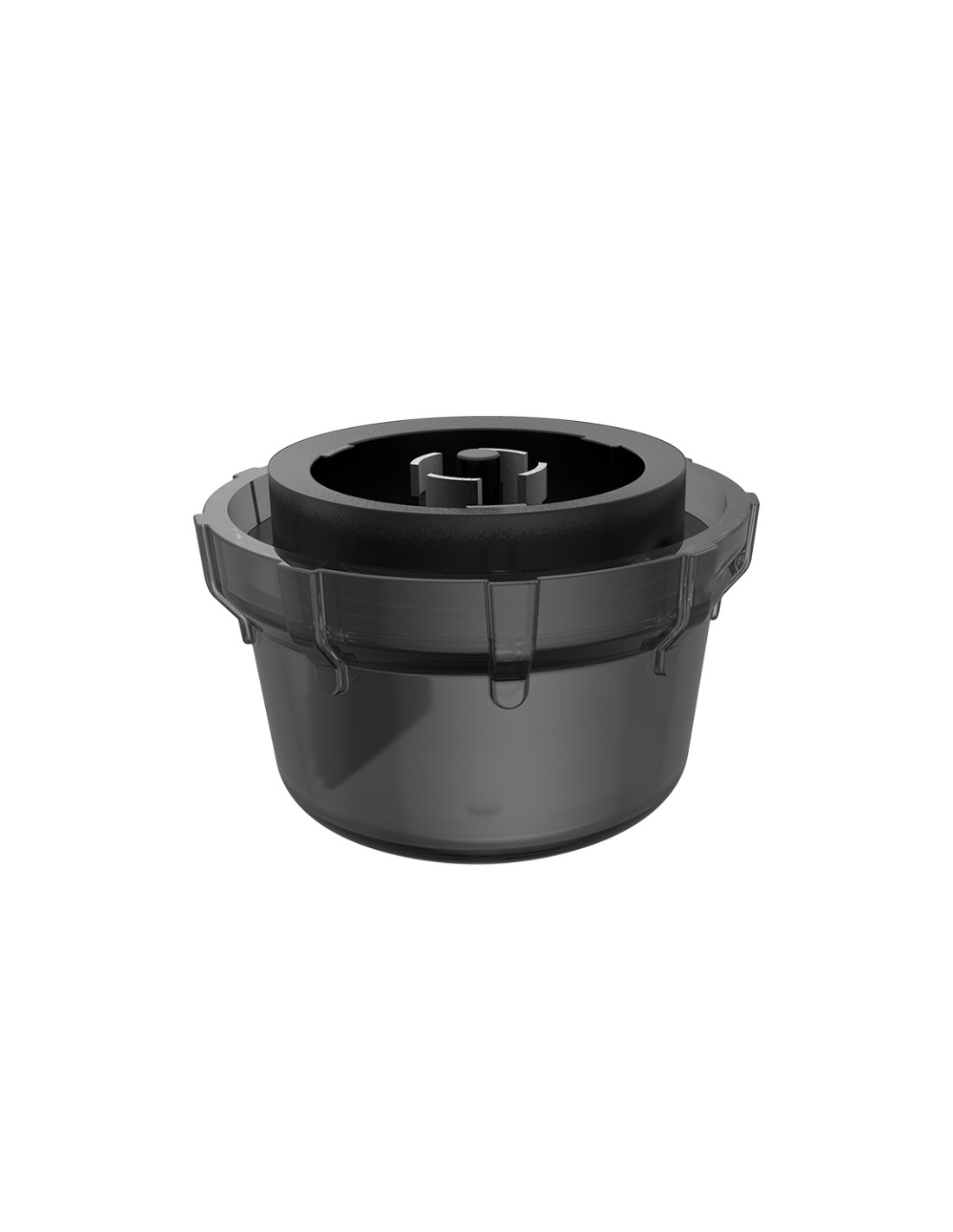

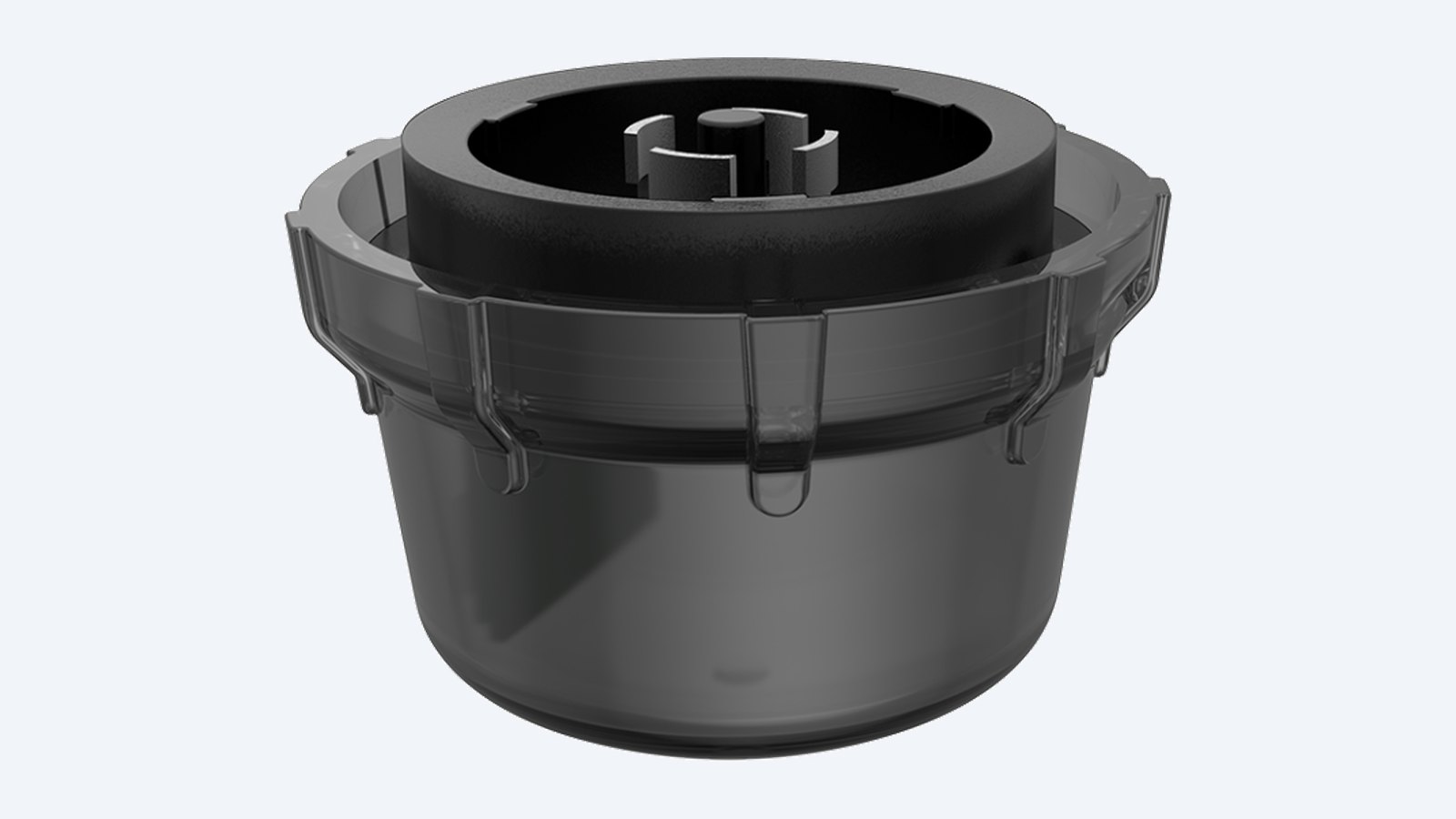

This is the R3148-CAS. A Casambi Ready Bluetooth module that plugs into the hi bay. Dim, group, schedule and set scenes from the Casambi app.
In one sentence: the R3148-CAS is a Rapid LED Casambi Ready Bluetooth control module that plugs into R3117 and R3118 ORBIT hi bays for app control of up to 250 lights.
Module only. Control is through the free Casambi app.
The lights form their own Bluetooth mesh, so no gateway or control cabling is needed.
Each hi bay with a module joins the same Casambi network. Group lights by area, dim them, run them on a schedule, and update firmware over the air.
Fits
The module plugs into the socket in the centre of the R3117 or R3118 and dims the light on its 0–10 V control line.
How it goes in
01
Isolate the hi bay before fitting the module.
02
Push the module into the socket in the centre of the hi bay and turn it to lock.
03
Open the Casambi app and add the light to your network.
04
Set groups, scenes and timers for the site.
At a glance
Show specs
Model
R3148-CAS
Suits
Rapid LED R3117 and R3118 ORBIT hi bays
Protocol
Casambi Ready Bluetooth
Network size
Up to 250 nodes
Gateway
Not required
Range
About 50 m in open space, up to 80 m between devices
Control output
0–10 V / 1–10 V
Supply
12–24 V DC from the hi bay
Firmware
Over-the-air updates
IP rating
IP65
Dimensions
Ø50 × 37.5 mm
Warranty
5 years (2 years replacement and labour, 3 years replacement only)
Pair it with
Hi bay
The lights this module plugs into.
Sensor
Plug-in motion and daylight sensor, if you would rather not use an app.
Shade
Aluminium or polycarbonate reflectors to suit each hi bay.
Hanging
1 m or 2 m wire kit, 40 kg safe working load.
Where it is used
Group aisles and docks, dim after hours.
Scenes for training, games and cleaning.
Smart control without new control cabling.
| R3148-CAS Casambi | R3148-MS sensor | |
|---|---|---|
| Control | Bluetooth app, scenes and schedules | Motion and daylight, automatic |
| Set up with | Casambi app on a phone | R3148-REMOTE |
| Network | Up to 250 lights in one network | Each light works alone |
Both plug into the same socket on the R3117 and R3118 ORBIT hi bays. One light takes one module.
No. The modules form their own Bluetooth mesh and you control them from the Casambi app.
Up to 250 nodes.
About 50 m in open space, and up to 80 m between devices.
Yes, over the air from the app.
Each hi bay has one socket, so it takes either the Casambi module or the sensor.
Rapid LED R3117 and R3118 ORBIT hi bays. Rapid lists it for these ORBIT hi bays only.
5 years (2 years replacement and labour, 3 years replacement only), with proof of purchase.
Infront Technologies sells it Australia-wide and handles the warranty. The Rapid installation guide is on the Attachments tab.
Installation guide attached. Fitting out a whole warehouse? Call 1300 736 970 for a project price on hi bays and accessories.
Power off. Isolate the hi bay before fitting or removing the module. Work at height with suitable access equipment.
Figures. From the Rapid LED R3148-CAS installation guide and the rapidled.com.au specification.
