±30° adjustable bracket for the Rapid LED R3117 and R3118 ORBIT hi bays. Fixes to a ceiling or beam and tilts to aim the light.

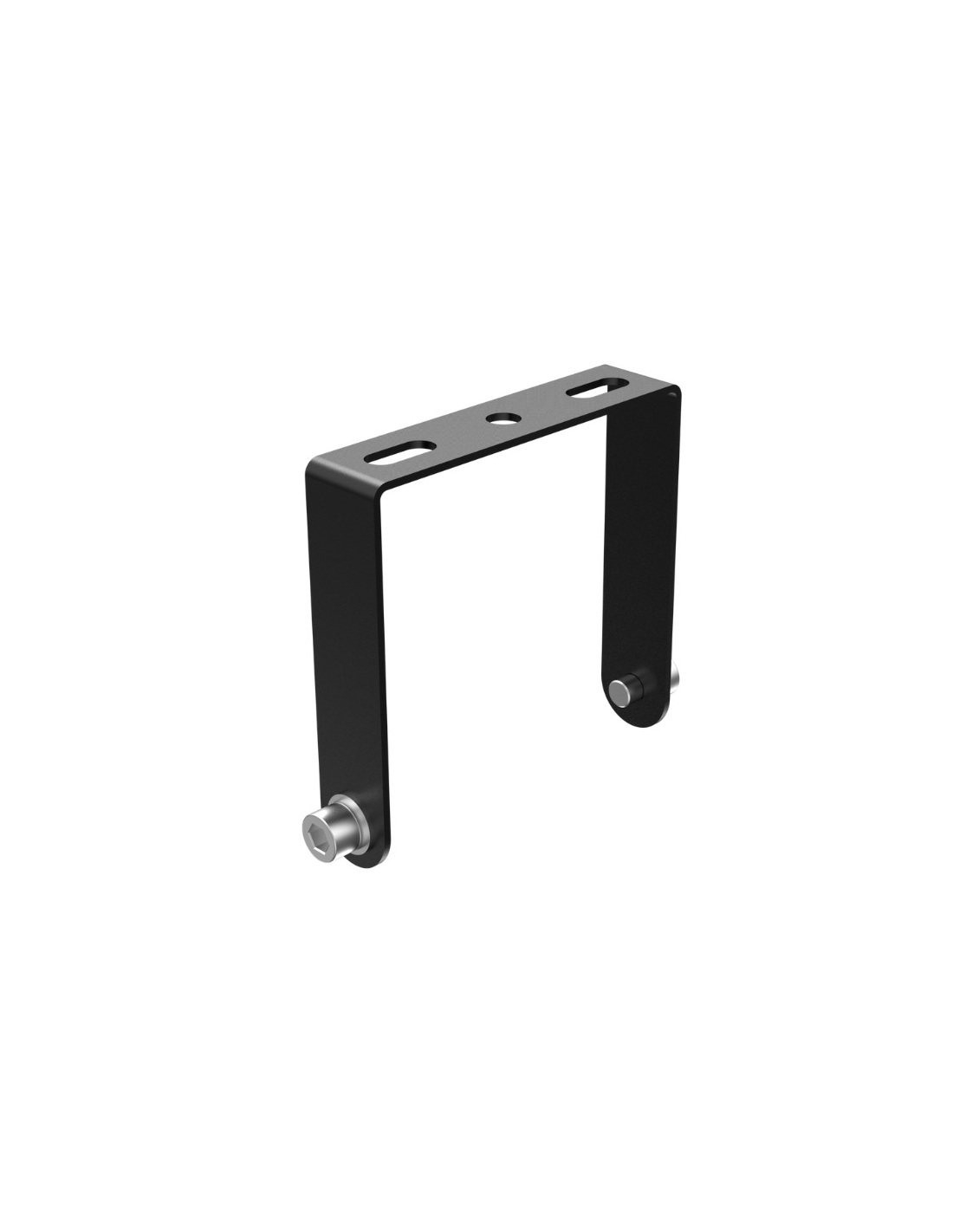

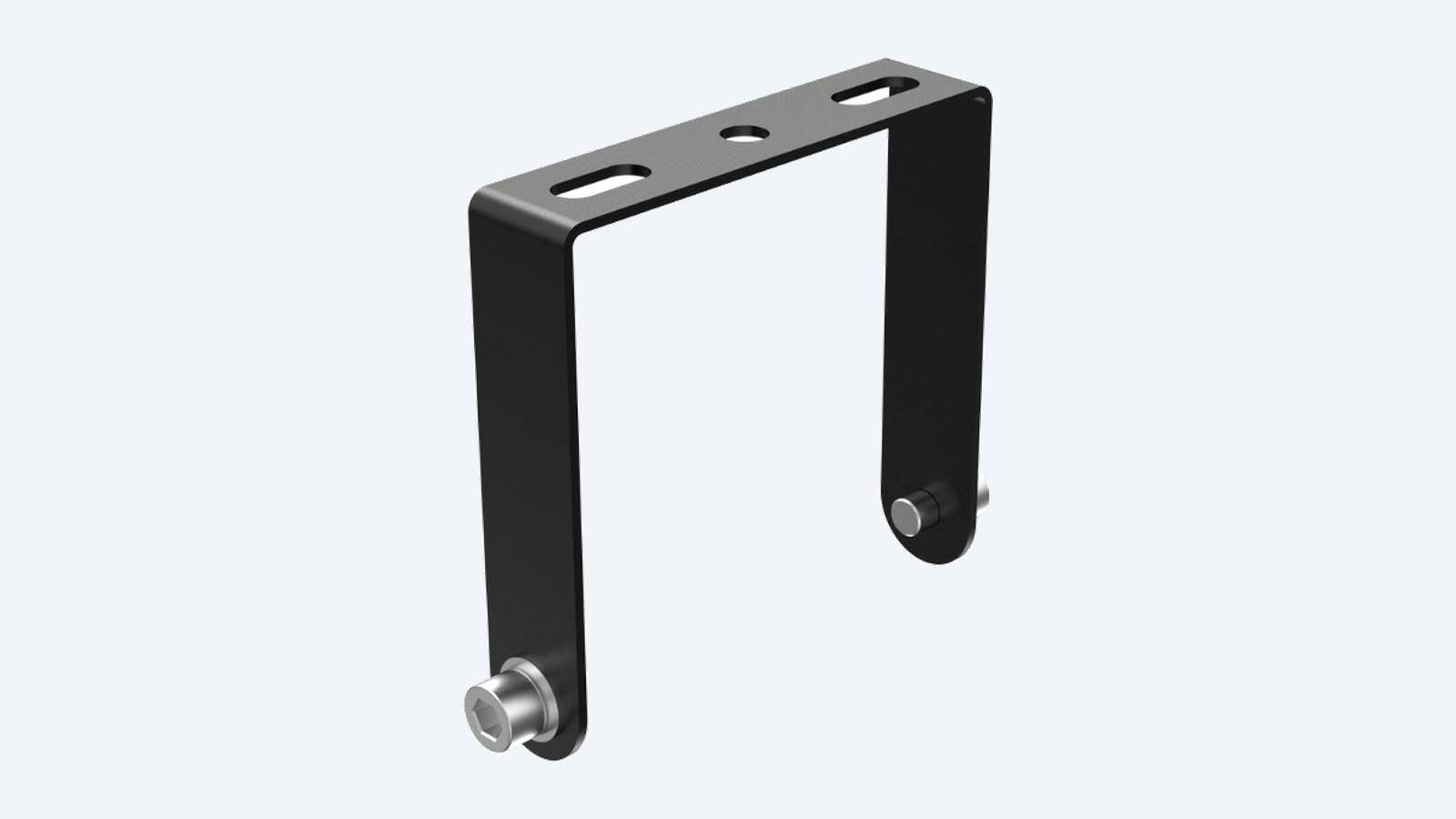

This is the R3145. A U bracket that fixes the hi bay straight to a ceiling or beam, and tilts it up to 30° each way to aim it.
In one sentence: the R3145 is a Rapid LED ±30° adjustable U bracket that fixes an R3117 or R3118 ORBIT hi bay to a ceiling, beam or wall.
Bracket and light fixings only.
Rapid’s guide notes the screws that fix the bracket to the ceiling are not provided. Choose fixings to suit the structure.
Hanging a hi bay on a hook or wire suits tall sheds. On lower ceilings, beams or walls the bracket holds it tight to the structure and lets you angle the light.
Fits
Two M8 × 12 screws fix the bracket to the sides of the hi bay at 2.5 N·m. The arms pivot so you can tilt the light up to 30° either way.
How it goes in
01
Two M8 × 12 screws into the sides of the hi bay, tightened to 2.5 N·m.
02
Use screws or bolts that suit the ceiling or beam. They are not provided.
03
Tilt the hi bay up to ±30° and lock the pivots.
At a glance
Show specs
Model
R3145
Suits
Rapid LED R3117 and R3118 ORBIT hi bays
Adjustment
±30°
Material
Powder-coated aluminium, black
Dimensions
132 mm wide × 130 mm high
Light fixing
2 × M8 × 12 screws, 2.5 N·m (supplied)
Ceiling fixing
Not supplied, choose to suit the structure
Warranty
5 years (2 years replacement and labour, 3 years replacement only)
Pair it with

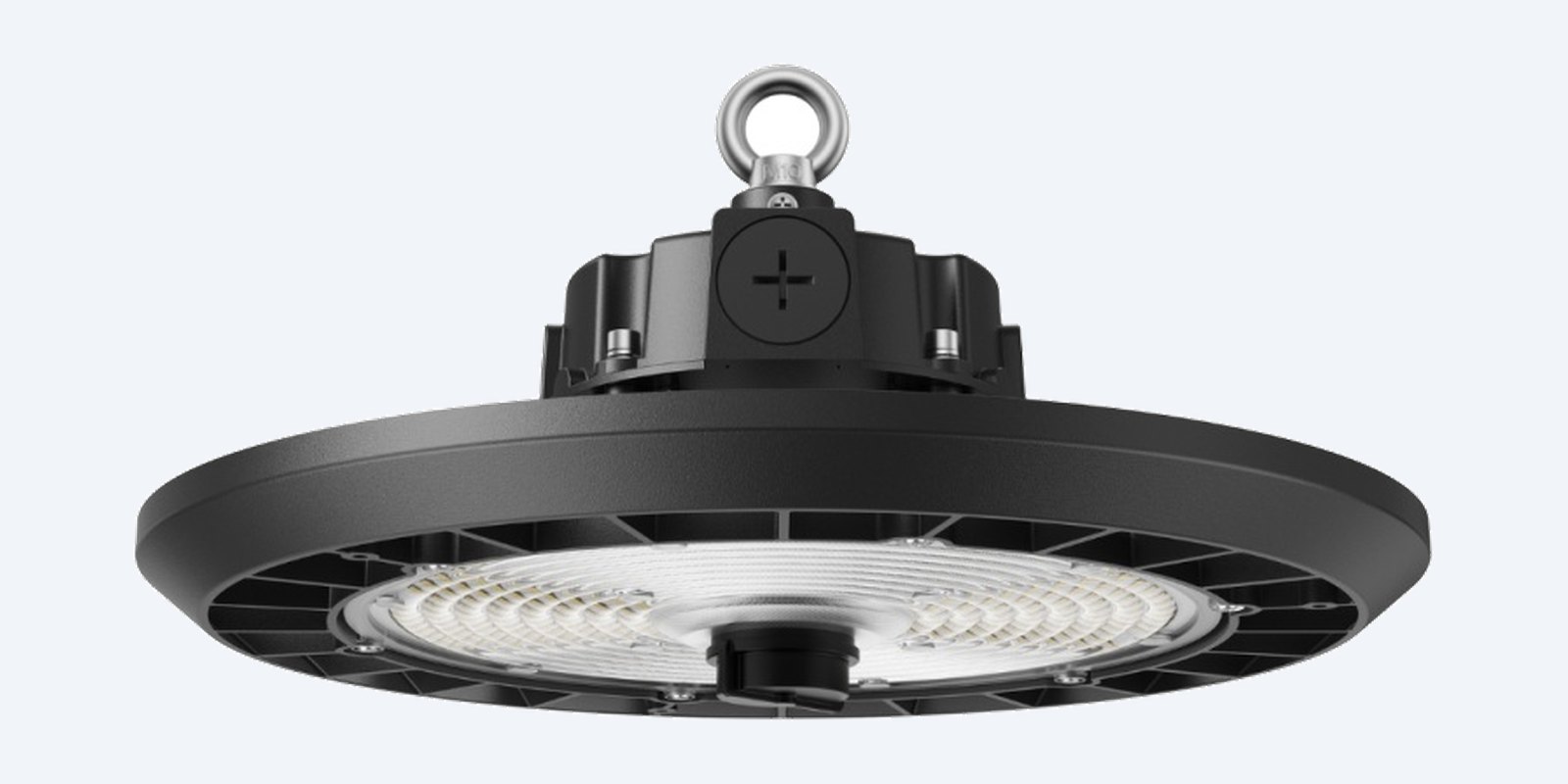

Hi bay
The lights this bracket fits.
Hanging
Hang from wire instead, for tall sheds.
Shade
Aluminium or polycarbonate reflectors to suit each hi bay.
Control
Plug-in microwave sensor for automatic dimming.
Where it is used
Holds the hi bay tight to the ceiling.
Fix straight to the structure.
Tilt toward racking, walls or a work area.
| R3145 bracket | R3144 suspension kit | |
|---|---|---|
| Mounting | Fixed to ceiling or beam | Hangs on wire, 1 m or 2 m |
| Aiming | ±30° tilt | Hangs straight down |
| Best for | Low ceilings, angled light | Tall sheds and warehouses |
Both fit the R3117 and R3118 ORBIT hi bays.
Up to 30° either way.
The two M8 × 12 screws that fix the bracket to the hi bay are included. The screws that fix it to the ceiling are not.
132 mm wide and 130 mm high.
It fixes to any flat structure strong enough for the hi bay. Choose fixings to suit.
Rapid LED R3117 and R3118 ORBIT hi bays. Rapid lists it for these ORBIT hi bays only.
5 years (2 years replacement and labour, 3 years replacement only), with proof of purchase.
Infront Technologies sells it Australia-wide and handles the warranty. The Rapid installation guide is on the Attachments tab.
Installation guide attached. Fitting out a whole warehouse? Call 1300 736 970 for a project price on hi bays and accessories.
Structure. Fix to a structure rated for the hi bay. Work at height with suitable access equipment.
Figures. From the Rapid LED R3145 installation guide and the rapidled.com.au specification.
