Polycarbonate reflector with a clip-on lens for the Rapid LED R3117 ORBIT hi bay. Closes off the front of the light.

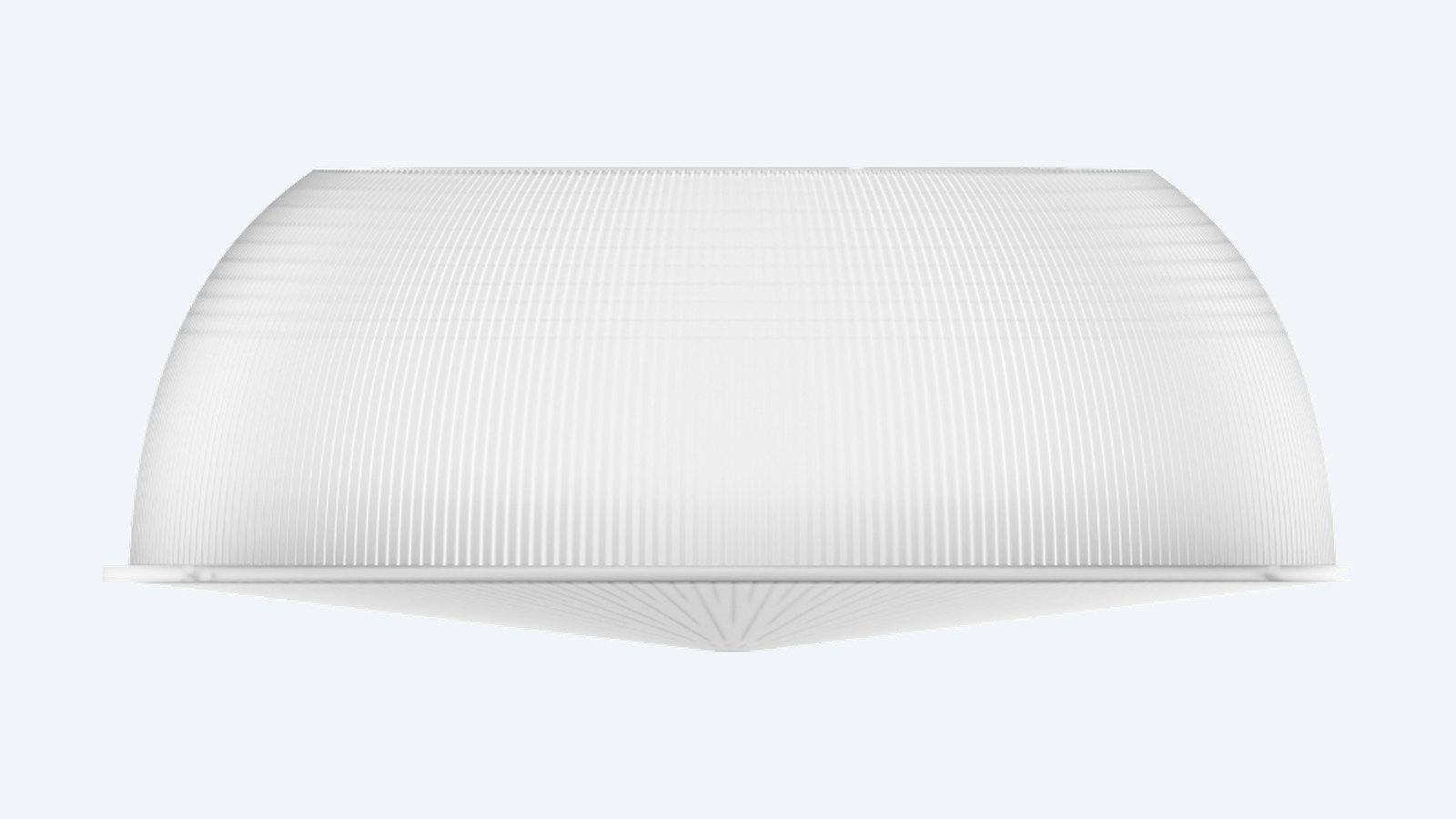

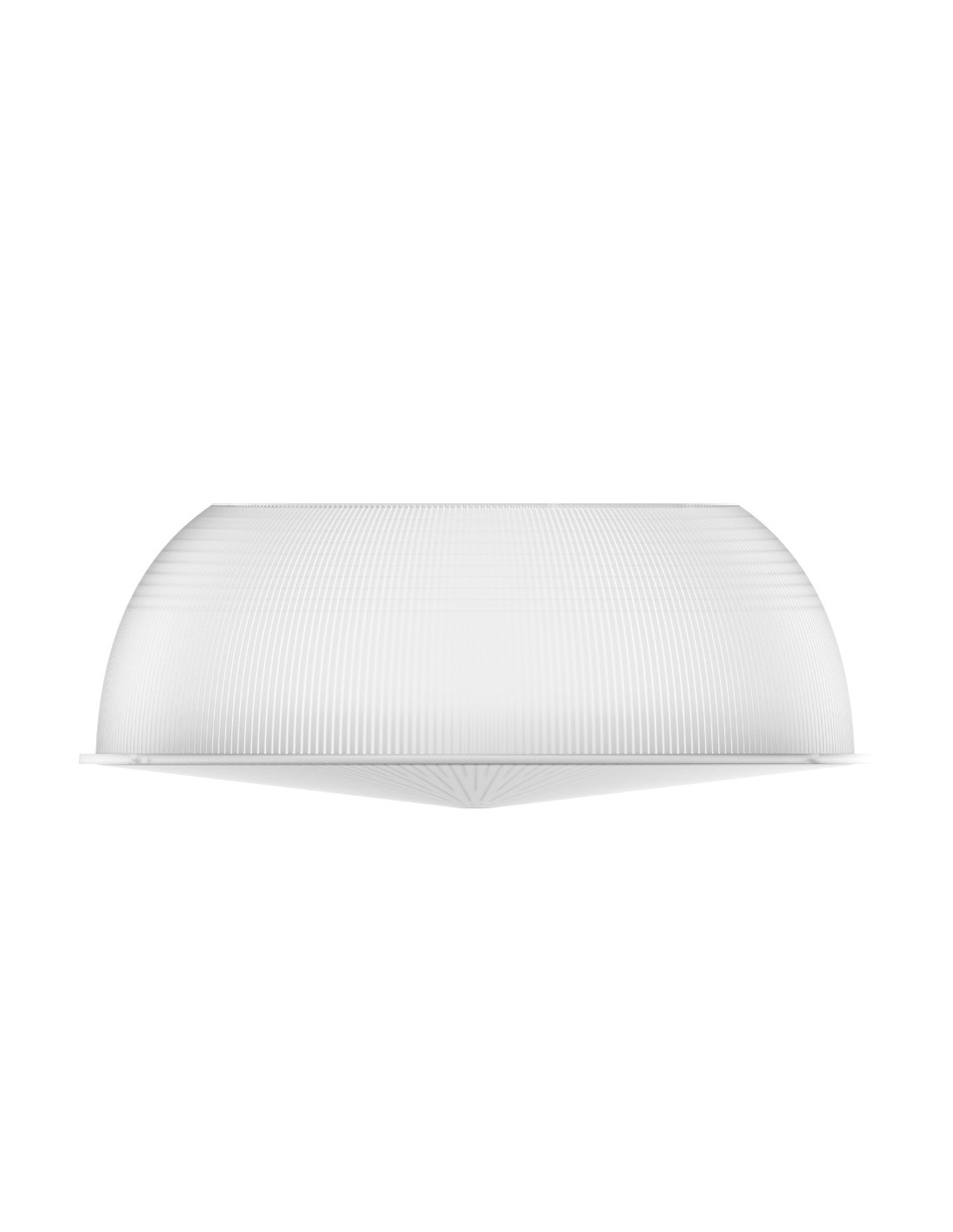

This is the R3117-REFLECTOR-PC. A polycarbonate reflector with a lens that clips across the front, so the R3117 hi bay is closed off from below.
In one sentence: the R3117-REFLECTOR-PC is a Rapid LED polycarbonate reflector with a clip-on lens, Ø421 × 165 mm, for the R3117 (120 / 96 / 72W) ORBIT hi bay.
Reflector and lens only. The hi bay is separate.
It fits the R3117 ORBIT hi bay only. Use the R3118-REFLECTOR-PC for the R3118.
The lens closes the open front of the reflector. That suits areas where you want a smooth surface below the light rather than an open shade.

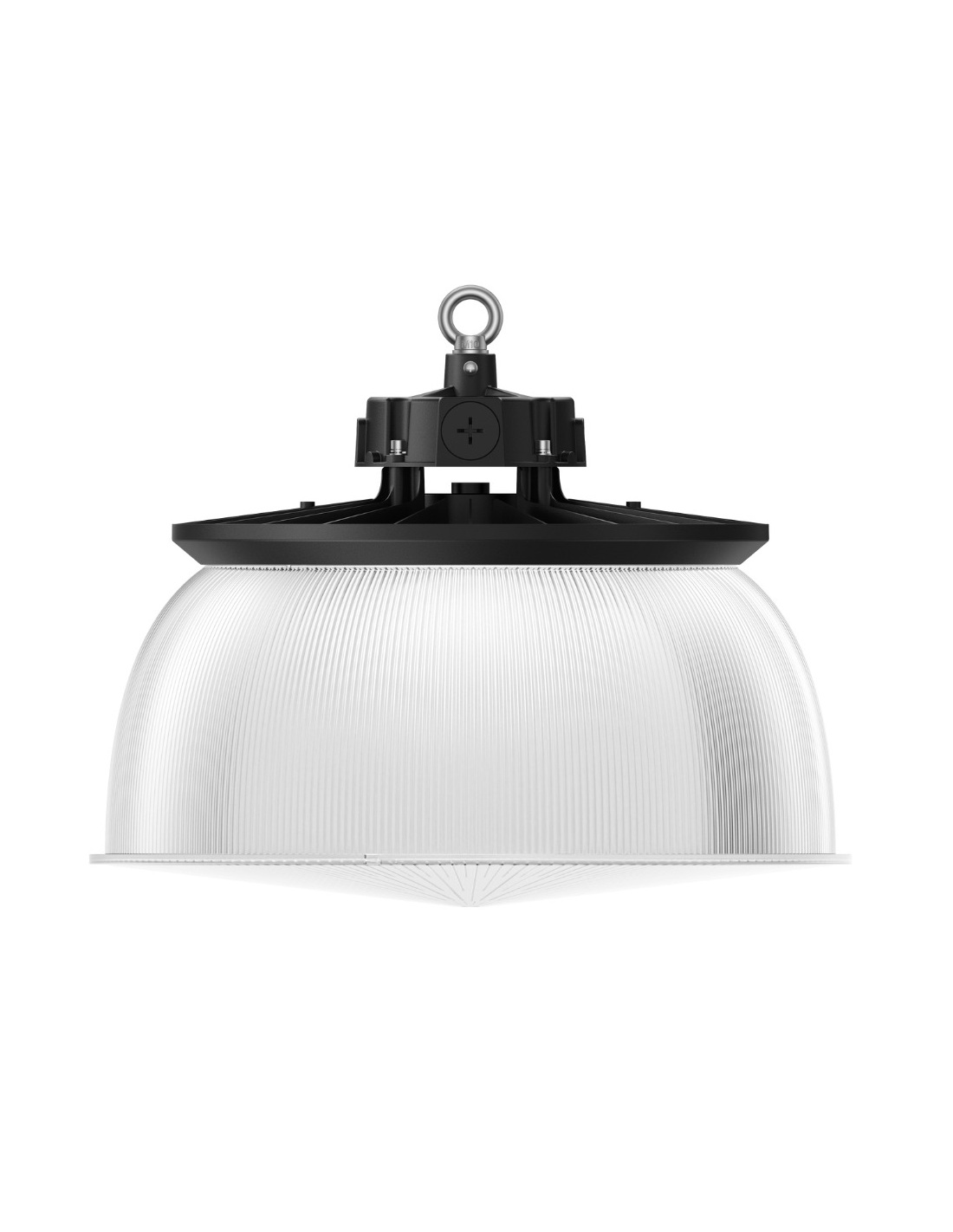

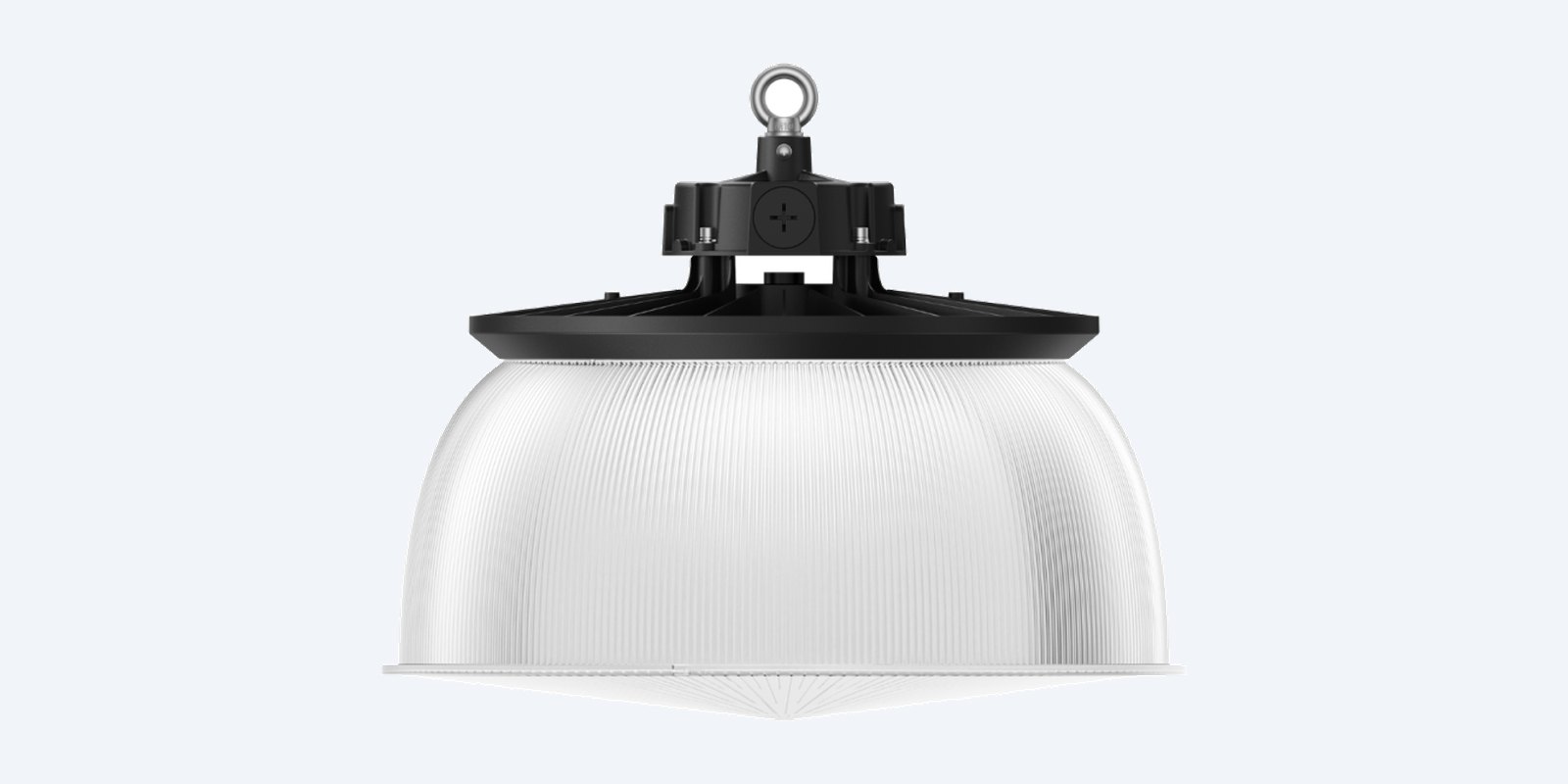

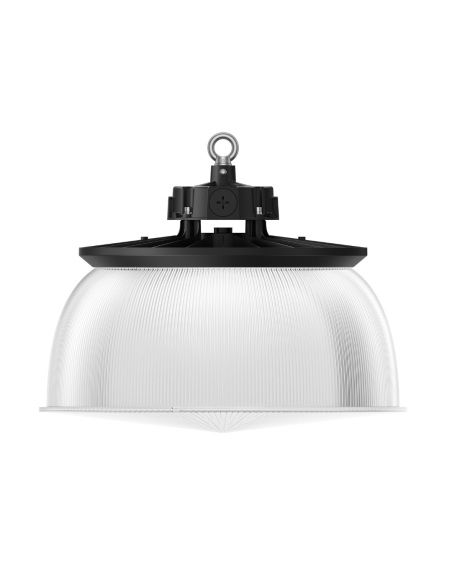

Fitted
The polycarbonate shade fixes to the hi bay, then the lens clips on and is locked with one small screw. Ø421 × 165 mm.
How it goes in
01
Isolate the hi bay, or fit it on the bench before it goes up.
02
Three M4 screws to the hi bay, tightened to 2 N·m.
03
Line up the clips and press the lens onto the rim.
04
One M3 screw at 0.8 N·m holds the lens in place.
At a glance
Show specs
Model
R3117-REFLECTOR-PC
Suits
Rapid LED R3117 ORBIT hi bay
Material
Polycarbonate
Lens
Clip-on, locked with 1 × M3 screw (0.8 N·m)
Dimensions
Ø421 × 165 mm
Fixing
3 × M4 screws, 2 N·m
Warranty
5 years (2 years replacement and labour, 3 years replacement only)
Pair it with
Hi bay
The light this reflector is made for.
Open shade
Aluminium reflector without a lens.
Hanging
1 m or 2 m wire kit, 40 kg safe working load.
Fixing
±30° bracket for fixing to the ceiling or a beam.
Where it is used
A smooth lens is easier to wipe than an open shade.
A tidy, closed look under the light.
The lens covers the LED face from below.
| R3117-REFLECTOR-PC | R3117-REFLECTOR-AL | |
|---|---|---|
| Material | Polycarbonate with clip-on lens | Aluminium, powder coated |
| Size | Ø421 × 165 mm | Ø353 × 80 mm |
| Front | Closed by a lens | Open |
| Fixing | 3 × M4 screws, lens clips on with 1 × M3 | 4 × M4 screws |
Both fit the R3117 ORBIT hi bay. Figures from the Rapid LED installation guides.
Yes. The reflector and the clip-on lens come together.
The shade fixes with three M4 screws at 2 N·m. The lens clips on and is locked with one M3 screw at 0.8 N·m.
Ø421 × 165 mm.
No. Use the R3118-REFLECTOR-PC for the R3118 hi bay.
Rapid LED R3117 ORBIT hi bay. Rapid lists it for these ORBIT hi bays only.
5 years (2 years replacement and labour, 3 years replacement only), with proof of purchase.
Infront Technologies sells it Australia-wide and handles the warranty. The Rapid installation guide is on the Attachments tab.
Installation guide attached. Fitting out a whole warehouse? Call 1300 736 970 for a project price on hi bays and accessories.
Power off. Isolate the hi bay before fitting. Work at height with suitable access equipment.
Figures. From the Rapid LED R3117-REFLECTOR-PC installation guide and the rapidled.com.au specification.
