Hilook HA-KIT-IP2 IP Video Intercom Kit with 2MP Door Station, 7
- Complete IP video intercom kit with 2MP door station, 7" monitor, 32GB card & power supplies
- HD video with night vision, WDR, noise suppression & echo cancellation
- Remote access via Hik-Connect app – answer calls & unlock doors from your phone
- Supports PoE or Wi-Fi for flexible installation
- IP65-rated weatherproof door station for outdoor use
- View up to 16 IP cameras from the indoor monitor
- Simple plug-and-play setup
- Ideal for homes, apartments & offices

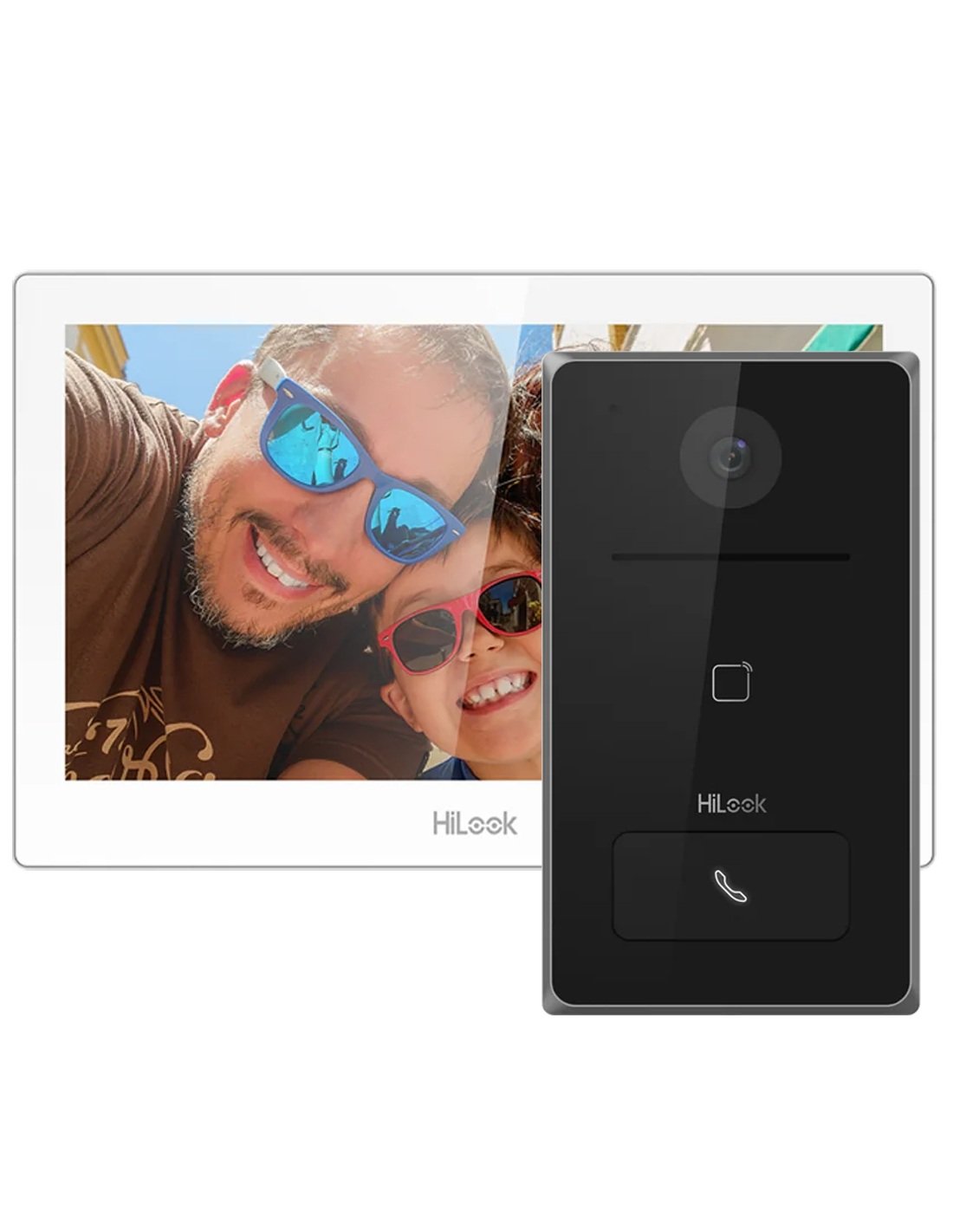

HiLOOK by HIKVISION HA-KIT-IP2 2MP Video Intercom Kit with 7-Inch Indoor Station
Model: HA-KIT-IP2
Overview
This all-in-one Hikvision HA-KIT-IP2 intercom kit is ideal for secure entry systems in homes or offices. The kit includes a 2MP HD camera door station and a 7-inch touch screen indoor station, enabling convenient two-way audio and real-time video communication. Featuring mobile control via Hik-Connect, standard PoE power, and IR night vision, this system delivers reliable, high-performance video intercom functionality with an intuitive interface.
Designed for durability and ease of use, this IP-based solution supports both surface and flush mounting, includes tamper protection, and supports remote unlocking and motion detection. Ideal for smart homes and commercial premises.
Key Features
- Convenient mobile control via Hik-Connect app
- 2MP HD camera with true WDR and 129° wide horizontal field of view
- Night vision with IR illumination up to 2.5 meters
- One-button doorbell for easy calling
- Built-in microphone and loudspeaker with echo cancellation
- Video compression with H.264 and multiple frame rate support
- Two-way audio with noise suppression
- Indoor station with 7" capacitive touchscreen and 1024x600 resolution
- Network: Wi-Fi and Ethernet on both door and indoor stations
- Supports PoE and 12VDC power input
- IP65 weather-rated door station housing
- Expandable with alarm inputs, relays, and TF card storage
Technical Specifications
- Camera: 2MP, true WDR, 129° H FOV / 75° V FOV
- Video: H.264, 1080p/720p/480p at 25/30fps (PAL/NTSC)
- Audio: Two-way communication, G722.1, OPUS, G711, AAC
- Network: TCP/IP, SIP, RTSP, 10/100 Mbps, Wi-Fi 2.4GHz
- Interface: RJ-45, 4 alarm inputs, RS-485, lock control, tamper input
- Storage: 32GB TF card included, supports up to 128GB
- Power: IEEE802.3af PoE / 12VDC (both adapters included)
- Installation: Surface or flush mount
- Operating Temp: -40°C to 53°C (door) / -10°C to 50°C (indoor)
- Dimensions: Door station: 181.6 x 103.6 x 29.5 mm
Indoor station: 175 x 113.5 x 21 mm
What’s in the Box

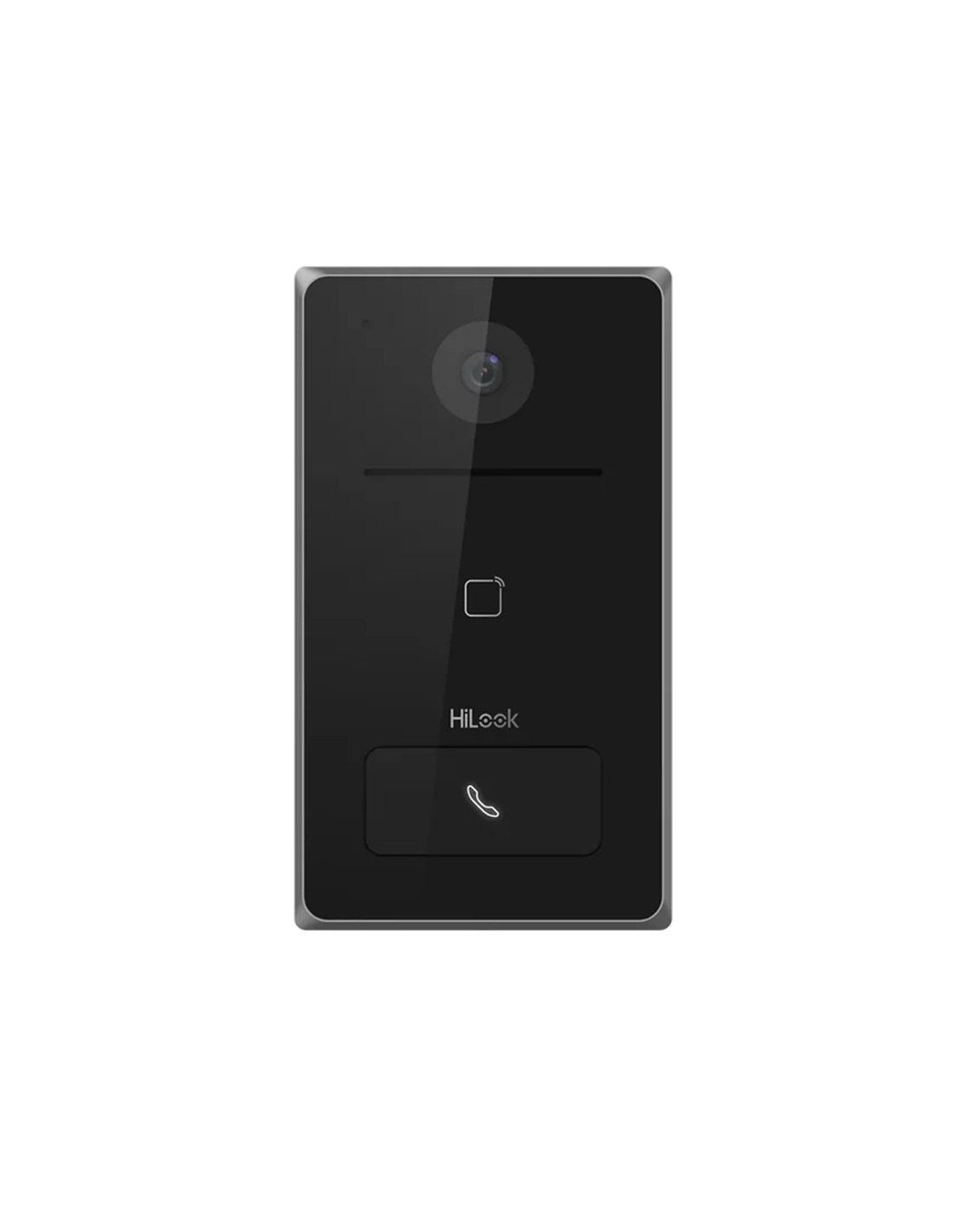

- 1 x Door Station with 2MP Camera

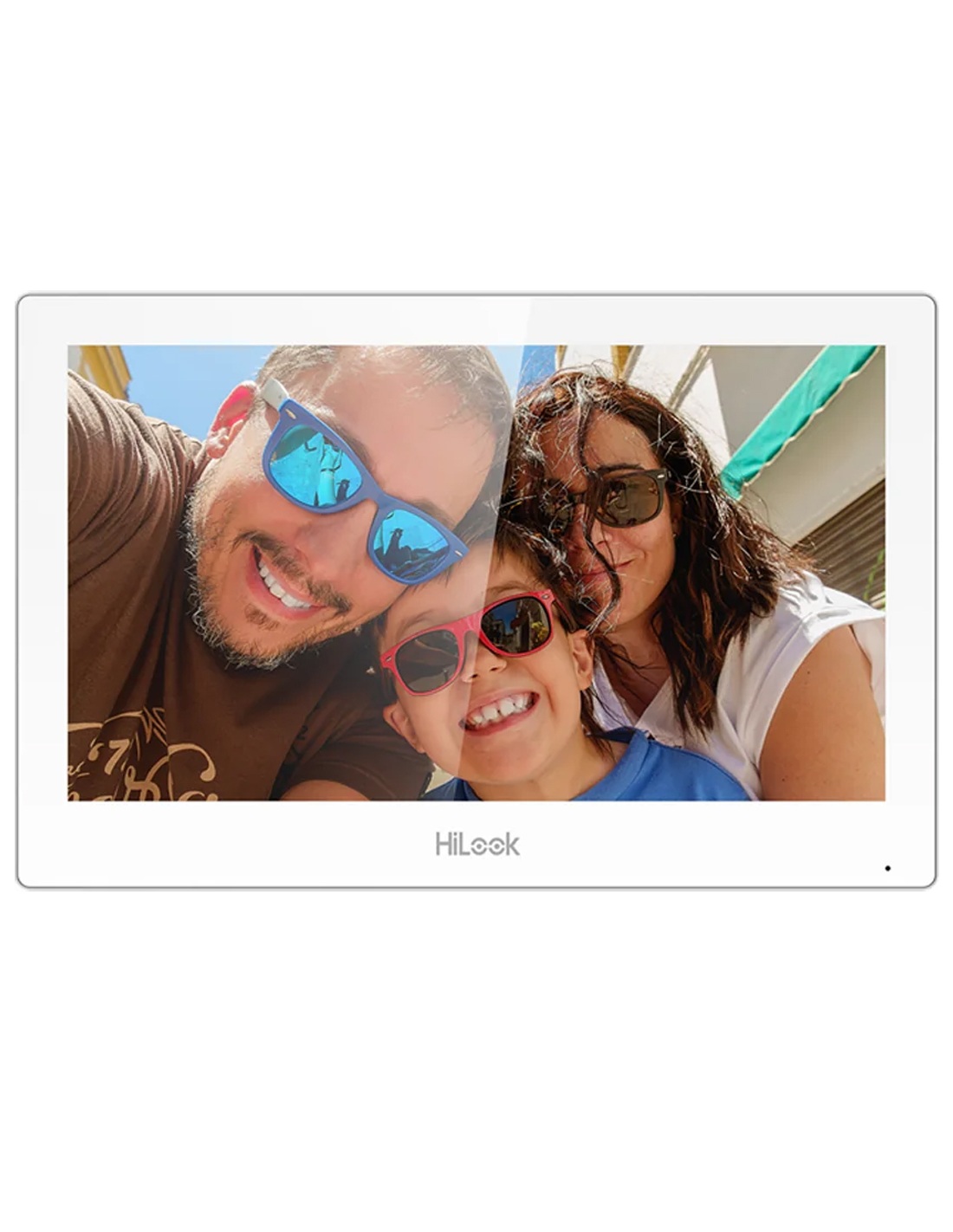

- 1 x 7" Indoor Station Monitor
- 2 x Power Supply Units
- 1 x 32GB TF Memory Card
- Mounting hardware and quick start guide
