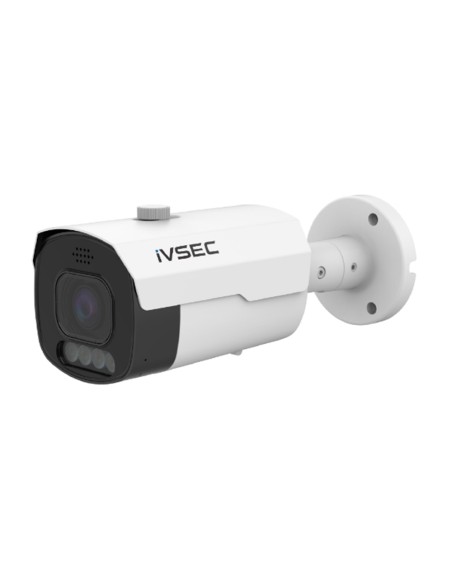

IVSEC IVNC317ADX 5MP motorised bullet camera, front right angle with wall bracket

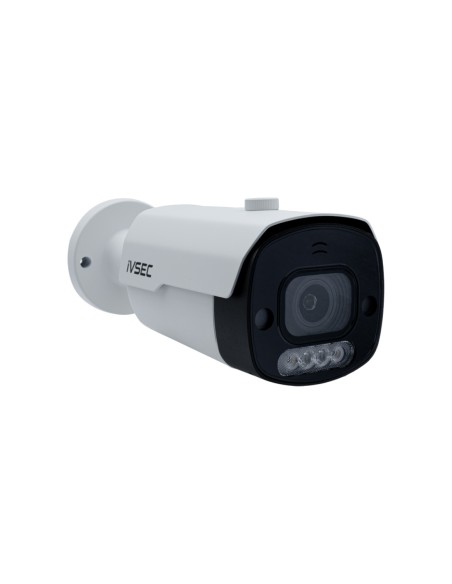

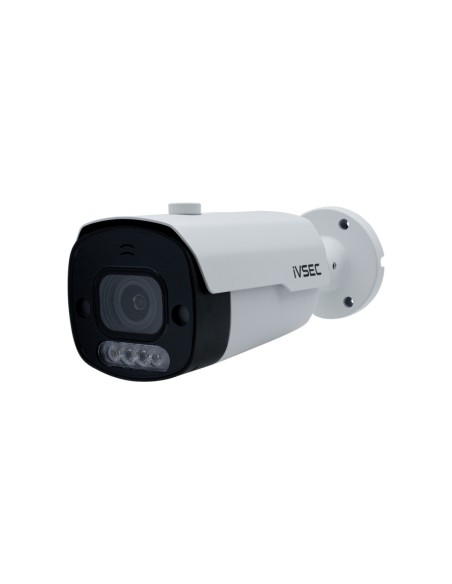

IVSEC IVNC317ADX bullet camera, front left angle

IVSEC IVNC317ADX close-up of the 2.8-12 mm lens with IR, white and red and blue LEDs

IVSEC IVNC317ADX metal housing and wall bracket, close-up

Wired PoE camera: cable tail with network connector and 12 V DC socket

1 / 5

IVSEC 5MP 2.8-12MM Lens, Full Colour Bullet Motorised Security Camera - IVNC317ADX

Name: IVSEC 5MP 2.8-12MM Lens, Full Colour Bullet Motorised Security Camera - IVNC317ADX
Brand: IVSEC
SKU: IVNC317ADX
Price: 307.5 AUD
Availability: InStock

SKU IVNC317ADX In Stock - Ready to Ship

$307.50 inc GST

IVSEC IVNC317ADX: a 5MP PoE bullet camera with a motorised 2.8 to 12 mm lens, colour night vision, red and blue deterrent lights and two-way audio.

✓5MP 2880 × 1620, up to 30 fps
✓Motorised 2.8–12 mm zoom, 113° to 35°
✓Night vision to 30 m, full colour mode
✓Red and blue lights, siren, microphone and speaker
✓Human and vehicle detection, line crossing, intrusion
✓IP67, IK10, PoE or 12 V DC, 3 year warranty

IVSEC NC317ADX 5MP motorised bullet camera with black front, white housing and wall bracket

IVSEC · Motorised Bullet · Active Deterrence

Zoom from 2.8 to 12 mm.
Colour at night, lights and a voice.

The IVSEC IVNC317ADX is a 5MP wired bullet camera with a motorised 2.8 to 12 mm lens you set from the app or recorder, white light for colour at night, red and blue deterrent lights and a built-in microphone and speaker.

In one sentence: the IVSEC IVNC317ADX is a 5MP PoE bullet camera with a motorised 2.8 to 12 mm zoom lens (113° to 35°), colour night vision, red and blue deterrent lights, two-way audio and an IP67, IK10 metal housing.

Camera only. Recorder and network cable are separate.

This listing is one camera. It needs one Cat5e or Cat6 cable back to a PoE recorder or PoE switch, which carries both power and video.

In the box

IVNC317ADX bullet camera
Printed quick user guide
Installation template
Mounting screws and plugs

You also need

An IVSEC NVR or another ONVIF (Profile S, G or T) recorder
Cat5e or Cat6 cable
A PoE (802.3af) port, or a 12 V DC supply
IV2477X junction box if the cable must stay hidden in a wall-mounted conduit

Frame the shot after it is on the wall.

The motorised lens zooms from a 113° wide view to a 35° close view, so you set the picture from the app or recorder instead of choosing a fixed lens before you buy. When someone crosses a line, the camera can switch on its white light, flash red and blue and sound a warning through its speaker.

IVSEC NC317ADX bullet camera from the front left, lens, light strip and wall bracket

The camera

5MP, motorised 2.8–12 mm.

A 1/2.7" progressive CMOS sensor records 2880 × 1620 at up to 30 fps. The metal housing is rated IP67 for weather and IK10 for impact, from −35 °C to 60 °C.

IVSEC NC317ADX close-up of the zoom lens and the light strip under it

Lens and lights

IR, white light, red and blue.

Under the lens sit the IR, white and red and blue LEDs. IVSEC rates night viewing to 30 m, and in full colour mode the white light keeps the footage in colour after dark.

IVSEC wired camera cable tail with network connector and 12 V DC socket

One cable

Power and video on one run.

The tail carries a network connector for PoE (IEEE 802.3af) plus a 12 V DC input if you power the camera separately. It draws under 10.5 W.

How it goes in

From box to first alert.

Run the cable

Run Cat5e or Cat6 from the camera position to a PoE port on the recorder or a PoE switch, up to 100 m.

Mount the camera

Mark the holes with the installation template and fix the bracket with the supplied screws and plugs, out of easy reach. Add an IV2477X junction box if you want the cable hidden.

Add it to the recorder

Find the camera with IVSEC's Device Search/Config Tool or add it on an IVSEC NVR or any ONVIF Profile S, G or T recorder, then set a password.

Zoom and set the alarms

Zoom the lens from the app or recorder to frame the area, then draw line crossing or intrusion zones and choose the lights and siren response.

At a glance

IVNC317ADX

Show specs

Camera type

Bullet, motorised zoom

Resolution

5MP, 2880 × 1620, up to 30 fps

Image sensor

1/2.7" progressive CMOS

Lens

2.8–12 mm motorised, 113° to 35° horizontal

Night vision

Up to 30 m; full colour mode (auto)

Lights

IR, white, red and blue

Audio

Built-in microphone and speaker

Video analytics

Face, human and vehicle detection, perimeter intrusion, line crossing, cross counting, stationary object, heat map, crowd density, queue length, licence plate detection, rare sound detection

Compression

H.265+, H.265, H.264+, H.264, MJPEG; 3 streams

Image settings

Back light, white balance, shutter, exposure time, defog, 3D noise reduction, mirror and flip

Storage

microSD / SDHC card slot; Dropbox cloud option

Network

RJ45 10/100; ONVIF Profile S, G and T

Power

PoE IEEE 802.3af or 12 V DC; under 10.5 W

Connectors

RJ45, DC power input, reset button

Protection

IP67 weatherproof, IK10 vandal resistant

Size and weight

84 × 84 × 240 mm (H × W × L), 1.0 kg

Operating range

−35 °C to 60 °C, under 95% humidity

Software

Device Search/Config Tool, Surveillance Client (CMS/VMS), IVSEC mobile app (QR code)

Warranty

3 years

Pair it with

What this camera does not include

Recorder

An IVSEC PoE NVR

Powers the camera over the network cable and records around the clock. Any ONVIF Profile S, G or T recorder can also be used.

Mounting

IV2477X junction box

IVSEC's small conduit junction box for this camera, to hide the cable tail and connectors on a wall.

Cable

Cat5e or Cat6

One run per camera, up to 100 m from the PoE port.

Storage

A microSD card

Optional, for recording in the camera or as a backup copy when the network drops.

Where it is used

Where a zoom bullet with deterrence fits.

Driveways

Zoom in to the gate or car, in colour at night with the white light.

Shopfronts

Doors and windows after hours, with lights and a spoken warning on intrusion.

Warehouses and yards

Fence lines and roller doors, with line crossing alerts for people and vehicles.

Car parks

Licence plate detection and a tighter 12 mm view down a driveway.

Farms and sheds

Machinery sheds and side gates, IP67 for dust and rain.

Schools and offices

Entries and corridors, where you can talk to visitors through the speaker.

IVNC317ADX or IVNC317XC

	IVNC317ADX (this camera)	IVNC317XC
Resolution	5MP, 2880 × 1620, 30 fps	5MP, 2592 × 1944, 20 fps
Lens	2.8–12 mm motorised, 113° to 35°	2.8–12 mm motorised, 116° to 34°
Night vision	Up to 30 m, full colour mode	IR up to 40 m
Deterrent lights	White, red and blue	IR only
Audio	Microphone and speaker	None
Analytics	Face, human and vehicle, line crossing, intrusion and more	Smart motion detection
Power	PoE 802.3af, 12 V DC; under 10.5 W	PoE 802.3af, 12 V DC; under 7 W
Protection	IP67, IK10	IP67, IK10

Figures from IVSEC's IVNC317ADX datasheet (updated October 2026) and IVNC317XC datasheet (October 2026). Same 84 × 84 × 240 mm bullet size.

Common questions

Can I change the zoom after it is mounted?

Yes. The 2.8 to 12 mm lens is motorised, so you zoom and focus it from the IVSEC app or the recorder. The view goes from 113° wide to 35°.

Is a recorder included?

No. This listing is the camera only. It records to an IVSEC NVR, any ONVIF Profile S, G or T recorder, or a microSD card in the camera.

How is it powered?

Over the network cable from a PoE (IEEE 802.3af) port on the recorder or a PoE switch, or from a 12 V DC supply. It draws under 10.5 W.

Does it show colour at night?

Yes. In full colour mode the white light keeps the picture in colour after dark. IVSEC rates night viewing to 30 m, and it also has IR LEDs.

What does active deterrence do?

When an alarm rule triggers it can flash its red and blue lights, switch on the white light and sound a siren through the speaker. You can also talk through it from the mobile app.

Does it record sound?

Yes. It has a built-in microphone and speaker for two-way audio. Check your state's surveillance laws before recording conversations.

Does it read number plates?

IVSEC lists licence plate detection among its analytics, along with face, human and vehicle detection, line crossing and intrusion. Results depend on distance, angle and lighting.

What resolution is it?

5MP at 2880 × 1620, up to 30 fps, from a 1/2.7" progressive CMOS sensor, in H.265+ or H.264 with three streams.

Can it go outside?

Yes. The metal housing is rated IP67 against dust and water and IK10 against impact, and it runs from −35 °C to 60 °C.

What is in the box?

The camera, a printed quick user guide, an installation template and mounting screws and plugs. The network cable is not included.

What is the difference from the IVNC317XC?

The IVNC317ADX adds colour night vision, red and blue lights, a microphone and speaker and AI analytics. The IVNC317XC has IR only to 40 m, no audio and smart motion detection.

What warranty does it have?

IVSEC lists a 3 year warranty. InFront Technologies handles warranty and technical support in Australia on 1300 736 970.

Supported by InFront Technologies.

Help matching the camera to your recorder, cable or junction box: call 1300 736 970 or email [email protected]. The datasheet is on the Attachments tab.

Installation and safety

Low-voltage camera. Runs on PoE or 12 V DC, under 10.5 W. There is no mains wiring; a new power point needs a licensed electrician.

Cabling. Cable run inside walls or ceilings is customer cabling under AS/CA S009 and needs an ACMA-registered cabler.

Audio and privacy. Recording people and conversations is covered by state and territory surveillance laws. Point the camera at your own property, use signage and check the rules before switching on audio.

What it does not do. No Wi-Fi, no battery, no 4G and no gigabit port (10/100). It does not record on its own without a recorder unless you fit a microSD card.

Figures. From IVSEC's IVNC317ADX datasheet, updated 21 October 2026.

NC317ADX DatasheetOfficial IVSEC NC317ADX datasheet, supplied by InFront Technologies. Download 300.89KB
