Uniview Bullet Cameras
Uniview 8MP 4K Tri-Guard Dual-Light Bullet Camera, White, ColorHunter F1.0, Warning Light & Siren - IPC2B18SE-ADF28KMC-WP-I1
IPC2B18SE-ADF28KMC-WP-I1
In stock $ 372.50
inc-GST
or 4 interest-free payments of $93.12 with
Uniview IPC2B18SE-ADF28KMC-WP-I1 8MP 4K OwlView Plus Tri-Guard bullet with a warning light, siren and two-way talk. Person and vehicle detection, F1.0 colour night video, 40 m dual light, IK10, PoE.
- ✓Warning light and siren on smart events
- ✓Two-way talk: dual mic and speaker
- ✓Person, vehicle and bike detection
- ✓8MP 4K at 30 fps, F1.0 lens
- ✓ColorHunter, 40 m IR and warm light
- ✓IK10, IP67, PoE, microSD to 512GB
Uniview · Tri-Guard · 8MP 4K · OwlView Plus Bullet · White
Warn them off in 4K,
in colour, day and night.

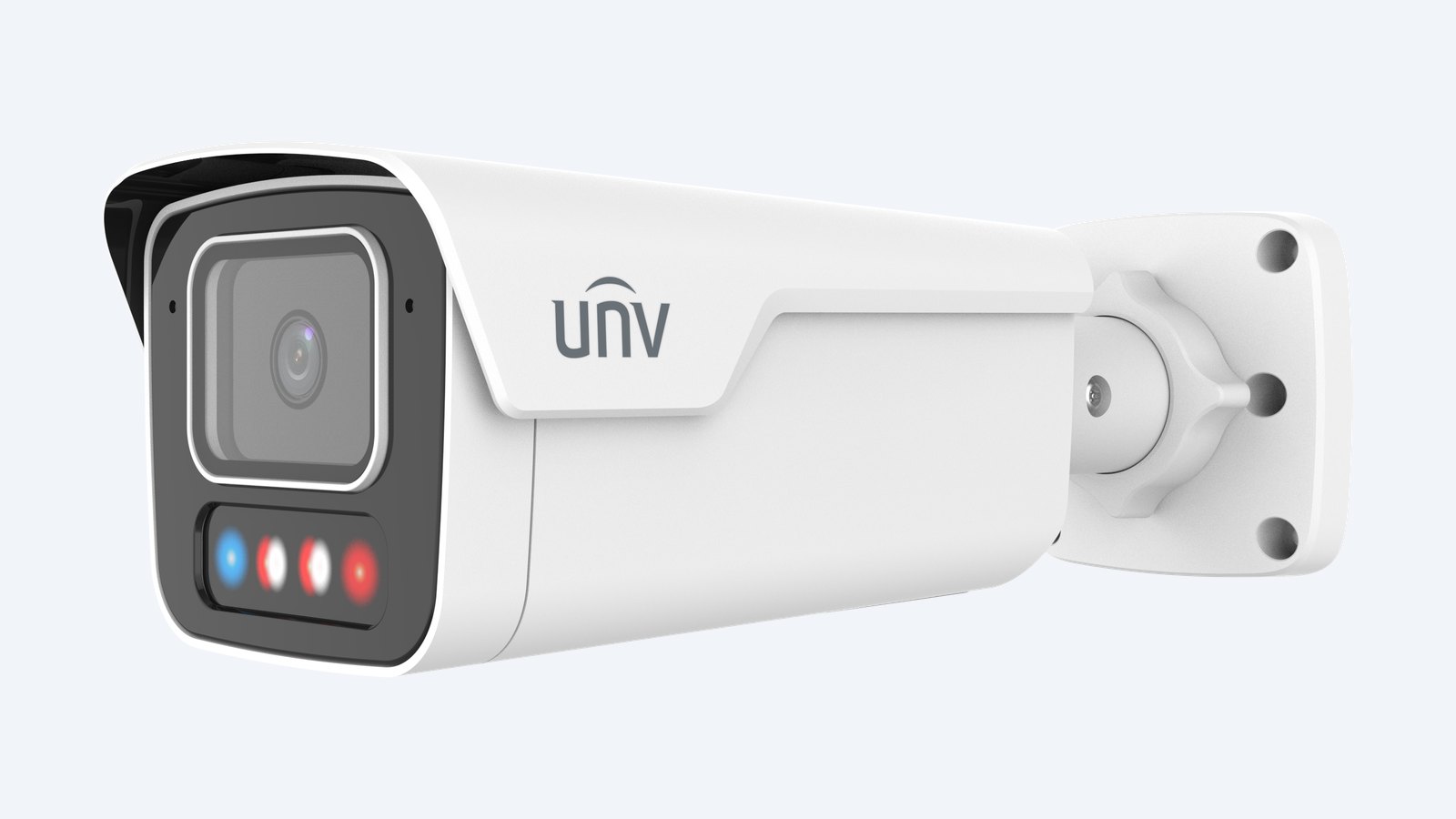

This is the Uniview IPC2B18SE-ADF28KMC-WP-I1. The 8MP (4K) OwlView Plus Tri-Guard bullet. It records 4K at 30 fps, picks out people and vehicles, and when one crosses your line it switches on its warning light, sounds a siren and lets you speak to them.
In one sentence: the IPC2B18SE-ADF28KMC-WP-I1 is a white 8MP (3840 × 2160) Tri-Guard bullet with a 1/1.8" sensor, 2.8 mm F1.0 lens, ColorHunter, 40 m IR and 40 m warm light, a warning light, speaker and dual mic, person and vehicle detection, IK10 and IP67, powered by PoE.
One camera, one Cat6 cable.
Video, power and audio share a single Cat6 run from a PoE recorder or switch. The light, speaker and microphone are built in.
In the box
- IPC2B18SE-ADF28KMC-WP-I1 camera
- Waterproof cable gland parts
- Screw kit and mount accessories
You also need
- A PoE NVR or switch (802.3af), or a 12 V DC supply
- Cat6 cable to the camera
- A microSD card up to 512GB, to record on the camera
- TR-JB07-D-IN junction box or TR-UP06-B-IN pole bracket, if needed
Deterrence, plus the detail to prove it.
If the warning does not work, you still have 4K colour footage. Uniview rates it to identify a person at 6.3 m and recognise someone known at 12.6 m, with colour down to 0.0003 lux thanks to the 1/1.8" sensor and F1.0 lens.
Deterrence
Lens above, lights below.

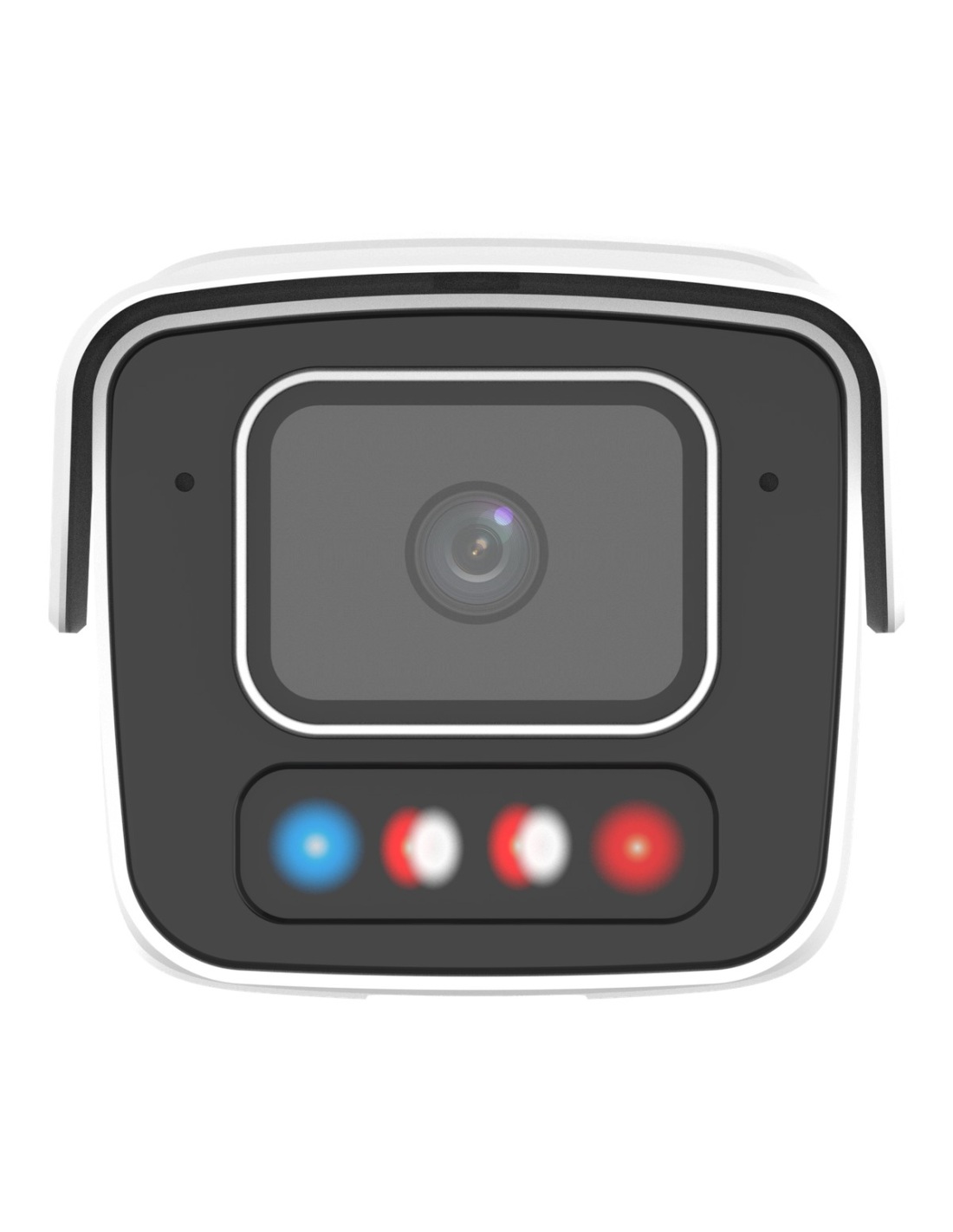

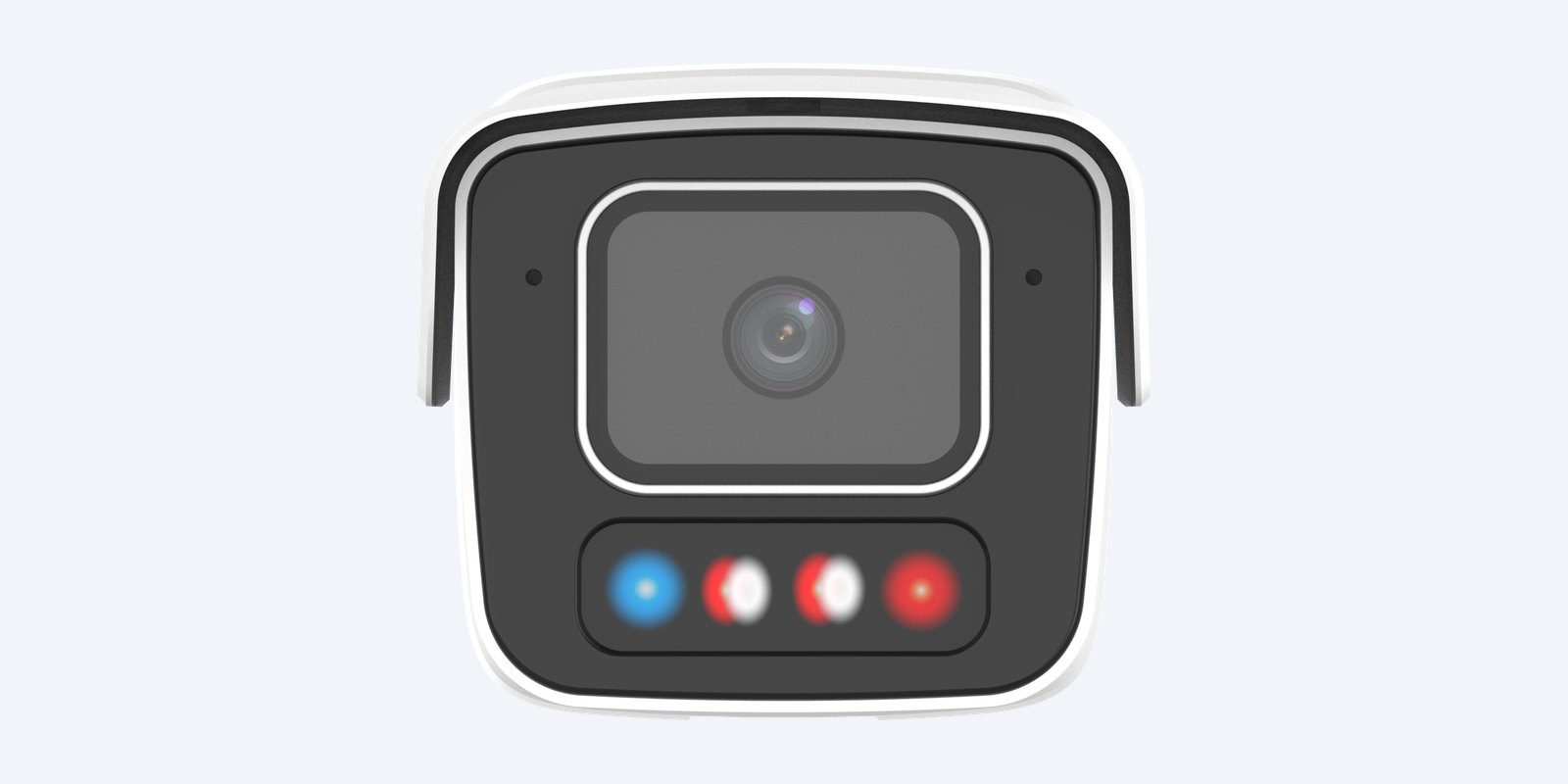

The warning light, warm light and infrared sit in a strip under the lens, behind the same front window, with a hood over the top to keep off sun and rain.
Design
A bracket that sets any angle.
The bracket pans 360°, tilts 0–90° and rotates 360°, so the picture can be levelled from a sloping eave, a side wall or a pole.
Size
A full-size metal bullet.

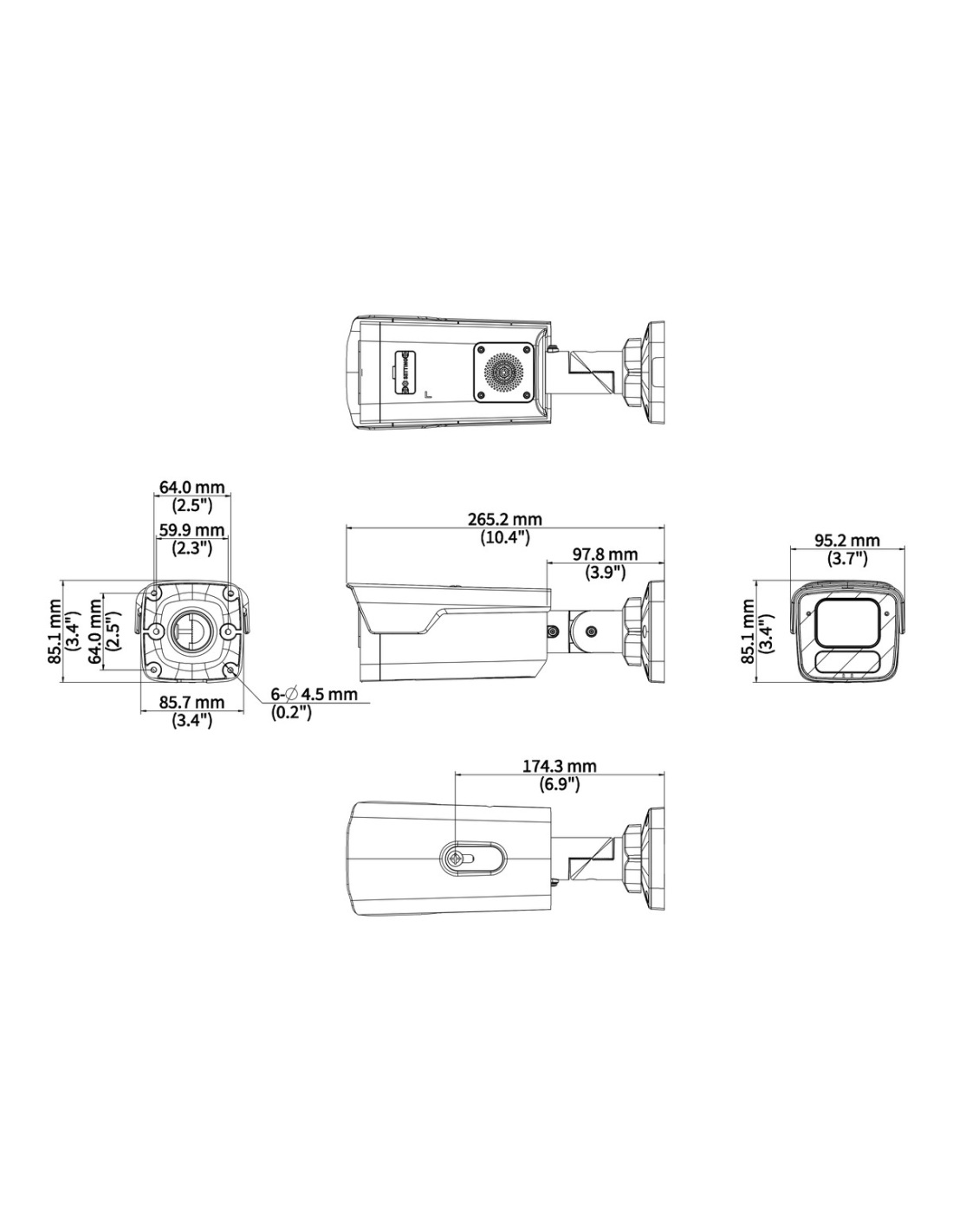

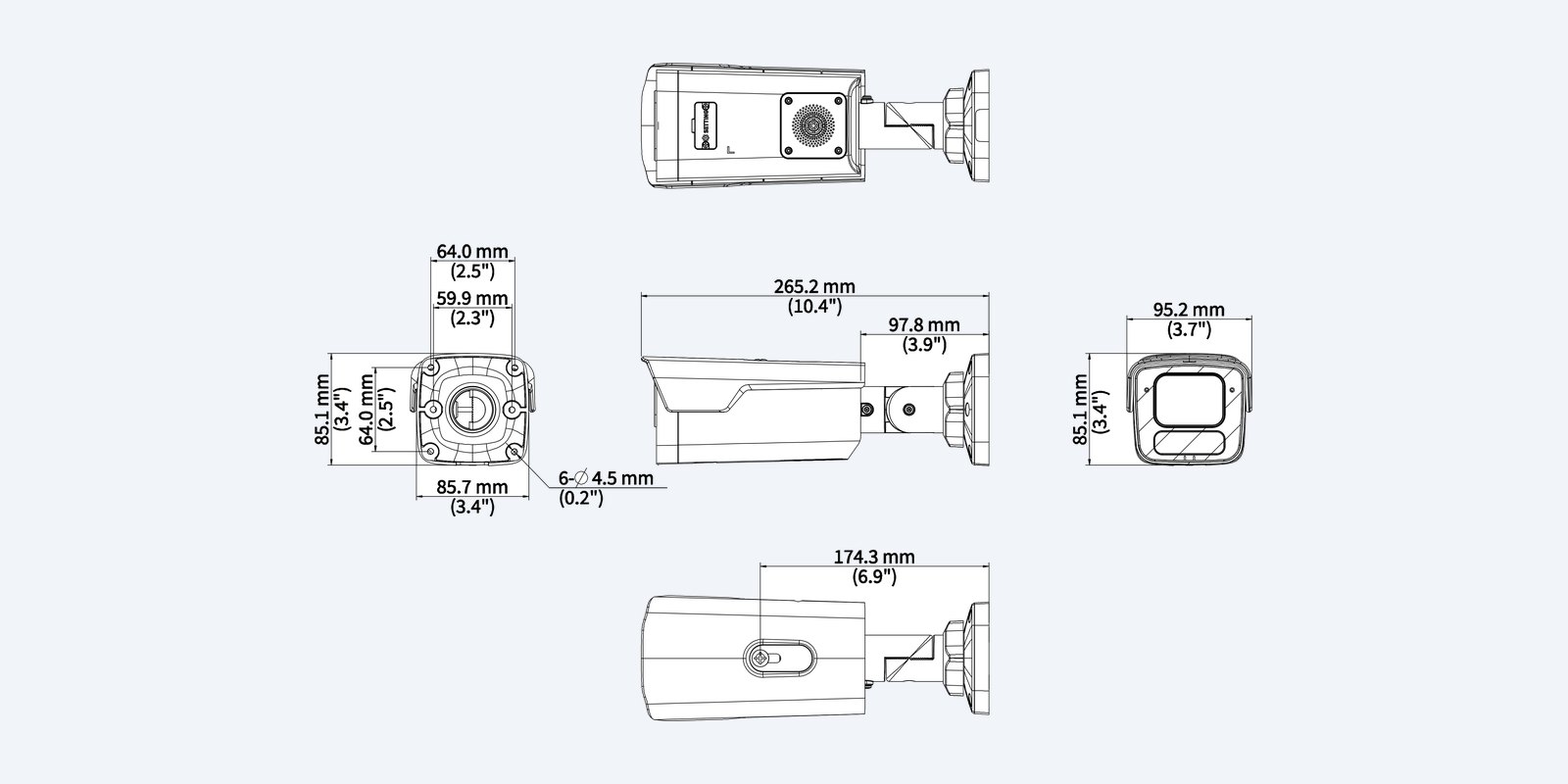

Body 265.2 × 95.2 × 82.9 mm, 0.92 kg. Metal and plastic housing, IP67, IK10 and NEMA 4X for coastal air.
How it goes in
From the box to warning intruders off.
01
Pick the spot
High enough to be out of easy reach (about 2.5–3 m), low enough to see faces, with the area you want to protect fully in view.
02
Fix the bracket
Screw the bracket to the wall or eave, onto the TR-JB07-D-IN junction box to enclose the cable joint, or to a pole with the TR-UP06-B-IN bracket.
03
Plug it in
Run Cat6 to a PoE port on the NVR or a PoE switch, using the waterproof cable parts from the box. The camera powers up from the cable.
04
Draw zones, link the warning
Swing the bracket to frame the view, then draw the lines and zones that should set off the light and siren, and pick people, vehicles or both.
At a glance
IPC2B18SE-ADF28KMC-WP-I1
Show specs
Resolution
8MP 4K (3840 × 2160)
Sensor
1/1.8" CMOS
Lens
2.8 mm fixed, F1.0
View
108.1° across, 59.5° high
Identify / recognise / detect
6.3 / 12.6 / 63.0 m
Low light
0.0005 lux colour (F1.0, ColorHunter)
WDR
130 dB true WDR
Night light
Dual light: IR up to 40 m (850 nm), warm light up to 40 m
Deterrence
Warning light and warning sound from the built-in speaker, linked to smart events
Frame rate
30 fps at 8MP and every lower resolution
Compression
Ultra 265, H.265, H.264, MJPEG; triple streams
Smart detection
Line crossing, intrusion, area entry and exit with person, vehicle and bike classification; people counting; colour search; motion, tampering, audio, object left and removed
Audio
Built-in dual mic and speaker, two-way audio
Alarm and audio connections
1 alarm in, 1 alarm out; 1 audio in, 1 audio out
On-camera storage
microSD up to 512GB; ANR, NAS
ONVIF
ONVIF Profile S, G, T, M
Network
1 × RJ45 10/100
Power
PoE (802.3af) or 12 V DC, max 6.2 W
Weather and impact
IP67, IK10, NEMA 4X, 4 kV surge
Adjustment
Pan 0–360°, tilt 0–90°, rotate 0–360°
Operating
−40 °C to 60 °C, ≤95% RH
Size and weight
265.2 × 95.2 × 82.9 mm, 0.92 kg
Colour
White
Pair it with
What goes with it
Recorder
Uniview PoE NVR
Powers the camera over one Cat6 cable, adds it automatically and lets you search footage by clothing and vehicle colour.
Mounting
TR-JB07-D-IN junction box
A bullet junction box that encloses the cable joint behind the bracket, with wiring from behind, on brick, render or a soffit.
Poles
TR-UP06-B-IN pole bracket
Straps the bullet to a pole for driveways, yards and car parks.
Storage
Surveillance hard drive
A 2, 4 or 6TB surveillance drive in the NVR for weeks of 24/7 recording.
Where it is used
Where the 4K Tri-Guard bullet fits
Driveways
Light and siren when someone walks up to the car at night.
Fence lines and gates
A line-crossing warning along the boundary.
Car yards and depots
Pole mounted with person and vehicle zones.
Building sites
Warn off and talk to after-hours visitors.
Uniview Tri-Guard bullets side by side
| 2B16SE | 2B18SE | 2B16SS | 2B18SS | |
|---|---|---|---|---|
| Range | OwlView Plus | OwlView Plus | Standard | Standard |
| Resolution | 6MP (3072 × 2048) | 8MP 4K (3840 × 2160) | 6MP (3072 × 2048) | 8MP 4K (3840 × 2160) |
| Frame rate at full resolution | 30 fps | 30 fps | 25 fps | 30 fps |
| Sensor | 1/1.8" | 1/1.8" | 1/2.7" | 1/2.8" |
| View across (2.8 mm) | 111.0° | 108.1° | 112.8° | 106.5° |
| Identify / recognise | 4.3 / 8.7 m | 6.3 / 12.6 m | 6.3 / 12.6 m | 8.7 / 17.4 m |
| Colour low light | 0.0003 lux | 0.0005 lux | 0.001 lux | 0.001 lux |
| Warning light | Warning light | Warning light | Red and blue | Red and blue |
| Microphone | Dual mic | Dual mic | Single mic | Single mic |
| IR / warm light | 40 m / 40 m | 40 m / 40 m | 40 m / 40 m | 40 m / 40 m |
| Impact rating | IK10 | IK10 | — | — |
| Max power | 5.0 W | 6.2 W | 10.0 W | 10.0 W |
| Operating | −40 °C to 60 °C | −40 °C to 60 °C | −30 °C to 60 °C | −30 °C to 60 °C |
Model codes shortened from IPC2B1…-ADF28KMC(-WP)-I1. White and black (-BK) versions share the same specifications. All four have a 2.8 mm F1.0 lens, speaker with two-way audio, person and vehicle detection, 130 dB WDR, alarm and audio in/out, microSD up to 512GB, IP67 and PoE (802.3af) or 12 V DC. — means not rated. Figures from the Uniview datasheets.
Common questions
What does Tri-Guard mean?
It is Uniview’s name for three things working together: Smart Intrusion Prevention (the camera tells people and vehicles from other movement), colour video at night, and active deterrence (a light and a speaker that warn an intruder off). The camera does not just record a break-in, it tries to stop one.
What happens when someone walks into my zone?
You draw lines and zones on the picture. When a person or vehicle crosses one, the camera switches on its warning light and sounds a warning through its speaker, and sends an alert to your NVR and phone. Most people leave as soon as they realise they have been seen.
Will cats, trees or headlights set it off?
Far less often than plain motion detection. The camera classifies what it sees as a person, a vehicle or a bike, and ignores most false triggers from leaves, birds and changing light. You choose which targets set off the light and sound.
Can I talk to people through it?
Yes. It has two built-in microphones and a speaker with two-way audio, so you can listen in and speak to a courier, a visitor or an intruder live from the Uniview app or the NVR.
Do I have to use the light and siren?
No. They only go off for the smart events you link them to, and you can schedule them, for example after hours only. Leave them off and it works as a normal camera with smart alerts.
Will it work with my recorder?
Uniview NVRs find it on their PoE ports and add it automatically, with the smart events and the light and siren settings. Other recorders that support ONVIF Profile S, G, T or M can record it too, although smart events and deterrence controls may only work fully on Uniview.
Can it record without an NVR?
Yes. Fit a microSD card of up to 512GB and it records on the camera. With an NVR, the card also covers network drop-outs: ANR sends the missed footage to the recorder when the link returns.
How is it powered?
By PoE (IEEE 802.3af) over the same Cat6 cable as the video, from a PoE NVR or switch, or from a 12 V DC supply. It draws 6.2 W at most, even with the lights and speaker running.
Can I find footage quickly?
Yes. Smart Intrusion Prevention records the colour of clothing and vehicles it detects, so on a Uniview NVR you can search for, say, a person in a red top or a white car instead of scrubbing through hours of video.
What is the warranty?
Uniview 3-year manufacturer warranty, handled in Australia through InFront. Contact us first and we will organise any claim.
What resolution and frame rate does it record?
8MP 4K (3840 × 2160) at a full 30 fps, with 5MP, 4MP and 1080p options. The 2.8 mm lens covers 108.1° across.
Is there a black version?
Yes. The IPC2B18SE-ADF28KMC-WP-I1-BK is the same camera in a black housing for dark eaves, fascias and shopfronts.
Supported by Infront Technologies.
Not sure which Tri-Guard suits each spot? Call 1300 736 970 or email [email protected] with a photo of the area and we will suggest the model, lens and mount.
Installation and safety
Power. PoE (IEEE 802.3af) or 12 V DC ±25%, 6.2 W maximum. Use one or the other.
Weather. IP67, IK10, NEMA 4X with 4 kV surge protection. Works from −40 °C to 60 °C. Seal the cable entry with the supplied parts, or use the TR-JB07-D-IN junction box where the joint would be exposed.
Figures. From the Uniview IPC2B18SE-ADF28KMC-WP-I1 datasheet (2.8 mm figures where a 4 mm version is also listed). Uniview 3-year manufacturer warranty, handled in Australia through InFront.
- Dimensions
- 265.2 × 95.2 × 82.9 mm
- Audio
- Built-in dual mic and speaker, two-way audio
- Weight
- 0.92 kg
- Operating temperature
- −40 °C to 60 °C, ≤95% RH
- Power
- PoE (802.3af) or 12 V DC, max 6.2 W
- Colour
- White
- Video Compression
- Ultra 265, H.265, H.264, MJPEG; triple streams
- Resolution
- 8MP 4K (3840 × 2160)
- Brand
- Uniview
- Frame Rate
- 30 fps at 8MP and every lower resolution
- Interoperability
- ONVIF Profile S, G, T, M
- Image Sensor
- 1/1.8" CMOS
- Lens
- 2.8 mm fixed, F1.0
- Minimum Illumination
- 0.0005 lux colour (F1.0, ColorHunter)
- Field of View
- 108.1° across, 59.5° high
- Protection
- IP67, IK10, NEMA 4X, 4 kV surge
- WDR
- 130 dB true WDR
- Active Deterrence
- Warning light and warning sound from the built-in speaker, linked to smart events
- Warranty
- 3 years
- Product Type
- Active Deterrence Bullet IP Camera
- Onboard Storage
- microSD up to 512GB; ANR, NAS
- Model
- IPC2B18SE-ADF28KMC-WP-I1
- Smart detection
- Line crossing, intrusion, area entry and exit with person, vehicle and bike classification; people counting; colour search; motion, tampering, audio, object left and removed
- Night Vision
- Dual light: IR up to 40 m (850 nm), warm light up to 40 m
