VIP Vision Residential 2MP HD 4 Button IP Intercom Door Station - INTIPDDS4W

Name: VIP Vision Residential 2MP HD 4 Button IP Intercom Door Station - INTIPDDS4W
Brand: VIP Vision
SKU: INTIPDDS4W
Price: 315 AUD
Availability: InStock

Reference INTIPDDS4W

In Stock - Ready to Ship

$ 315.00

inc-GST

• 1/2.8’’ 2.0MP 1.9mm lens camera with 125° FOV
• Built-in microphone and speaker for 2-way talk
• Built-in NFC card reader for keycard access (up to 10,000 NFC cards)
• Connect with intercom monitor(s) via Ethernet
• Door control, alarm and RS485 input/output relays
• Customise number of buttons to your needs; 1, 2 or 4 buttons
• Intuitive, easy-to-use interface
• Weather and vandal resistant IP65/IK08 aluminium body
• Power over Ethernet (12VDC, 802.3af)

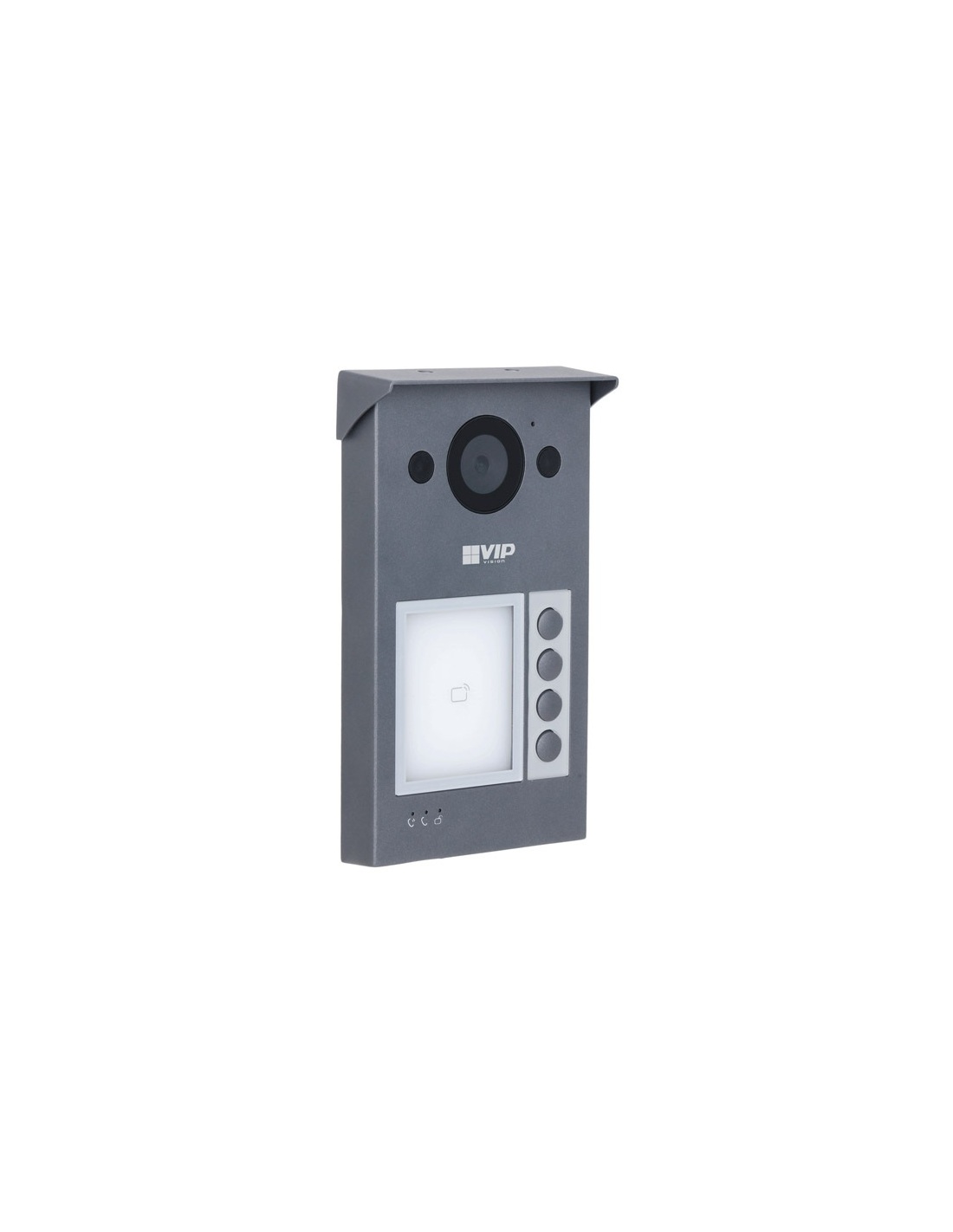

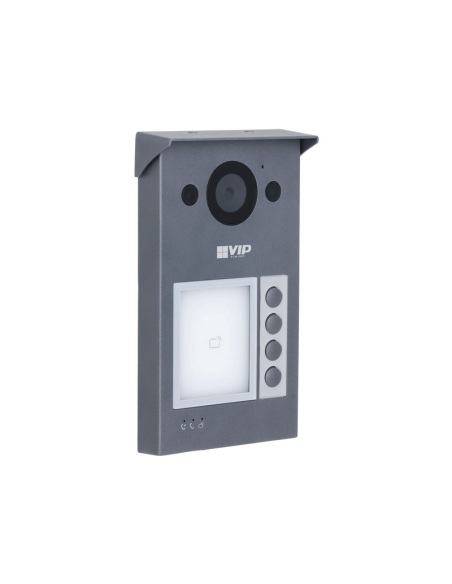

• Includes a rain cover

* We recommended that Door Stations are mounted in a sheltered locati

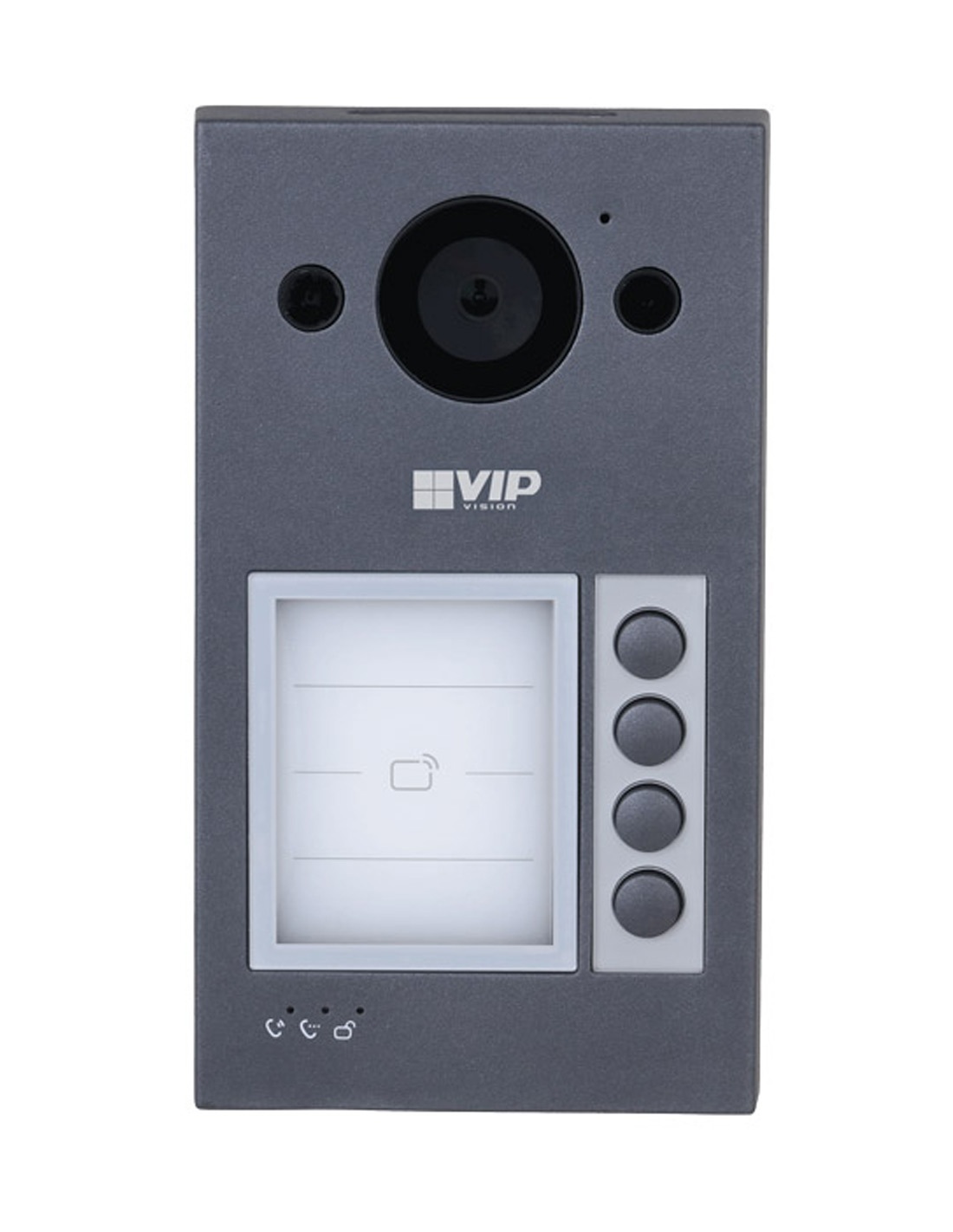

VIP Vision INTIPDDS4W 4-Button IP Intercom Door Station

Part of the Residential IP Intercom Series

VIP Vision INTIPDDS4W 4-Button IP Intercom

Enhance your home's security and communication with the VIP Vision INTIPDDS4W, a sleek 4-button IP intercom door station designed for multi-room and multi-occupant residences. With crystal-clear video, remote mobile access, and weather-resistant housing, this intercom station provides reliable, modern entry management for homes, apartments, and small businesses.

Key Features & Benefits

4 x Call Buttons — Ideal for multi-dwelling homes, apartments, or dual-occupancy properties.
High-Definition Camera — Provides crisp, clear video for secure visitor verification.
Remote Access — Answer calls, view video, and unlock doors via compatible mobile apps.
Durable Aluminium Housing — Sleek design with weather and tamper resistance.
Night Vision LEDs — Enhanced visibility for secure operation in low-light conditions.
IP-Based System — Integrates seamlessly with VIP Vision IP monitors and systems.
PoE Support — Single cable installation for both power and network connectivity.
Wide Viewing Angle — Broad field of view for comprehensive doorstep coverage.

Streamlined access control for modern homes.
Perfect for residences with multiple units, offering secure, convenient communication and visitor management at your doorstep.

Real‑World Applications

Multi-Occupancy Homes — Provide each resident with dedicated call functionality and access.

Apartment Complexes — Secure entry points with video verification for multiple tenants.

Dual-Occupancy or Granny Flats — Independent call buttons for separate living areas.

Small Businesses — Reliable intercom communication for front-door visitor management.

Quick Specs

Buttons	4 x Illuminated Call Buttons
Camera Resolution	High-Definition Video Output
Viewing Angle	Wide-Angle Lens Coverage
Night Vision	IR LEDs for Low-Light Operation
Housing	Weather-Resistant Aluminium
Integration	VIP Vision IP Intercom Compatible
Connectivity	Ethernet with PoE Support
Mobile Access	Remote View, Talk, Unlock via App

Simplify visitor access with the INTIPDDS4W — offering secure, stylish, and convenient intercom control for multi-resident homes and apartments, backed by trusted VIP Vision reliability.

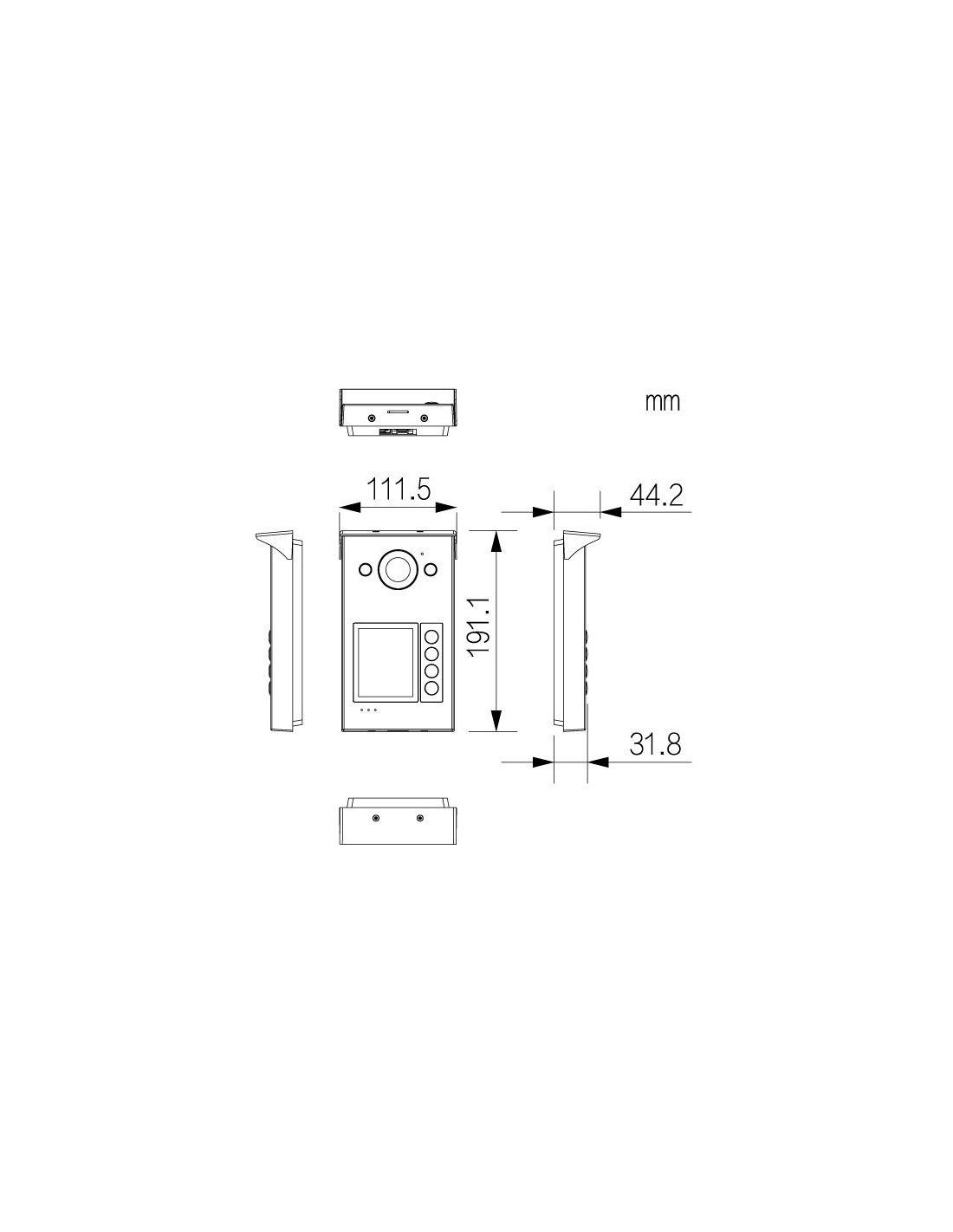

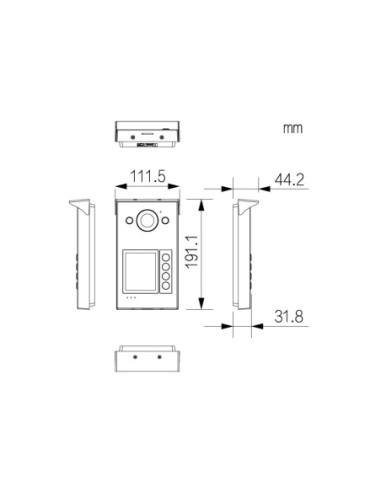

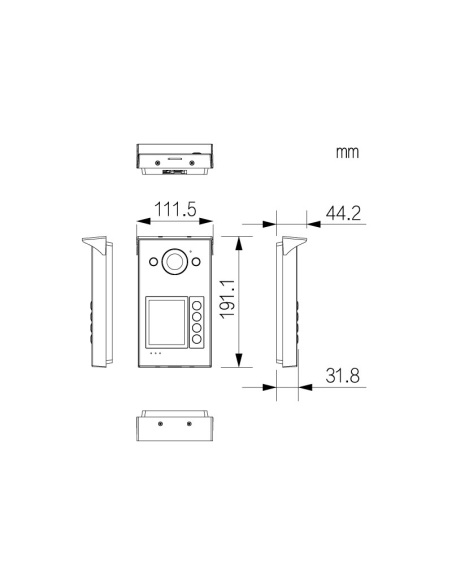

Dimensions: 182 x 107 x 30mm
Main Processor: Embedded Microprocessor
Power input: 12VDC, PoE (802.3af)
Ingress Protection: IP65
Keypad: 4 Mechanical Buttons
Weight: 0.81kg
Power Consumption: Standby < 3W / Operation < 6 W
App Connection: QR Code
Button Illumination: None
Camera System: 1/2.8’’ 2.0 Megapixel CMOS with 1.9mm lens (Horizontal FoV: 125°)
Card Support: Built-in NFC Card Reader, Supports up to 10,000 13.56MHz NFC cards
Max. Indoor Monitors: 44 (11 per button)
Category: Intercom Systems
Audio / 2-Way Talk: Omni-directional Microphone & Embedded Loudspeaker for 2-way talk
Ethernet / Network: 10M/100Mbps Self-adaptive / TCP/IP protocol
Input / Output: 1 x relay for door control / 2 x channel alarm interface / 1 x RS485
Internal MicroSD Slot: 256 GB
Low-Light Application: Day/Night ICR
