VIP Vision Adapter / Junction Box for Surveillance Cameras - VSBKTA136
$18.90 inc GST
VIP Vision VSBKTA136: a round white aluminium junction box that holds the cable joints behind VIP Vision vandal domes and fisheye cameras.
- ✓Fits VSIPP-4, 6 and 8DIRD-I3 domes, VSIPP-4DIRF-I2, VSIPFE-5IR-I
- ✓Ø110 × 34 mm, 0.18 kg, weather resistant
- ✓M20 side entry for conduit
- ✓1 kg load rating, −40 °C to 60 °C
- ✓Pole or corner with the VSBKTA152E or VSBKTA151
- ✓2-year warranty
Description
VIP Vision · Mounting accessory · Junction box
A round junction box
for VIP Vision vandal domes and fisheyes.
The VIP Vision VSBKTA136 is a white aluminium junction box, 110 mm across and 34 mm deep. It sits behind a dome or fisheye camera, holds the cable joints and doubles as the adapter onto a pole or corner mount.
In one sentence: the VIP Vision VSBKTA136 is a weather resistant aluminium junction box, Ø110 × 34 mm with an M20 side entry and a 1 kg load rating, listed by VIP Vision for its -DIRD-I3 vandal domes, VSIPP-4DIRF-I2 wedge dome and VSIPFE-5IR-I fisheye.
Junction box only. The camera is separate.
This listing is the VSBKTA136 junction box. The camera, cable and any pole or corner mount are sold separately. Check your camera model against VIP Vision's list below.
In the box
- VSBKTA136 junction box
You also need
- A compatible VIP Vision camera (list below)
- Fixings to suit your wall or ceiling
- A conduit fitting for the side entry if the cable runs on the surface
- VSBKTA152E pole mount or VSBKTA151 corner mount if it goes on a pole or corner
Room for the joints behind the camera.
A dome camera has little space behind it for the network plug and power lead. The VSBKTA136 adds 34 mm of depth, so the joints sit inside the box instead of in the wall or out in the weather, and the camera screws onto its face. Surface cable or conduit comes in through a side entry.
Cable entries
Capped side entries for conduit.

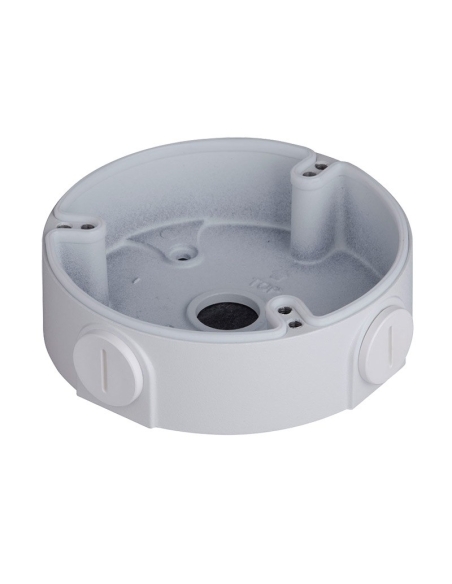

The side entries take an M20 conduit fitting; the one you don't use stays capped. A centre hole takes cable straight out of the wall. Close-up from VIP Vision's product photo.
Fitted
The dome screws onto the face.

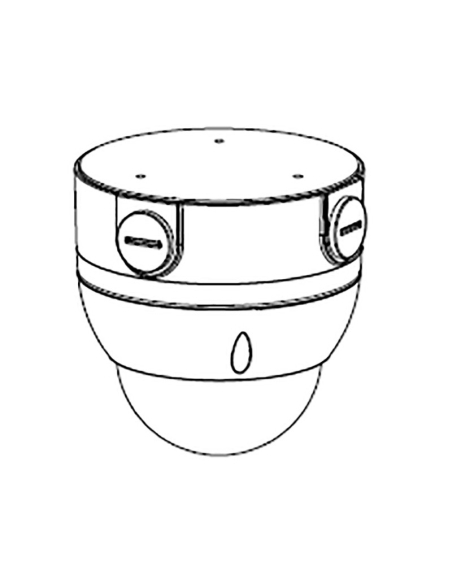

VIP Vision's drawing of a dome fitted to the VSBKTA136: the box sits between the camera and the wall or mount, the same diameter as the camera base.
How it goes in
From wall to mounted dome.
01
Check the camera
Confirm your camera is on VIP Vision's list for the VSBKTA136 below, or send us the model to check.
02
Fix the box
Fix the box to the wall, ceiling, VSBKTA152E pole mount or VSBKTA151 corner mount through its 4.2 mm holes, with the TOP mark facing up.
03
Bring the cable in
Run the cable in through the centre hole or a side entry with an M20 conduit fitting, and keep the other entry capped.
04
Mount the camera
Make the connections inside the box, then screw the camera base onto the face with M4 screws and aim it.
At a glance
VSBKTA136
Show specs
Type
Adapter / junction box for dome and fisheye cameras
Fits (VIP Vision 2025 guide)
VSIPP-4DIRD-I3, VSIPP-6DIRD-I3, VSIPP-8DIRD-I3, VSIPP-4DIRF-I2, VSIPFE-5IR-I
Material
Aluminium
Dimensions
Ø110 × 34 mm (drawing: 33.5 mm deep, 114.5 mm across the side entries)
Pipe thread
M20; the spec table prints G1 1/2, while VIP Vision's drawing and product page give G1/2
Holes (drawing)
Two sets of 3 × M4 at 120°, 3 × Ø4.2 mm fixing holes; circles of Ø70, Ø84, Ø98 and Ø110 mm
Load rating
1.00 kg
Weight
0.18 kg
Weather resistance
Yes
Operating range
−40 °C to 60 °C, humidity 90% or less
Pole and corner
VSBKTA152E pole mount or VSBKTA151 corner mount (VIP Vision guides)
Colour
White
Warranty
2 years (VIP Vision)

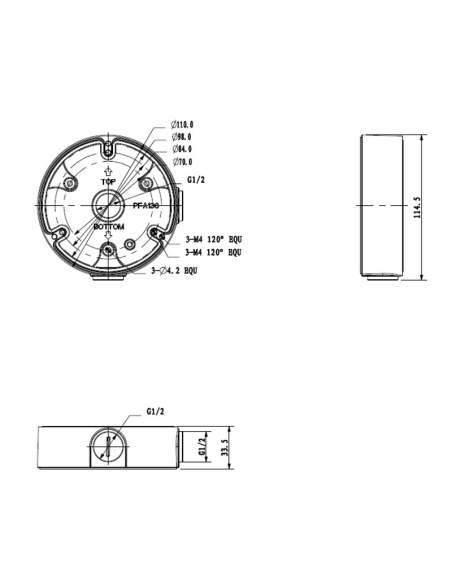

VIP Vision dimension drawing, mm.
Works with
Cameras VIP Vision lists for this box
From VIP Vision's 2021, 2023 and 2025 Accessory Compatibility Guides and the VSBKTA136 brochure. Some are older models we no longer sell. Not on the list? Send us your camera model and we will confirm the fit.
Model numbers
VSIPP-4DIRD-I3, VSIPP-6DIRD-I3, VSIPP-8DIRD-I3
Fixed vandal domes (2025 guide)
VSIPP-4DIRF-I2
4MP wedge dome (2025 guide)
VSIPFE-5IR-I
5MP fisheye (2021, 2023 and 2025 guides)
VSIPP-4DIRD-I2, VSIPP-6DIRD-I2, VSIPP-8DIRD-I2
Fixed vandal domes (2023 guide)
VSIPP-4DIRD-I, VSIPP-8DIRD-I
Vandal domes (2021 and 2023 guides)
VSIPC-4DIRD, VSIPC-4DIRD2, VSIPC-8DIRD
Compact vandal domes (2021 and 2023 guides)
VSIPW-3VDIR
Wireless vandal dome (2021 guide)
VSCVI-5DIR2.8D, VSCVI4MPFE
HD over coax dome and fisheye (2021 and 2023 guides)
VSIP4MPVDMINIIRC series, VSIP2MPVDMINIIRC3.6, VSCVI2MPVDIR
Older models (VSBKTA136 brochure)
Pair it with
What this junction box works with
Camera
VSIPP-8DIRD-I3 vandal dome
One of the fixed vandal domes VIP Vision's 2025 guide lists for this box, along with the 4MP and 6MP -DIRD-I3.
Fisheye
VSIPFE-5IR-I
VIP Vision's 5MP fisheye is listed for the VSBKTA136 in all three guides.
Pole
VSBKTA152E pole mount
Clamps the box to a pole, as shown in VIP Vision's guide. The VSBKTA151 corner mount is the option for a building corner.
Turrets
VSBKTA137 junction box
The larger round box, 122 mm across, that VIP Vision lists for its turrets and motorised domes.
Where it is used
Where a dome junction box fits.
Brick and block walls
Where the cable can't be hidden in the wall, the joints sit in the box instead.
Shopfronts and entries
A vandal dome over the door, with the connectors out of reach and out of the rain.
Car parks
Domes on poles and columns with the VSBKTA152E pole mount.
Building corners
With the VSBKTA151 corner mount, a dome watching two walls at once.
Retail floors
Fisheye cameras on a ceiling where the cable runs on the surface in conduit.
Schools and offices
Corridors and entries where surface conduit is the only way in.
VSBKTA136 or VSBKTA137
| VSBKTA136 (this box) | VSBKTA137 | |
|---|---|---|
| Size | Ø110 × 34 mm | Ø122 × 34 mm |
| Made for (2025 guide) | -DIRD-I3 vandal domes, VSIPP-4DIRF-I2, VSIPFE-5IR-I | Turrets, -DIRMD-I3 motorised domes, VSIPFE-6IR-I |
| Load rating | 1 kg | 1 kg |
| Weight | 0.18 kg | 0.18 kg |
| Side entry | M20 | M20 (G1/2) |
| Weather resistance | Yes | Yes |
| Warranty | 2 years | 2 years |
Figures from VIP Vision's VSBKTA136 and VSBKTA137 brochures and product pages and the 2025 Accessory Compatibility Guide. Pick the box by camera model.
Common questions
Which cameras fit the VSBKTA136?
VIP Vision's 2025 guide lists the VSIPP-4DIRD-I3, VSIPP-6DIRD-I3, VSIPP-8DIRD-I3, VSIPP-4DIRF-I2 and VSIPFE-5IR-I. Older models are in the list above; for any other camera, ask us.
How big is it?
Ø110 × 34 mm and 0.18 kg, according to VIP Vision.
What size is the side entry?
M20, which takes a standard 20 mm conduit fitting. VIP Vision's spec table prints G1 1/2, but its drawing and product page give G1/2.
Is it weatherproof?
VIP Vision lists it as weather resistant. Keep the unused side entry capped and seal the conduit fitting.
Is a camera included?
No. This listing is the junction box only.
Can I put it on a pole?
Yes, with the VSBKTA152E pole mount, or on a building corner with the VSBKTA151 corner mount, as shown in VIP Vision's guides.
How much weight will it hold?
1.00 kg. Check your camera's weight on its own datasheet.
Does it fit VIP Vision turrets?
VIP Vision lists the larger VSBKTA137 for its turrets and motorised domes. The VSBKTA136 is listed for the -DIRD-I3 fixed vandal domes, the wedge dome and the 5MP fisheye.
What screws hold the camera?
M4 screws into the holes on the face, per VIP Vision's drawing. The box fixes to the wall or mount through 4.2 mm holes.
What is it made of?
Aluminium, finished in white.
What temperatures does it handle?
−40 °C to 60 °C at up to 90% humidity, according to VIP Vision.
What warranty does it have?
2 years, according to VIP Vision, with warranty service through InFront Technologies.
Supported by InFront Technologies.
Not sure this box suits your camera? Call 1300 736 970 or email [email protected]. The VIP Vision brochure is on the Attachments tab.
Installation and safety
Mechanical part only. The VSBKTA136 holds the camera and its joints. It carries no power or data itself; follow the camera's guide for its connections.
Load. Rated for 1.00 kg. Check the camera weight before you mount it.
Weather. Keep the unused side entry capped and seal any conduit fitting so water can't track into the box.
Working at height. Use a stable ladder or platform and fixings rated for the surface.
Cabling. Data cabling to the camera is customer cabling under AS/CA S009 and needs an ACMA-registered cabler. A new power point needs a licensed electrician.
Figures. From VIP Vision's VSBKTA136 brochure and drawing, its product page and the 2021, 2023 and 2025 Accessory Compatibility Guides.
- Dimensions
- 110mm x 110mm x 34mm
- Operating Conditions
- -40° ~ 60°C / 90% RH (max)
- Weight
- 0.18kg
- Weather Resistance
- Yes
- Materials
- Aluminium
- Bracket Type
- Junction Box
- Load Bearing Capacity
- 1.00kg
- Pipe Thread
- M20(G1/2”)
