VIP Vision 1500mm Ceiling Mount Dome Camera VSBKTB2212C
VIP Vision 1500mm Ceiling Mount Dome Camera VSBKTB2212C
VIP Vision 1500mm Ceiling Mount Dome Camera VSBKTB2212C
VIP Vision 1500mm Ceiling Mount Dome Camera VSBKTB2212C

VIP Vision 1500mm Ceiling Mount Dome Camera Bracket - VSBKTB2212C

VSBKTB2212C
In Stock - Ready to Ship
$ 31.95
inc-GST
  • Compatible with most small dome cameras (including VIP Vision & Securview)
  • Straight ceiling-drop bracket, adjustable from 850 mm to 1500 mm
  • Load bearing capacity: 1.0 kg
  • Aluminium and SECC steel construction
  • Operating range: –40 °C to 60 °C, up to 90% humidity
  • Base diameter: Ø 155 mm; adjustable length 850–1500 mm
  • Weight: approx. 0.75 kg
  • Warranty: 4 years
  • RoHS certified

Various Payment Types at Checkout.

All Payment Options are available at Checkout: Visa/MC/Amex, Zip, Afterpay, Paypal and Bank Dep



VIP Vision VSBKTB2212C | 1500mm Ceiling Mount Dome Bracket • Adjustable 850–1500mm • Aluminium Alloy

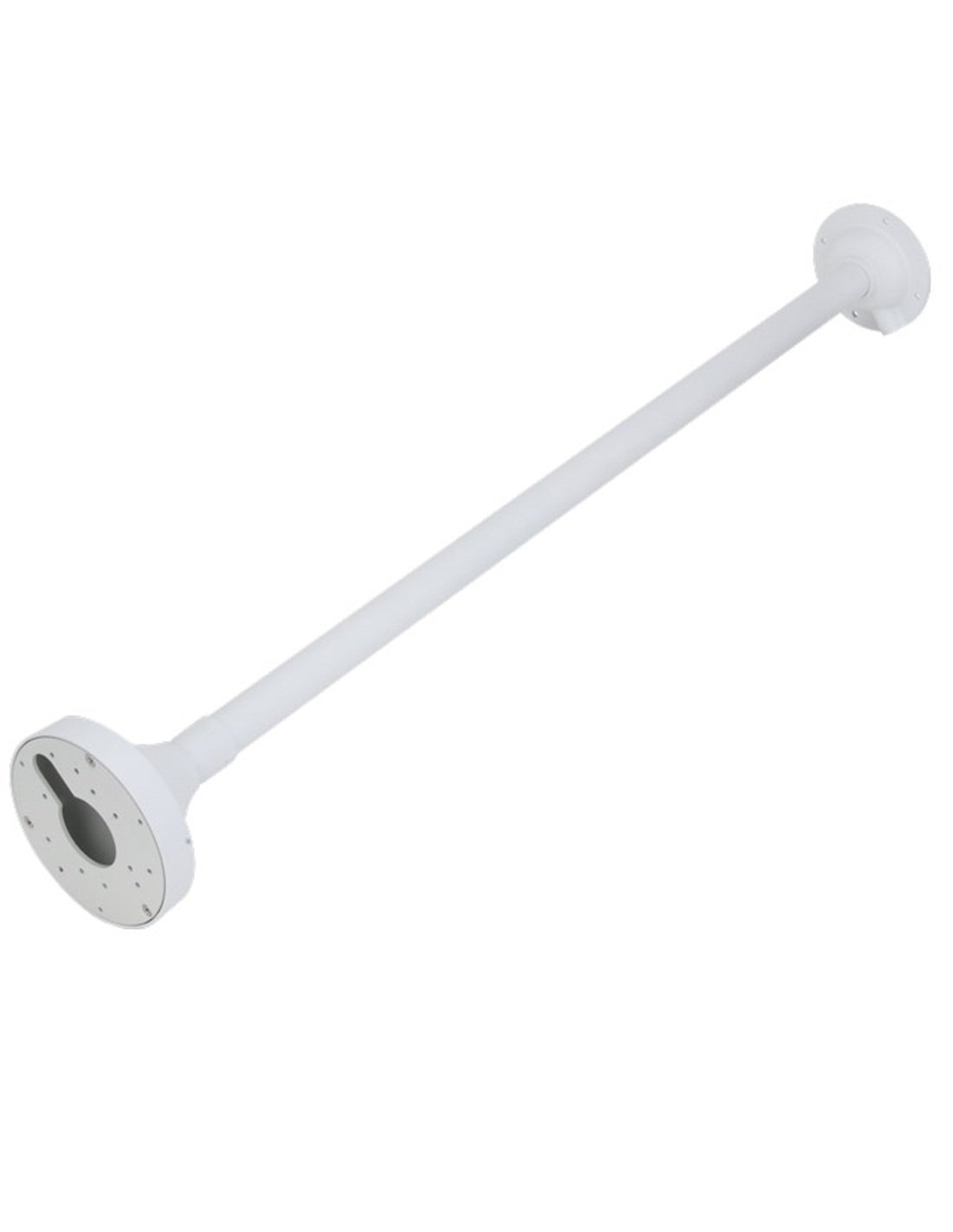

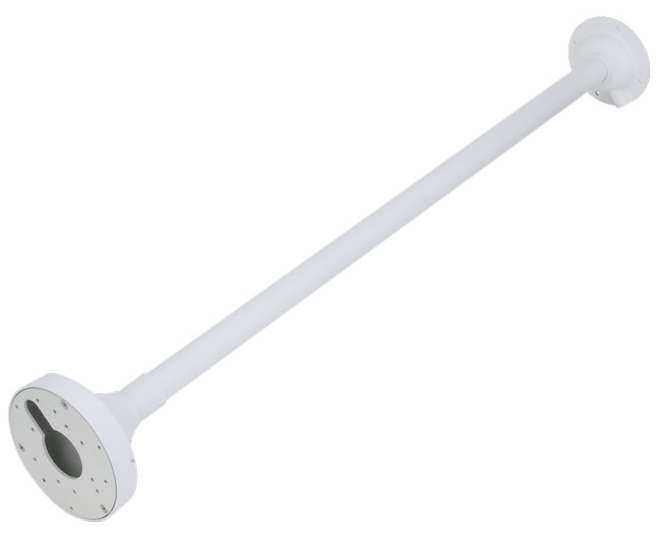

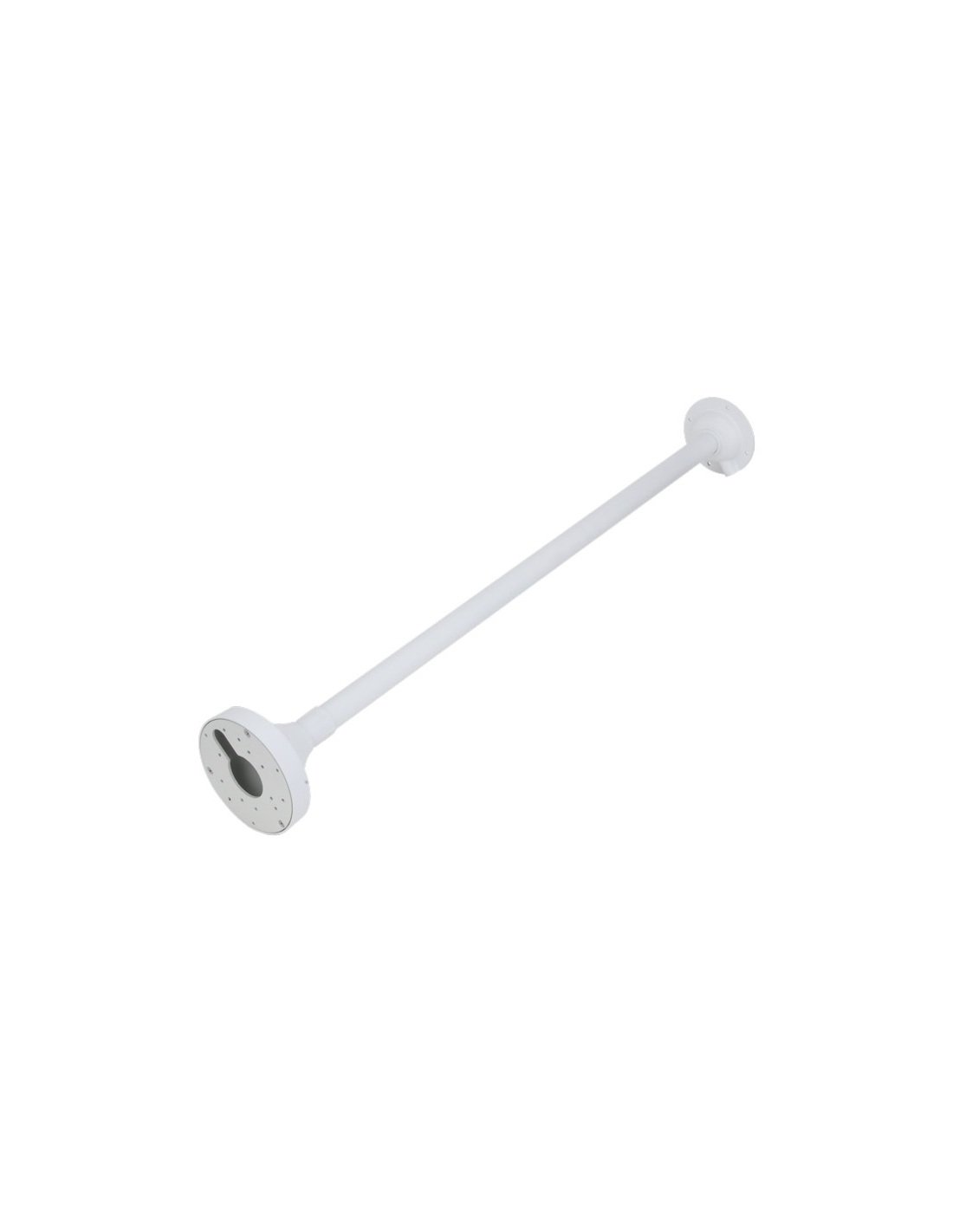

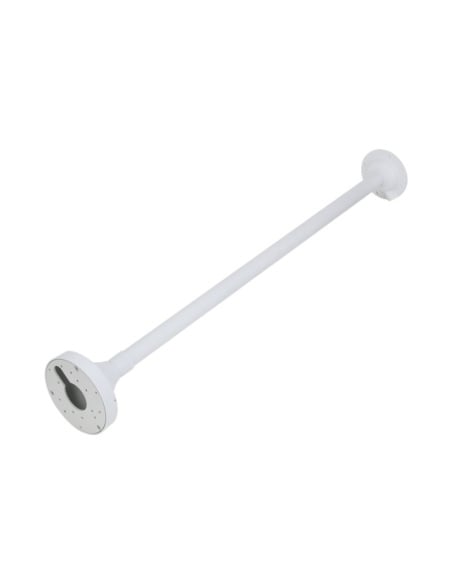

VIP Vision VSBKTB2212C 1500mm Ceiling Mount Dome Bracket (White)

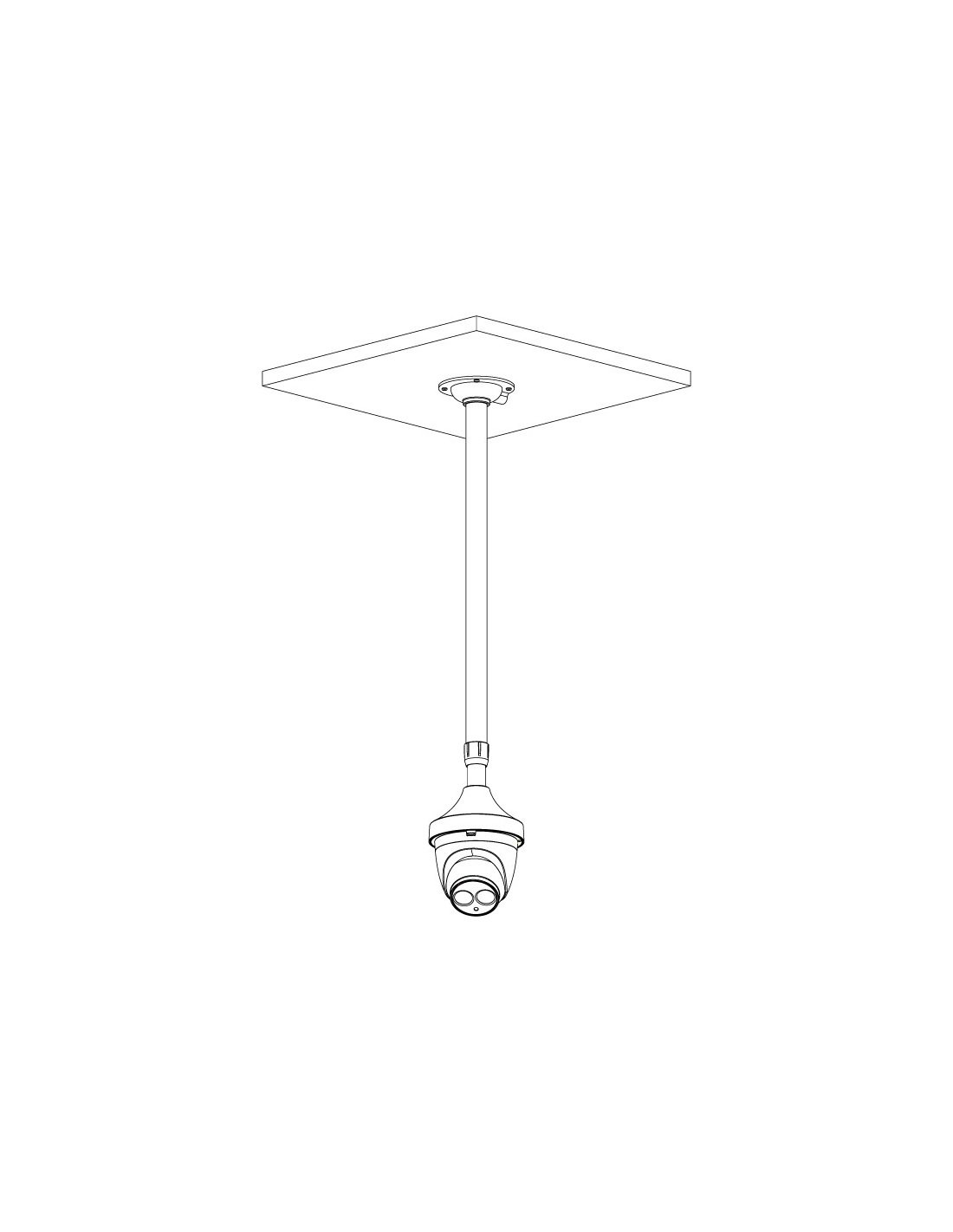

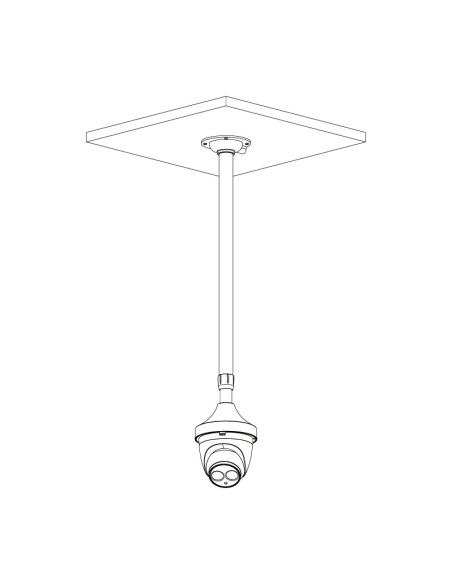

The VIP Vision VSBKTB2212C is a telescopic ceiling‑mount dome camera bracket for high ceilings and open spaces. It supports most small domes from VIP Vision & Securview and extends from 850 mm to 1500 mm to achieve ideal sightlines past beams, signage and other obstructions.

Key Features & Benefits

  • Extended drop length — Telescopes from 850–1500 mm to clear bulkheads & fittings
  • Compatible with small domes — Designed for VIP Vision & Securview compact domes
  • Aluminium alloy + SECC — Durable, lightweight construction with white finish
  • Internal cable management — Conceals wiring for tidy, professional installs
  • 1.0 kg load rating — Suits compact dome cameras and accessories
  • Installer‑friendly — Straight pendant design for fast, consistent mounting

Ideal Applications

  • Retail atriums, foyers & showrooms with high ceilings
  • Warehouses, gyms & factories needing lower dome placement
  • Schools, halls & community spaces with overhead obstructions
  • Any site requiring neat, extended pendant mounting

Specifications at a Glance

  • Model: VSBKTB2212C
  • Type: Ceiling‑mount dome bracket (telescopic pendant)
  • Length: 850–1500 mm (adjustable)
  • Materials: Aluminium alloy & SECC
  • Finish: White
  • Load Capacity: 1.0 kg

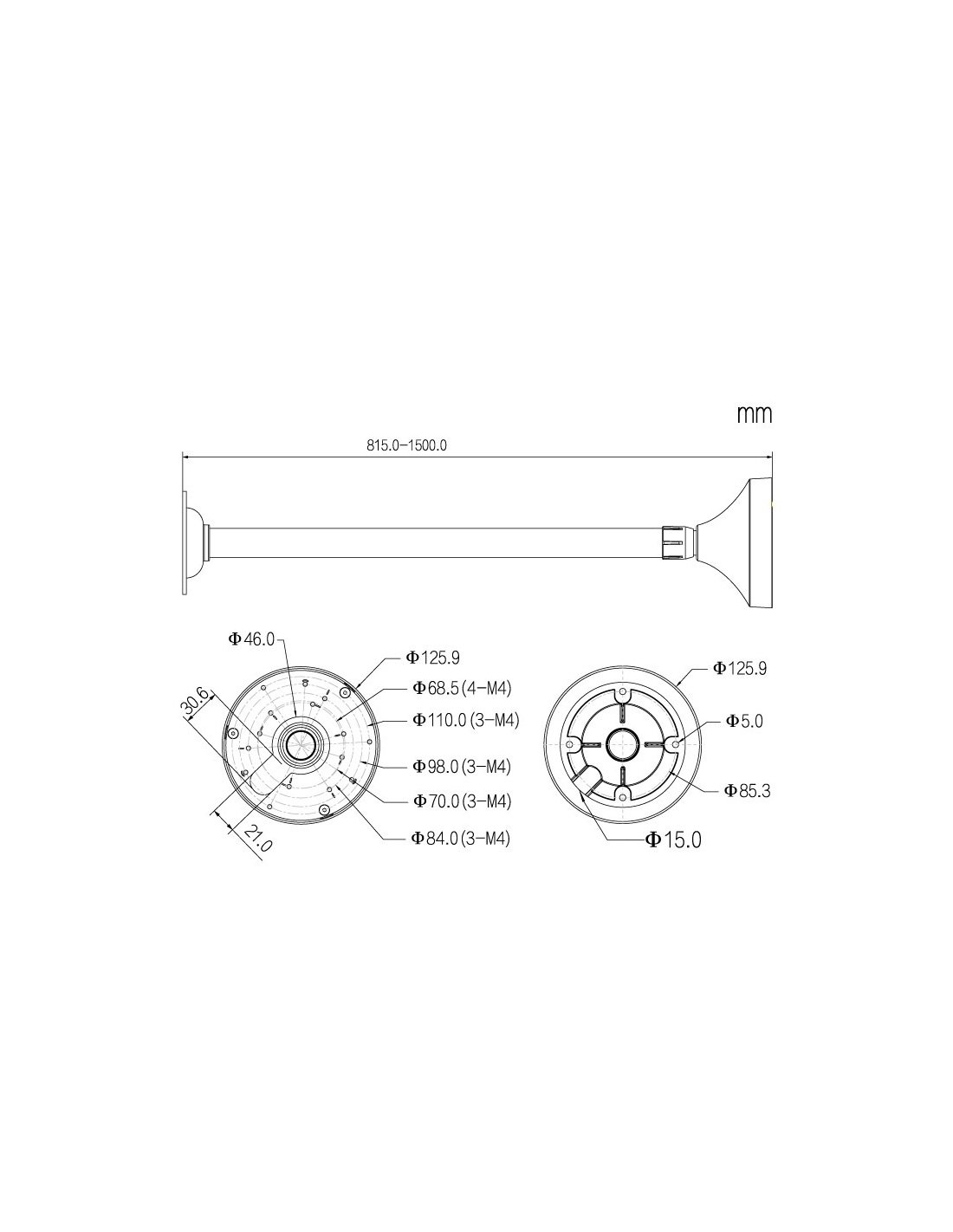

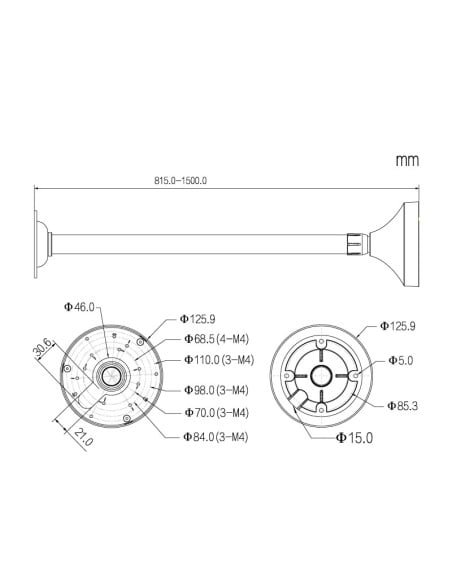

  • Dimensions: Ø155 mm base × 850 mm / 1500 mm (extended)
  • Weight: 0.75 kg
  • Cable Management: Internal, concealed wiring
  • Operating Conditions: −40 °C to +60 °C; ≤90% RH
  • Pipe Thread: N/A
  • Weather Resistance: N/A (indoor use recommended)
  • Compatibility: Most small domes from VIP Vision & Securview
  • Warranty: 4 Years

Extra reach for high ceilings. Achieve perfect angles and tidy cable runs with the VSBKTB2212C 1500 mm ceiling bracket.

Dimensions
22(W) x 41(D) x 27(H) mm
Operating Conditions
-30° ~ +60° C / Less than 95% RH
Weight
0.16kg
Weather Resistance
IP65 (silicone sealant required)
Materials
SPCC quality cold rolled steel, powder coated
Bracket Type
Connector
Load Bearing Capacity
N/A
Pipe Thread
1½” PF
